P80-AQF-G Series Monoblock Directional Valve: Wholesale & OEM

Método de control:Manual

Carrete:6 carretes

Flujo Nominal:80 l/min (21,2 gal EE. UU./min)

Presión Máxima:250 bar (3600 psi)

Puerto de Entrada:G3/4

Puerto de Salida:G3/4

Tamaño de Puerto:G1/2

Marca:BXHS

Tipo de producto:Válvula Direccional Monobloque

Serie de productos:Serie P80 Válvula Direccional Monobloque

Tamaño del embalaje:26*36*11

Peso bruto:18.60 kg

Disponibilidad: En stock

1047 personas están viendo este producto

P80-AQF-G Series Monoblock Directional Valve: Wholesale & OEM

P80-AQF-G Series Monoblock Directional Valve: Wholesale & OEM

P80-AQF-G Series Monoblock Directional Valve: Wholesale & OEM drawing image

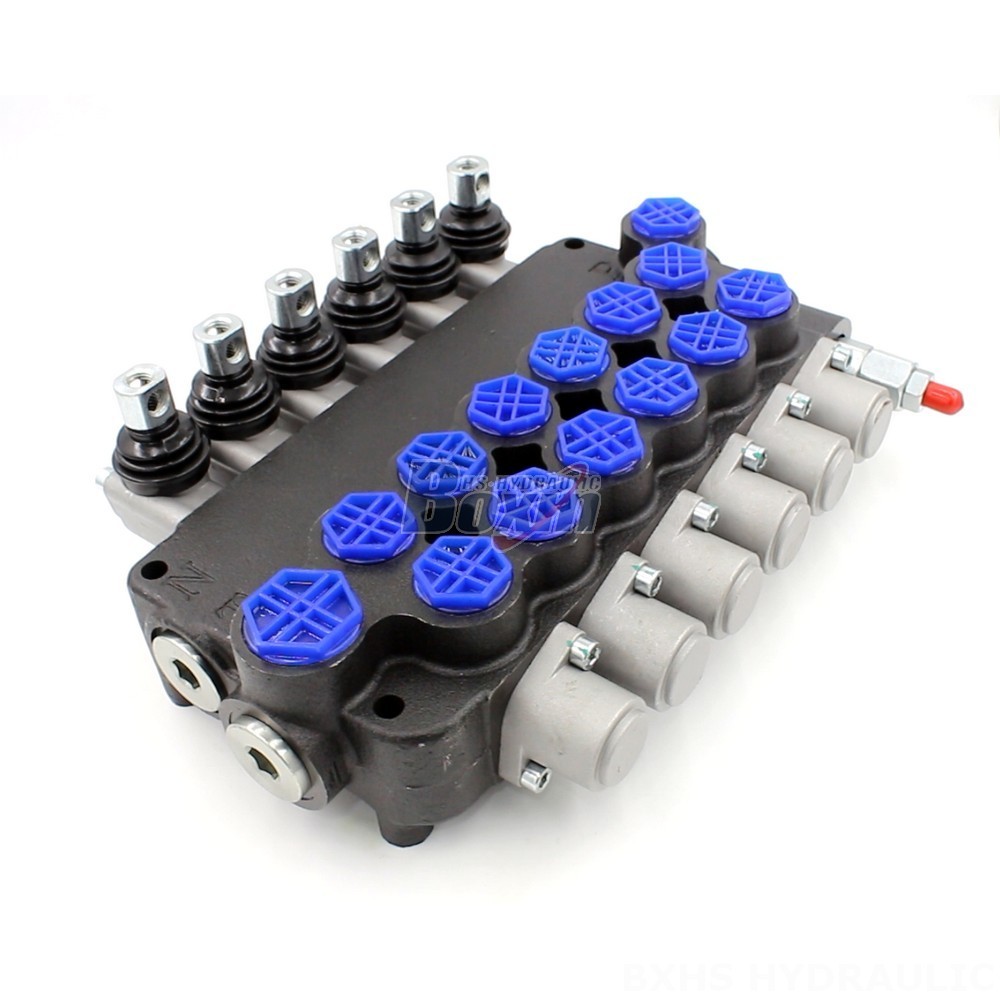

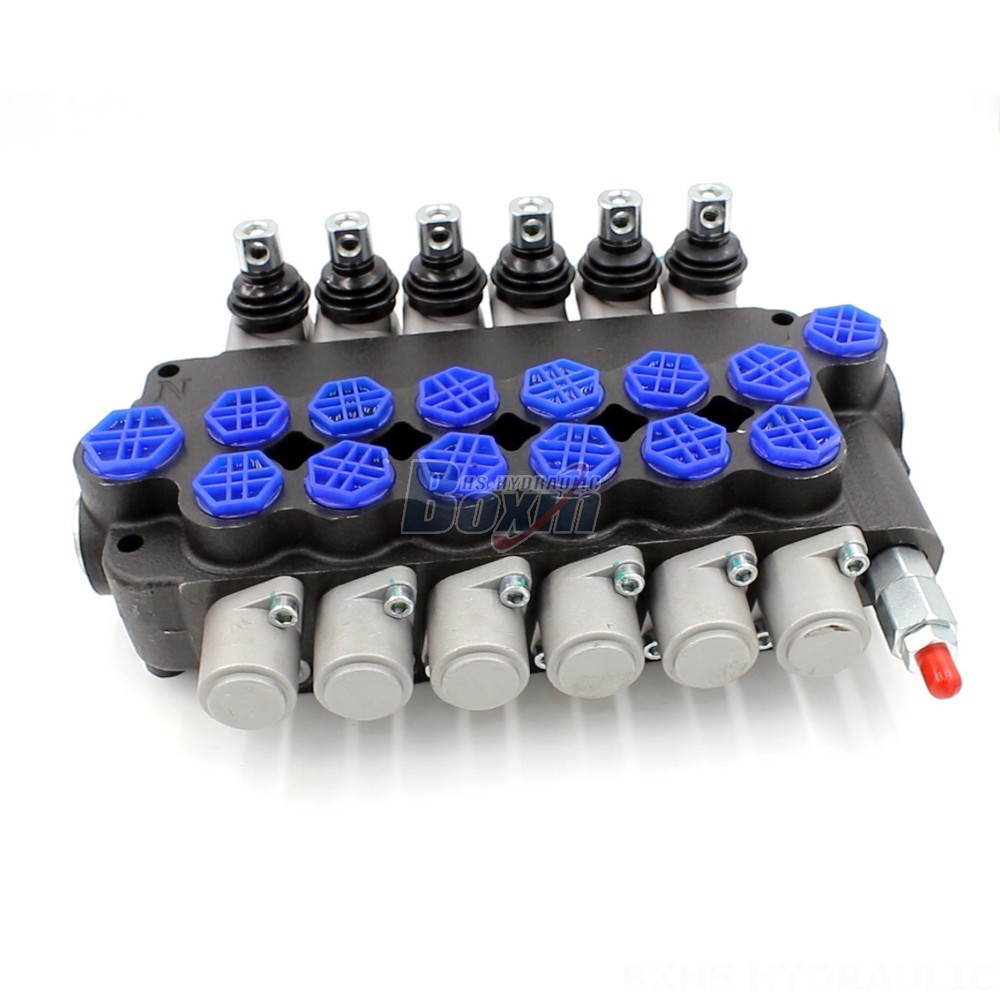

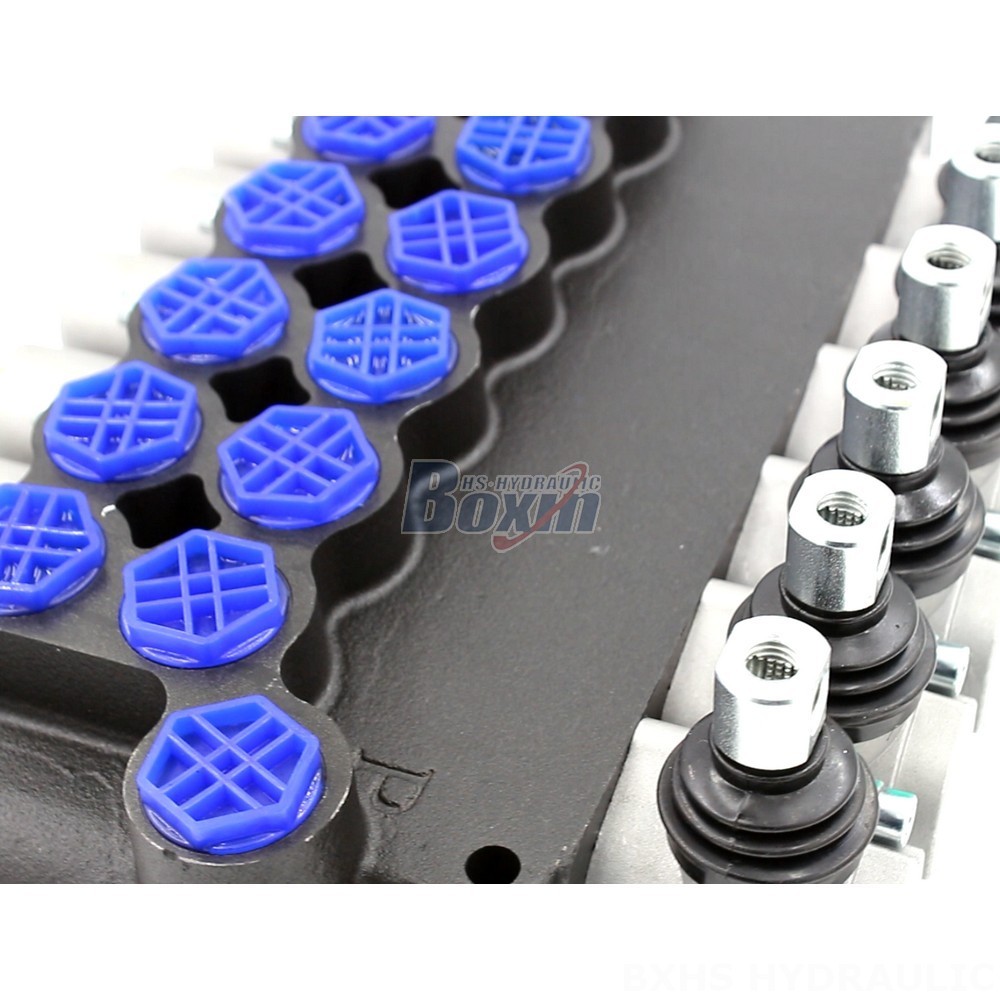

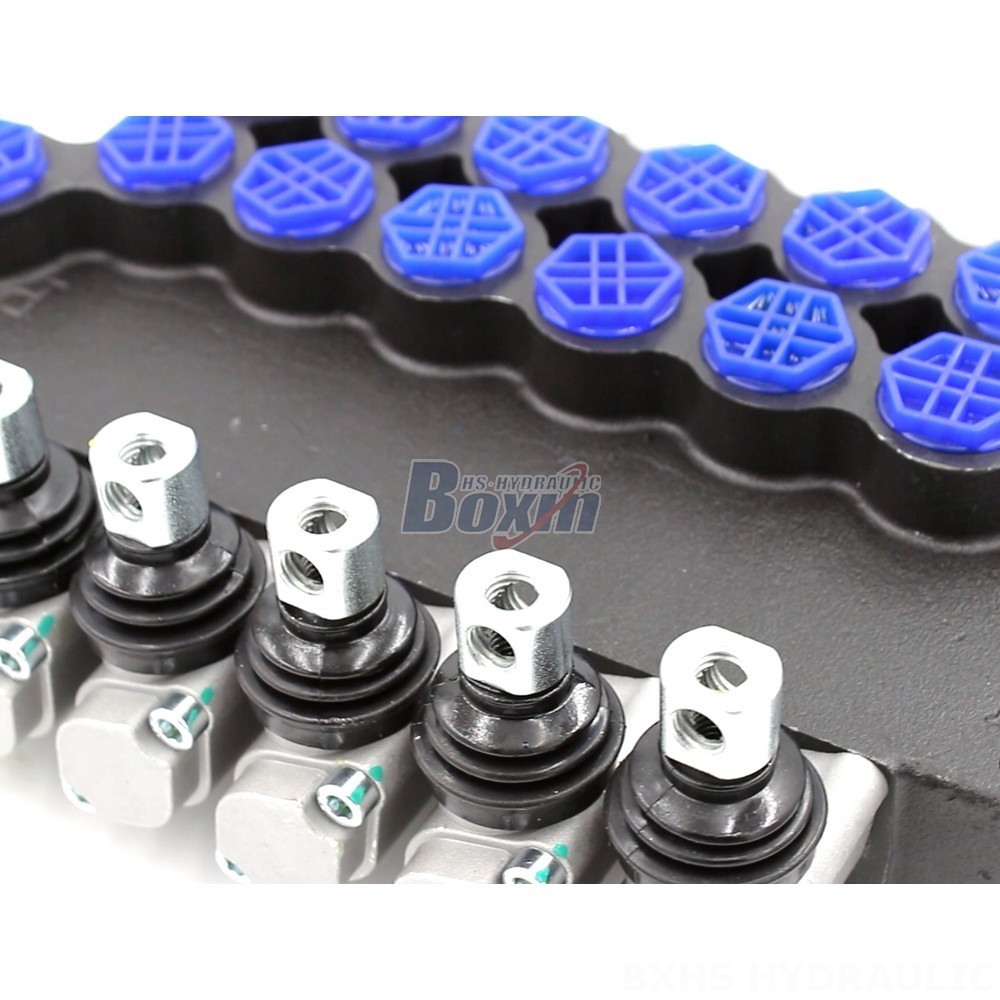

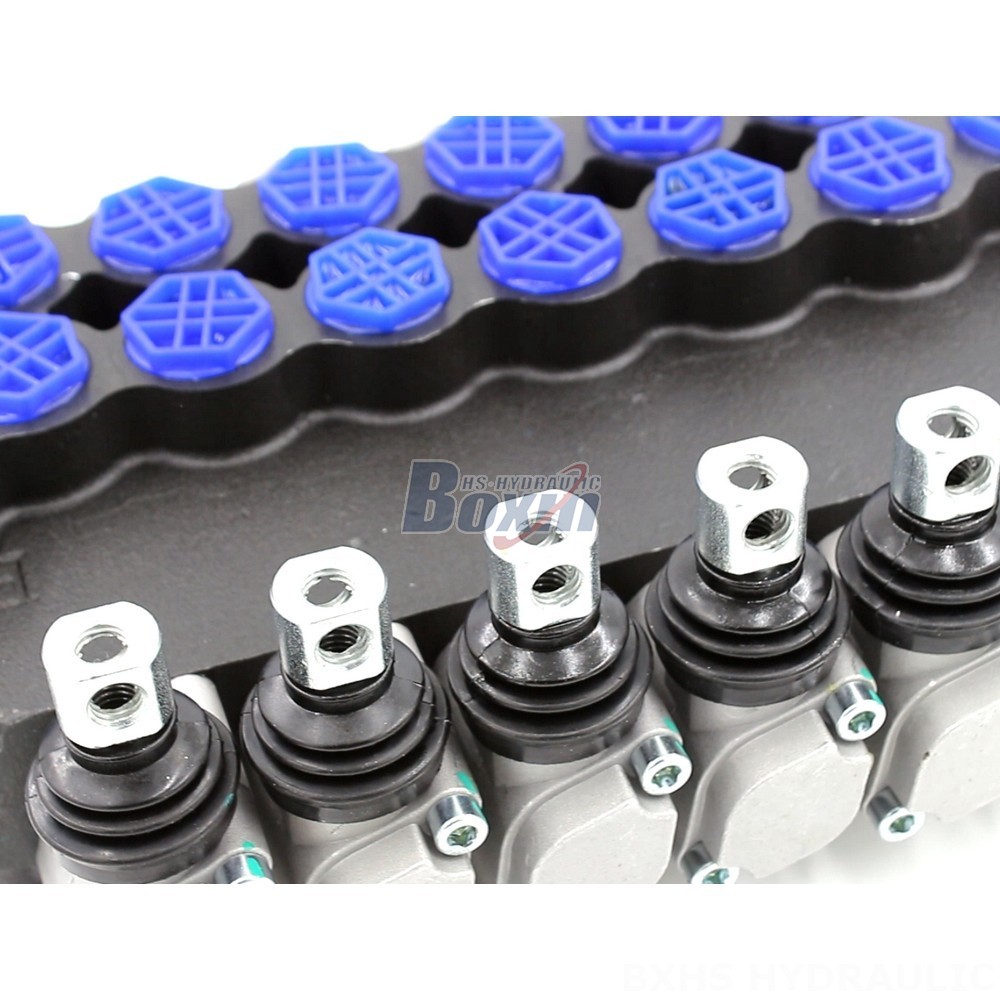

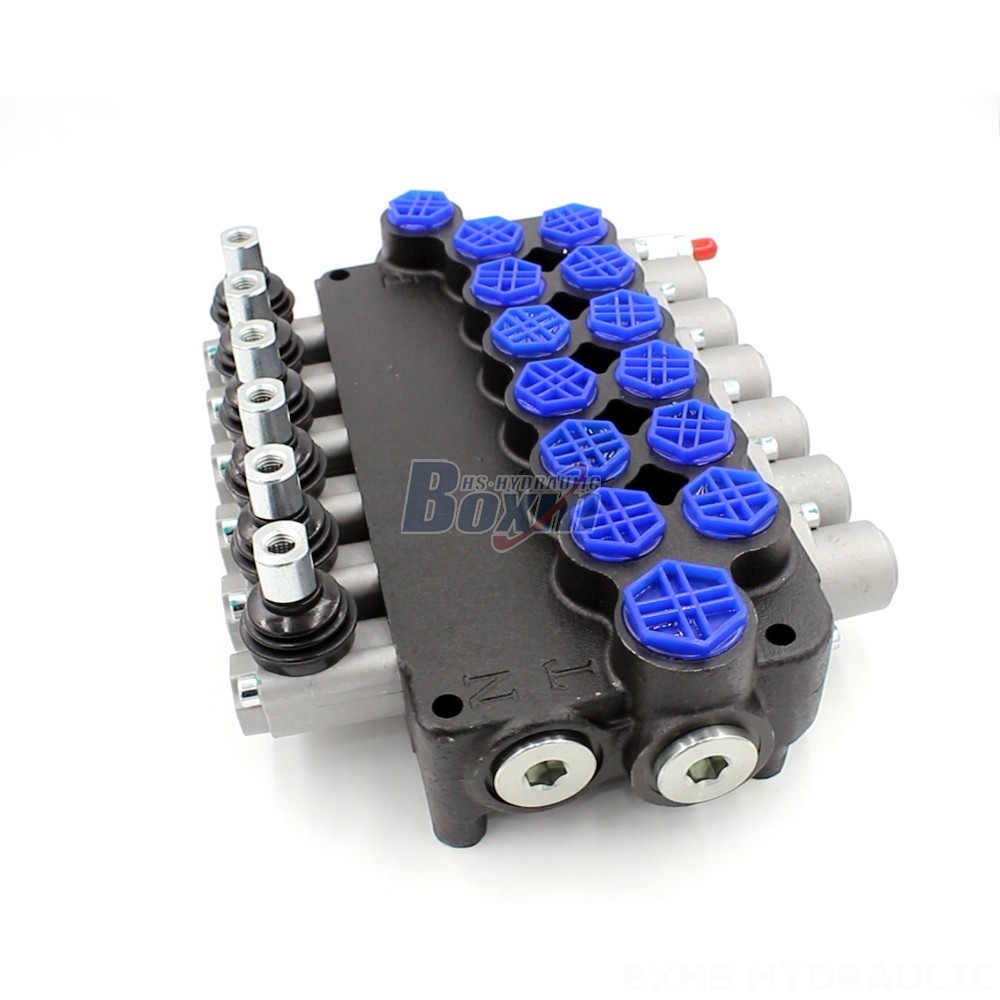

The P80-AQF-G Series Monoblock Directional Valve is a high-performance hydraulic control valve designed for a wide range of applications, including material handling, construction, earthmoving, agriculture, and industrial vehicles. This 6-section valve features a rated flow of 80 L/min and a maximum pressure rating of 250 bar, making it ideal for demanding applications.

Serie P80 Válvula Direccional Monobloque Parámetros
Método de control Manual, Neumático, Electoneumático, Electrohidráulico, Solenoide, Hidráulico, Hidráulico y Manual, Cable, Joystick, Manual y joystick
Carrete 1 carrete, 2 carretes, 3 carretes, 4 carretes, 5 carretes, 6 carretes, 7 carretes
Rango de temperatura ambiente -40 °C a +80 °C (-40 °F a +176 °F)
Tipo de estructura Válvulas monobloc
Sección 1 sección, 2 secciones, 3 secciones, 4 secciones, 5 secciones, 6 secciones, 7 secciones
Rango de viscosidad de funcionamiento 15 - 75 mm²/s (15 cSt a 75 cSt)
Flujo Nominal 80 l/min (21,2 gal EE. UU./min)
Presión Máxima 315 bar (4600 psi)
Puerto de Entrada G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT
Puerto de Salida G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT
Tamaño de Puerto G1/2, G3/4, M22×1.5, M27×2.0, SAE 10, 1/2 NPT, 3/4 NPT

This Three Way Hydraulic Control Valve, part of the P80-AQF-G series, is a robust monoblock directional valve designed for demanding applications in industries such as material handling, construction, and earthmoving. This 6-section valve boasts a rated flow of 80 L/min and a maximum pressure rating of 250 bar, ensuring high performance and reliability. Its manual control method offers user-friendly operation. With a wide operating viscosity range of 15 to 75 mm²/s and an ambient temperature range of -40°C to +80°C, this valve is suitable for diverse operating environments. Its 6-spool design provides versatility and control for various hydraulic circuits. This valve is perfect for a wide range of machinery, including telehandlers, forklifts, all-terrain cranes, stackers, aerial platforms, motor graders, midi-excavators, mini-excavators, skid steer loaders, and compact wheel loaders. We offer wholesale and OEM options for this valve, catering to diverse needs. Contact us for more details and customized solutions.
