Producción y entrega
Plazo de ejecución de producción de 15 a 30 días
La innovación impulsa el desarrollo; tecnología forja futuro
1066 personas están viendo este producto

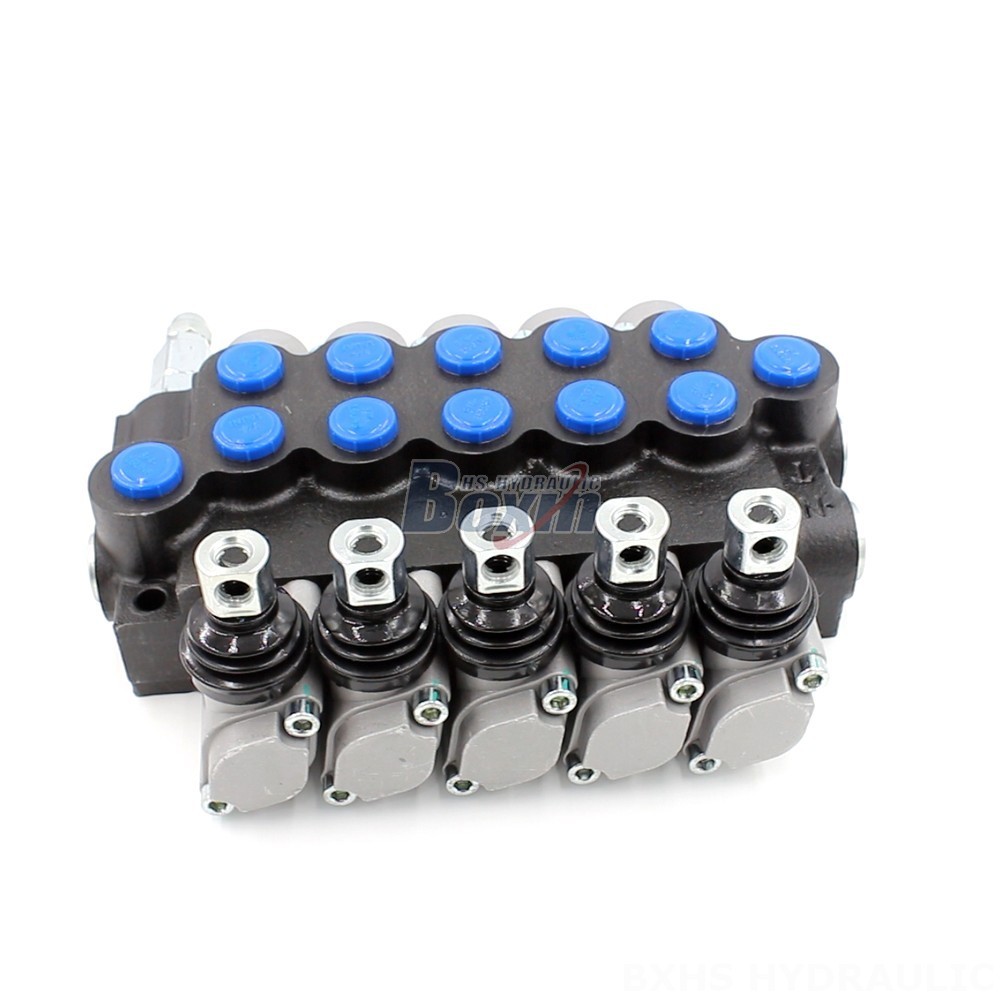

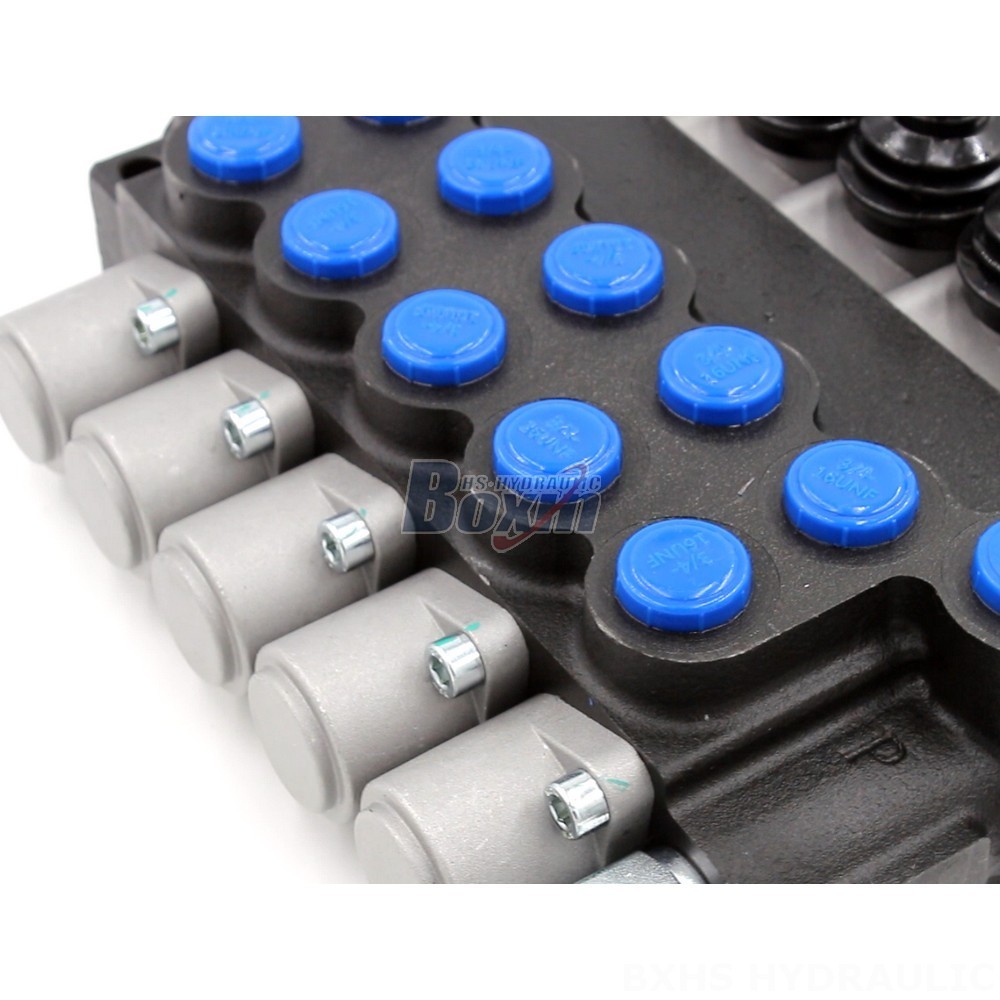

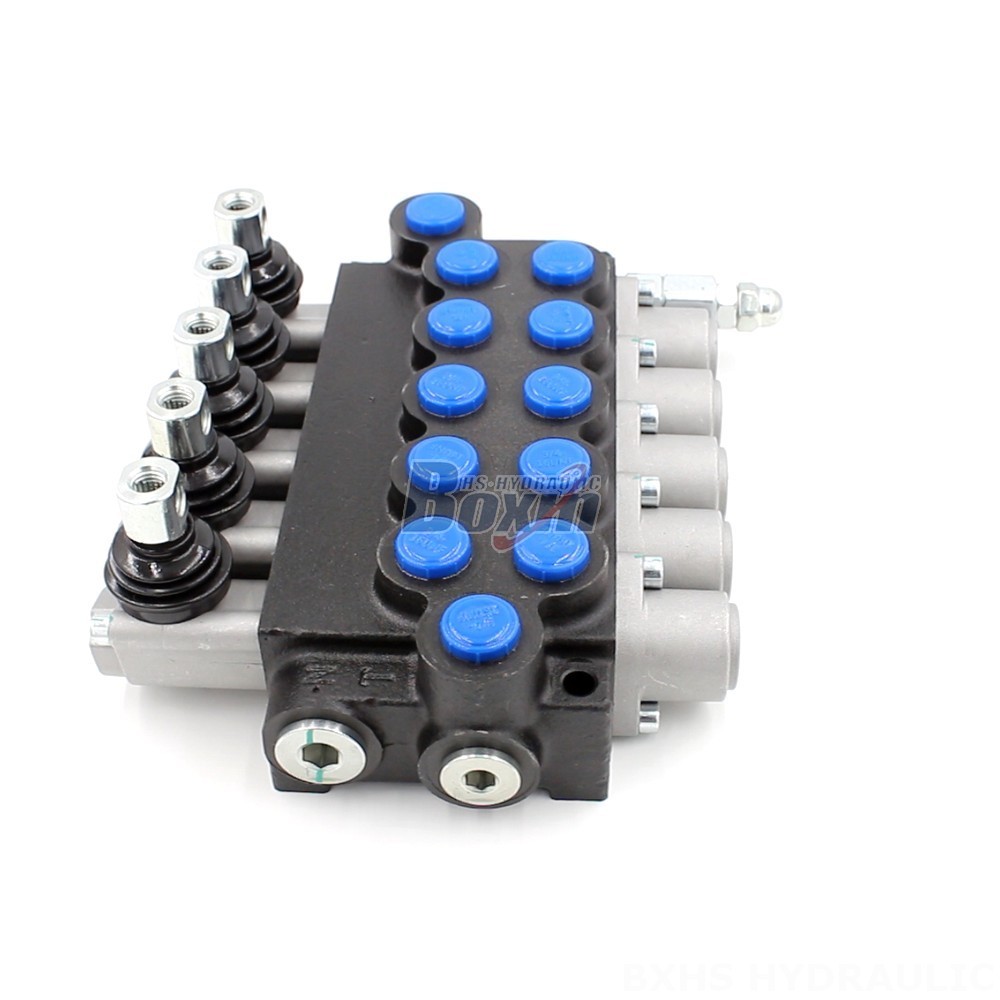

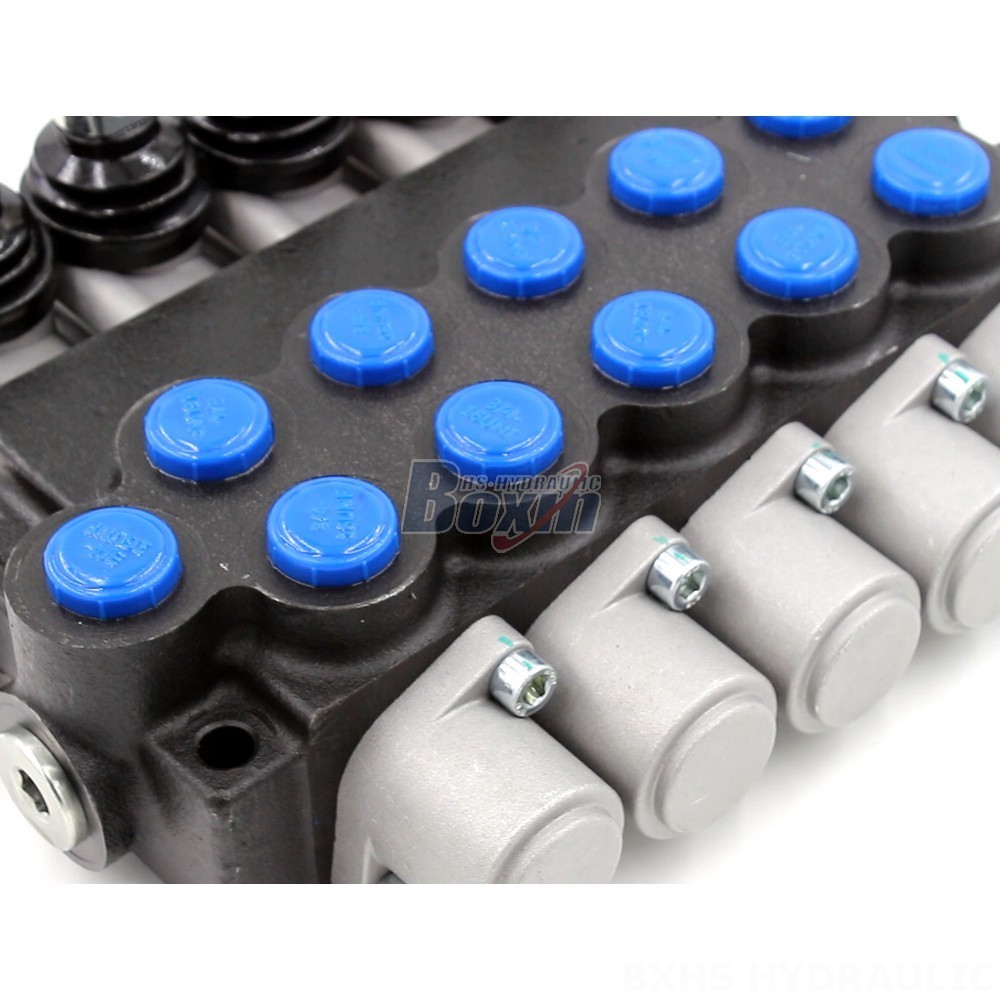

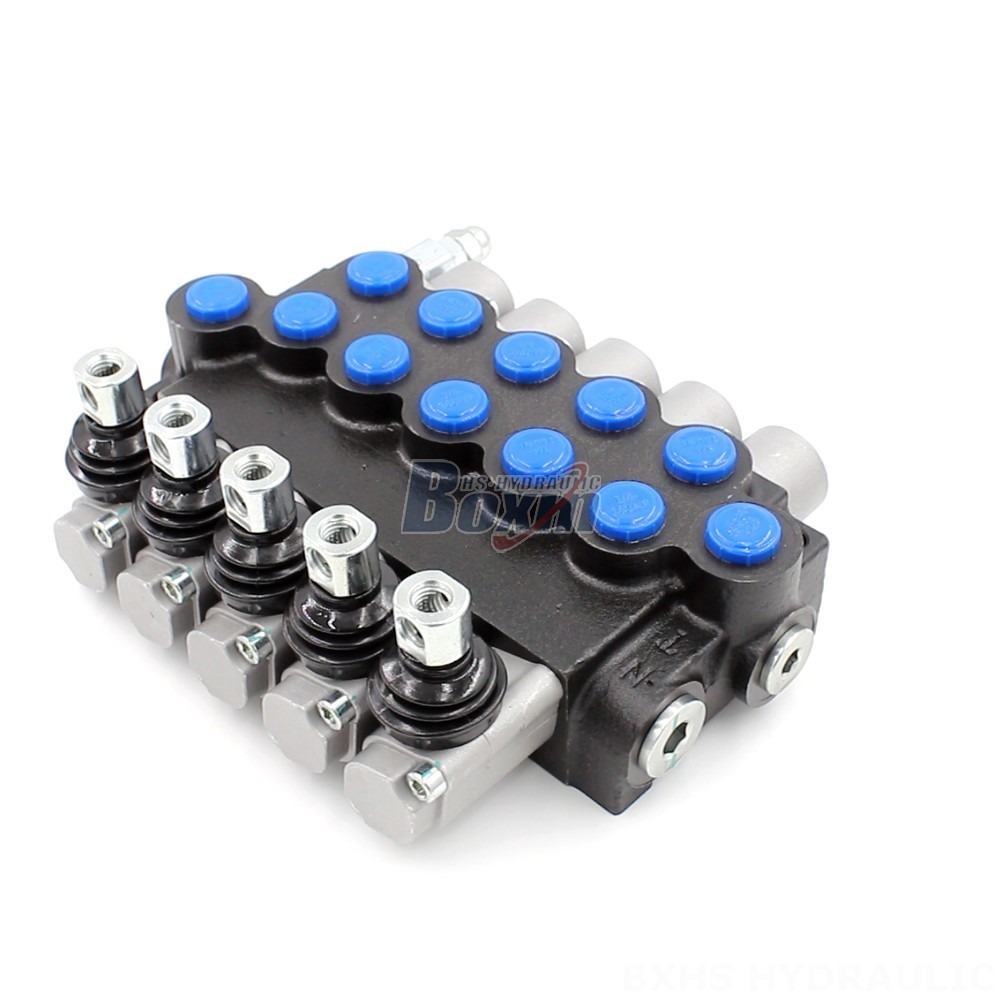

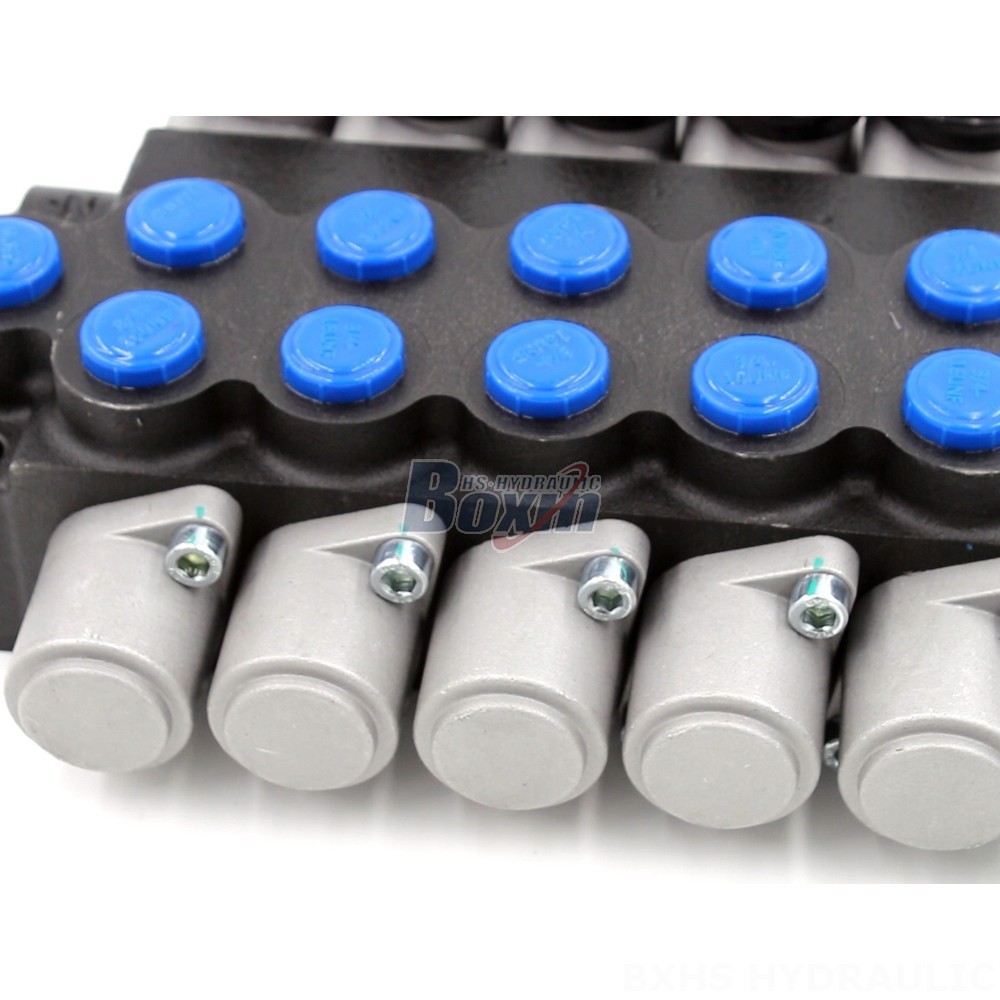

The P40-U78 5-Spool Hydraulic Directional Valve is a high-performance valve designed for use in a wide range of applications. It features a robust monoblock construction, 5-spool design, and a rated flow of 40 L/min. The valve is suitable for use with hydraulic systems operating at pressures up to 250 bar and temperatures from -40°C to +80°C.
| Serie P40 Válvula Direccional Monobloque Parámetros | |
|---|---|
| Método de control | Manual, Neumático, Electoneumático, Electrohidráulico, Solenoide, Hidráulico, Hidráulico y Manual, Cable, Joystick, Solenoide y joystick, Manual y joystick, Solenoide y cable |
| Carrete | 1 carrete, 2 carretes, 3 carretes, 4 carretes, 5 carretes, 6 carretes, 7 carretes |
| Rango de temperatura ambiente | -40 °C a +80 °C (-40 °F a +176 °F) |
| Tipo de estructura | Válvulas monobloc |
| Sección | 1 sección, 2 secciones, 3 secciones, 4 secciones, 5 secciones, 6 secciones, 7 secciones |
| Rango de viscosidad de funcionamiento | 15 - 75 mm²/s (15 cSt a 75 cSt) |
| Flujo Nominal | 40 l/min (10,5 gal EE. UU./min) |
| Presión Máxima | 250 bar (3600 psi) |
| Puerto de Entrada | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Puerto de Salida | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Tamaño de Puerto | G3/8, G1/2, M18×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
The P40-U78 5-Spool Hydraulic Directional Valve is a versatile and reliable valve that is ideal for use in a variety of applications. Its key features include:
- Monoblock construction for strength and durability
- 5-spool design for precise control
- Rated flow of 40 L/min for high performance
- Max pressure of 250 bar for demanding applications
- Operating viscosity range of 15 - 75 mm²/s for compatibility with a wide range of fluids
- Ambient temperature range of -40°C to +80°C for use in harsh environments
- Suitable for use in a variety of applications, including MATERIAL HANDLING, CONSTRUCTION AND EARTH MOVING, AGRICULTURE, and INDUSTRIAL VEHICLES
