Producción y entrega
Plazo de ejecución de producción de 15 a 30 días
La innovación impulsa el desarrollo; tecnología forja futuro
974 personas están viendo este producto

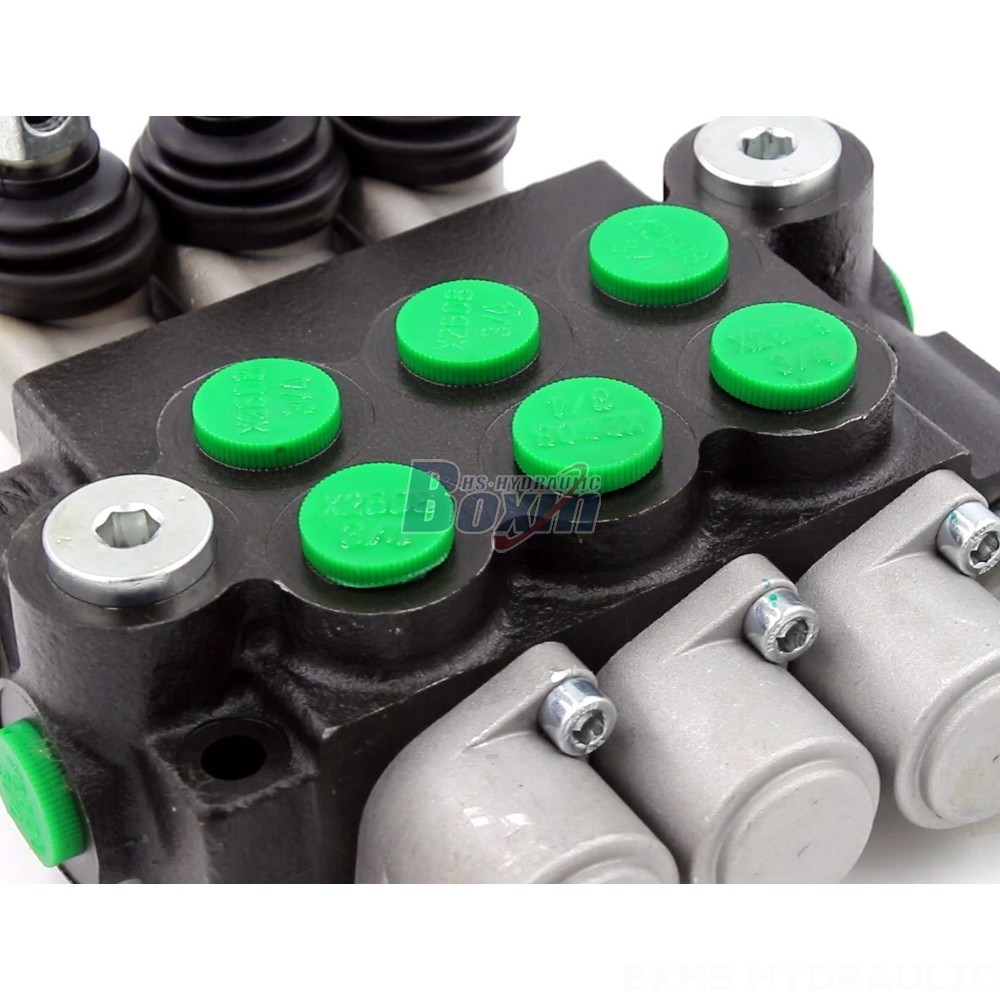

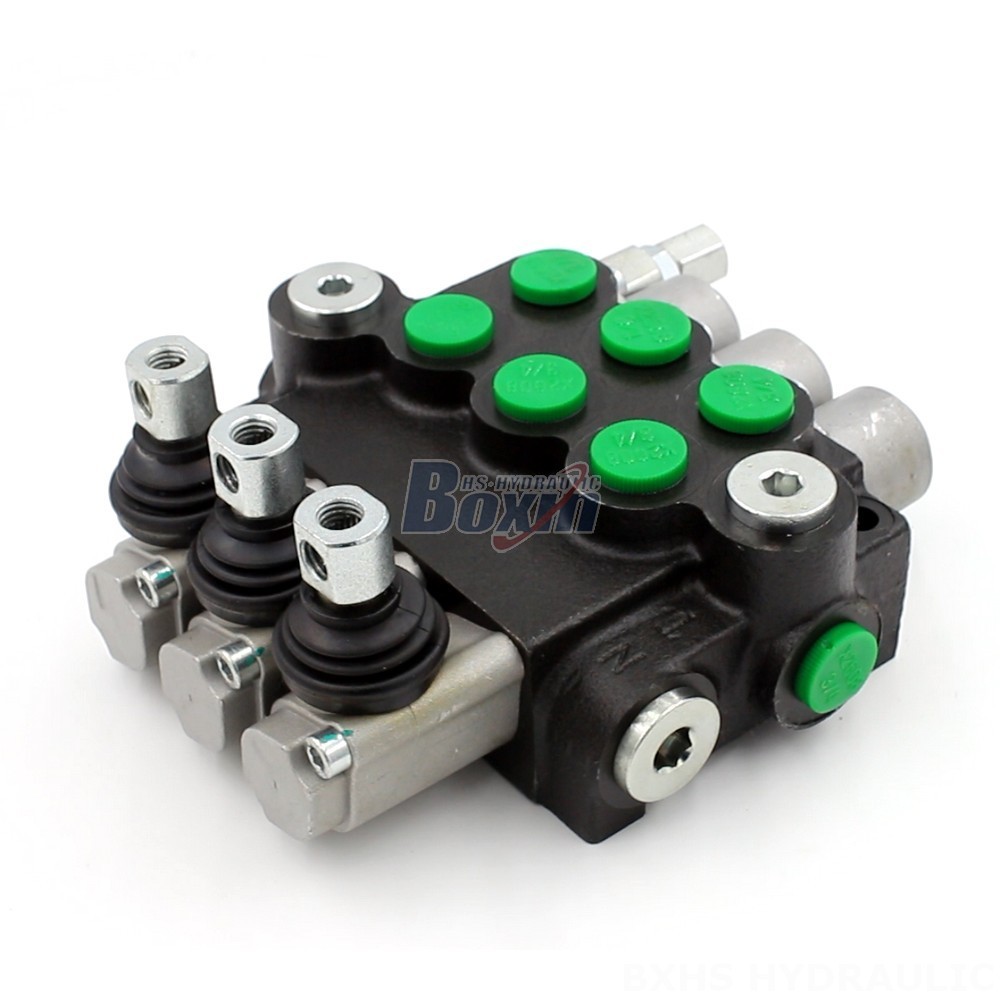

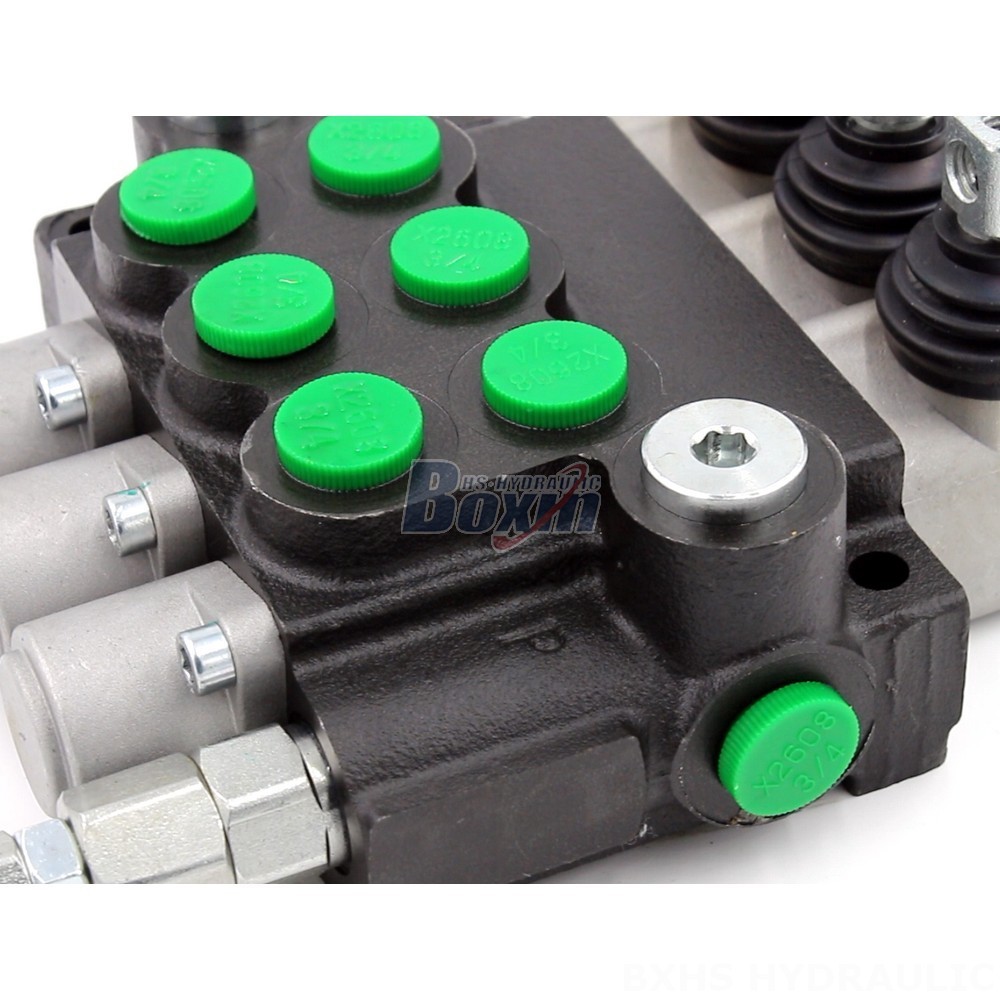

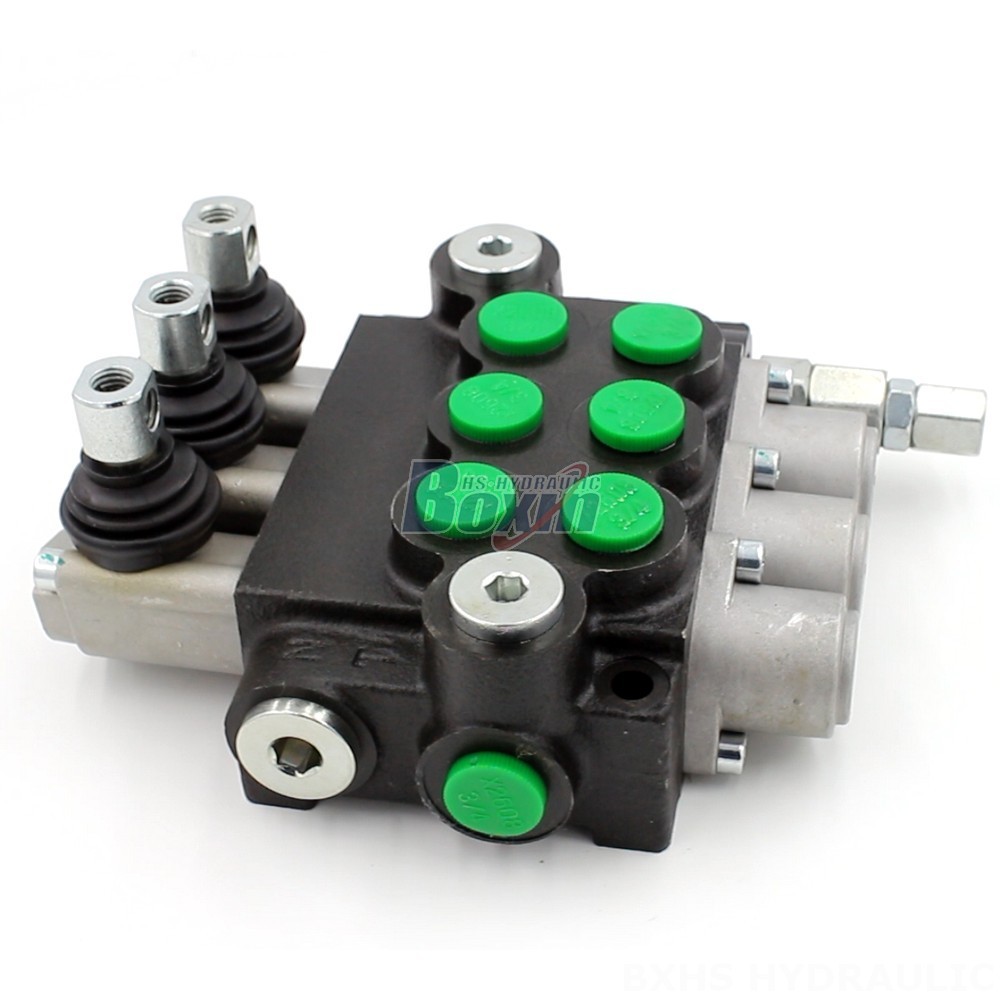

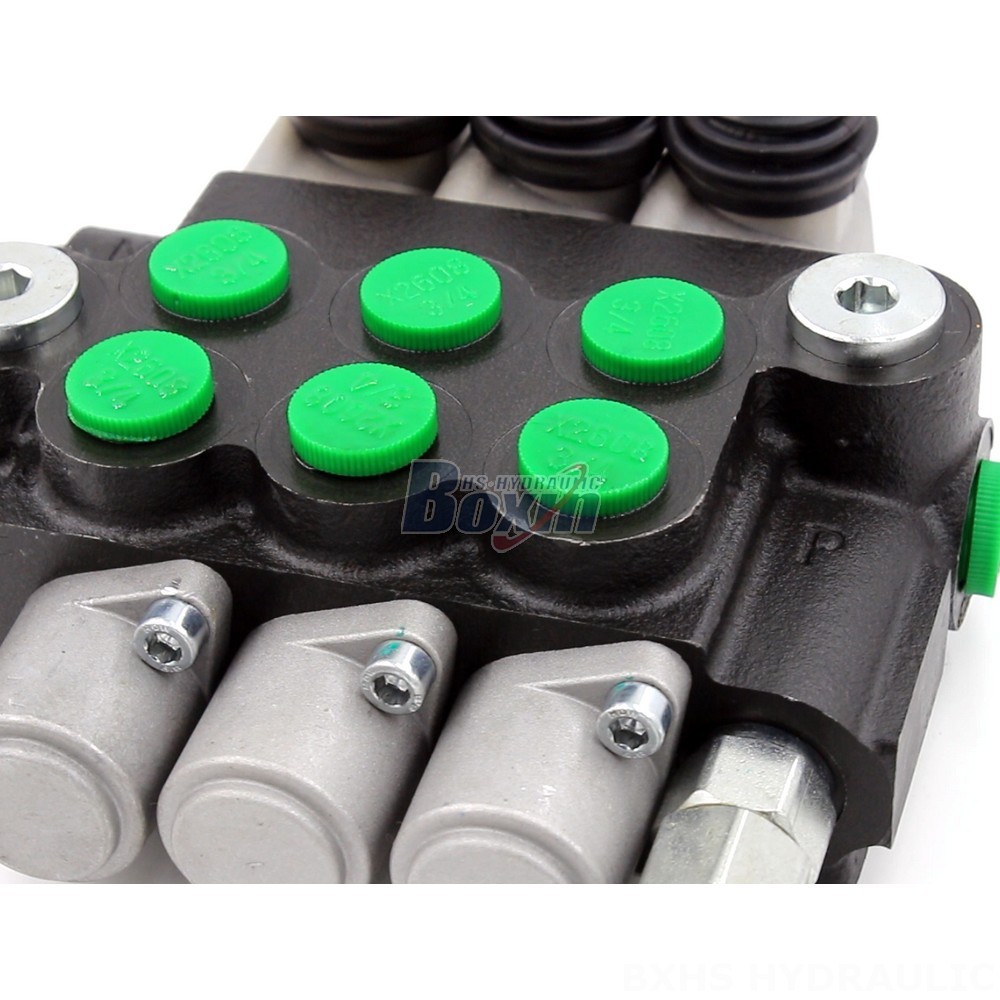

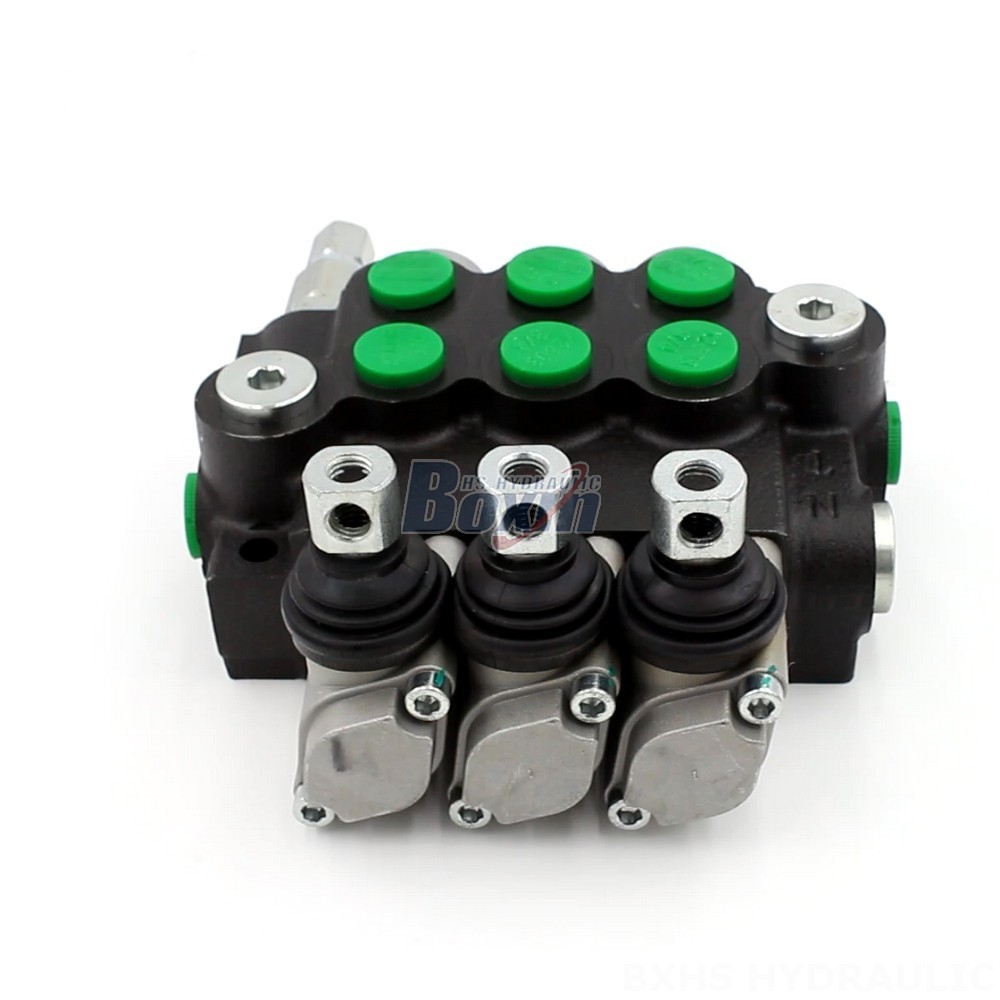

This 12v Diverter Valve from the P40 Series is a high-performance, manual controlled, 3-section monoblock valve designed for various applications including material handling, construction, agriculture, and industrial vehicles. It features a rated flow of 40 L/min and a maximum pressure of 250 bar. This versatile valve is suitable for a wide range of equipment like telehandlers, forklifts, cranes, and excavators.
| Serie P40 Válvula Direccional Monobloque Parámetros | |
|---|---|
| Método de control | Manual, Neumático, Electoneumático, Electrohidráulico, Solenoide, Hidráulico, Hidráulico y Manual, Cable, Joystick, Solenoide y joystick, Manual y joystick, Solenoide y cable |
| Carrete | 1 carrete, 2 carretes, 3 carretes, 4 carretes, 5 carretes, 6 carretes, 7 carretes |
| Rango de temperatura ambiente | -40 °C a +80 °C (-40 °F a +176 °F) |
| Tipo de estructura | Válvulas monobloc |
| Sección | 1 sección, 2 secciones, 3 secciones, 4 secciones, 5 secciones, 6 secciones, 7 secciones |
| Rango de viscosidad de funcionamiento | 15 - 75 mm²/s (15 cSt a 75 cSt) |
| Flujo Nominal | 40 l/min (10,5 gal EE. UU./min) |
| Presión Máxima | 250 bar (3600 psi) |
| Puerto de Entrada | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Puerto de Salida | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Tamaño de Puerto | G3/8, G1/2, M18×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
The 12v Diverter Valve P40-U34-OT is a high-quality, reliable hydraulic valve designed for demanding applications. It is a 3-section monoblock valve with a manual control mechanism. This valve boasts a rated flow of 40 L/min and a maximum pressure of 250 bar, making it suitable for a wide range of equipment and tasks. It is designed for use in various industries, including material handling, construction and earth moving, agriculture, and industrial vehicles. Its compact and robust design makes it ideal for use in telehandlers, forklifts, all terrain cranes, stackers, aerial platforms, motor graders, midi-excavators, mini-excavators, and skid steer loaders.
