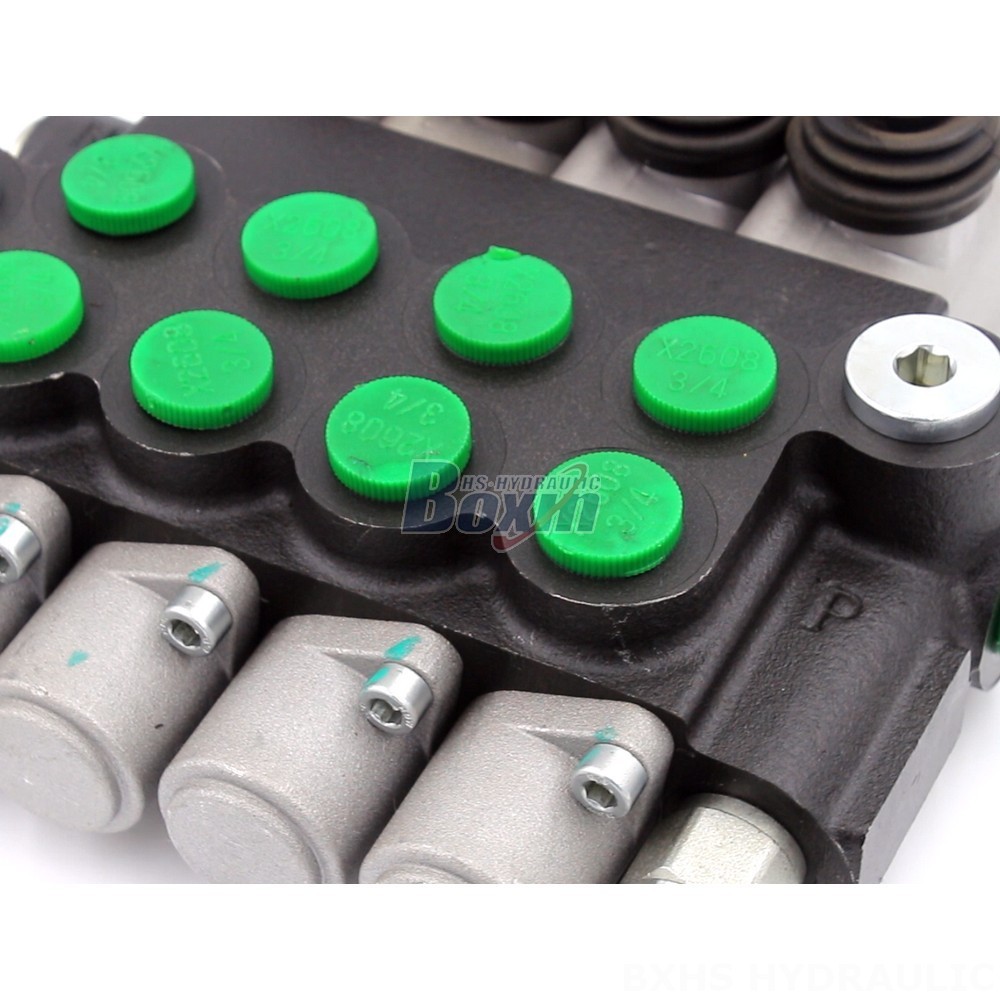

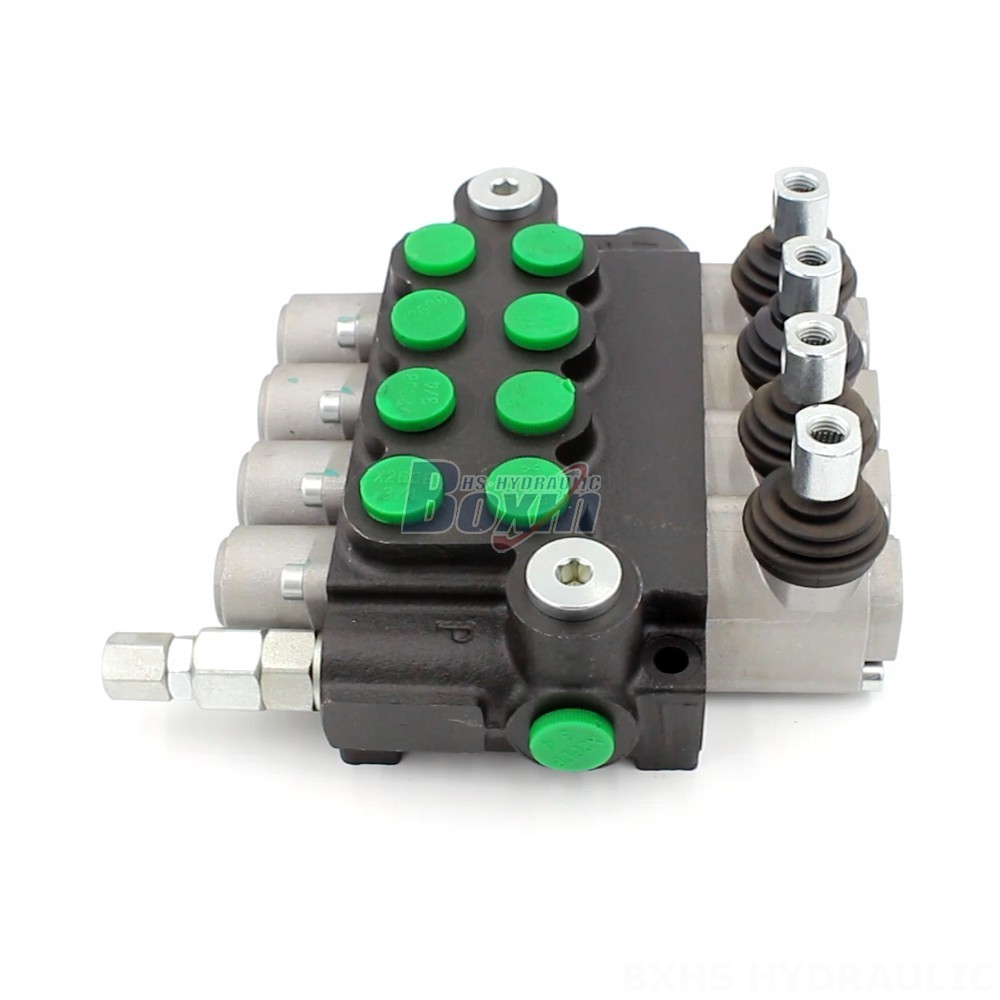

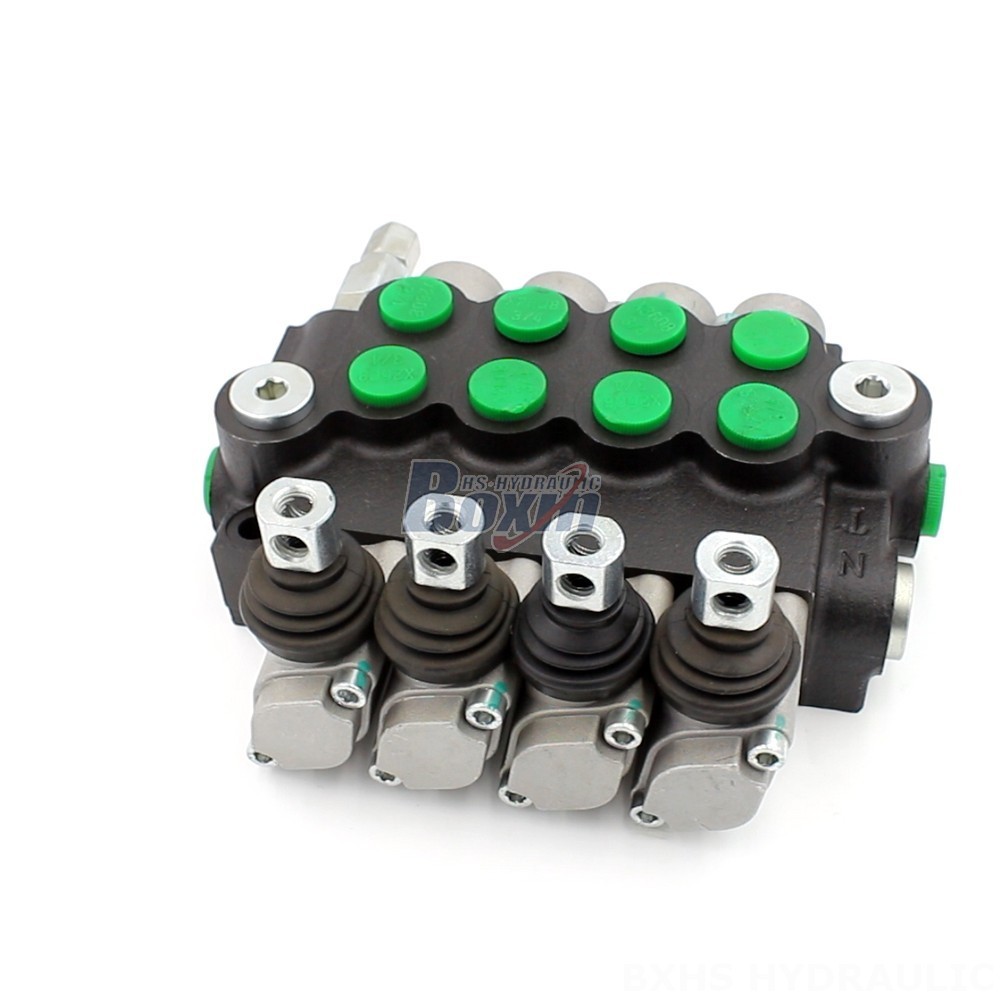

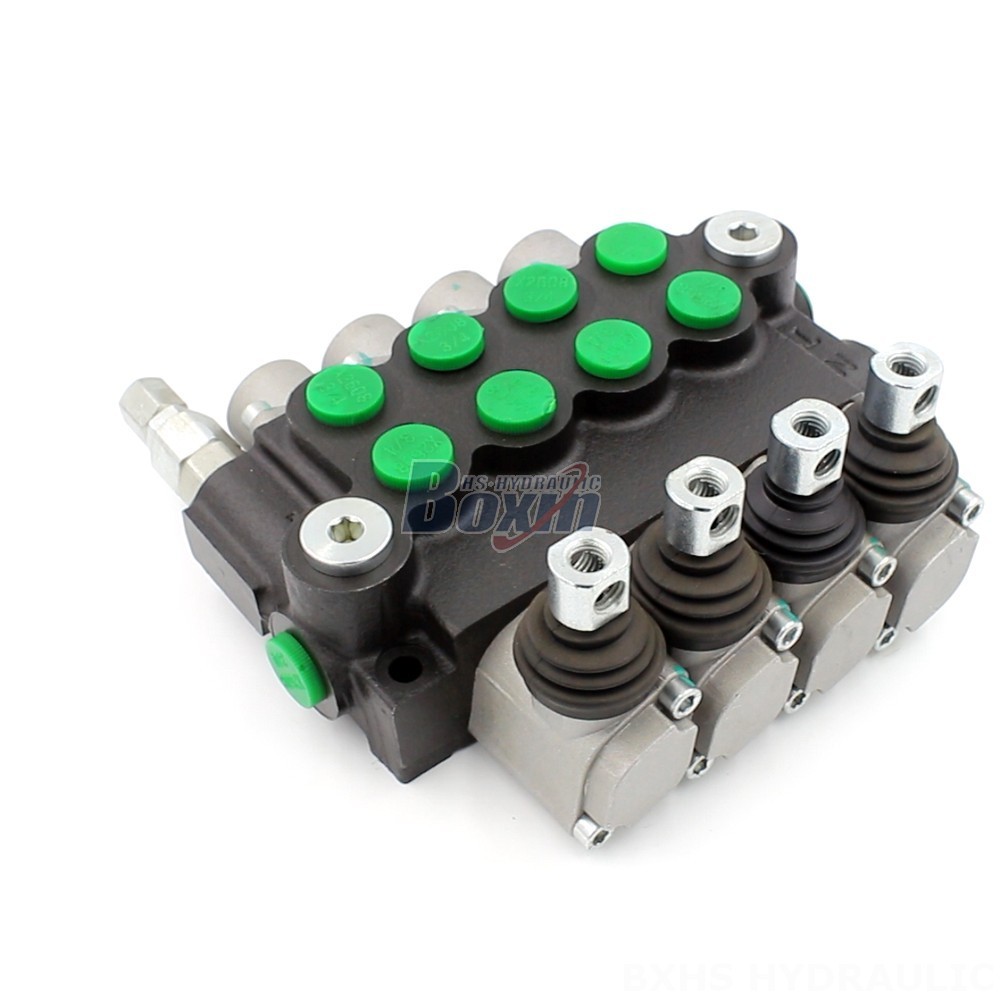

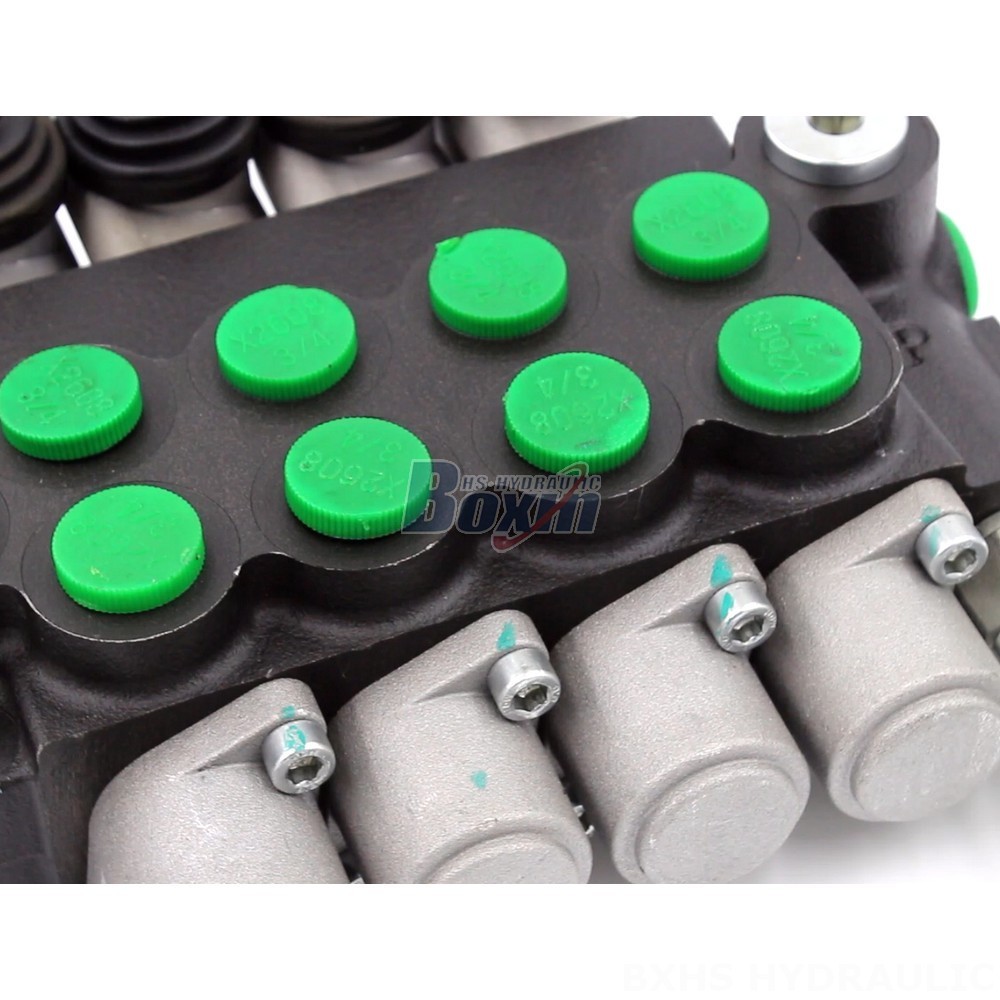

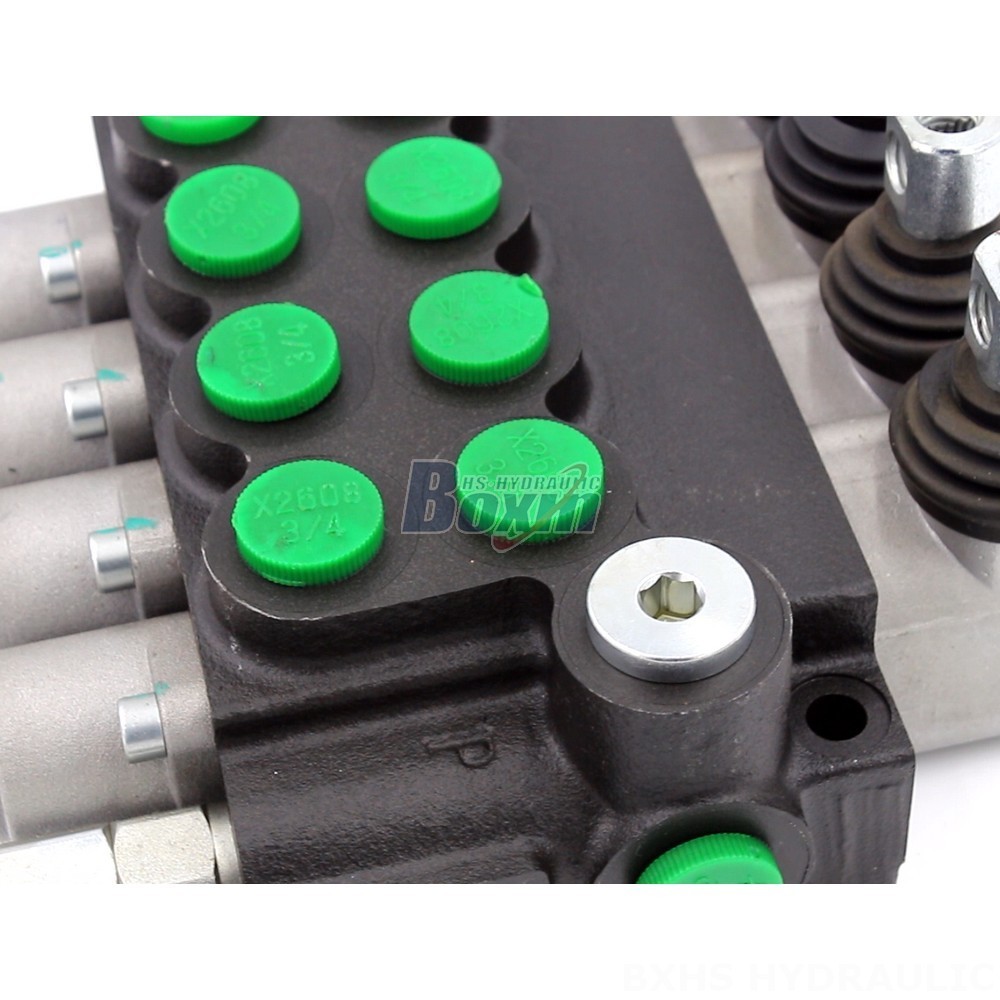

The P40-U34 Manual 4 Spool Monoblock Directional Valve is a high-performance hydraulic valve designed for use in various industrial and mobile applications. Featuring manual control and a compact monoblock construction, this valve provides precise flow control and reliable operation.
| Serie P40 Válvula Direccional Monobloque Parámetros | |
|---|---|
| Método de control | Manual, Neumático, Electoneumático, Electrohidráulico, Solenoide, Hidráulico, Hidráulico y Manual, Cable, Joystick, Solenoide y joystick, Manual y joystick, Solenoide y cable |
| Carrete | 1 carrete, 2 carretes, 3 carretes, 4 carretes, 5 carretes, 6 carretes, 7 carretes |
| Rango de temperatura ambiente | -40 °C a +80 °C (-40 °F a +176 °F) |
| Tipo de estructura | Válvulas monobloc |
| Sección | 1 sección, 2 secciones, 3 secciones, 4 secciones, 5 secciones, 6 secciones, 7 secciones |
| Rango de viscosidad de funcionamiento | 15 - 75 mm²/s (15 cSt a 75 cSt) |
| Flujo Nominal | 40 l/min (10,5 gal EE. UU./min) |
| Presión Máxima | 250 bar (3600 psi) |
| Puerto de Entrada | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Puerto de Salida | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Tamaño de Puerto | G3/8, G1/2, M18×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
**P40-U34 Manual 4 Spool Monoblock Directional Valve**
**Key Features:**
* Manual control for precise flow regulation
* 4 spool design for versatile flow management
* Monoblock construction for compact and durable installation
* Rated flow capacity of 40 L/min (10.5 US gpm)
* Maximum pressure rating of 250 bar (3600 psi)
* Wide operating viscosity range of 15 - 75 mm²/s (15 cSt to 75 cSt)
* Ambient temperature range of -40°C to +80°C (-40°F to +176°F)
**Applications:**
The P40-U34 Manual 4 Spool Monoblock Directional Valve finds applications in various industries, including:
* Material handling equipment
* Construction machinery
* Earth-moving vehicles
* Agricultural machinery
* Industrial vehicles
**Specific Applications:**
* Telehandlers
* Forklifts
* Stackers
* Aerial platforms
* Motor graders
* Mini excavators
* Skid steer loaders
* Wheel loaders
* Tractors
* Front-end loaders
* Harvesters
