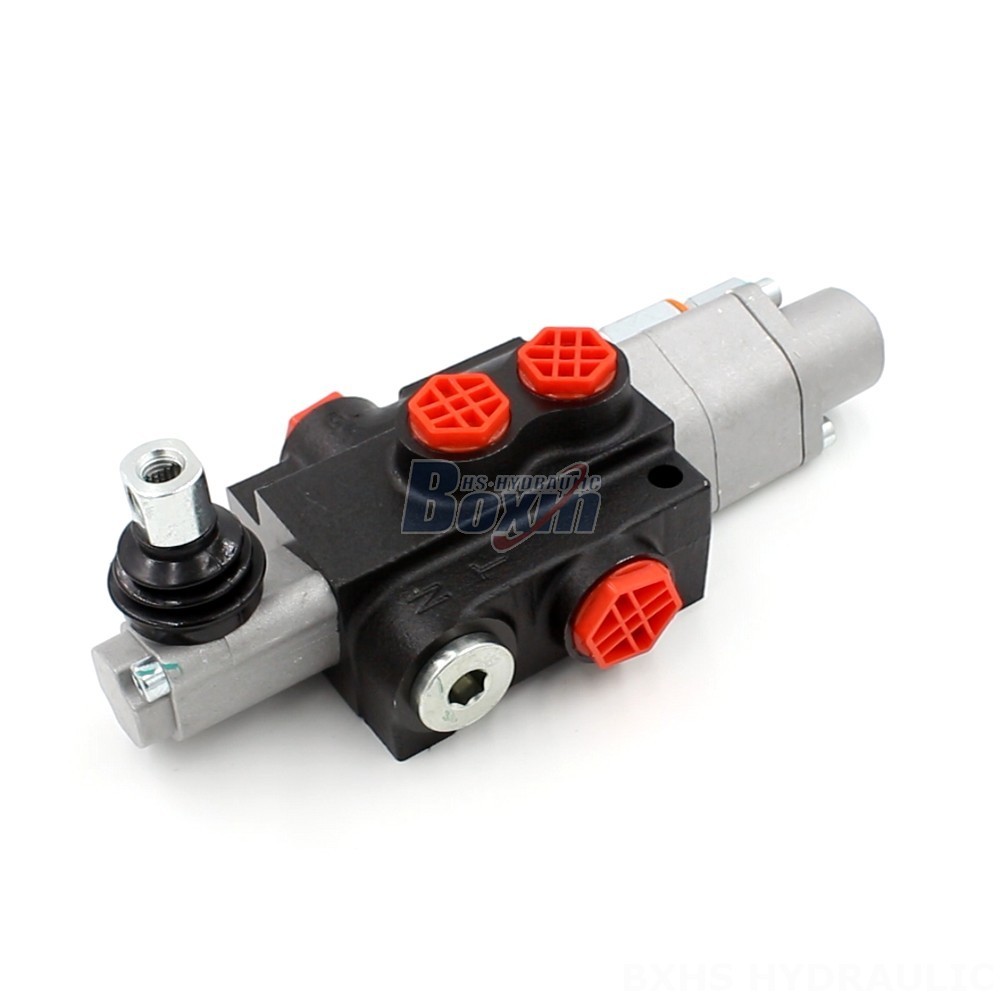

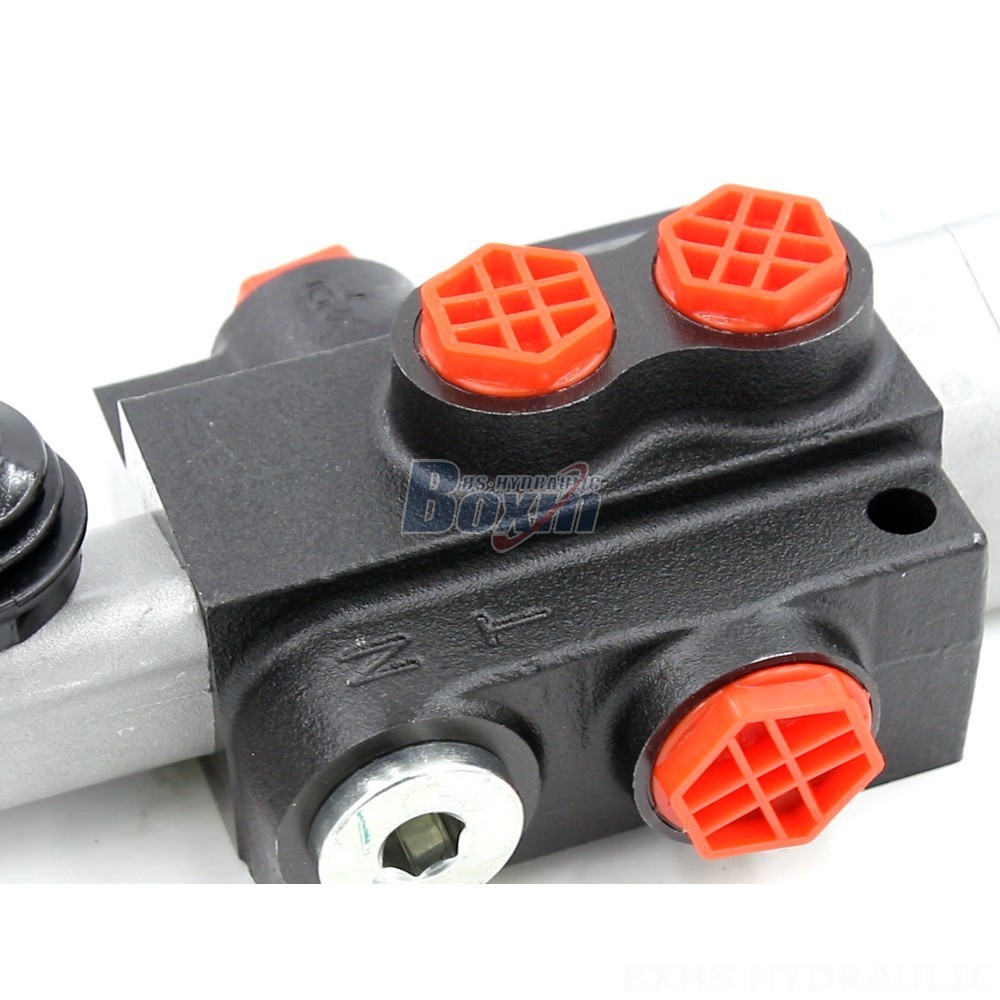

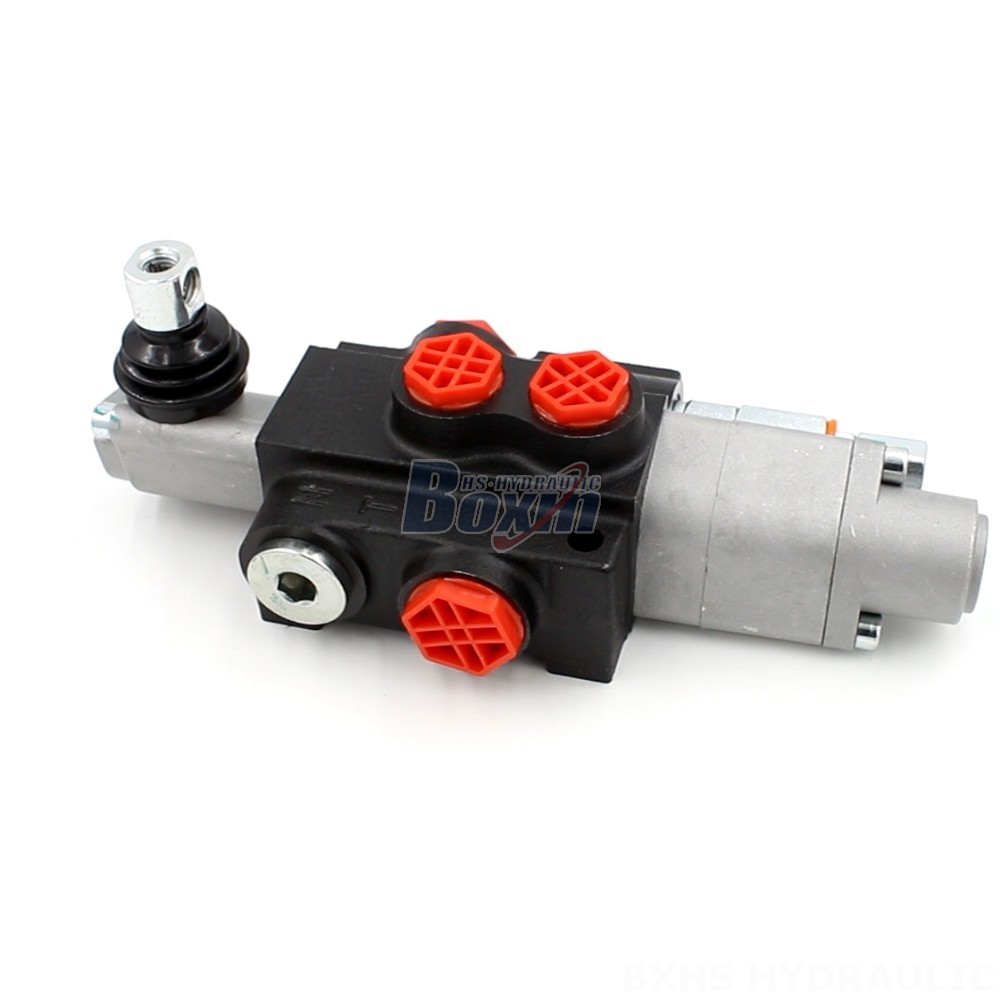

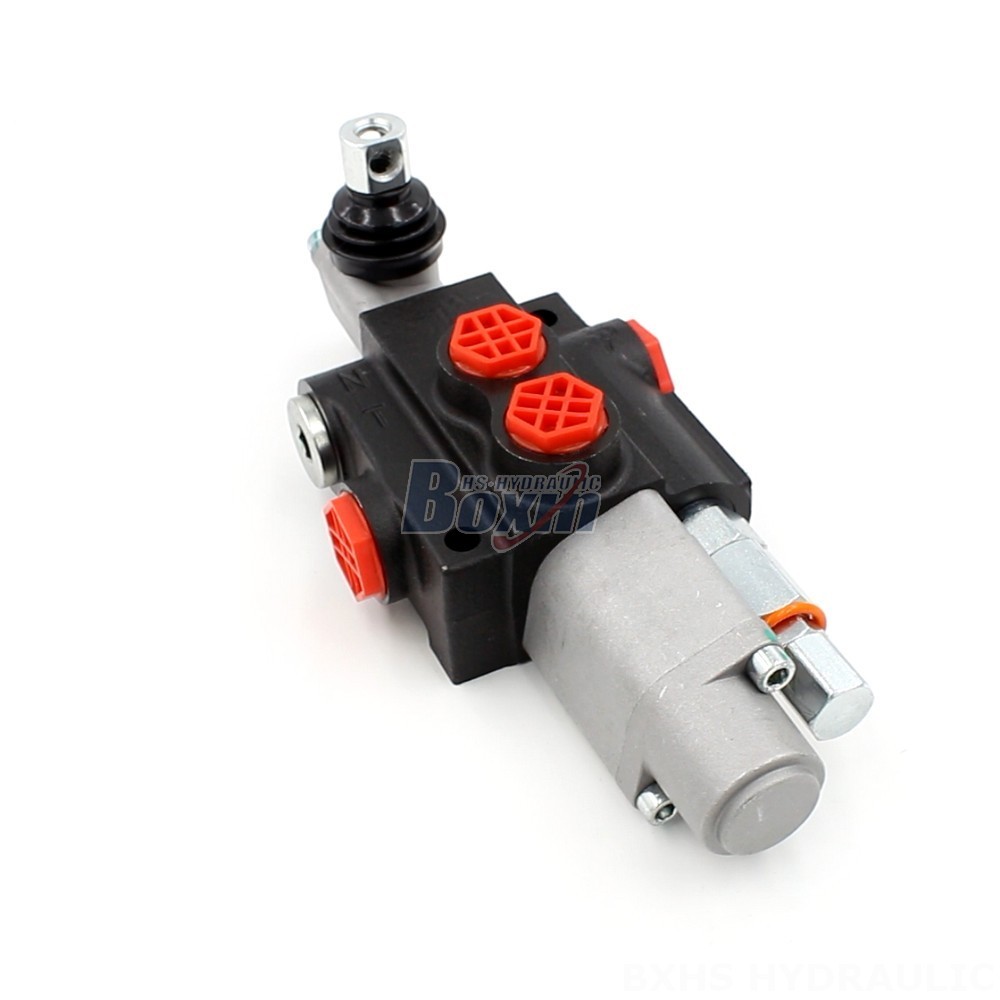

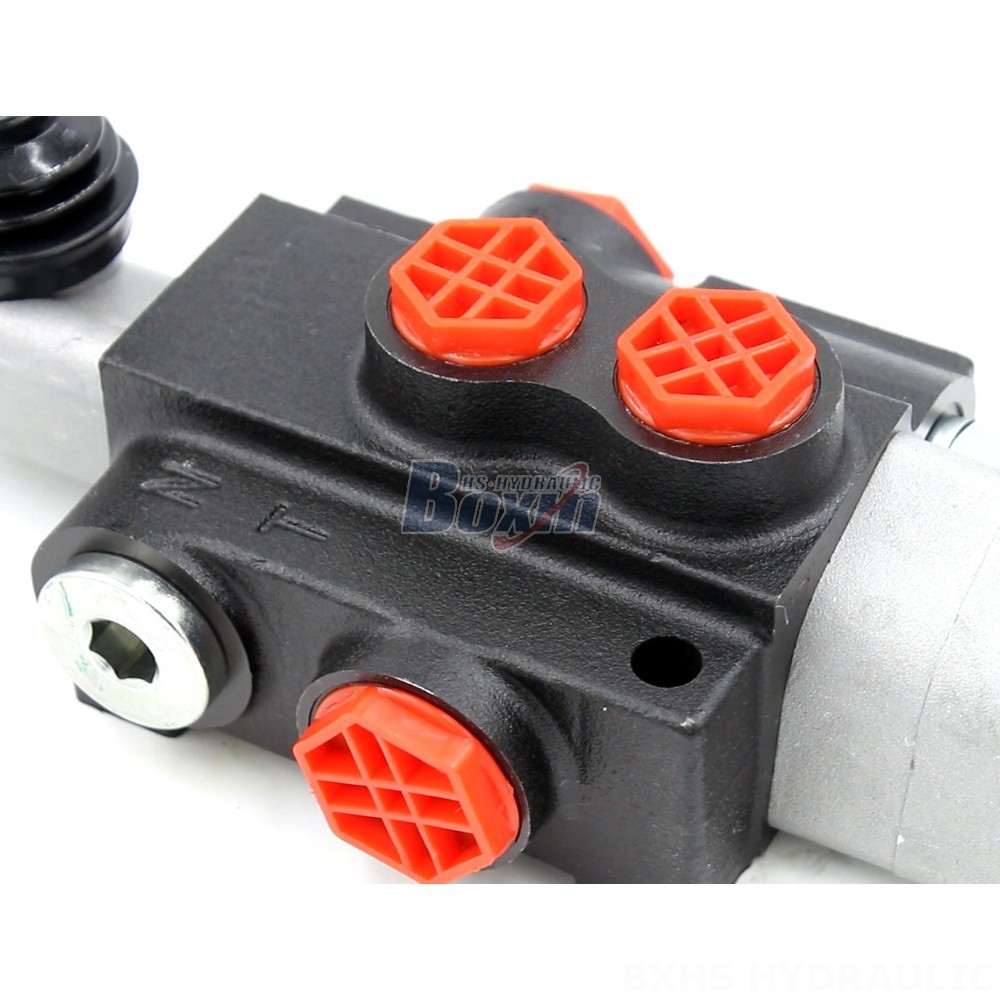

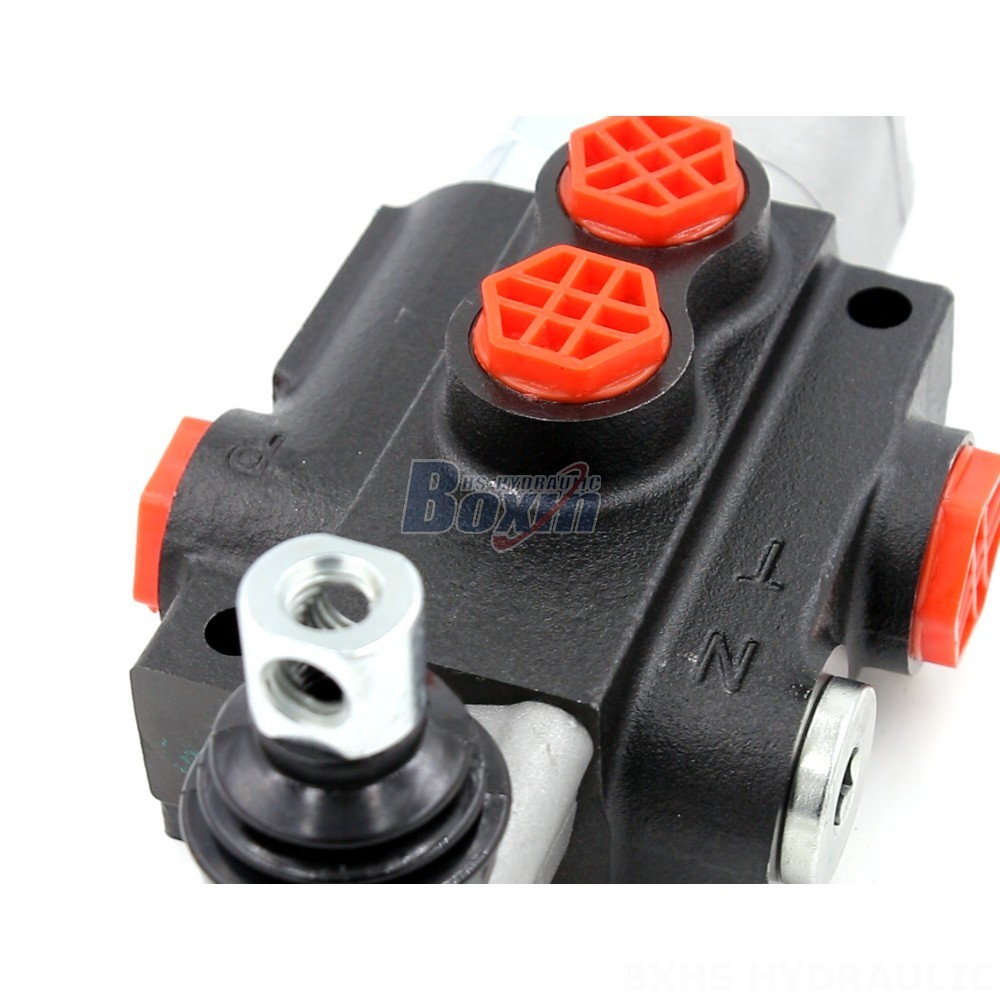

The P40-QTW1 Hydraulic Valve is a high-performance, reliable valve designed for a wide range of applications. It features a manual control, monoblock valve structure, and a rated flow of 40 L/min (10.5 US gpm). With a maximum pressure of 250 bar (3600 psi) and an operating viscosity range of 15 - 75 mm²/s (15 cSt to 75 cSt), it can handle a variety of fluids. The valve is suitable for use in temperatures ranging from -40°C to +80°C (-40°F to +176°F).
| Serie P40 Válvula Direccional Monobloque Parámetros | |
|---|---|
| Método de control | Manual, Neumático, Electoneumático, Electrohidráulico, Solenoide, Hidráulico, Hidráulico y Manual, Cable, Joystick, Solenoide y joystick, Manual y joystick, Solenoide y cable |
| Carrete | 1 carrete, 2 carretes, 3 carretes, 4 carretes, 5 carretes, 6 carretes, 7 carretes |
| Rango de temperatura ambiente | -40 °C a +80 °C (-40 °F a +176 °F) |
| Tipo de estructura | Válvulas monobloc |
| Sección | 1 sección, 2 secciones, 3 secciones, 4 secciones, 5 secciones, 6 secciones, 7 secciones |
| Rango de viscosidad de funcionamiento | 15 - 75 mm²/s (15 cSt a 75 cSt) |
| Flujo Nominal | 40 l/min (10,5 gal EE. UU./min) |
| Presión Máxima | 250 bar (3600 psi) |
| Puerto de Entrada | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Puerto de Salida | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Tamaño de Puerto | G3/8, G1/2, M18×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
The P40-QTW1 Hydraulic Valve is available with a variety of options to meet your specific needs. It can be manufactured with 1 or 2 spools, and is part of the P40 Series. It is commonly used in material handling, construction and earth moving, agriculture, and industrial vehicles, including telehandlers, forklifts, stackers, aerial platforms, motor graders, mini-excavators, skid steer loaders, compact wheel loaders, tractors, and front-end loaders.
