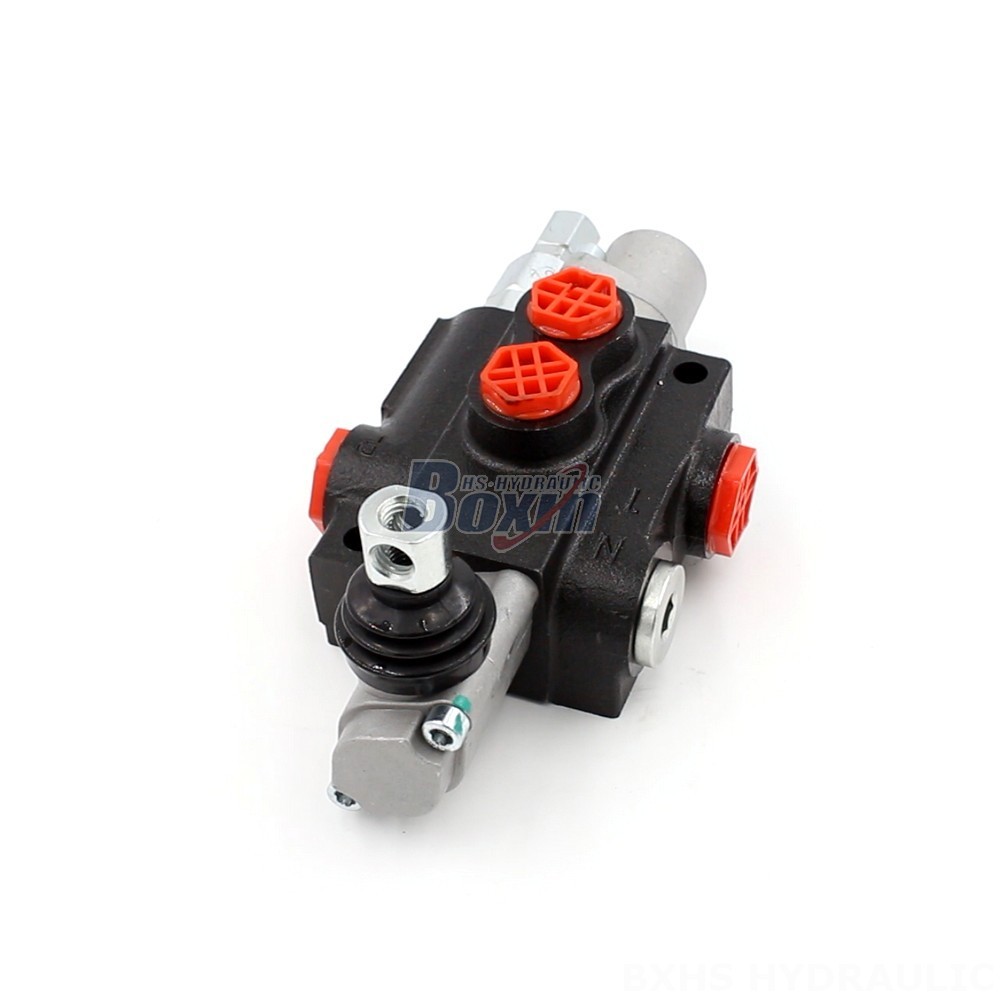

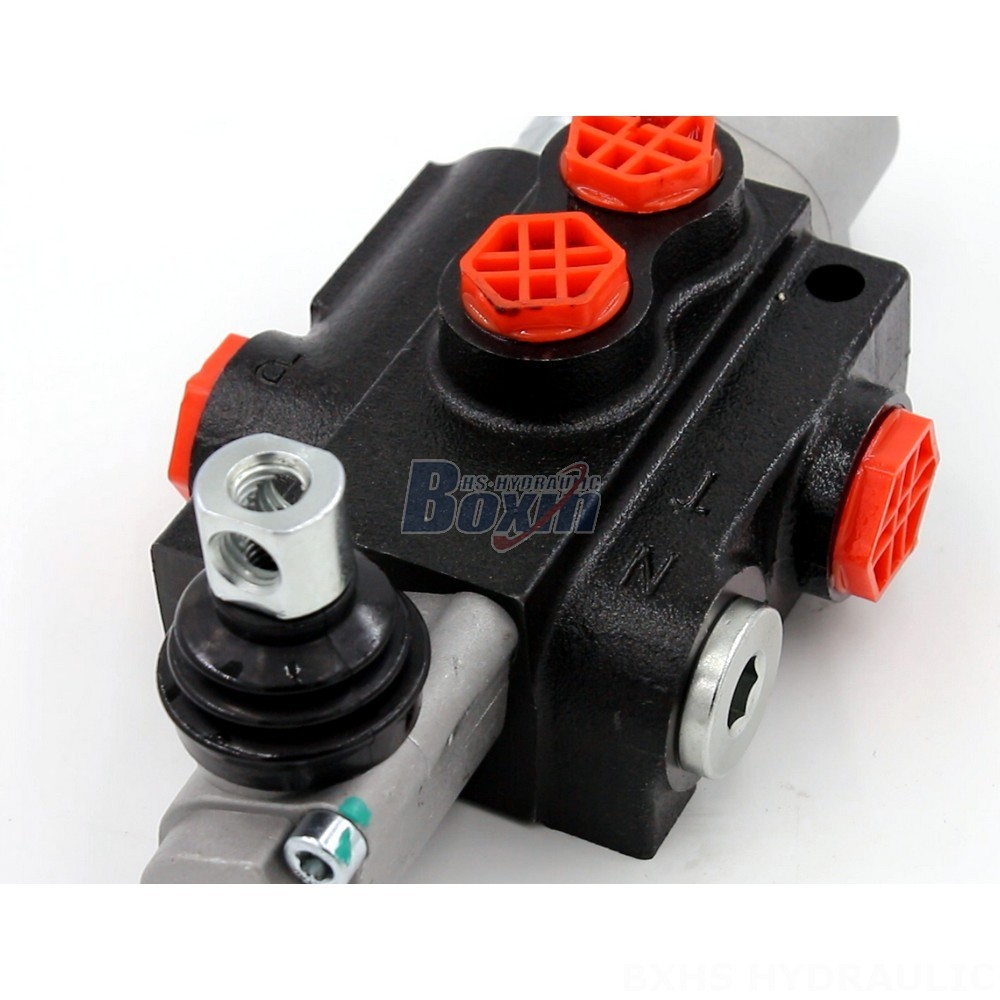

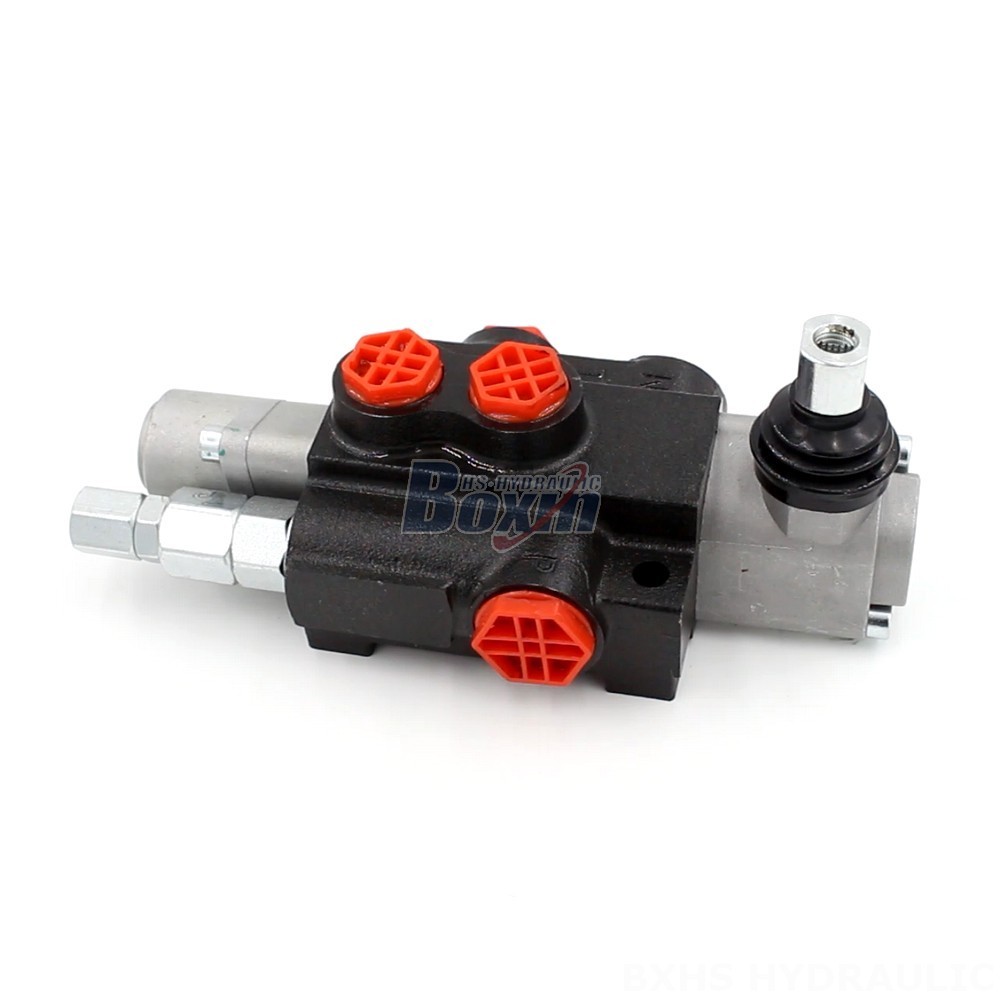

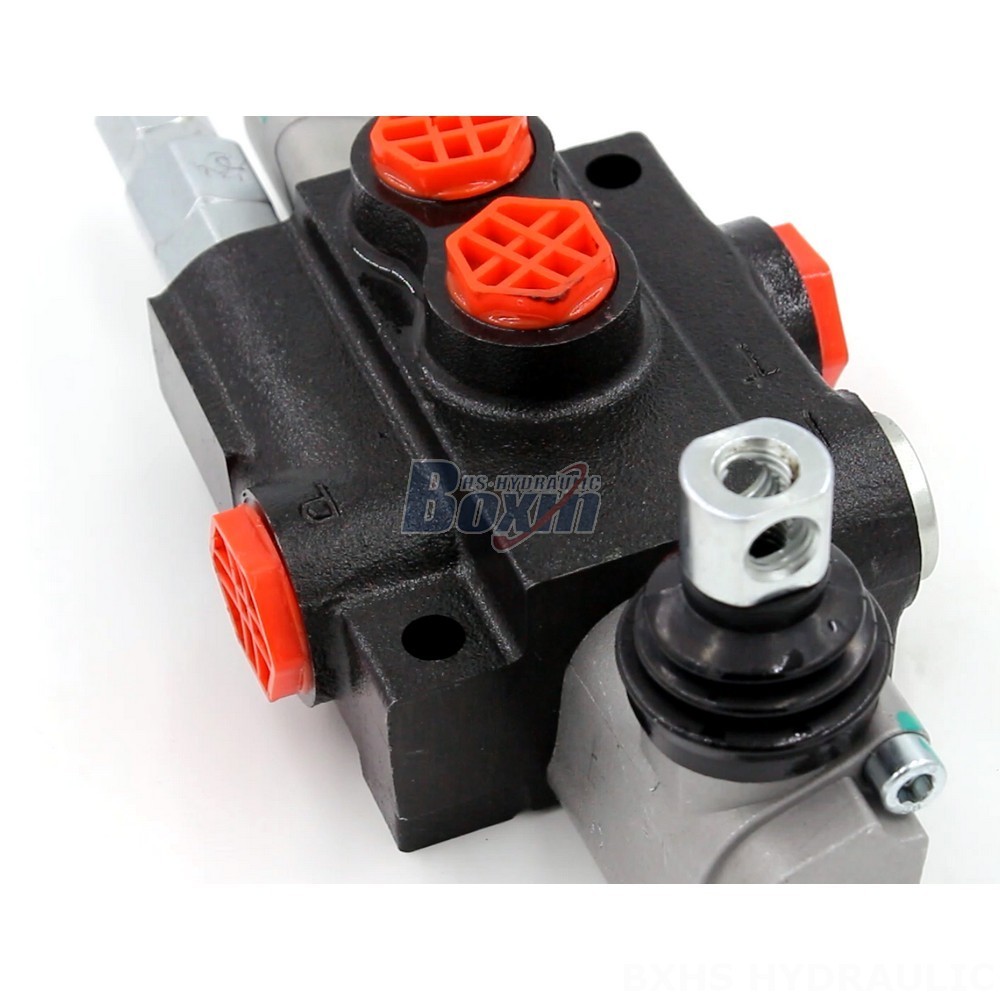

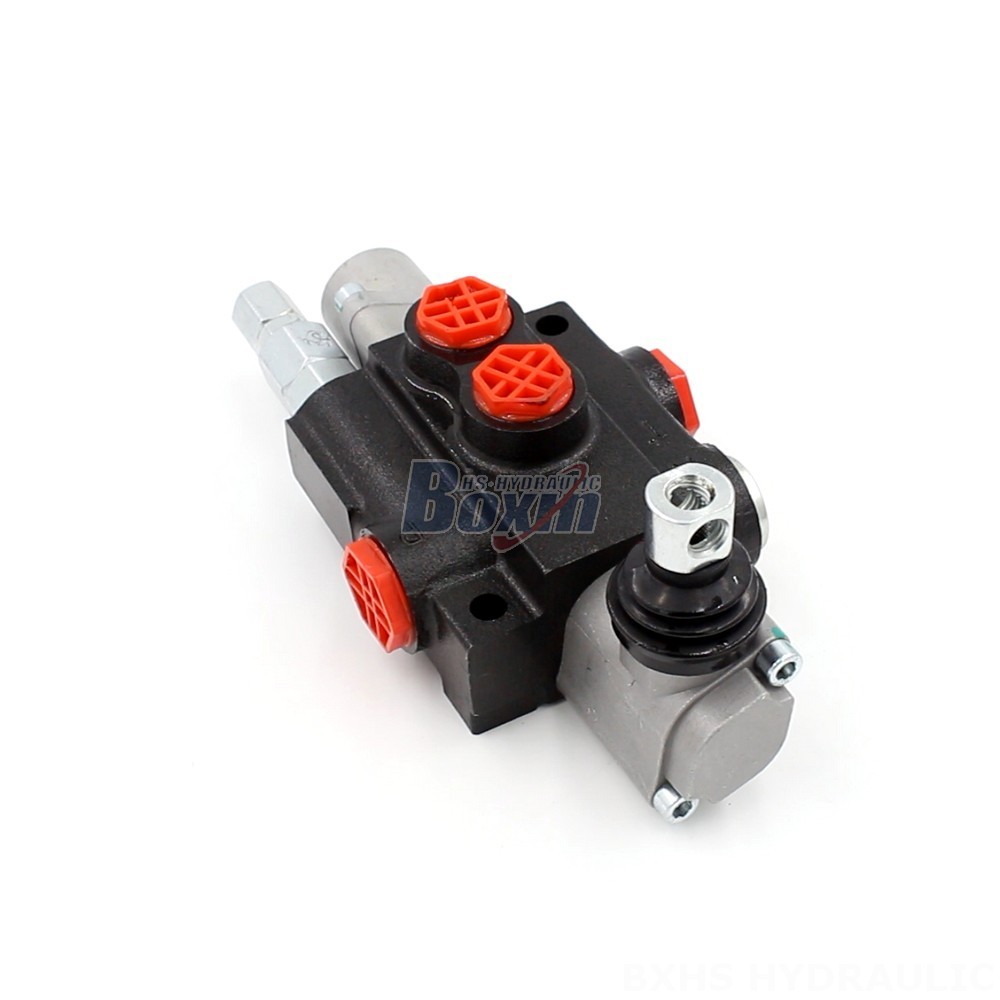

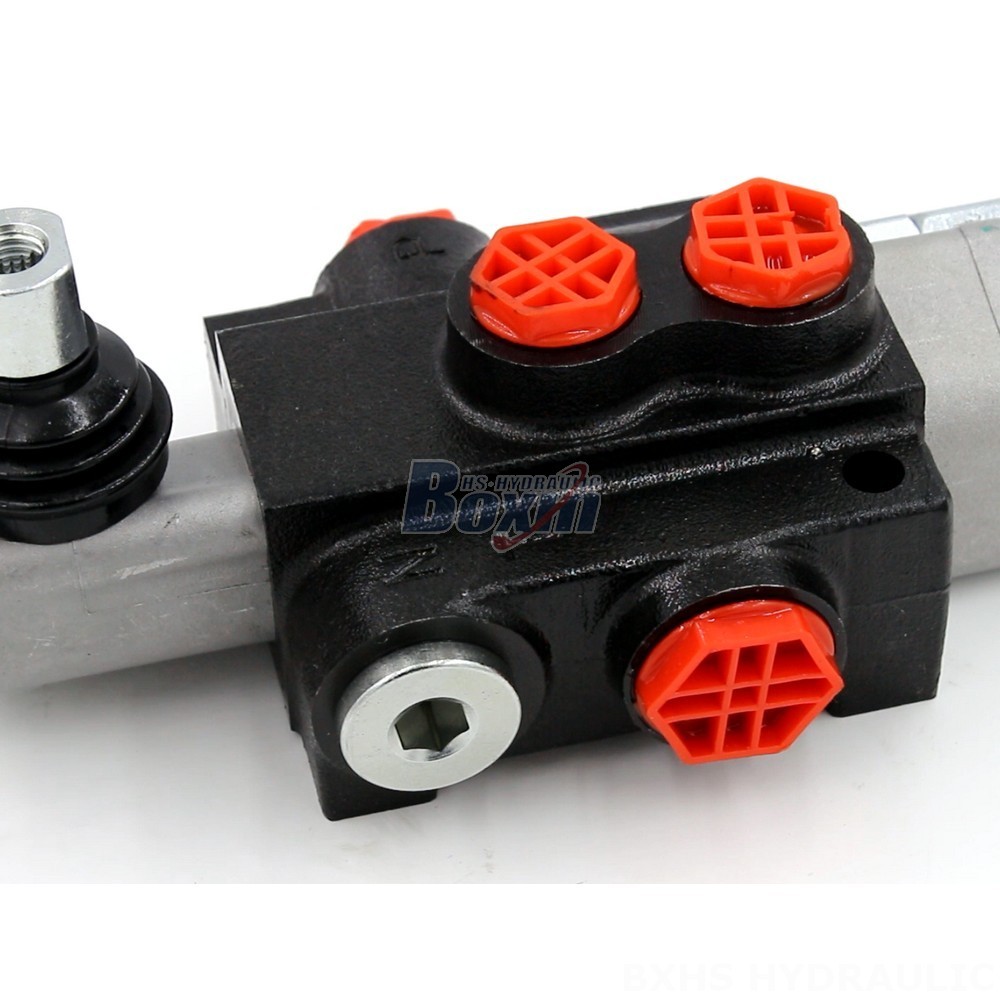

The P40-G38-OT is a manually operated, monoblock directional valve designed for a wide range of industrial applications, including construction, material handling, agriculture, and industrial vehicles. It features a flow rate of 40 L/min, a maximum pressure of 250 bar, and a temperature range of -40°C to +80°C.
| Serie P40 Válvula Direccional Monobloque Parámetros | |
|---|---|
| Método de control | Manual, Neumático, Electoneumático, Electrohidráulico, Solenoide, Hidráulico, Hidráulico y Manual, Cable, Joystick, Solenoide y joystick, Manual y joystick, Solenoide y cable |
| Carrete | 1 carrete, 2 carretes, 3 carretes, 4 carretes, 5 carretes, 6 carretes, 7 carretes |
| Rango de temperatura ambiente | -40 °C a +80 °C (-40 °F a +176 °F) |
| Tipo de estructura | Válvulas monobloc |
| Sección | 1 sección, 2 secciones, 3 secciones, 4 secciones, 5 secciones, 6 secciones, 7 secciones |
| Rango de viscosidad de funcionamiento | 15 - 75 mm²/s (15 cSt a 75 cSt) |
| Flujo Nominal | 40 l/min (10,5 gal EE. UU./min) |
| Presión Máxima | 250 bar (3600 psi) |
| Puerto de Entrada | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Puerto de Salida | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Tamaño de Puerto | G3/8, G1/2, M18×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
The P40-G38-OT is a versatile directional valve that offers precise control and reliability in demanding hydraulic systems. Its key features include:
* **Manual Operation:** Allows for direct and intuitive control of fluid flow.
* **Monoblock Construction:** Provides a compact and robust design, ensuring durability and leak-free performance.
* **High Flow Rate:** Delivers up to 40 L/min of flow, suitable for a variety of applications.
* **High Pressure Rating:** Withstands pressures up to 250 bar, making it ideal for heavy-duty applications.
* **Wide Temperature Range:** Operates effectively in temperatures ranging from -40°C to +80°C, ensuring performance in diverse environments.
* **Single Spool Design:** Offers simple and efficient flow control with a single spool.
* **Versatile Applications:** Suitable for a range of industrial applications, including construction, material handling, agriculture, and industrial vehicles.
