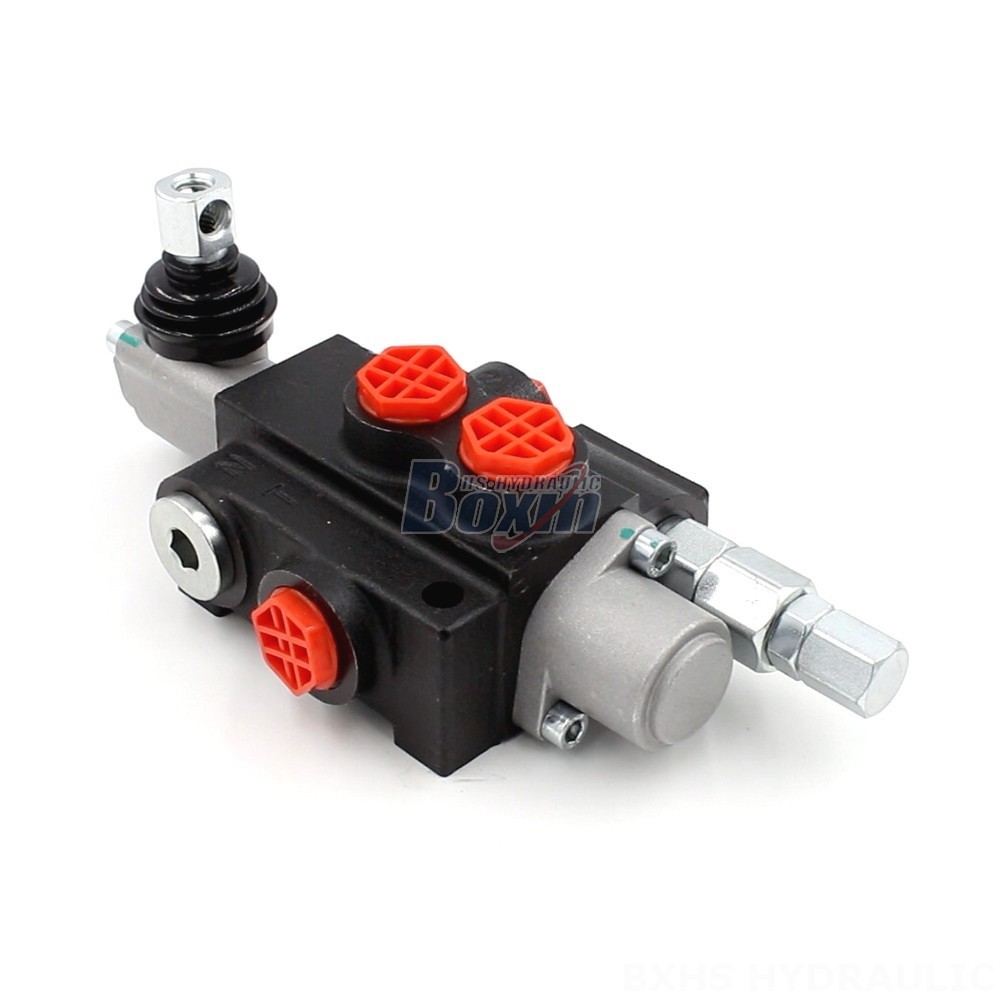

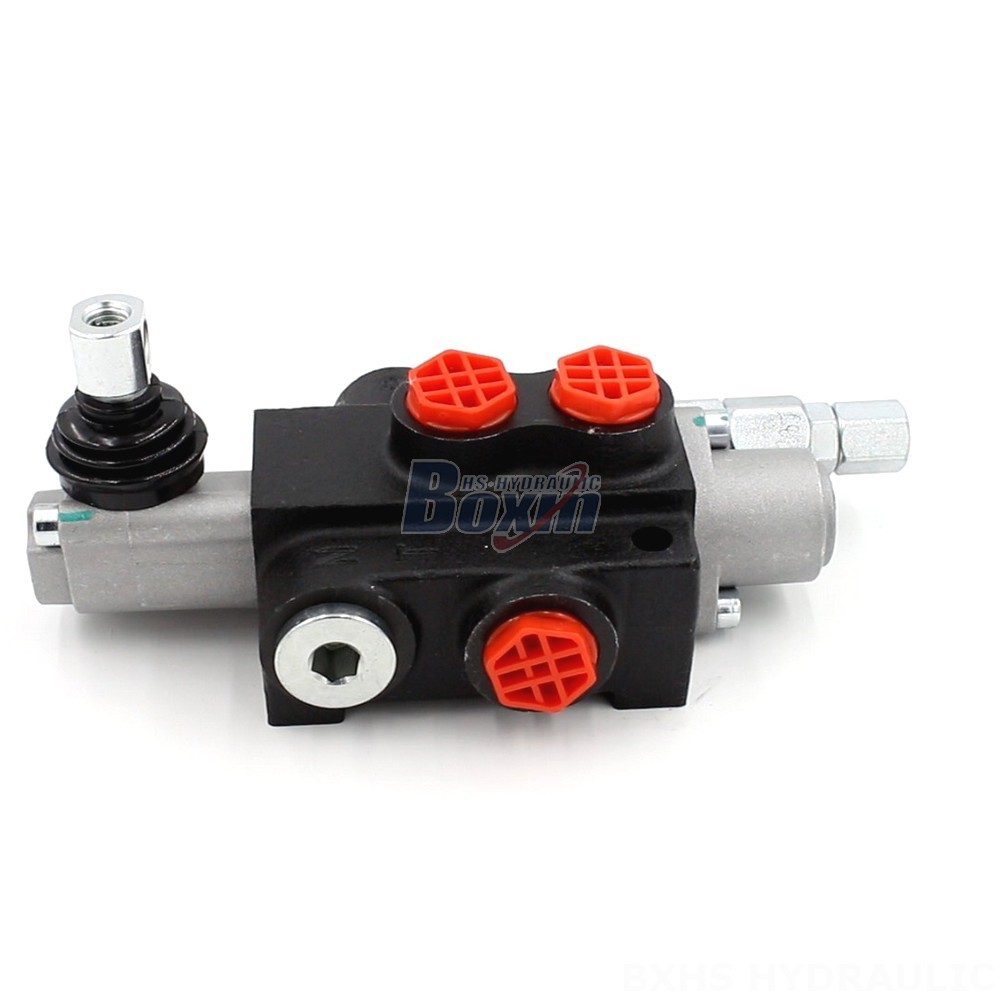

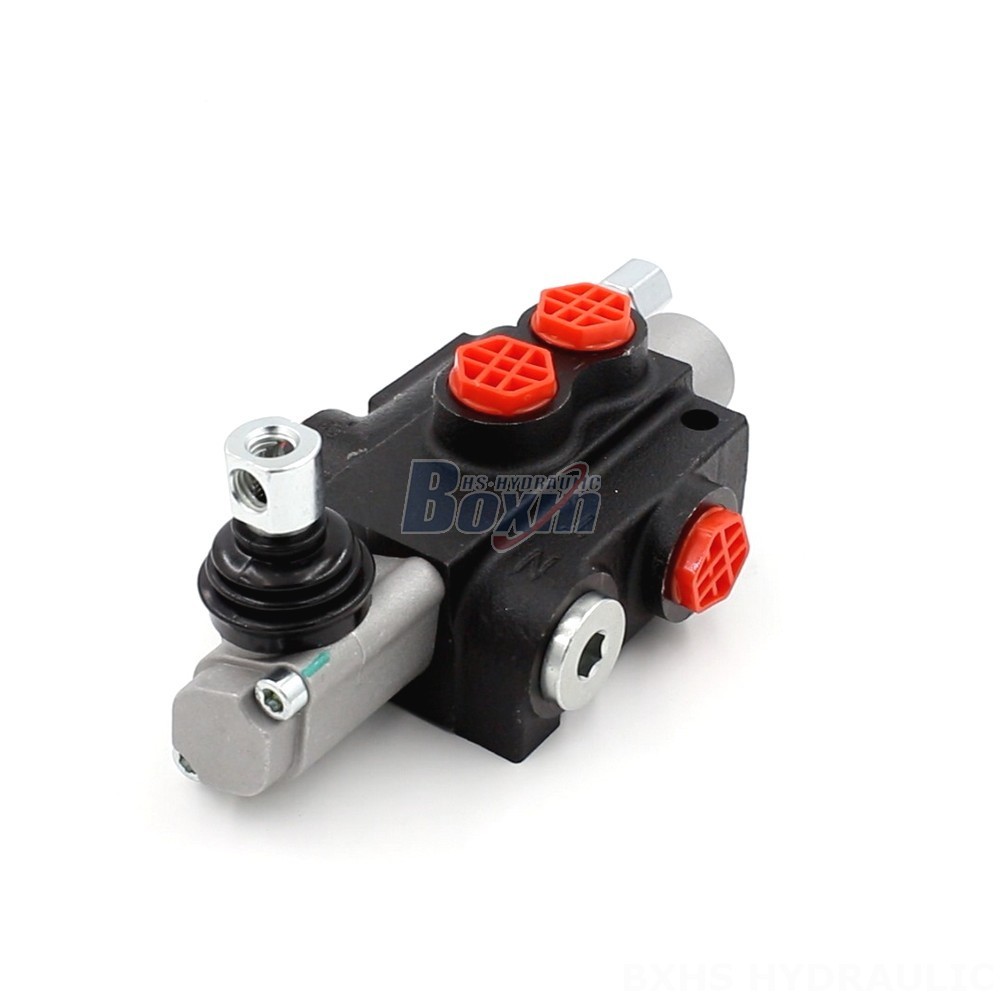

P40-G38 1 Spool Valve: Precise Fluid Control for Industrial Applications

Método de control:Manual

Carrete:1 carrete

Flujo Nominal:40 l/min (10,5 gal EE. UU./min)

Presión Máxima:250 bar (3600 psi)

Puerto de Entrada:G3/8

Puerto de Salida:G3/8

Tamaño de Puerto:G3/8

Marca:BXHS

Tipo de producto:Válvula Direccional Monobloque

Serie de productos:Serie P40 Válvula Direccional Monobloque

Tamaño del embalaje:23*16*11

Peso bruto:3.00 kg

Disponibilidad: En stock

955 personas están viendo este producto

P40-G38 1 Spool Valve: Precise Fluid Control for Industrial Applications

P40-G38 1 Spool Valve: Precise Fluid Control for Industrial Applications

P40-G38 1 Spool Valve: Precise Fluid Control for Industrial Applications drawing image

The P40-G38 1 Spool Divider Valve is a precise fluid control solution for industrial applications, designed for use in material handling, construction, agriculture, and industrial vehicles. This monoblock valve features a rated flow of 40 L/min and a maximum pressure of 250 bar, making it ideal for a wide range of applications.

Serie P40 Válvula Direccional Monobloque Parámetros
Método de control Manual, Neumático, Electoneumático, Electrohidráulico, Solenoide, Hidráulico, Hidráulico y Manual, Cable, Joystick, Solenoide y joystick, Manual y joystick, Solenoide y cable
Carrete 1 carrete, 2 carretes, 3 carretes, 4 carretes, 5 carretes, 6 carretes, 7 carretes
Rango de temperatura ambiente -40 °C a +80 °C (-40 °F a +176 °F)
Tipo de estructura Válvulas monobloc
Sección 1 sección, 2 secciones, 3 secciones, 4 secciones, 5 secciones, 6 secciones, 7 secciones
Rango de viscosidad de funcionamiento 15 - 75 mm²/s (15 cSt a 75 cSt)
Flujo Nominal 40 l/min (10,5 gal EE. UU./min)
Presión Máxima 250 bar (3600 psi)
Puerto de Entrada G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT
Puerto de Salida G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT
Tamaño de Puerto G3/8, G1/2, M18×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT

This Divider Valve, part of the P40 series, is a robust monoblock valve with a single spool designed for precise fluid control in demanding industrial applications. With a rated flow of 40 L/min (10.5 US gpm) and a maximum pressure rating of 250 bar (3600 psi), the valve is suitable for a variety of heavy-duty machines. Its operating viscosity range spans 15 - 75 mm²/s (15 cSt to 75 cSt), and it can withstand ambient temperatures from -40°C to +80°C (-40°F to +176°F). The P40-G38 is an ideal choice for applications in material handling, construction and earthmoving, agriculture, and industrial vehicles, including telehandlers, forklifts, all terrain cranes, stackers, aerial platforms, motor graders, midi- and mini- excavators, skid steer loaders, and compact wheel loaders.
