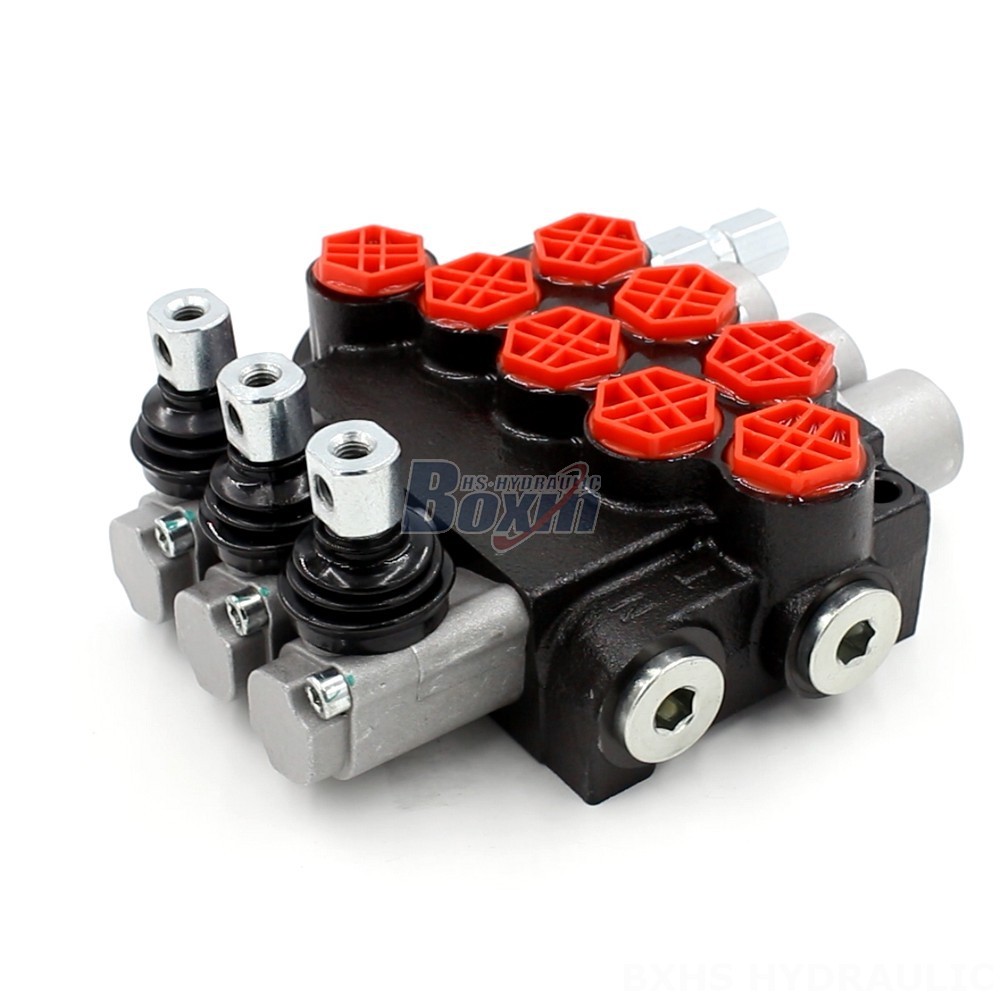

Introducing the P40-G12-OT Hydraulic Components, offering superior quality and performance. Manufactured directly in our factory, these components provide exceptional reliability and efficiency for various applications, including material handling, construction, agriculture, and industrial vehicles. With our engineering support and factory-direct sales, you're assured of expert guidance and cost-effective solutions.
| Serie P40 Válvula Direccional Monobloque Parámetros | |
|---|---|
| Método de control | Manual, Neumático, Electoneumático, Electrohidráulico, Solenoide, Hidráulico, Hidráulico y Manual, Cable, Joystick, Solenoide y joystick, Manual y joystick, Solenoide y cable |
| Carrete | 1 carrete, 2 carretes, 3 carretes, 4 carretes, 5 carretes, 6 carretes, 7 carretes |
| Rango de temperatura ambiente | -40 °C a +80 °C (-40 °F a +176 °F) |
| Tipo de estructura | Válvulas monobloc |
| Sección | 1 sección, 2 secciones, 3 secciones, 4 secciones, 5 secciones, 6 secciones, 7 secciones |
| Rango de viscosidad de funcionamiento | 15 - 75 mm²/s (15 cSt a 75 cSt) |
| Flujo Nominal | 40 l/min (10,5 gal EE. UU./min) |
| Presión Máxima | 250 bar (3600 psi) |
| Puerto de Entrada | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Puerto de Salida | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Tamaño de Puerto | G3/8, G1/2, M18×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
The P40-G12-OT Hydraulic Components are meticulously engineered to deliver unmatched performance and durability. Featuring a monoblock valve design and manual control, these components ensure precise and responsive operation. With a rated flow of 40 L/min and a maximum pressure of 250 bar, they are capable of handling demanding hydraulic systems. The operating viscosity range of 15 - 75 mm²/s and ambient temperature range of -40°C to +80°C ensure optimal performance in diverse operating conditions.
As a leading manufacturer, we offer factory-direct sales, providing you with competitive pricing and direct access to our production expertise. Our engineering support team is dedicated to assisting you with technical queries and ensuring the seamless integration of our components into your systems. Whether you're a distributor, wholesaler, agent, or trader, we invite you to partner with us and leverage our manufacturing capabilities to meet the growing demand for high-quality hydraulic solutions.
