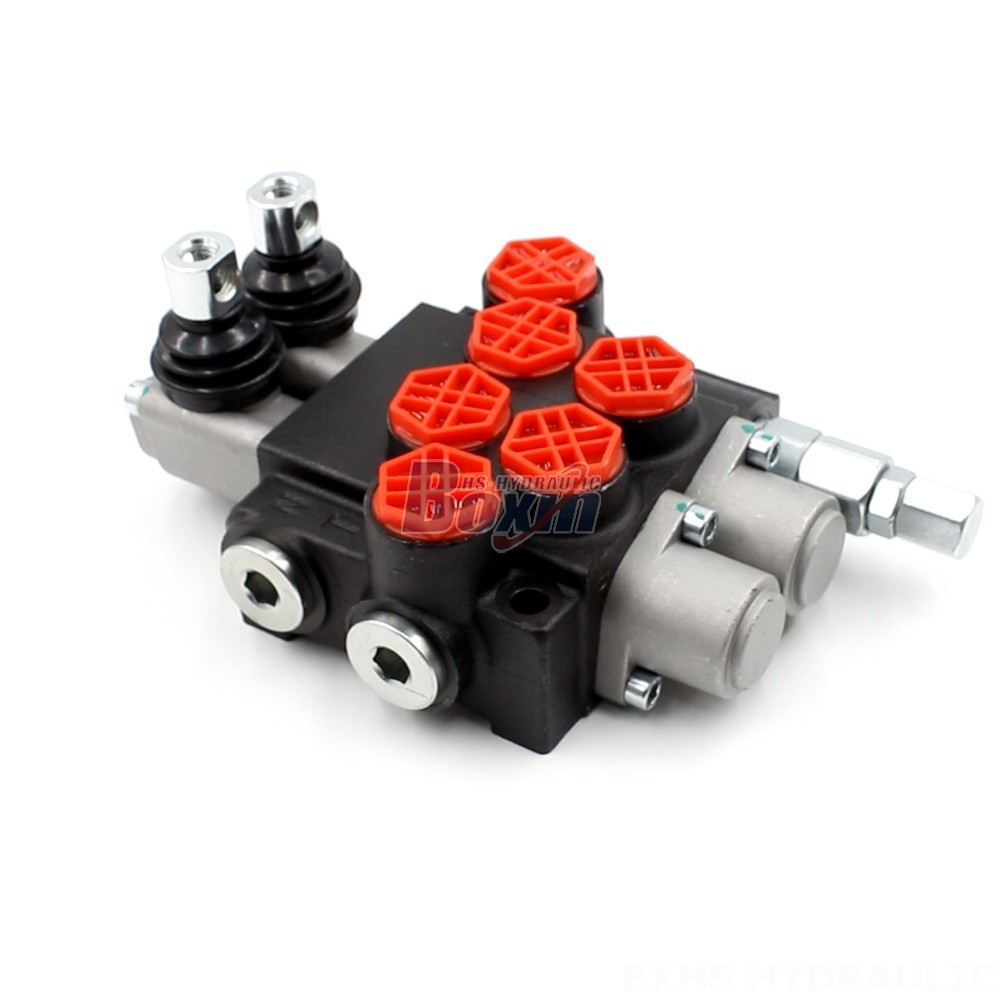

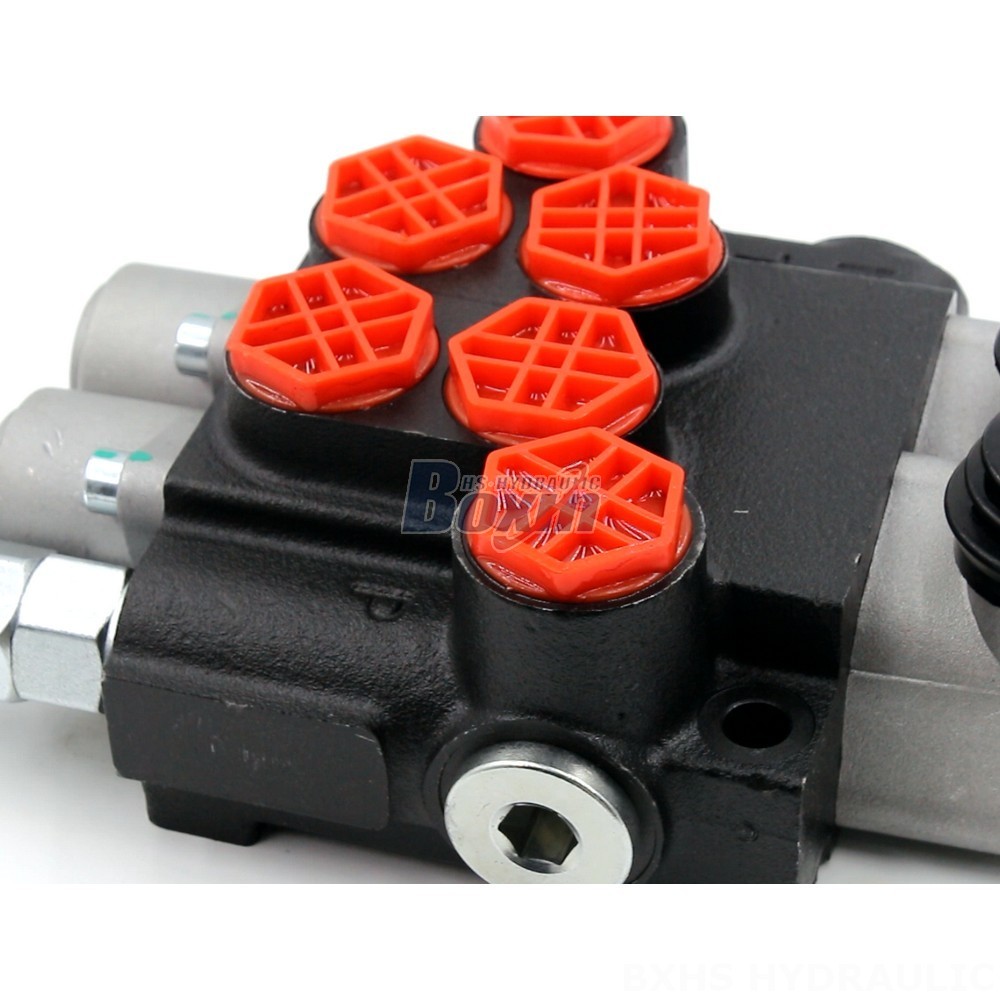

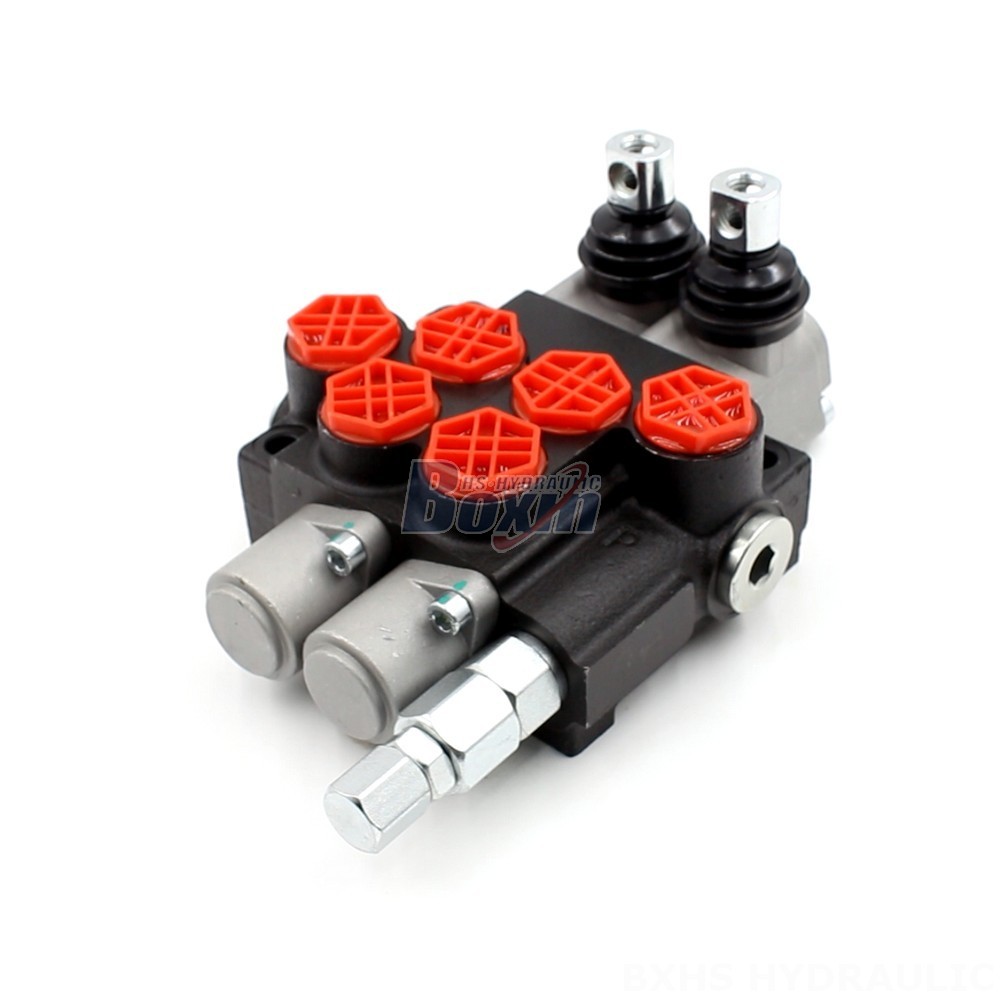

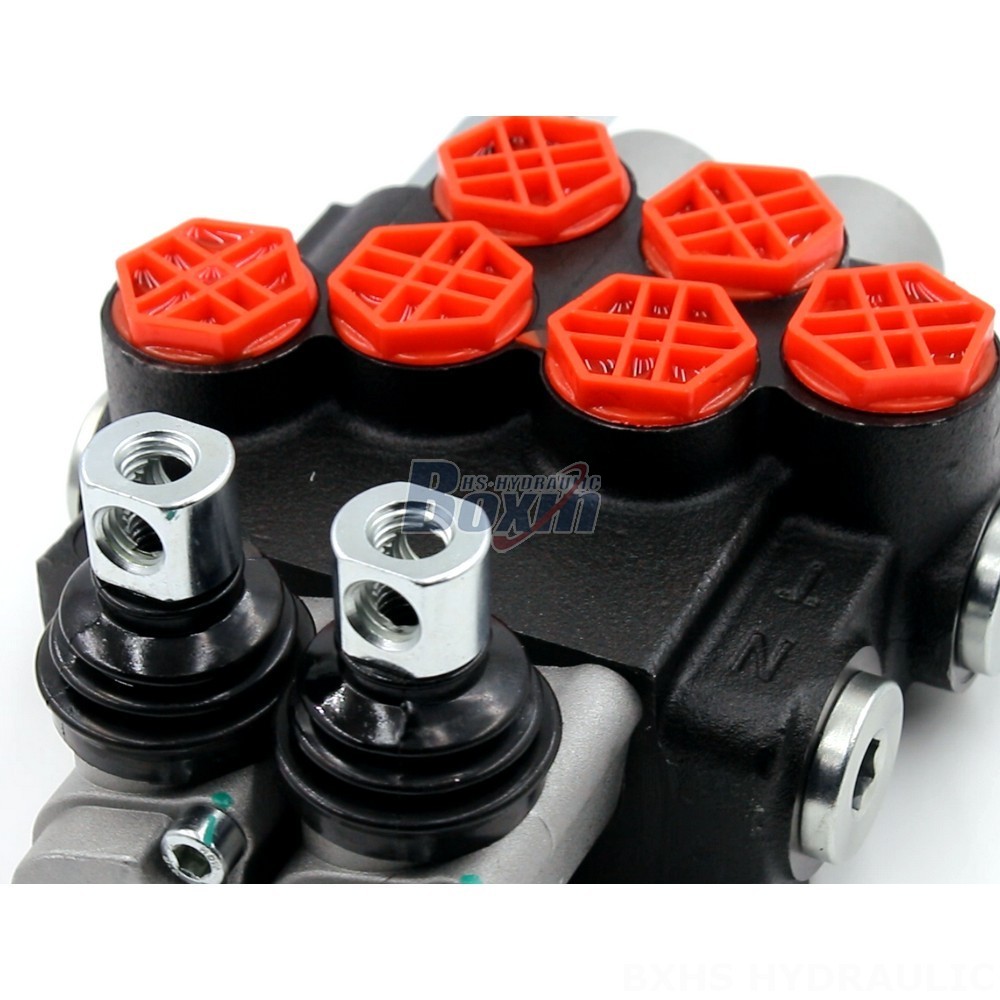

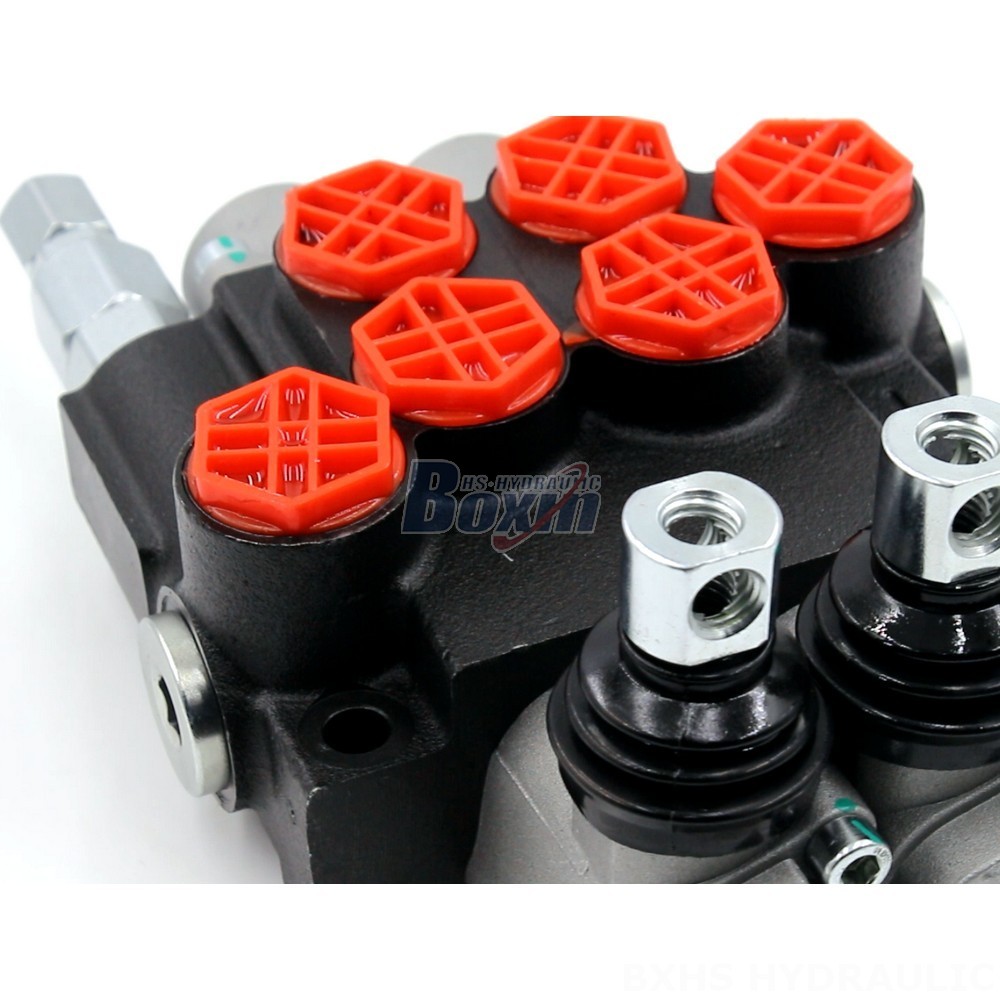

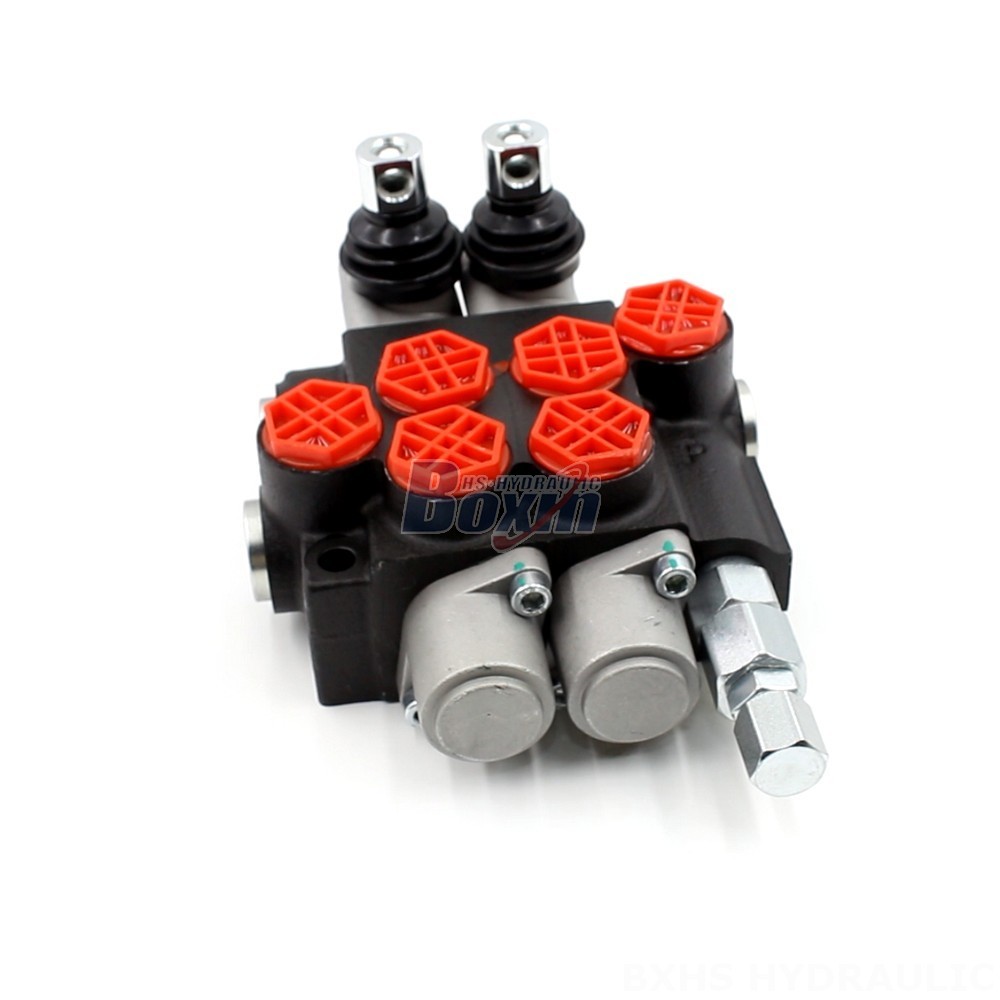

P40-G12 Monoblock Directional Valve | Leading Hydraulic Solutions

Método de control:Manual

Carrete:2 carretes

Flujo Nominal:40 l/min (10,5 gal EE. UU./min)

Presión Máxima:250 bar (3600 psi)

Puerto de Entrada:G1/2

Puerto de Salida:G1/2

Tamaño de Puerto:G1/2

Marca:BXHS

Tipo de producto:Válvula Direccional Monobloque

Serie de productos:Serie P40 Válvula Direccional Monobloque

Tamaño del embalaje:23*18*13

Peso bruto:5.00 kg

Disponibilidad: En stock

1270 personas están viendo este producto

P40-G12 Monoblock Directional Valve | Leading Hydraulic Solutions

P40-G12 Monoblock Directional Valve | Leading Hydraulic Solutions

P40-G12 Monoblock Directional Valve | Leading Hydraulic Solutions drawing image

The P40-G12 Monoblock Directional Valve is a reliable and versatile hand operated hydraulic valve designed for a wide range of applications. It features a 2-section design, 40 L/min rated flow, and 250 bar maximum pressure, making it suitable for material handling, construction, earthmoving, agriculture, and industrial vehicles.

Serie P40 Válvula Direccional Monobloque Parámetros
Método de control Manual, Neumático, Electoneumático, Electrohidráulico, Solenoide, Hidráulico, Hidráulico y Manual, Cable, Joystick, Solenoide y joystick, Manual y joystick, Solenoide y cable
Carrete 1 carrete, 2 carretes, 3 carretes, 4 carretes, 5 carretes, 6 carretes, 7 carretes
Rango de temperatura ambiente -40 °C a +80 °C (-40 °F a +176 °F)
Tipo de estructura Válvulas monobloc
Sección 1 sección, 2 secciones, 3 secciones, 4 secciones, 5 secciones, 6 secciones, 7 secciones
Rango de viscosidad de funcionamiento 15 - 75 mm²/s (15 cSt a 75 cSt)
Flujo Nominal 40 l/min (10,5 gal EE. UU./min)
Presión Máxima 250 bar (3600 psi)
Puerto de Entrada G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT
Puerto de Salida G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT
Tamaño de Puerto G3/8, G1/2, M18×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT

This hand-operated hydraulic valve is a 2-section monoblock valve offering a rated flow of 40 L/min and a maximum pressure of 250 bar. Designed for demanding applications in industries like material handling, construction, earthmoving, agriculture, and industrial vehicles, this valve is compatible with various equipment types including telehandlers, forklifts, cranes, stackers, aerial platforms, motor graders, midi-excavators, mini-excavators, skid steer loaders, compact wheel loaders, wheel loaders, backhoe loaders, dumpers, face drill rigs, concrete boom pumps, pave rollers, rotary drilling equipment, and crushers. The valve boasts a robust construction and an operating viscosity range of 15-75 mm²/s, ensuring reliable operation in diverse environments and temperature ranges from -40°C to +80°C. The P40-G12 valve is a valuable component for various hydraulic systems, offering reliable control and efficiency.
