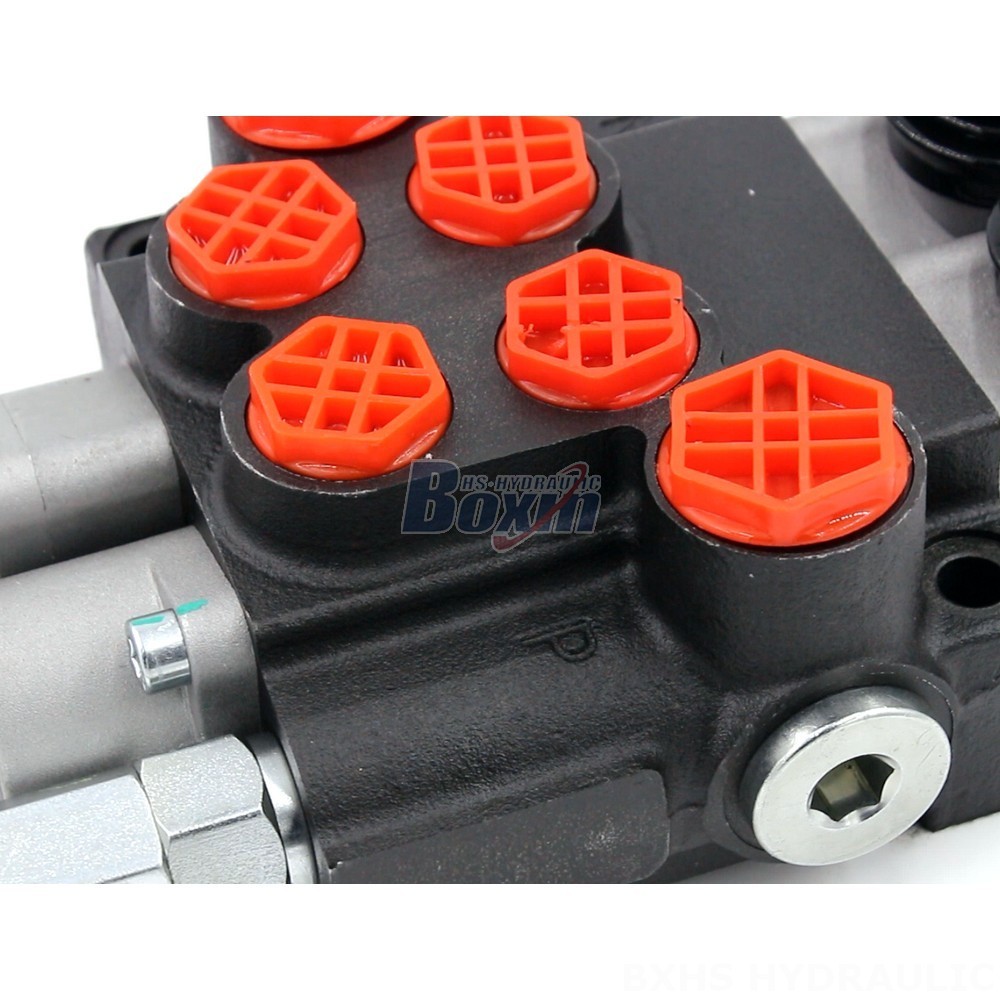

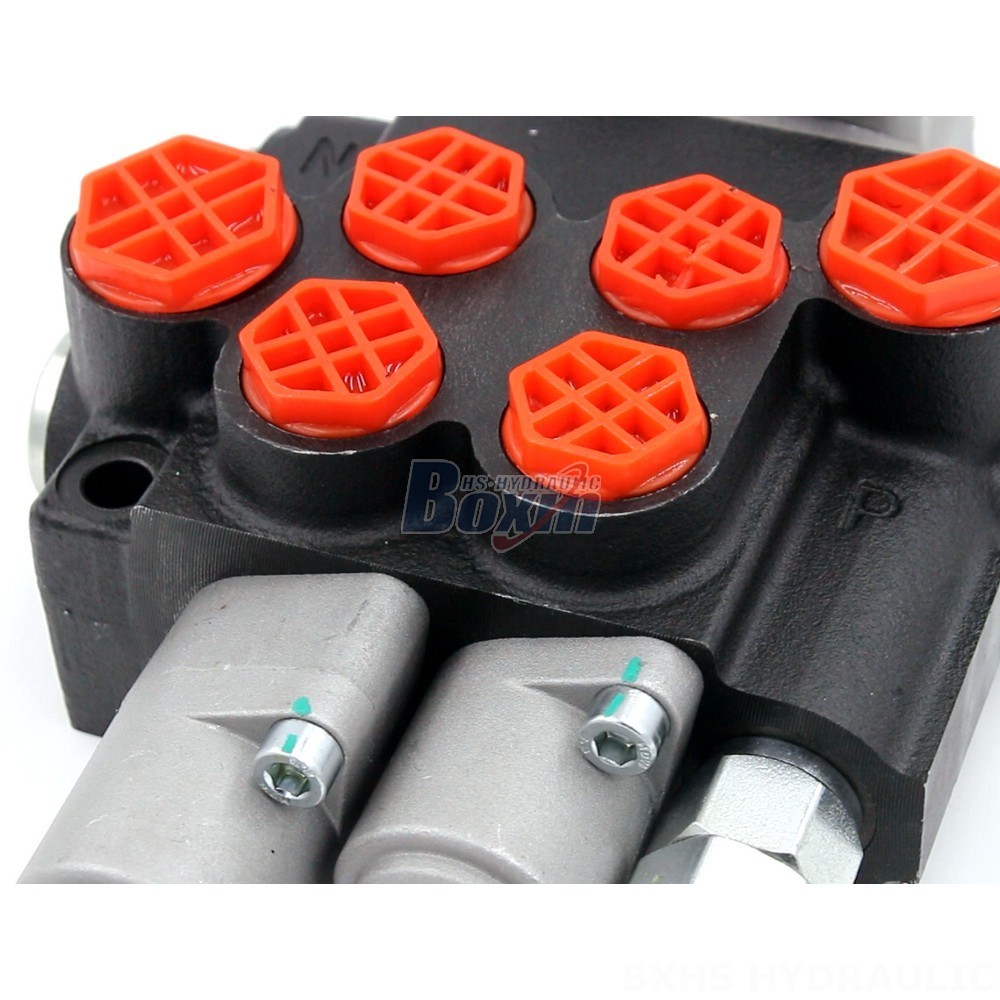

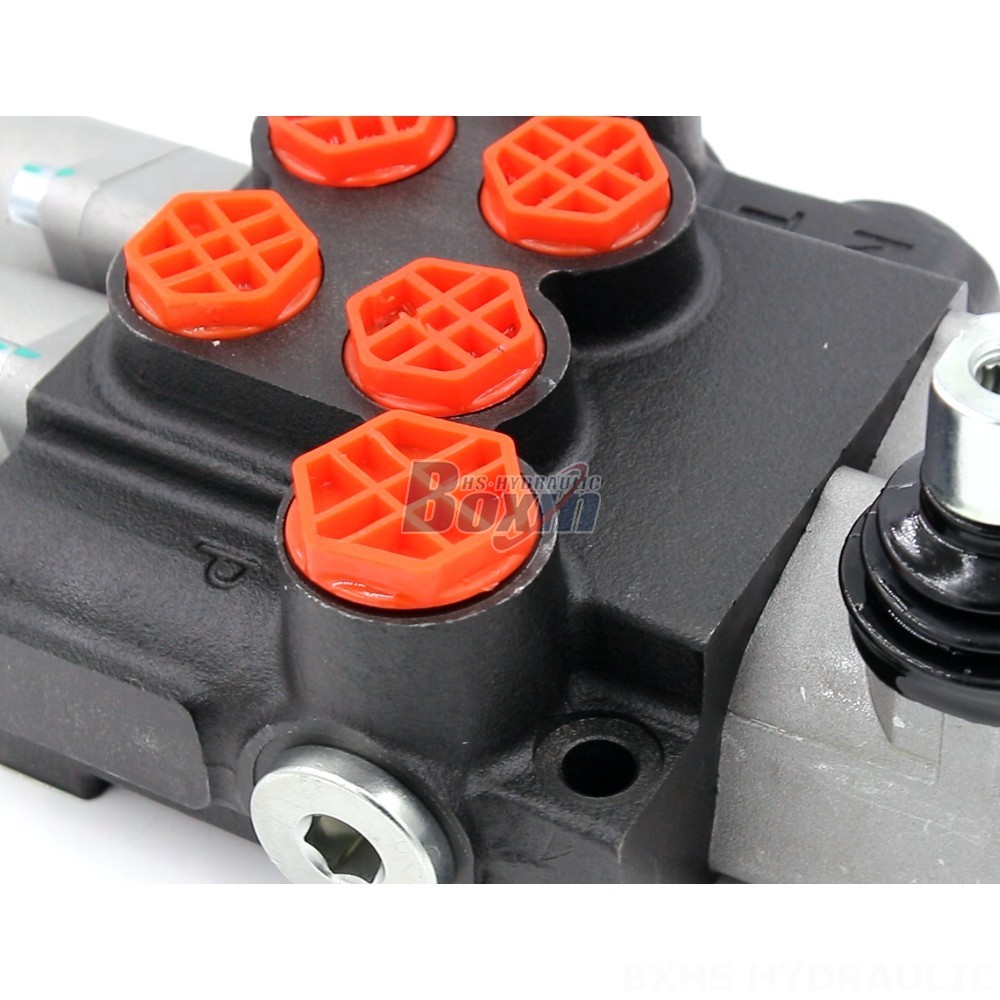

The P40 Series Single Spool Hydraulic Valve with Power Beyond is a versatile and robust valve designed for various applications including construction, material handling, agriculture, and industrial vehicles. This valve features a compact monoblock design, high flow rate, and durable construction, making it ideal for demanding hydraulic systems.
| Serie P40 Válvula Direccional Monobloque Parámetros | |
|---|---|
| Método de control | Manual, Neumático, Electoneumático, Electrohidráulico, Solenoide, Hidráulico, Hidráulico y Manual, Cable, Joystick, Solenoide y joystick, Manual y joystick, Solenoide y cable |
| Carrete | 1 carrete, 2 carretes, 3 carretes, 4 carretes, 5 carretes, 6 carretes, 7 carretes |
| Rango de temperatura ambiente | -40 °C a +80 °C (-40 °F a +176 °F) |
| Tipo de estructura | Válvulas monobloc |
| Sección | 1 sección, 2 secciones, 3 secciones, 4 secciones, 5 secciones, 6 secciones, 7 secciones |
| Rango de viscosidad de funcionamiento | 15 - 75 mm²/s (15 cSt a 75 cSt) |
| Flujo Nominal | 40 l/min (10,5 gal EE. UU./min) |
| Presión Máxima | 250 bar (3600 psi) |
| Puerto de Entrada | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Puerto de Salida | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Tamaño de Puerto | G3/8, G1/2, M18×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
The P40 Series Single Spool Hydraulic Valve with Power Beyond is a high-performance hydraulic valve designed for a wide range of applications, including construction equipment, material handling equipment, agriculture machinery, and industrial vehicles. This valve features a 2-section monoblock design with a rated flow of 40 L/min and a maximum pressure of 250 bar, ensuring reliable performance in demanding applications. The valve also offers manual control and is compatible with various operating viscosities and ambient temperatures. This valve is ideal for applications that require a compact, powerful, and efficient hydraulic control solution. It is designed for use with a wide range of hydraulic actuators and systems. The P40 Series Single Spool Hydraulic Valve with Power Beyond is available as an OEM or ODM product, allowing customers to customize the valve to meet their specific needs.
