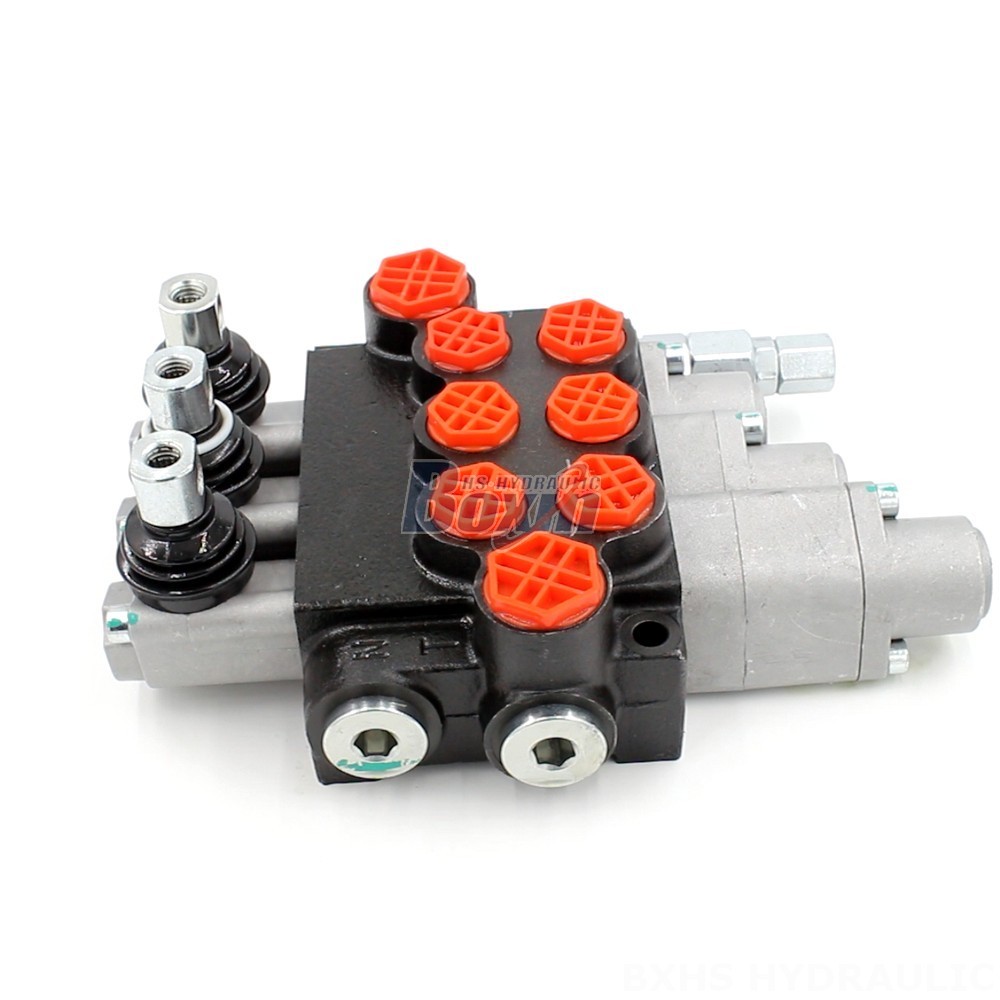

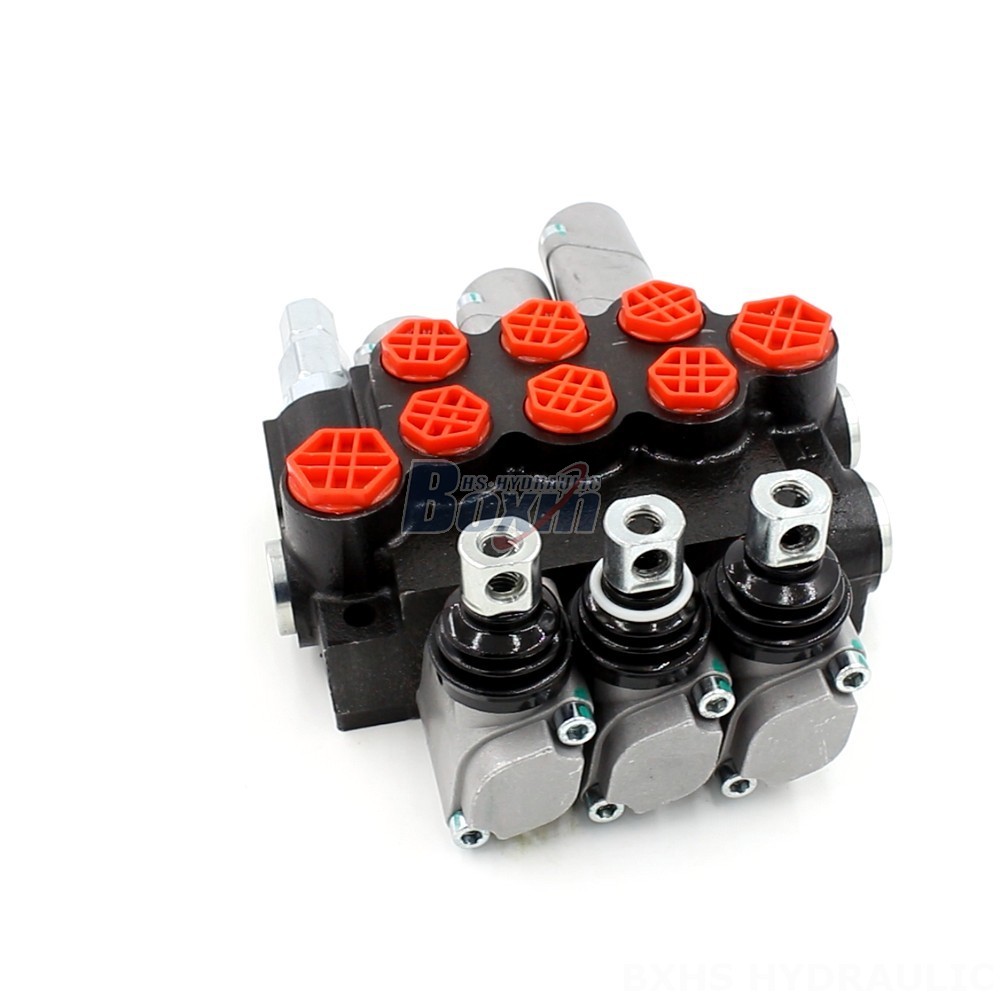

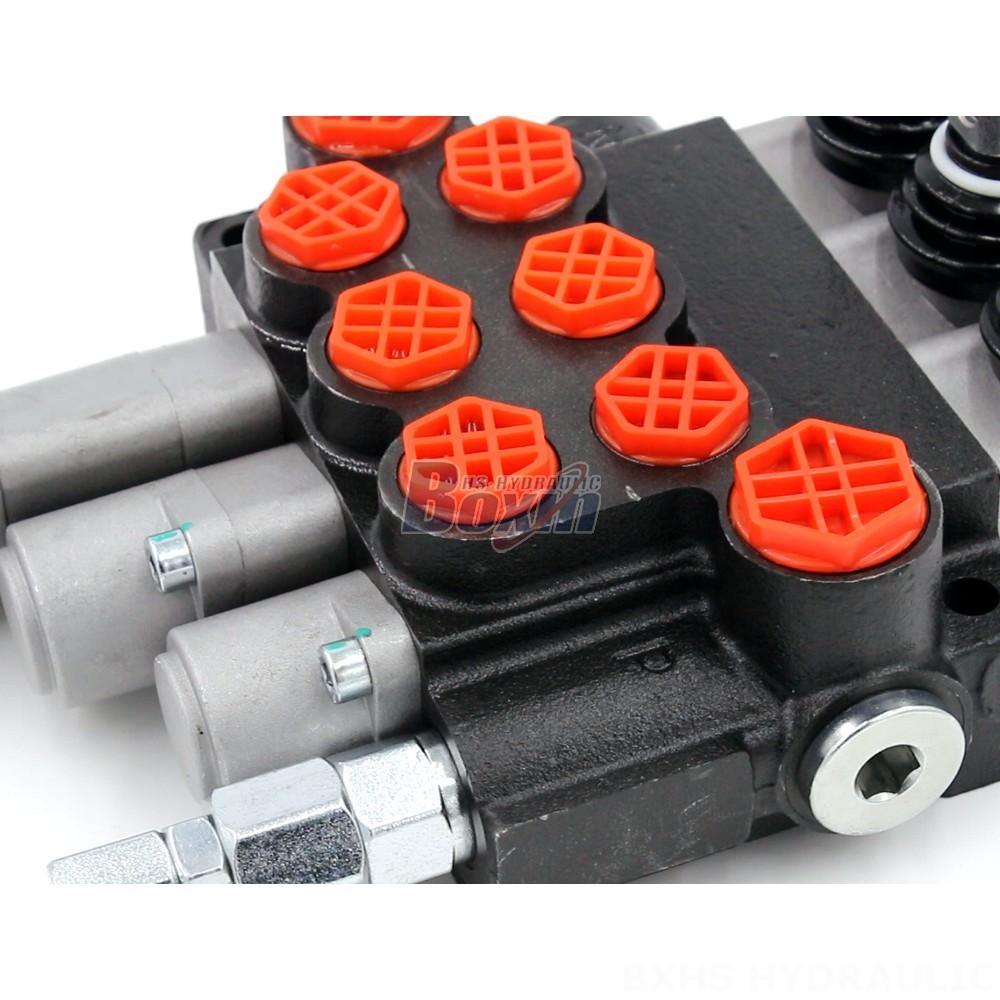

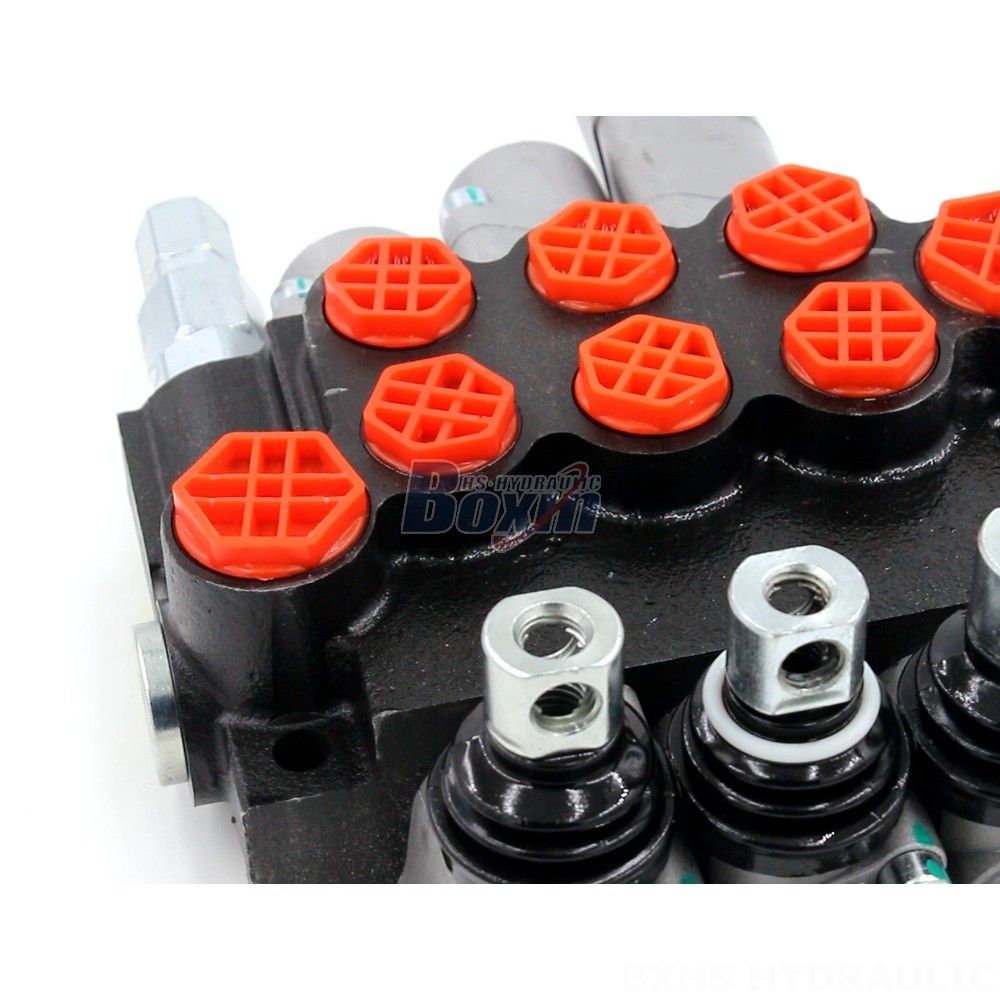

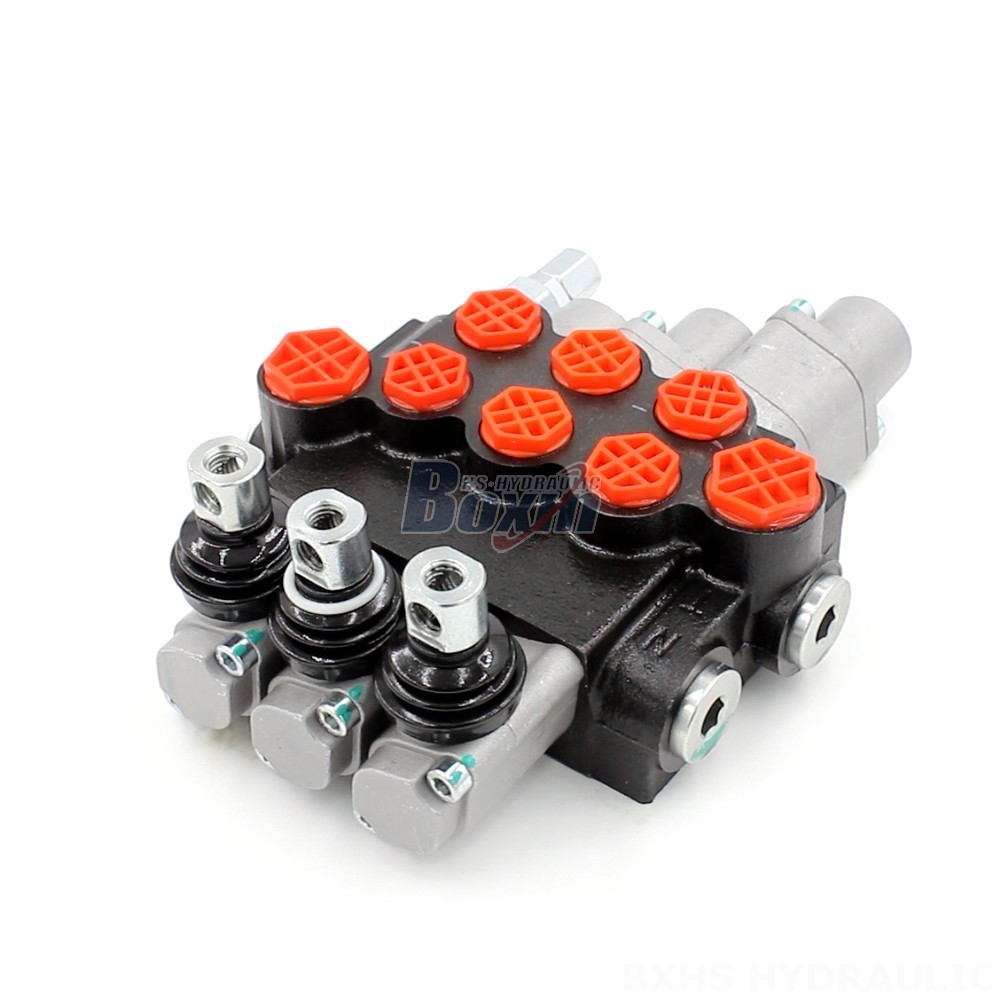

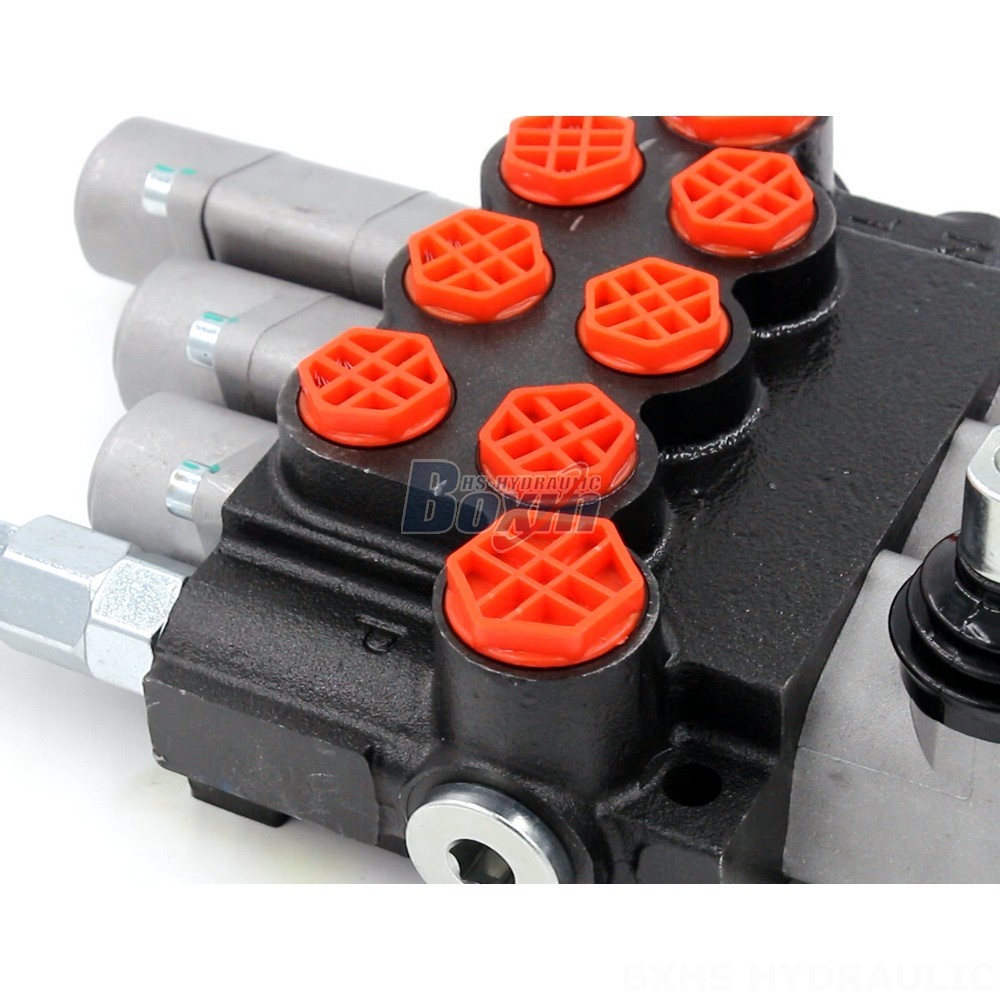

The P40-G12-G38-OT-QTW-QTW1 Directional Valve is a high-performance, reliable hydraulic valve designed for use in a variety of material handling and construction applications. With a rated flow of 40 L/min and a maximum pressure of 250 bar, this 3-section monoblock valve provides superior control and durability.
| Serie P40 Válvula Direccional Monobloque Parámetros | |
|---|---|
| Método de control | Manual, Neumático, Electoneumático, Electrohidráulico, Solenoide, Hidráulico, Hidráulico y Manual, Cable, Joystick, Solenoide y joystick, Manual y joystick, Solenoide y cable |
| Carrete | 1 carrete, 2 carretes, 3 carretes, 4 carretes, 5 carretes, 6 carretes, 7 carretes |
| Rango de temperatura ambiente | -40 °C a +80 °C (-40 °F a +176 °F) |
| Tipo de estructura | Válvulas monobloc |
| Sección | 1 sección, 2 secciones, 3 secciones, 4 secciones, 5 secciones, 6 secciones, 7 secciones |
| Rango de viscosidad de funcionamiento | 15 - 75 mm²/s (15 cSt a 75 cSt) |
| Flujo Nominal | 40 l/min (10,5 gal EE. UU./min) |
| Presión Máxima | 250 bar (3600 psi) |
| Puerto de Entrada | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Puerto de Salida | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Tamaño de Puerto | G3/8, G1/2, M18×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
The P40-G12-G38-OT-QTW-QTW1 Directional Valve is a manual control valve designed for use in a wide range of applications including forklifts, telehandlers, mini-excavators, skid steer loaders, and more. This 3-section monoblock valve features a rated flow of 40 L/min and a maximum pressure of 250 bar, ensuring optimal performance in demanding environments. The valve's operating viscosity range is 15 - 75 mm²/s, and it can withstand ambient temperatures from -40°C to +80°C. With its robust construction and reliable operation, the P40-G12-G38-OT-QTW-QTW1 Directional Valve is an ideal choice for applications where high performance and durability are critical.
