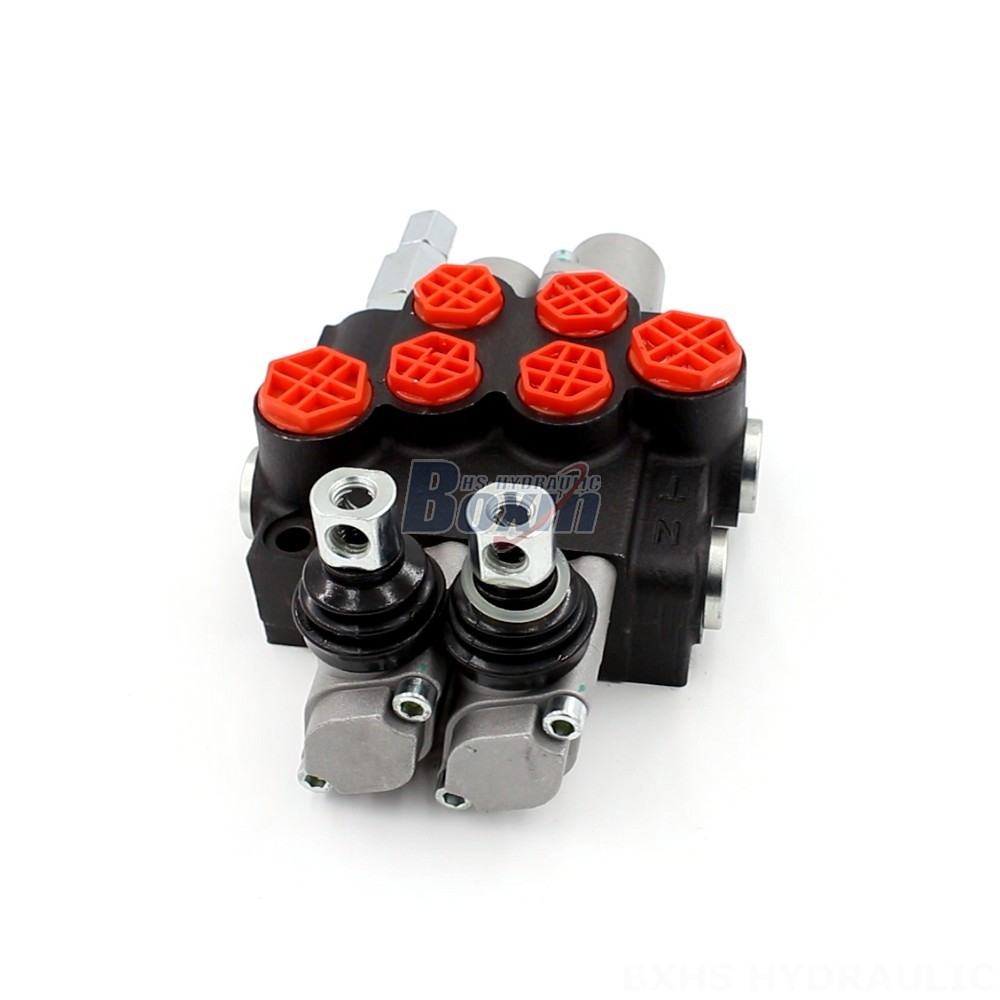

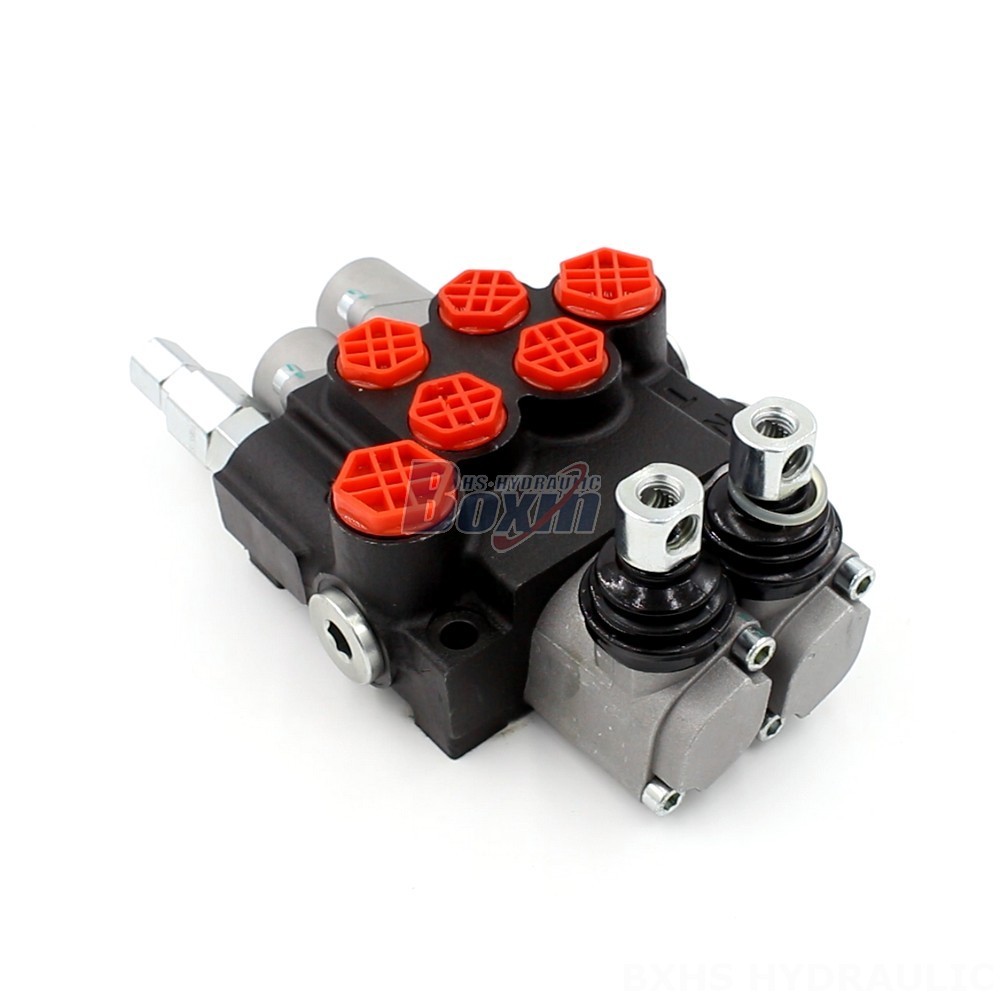

The P40-G12-G38-OT-QTW Monoblock Valve is a solenoid operated, 2-section directional control valve designed for demanding hydraulic applications in industries such as material handling, construction, and agriculture. It features a maximum operating pressure of 250 bar and a rated flow of 40 L/min, making it suitable for a wide range of machinery including telehandlers, forklifts, and excavators.
| Serie P40 Válvula Direccional Monobloque Parámetros | |
|---|---|
| Método de control | Manual, Neumático, Electoneumático, Electrohidráulico, Solenoide, Hidráulico, Hidráulico y Manual, Cable, Joystick, Solenoide y joystick, Manual y joystick, Solenoide y cable |
| Carrete | 1 carrete, 2 carretes, 3 carretes, 4 carretes, 5 carretes, 6 carretes, 7 carretes |
| Rango de temperatura ambiente | -40 °C a +80 °C (-40 °F a +176 °F) |
| Tipo de estructura | Válvulas monobloc |
| Sección | 1 sección, 2 secciones, 3 secciones, 4 secciones, 5 secciones, 6 secciones, 7 secciones |
| Rango de viscosidad de funcionamiento | 15 - 75 mm²/s (15 cSt a 75 cSt) |
| Flujo Nominal | 40 l/min (10,5 gal EE. UU./min) |
| Presión Máxima | 250 bar (3600 psi) |
| Puerto de Entrada | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Puerto de Salida | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Tamaño de Puerto | G3/8, G1/2, M18×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
This P40 Series directional control valve is a robust, monoblock construction offering manual control. The valve is designed for demanding hydraulic applications, boasting a rated flow of 40 L/min and a maximum operating pressure of 250 bar. Its operating viscosity range spans from 15 to 75 mm²/s, suitable for various hydraulic fluids. The valve is equipped with two spools, allowing for precise control over hydraulic circuits. The P40-G12-G38-OT-QTW valve is ideally suited for heavy-duty machinery within material handling, construction, and agriculture industries, including telehandlers, forklifts, all terrain cranes, stackers, aerial platforms, motor graders, midi-excavators, mini-excavators, and skid steer loaders. Its compact design and high performance make it a reliable choice for demanding hydraulic applications.
