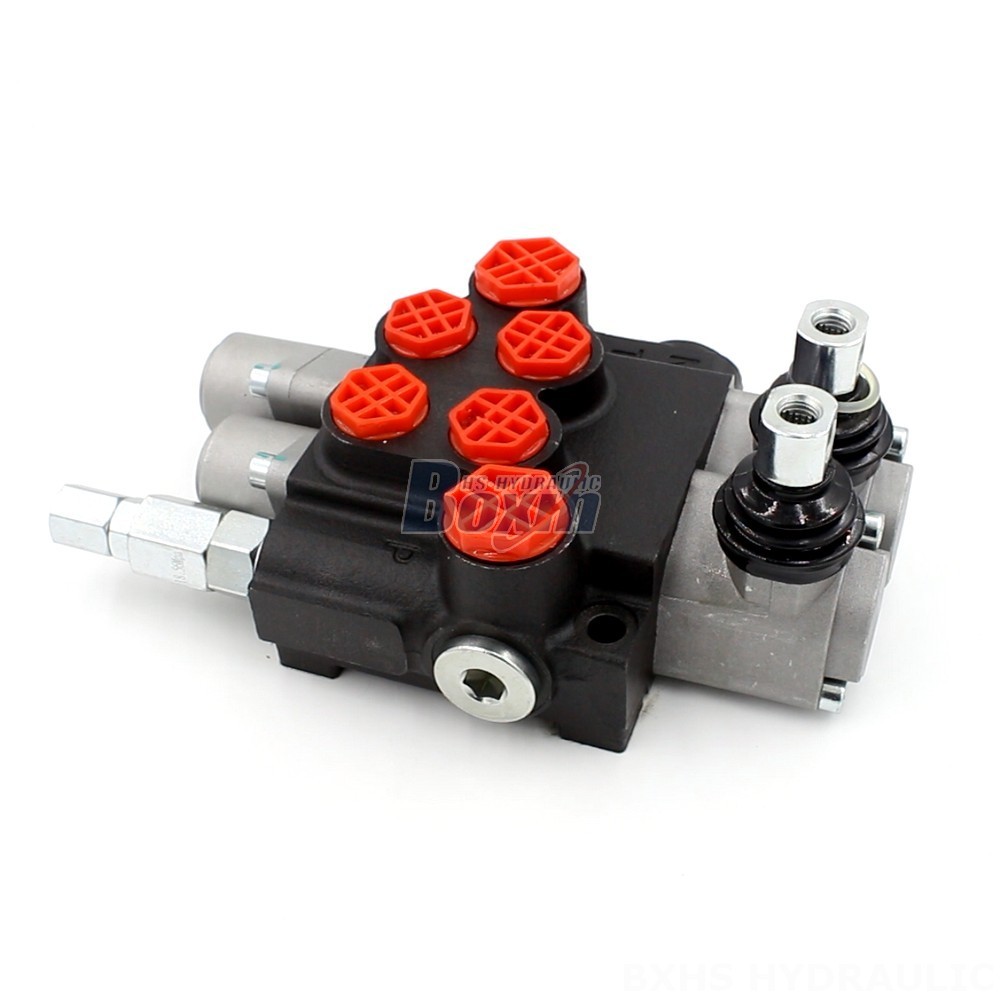

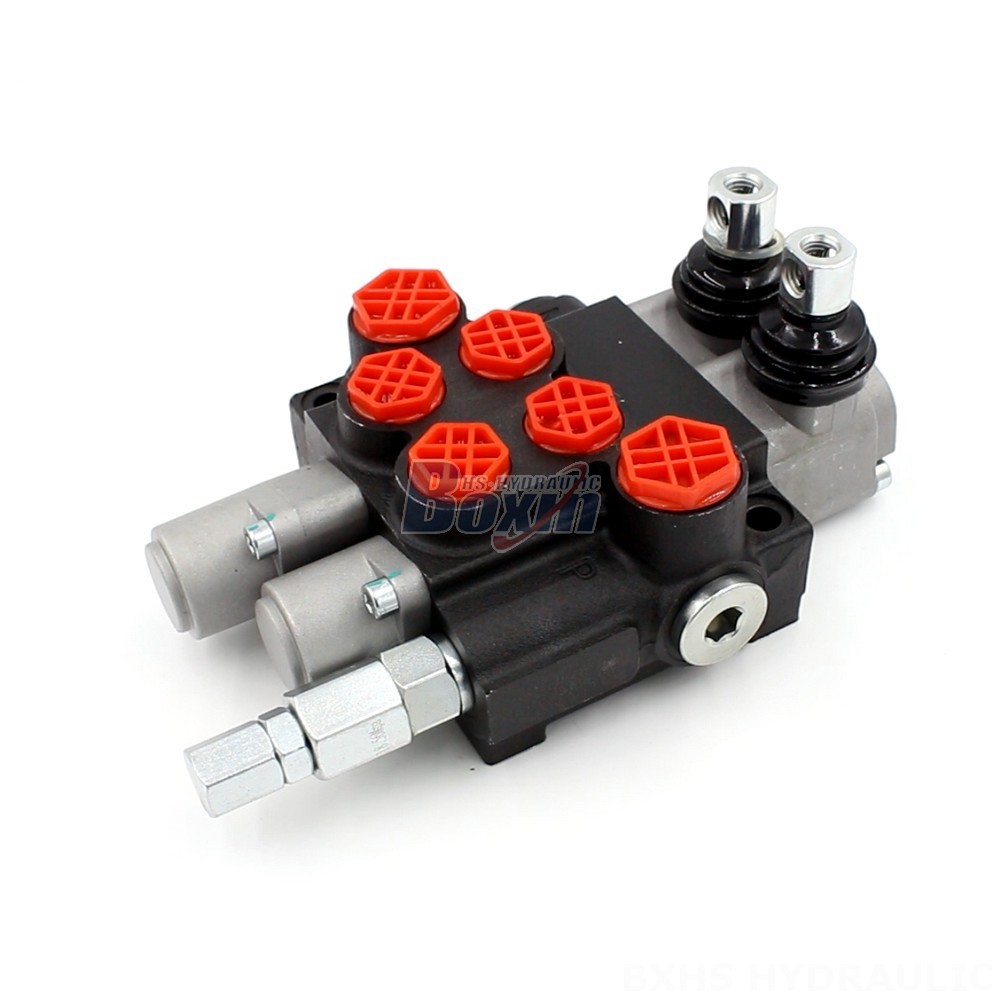

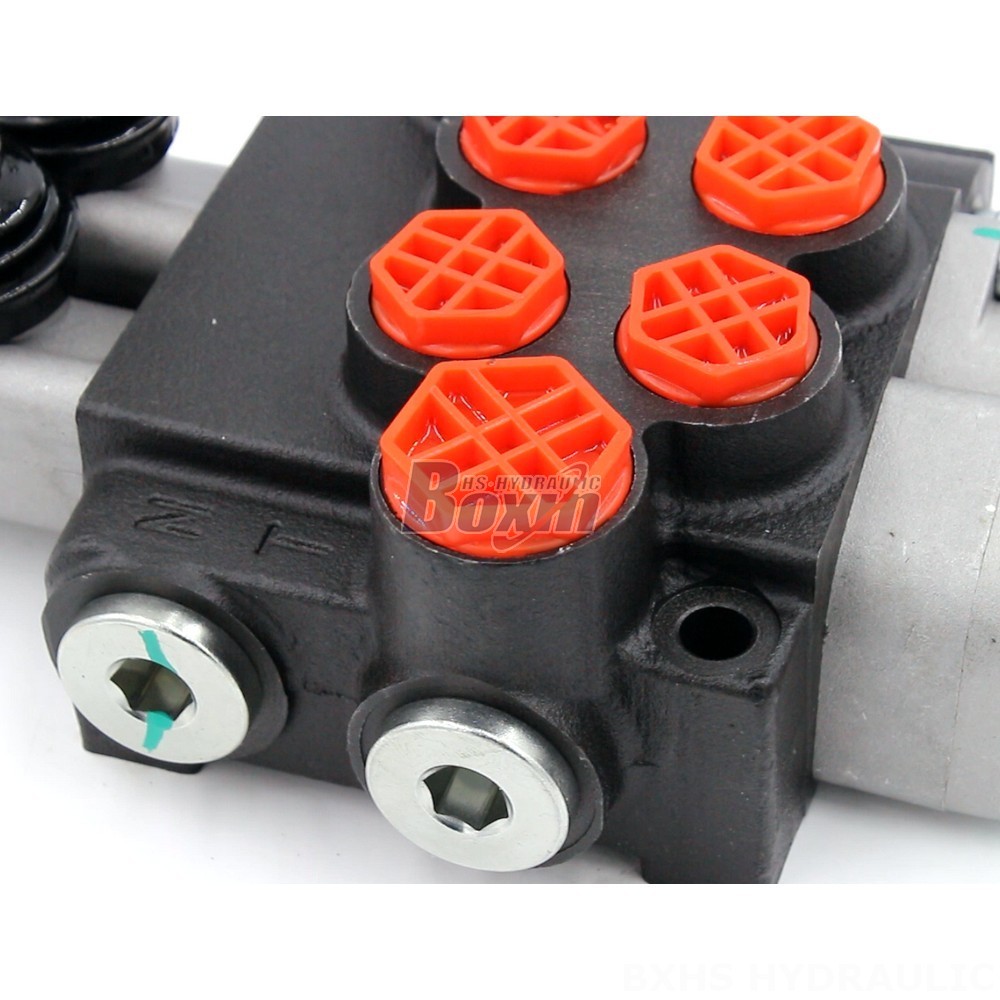

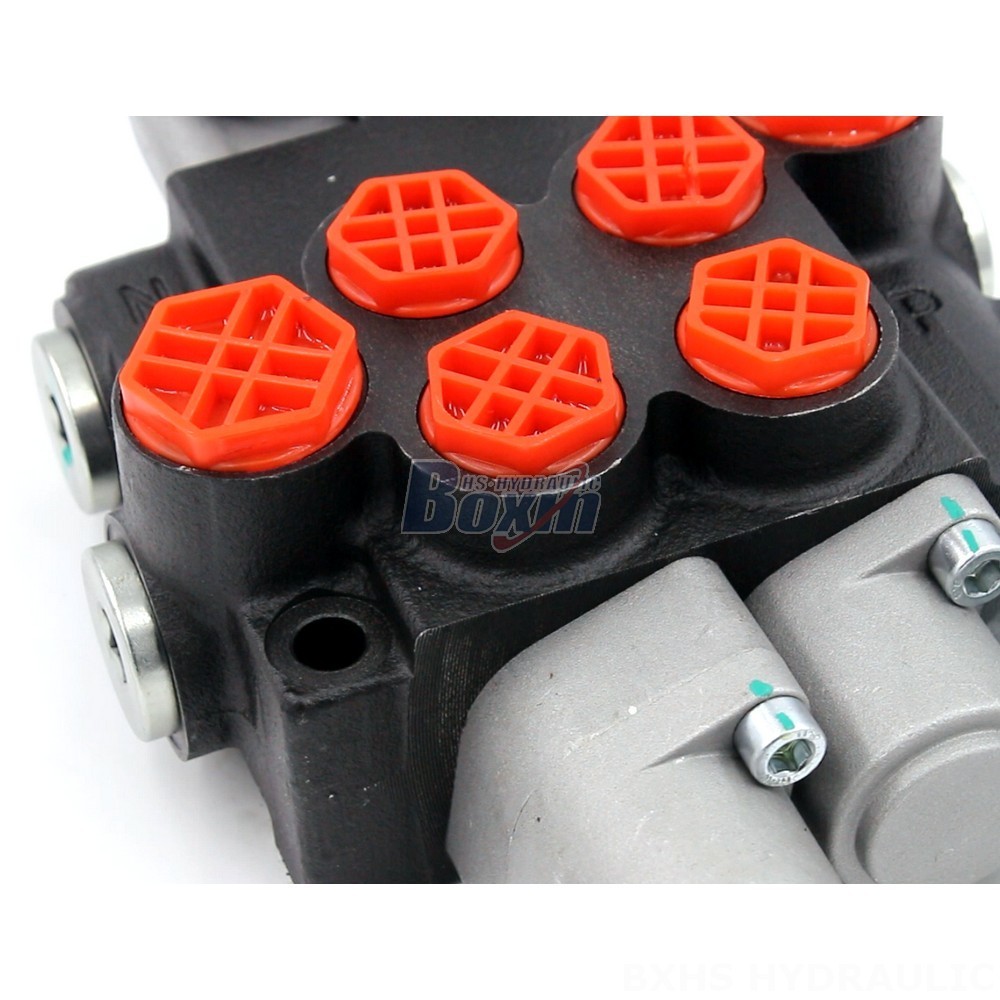

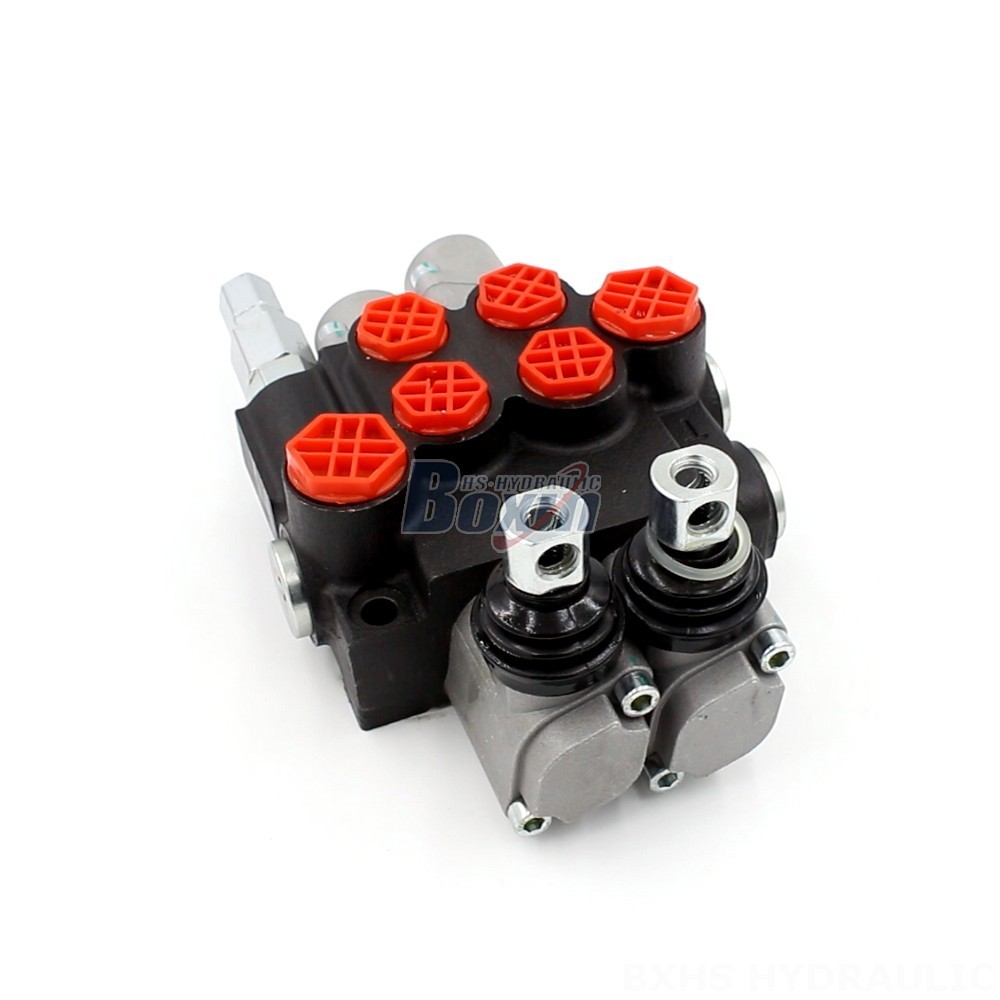

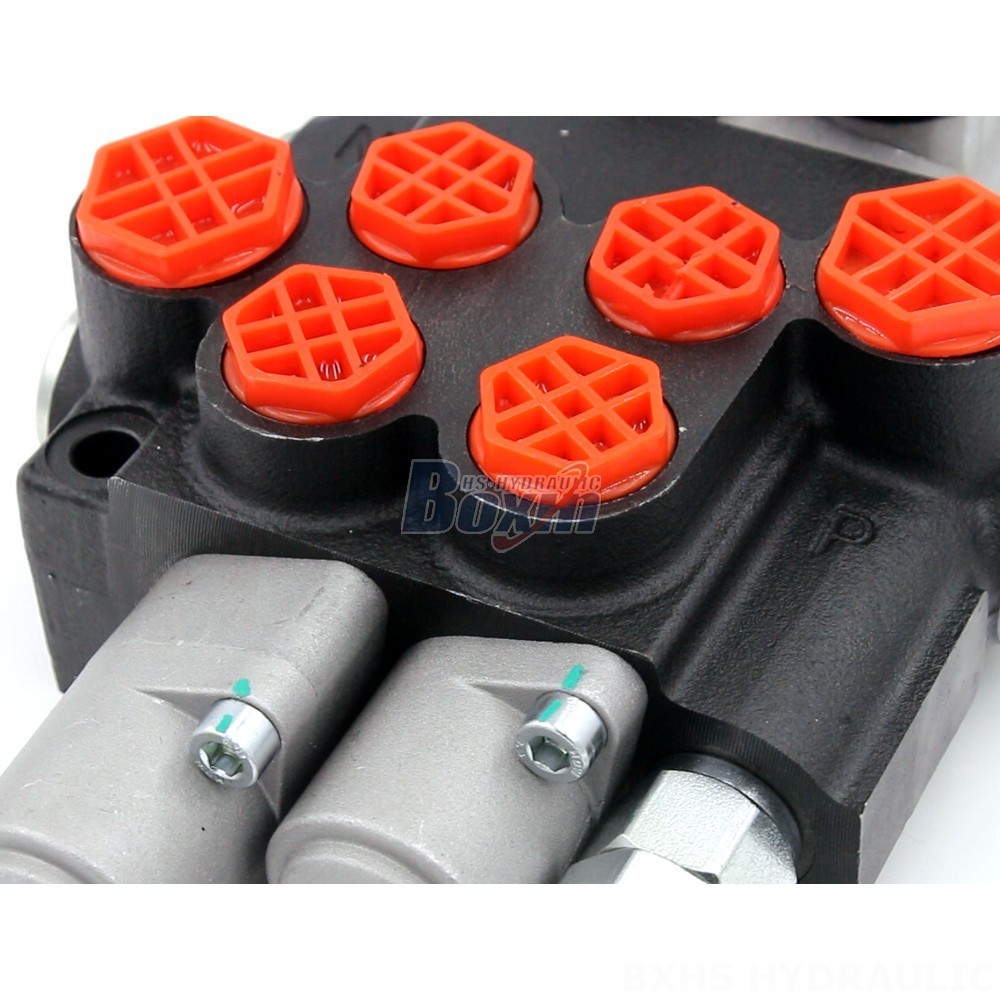

The P40-G12-G38-OT-QTW Directional Valve is a 2-section, manual-controlled monoblock valve designed for hydraulic transmission control. Rated for 40 L/min flow and 250 bar pressure, it's ideal for material handling, construction, agriculture, and industrial vehicles.
| Serie P40 Válvula Direccional Monobloque Parámetros | |
|---|---|
| Método de control | Manual, Neumático, Electoneumático, Electrohidráulico, Solenoide, Hidráulico, Hidráulico y Manual, Cable, Joystick, Solenoide y joystick, Manual y joystick, Solenoide y cable |
| Carrete | 1 carrete, 2 carretes, 3 carretes, 4 carretes, 5 carretes, 6 carretes, 7 carretes |
| Rango de temperatura ambiente | -40 °C a +80 °C (-40 °F a +176 °F) |
| Tipo de estructura | Válvulas monobloc |
| Sección | 1 sección, 2 secciones, 3 secciones, 4 secciones, 5 secciones, 6 secciones, 7 secciones |
| Rango de viscosidad de funcionamiento | 15 - 75 mm²/s (15 cSt a 75 cSt) |
| Flujo Nominal | 40 l/min (10,5 gal EE. UU./min) |
| Presión Máxima | 250 bar (3600 psi) |
| Puerto de Entrada | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Puerto de Salida | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Tamaño de Puerto | G3/8, G1/2, M18×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
This P40 Series hydraulic transmission control valve boasts a 2-section design with a manual control method. It's a robust monoblock valve with a rated flow of 40 L/min and a maximum pressure rating of 250 bar. The valve operates within a viscosity range of 15 - 75 mm²/s and can withstand ambient temperatures from -40°C to +80°C. Its 2 spool design makes it suitable for various applications including material handling, construction and earth moving, agriculture, and industrial vehicles. Specifically, it's well-suited for telehandlers, forklifts, all terrain cranes, stackers, aerial platforms, motor graders, midi-excavators, mini-excavators, and skid steer loaders.
