Our P40-G12-G38-OT-QTW 2-Spool Hydraulic Directional Valve is a high-performance valve designed for various industrial applications, including material handling, construction, agriculture, and industrial vehicles. With a rated flow of 40 L/min and a maximum pressure of 250 bar, this valve offers precise control and durability. The manual and joystick control options provide versatility and ease of use.
| Serie P40 Válvula Direccional Monobloque Parámetros | |
|---|---|
| Método de control | Manual, Neumático, Electoneumático, Electrohidráulico, Solenoide, Hidráulico, Hidráulico y Manual, Cable, Joystick, Solenoide y joystick, Manual y joystick, Solenoide y cable |
| Carrete | 1 carrete, 2 carretes, 3 carretes, 4 carretes, 5 carretes, 6 carretes, 7 carretes |
| Rango de temperatura ambiente | -40 °C a +80 °C (-40 °F a +176 °F) |
| Tipo de estructura | Válvulas monobloc |
| Sección | 1 sección, 2 secciones, 3 secciones, 4 secciones, 5 secciones, 6 secciones, 7 secciones |
| Rango de viscosidad de funcionamiento | 15 - 75 mm²/s (15 cSt a 75 cSt) |
| Flujo Nominal | 40 l/min (10,5 gal EE. UU./min) |
| Presión Máxima | 250 bar (3600 psi) |
| Puerto de Entrada | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Puerto de Salida | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Tamaño de Puerto | G3/8, G1/2, M18×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |

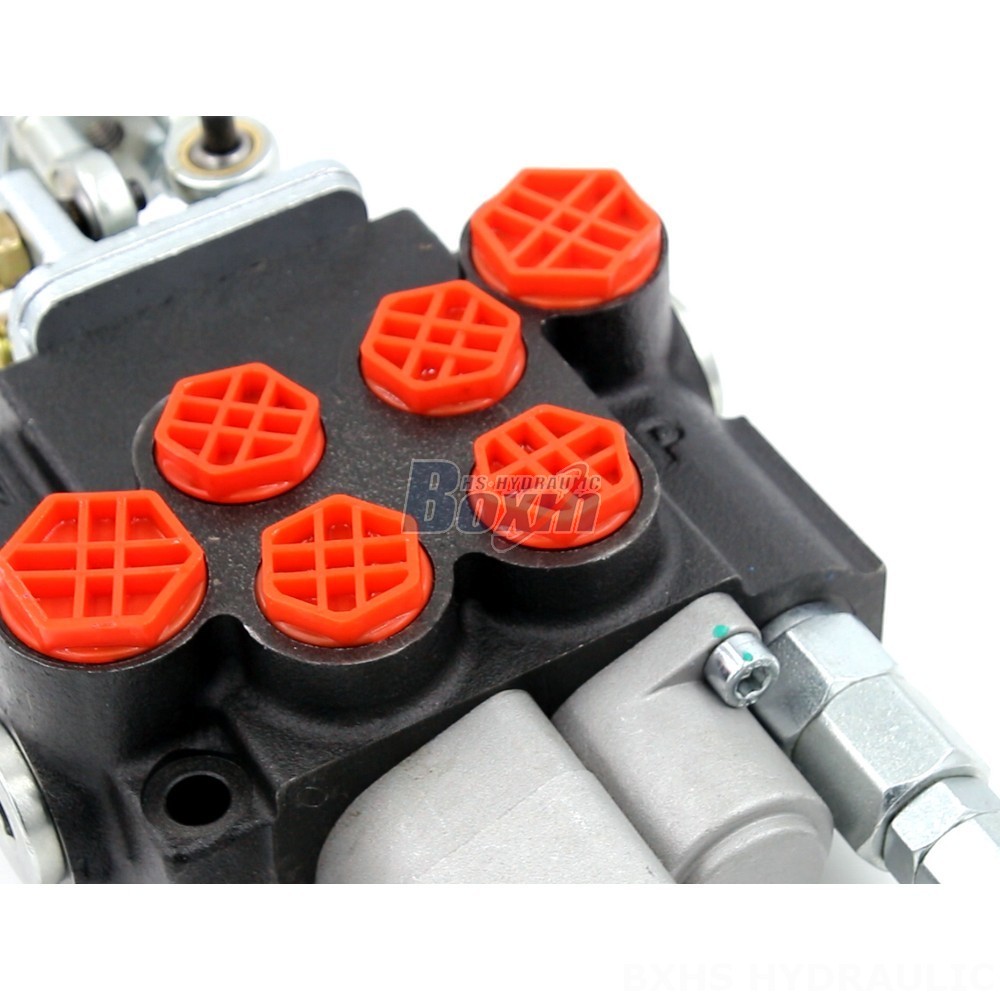

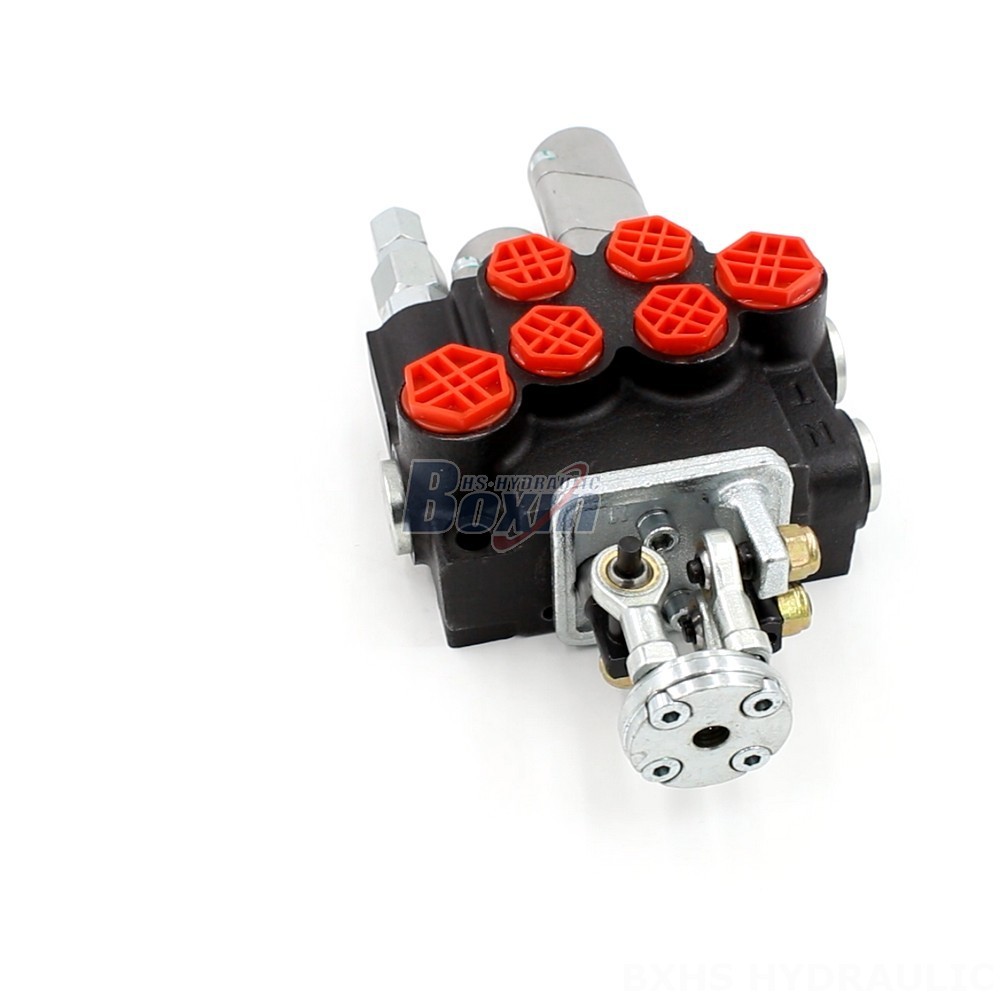

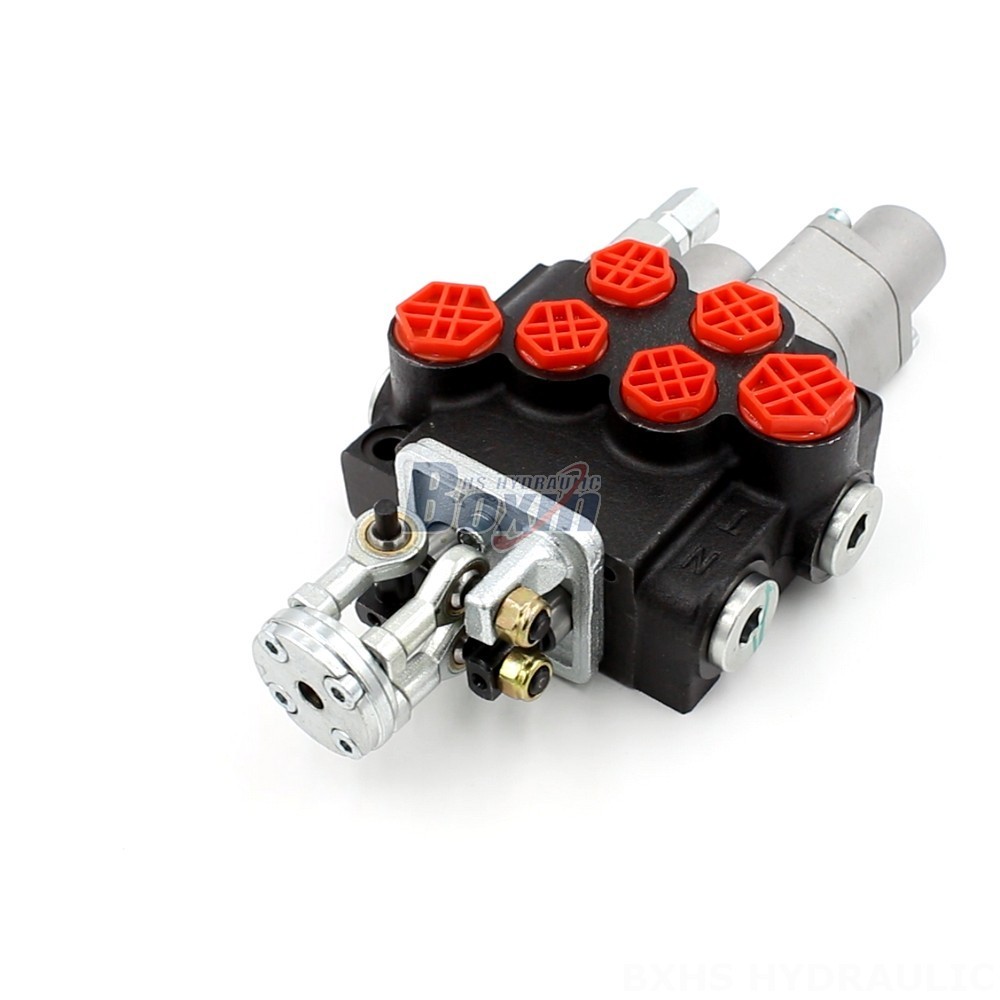

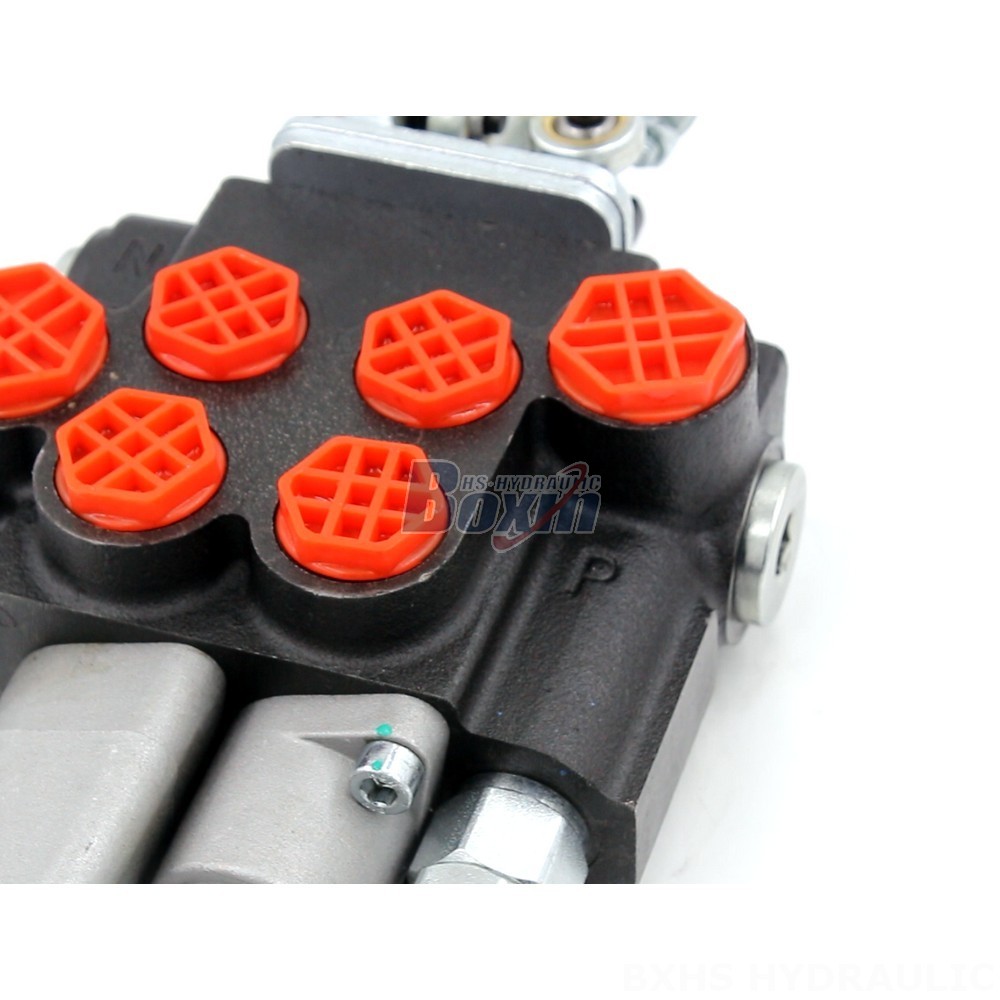

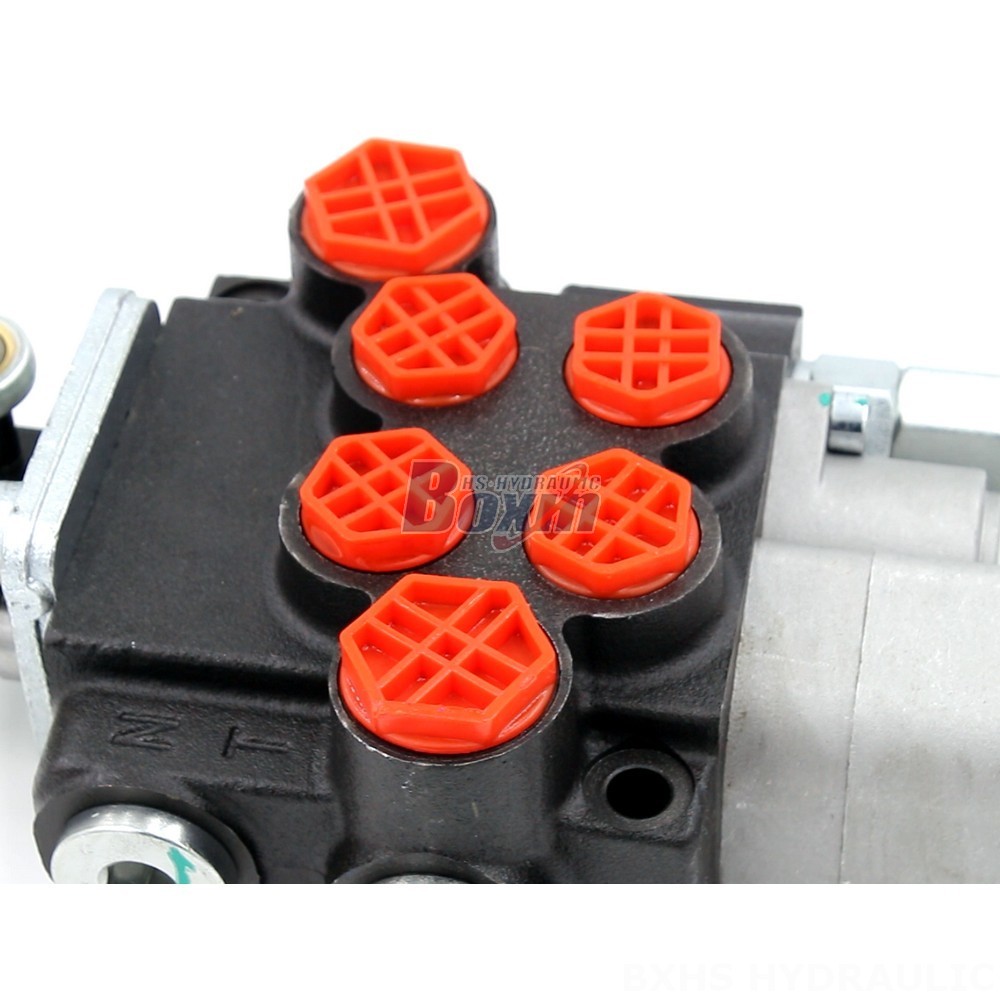

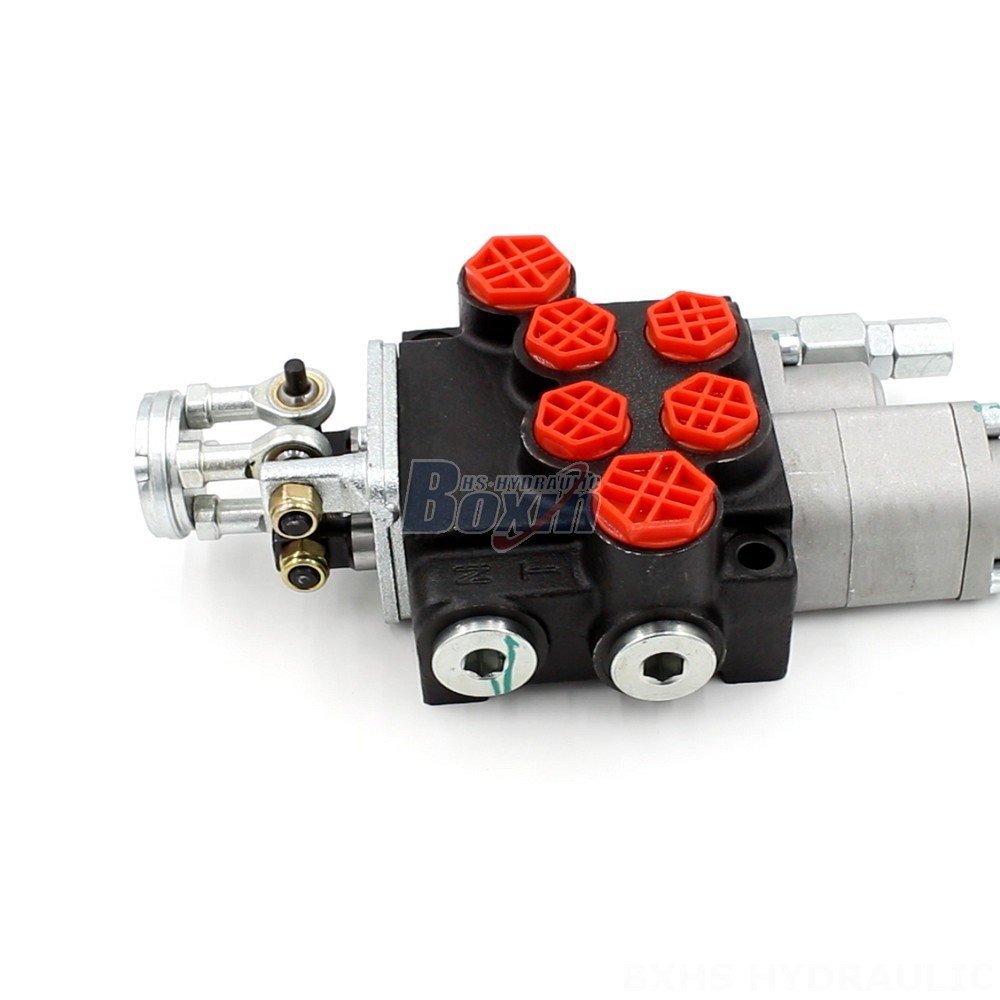

**P40-G12-G38-OT-QTW 2-Spool Hydraulic Directional Valve**
**Product Overview:**
- 2-spool hydraulic directional valve with manual and joystick control options
- Monoblock valve construction for compact and reliable design
- Rated flow: 40 L/min (10.5 US gpm)
- Maximum pressure: 250 bar (3600 psi)
- Operating viscosity range: 15 - 75 mm²/s (15 cSt to 75 cSt)
- Ambient temperature range: -40°C to +80°C (-40°F to +176°F)
**Key Features:**
- Precise flow control and smooth operation
- Durable construction for demanding applications
- Versatile control options for ease of use
- Suitable for a wide range of hydraulic systems
**Applications:**
- Material handling equipment (forklifts, telehandlers, stackers)
- Construction machinery (excavators, graders, skid steer loaders)
- Agricultural machinery (tractors, harvesters, sprayers)
- Industrial vehicles (aerial platforms, compact wheel loaders)
