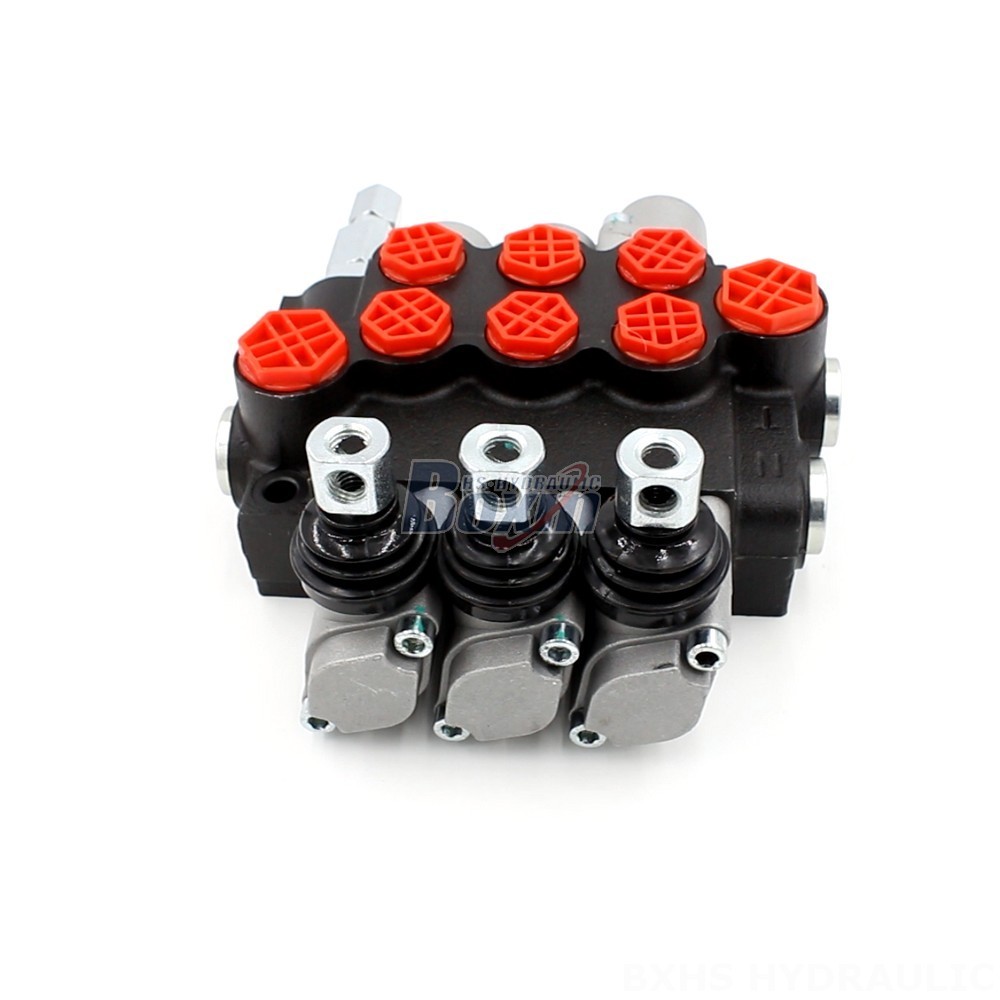

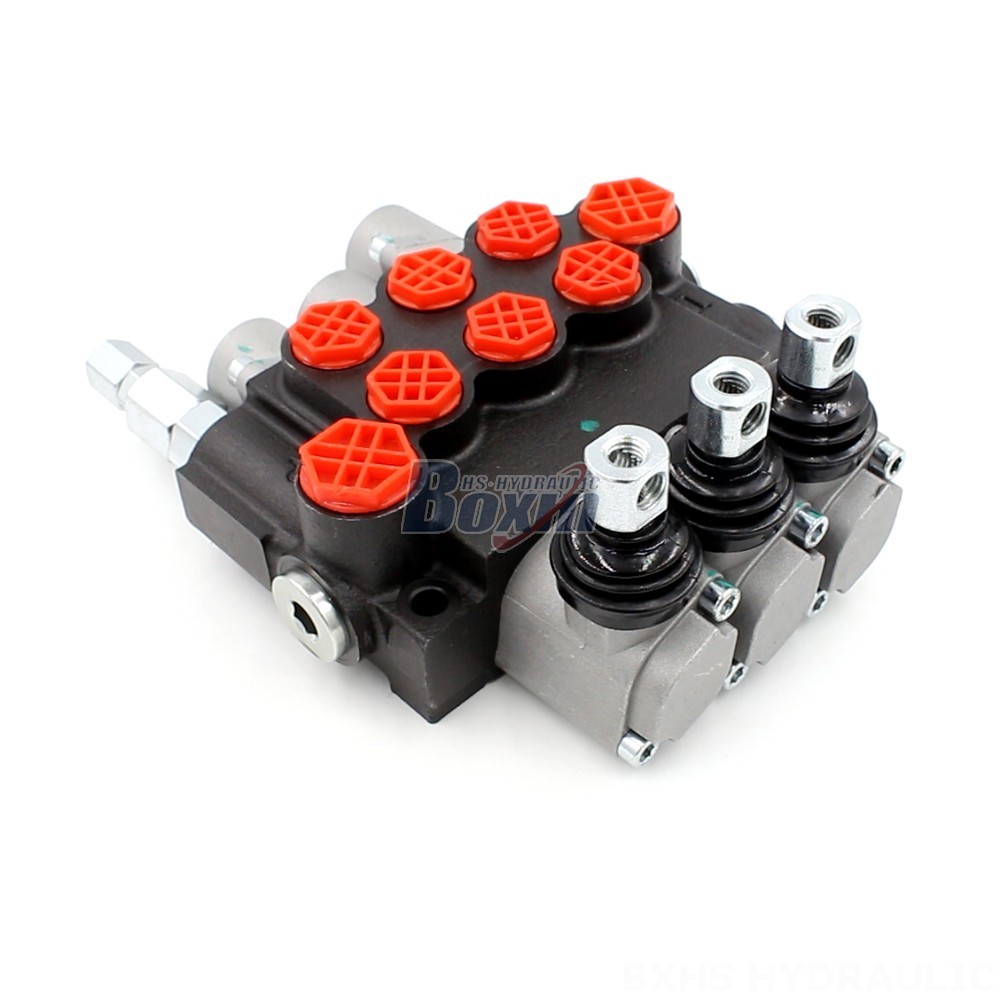

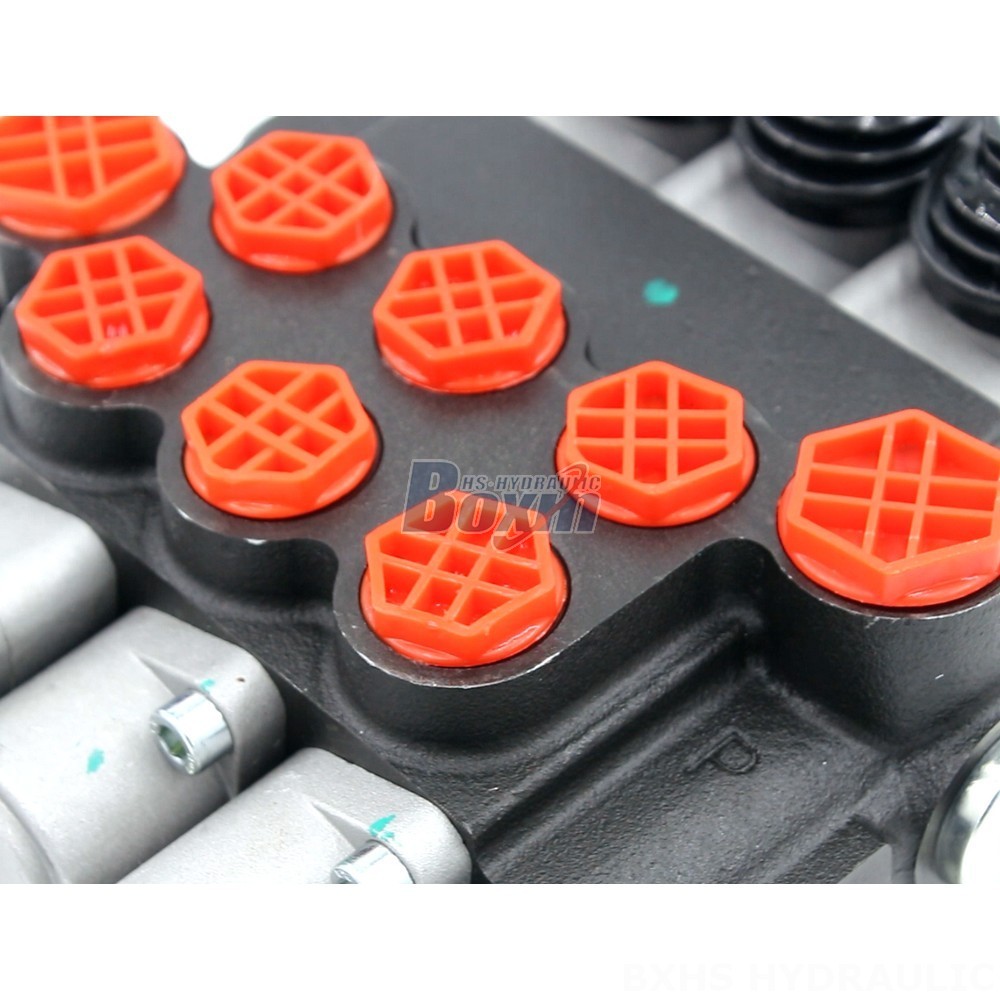

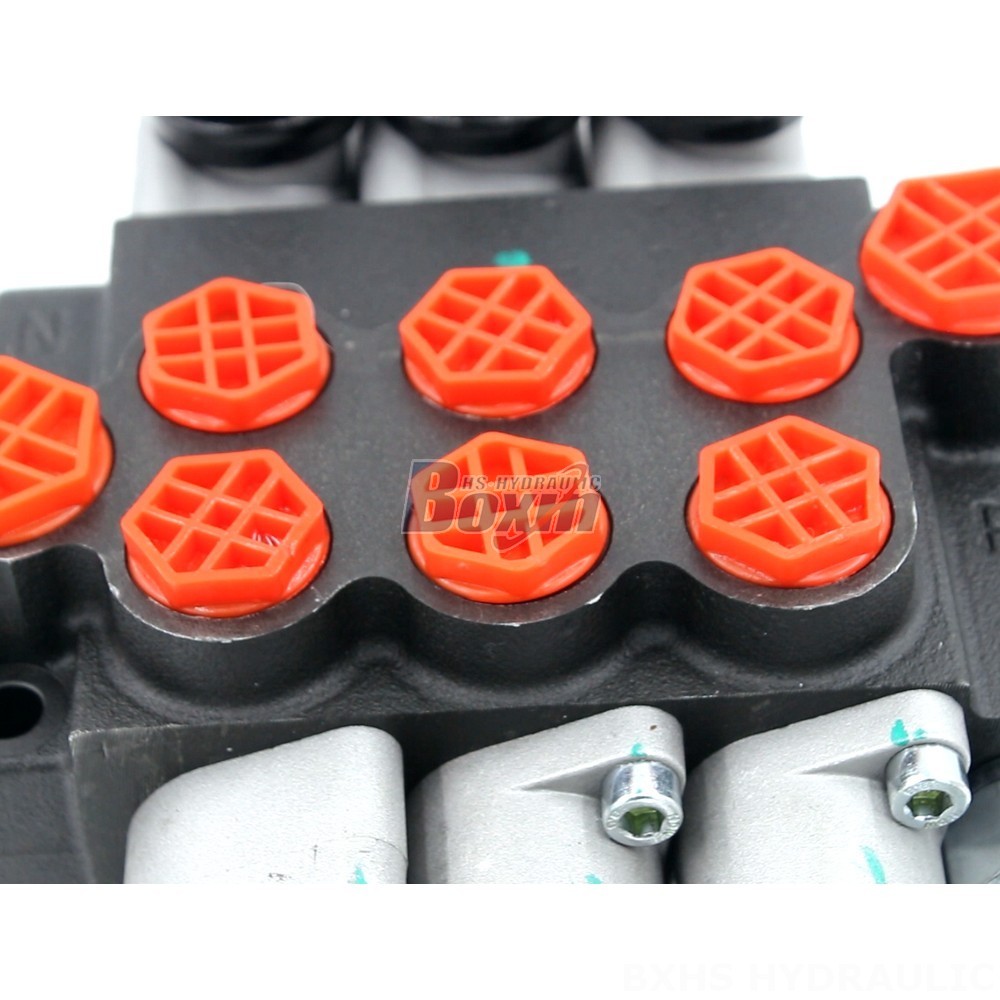

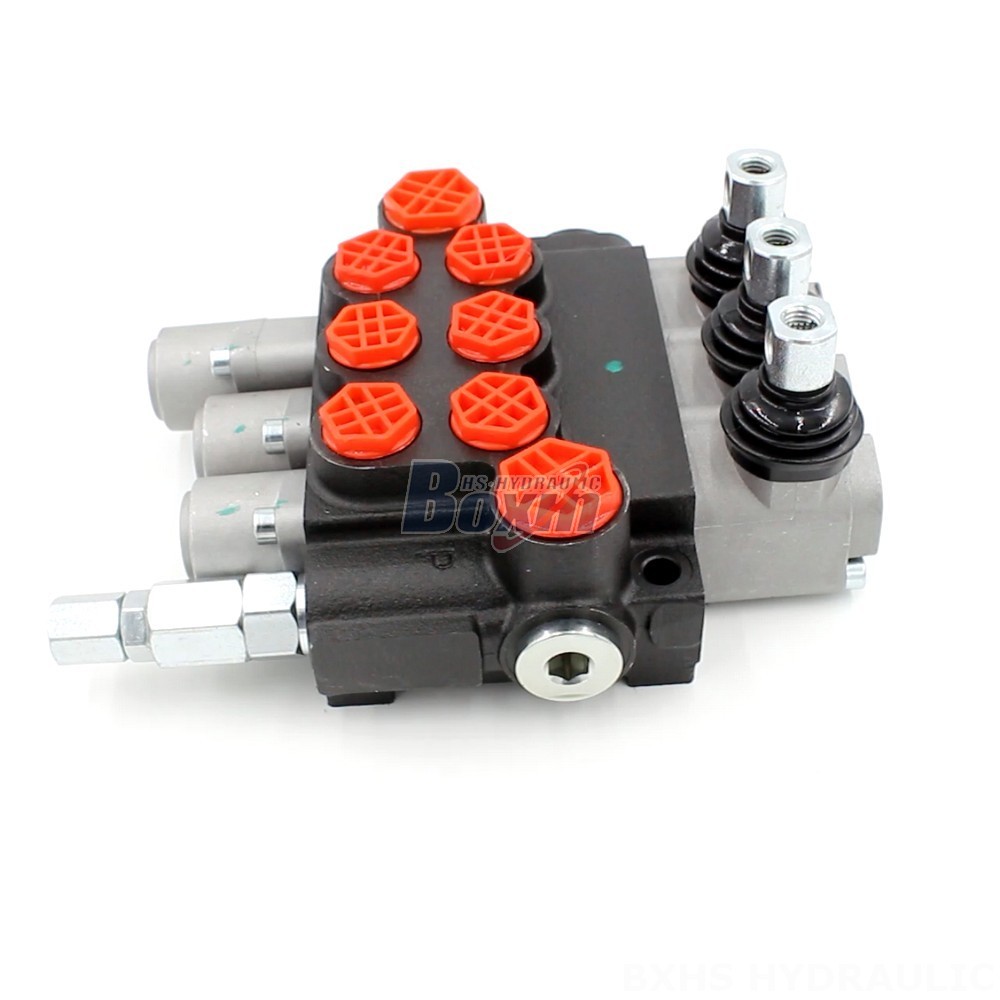

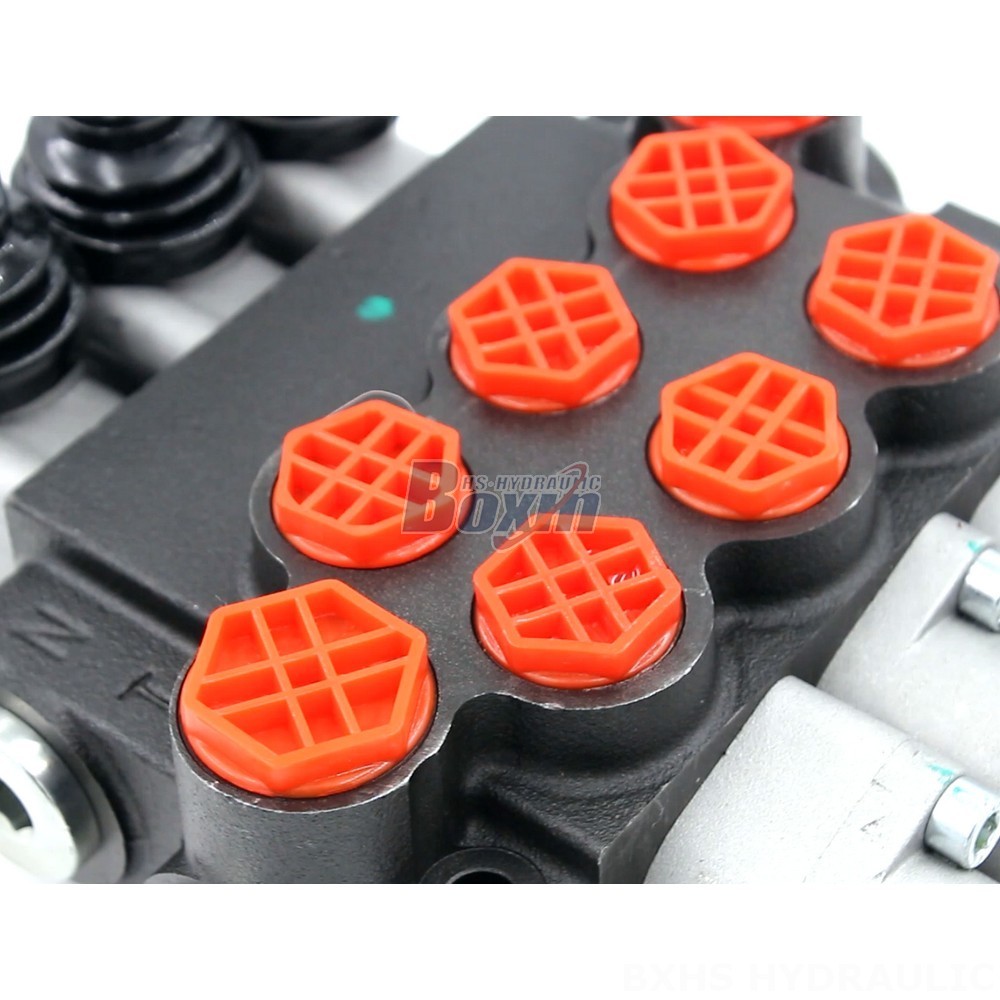

The P40-G12-G38-OT-OT-OT Manual 3 Spool Monoblock Directional Valve is a high-performance hydraulic valve designed for use in various industrial and mobile applications. It features a compact and robust monoblock construction, ensuring reliability and durability in demanding operating conditions.
| Serie P40 Válvula Direccional Monobloque Parámetros | |
|---|---|
| Método de control | Manual, Neumático, Electoneumático, Electrohidráulico, Solenoide, Hidráulico, Hidráulico y Manual, Cable, Joystick, Solenoide y joystick, Manual y joystick, Solenoide y cable |
| Carrete | 1 carrete, 2 carretes, 3 carretes, 4 carretes, 5 carretes, 6 carretes, 7 carretes |
| Rango de temperatura ambiente | -40 °C a +80 °C (-40 °F a +176 °F) |
| Tipo de estructura | Válvulas monobloc |
| Sección | 1 sección, 2 secciones, 3 secciones, 4 secciones, 5 secciones, 6 secciones, 7 secciones |
| Rango de viscosidad de funcionamiento | 15 - 75 mm²/s (15 cSt a 75 cSt) |
| Flujo Nominal | 40 l/min (10,5 gal EE. UU./min) |
| Presión Máxima | 250 bar (3600 psi) |
| Puerto de Entrada | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Puerto de Salida | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Tamaño de Puerto | G3/8, G1/2, M18×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
**Key Features:**
* Manual control for precise operation
* Three spool design for versatile flow control
* Monoblock construction for compact and leak-free performance
* Rated flow capacity of 40 L/min (10.5 US gpm)
* Maximum pressure rating of 250 bar (3600 psi)
* Operating viscosity range from 15 to 75 mm²/s (15 cSt to 75 cSt)
* Ambient temperature range from -40°C to +80°C (-40°F to +176°F)
**Applications:**
* Material handling equipment (e.g., forklifts, telehandlers)
* Construction and earth moving machinery (e.g., excavators, loaders)
* Agricultural machinery (e.g., tractors, harvesters)
This valve is part of the P40 Series, which offers a wide range of directional valves with varying spool configurations, flow capacities, and pressure ratings to meet the specific requirements of various hydraulic systems.
