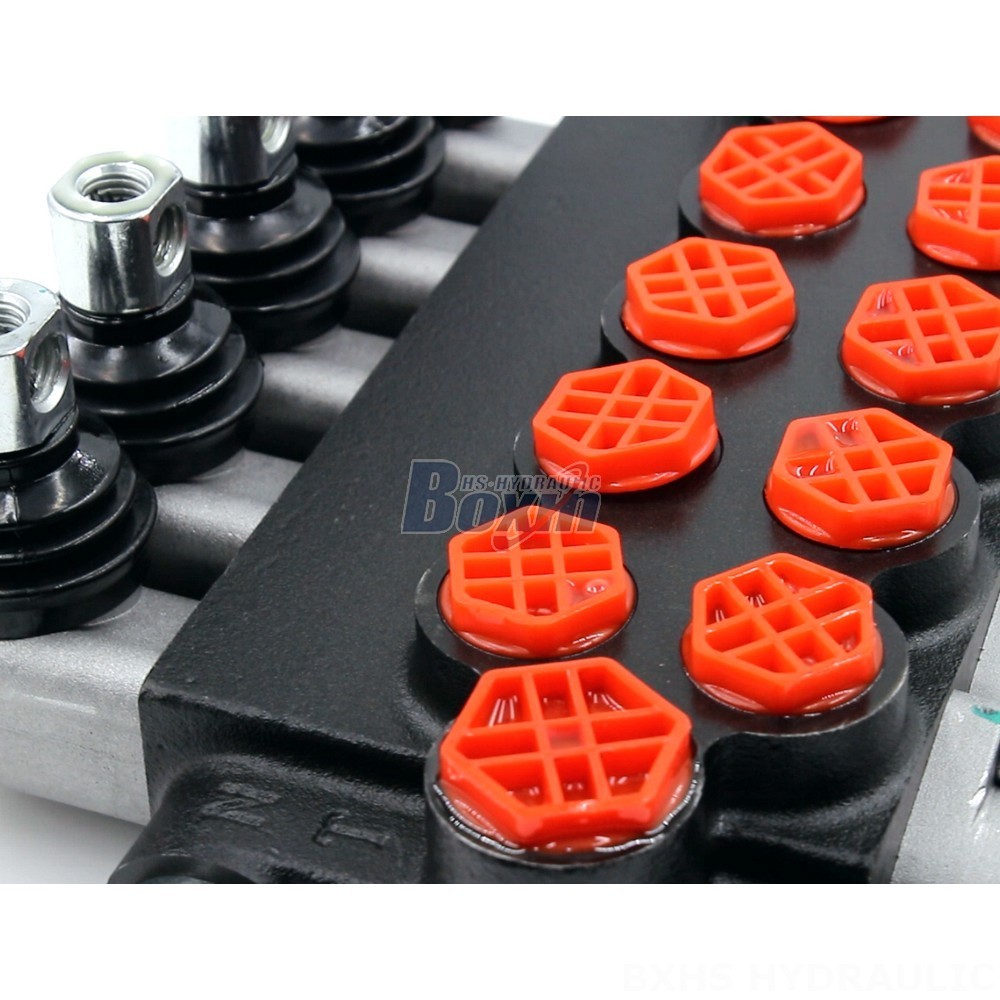

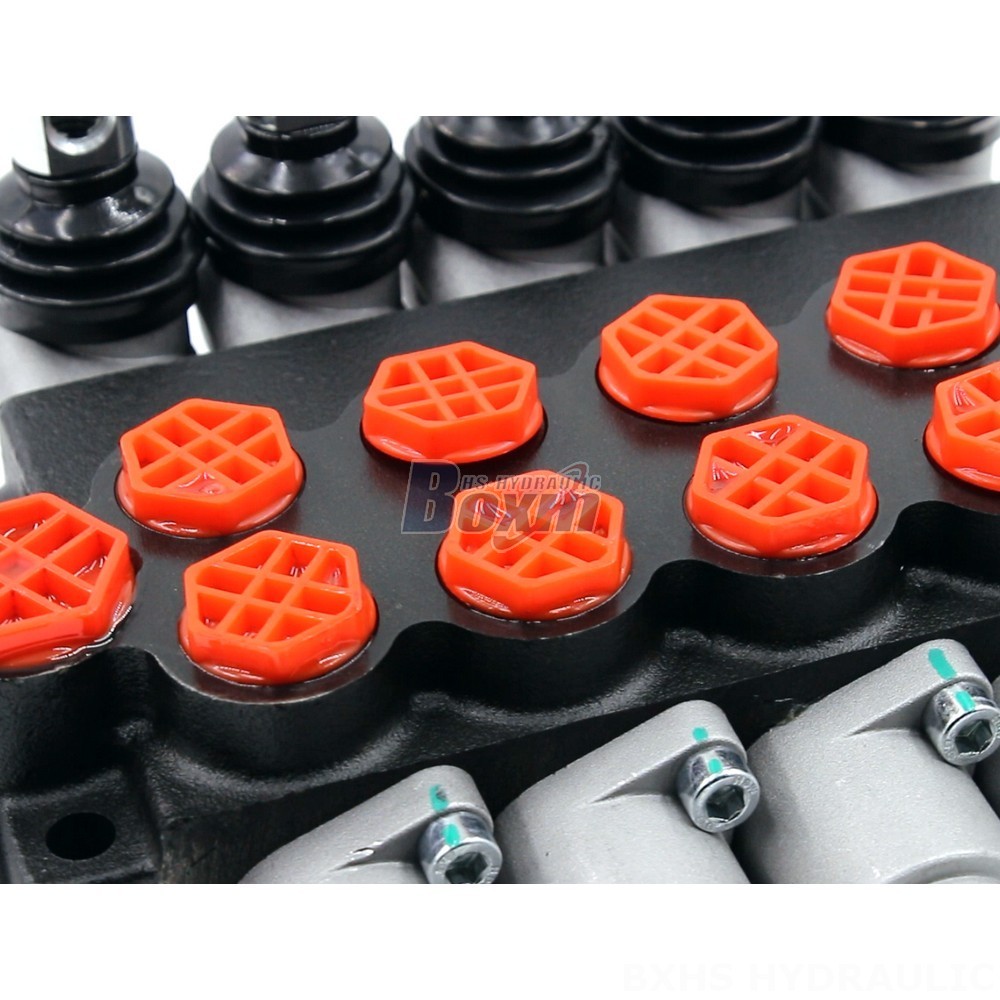

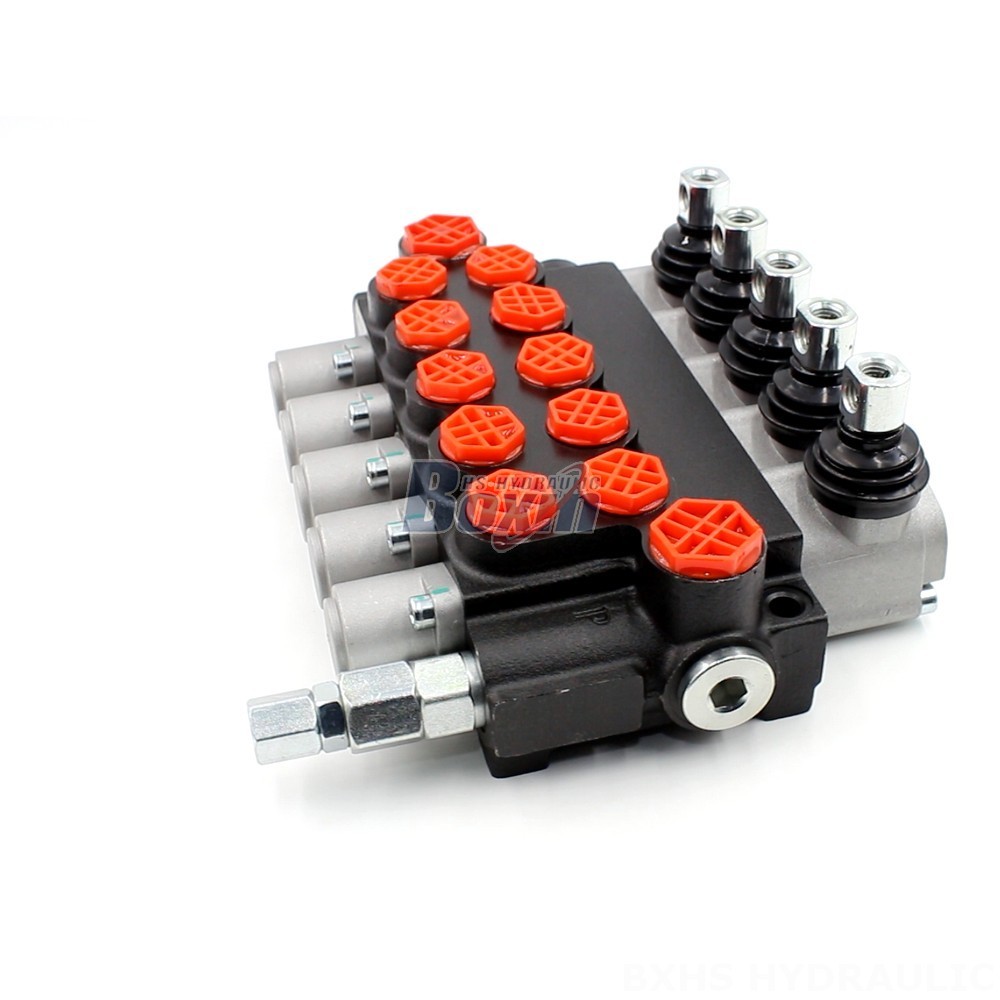

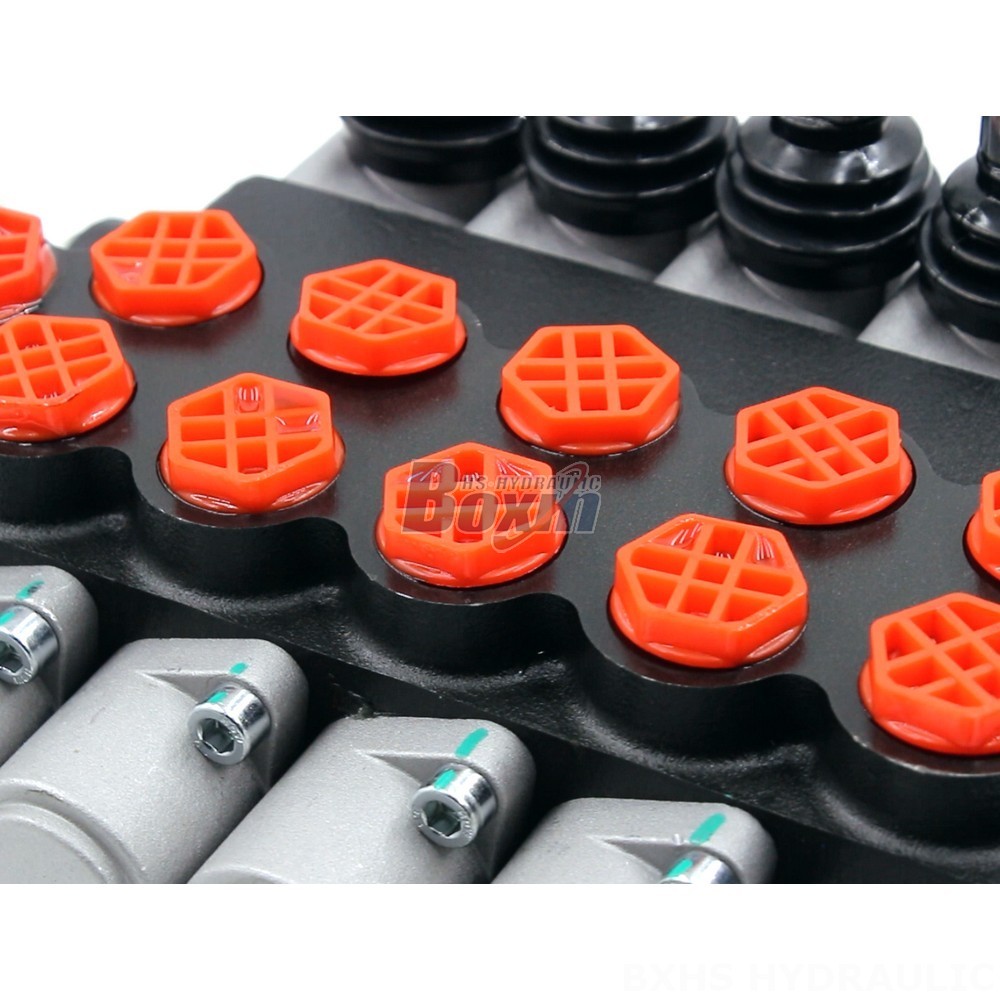

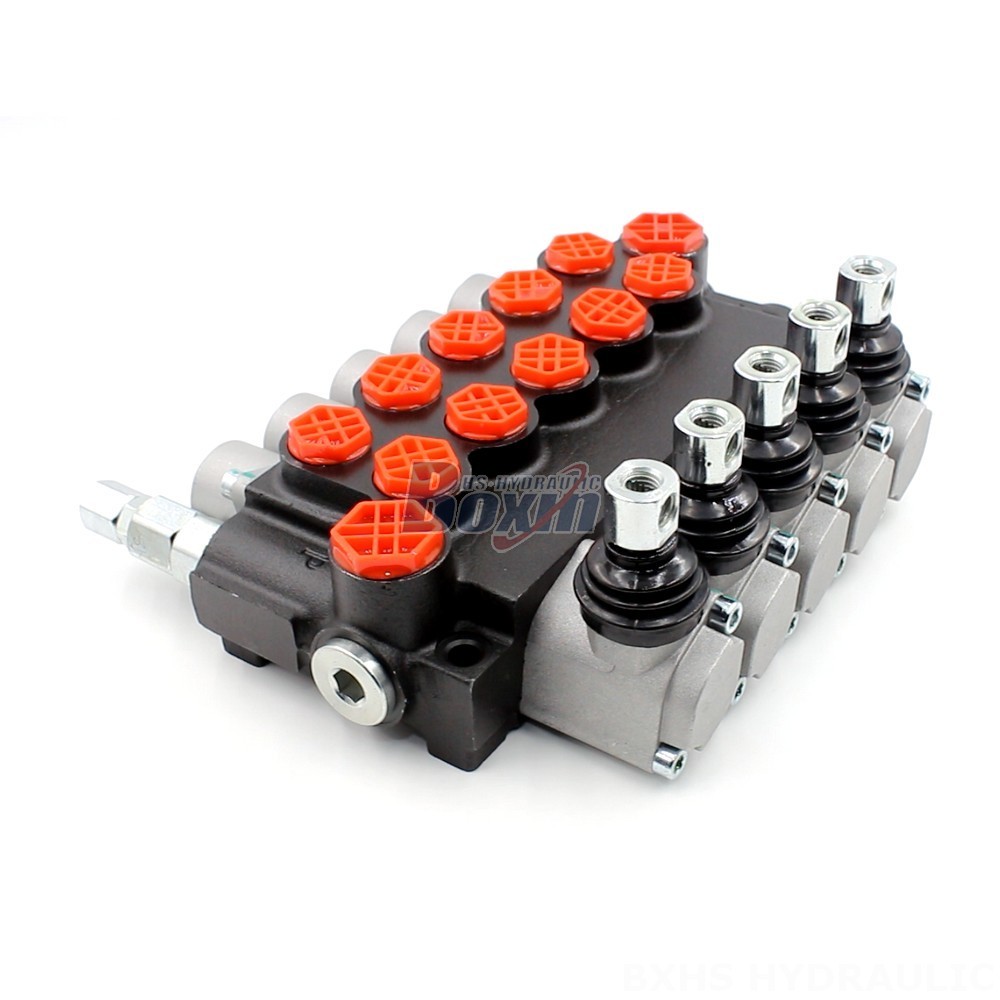

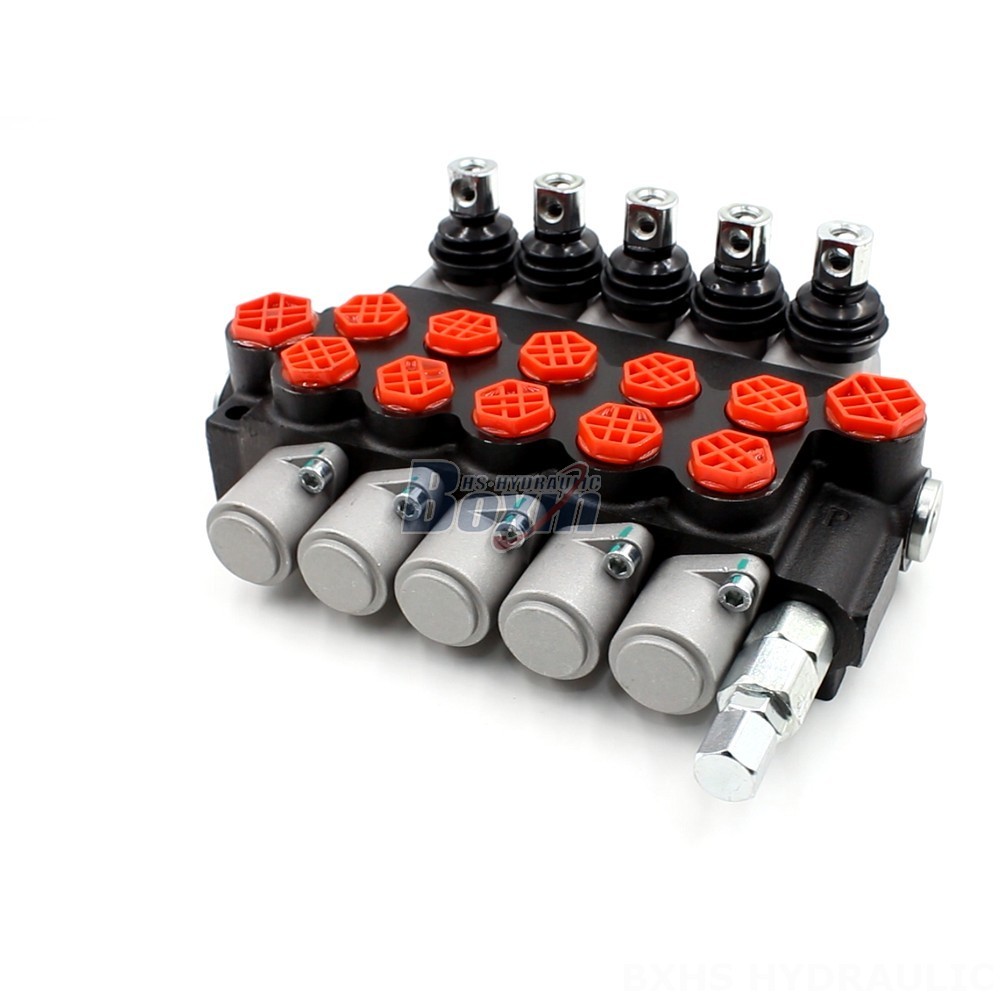

The P40-G12-G38 Manual Directional Control Valve is a versatile hydraulic component designed to control the flow of hydraulic fluid in a variety of industrial applications. With a rated flow of 40 L/min and a maximum pressure of 250 bar, this valve offers reliable performance in demanding conditions.
| Serie P40 Válvula Direccional Monobloque Parámetros | |
|---|---|
| Método de control | Manual, Neumático, Electoneumático, Electrohidráulico, Solenoide, Hidráulico, Hidráulico y Manual, Cable, Joystick, Solenoide y joystick, Manual y joystick, Solenoide y cable |
| Carrete | 1 carrete, 2 carretes, 3 carretes, 4 carretes, 5 carretes, 6 carretes, 7 carretes |
| Rango de temperatura ambiente | -40 °C a +80 °C (-40 °F a +176 °F) |
| Tipo de estructura | Válvulas monobloc |
| Sección | 1 sección, 2 secciones, 3 secciones, 4 secciones, 5 secciones, 6 secciones, 7 secciones |
| Rango de viscosidad de funcionamiento | 15 - 75 mm²/s (15 cSt a 75 cSt) |
| Flujo Nominal | 40 l/min (10,5 gal EE. UU./min) |
| Presión Máxima | 250 bar (3600 psi) |
| Puerto de Entrada | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Puerto de Salida | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Tamaño de Puerto | G3/8, G1/2, M18×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
**Key Features of the P40-G12-G38 Manual Directional Control Valve:**
- **Manual control:** Allows for precise and responsive flow control.
- **Monoblock valve:** Compact and robust design for durability and reliability.
- **High flow capacity:** Rated flow of 40 L/min for efficient operation.
- **High pressure capability:** Maximum pressure of 250 bar for demanding applications.
- **5 section, 5 spool:** Versatile configuration for a wide range of control requirements.
- **Wide range of applications:** Suitable for material handling, construction, agriculture, and industrial vehicles.
- **OEM, ODM, and Private Label services:** Available to meet specific customer requirements and branding needs.
- **Distribution and wholesale opportunities:** Open to partnering with distributors, wholesalers, and agents for global market reach.
