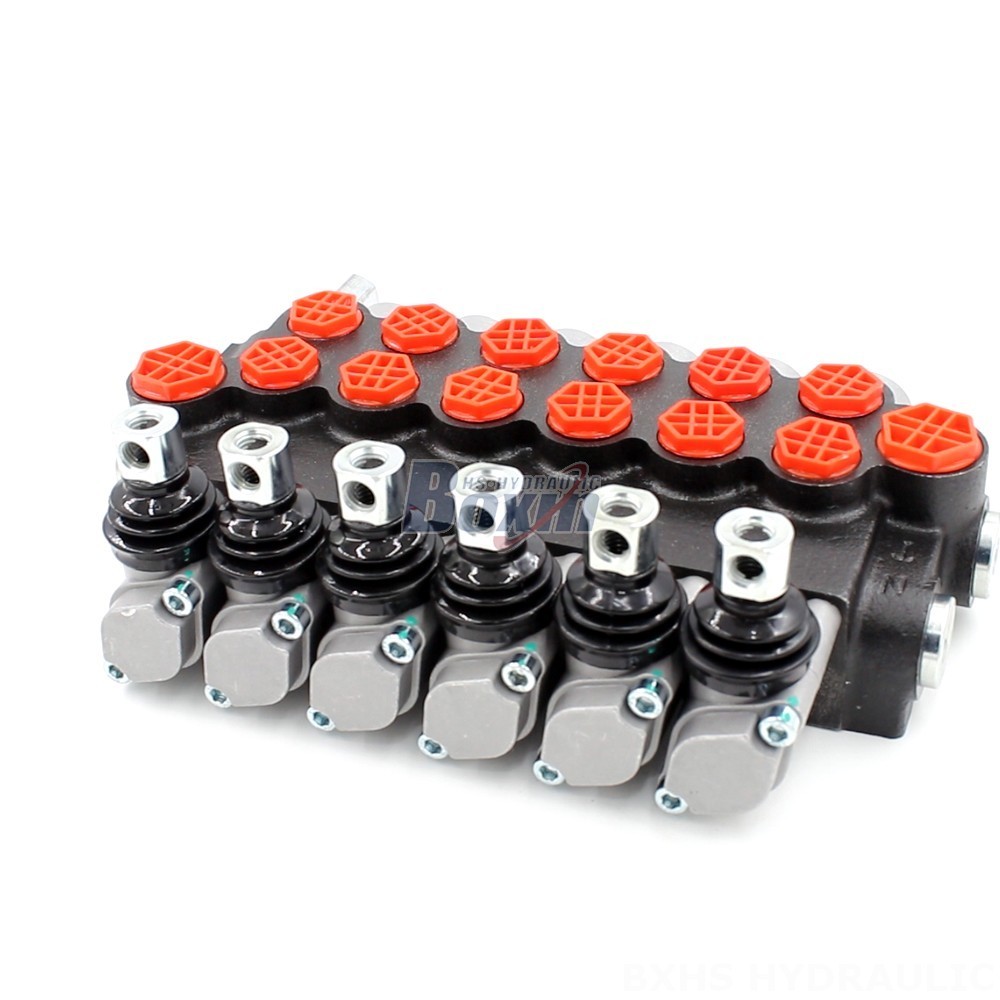

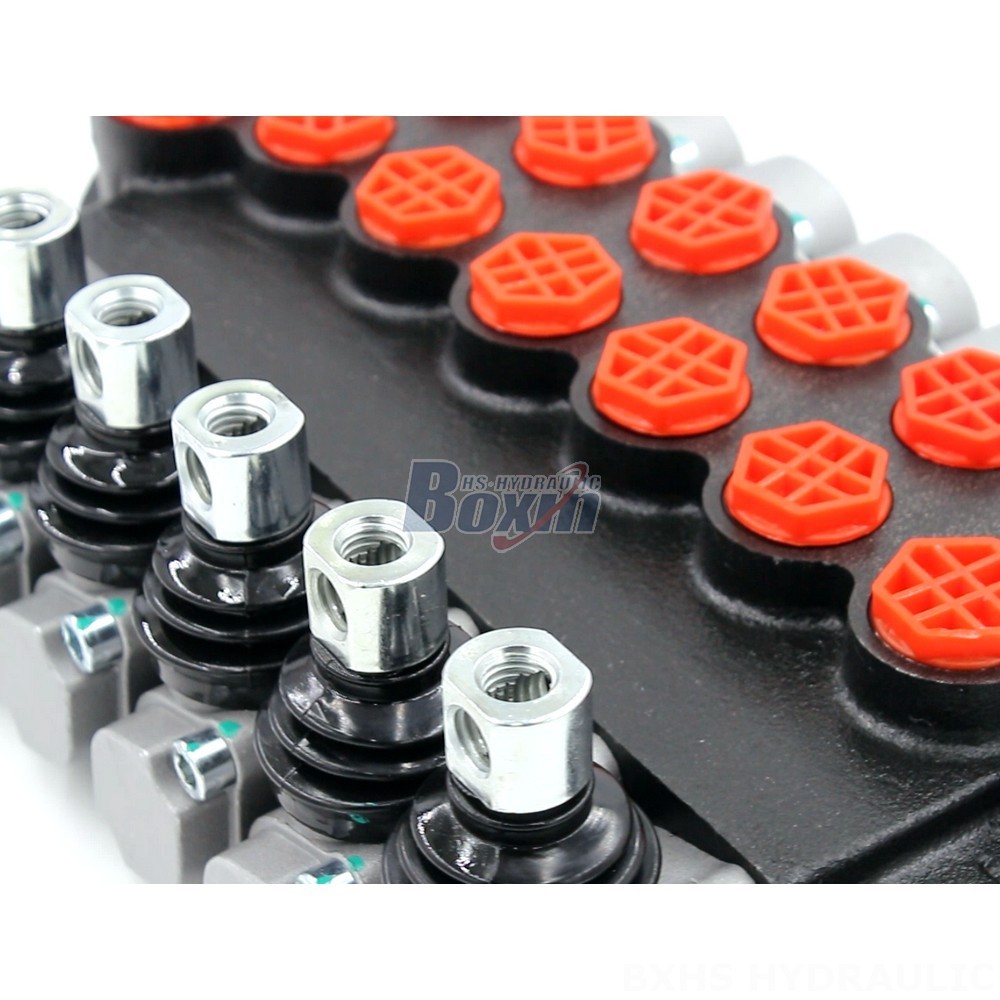

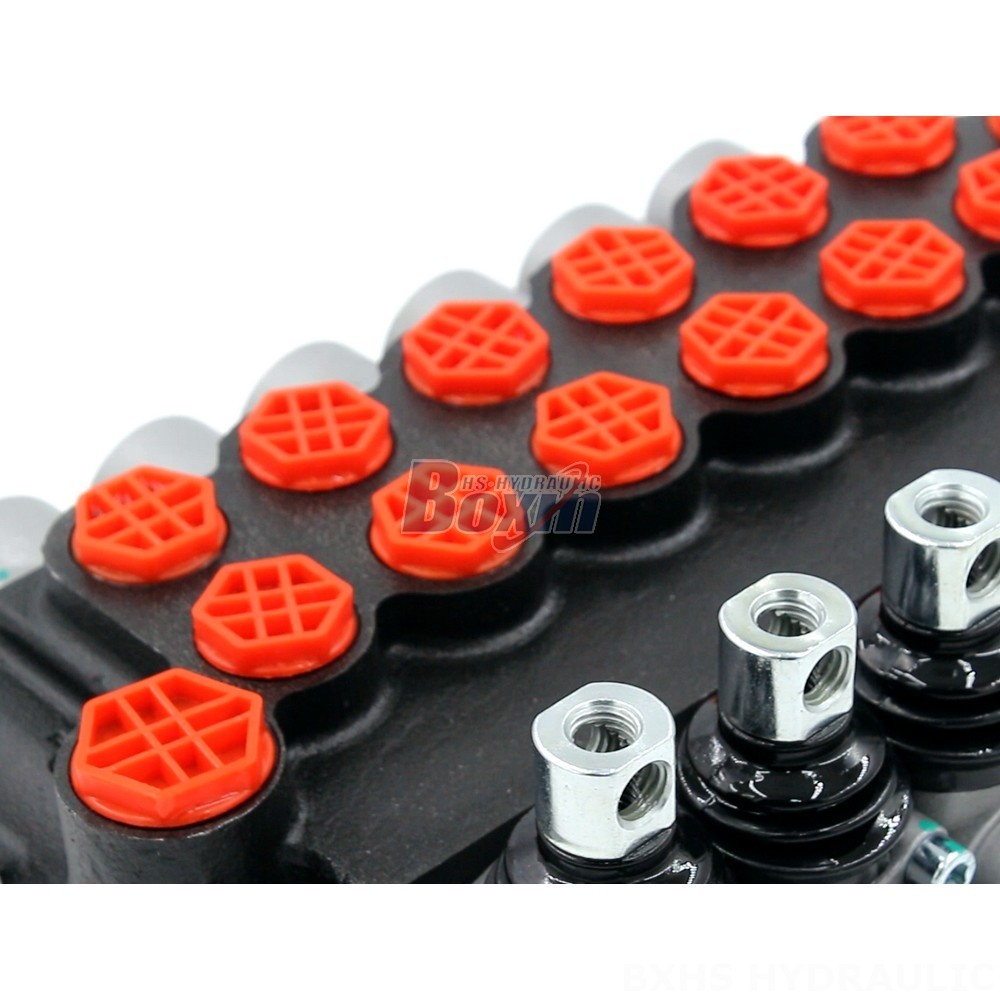

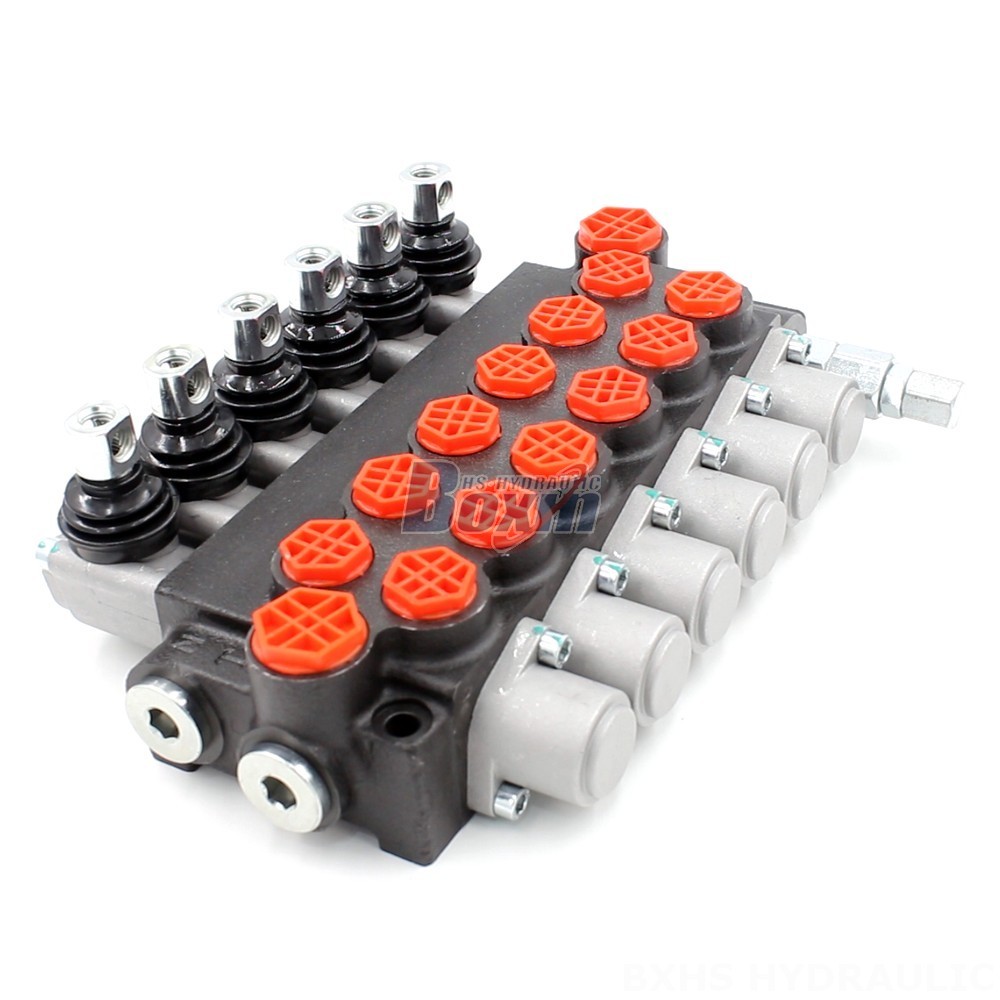

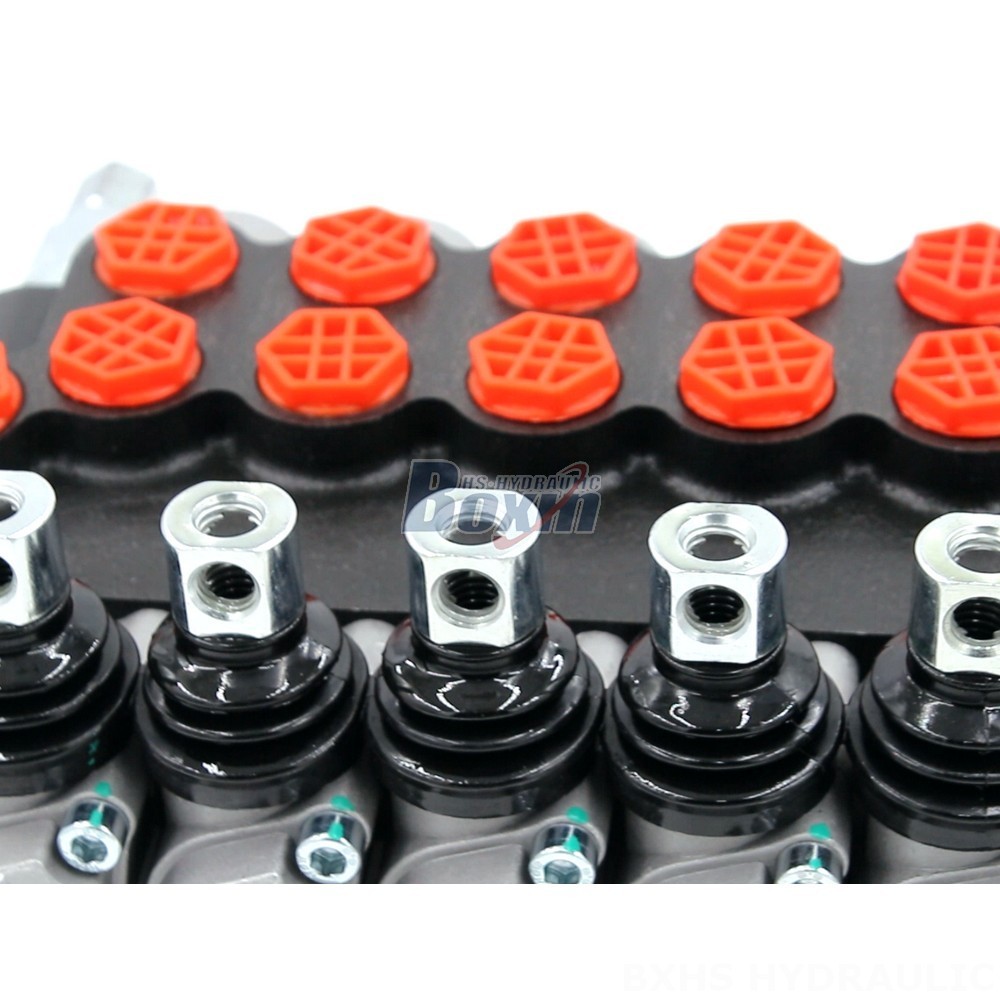

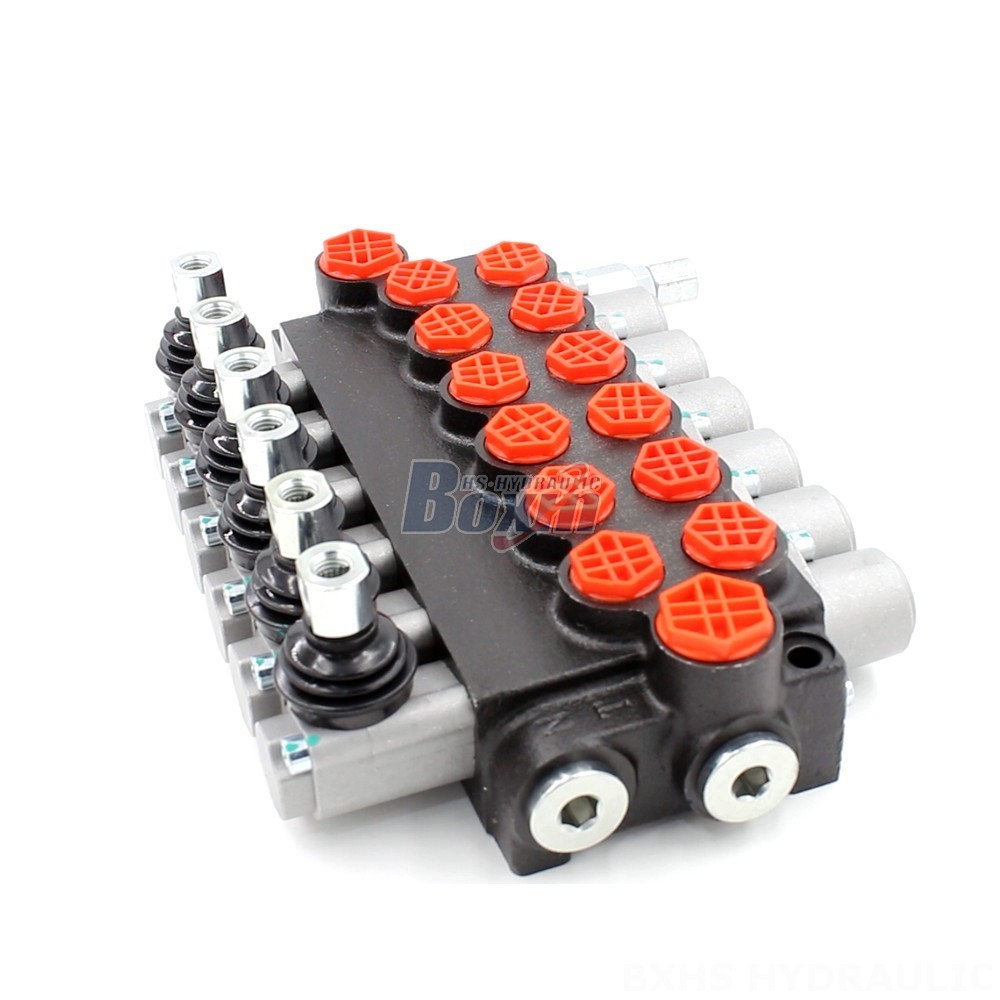

The P40 Series 6-section manual control hydraulic valve is a robust and reliable solution for various applications in construction, material handling, agriculture, and industrial vehicles. This monoblock valve offers a rated flow of 40 L/min and a maximum pressure of 250 bar, ensuring efficient operation for a wide range of equipment.
| Serie P40 Válvula Direccional Monobloque Parámetros | |
|---|---|
| Método de control | Manual, Neumático, Electoneumático, Electrohidráulico, Solenoide, Hidráulico, Hidráulico y Manual, Cable, Joystick, Solenoide y joystick, Manual y joystick, Solenoide y cable |
| Carrete | 1 carrete, 2 carretes, 3 carretes, 4 carretes, 5 carretes, 6 carretes, 7 carretes |
| Rango de temperatura ambiente | -40 °C a +80 °C (-40 °F a +176 °F) |
| Tipo de estructura | Válvulas monobloc |
| Sección | 1 sección, 2 secciones, 3 secciones, 4 secciones, 5 secciones, 6 secciones, 7 secciones |
| Rango de viscosidad de funcionamiento | 15 - 75 mm²/s (15 cSt a 75 cSt) |
| Flujo Nominal | 40 l/min (10,5 gal EE. UU./min) |
| Presión Máxima | 250 bar (3600 psi) |
| Puerto de Entrada | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Puerto de Salida | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Tamaño de Puerto | G3/8, G1/2, M18×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
The P40 Series hydraulic valve is designed for demanding applications and features a compact, robust design with a 6-section monoblock construction. It offers manual control for precise operation and is rated for a flow of 40 L/min and a maximum pressure of 250 bar. The valve is suitable for a wide range of operating viscosities and temperatures, making it ideal for various environments. Applications include telehandlers, forklifts, cranes, stackers, aerial platforms, motor graders, mini- and midi- excavators, and skid steer loaders.
