Producción y entrega
Plazo de ejecución de producción de 15 a 30 días

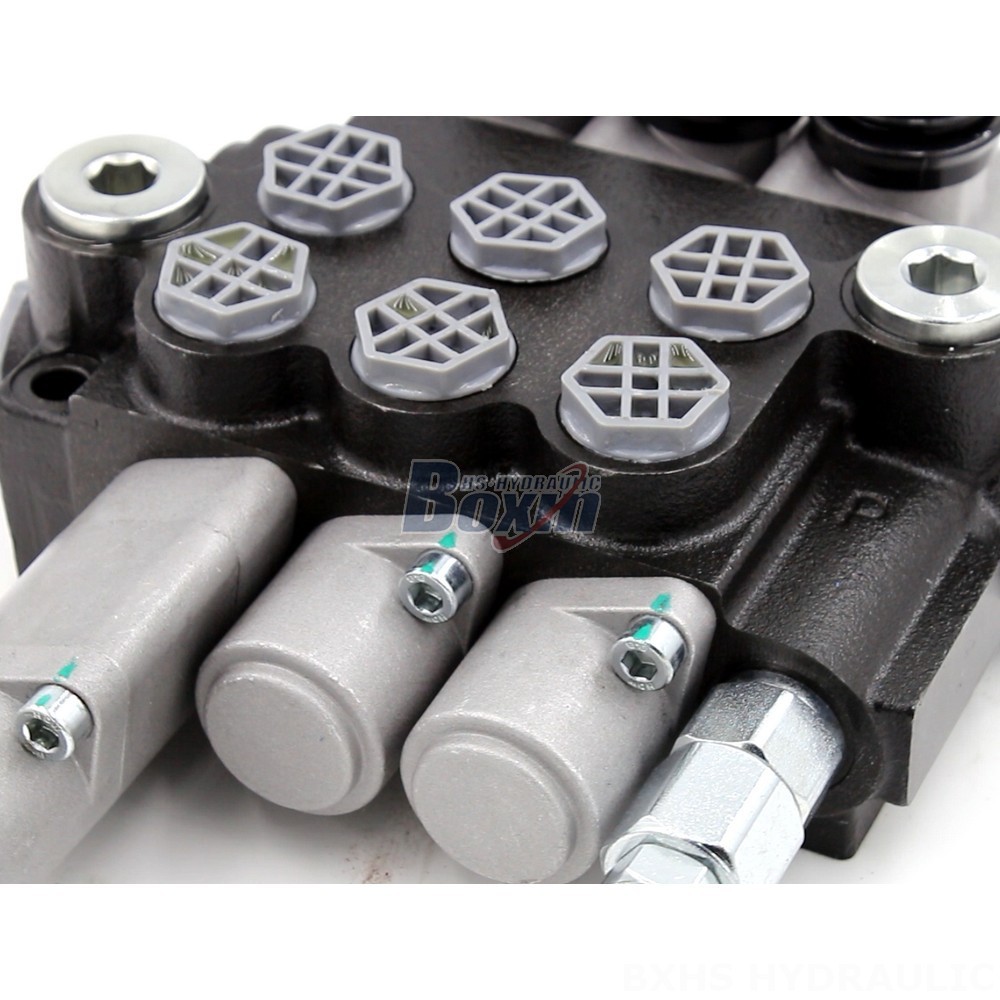

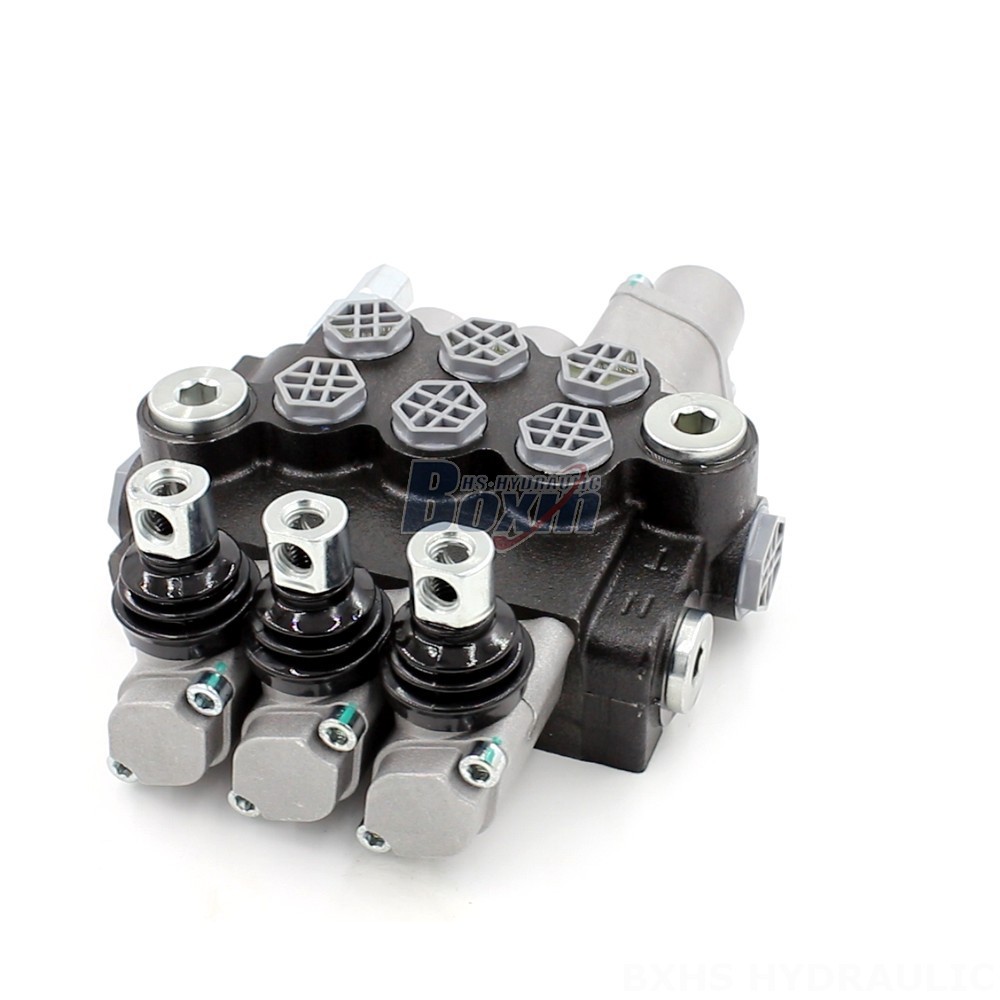

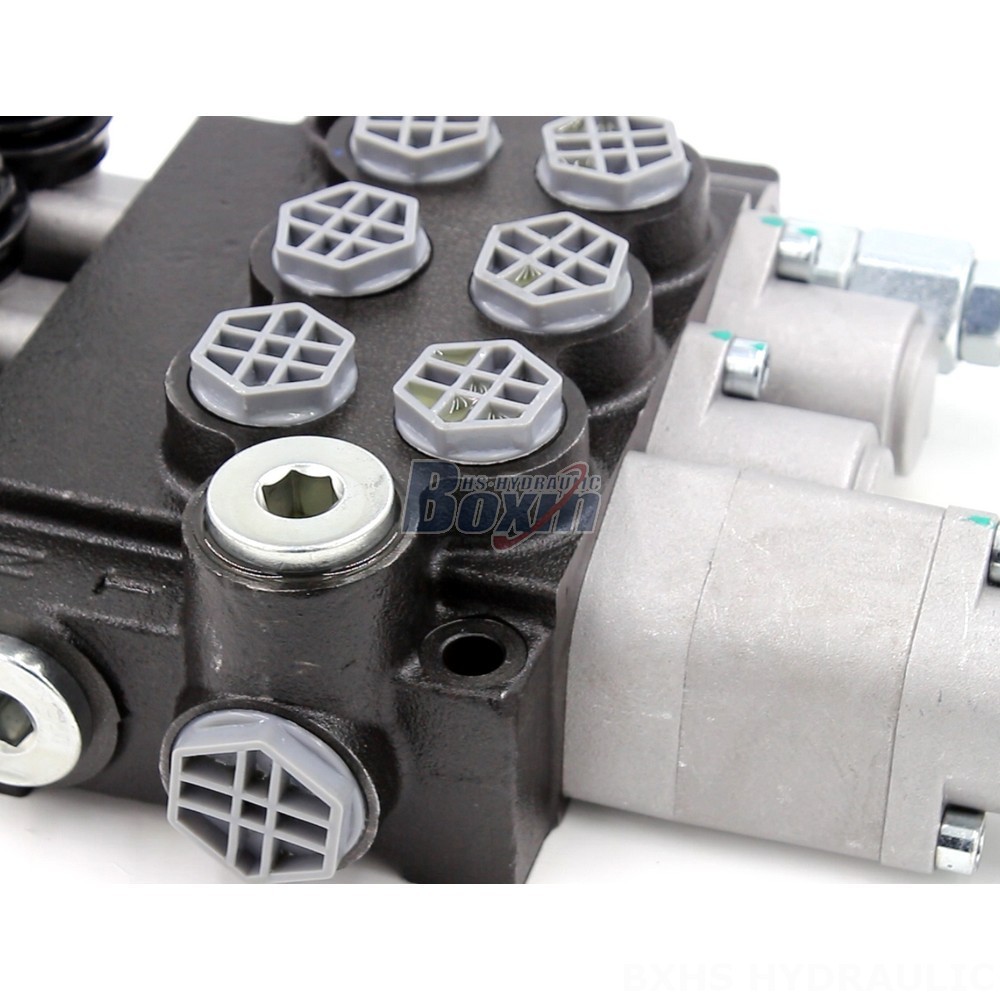

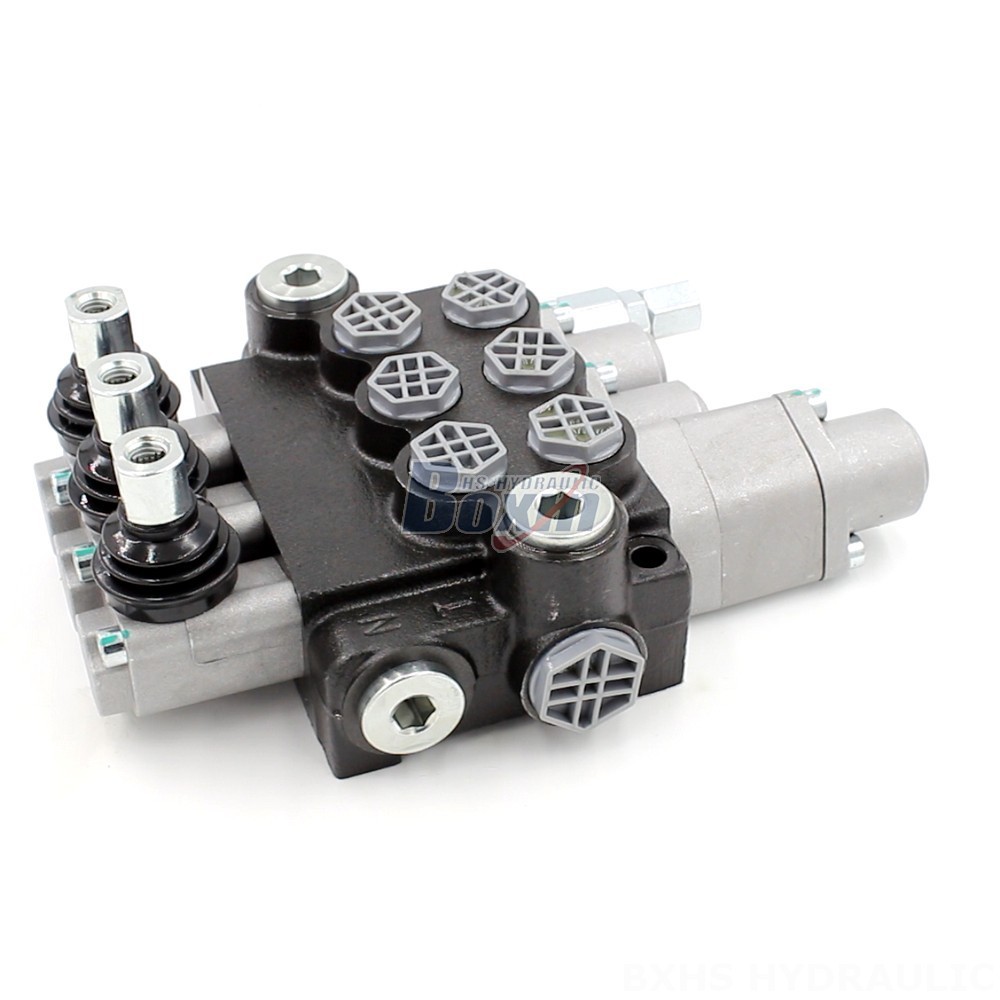

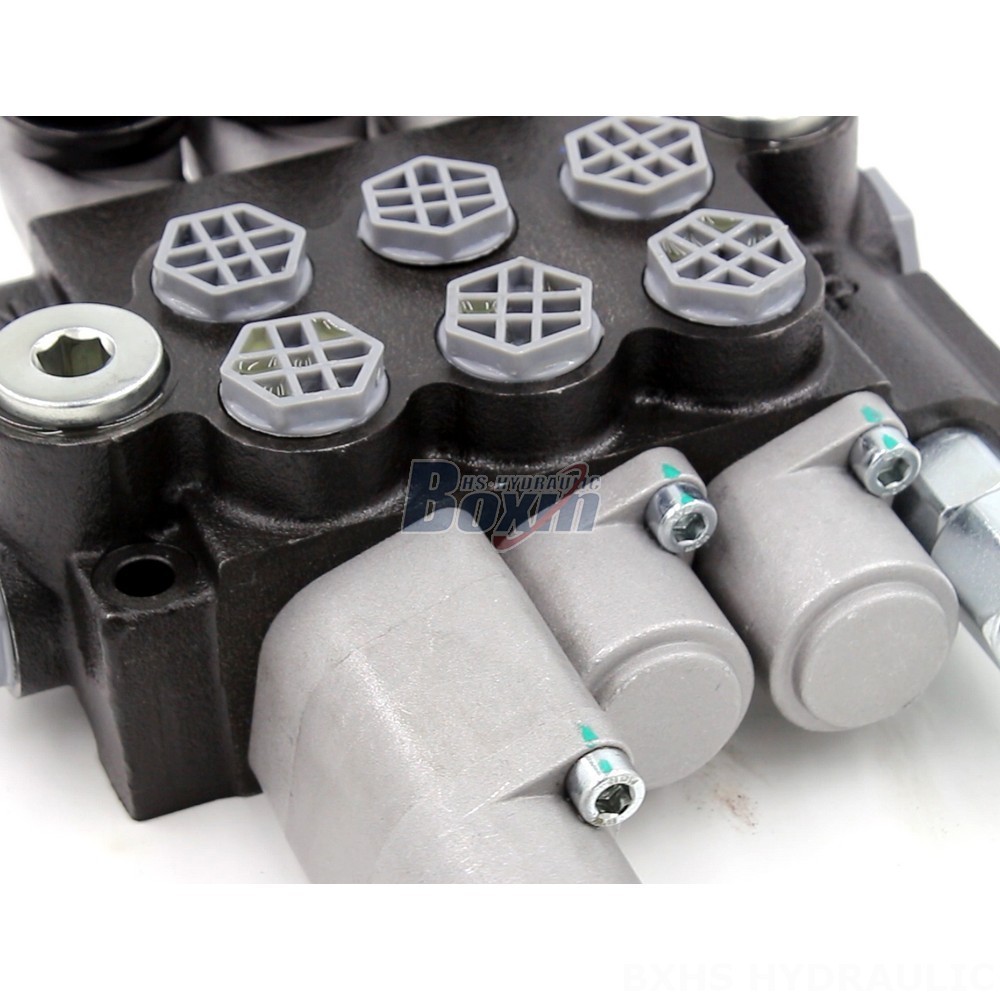

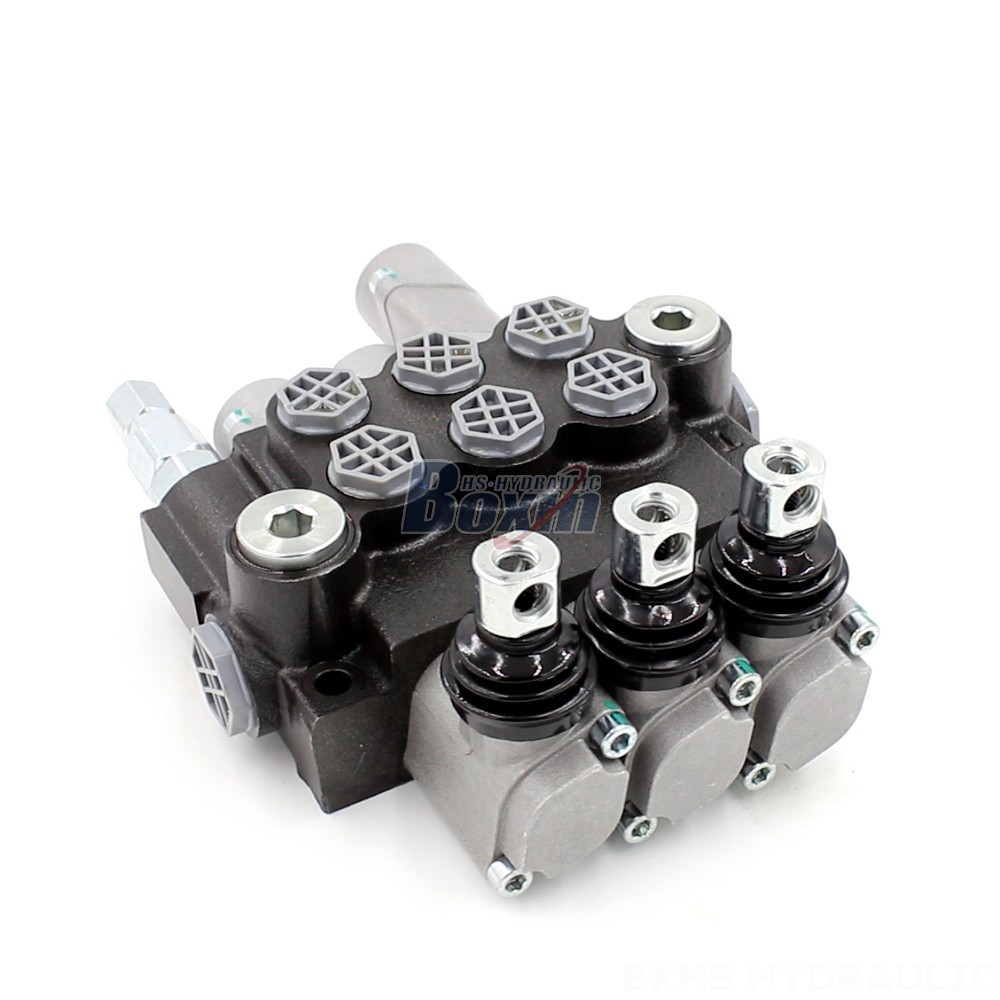

The P40-G12-G38 3 Way Directional Control Valve is a reliable and versatile hydraulic valve designed for use in a wide range of construction, industrial and agricultural applications. This monoblock valve features a manual control method and a rated flow of 40 L/min, making it ideal for operating various equipment like telehandlers, forklifts, cranes, and excavators.
| Serie P40 Válvula Direccional Monobloque Parámetros | |
|---|---|
| Método de control | Manual, Neumático, Electoneumático, Electrohidráulico, Solenoide, Hidráulico, Hidráulico y Manual, Cable, Joystick, Solenoide y joystick, Manual y joystick, Solenoide y cable |
| Carrete | 1 carrete, 2 carretes, 3 carretes, 4 carretes, 5 carretes, 6 carretes, 7 carretes |
| Rango de temperatura ambiente | -40 °C a +80 °C (-40 °F a +176 °F) |
| Tipo de estructura | Válvulas monobloc |
| Sección | 1 sección, 2 secciones, 3 secciones, 4 secciones, 5 secciones, 6 secciones, 7 secciones |
| Rango de viscosidad de funcionamiento | 15 - 75 mm²/s (15 cSt a 75 cSt) |
| Flujo Nominal | 40 l/min (10,5 gal EE. UU./min) |
| Presión Máxima | 250 bar (3600 psi) |
| Puerto de Entrada | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Puerto de Salida | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Tamaño de Puerto | G3/8, G1/2, M18×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
The P40-G12-G38 3 Way Directional Control Valve is a high-performance hydraulic valve designed for demanding applications. It features a 3-section, monoblock design with a manual control method. The valve is rated for a flow rate of 40 L/min and a maximum pressure of 250 bar. It is suitable for operating viscosity ranges of 15 - 75 mm²/s and can withstand ambient temperatures from -40°C to +80°C. The P40 series valve is ideal for use in construction equipment, material handling applications, industrial vehicles, and agriculture. Its robust design and reliable performance make it suitable for various heavy-duty applications, including telehandlers, forklifts, all terrain cranes, stackers, aerial platforms, motor graders, midi-excavators, mini-excavators, skid steer loaders, and compact wheel loaders.
