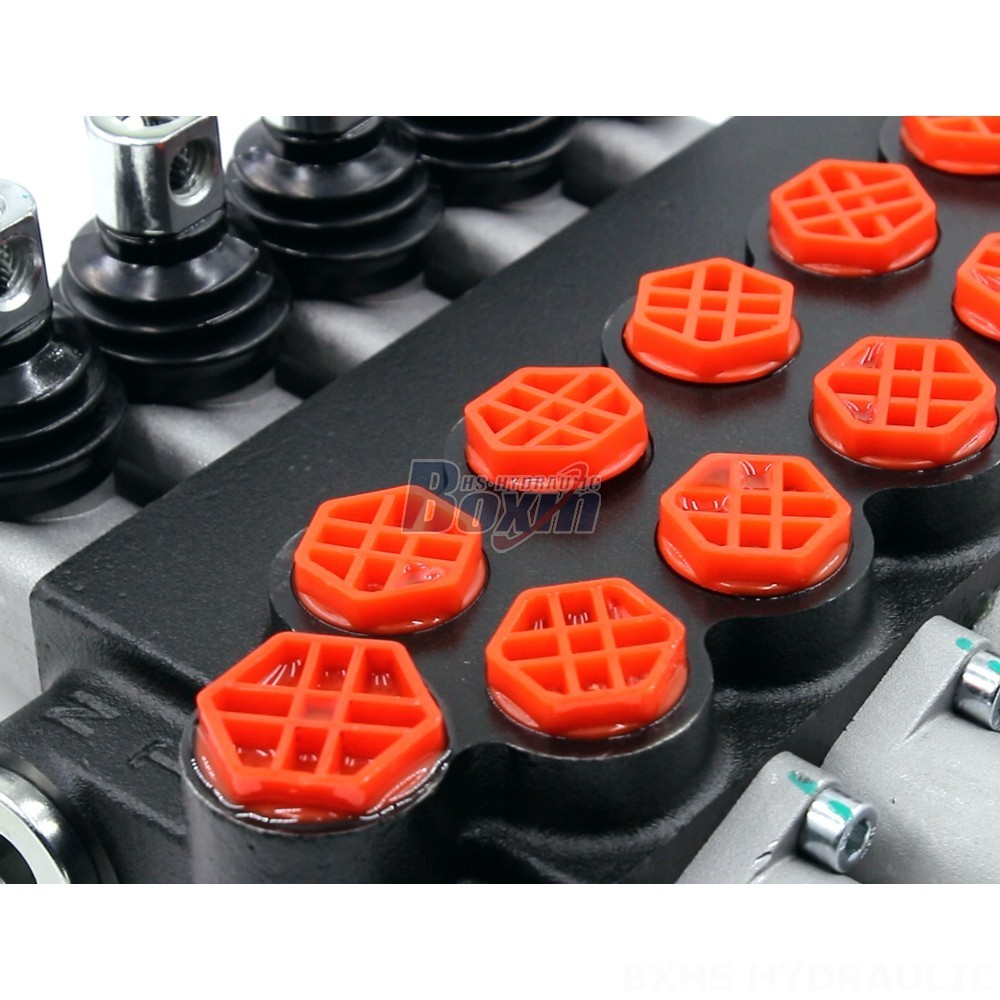

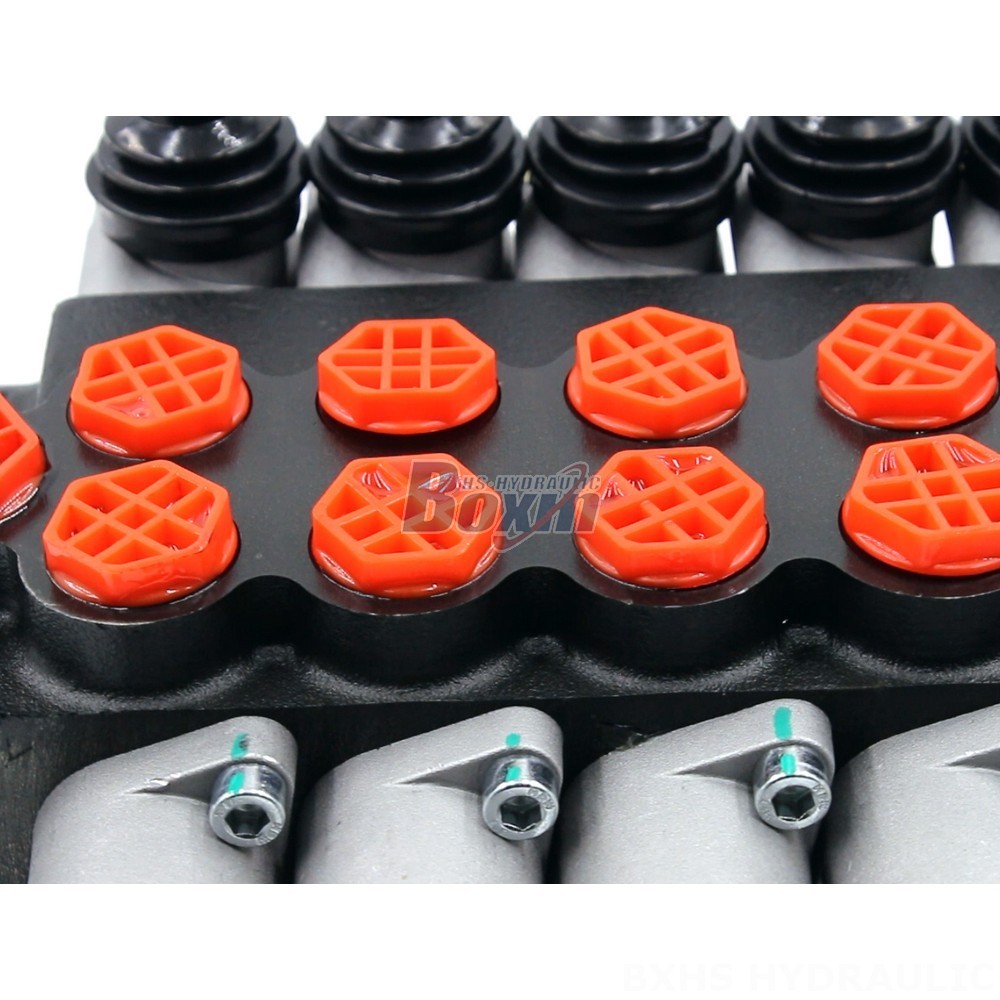

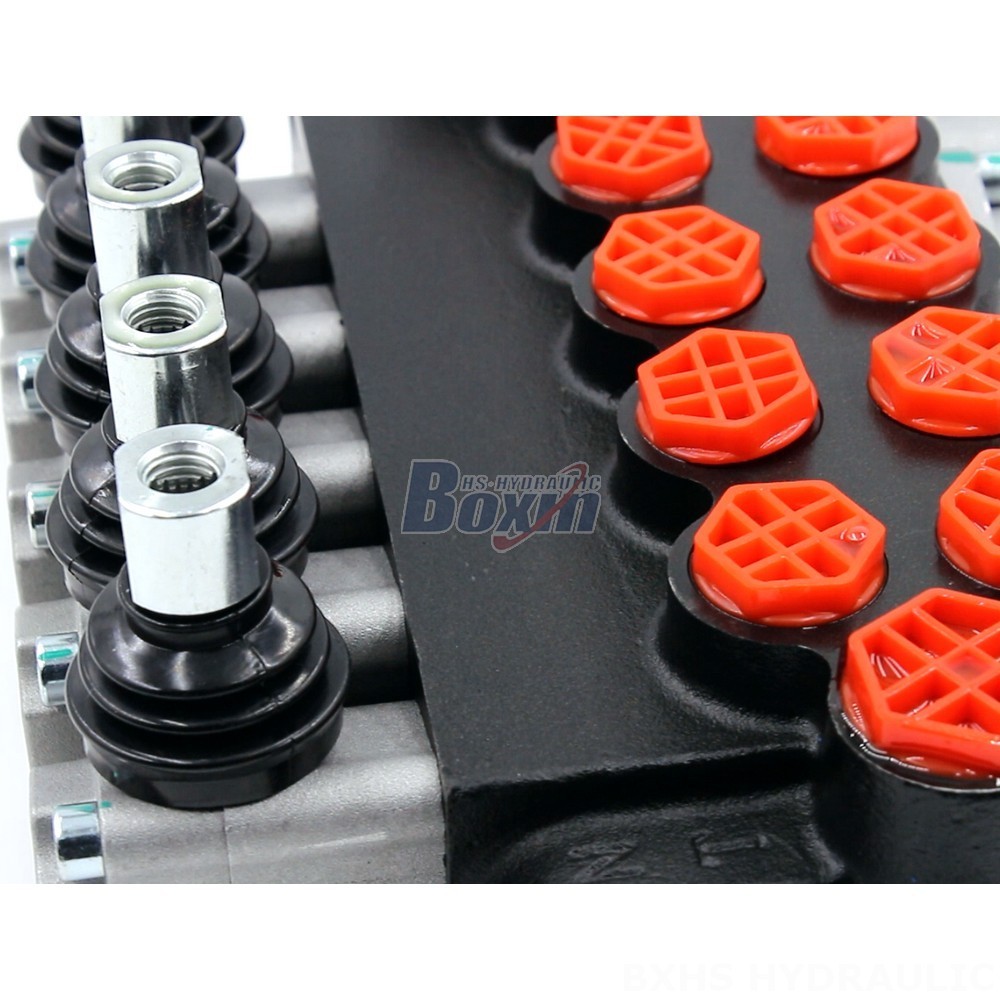

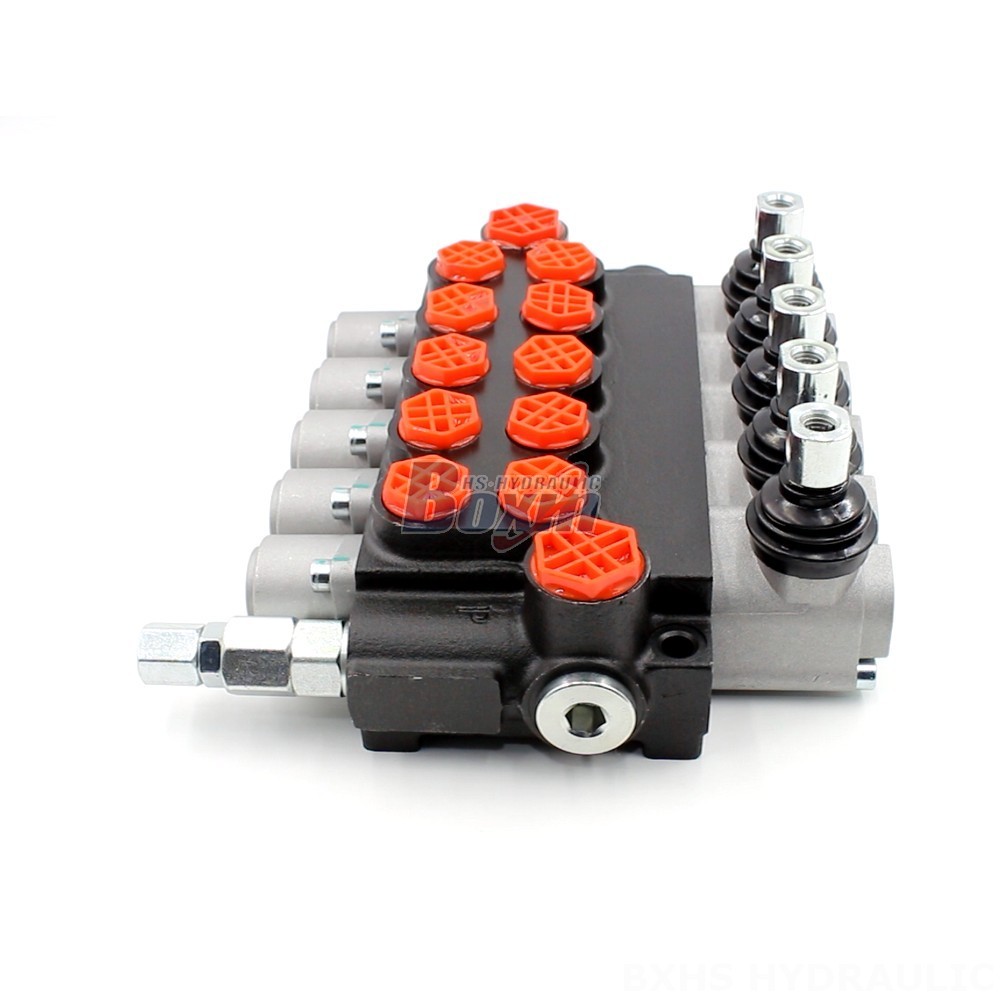

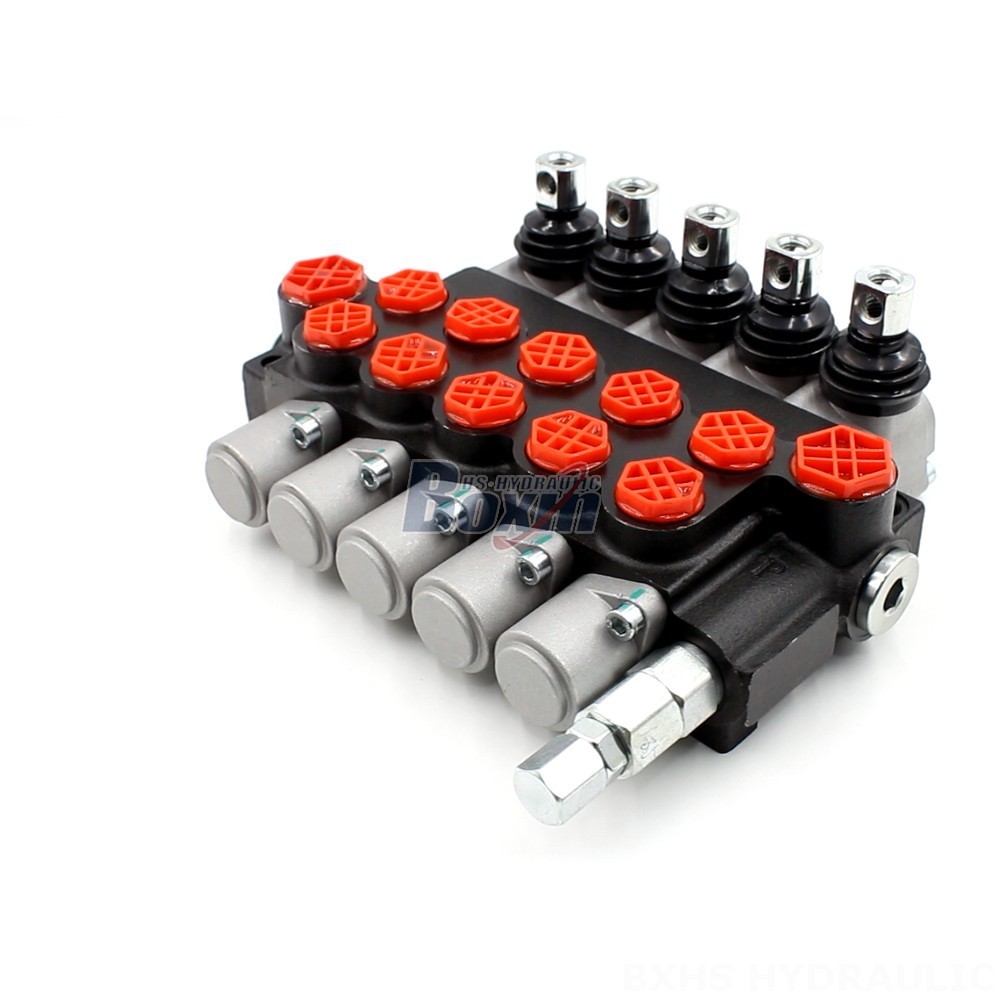

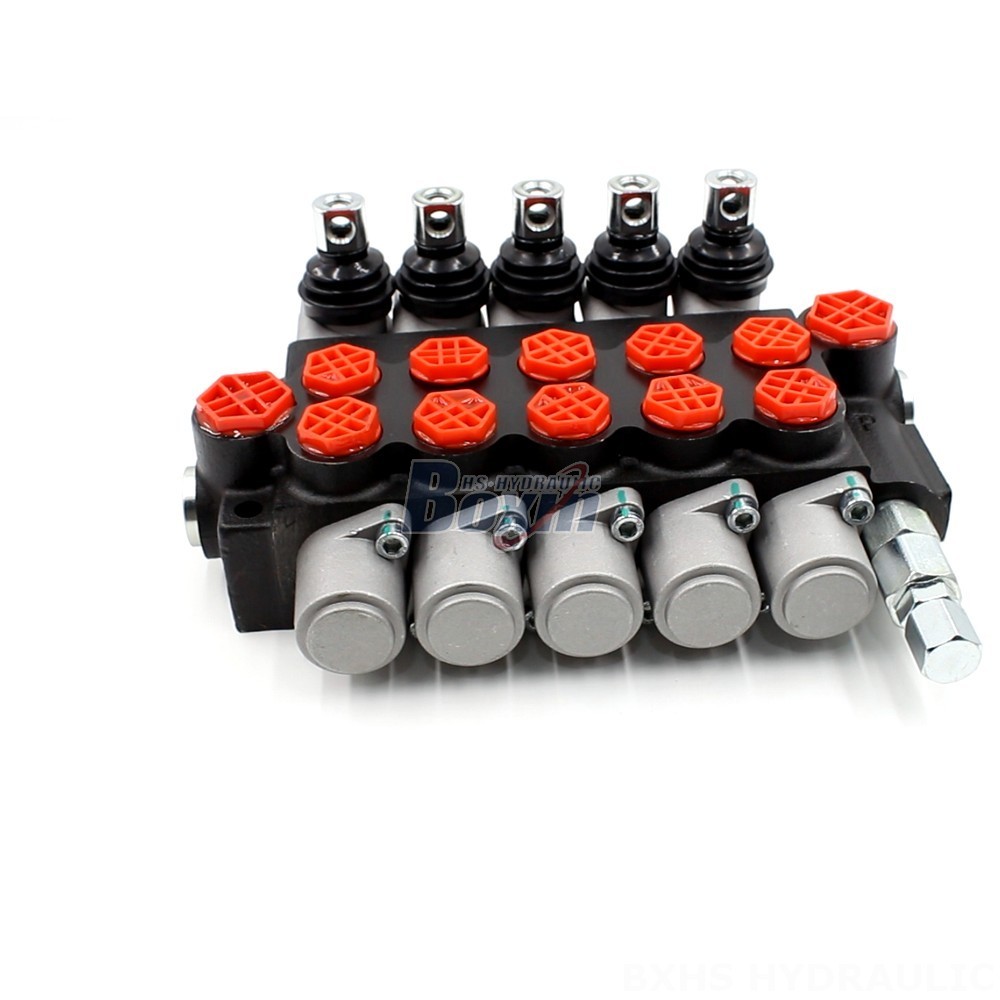

The P40-G12-G38 5-Spool Hydraulic Directional Valve is a high-performance valve designed for a wide range of applications in material handling, construction, earth moving, agriculture, and industrial vehicles. With its manual control, monoblock valve design, and rated flow of 40 L/min, this valve offers precise and reliable control of hydraulic systems.
| Serie P40 Válvula Direccional Monobloque Parámetros | |
|---|---|
| Método de control | Manual, Neumático, Electoneumático, Electrohidráulico, Solenoide, Hidráulico, Hidráulico y Manual, Cable, Joystick, Solenoide y joystick, Manual y joystick, Solenoide y cable |
| Carrete | 1 carrete, 2 carretes, 3 carretes, 4 carretes, 5 carretes, 6 carretes, 7 carretes |
| Rango de temperatura ambiente | -40 °C a +80 °C (-40 °F a +176 °F) |
| Tipo de estructura | Válvulas monobloc |
| Sección | 1 sección, 2 secciones, 3 secciones, 4 secciones, 5 secciones, 6 secciones, 7 secciones |
| Rango de viscosidad de funcionamiento | 15 - 75 mm²/s (15 cSt a 75 cSt) |
| Flujo Nominal | 40 l/min (10,5 gal EE. UU./min) |
| Presión Máxima | 250 bar (3600 psi) |
| Puerto de Entrada | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Puerto de Salida | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Tamaño de Puerto | G3/8, G1/2, M18×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
The P40-G12-G38 5-Spool Hydraulic Directional Valve is a robust and durable valve that can withstand harsh operating conditions. It features a maximum pressure of 250 bar and an operating viscosity range of 15 - 75 mm²/s. The valve also has a wide ambient temperature range of -40°C to +80°C, making it suitable for use in various environments.
The P40-G12-G38 5-Spool Hydraulic Directional Valve is commonly used in various applications, including telehandlers, forklifts, all terrain cranes, stackers, aerial platforms, motor graders, mini excavators, skid steer loaders, compact wheel loaders, and wheel loaders. Its versatility and high performance make it an ideal choice for demanding hydraulic applications.
