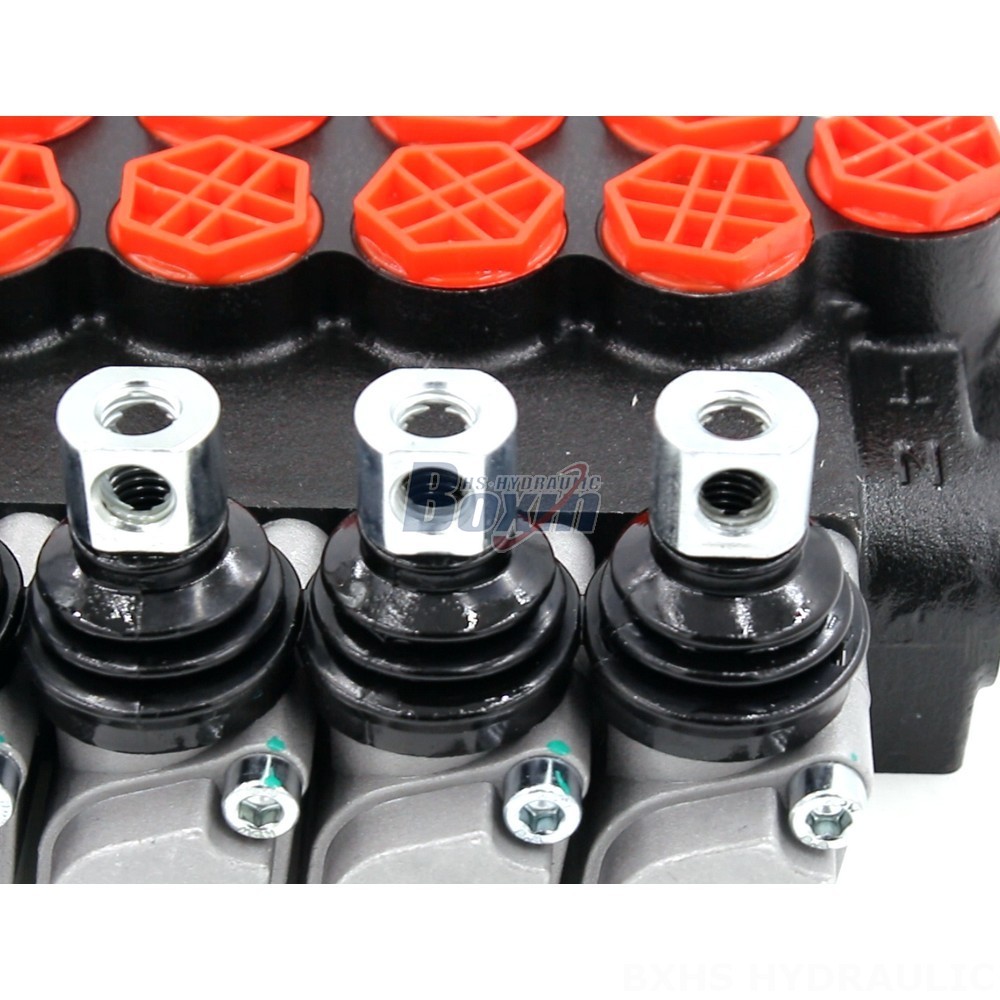

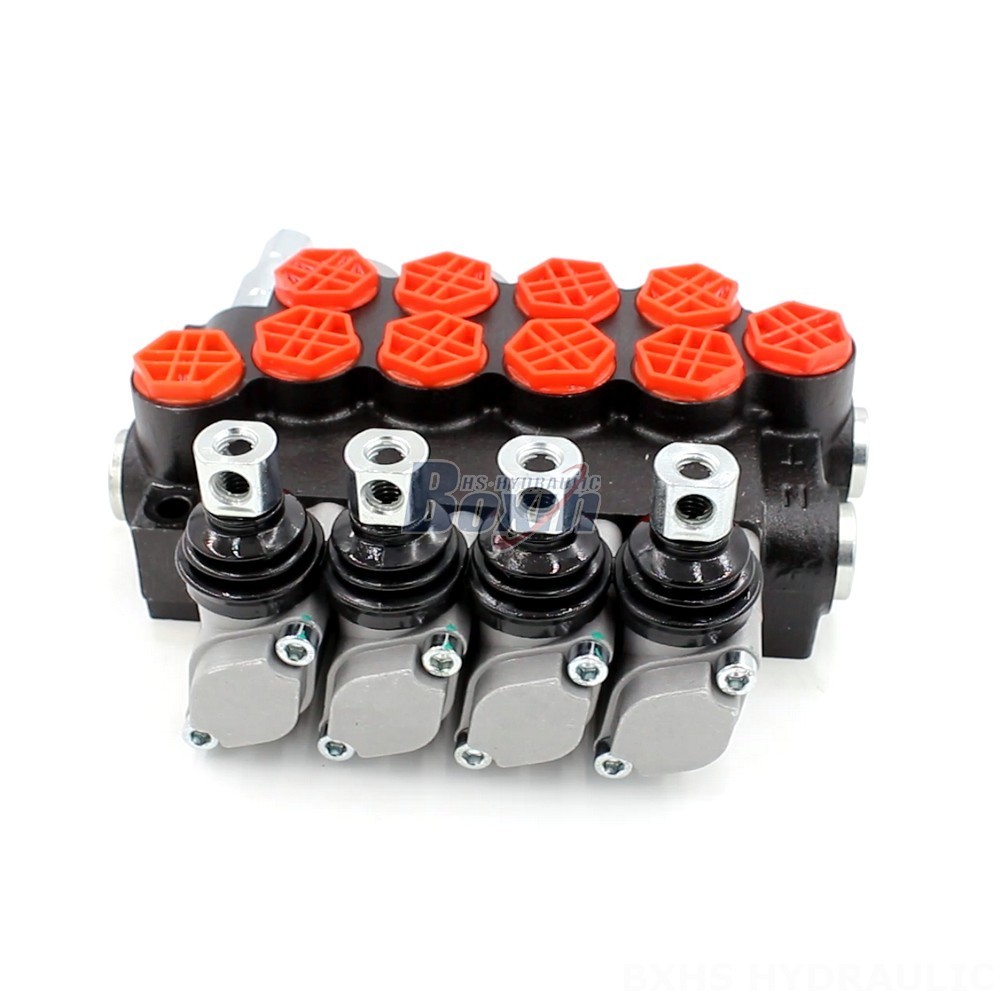

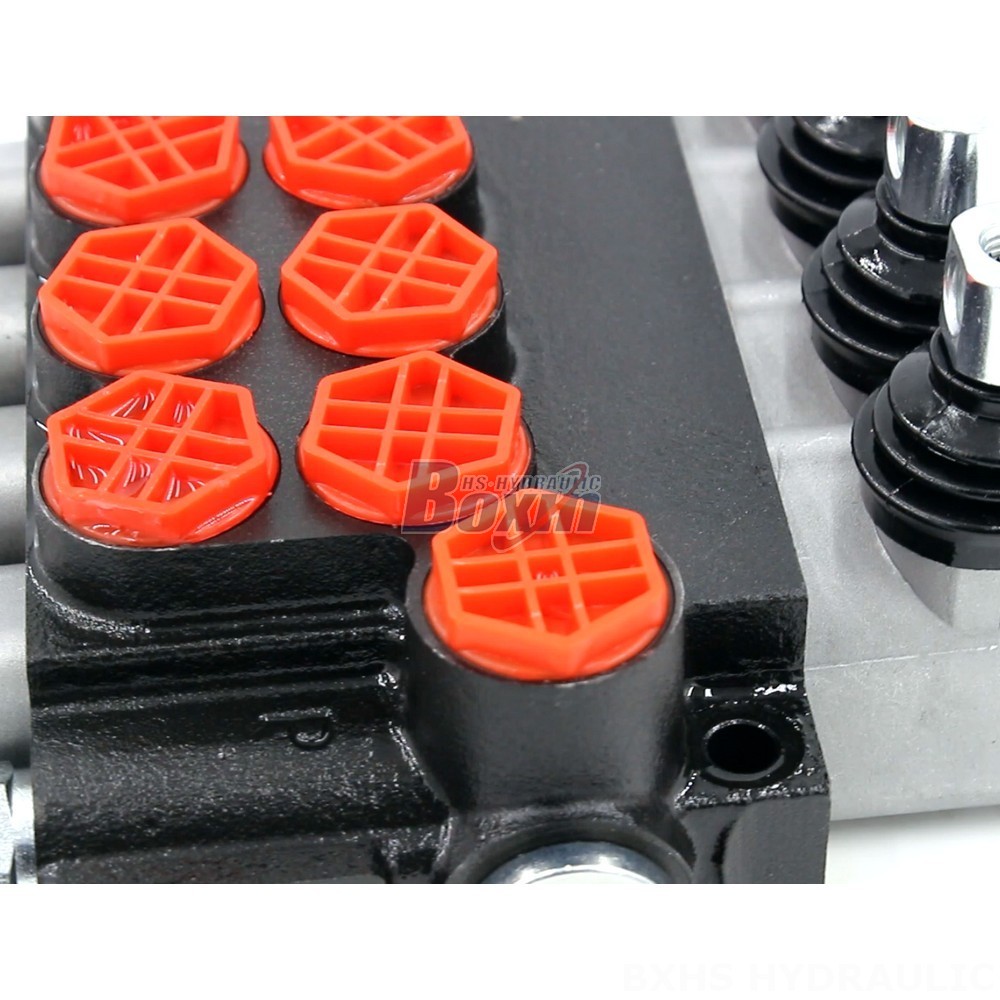

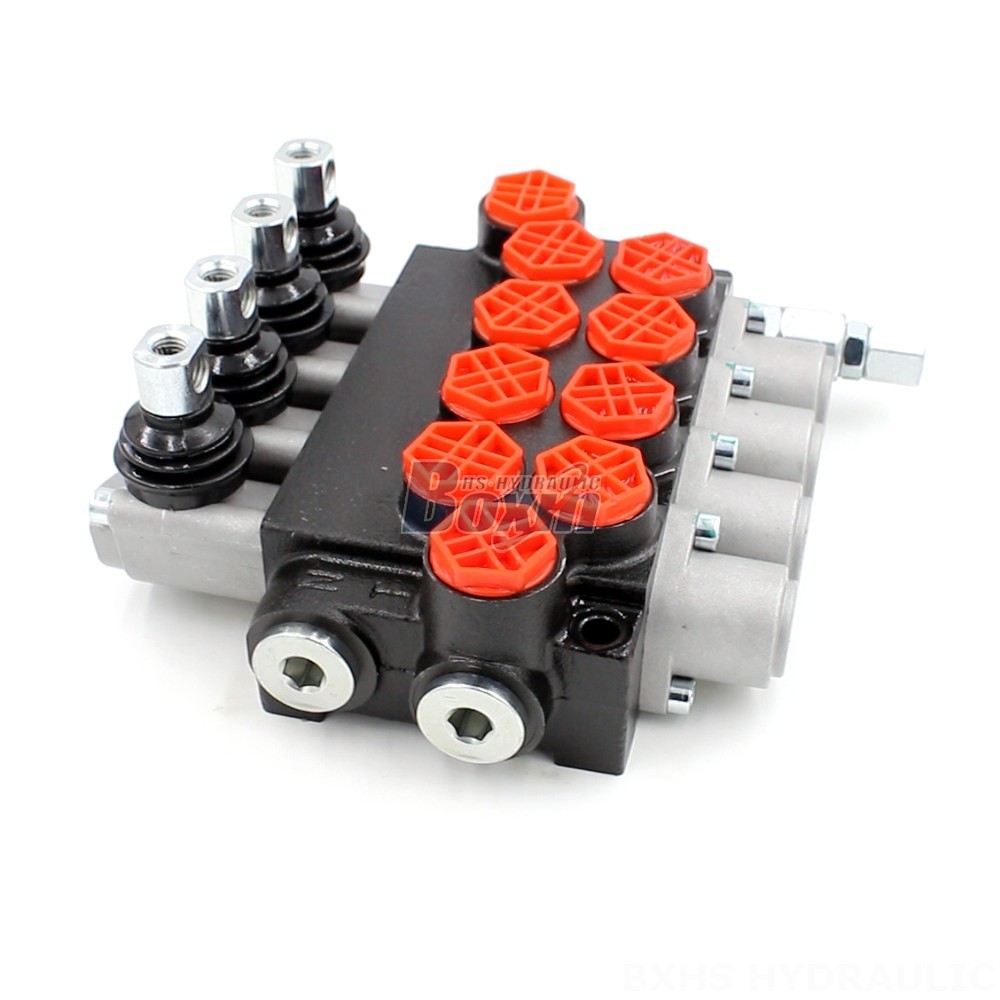

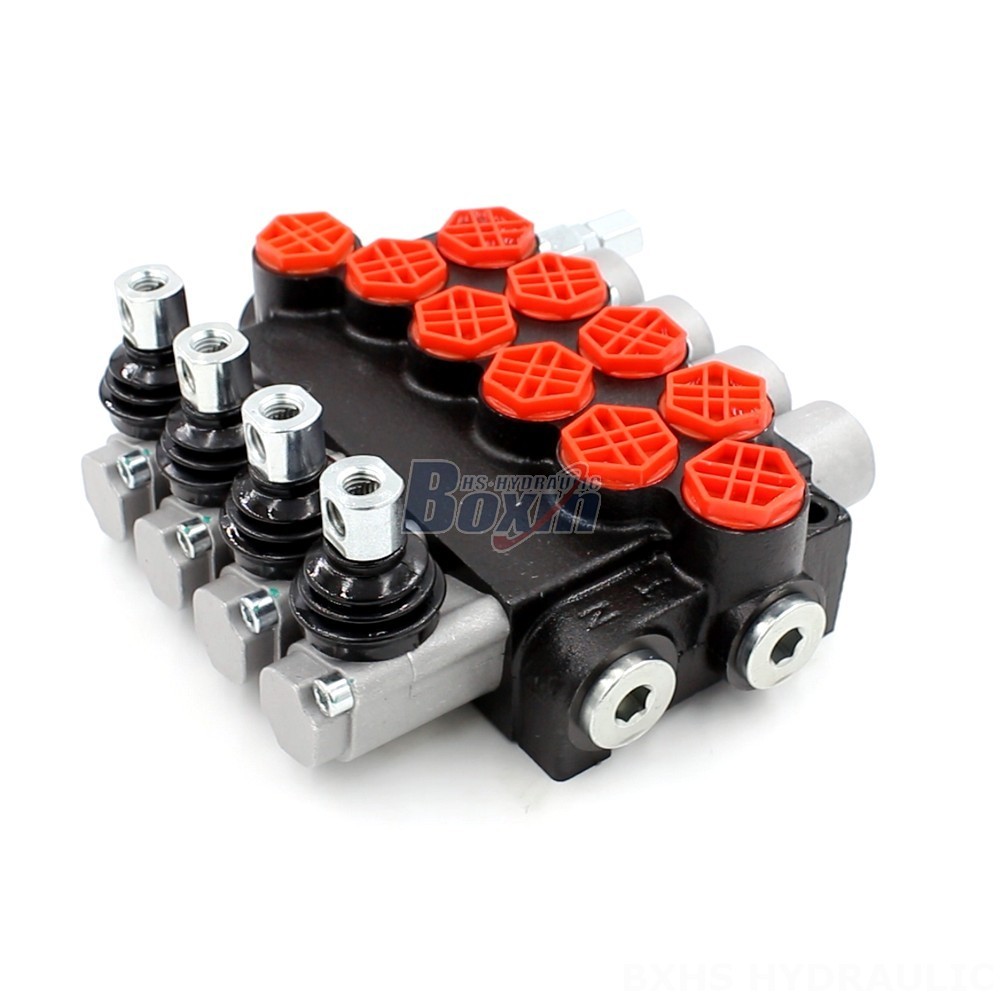

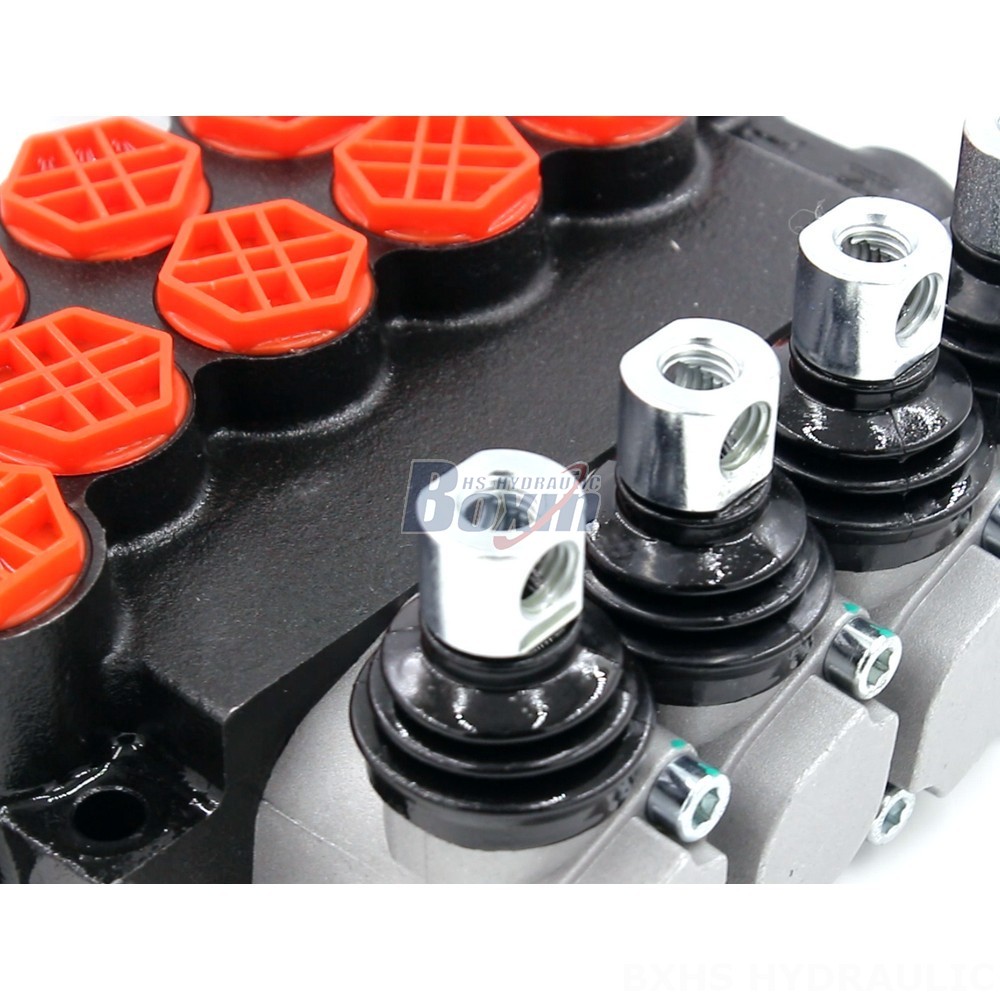

The P40-G12-G38-4OT Manual 4 Spool Monoblock Directional Valve is a high-performance valve designed for use in a wide range of industrial applications. With a rated flow of 40 L/min and a maximum pressure of 250 bar, this valve is suitable for demanding applications in material handling, construction, agriculture, and industrial vehicles.
| Serie P40 Válvula Direccional Monobloque Parámetros | |
|---|---|
| Método de control | Manual, Neumático, Electoneumático, Electrohidráulico, Solenoide, Hidráulico, Hidráulico y Manual, Cable, Joystick, Solenoide y joystick, Manual y joystick, Solenoide y cable |
| Carrete | 1 carrete, 2 carretes, 3 carretes, 4 carretes, 5 carretes, 6 carretes, 7 carretes |
| Rango de temperatura ambiente | -40 °C a +80 °C (-40 °F a +176 °F) |
| Tipo de estructura | Válvulas monobloc |
| Sección | 1 sección, 2 secciones, 3 secciones, 4 secciones, 5 secciones, 6 secciones, 7 secciones |
| Rango de viscosidad de funcionamiento | 15 - 75 mm²/s (15 cSt a 75 cSt) |
| Flujo Nominal | 40 l/min (10,5 gal EE. UU./min) |
| Presión Máxima | 250 bar (3600 psi) |
| Puerto de Entrada | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Puerto de Salida | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Tamaño de Puerto | G3/8, G1/2, M18×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
The P40-G12-G38-4OT Manual 4 Spool Monoblock Directional Valve features a compact and robust design, making it ideal for installation in space-constrained applications. The valve's monoblock construction ensures high strength and durability, while the manual control provides precise and reliable operation. Key features of the valve include:
* Rated flow: 40 L/min (10.5 US gpm)
* Maximum pressure: 250 bar (3600 psi)
* Operating viscosity range: 15 - 75 mm²/s (15 cSt to 75 cSt)
* Ambient temperature range: -40°C to +80°C (-40°F to +176°F)
* Spool: 4 Spool
* Series: P40 Series
* Application Area: MATERIAL HANDLING, CONSTRUCTION AND EARTH MOVING, AGRICULTURE, INDUSTRIAL VEHICLES
* Applicable Model: TELEHANDLER, FORKLIFT, ALL TERRAIN CRANE, STACKER, AERIAL PLATFORM, MOTOR GRADER, MIDI-EXCAVATOR, MINI-EXCAVATOR, SKID STEER LOADER, COMPACT WHEEL LOADER
