P40-G12-G38-4OT Directional Control Valve: Key Features & Specifications

Método de control:Manual

Carrete:4 carretes

Flujo Nominal:40 l/min (10,5 gal EE. UU./min)

Presión Máxima:250 bar (3600 psi)

Puerto de Entrada:G1/2

Puerto de Salida:G1/2

Tamaño de Puerto:G3/8

Marca:BXHS

Tipo de producto:Válvula Direccional Monobloque

Serie de productos:Serie P40 Válvula Direccional Monobloque

Tamaño del embalaje:24*23*13

Peso bruto:8.20 kg

Disponibilidad: En stock

1439 personas están viendo este producto

P40-G12-G38-4OT Directional Control Valve: Key Features & Specifications

P40-G12-G38-4OT Directional Control Valve: Key Features & Specifications

P40-G12-G38-4OT Directional Control Valve: Key Features & Specifications drawing image

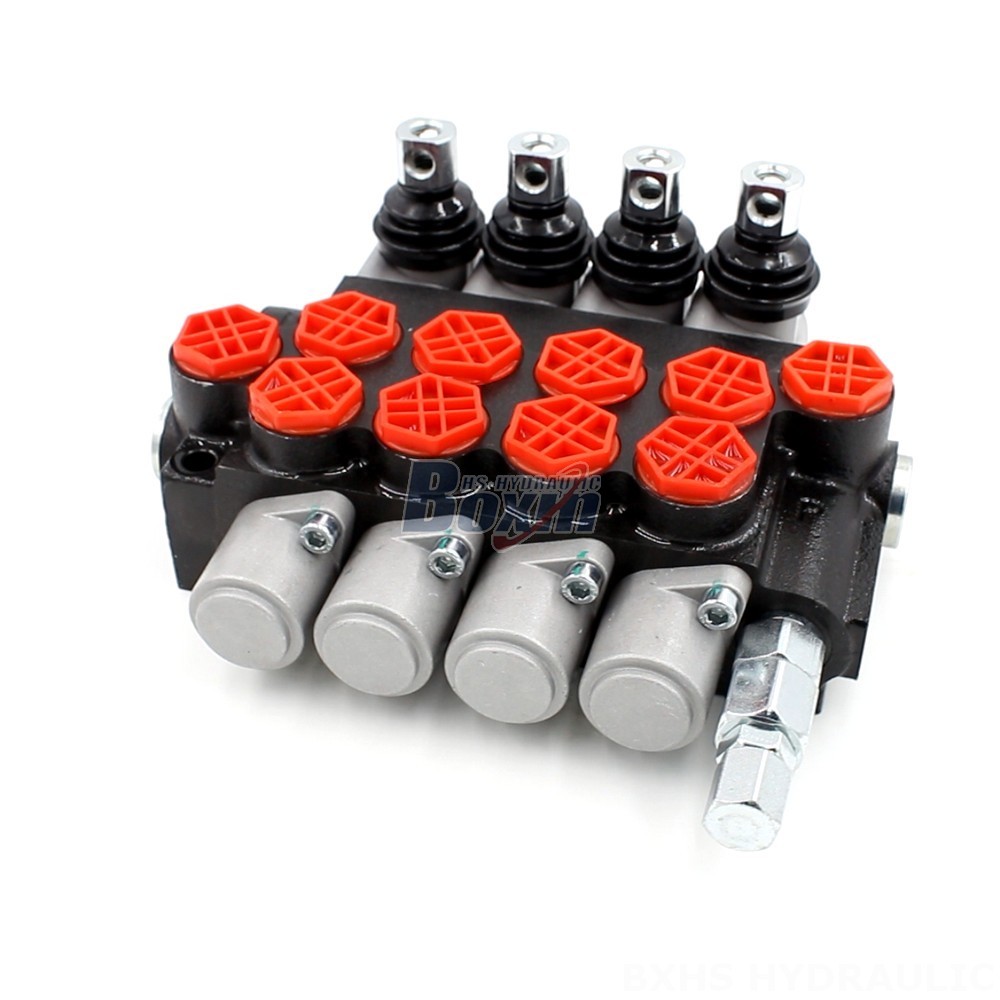

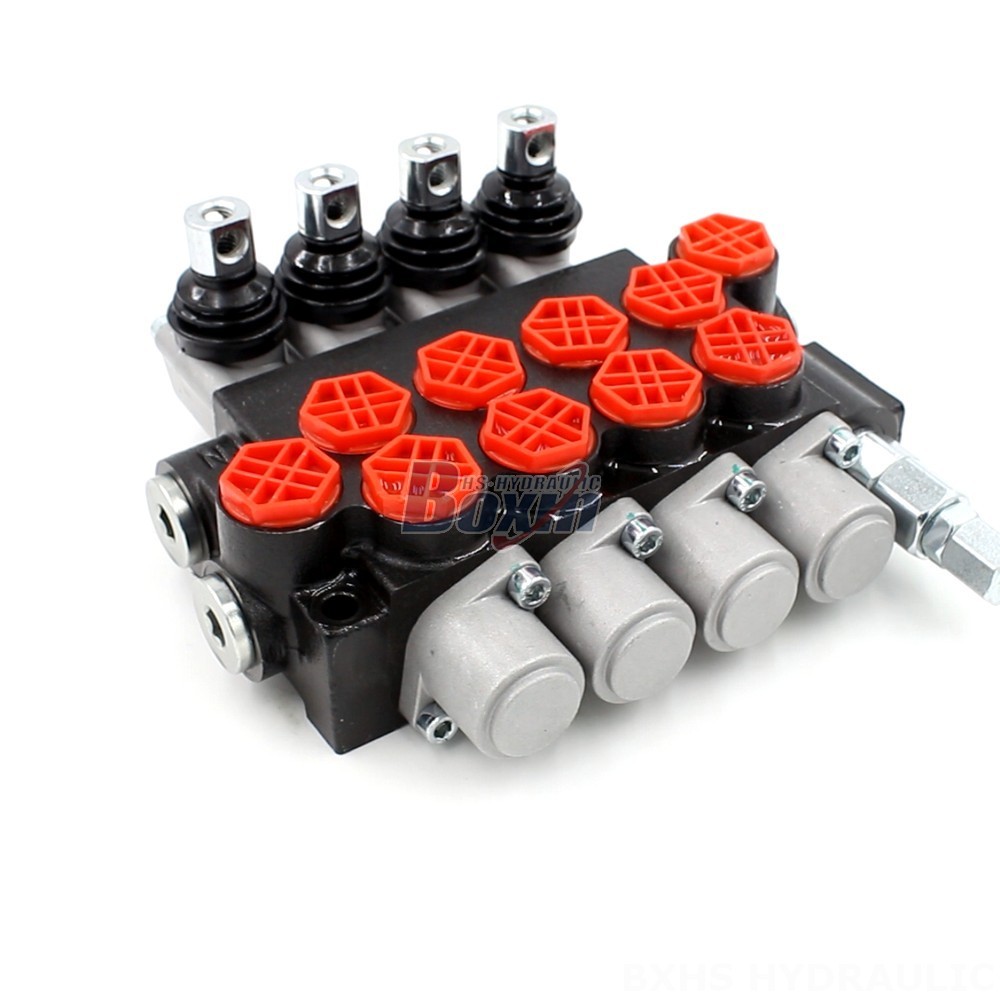

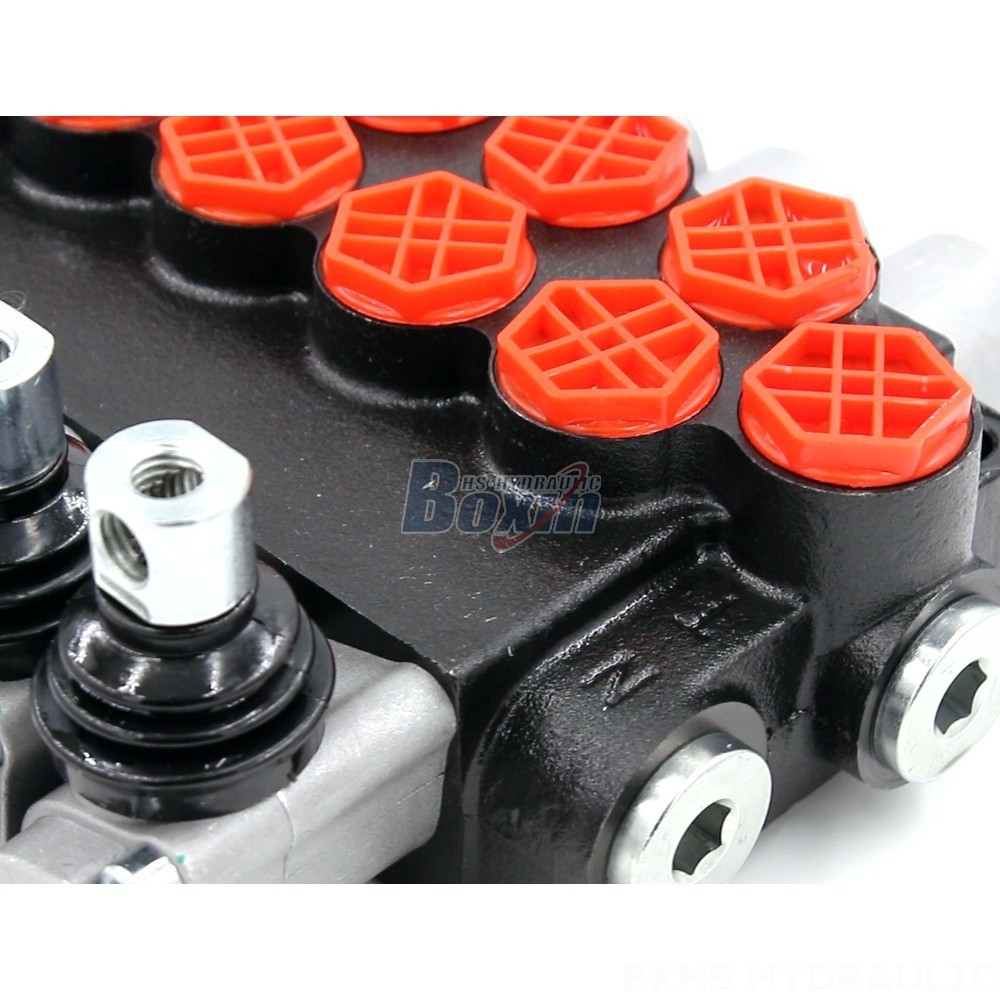

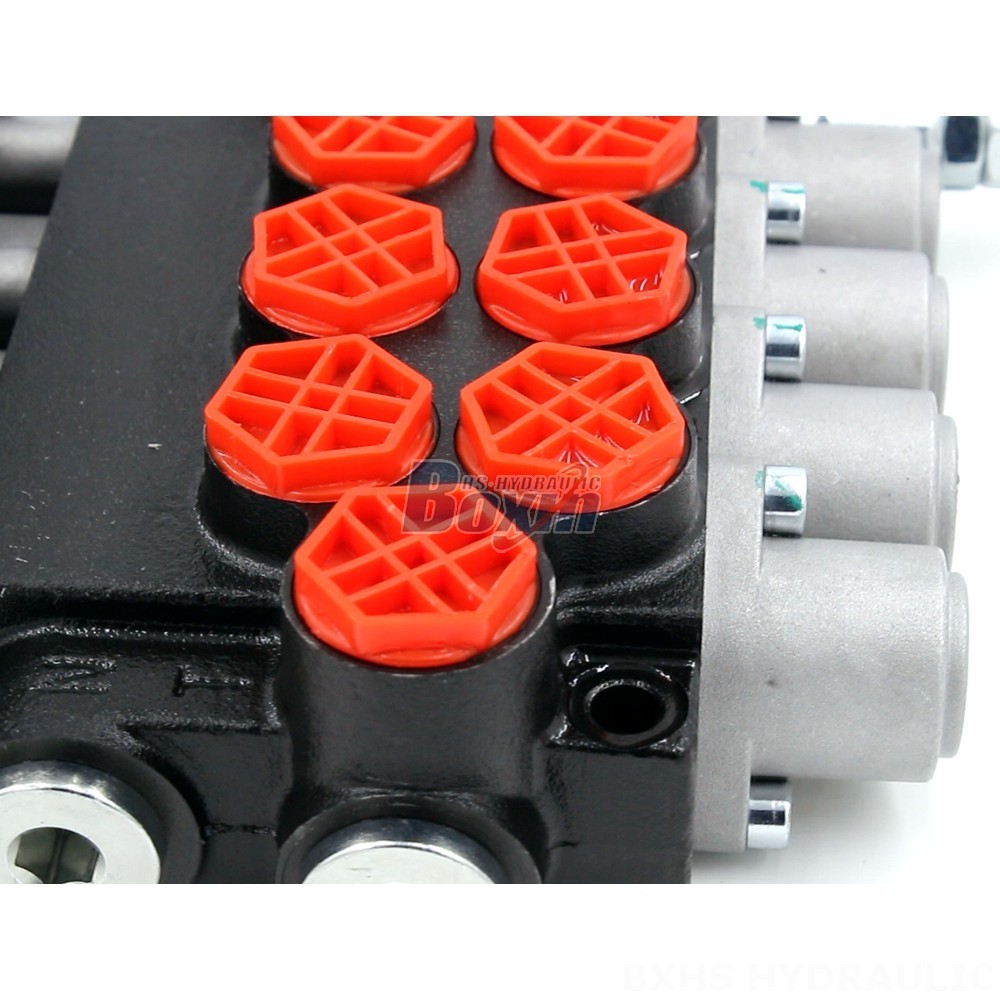

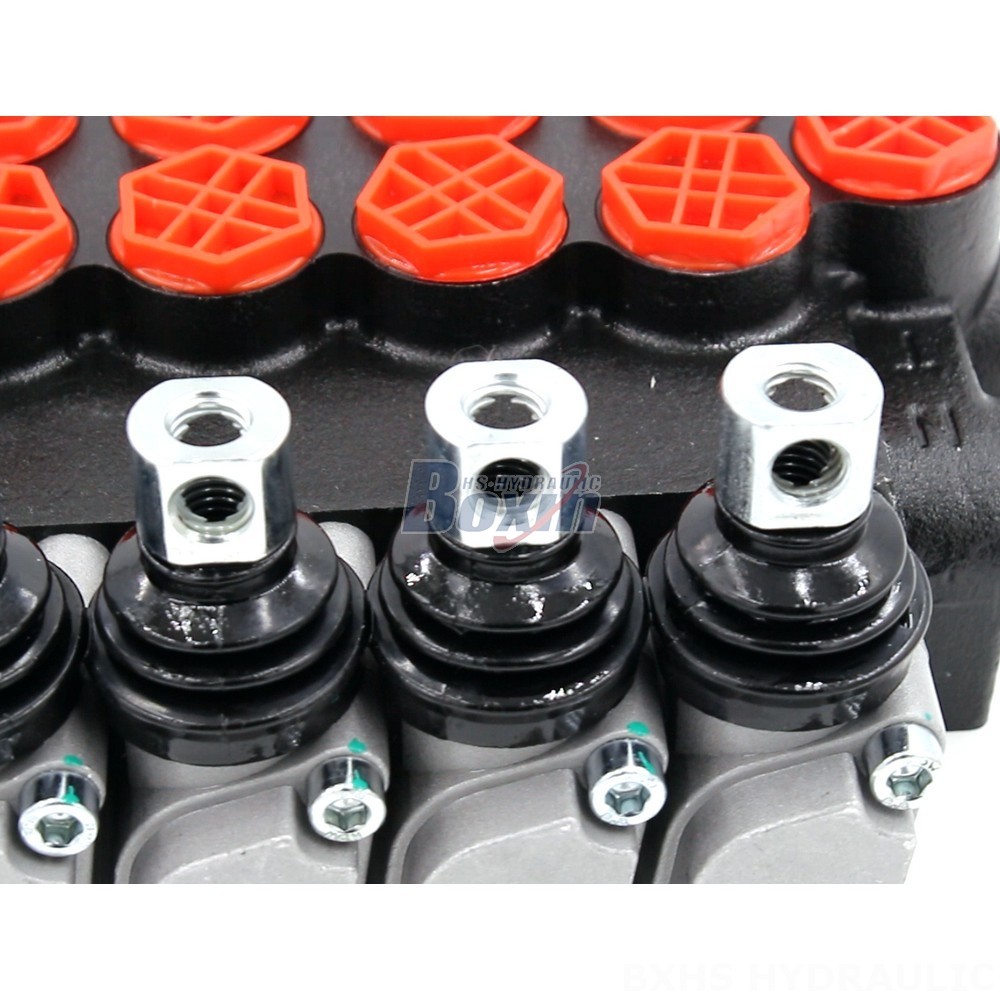

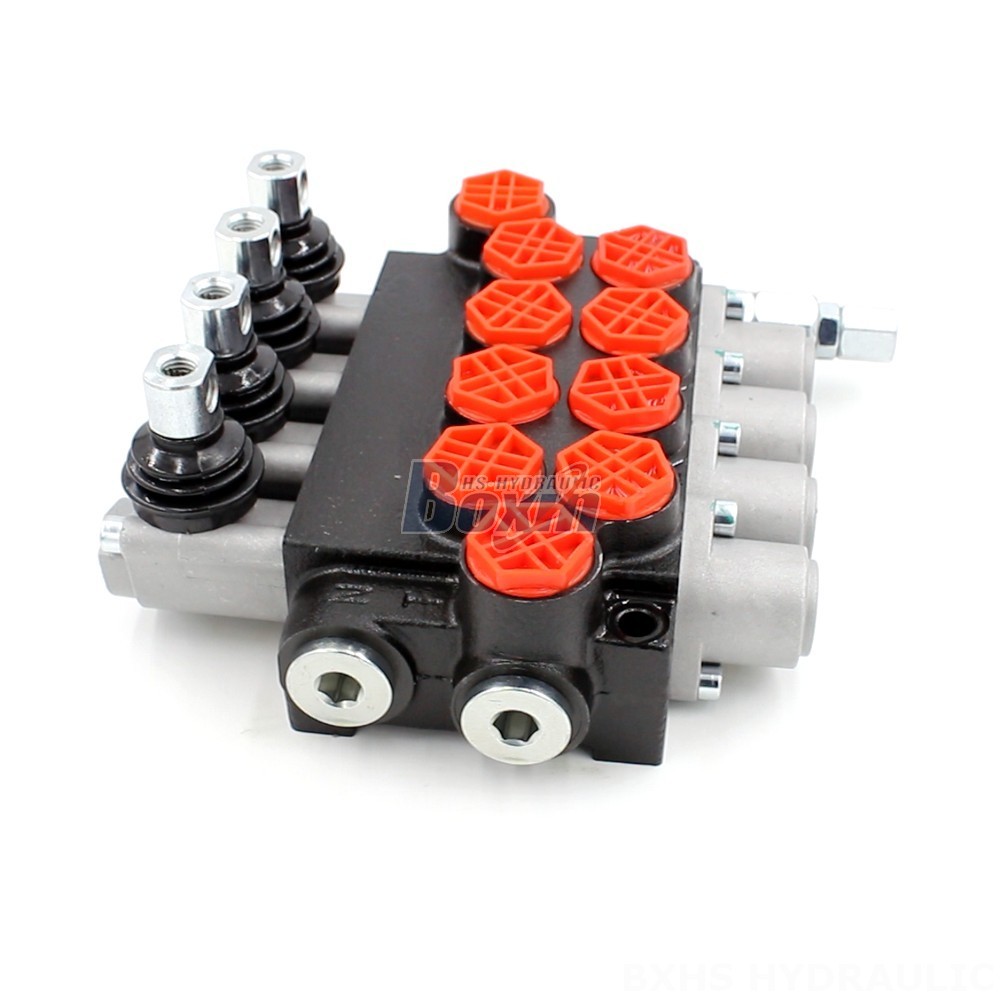

The Dcv Pneumatic P40-G12-G38-4OT Directional Control Valve is a high-performance, 4-section, manual control valve designed for heavy-duty applications in construction, material handling, agriculture, and industrial vehicles. This monoblock valve features a rated flow of 40 L/min and a maximum pressure of 250 bar, making it suitable for a wide range of mobile hydraulic systems.

Serie P40 Válvula Direccional Monobloque Parámetros
Método de control Manual, Neumático, Electoneumático, Electrohidráulico, Solenoide, Hidráulico, Hidráulico y Manual, Cable, Joystick, Solenoide y joystick, Manual y joystick, Solenoide y cable
Carrete 1 carrete, 2 carretes, 3 carretes, 4 carretes, 5 carretes, 6 carretes, 7 carretes
Rango de temperatura ambiente -40 °C a +80 °C (-40 °F a +176 °F)
Tipo de estructura Válvulas monobloc
Sección 1 sección, 2 secciones, 3 secciones, 4 secciones, 5 secciones, 6 secciones, 7 secciones
Rango de viscosidad de funcionamiento 15 - 75 mm²/s (15 cSt a 75 cSt)
Flujo Nominal 40 l/min (10,5 gal EE. UU./min)
Presión Máxima 250 bar (3600 psi)
Puerto de Entrada G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT
Puerto de Salida G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT
Tamaño de Puerto G3/8, G1/2, M18×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT

The Dcv Pneumatic P40-G12-G38-4OT Directional Control Valve is a robust and reliable hydraulic component designed for demanding applications. Its monoblock construction provides a compact and durable design, while its manual control method offers precise and responsive operation. With a rated flow of 40 L/min and a maximum pressure of 250 bar, this valve is capable of handling high-flow, high-pressure applications. Its operating viscosity range of 15 - 75 mm²/s ensures optimal performance in a variety of operating conditions. The valve is suitable for a wide range of applications including telehandlers, forklifts, all-terrain cranes, stackers, aerial platforms, motor graders, midi-excavators, mini-excavators, skid steer loaders, and compact wheel loaders. Its versatile design and robust construction make it an ideal choice for various mobile hydraulic systems in construction, material handling, agriculture, and industrial vehicles.
