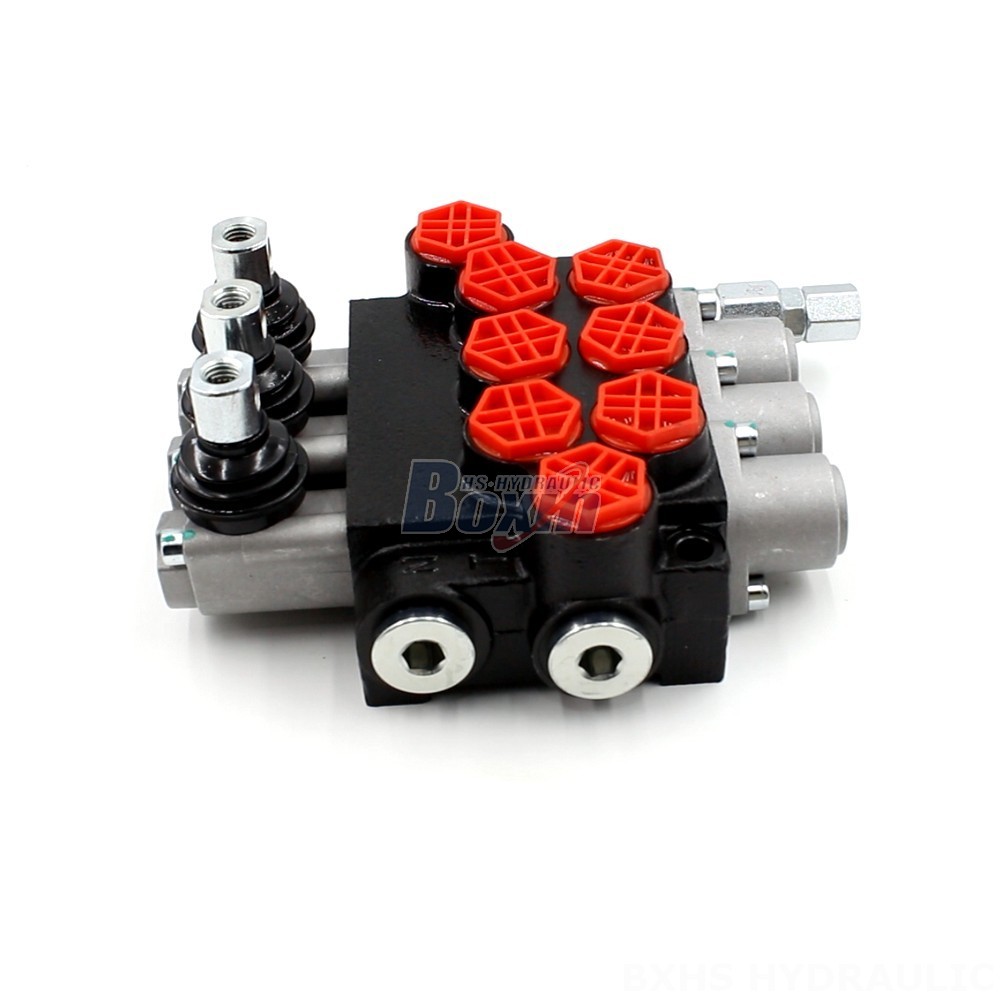

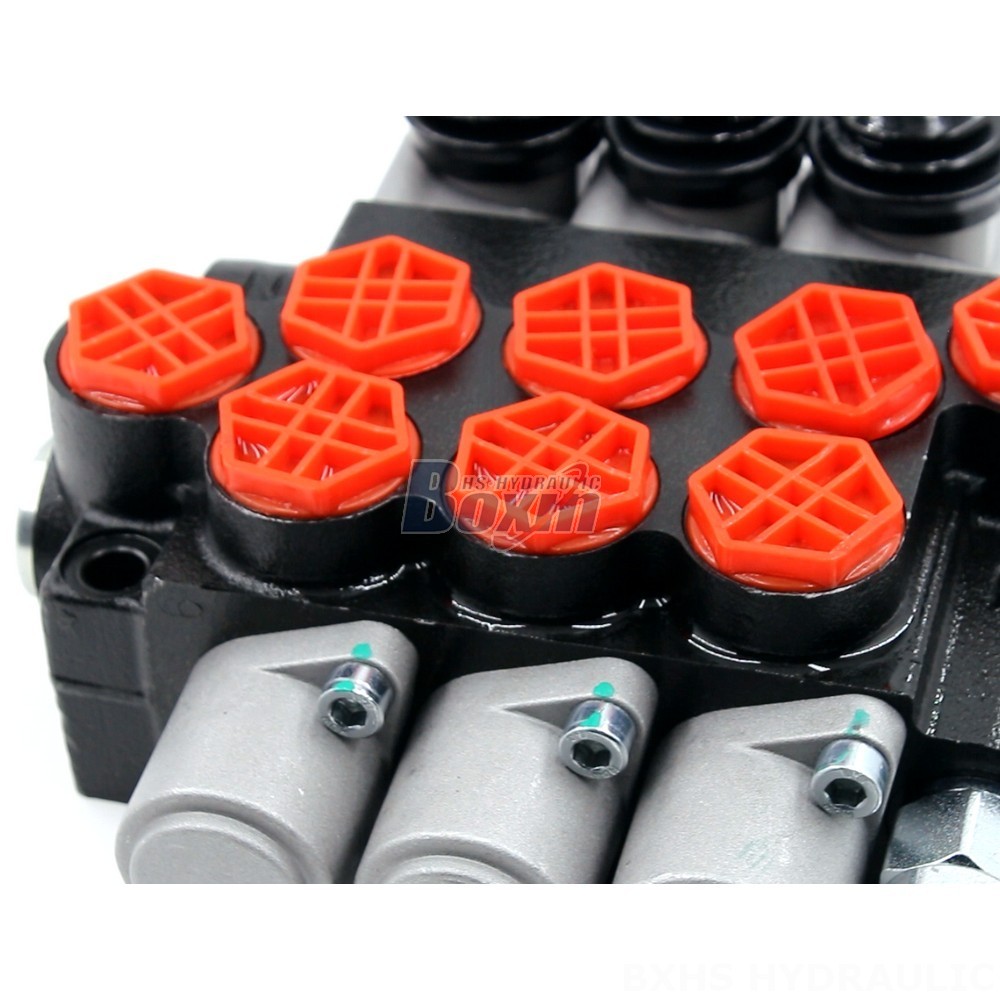

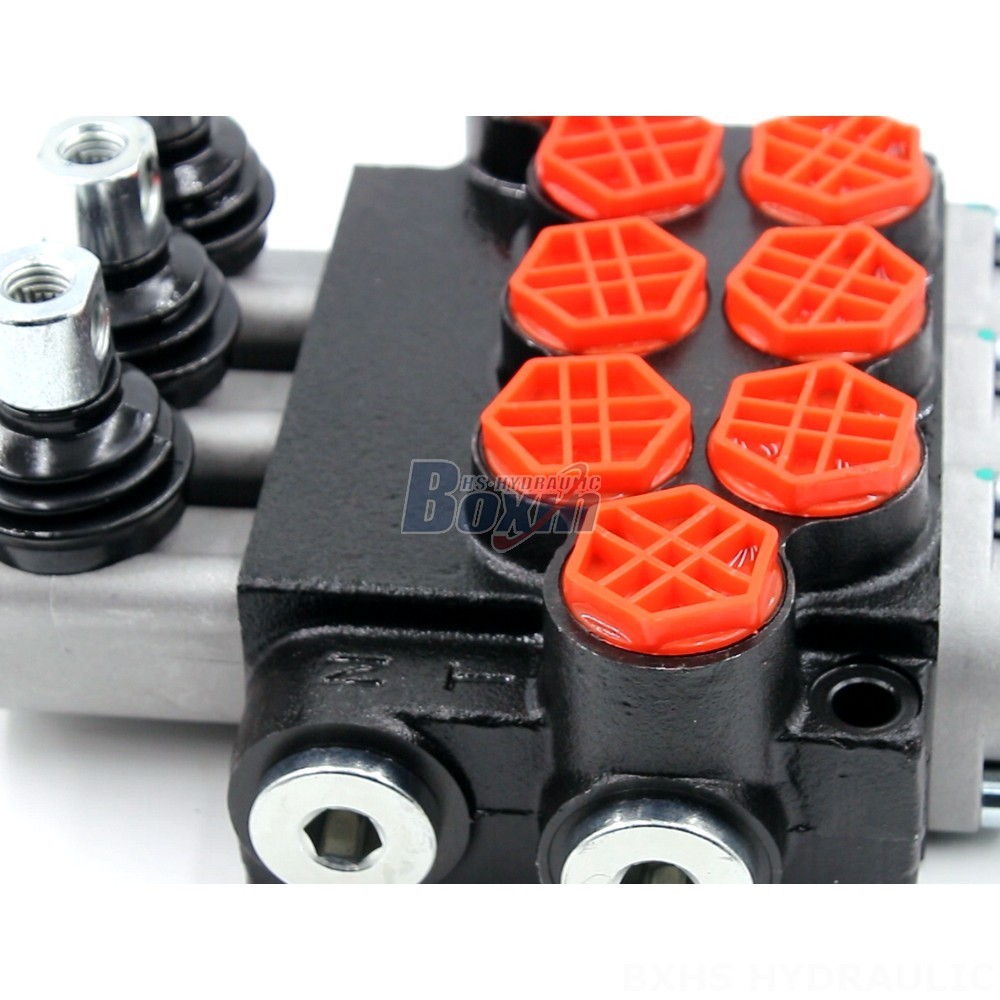

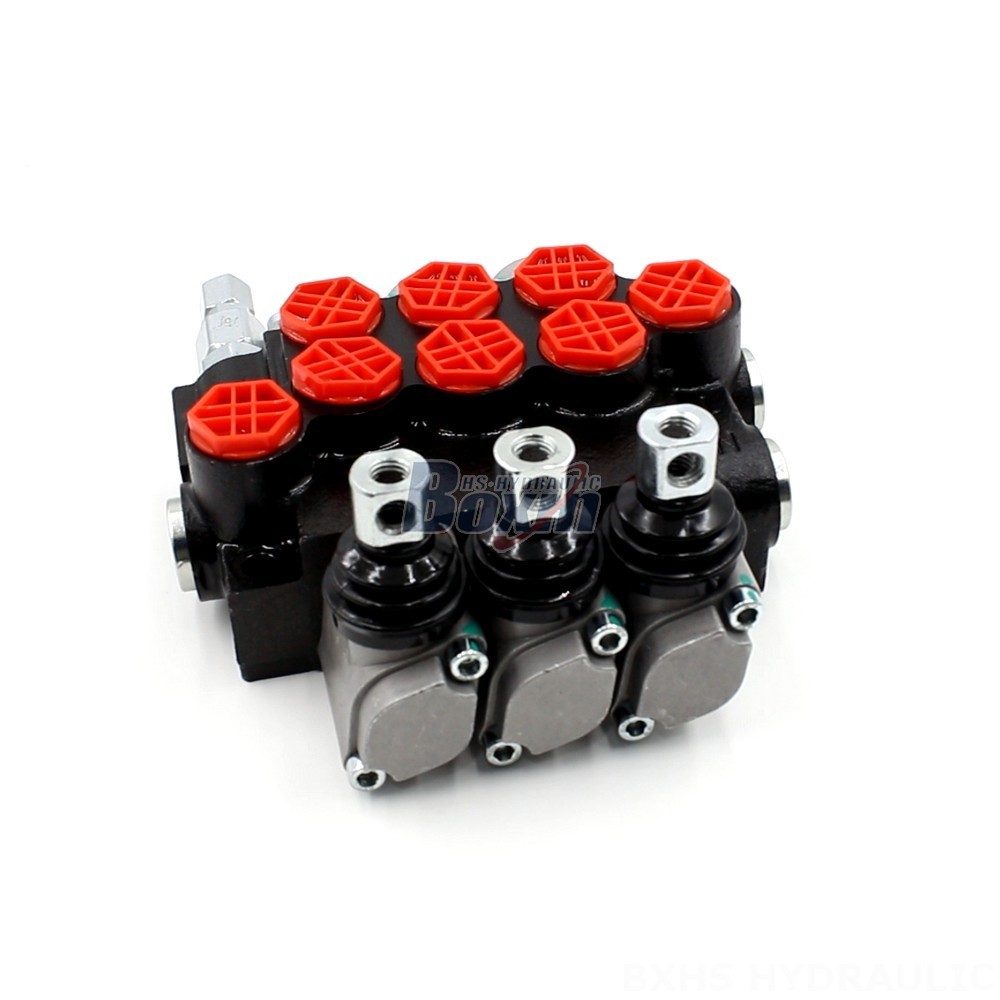

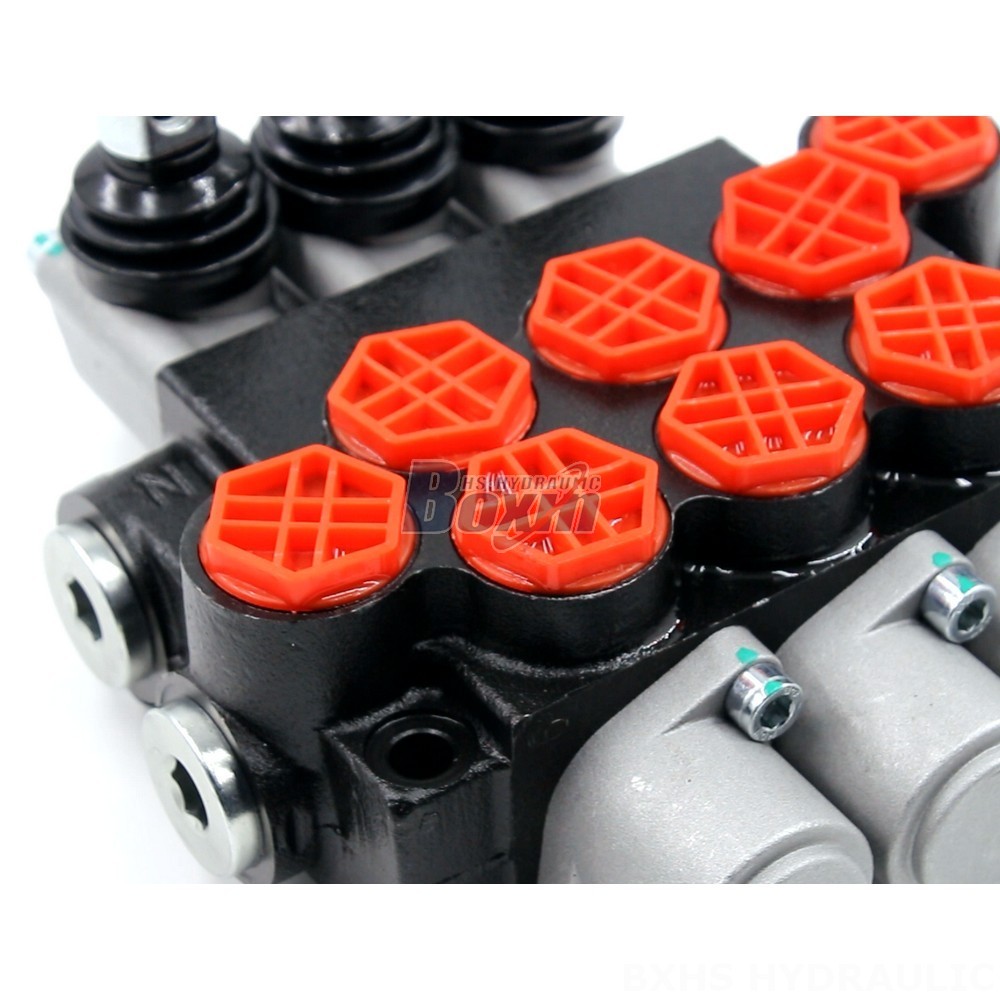

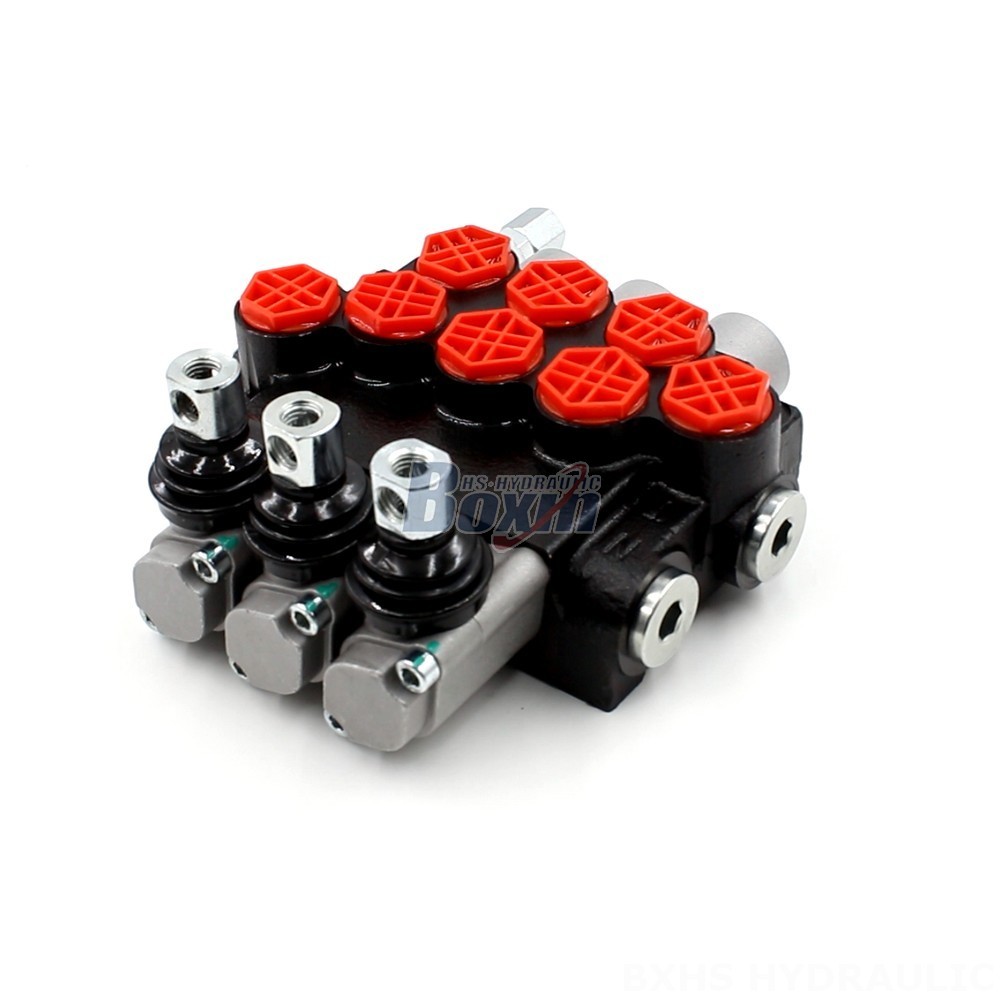

The P40-G12 4 Way Hydraulic Manifold Block is a robust and versatile directional control valve designed for a wide range of applications in material handling, construction, agriculture, and industrial vehicles. Featuring a monoblock design, 3 sections, and manual control, this valve offers a rated flow of 40 L/min and a maximum pressure of 250 bar. It is customizable to meet your specific needs.
| Serie P40 Válvula Direccional Monobloque Parámetros | |
|---|---|
| Método de control | Manual, Neumático, Electoneumático, Electrohidráulico, Solenoide, Hidráulico, Hidráulico y Manual, Cable, Joystick, Solenoide y joystick, Manual y joystick, Solenoide y cable |
| Carrete | 1 carrete, 2 carretes, 3 carretes, 4 carretes, 5 carretes, 6 carretes, 7 carretes |
| Rango de temperatura ambiente | -40 °C a +80 °C (-40 °F a +176 °F) |
| Tipo de estructura | Válvulas monobloc |
| Sección | 1 sección, 2 secciones, 3 secciones, 4 secciones, 5 secciones, 6 secciones, 7 secciones |
| Rango de viscosidad de funcionamiento | 15 - 75 mm²/s (15 cSt a 75 cSt) |
| Flujo Nominal | 40 l/min (10,5 gal EE. UU./min) |
| Presión Máxima | 250 bar (3600 psi) |
| Puerto de Entrada | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Puerto de Salida | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Tamaño de Puerto | G3/8, G1/2, M18×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
This 4 Way Hydraulic Manifold Block from the P40 series is a reliable and efficient solution for controlling hydraulic circuits. Its monoblock construction ensures durability and compact size. The valve features 3 sections and manual control, providing precise and responsive operation. With a rated flow of 40 L/min and a maximum pressure of 250 bar, it is suitable for demanding applications in various industries. The P40-G12 is designed to work with a wide range of operating viscosities and temperatures. It is ideal for use in telehandlers, forklifts, cranes, stackers, aerial platforms, motor graders, mini-excavators, skid steer loaders, compact wheel loaders, and wheel loaders. This valve is customizable to meet your specific requirements, making it a versatile choice for a variety of hydraulic systems.
