P40-G12-7OT Valve: The Ultimate Hydraulic Control Solution

Método de control:Manual

Carrete:7 carretes

Flujo Nominal:40 l/min (10,5 gal EE. UU./min)

Presión Máxima:250 bar (3600 psi)

Puerto de Entrada:G1/2

Puerto de Salida:G1/2

Tamaño de Puerto:G1/2

Marca:BXHS

Tipo de producto:Válvula Direccional Monobloque

Serie de productos:Serie P40 Válvula Direccional Monobloque

Tamaño del embalaje:36*23*13

Peso bruto:13.50 kg

Disponibilidad: En stock

1006 personas están viendo este producto

P40-G12-7OT Valve: The Ultimate Hydraulic Control Solution

P40-G12-7OT Valve: The Ultimate Hydraulic Control Solution

P40-G12-7OT Valve: The Ultimate Hydraulic Control Solution drawing image

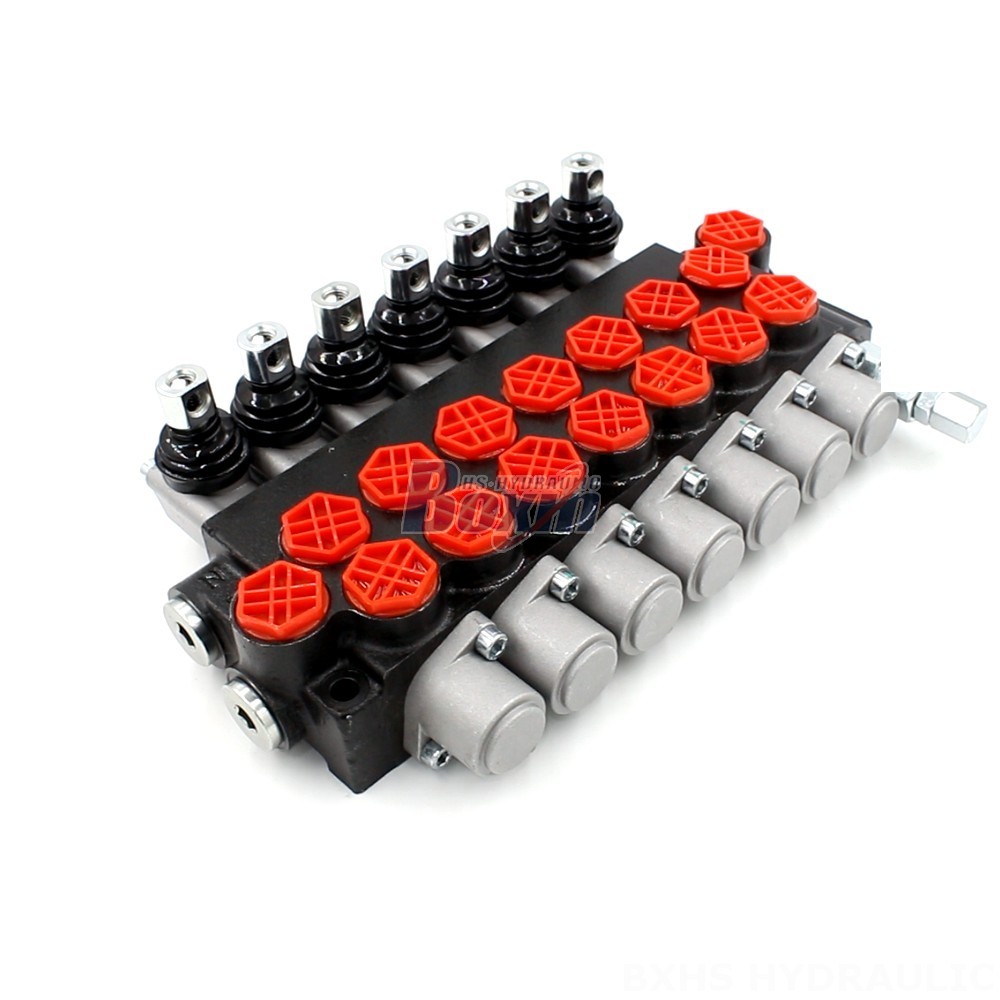

The P40-G12-7OT Hydraulic Check Valve Flow Direction Valve is a high-performance, reliable solution for controlling fluid flow in a wide range of applications, including material handling, construction, agriculture, and industrial vehicles. This monoblock valve features a 7-section design, rated flow of 40 L/min, and maximum pressure of 250 bar, making it ideal for demanding environments.

Serie P40 Válvula Direccional Monobloque Parámetros
Método de control Manual, Neumático, Electoneumático, Electrohidráulico, Solenoide, Hidráulico, Hidráulico y Manual, Cable, Joystick, Solenoide y joystick, Manual y joystick, Solenoide y cable
Carrete 1 carrete, 2 carretes, 3 carretes, 4 carretes, 5 carretes, 6 carretes, 7 carretes
Rango de temperatura ambiente -40 °C a +80 °C (-40 °F a +176 °F)
Tipo de estructura Válvulas monobloc
Sección 1 sección, 2 secciones, 3 secciones, 4 secciones, 5 secciones, 6 secciones, 7 secciones
Rango de viscosidad de funcionamiento 15 - 75 mm²/s (15 cSt a 75 cSt)
Flujo Nominal 40 l/min (10,5 gal EE. UU./min)
Presión Máxima 250 bar (3600 psi)
Puerto de Entrada G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT
Puerto de Salida G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT
Tamaño de Puerto G3/8, G1/2, M18×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT

The P40-G12-7OT Hydraulic Check Valve Flow Direction Valve is a robust and versatile component designed for precise hydraulic control. Its monoblock construction ensures strength and durability, while the 7-section design allows for multiple flow paths and directional control. With a rated flow of 40 L/min and maximum pressure of 250 bar, this valve is capable of handling high flow rates and demanding pressures. Its operating viscosity range of 15 to 75 mm²/s and ambient temperature range of -40°C to +80°C ensure reliable performance in a variety of environments. This valve is ideal for use in telehandlers, forklifts, all-terrain cranes, stackers, aerial platforms, and motor graders, among other applications. Its manual control method allows for simple and intuitive operation, making it a user-friendly solution for a wide range of hydraulic systems.
