Producción y entrega
Plazo de ejecución de producción de 15 a 30 días
La innovación impulsa el desarrollo; tecnología forja futuro
1115 personas están viendo este producto

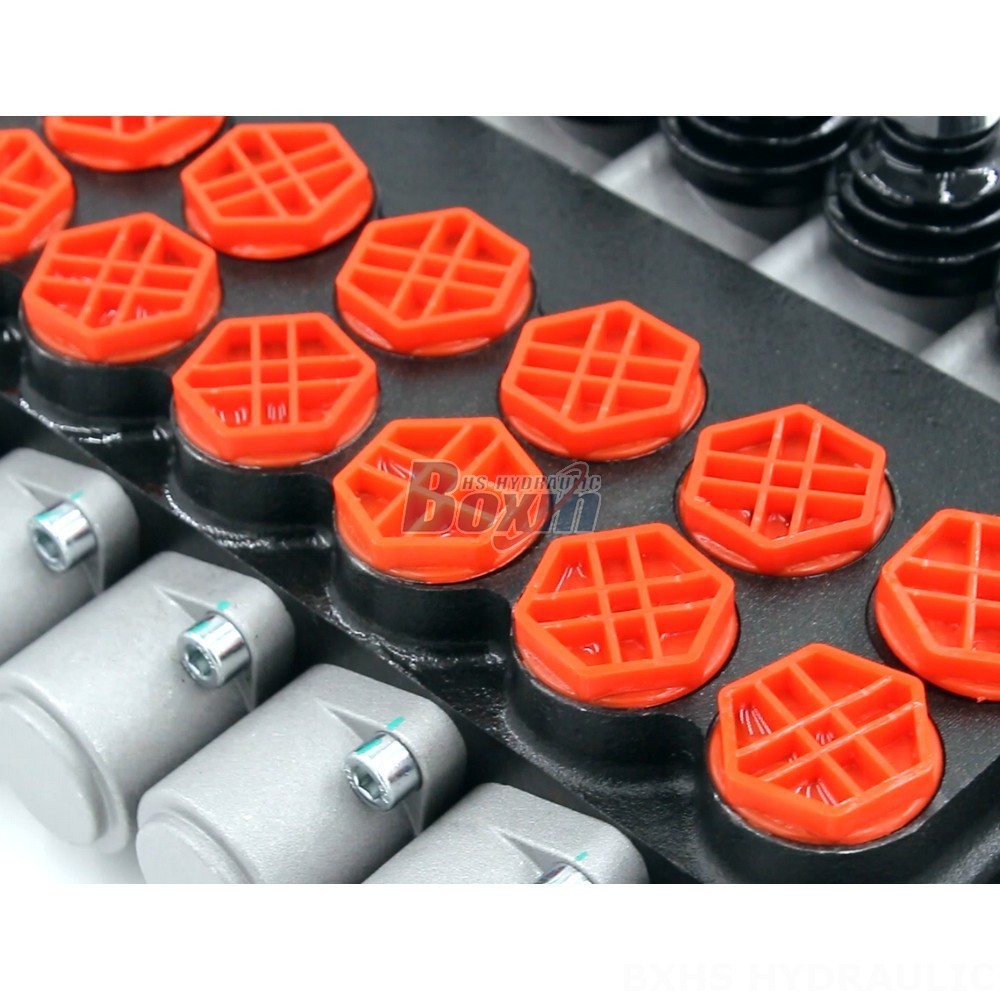

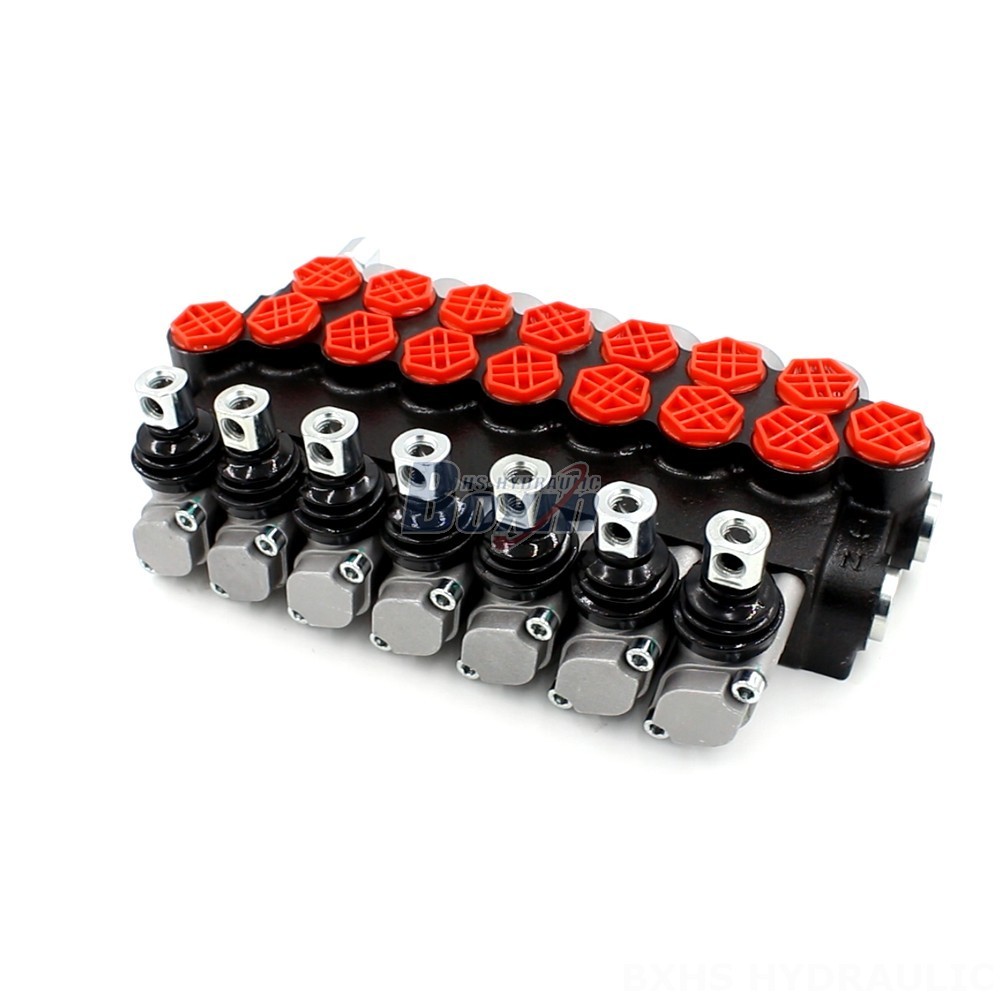

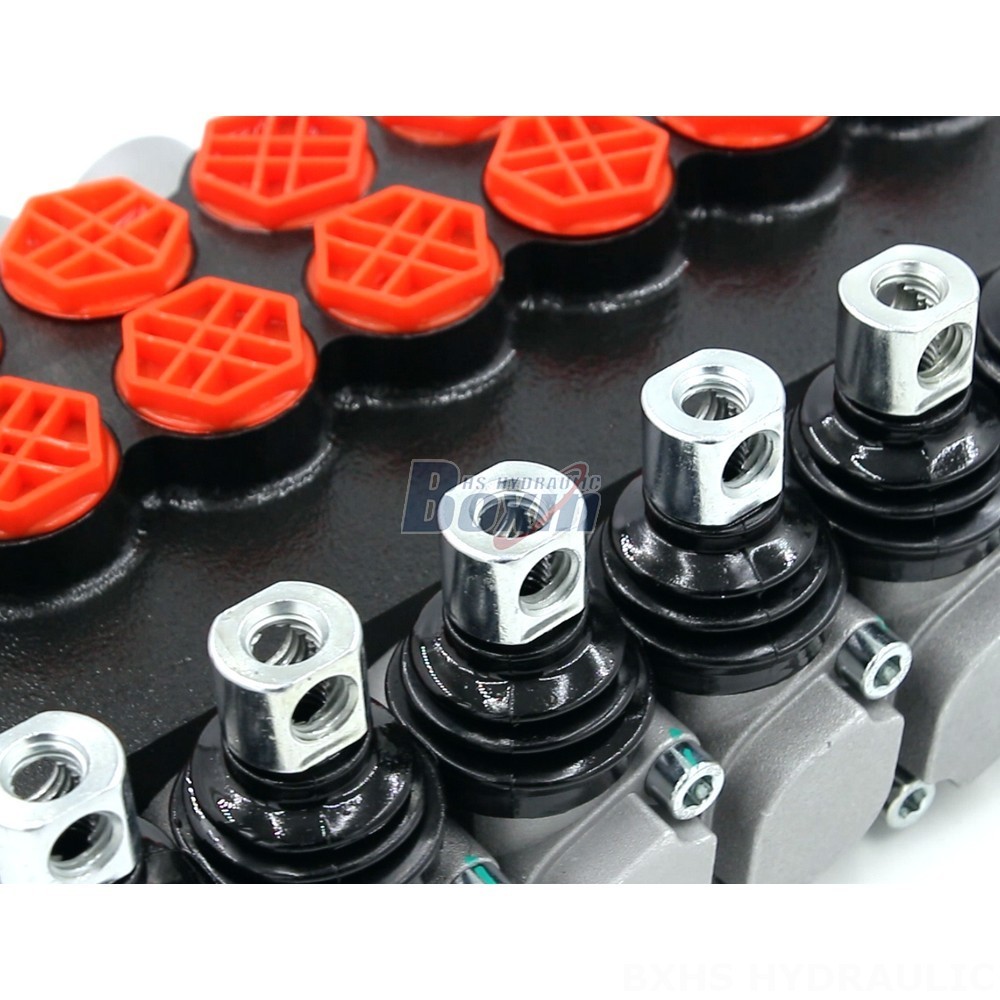

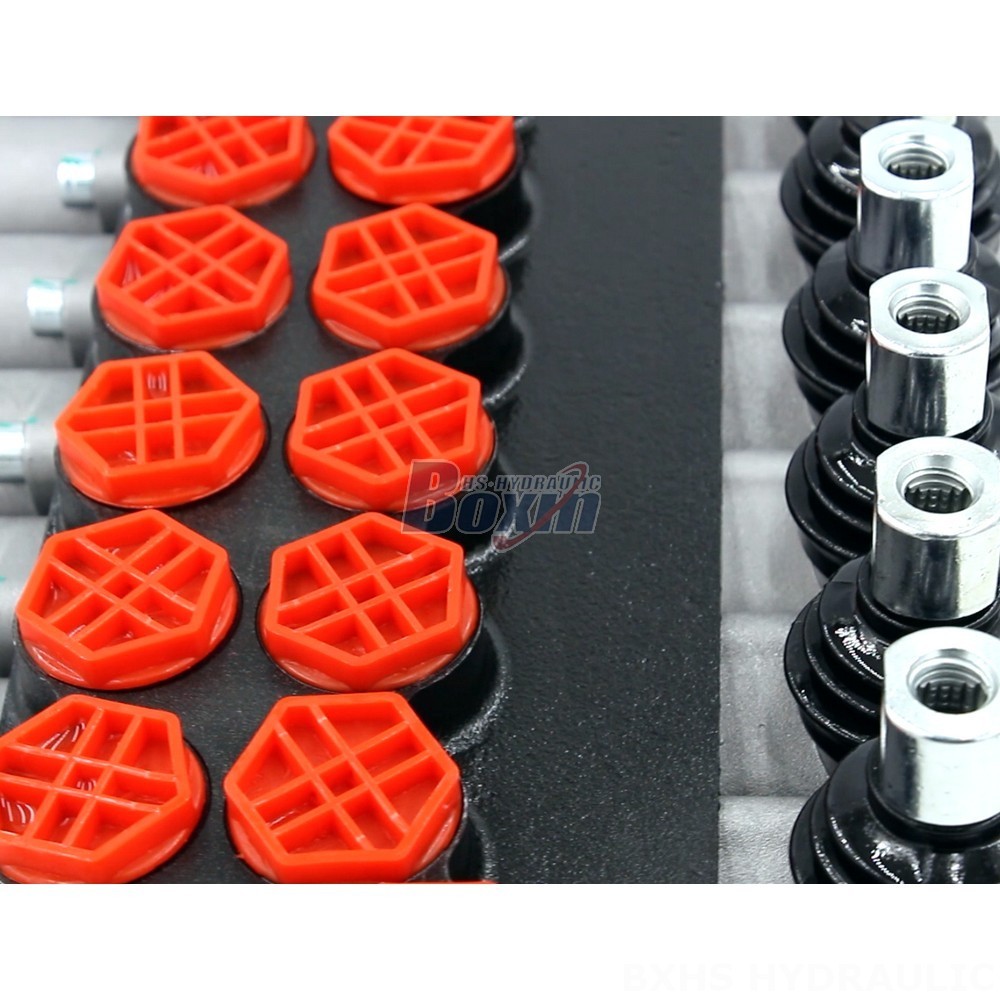

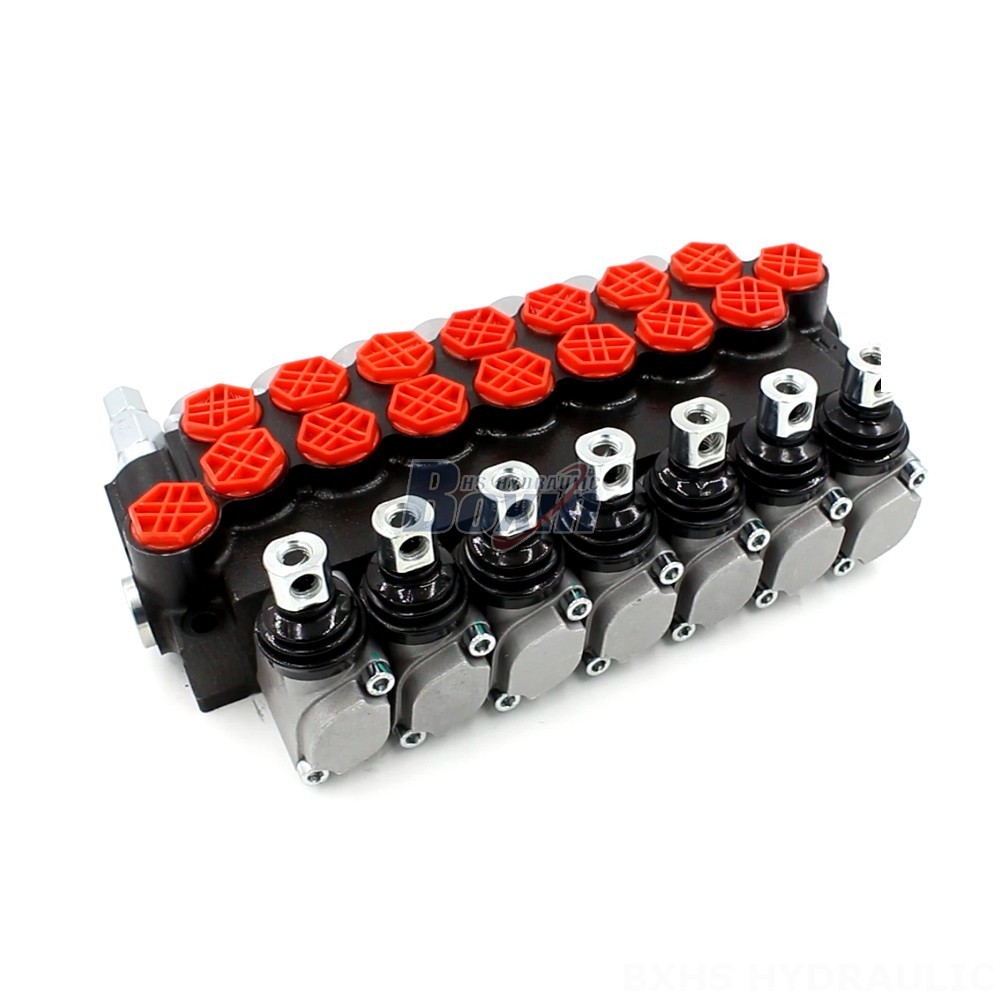

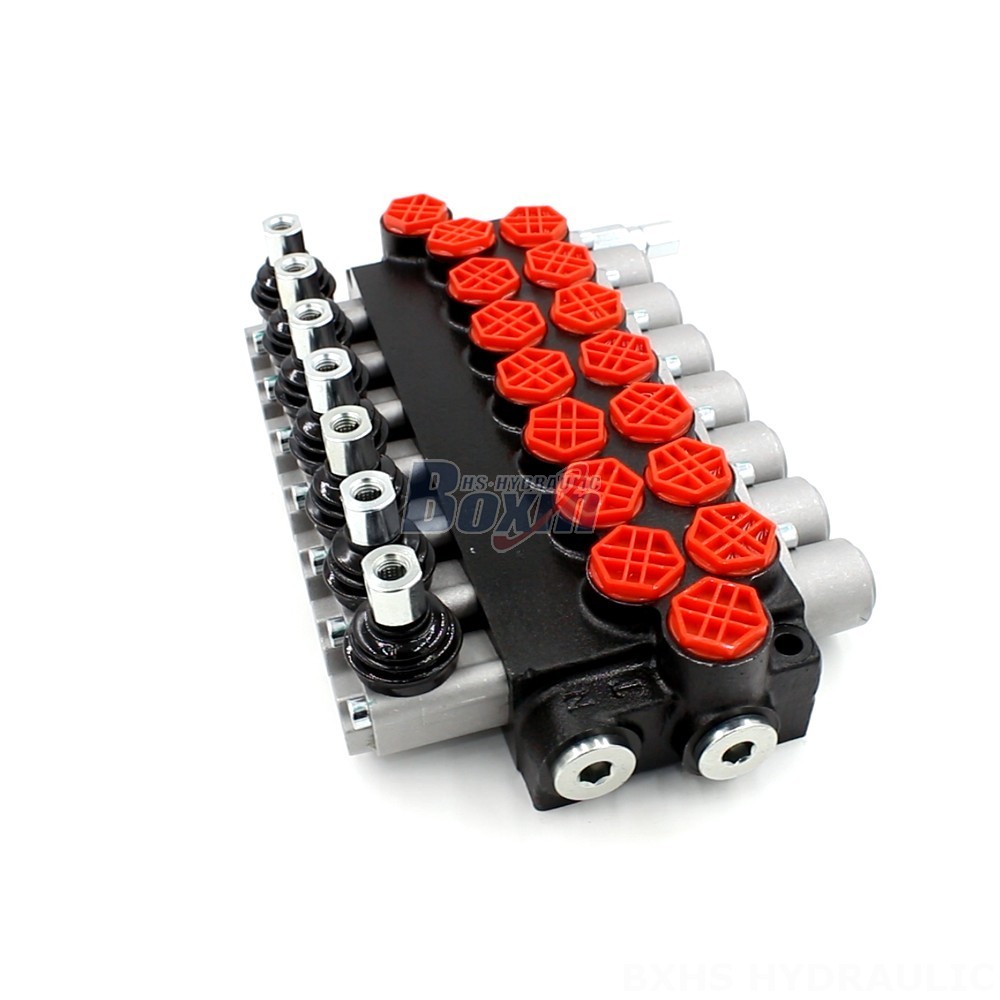

The P40-G12-7OT Manual Directional Control Valve is a high-quality and reliable 7-section hydraulic valve designed for demanding applications in material handling, construction, and agriculture. It features a robust monoblock construction, a high flow rate of 40 L/min, and a maximum pressure rating of 250 bar. This valve is suitable for use in telehandlers, forklifts, all-terrain cranes, stackers, aerial platforms, and motor graders.
| Serie P40 Válvula Direccional Monobloque Parámetros | |
|---|---|
| Método de control | Manual, Neumático, Electoneumático, Electrohidráulico, Solenoide, Hidráulico, Hidráulico y Manual, Cable, Joystick, Solenoide y joystick, Manual y joystick, Solenoide y cable |
| Carrete | 1 carrete, 2 carretes, 3 carretes, 4 carretes, 5 carretes, 6 carretes, 7 carretes |
| Rango de temperatura ambiente | -40 °C a +80 °C (-40 °F a +176 °F) |
| Tipo de estructura | Válvulas monobloc |
| Sección | 1 sección, 2 secciones, 3 secciones, 4 secciones, 5 secciones, 6 secciones, 7 secciones |
| Rango de viscosidad de funcionamiento | 15 - 75 mm²/s (15 cSt a 75 cSt) |
| Flujo Nominal | 40 l/min (10,5 gal EE. UU./min) |
| Presión Máxima | 250 bar (3600 psi) |
| Puerto de Entrada | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Puerto de Salida | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Tamaño de Puerto | G3/8, G1/2, M18×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
This 7-section manual directional control valve is part of the P40 series and offers reliable performance for a wide range of hydraulic applications. It features a robust monoblock construction and a high flow rate of 40 L/min, making it ideal for demanding applications in material handling, construction, and agriculture. The valve has a maximum pressure rating of 250 bar and can operate with a viscosity range of 15-75 mm²/s. Its operating temperature range is from -40°C to +80°C, ensuring reliable operation in various environments. This versatile valve is compatible with a wide range of equipment, including telehandlers, forklifts, all-terrain cranes, stackers, aerial platforms, and motor graders. Its 7-spool design allows for precise control of hydraulic functions, making it an excellent choice for applications requiring precise and reliable hydraulic control.
