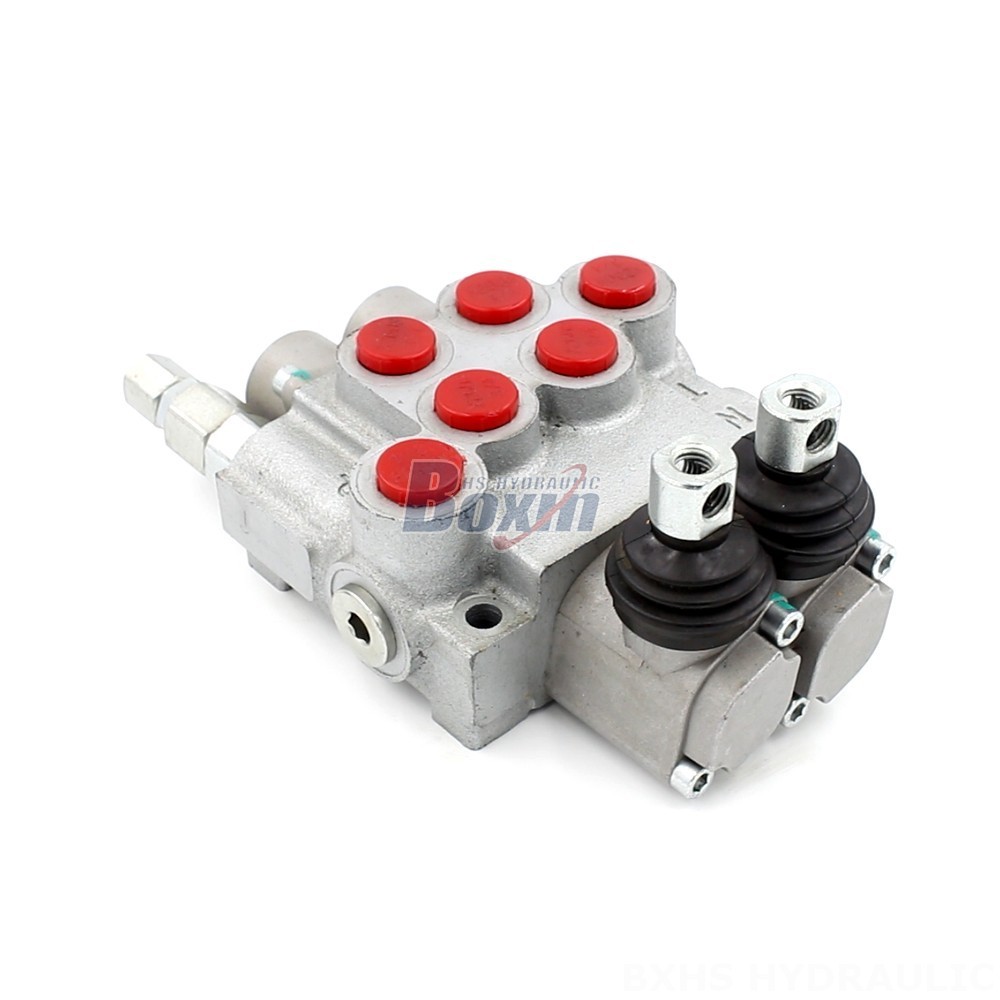

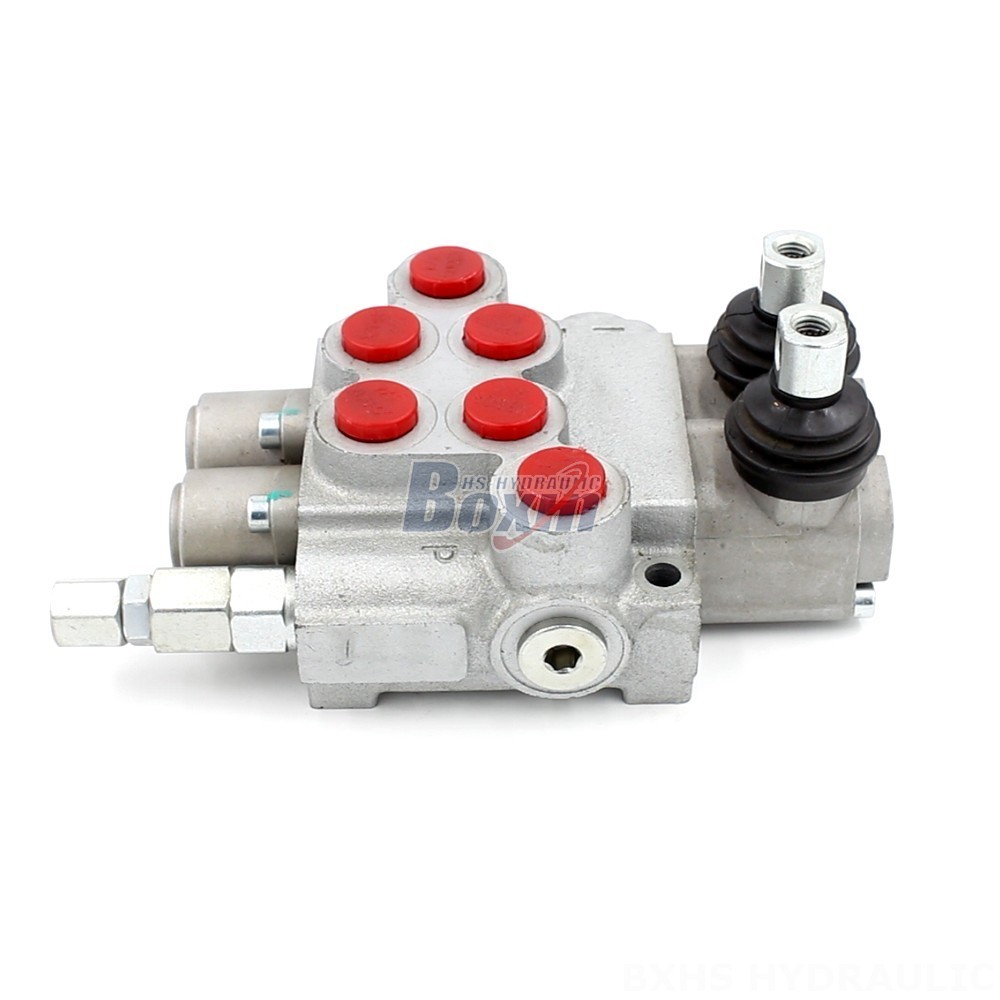

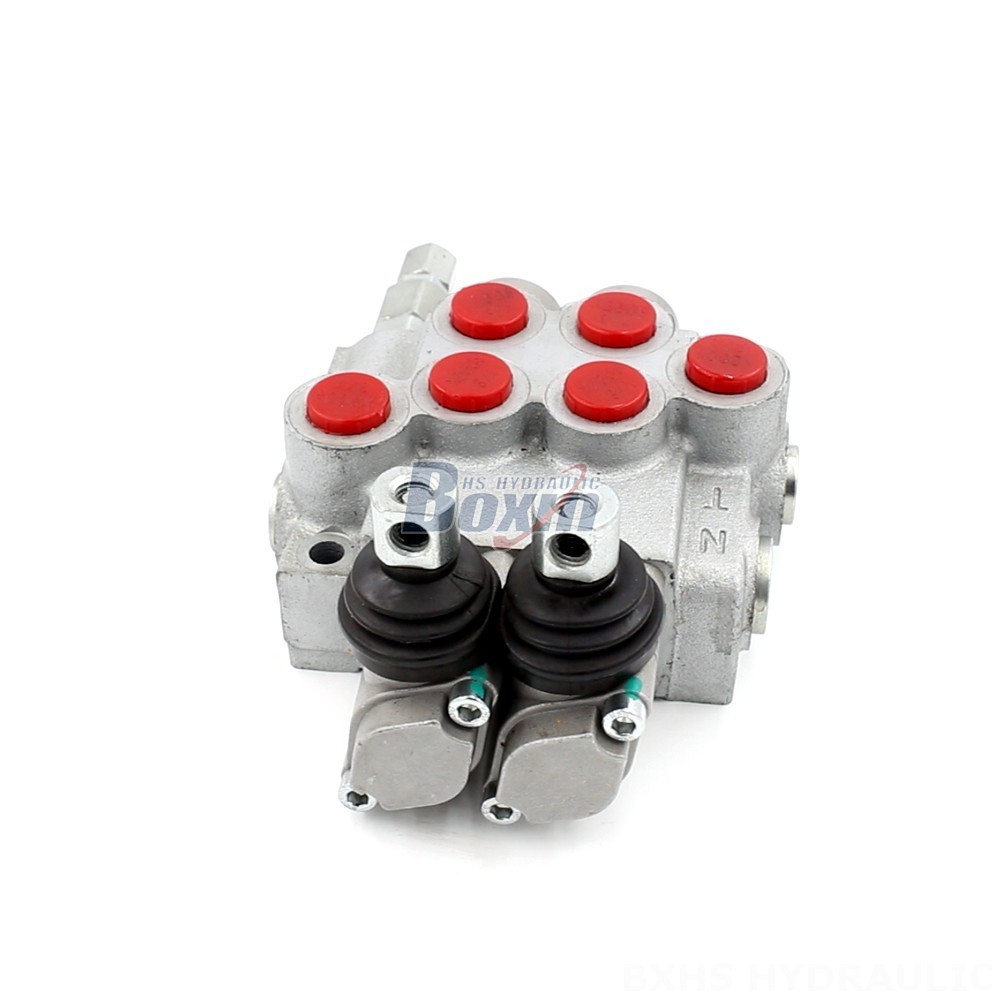

The P40-DKL 2-Spool Hydraulic Valve is a manual speed control valve designed for hydraulic cylinders in various applications, including material handling, construction, and agriculture. This 2-section monoblock valve offers a rated flow of 40 L/min and a maximum pressure of 250 bar, making it suitable for a wide range of equipment.
| Serie P40-DKL Válvula Direccional Monobloque Parámetros | |
|---|---|
| Método de control | Manual, Neumático, Electoneumático, Electrohidráulico, Solenoide, Hidráulico, Hidráulico y Manual, Cable, Joystick, Manual y joystick |
| Carrete | 1 carrete, 2 carretes, 3 carretes, 4 carretes, 5 carretes, 6 carretes, 7 carretes |
| Flujo Nominal | 40 l/min (10,5 gal EE. UU./min) |
| Presión Máxima | 250 bar (3600 psi) |
| Puerto de Entrada | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Puerto de Salida | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Tamaño de Puerto | G3/8, G1/2, M18×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Sección | 1 sección, 2 secciones, 3 secciones, 4 secciones, 5 secciones, 6 secciones, 7 secciones |
| Tipo de estructura | Válvulas monobloc |
| Rango de temperatura ambiente | -40 °C a +80 °C (-40 °F a +176 °F) |
| Rango de viscosidad de funcionamiento | 15 - 75 mm²/s (15 cSt a 75 cSt) |
The P40-DKL 2-Spool Hydraulic Valve is a high-quality, durable valve designed for controlling the speed of hydraulic cylinders. It features a manual control method and a 2-section monoblock structure. The valve has a rated flow of 40 L/min (10.5 US gpm) and a maximum pressure of 250 bar (3600 psi). It is designed for use in a wide range of operating conditions, with an ambient temperature range of -40°C to +80°C (-40°F to +176°F). The valve is compatible with a variety of hydraulic fluids, with an operating viscosity range of 15 - 75 mm²/s (15 cSt to 75 cSt). This versatile valve is suitable for various applications, including material handling, construction and earth moving, agriculture, and industrial vehicles. It is compatible with a wide range of equipment, including telehandlers, forklifts, all terrain cranes, stackers, aerial platforms, motor graders, midi- excavators, mini-excavators, and skid steer loaders.
