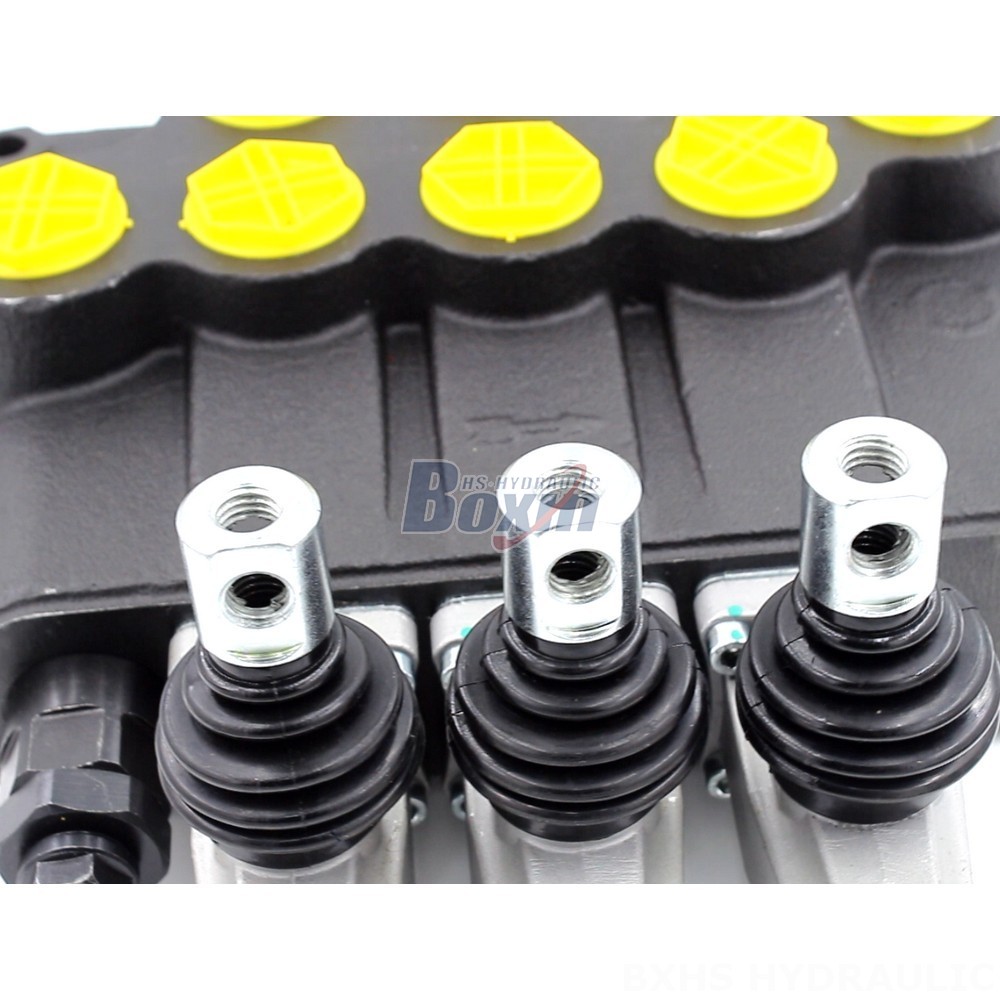

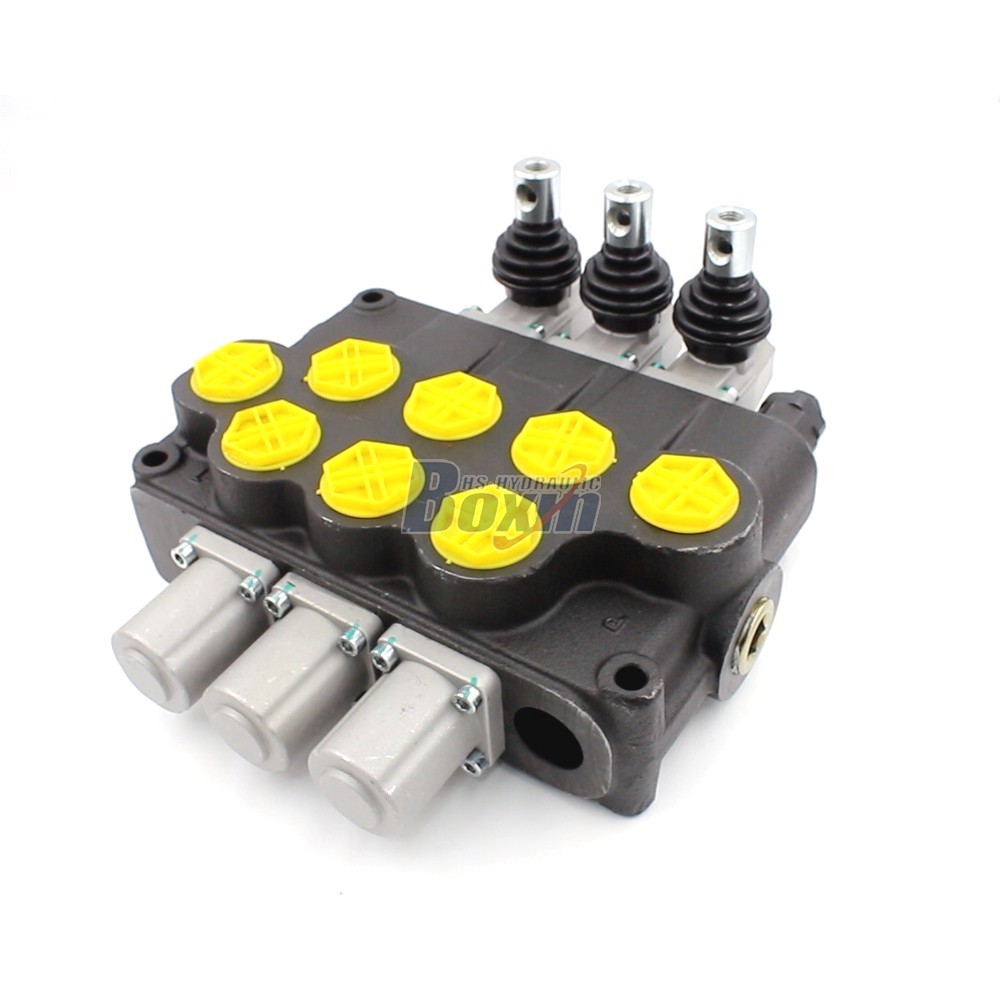

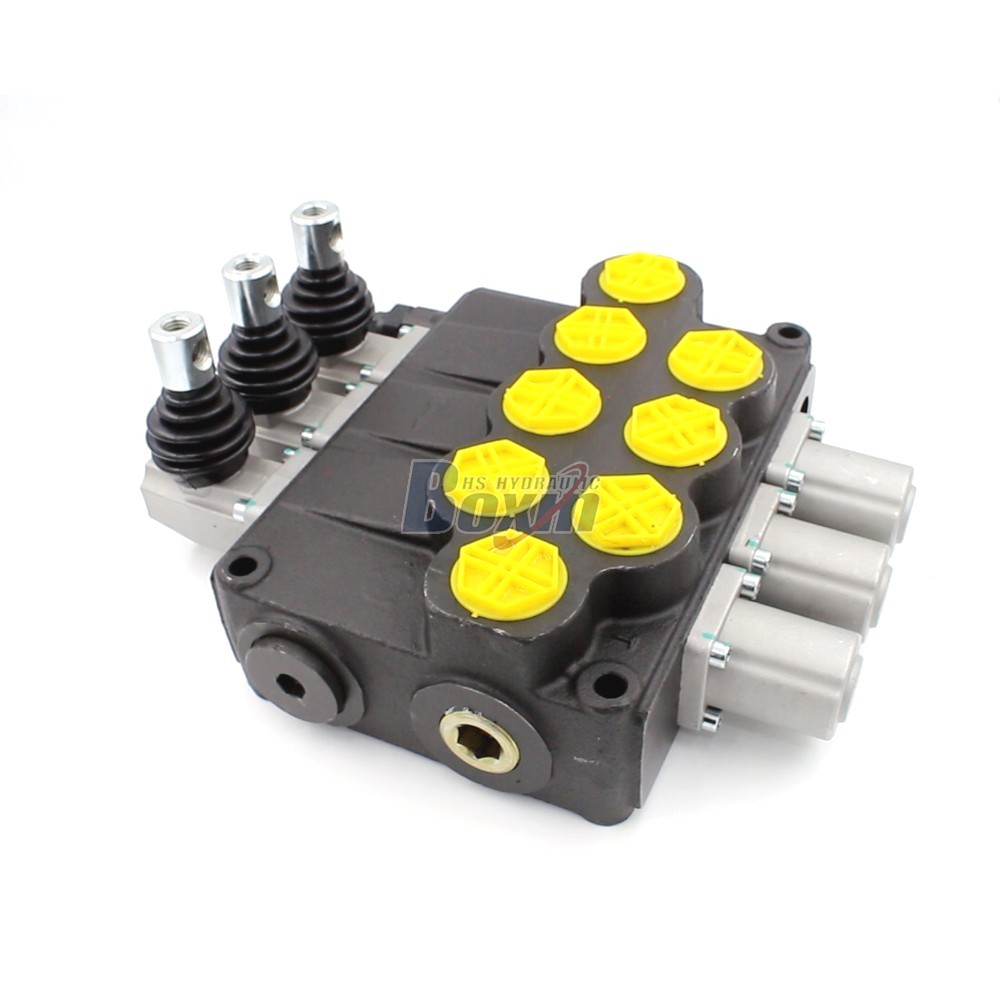

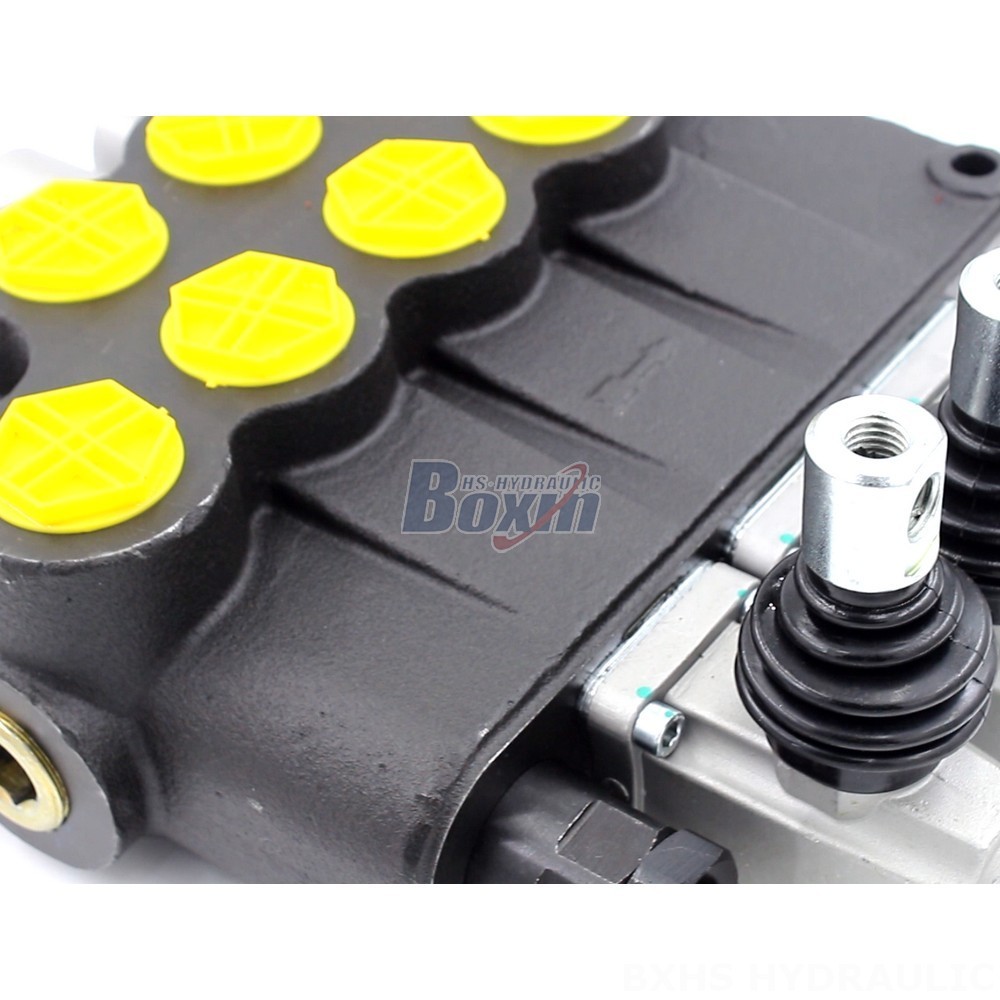

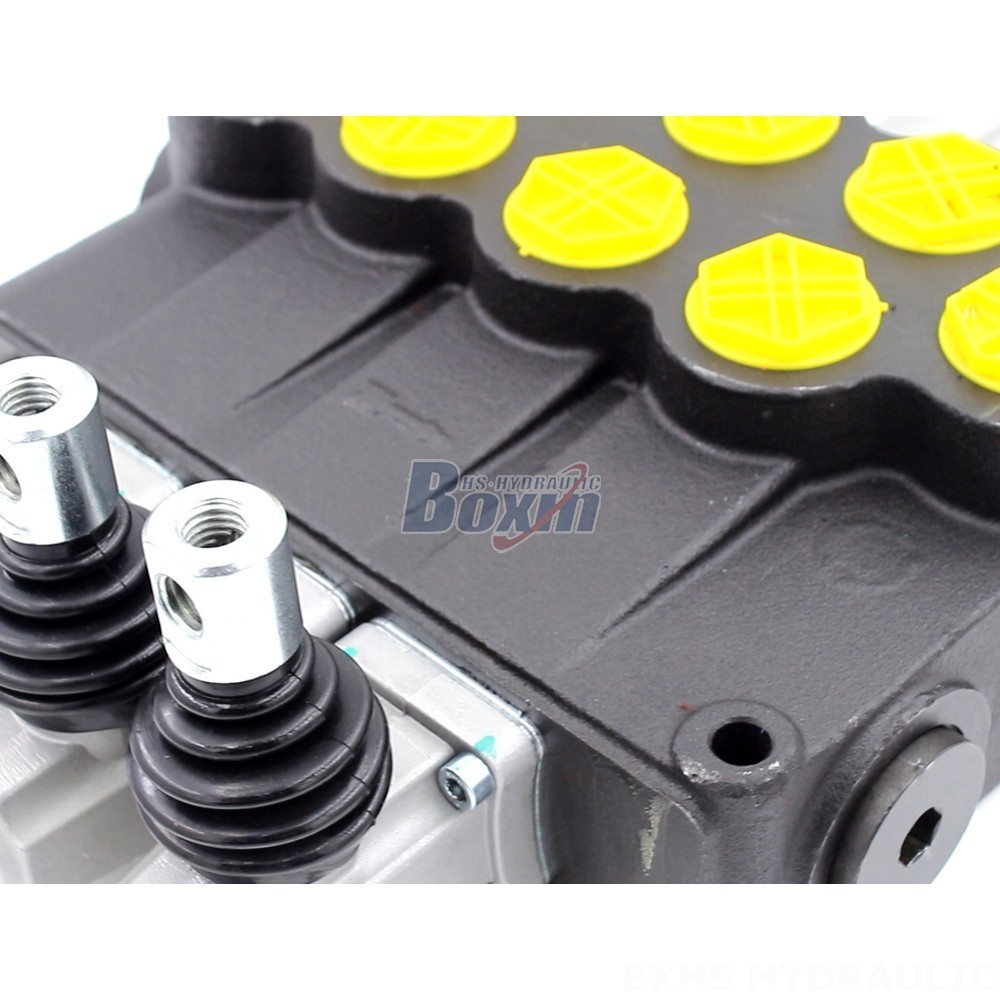

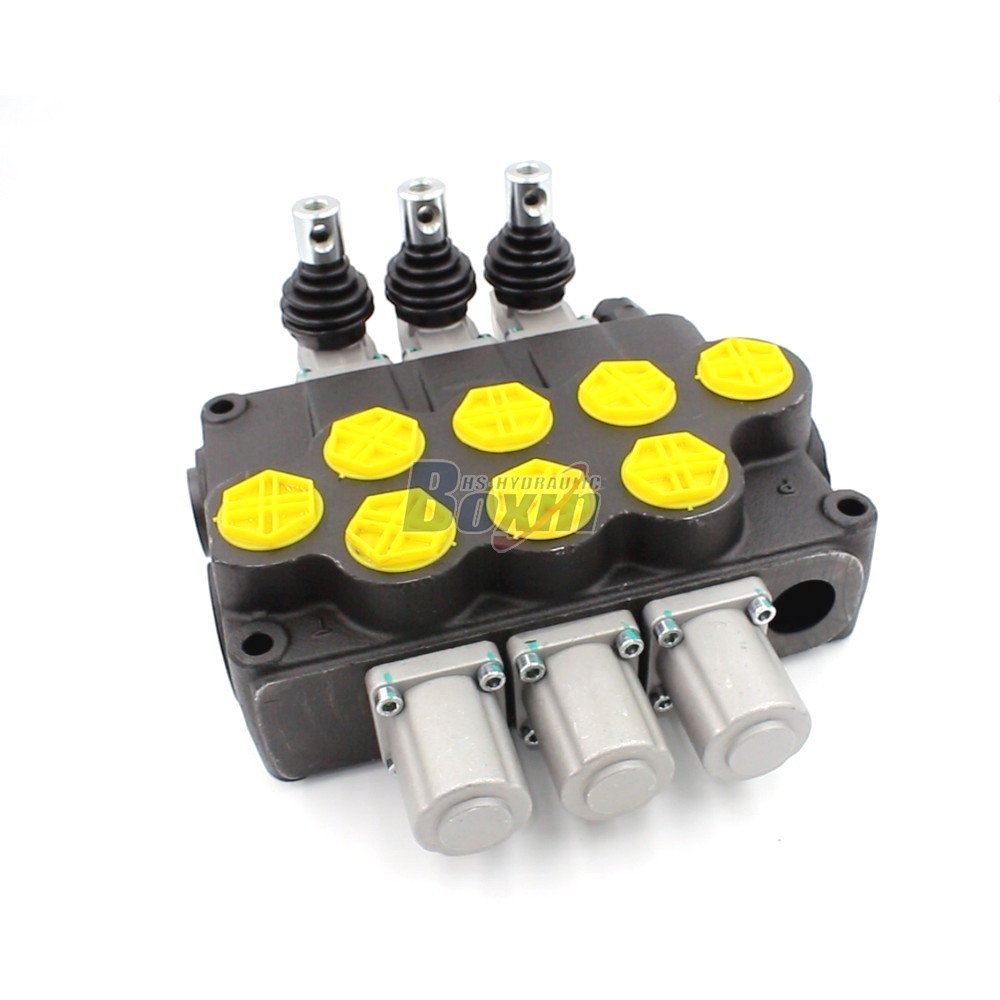

The P120-G1-OT Hydraulic Forward And Reverse Valve is a high-performance, manual control monoblock valve designed for a variety of construction, material handling, and industrial applications. It features a 3-section design, 120 L/min rated flow, and a maximum pressure of 250 bar.
| Serie P120 Válvula Direccional Monobloque Parámetros | |
|---|---|
| Método de control | Manual, Cable, Joystick, Manual y joystick |
| Carrete | 1 carrete, 2 carretes, 3 carretes, 4 carretes |
| Flujo Nominal | 120 L/min (31.7 US gpm) |
| Presión Máxima | 250 bar (3600 psi) |
| Puerto de Entrada | G3/4, G1, M27×2.0, SAE 14, SAE 16, 3/4 NPT, 1 NPT, M36×2 |
| Puerto de Salida | G1, SAE 16, 1 NPT, M36×2 |
| Tamaño de Puerto | G3/4, G1, M27×2.0, SAE 14, SAE 16, 1 NPT, M36×2 |
| Sección | 1 sección, 2 secciones, 3 secciones, 4 secciones |
| Tipo de estructura | Válvulas monobloc |
| Rango de temperatura ambiente | -40 °C a +80 °C (-40 °F a +176 °F) |
| Rango de viscosidad de funcionamiento | 15 - 75 mm²/s (15 cSt a 75 cSt) |
This P120 Series hydraulic valve is a 3-section, manual control monoblock valve with a rated flow of 120 L/min and a maximum pressure of 250 bar. It is ideal for use in a wide range of applications, including construction equipment (telehandlers, forklifts, cranes, stackers, aerial platforms, motor graders), material handling equipment (telehandlers, midi-excavators, mini-excavators, skid steer loaders, compact wheel loaders, wheel loaders, backhoe loaders, dumpers), and agricultural machinery. The valve operates with an operating viscosity range of 15 - 75 mm²/s and is suitable for ambient temperatures ranging from -40°C to +80°C. The P120-G1-OT valve offers reliable performance and durability, making it an excellent choice for demanding applications.
