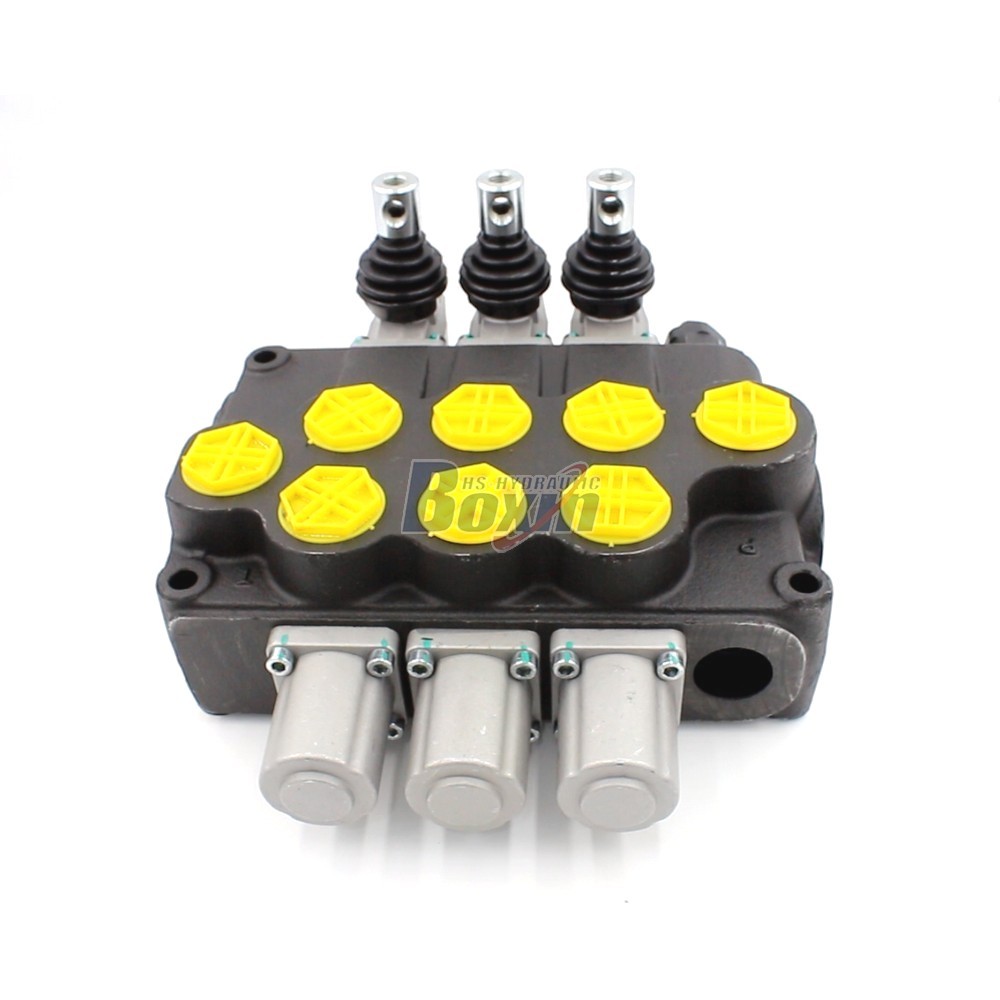

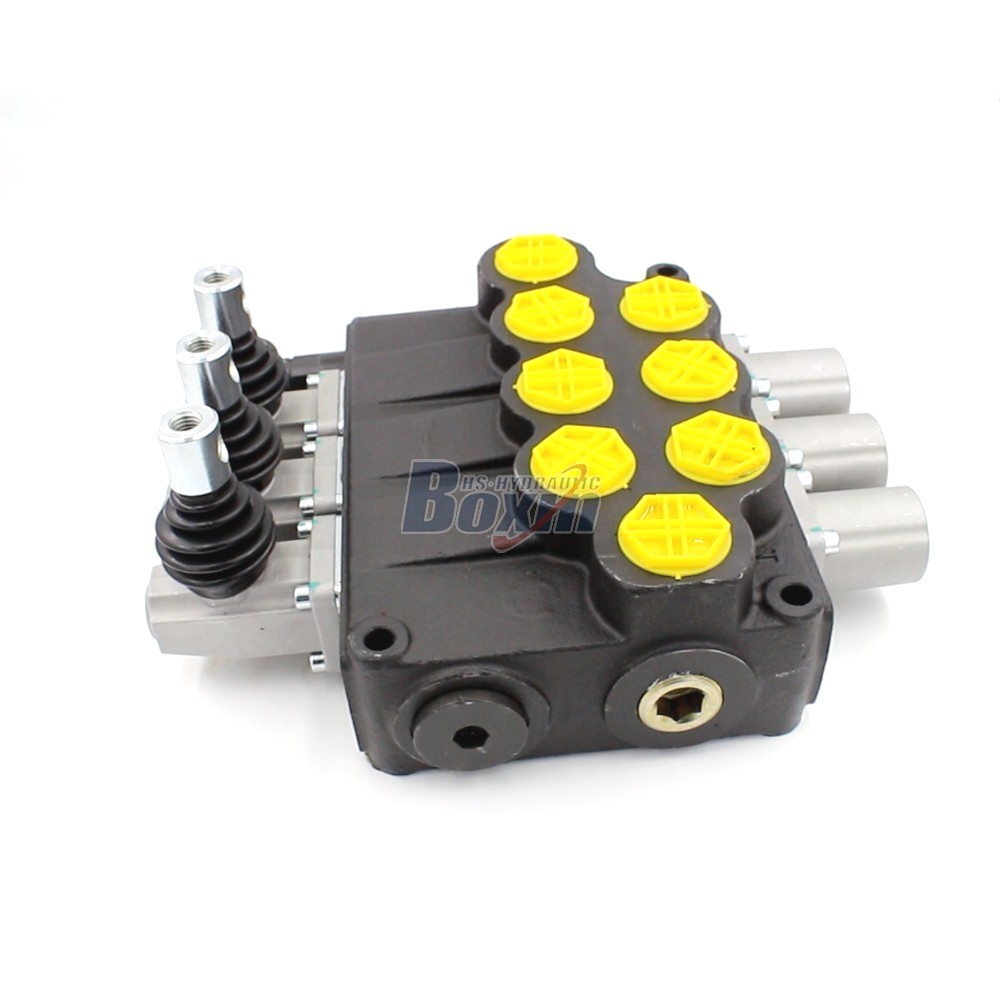

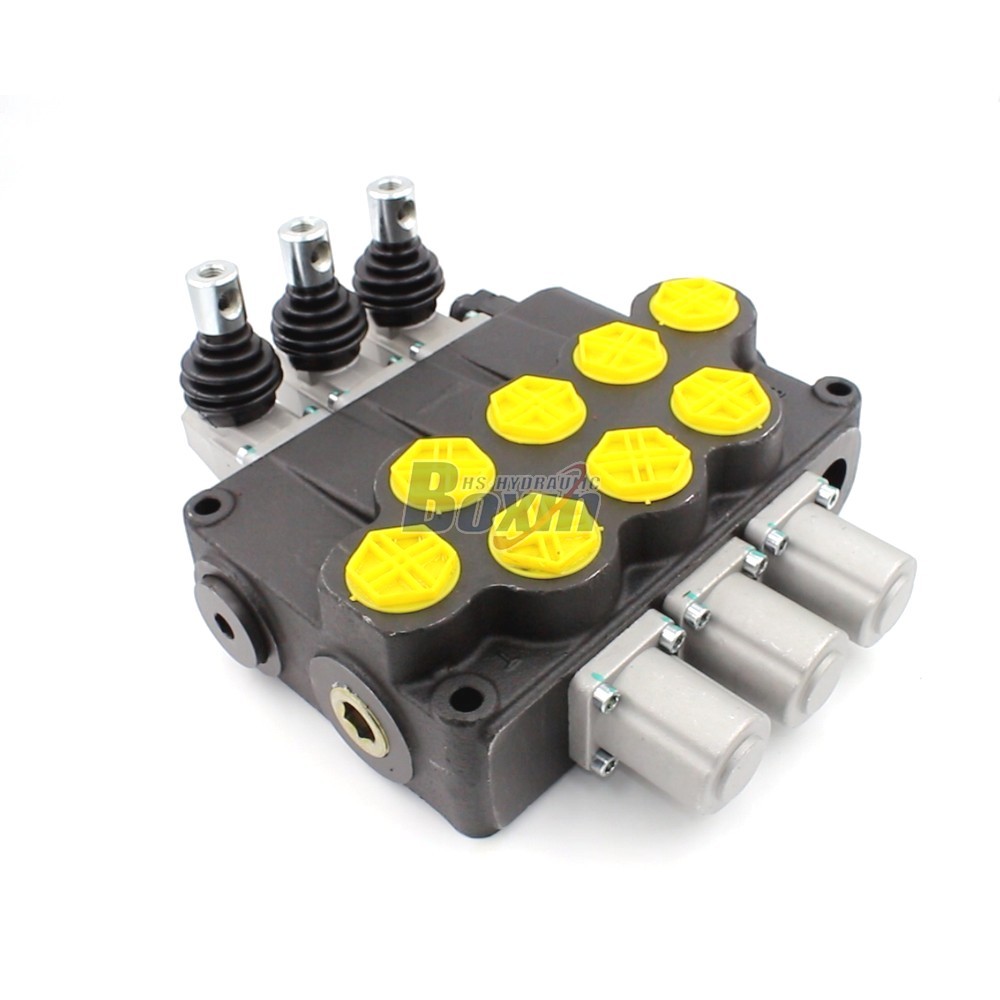

The P120-G1-OT Monoblock Valve is a 2 Spool Control Valve designed for heavy-duty applications in material handling, construction, and agriculture. This manual control valve offers a rated flow of 120 L/min and a maximum pressure of 250 bar, making it ideal for use with a wide range of equipment.
| Serie P120 Válvula Direccional Monobloque Parámetros | |
|---|---|
| Método de control | Manual, Cable, Joystick, Manual y joystick |
| Carrete | 1 carrete, 2 carretes, 3 carretes, 4 carretes |
| Flujo Nominal | 120 L/min (31.7 US gpm) |
| Presión Máxima | 250 bar (3600 psi) |
| Puerto de Entrada | G3/4, G1, M27×2.0, SAE 14, SAE 16, 3/4 NPT, 1 NPT, M36×2 |
| Puerto de Salida | G1, SAE 16, 1 NPT, M36×2 |
| Tamaño de Puerto | G3/4, G1, M27×2.0, SAE 14, SAE 16, 1 NPT, M36×2 |
| Sección | 1 sección, 2 secciones, 3 secciones, 4 secciones |
| Tipo de estructura | Válvulas monobloc |
| Rango de temperatura ambiente | -40 °C a +80 °C (-40 °F a +176 °F) |
| Rango de viscosidad de funcionamiento | 15 - 75 mm²/s (15 cSt a 75 cSt) |
This 3 section, monoblock valve features a manual control method and is equipped with 3 spools. It is designed for a wide range of applications, including telehandlers, forklifts, cranes, stackers, aerial platforms, motor graders, midi excavators, mini excavators, skid steer loaders, compact wheel loaders, wheel loaders, backhoe loaders, and dumpers. The valve has a rated flow of 120 L/min (31.7 US gpm) and a maximum pressure of 250 bar (3600 psi). It can operate in ambient temperatures ranging from -40°C to +80°C (-40°F to +176°F) and with operating viscosity ranging from 15 - 75 mm²/s (15 cSt to 75 cSt). This durable and reliable valve is built to withstand the demands of tough working environments.
