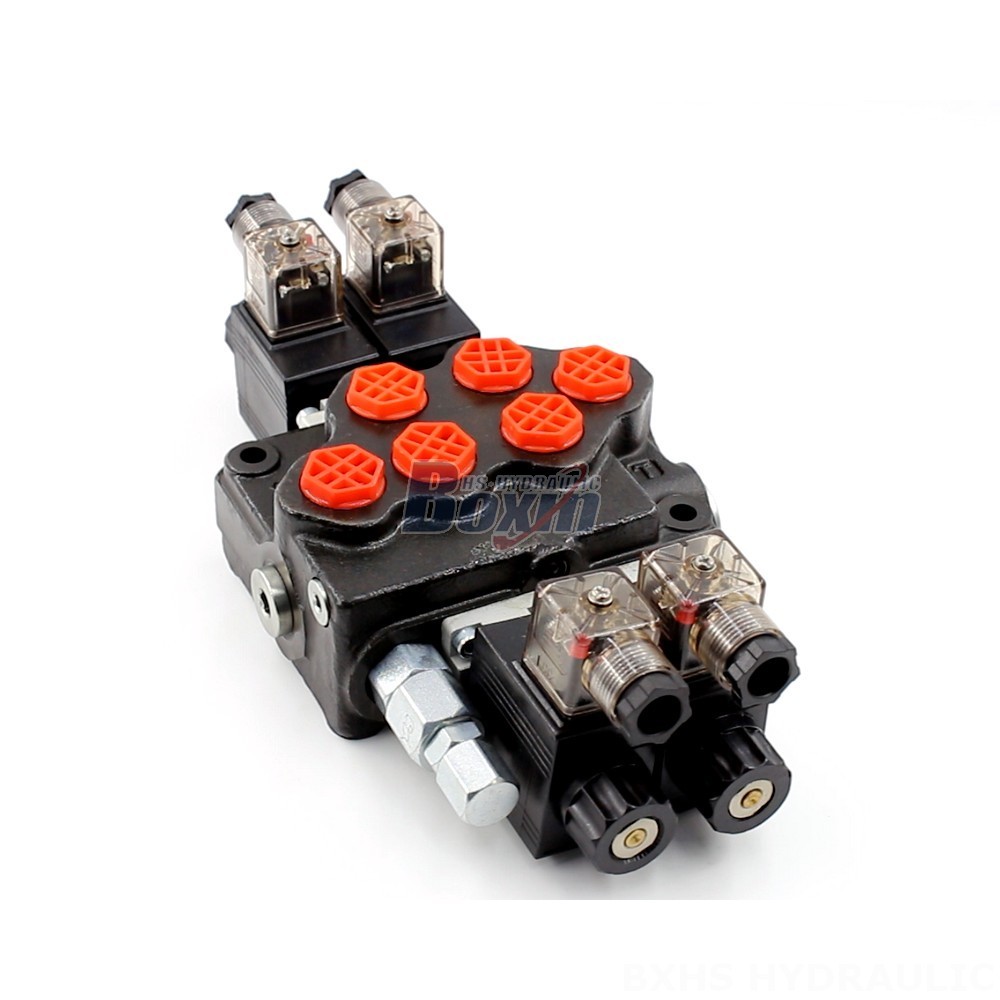

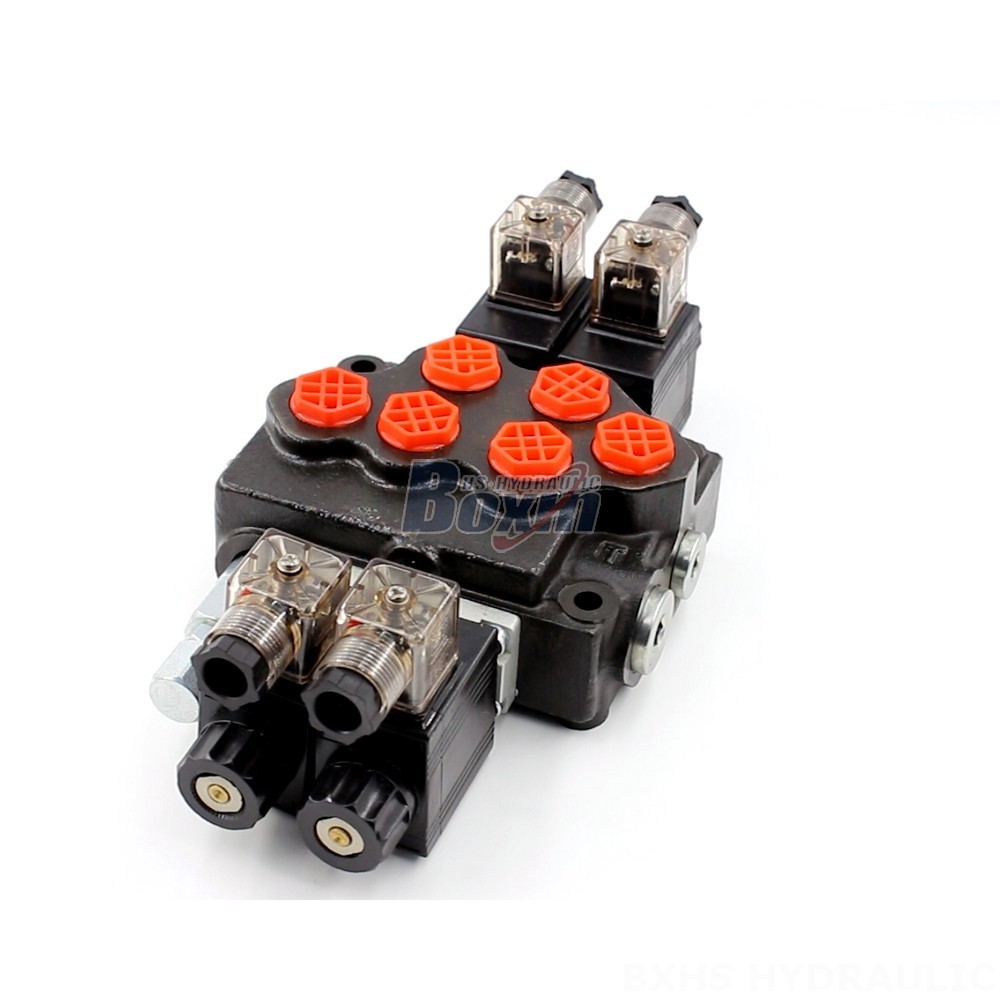

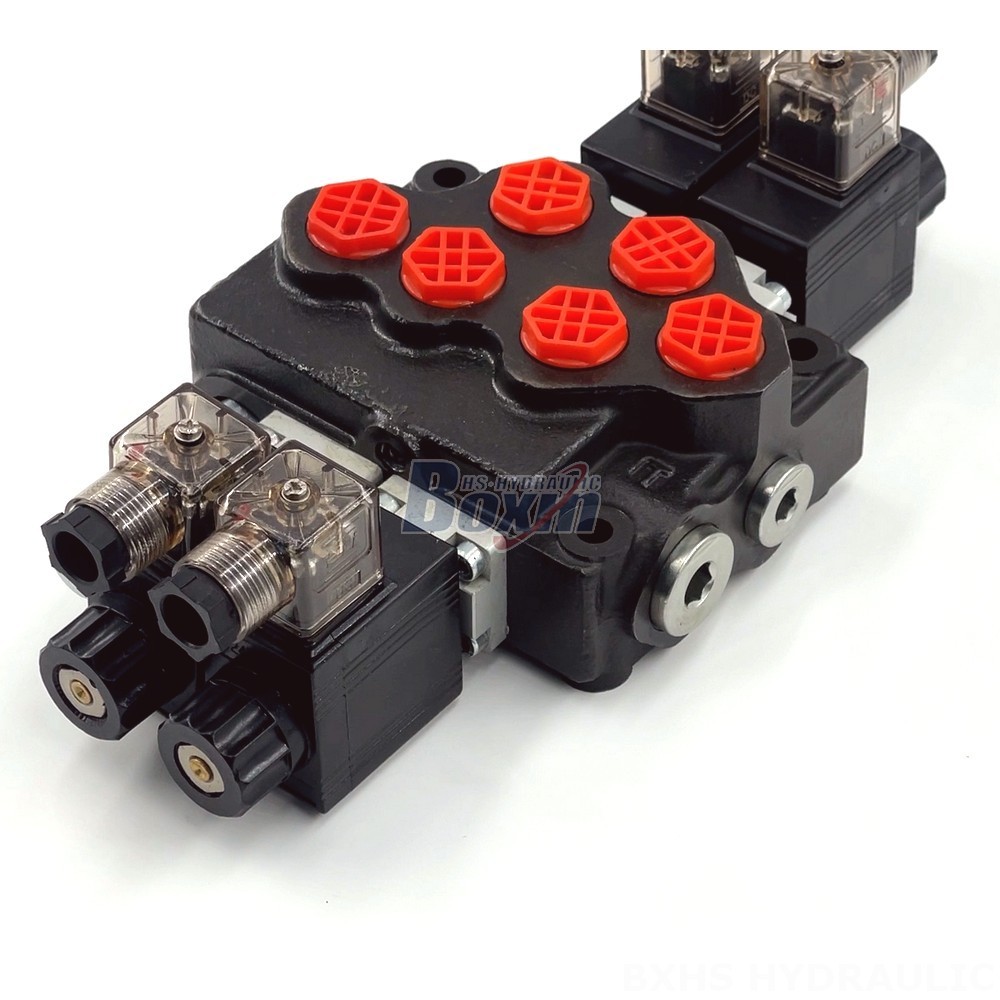

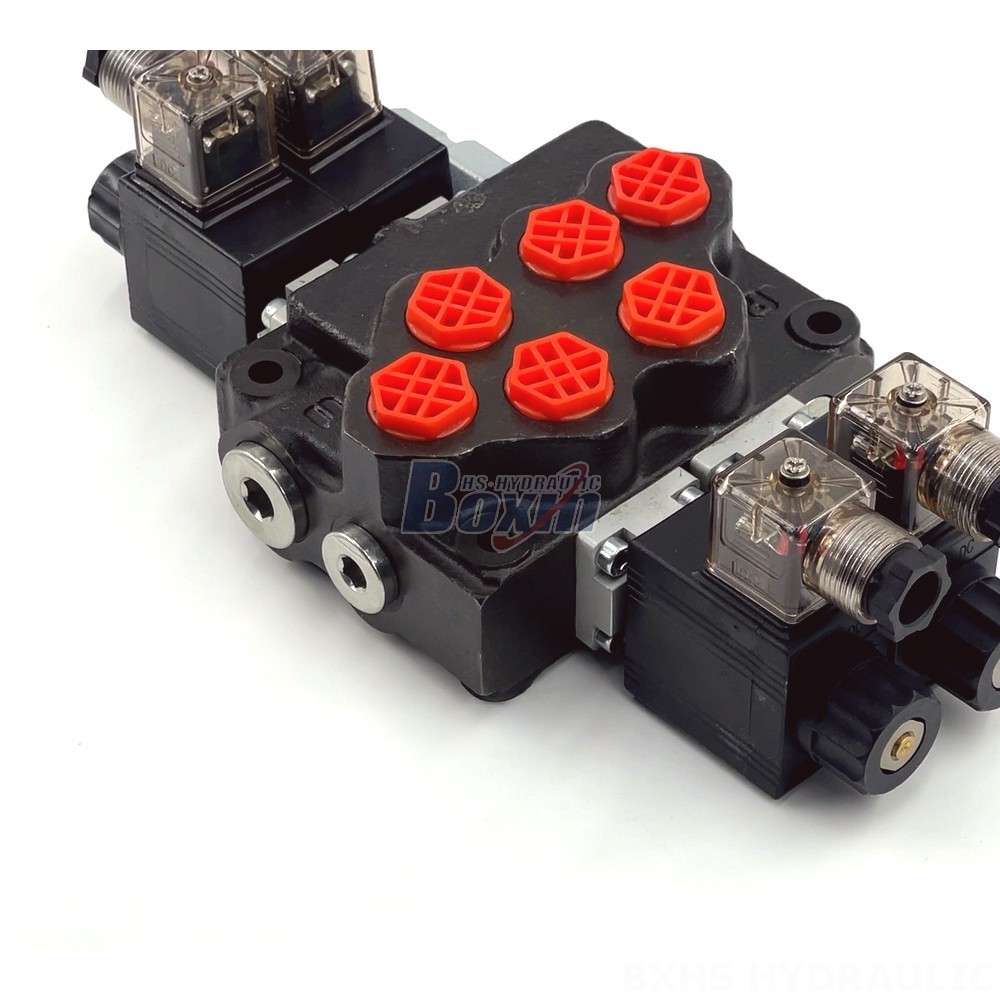

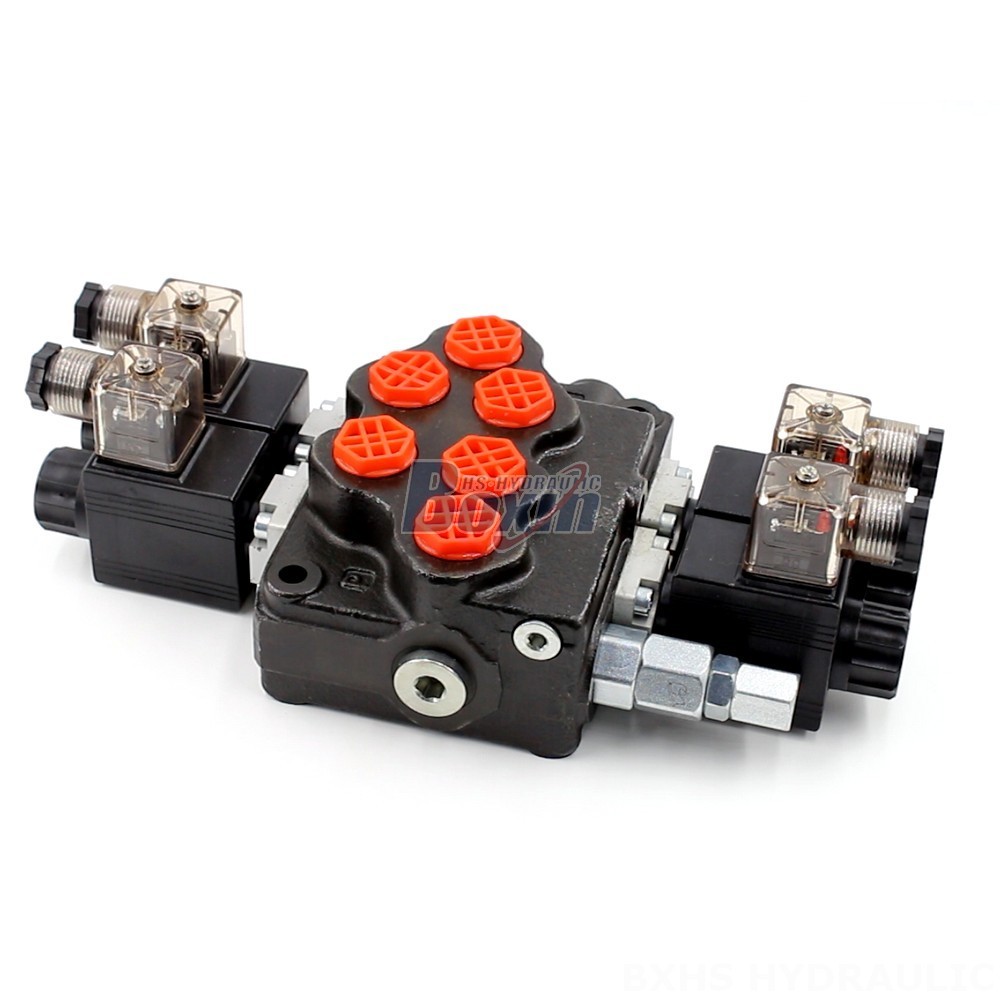

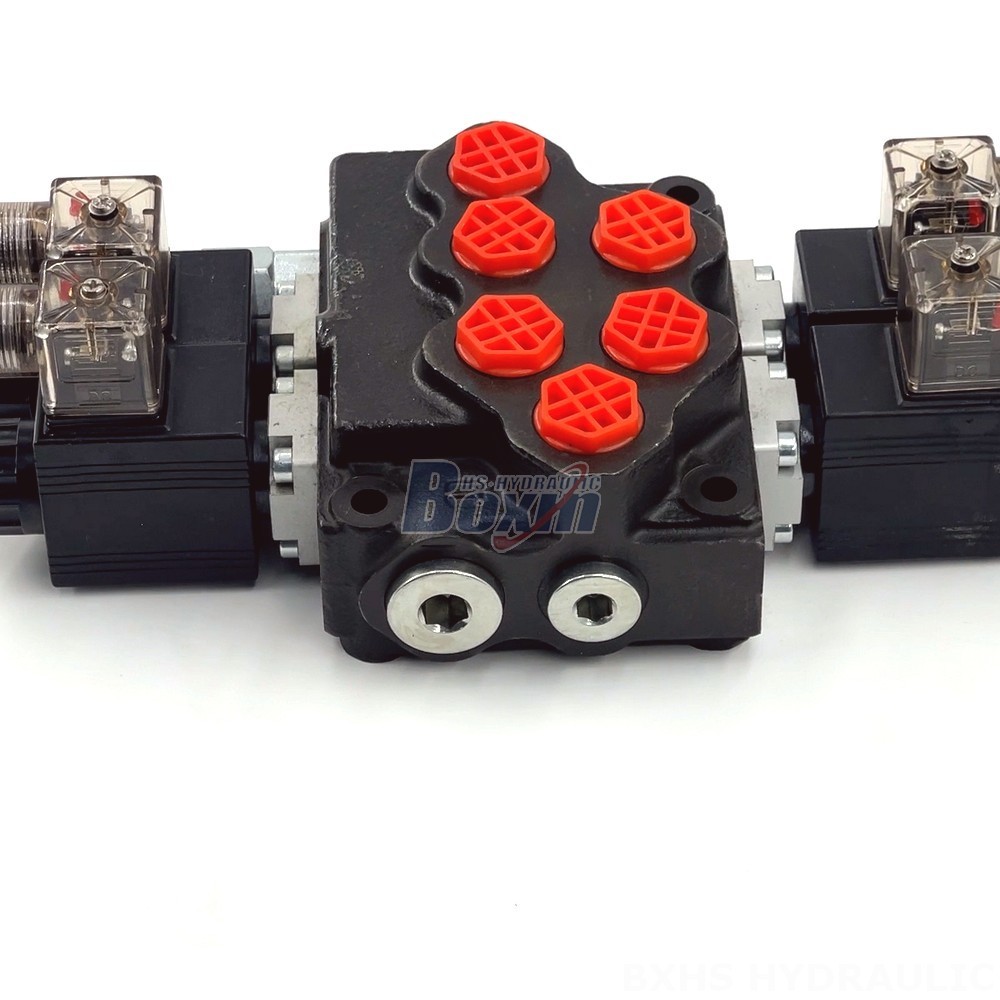

Introducing our Original Equipment Manufacturer (OEM) SD5 Valves, engineered to deliver assured quality and performance. These valves are meticulously crafted to meet the demands of various applications, including material handling, construction and earth moving, agriculture, and industrial vehicles.
| Serie SD5 Válvula Direccional Monobloque Parámetros | |
|---|---|
| Método de control | Manual, Neumático, Electoneumático, Electrohidráulico, Solenoide, Hidráulico, Hidráulico y Manual, Cable, Joystick |
| Carrete | 1 carrete, 2 carretes, 3 carretes, 4 carretes, 5 carretes, 6 carretes, 7 carretes |
| Rango de temperatura ambiente | -40 °C a +60 °C (-40 °F a +140 °F) |
| Tipo de estructura | Válvulas monobloc |
| Sección | 1 sección, 2 secciones, 3 secciones, 4 secciones, 5 secciones, 6 secciones, 7 secciones |
| Rango de viscosidad de funcionamiento | 15 - 75 mm²/s (15 cSt a 75 cSt) |
| Flujo Nominal | 40 l/min (10,5 gal EE. UU./min) |
| Presión Máxima | 305 bar (4400 psi) |
| Puerto de Entrada | G3/8, G1/2, M18×1.5, M20×1.5, SAE 6, SAE 8, G1-1/2 |
| Puerto de Salida | G3/8, G1/2, M18×1.5, M20×1.5, SAE 6, SAE 8 |
| Tamaño de Puerto | G3/8, G1/2, M18×1.5, M20×1.5, SAE 6, SAE 8 |
Our SD5 Valves feature solenoid control for precise operation, a compact monoblock design for space efficiency, and a rated flow rate of 40 L/min (10.5 US gpm) to handle medium-flow applications. They can withstand pressures up to 305 bar (4400 psi) and operate within a viscosity range of 15 - 75 mm²/s (15 cSt to 75 cSt). The operating temperature range spans from -40°C to +60°C (-40°F to +140°F), ensuring reliable performance in various environments.
As a manufacturer, we offer OEM services, allowing you to customize our valves to meet your specific requirements. Our factory supply and wholesale options ensure cost-effective solutions and timely delivery. Contact us to explore partnership opportunities as a distributor, wholesaler, agent, or trader, and elevate your hydraulic system offerings with our high-quality SD5 Valves.
