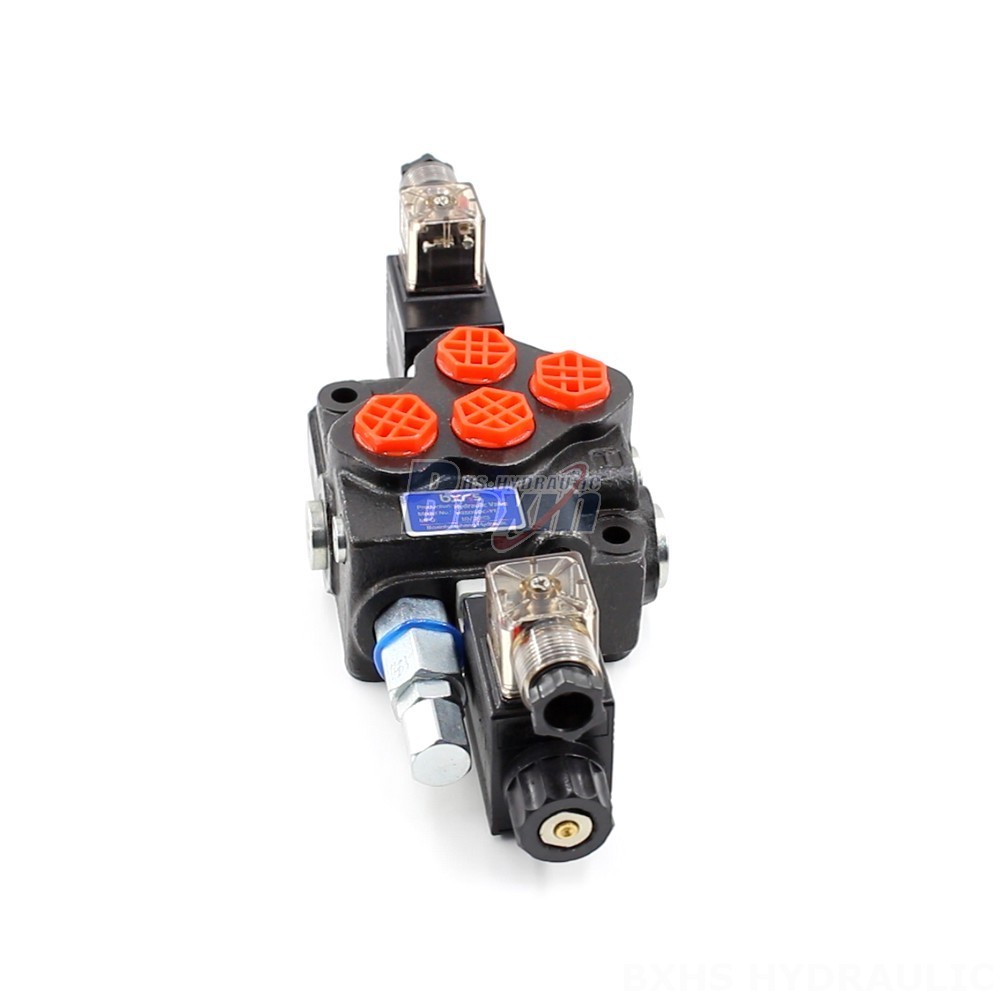

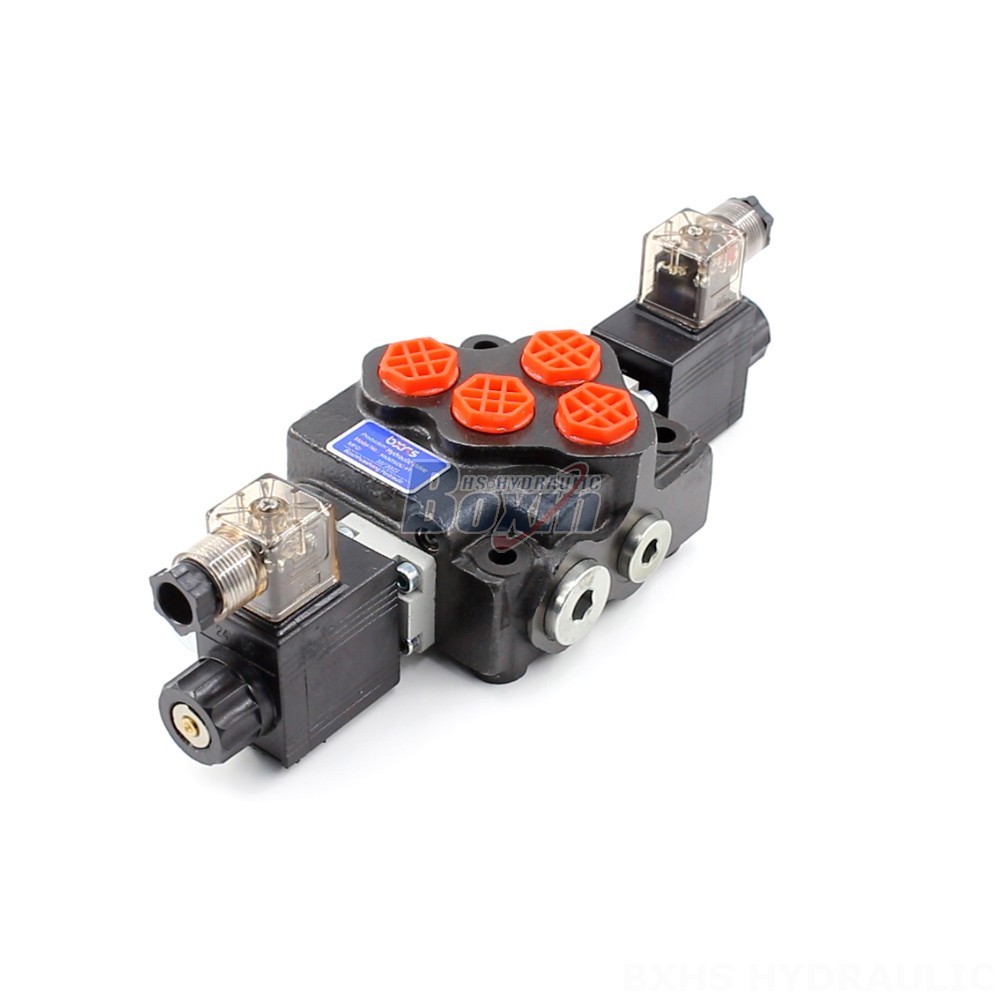

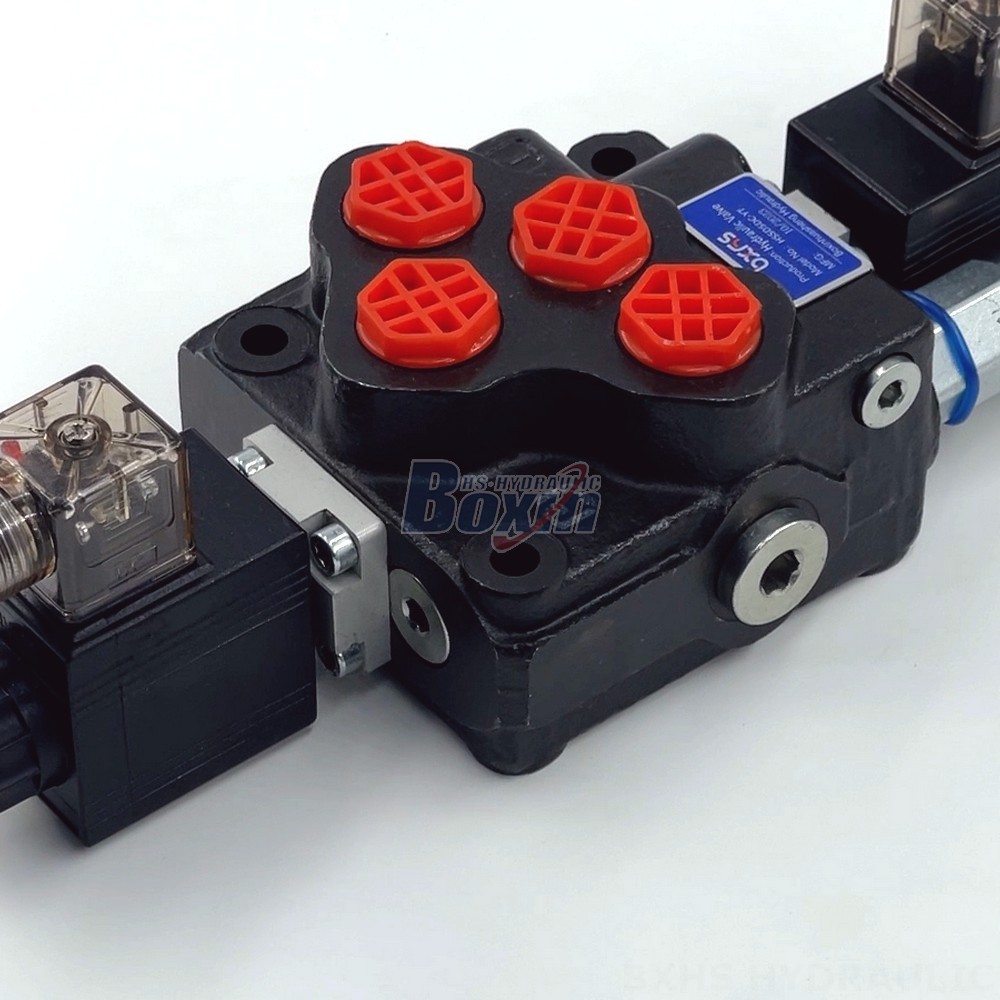

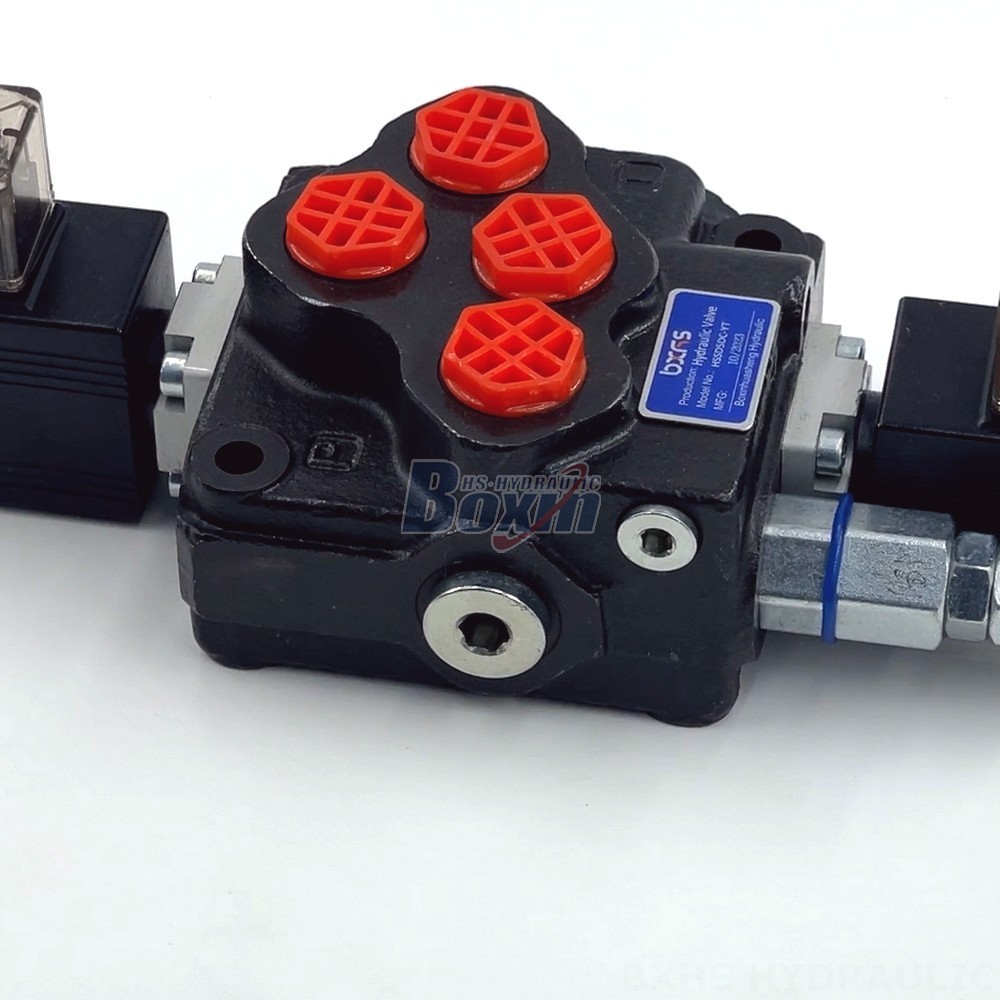

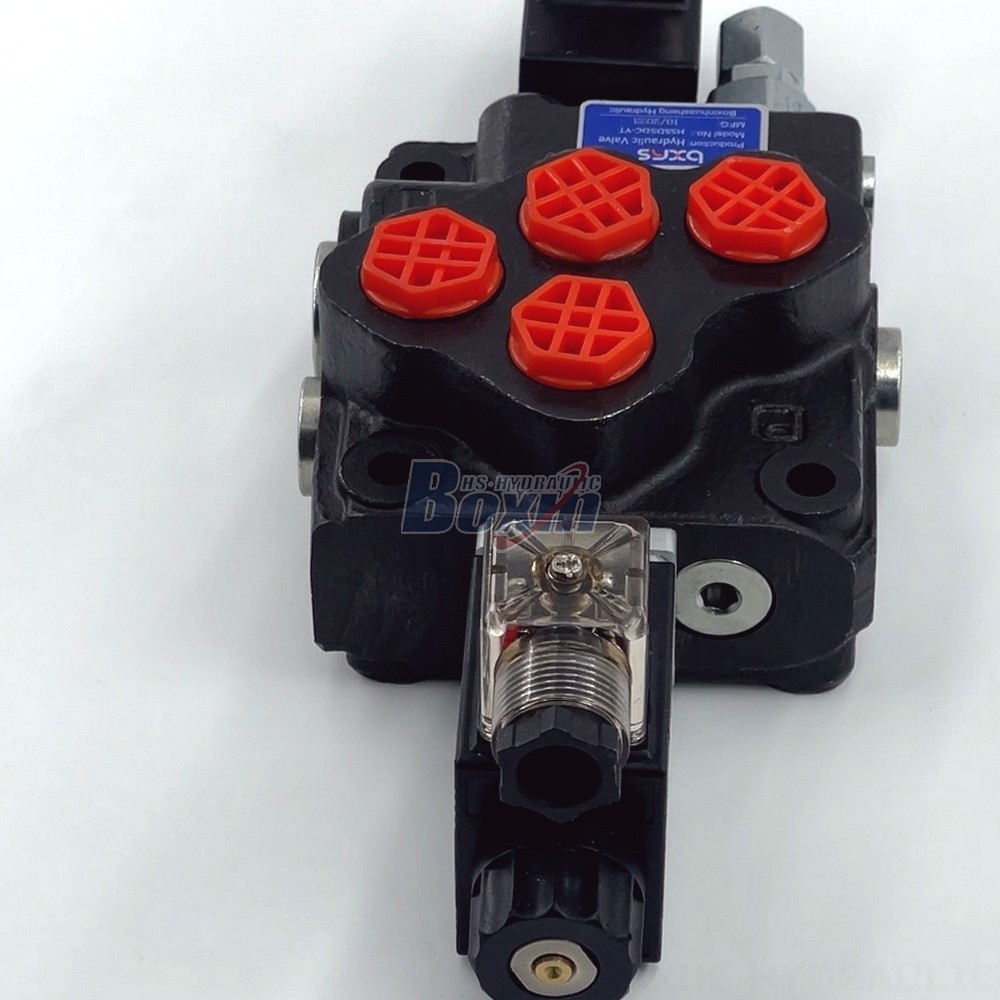

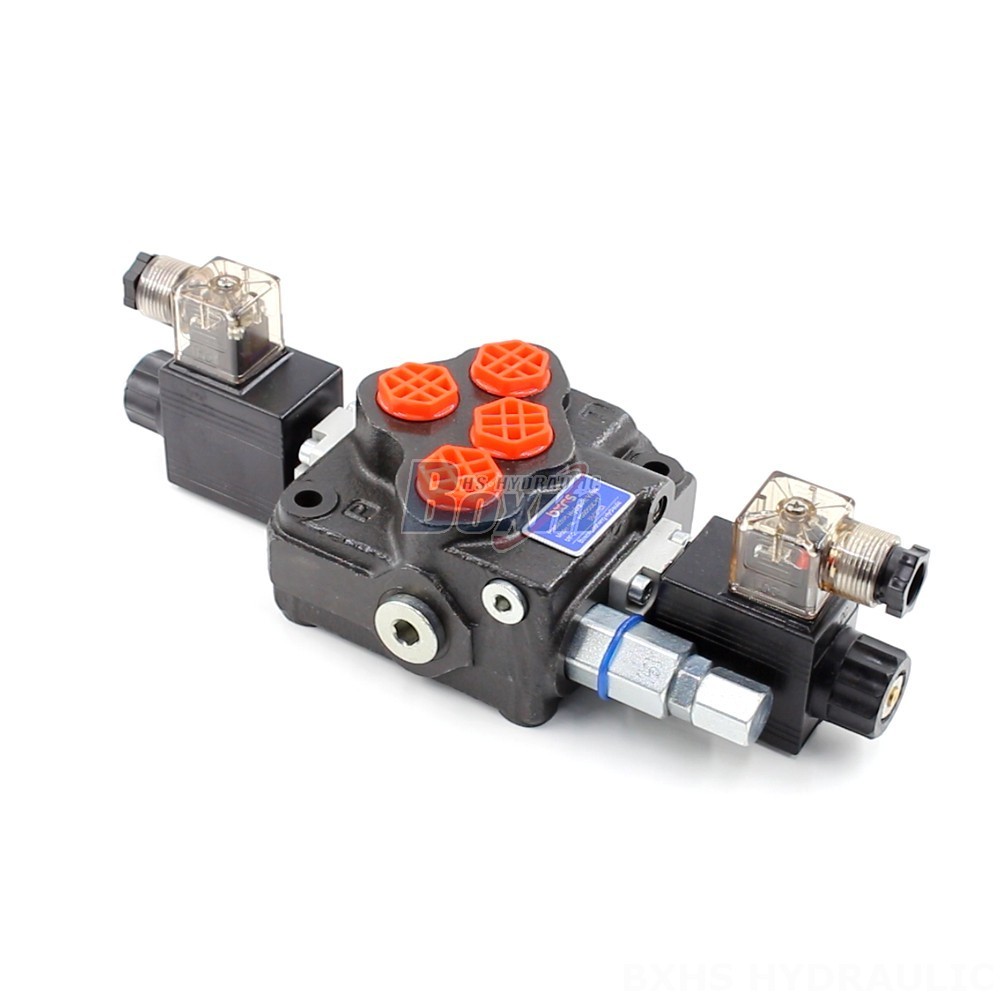

SD5 Series 3/8 Hydraulic Ball Valve is a high-performance, solenoid-operated valve designed for demanding applications in material handling, construction, agriculture, and industrial vehicles. It features a robust monoblock construction, rated flow of 40 L/min, and max pressure of 305 bar. We offer OEM manufacturing, private label, and custom options to meet your specific needs.
| Serie SD5 Válvula Direccional Monobloque Parámetros | |
|---|---|
| Método de control | Manual, Neumático, Electoneumático, Electrohidráulico, Solenoide, Hidráulico, Hidráulico y Manual, Cable, Joystick |
| Carrete | 1 carrete, 2 carretes, 3 carretes, 4 carretes, 5 carretes, 6 carretes, 7 carretes |
| Rango de temperatura ambiente | -40 °C a +60 °C (-40 °F a +140 °F) |
| Tipo de estructura | Válvulas monobloc |
| Sección | 1 sección, 2 secciones, 3 secciones, 4 secciones, 5 secciones, 6 secciones, 7 secciones |
| Rango de viscosidad de funcionamiento | 15 - 75 mm²/s (15 cSt a 75 cSt) |
| Flujo Nominal | 40 l/min (10,5 gal EE. UU./min) |
| Presión Máxima | 305 bar (4400 psi) |
| Puerto de Entrada | G3/8, G1/2, M18×1.5, M20×1.5, SAE 6, SAE 8, G1-1/2 |
| Puerto de Salida | G3/8, G1/2, M18×1.5, M20×1.5, SAE 6, SAE 8 |
| Tamaño de Puerto | G3/8, G1/2, M18×1.5, M20×1.5, SAE 6, SAE 8 |
The SD5 Series 3/8 Hydraulic Ball Valve is a compact and reliable solution for controlling hydraulic systems in a wide range of applications. Featuring a solenoid control method, this monoblock valve provides a rated flow of 40 L/min and can withstand pressures up to 305 bar. Designed for demanding environments, it operates effectively in ambient temperatures from -40°C to +60°C. We are a leading manufacturer of hydraulic products and offer OEM manufacturing, private label, and custom options to meet your specific requirements. We also welcome distributors, wholesalers, agents, and traders to join our global network.
