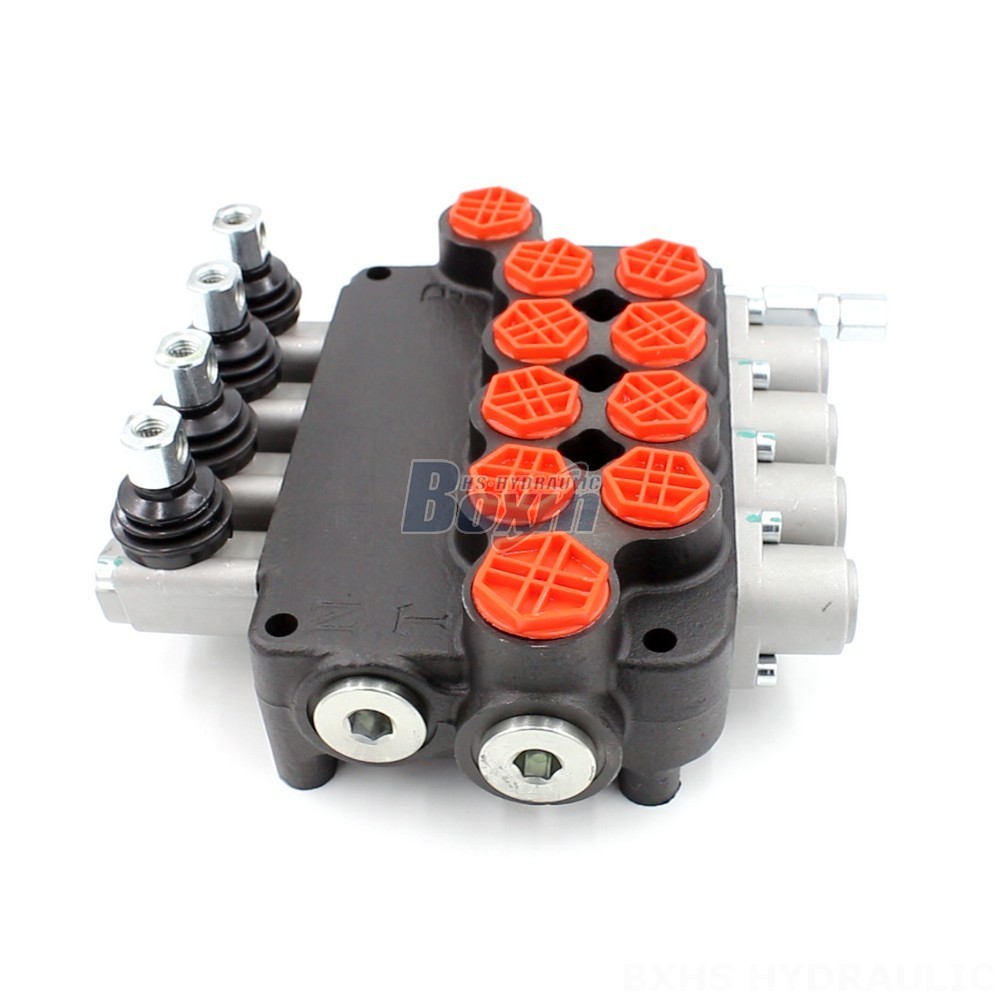

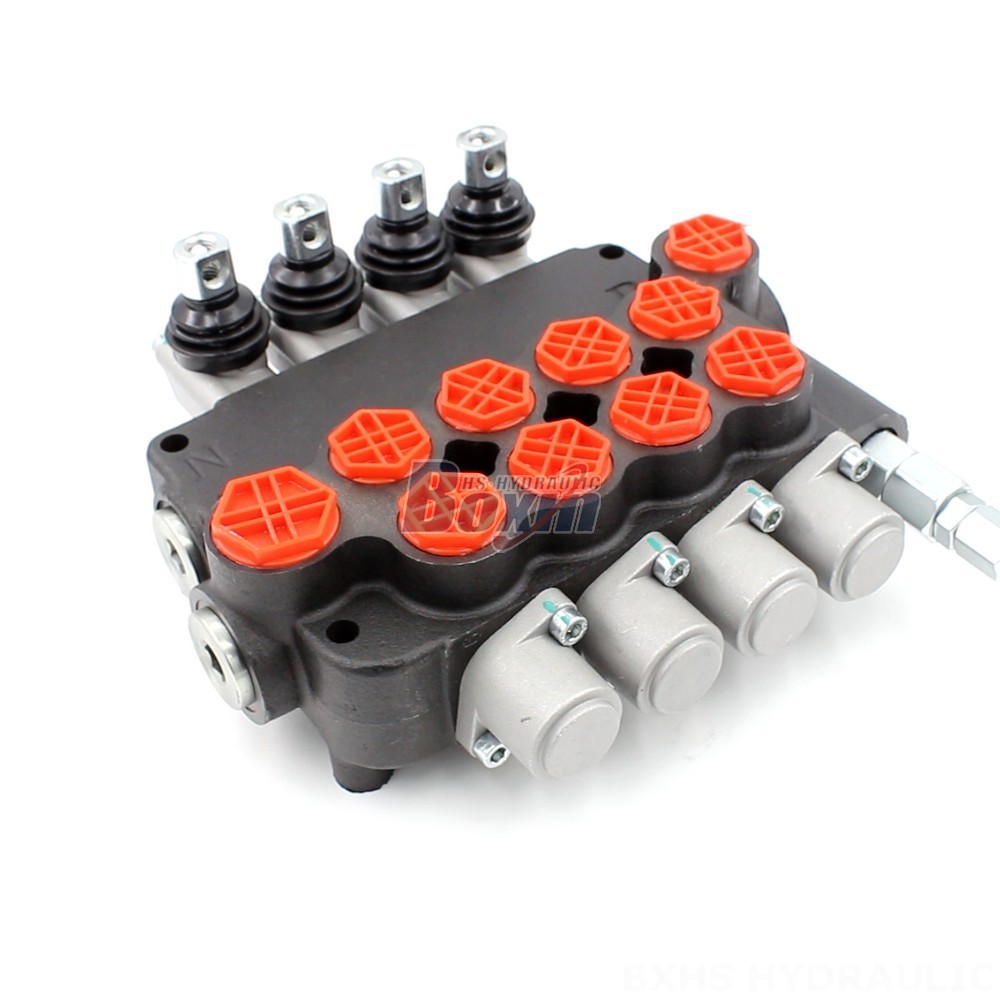

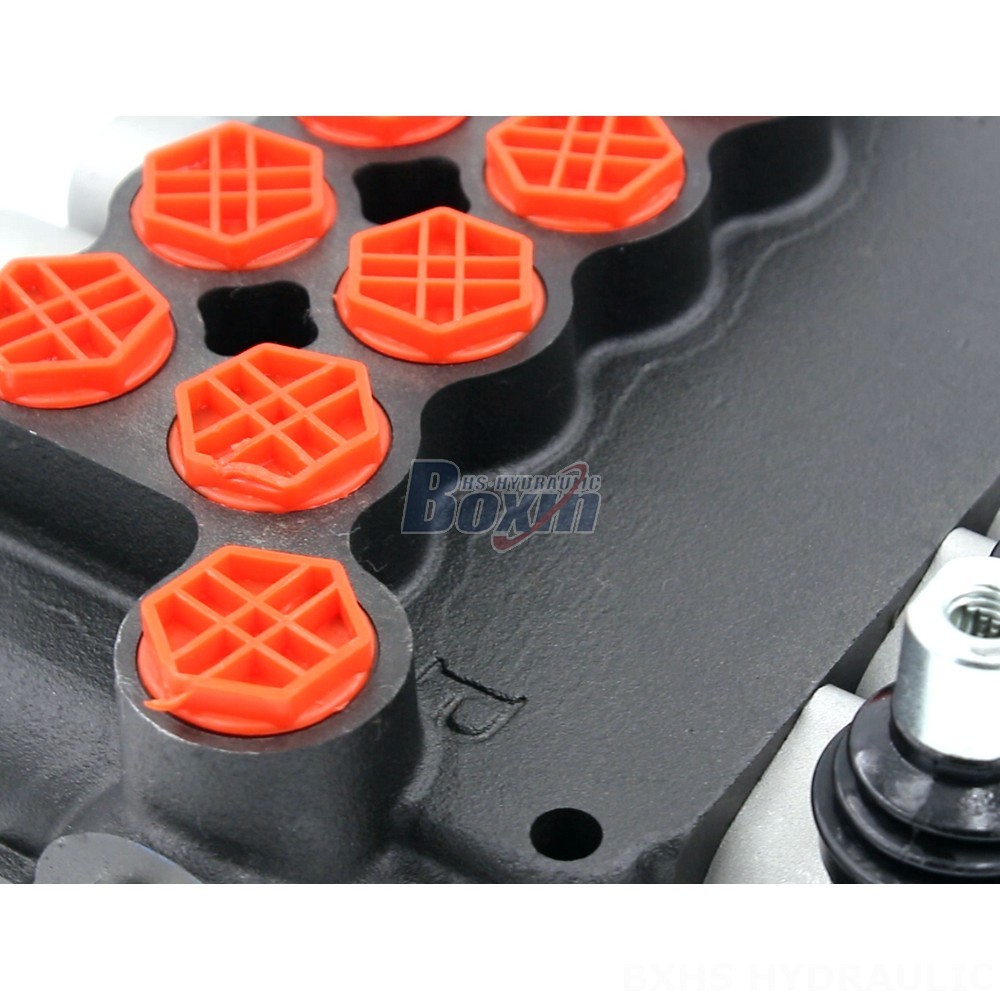

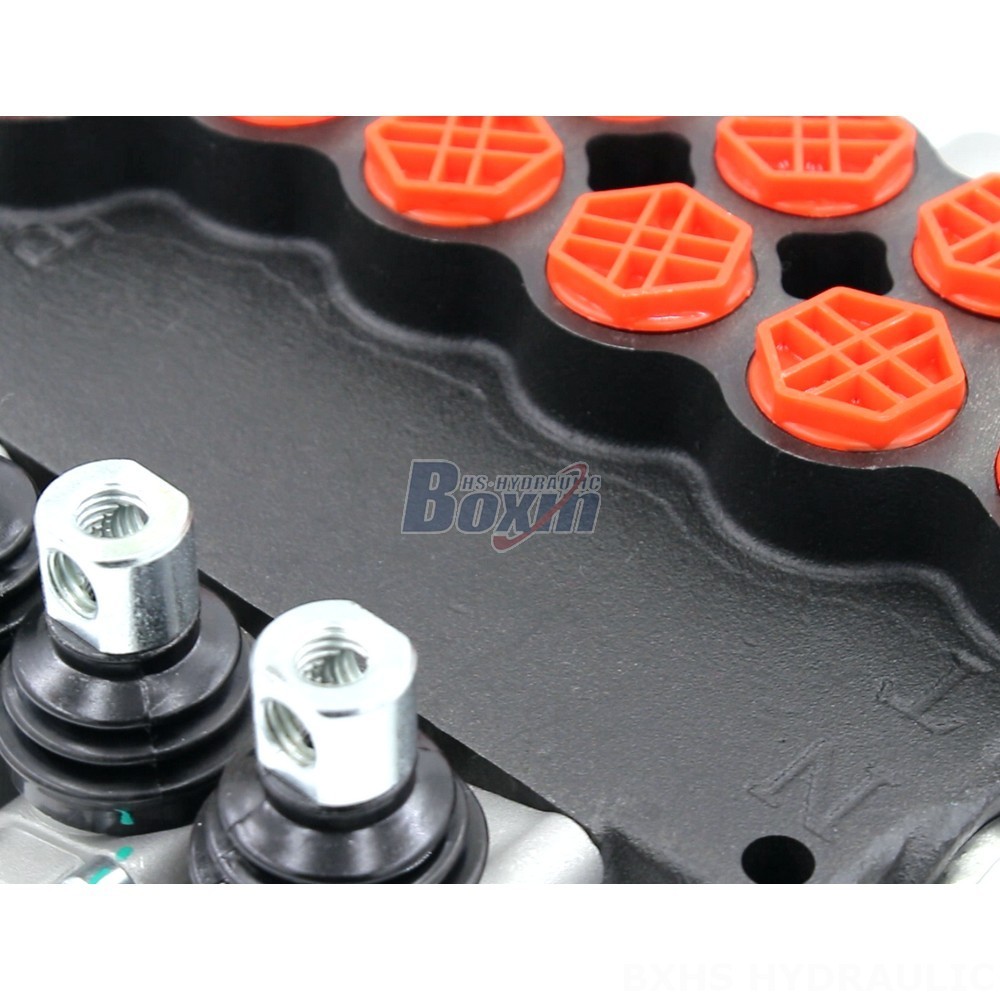

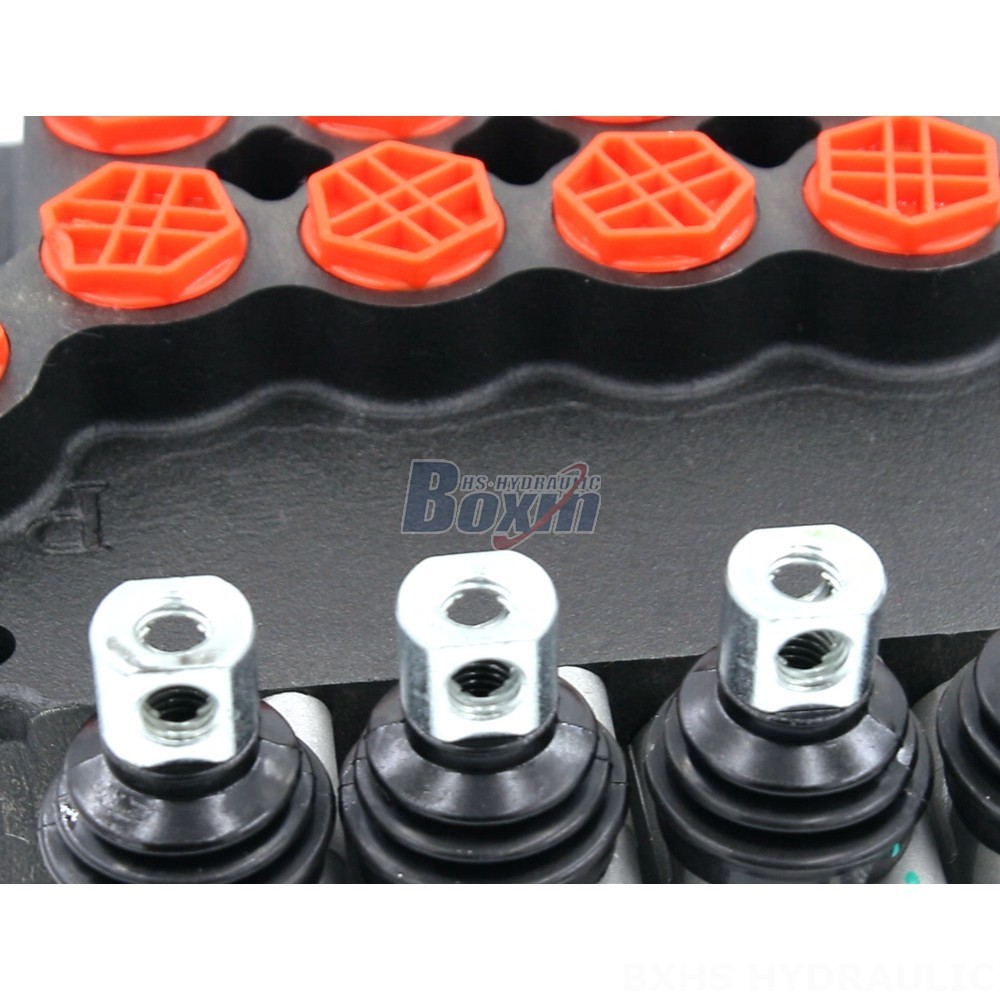

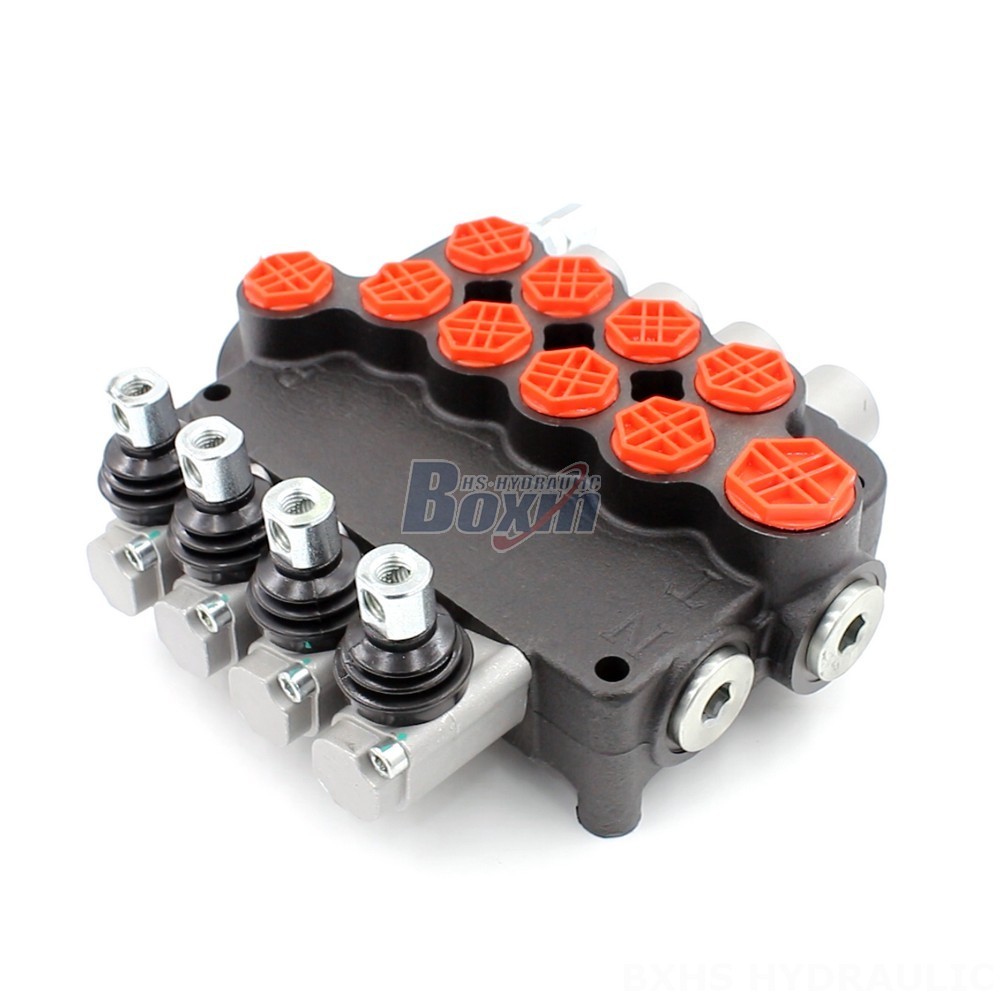

The P80 Series Manual Operated Directional Control Valve is a high-performance, 4-section monoblock valve designed for demanding applications in construction, material handling, and industrial vehicles. With a rated flow of 80 L/min and a maximum pressure of 250 bar, it provides reliable and efficient hydraulic control for a wide range of equipment.
| Serie P80 Válvula Direccional Monobloque Parámetros | |
|---|---|
| Método de control | Manual, Neumático, Electoneumático, Electrohidráulico, Solenoide, Hidráulico, Hidráulico y Manual, Cable, Joystick, Manual y joystick |
| Carrete | 1 carrete, 2 carretes, 3 carretes, 4 carretes, 5 carretes, 6 carretes, 7 carretes |
| Rango de temperatura ambiente | -40 °C a +80 °C (-40 °F a +176 °F) |
| Tipo de estructura | Válvulas monobloc |
| Sección | 1 sección, 2 secciones, 3 secciones, 4 secciones, 5 secciones, 6 secciones, 7 secciones |
| Rango de viscosidad de funcionamiento | 15 - 75 mm²/s (15 cSt a 75 cSt) |
| Flujo Nominal | 80 l/min (21,2 gal EE. UU./min) |
| Presión Máxima | 315 bar (4600 psi) |
| Puerto de Entrada | G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT |
| Puerto de Salida | G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT |
| Tamaño de Puerto | G1/2, G3/4, M22×1.5, M27×2.0, SAE 10, 1/2 NPT, 3/4 NPT |
The P80 Series Manual Operated Directional Control Valve is a robust and reliable hydraulic component designed for demanding applications in various industries. This 4-section monoblock valve features a manual control method, offering precise and intuitive operation. With a rated flow of 80 L/min and a maximum pressure of 250 bar, this valve is well-suited for handling high flow rates and pressures. Its compact and durable design ensures long-term reliability and performance. The valve is designed for use with a wide range of construction and material handling equipment, including telehandlers, forklifts, cranes, excavators, loaders, and more. Its versatility makes it a valuable asset for a wide range of applications.
