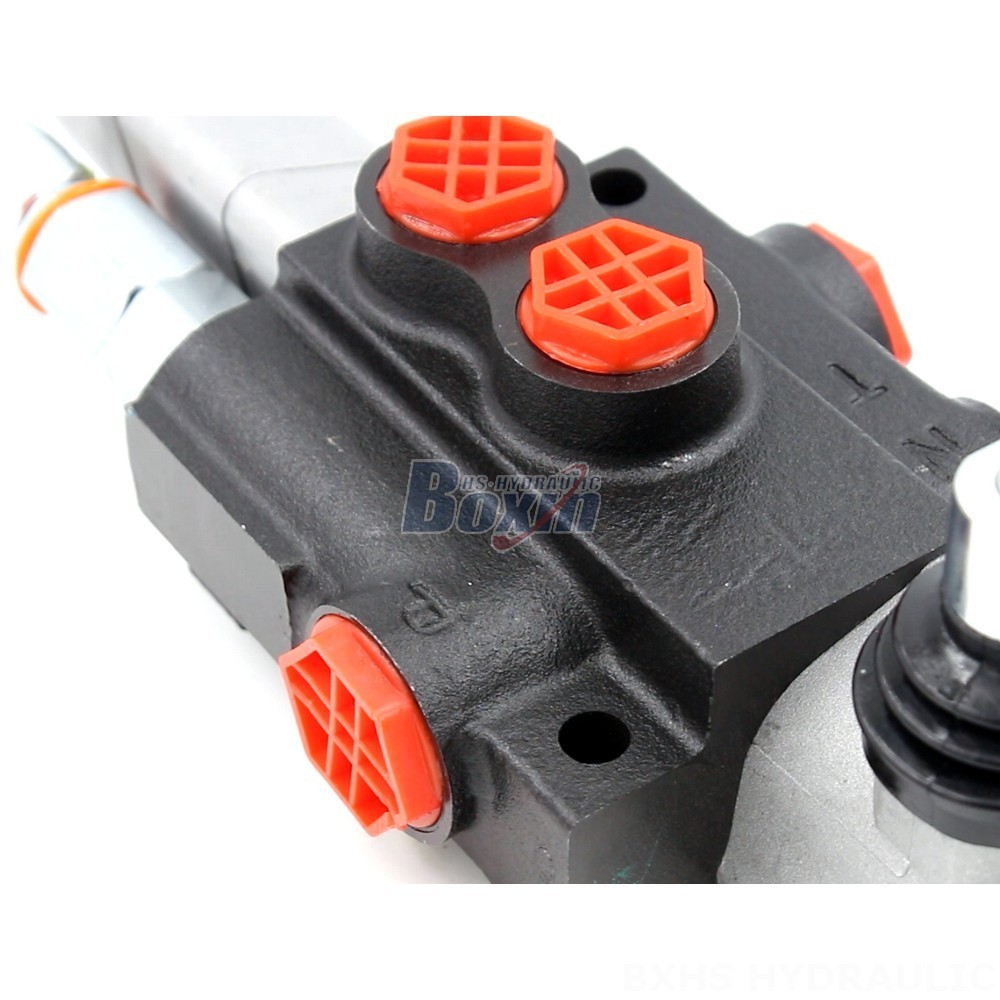

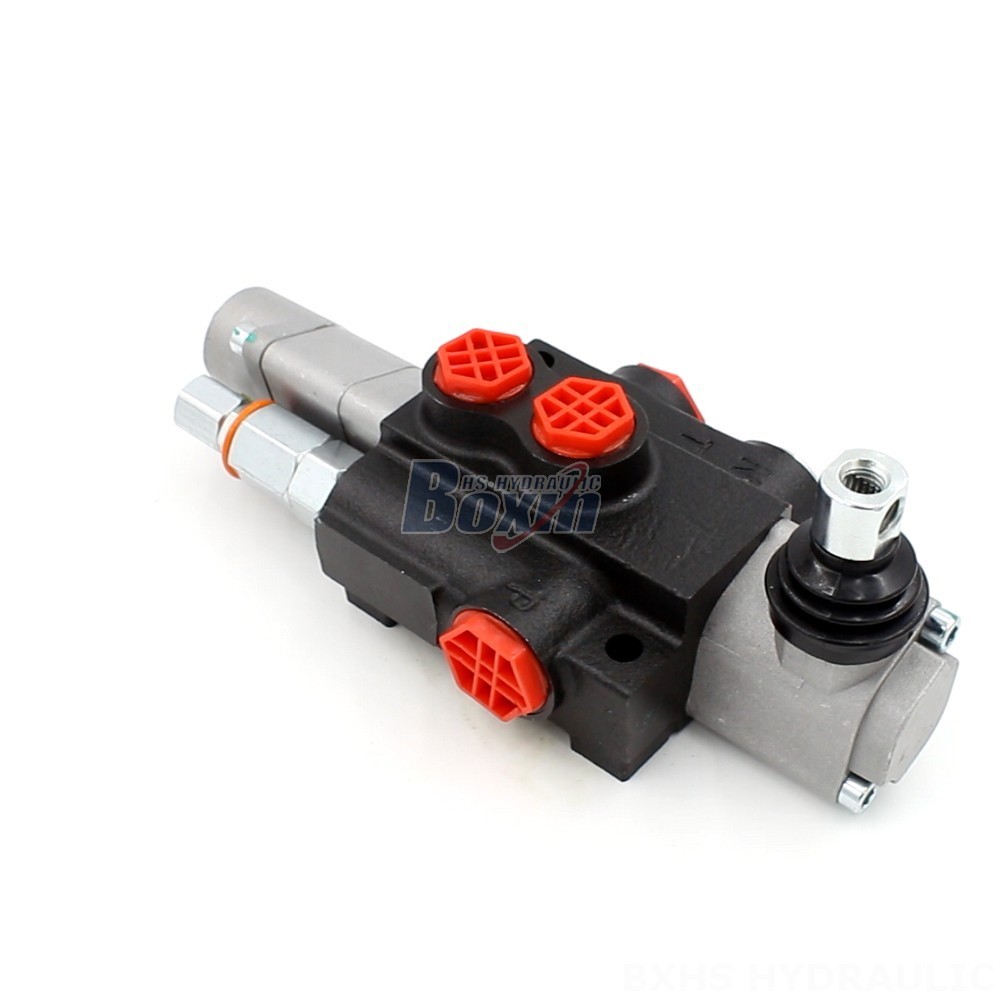

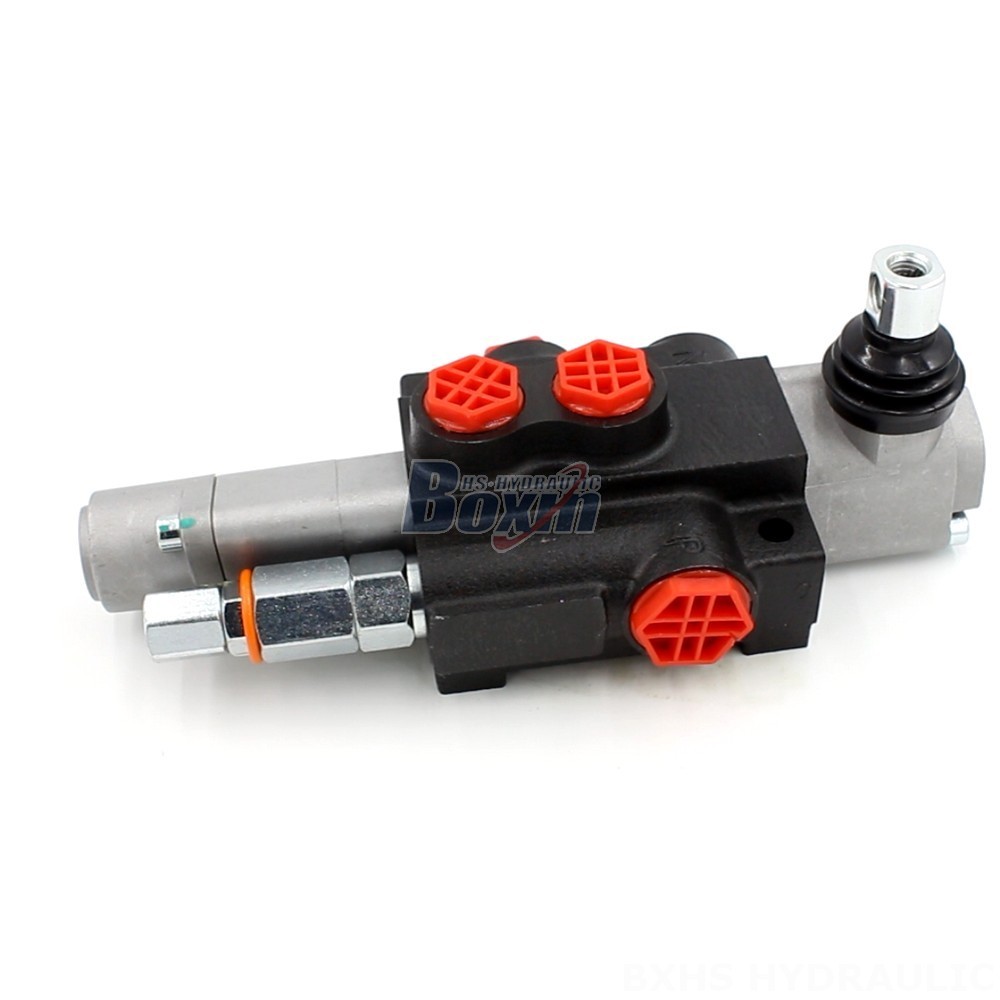

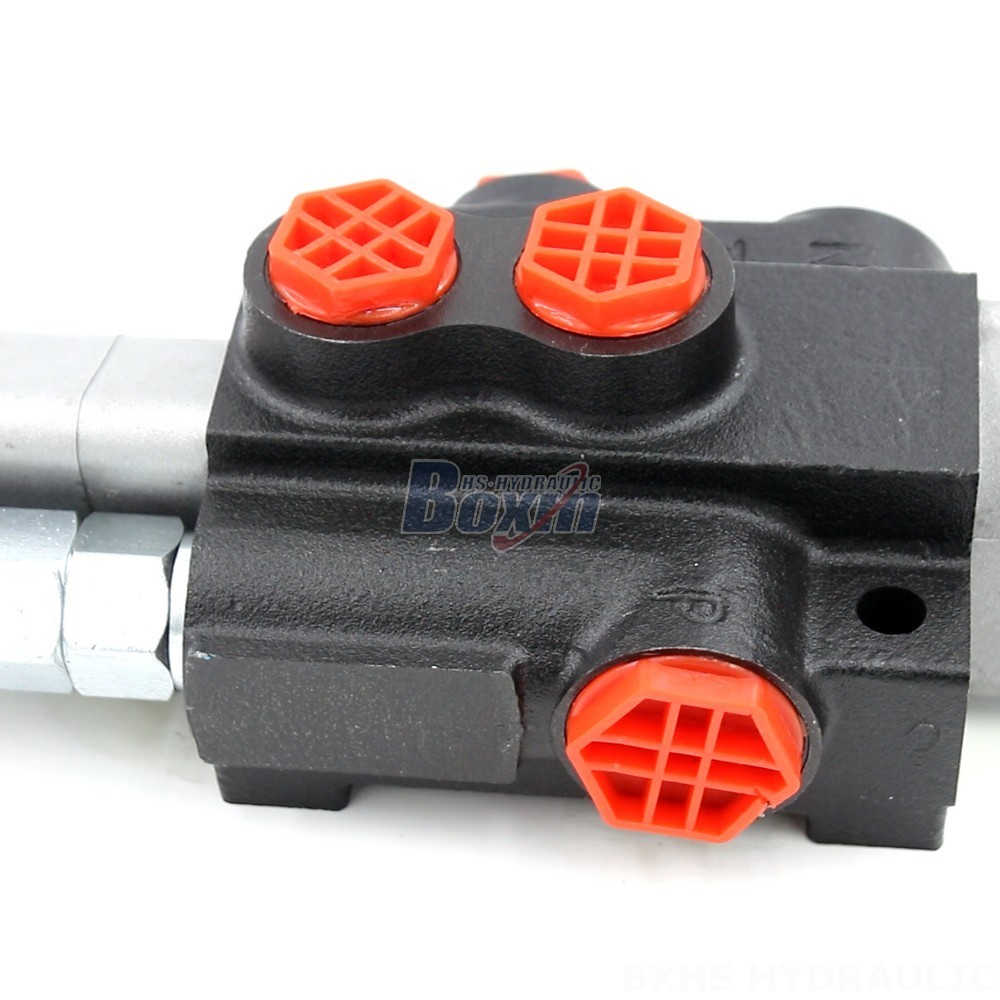

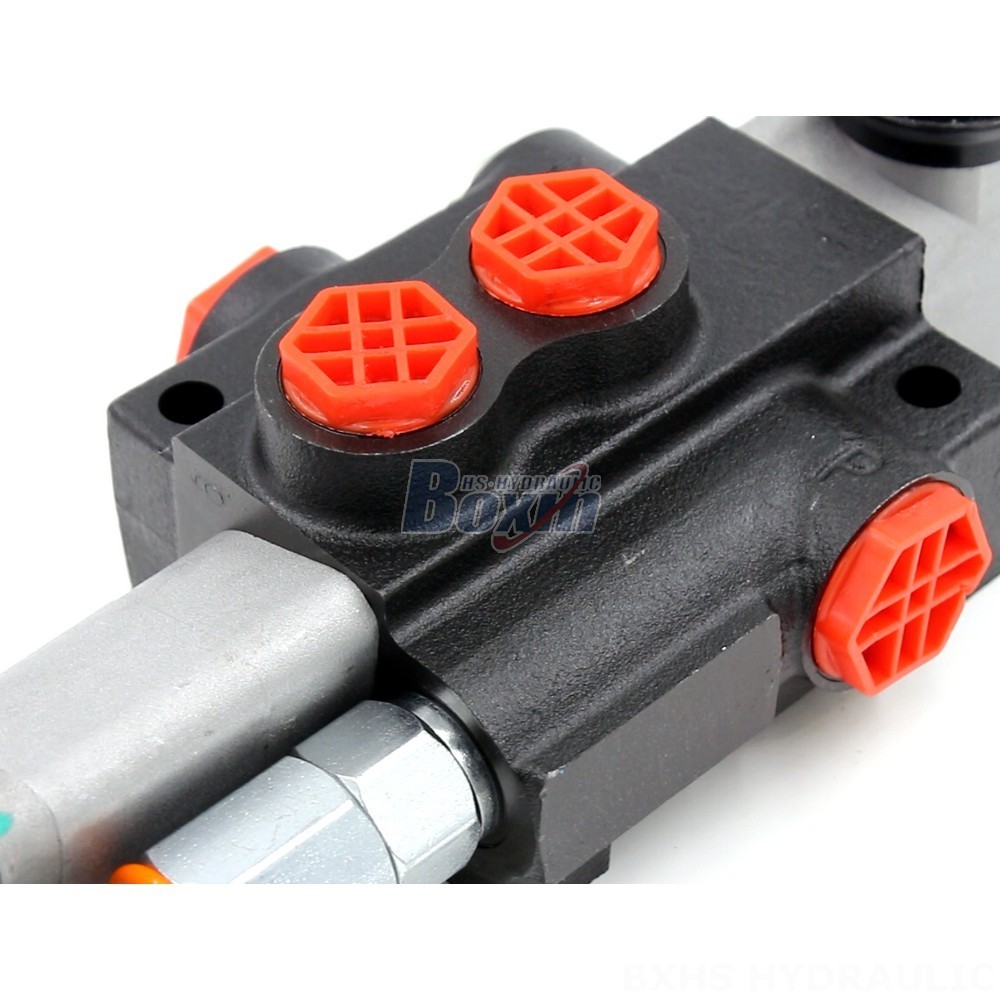

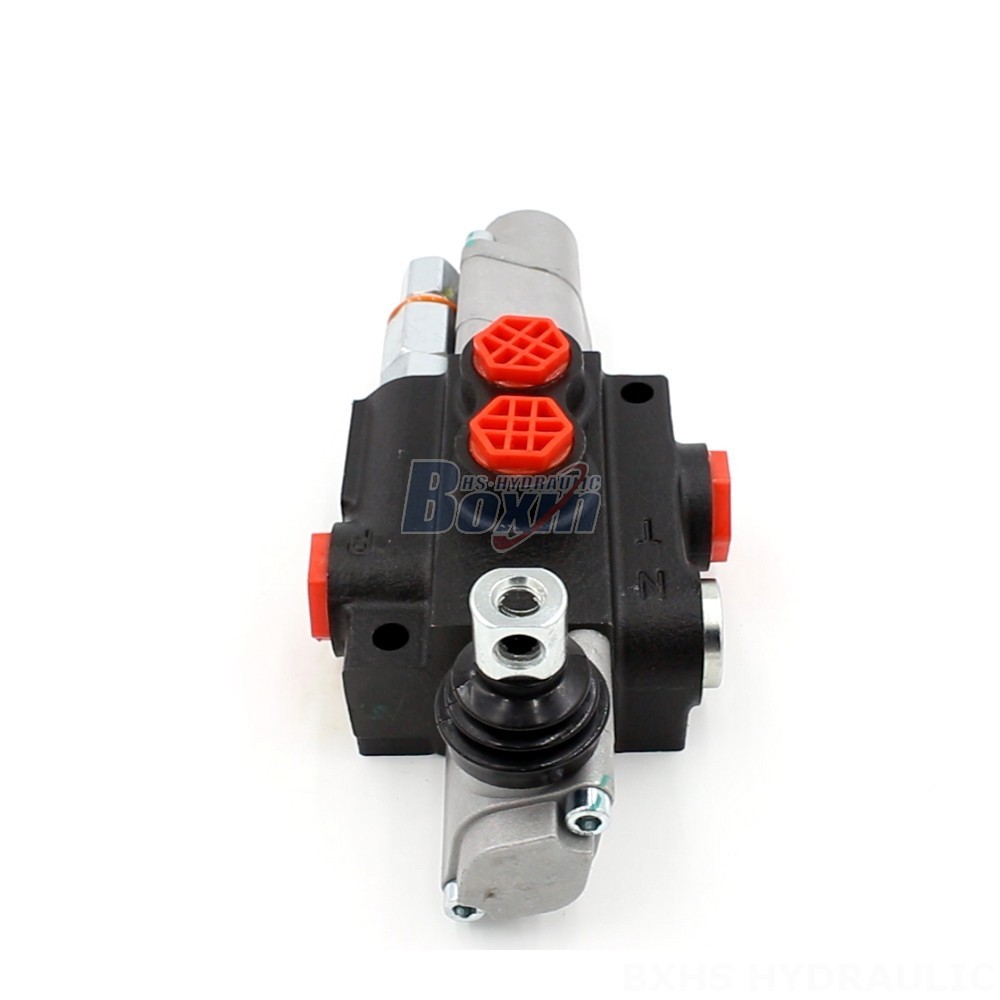

The P40-QTW1 Series 5 Spool Hydraulic Control Valve is a robust and reliable monoblock directional valve designed for demanding applications in material handling, construction, agriculture, and industrial vehicles. It features a manual control method, a single section, and a rated flow of 40 L/min.
| Serie P40 Válvula Direccional Monobloque Parámetros | |
|---|---|
| Método de control | Manual, Neumático, Electoneumático, Electrohidráulico, Solenoide, Hidráulico, Hidráulico y Manual, Cable, Joystick, Solenoide y joystick, Manual y joystick, Solenoide y cable |
| Carrete | 1 carrete, 2 carretes, 3 carretes, 4 carretes, 5 carretes, 6 carretes, 7 carretes |
| Rango de temperatura ambiente | -40 °C a +80 °C (-40 °F a +176 °F) |
| Tipo de estructura | Válvulas monobloc |
| Sección | 1 sección, 2 secciones, 3 secciones, 4 secciones, 5 secciones, 6 secciones, 7 secciones |
| Rango de viscosidad de funcionamiento | 15 - 75 mm²/s (15 cSt a 75 cSt) |
| Flujo Nominal | 40 l/min (10,5 gal EE. UU./min) |
| Presión Máxima | 250 bar (3600 psi) |
| Puerto de Entrada | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Puerto de Salida | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Tamaño de Puerto | G3/8, G1/2, M18×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
This P40-QTW1 Series 5 Spool Hydraulic Control Valve is a high-performance monoblock directional valve designed for use in a wide range of applications. Its manual control method provides precise operation, while its single section design simplifies installation and maintenance. The valve has a rated flow of 40 L/min (10.5 US gpm) and a maximum pressure of 250 bar (3600 psi). It is suitable for use in a wide range of operating temperatures, from -40°C to +80°C (-40°F to +176°F). This valve is ideal for use in a variety of applications, including telehandlers, forklifts, stackers, aerial platforms, motor graders, mini excavators, skid steer loaders, compact wheel loaders, tractors, and front-end loaders. It is also suitable for use in agriculture and industrial vehicles.
