Monoblock Directional Valve P40-G12-2OT | Key Features & Advantages

Método de control:Manual

Carrete:2 carretes

Flujo Nominal:40 l/min (10,5 gal EE. UU./min)

Presión Máxima:250 bar (3600 psi)

Puerto de Entrada:G1/2

Puerto de Salida:G1/2

Tamaño de Puerto:G1/2

Marca:BXHS

Tipo de producto:Válvula Direccional Monobloque

Serie de productos:Serie P40 Válvula Direccional Monobloque

Tamaño del embalaje:23*18*13

Peso bruto:5.00 kg

Disponibilidad: En stock

940 personas están viendo este producto

Monoblock Directional Valve P40-G12-2OT | Key Features & Advantages

Monoblock Directional Valve P40-G12-2OT | Key Features & Advantages

Monoblock Directional Valve P40-G12-2OT | Key Features & Advantages drawing image

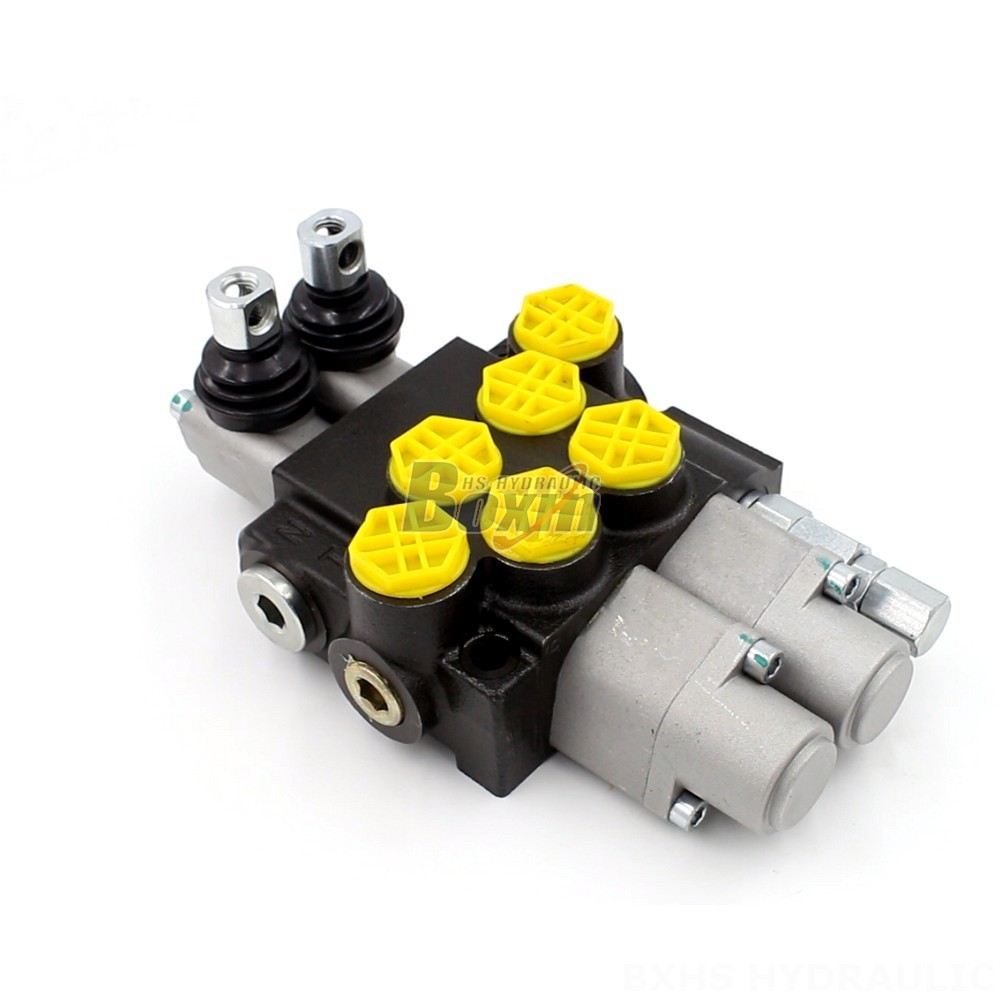

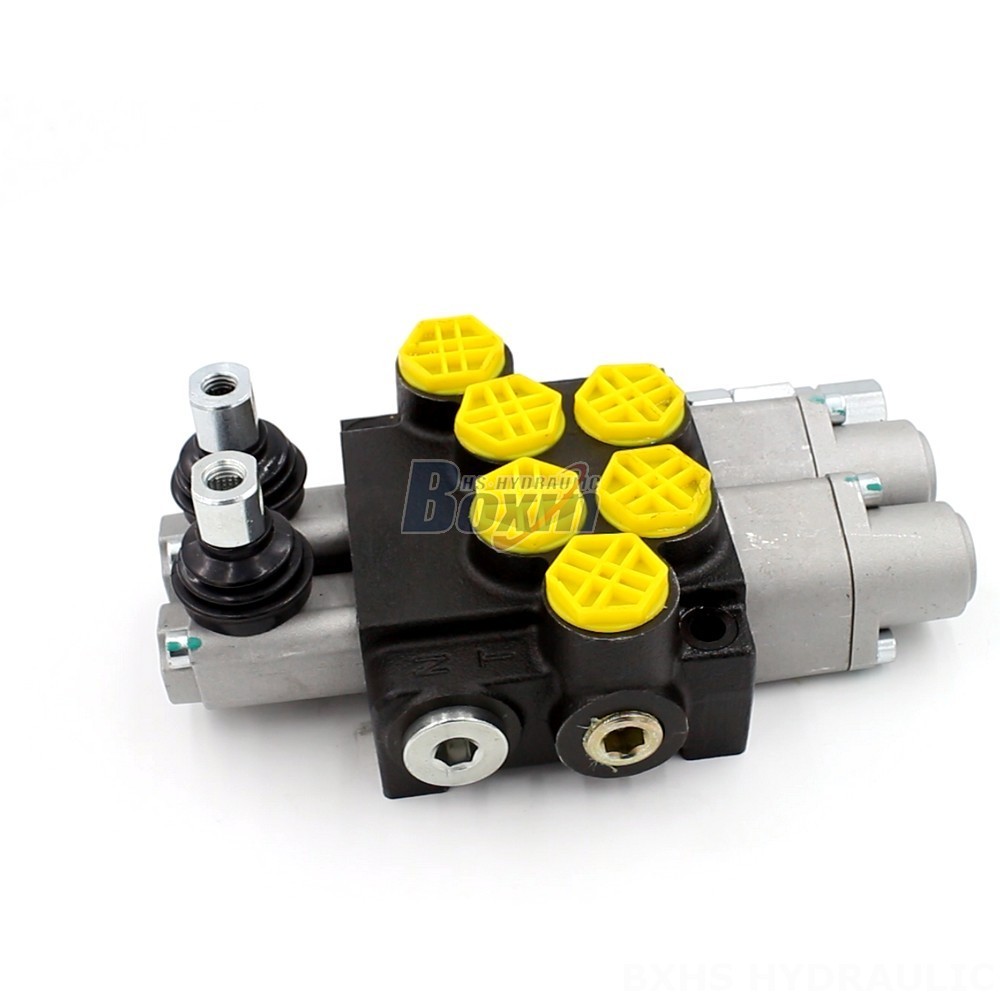

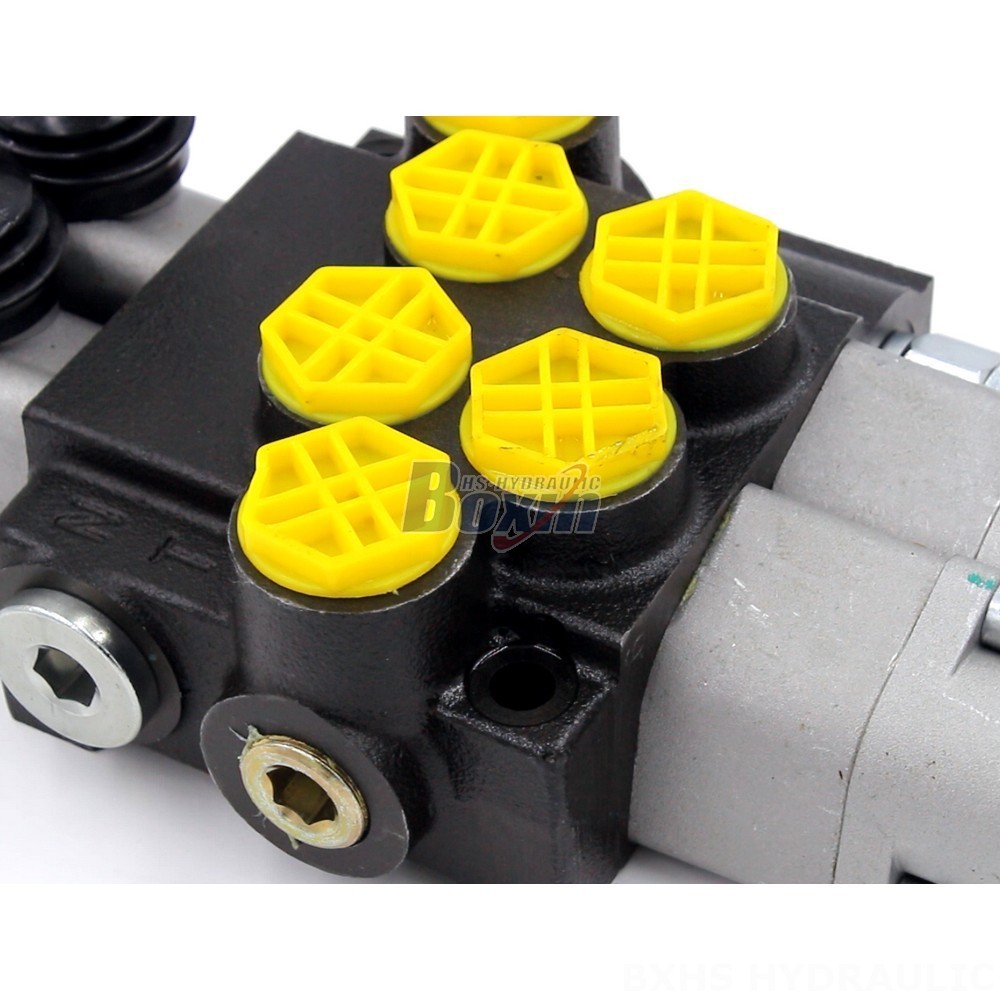

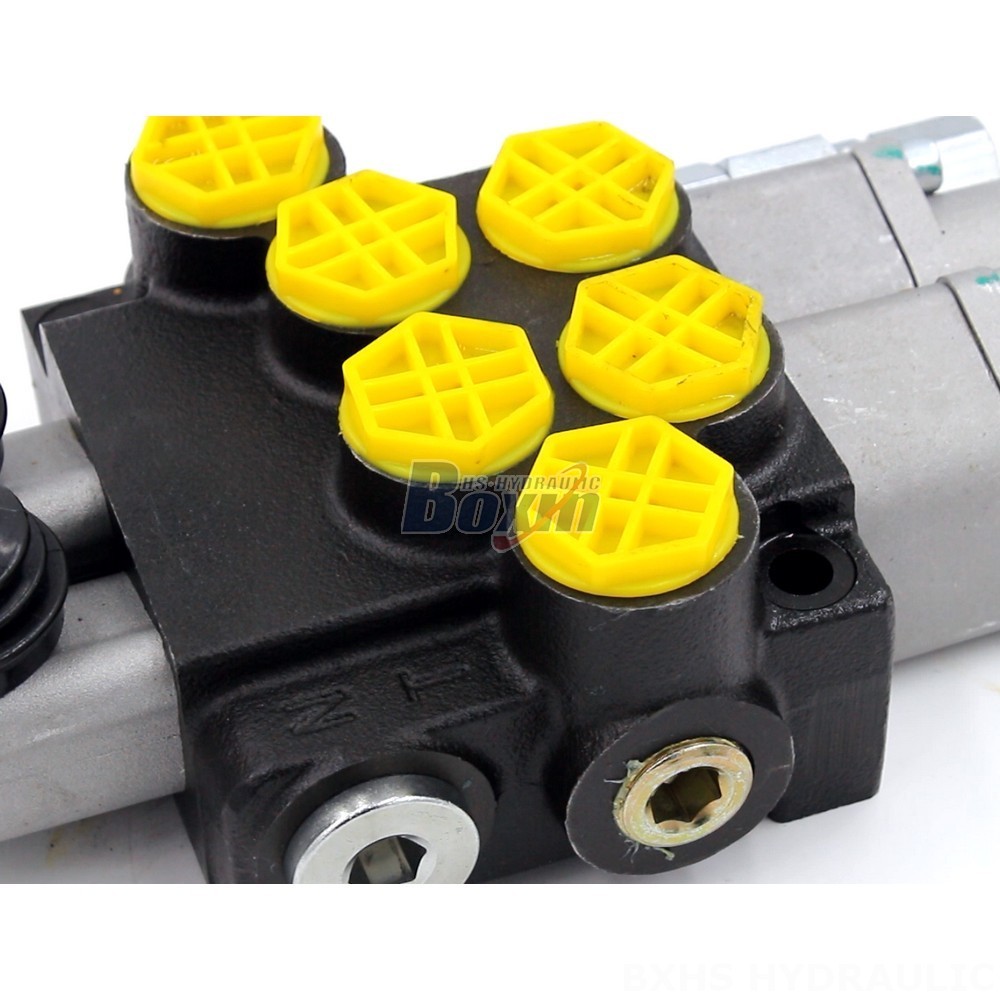

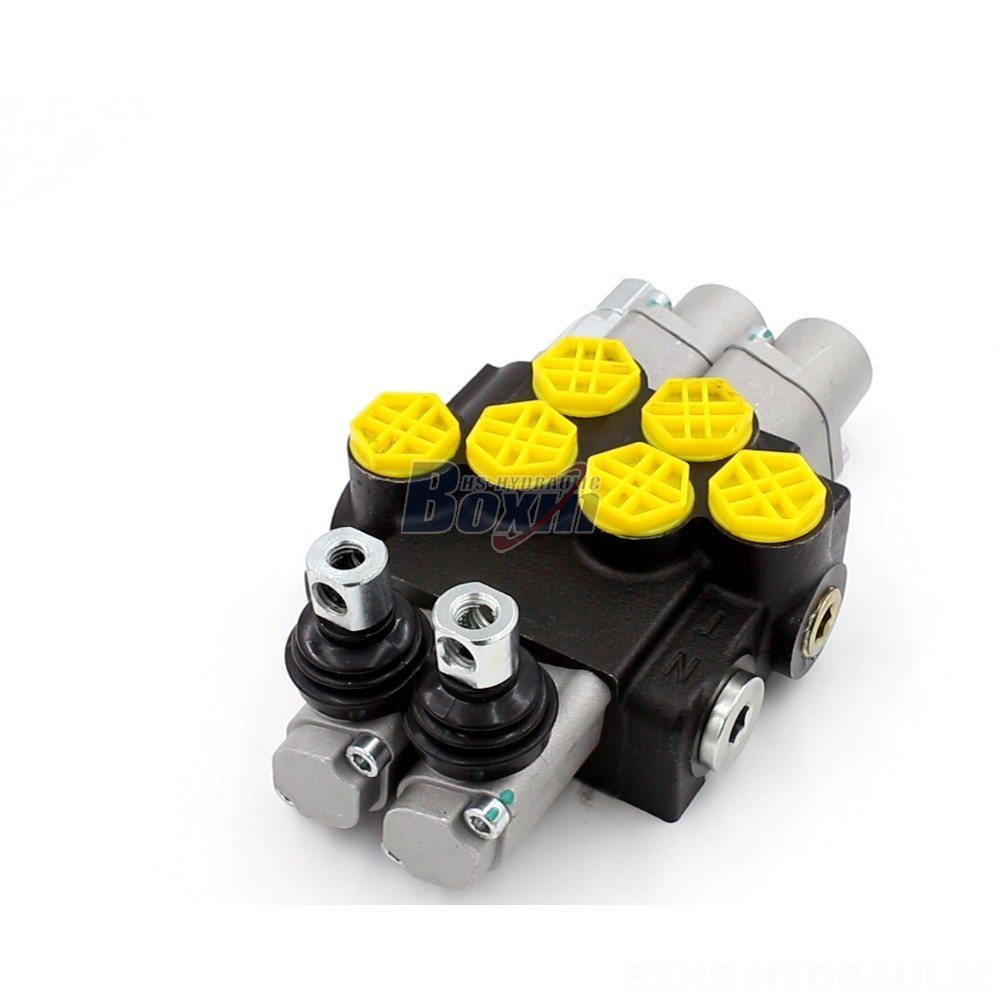

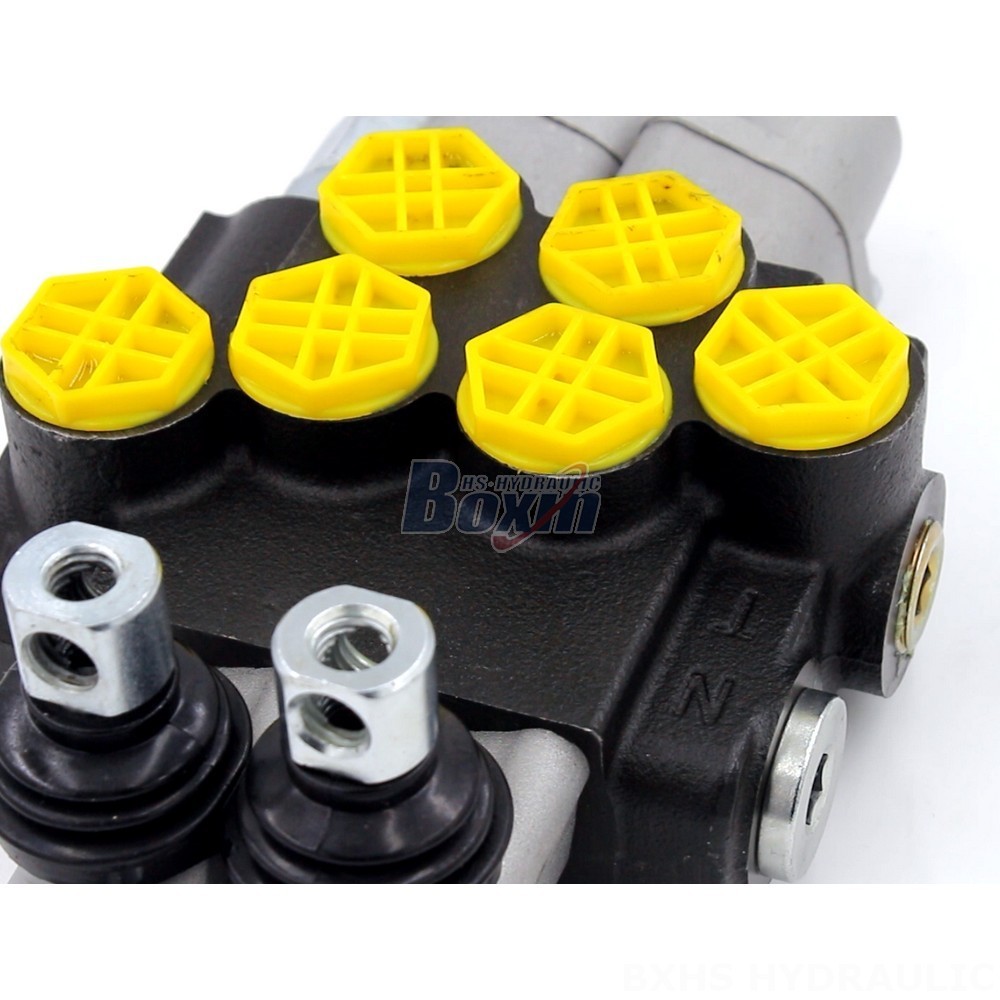

The P40-G12-2OT Directional Control Monoblock Valve is a robust and reliable hydraulic valve designed for demanding applications in material handling, construction, agriculture, and industrial vehicles. This 2-section, manually controlled valve boasts a rated flow of 40 L/min and a maximum pressure of 250 bar, making it ideal for a wide range of equipment, including telehandlers, forklifts, cranes, and excavators.

Serie P40 Válvula Direccional Monobloque Parámetros
Método de control Manual, Neumático, Electoneumático, Electrohidráulico, Solenoide, Hidráulico, Hidráulico y Manual, Cable, Joystick, Solenoide y joystick, Manual y joystick, Solenoide y cable
Carrete 1 carrete, 2 carretes, 3 carretes, 4 carretes, 5 carretes, 6 carretes, 7 carretes
Rango de temperatura ambiente -40 °C a +80 °C (-40 °F a +176 °F)
Tipo de estructura Válvulas monobloc
Sección 1 sección, 2 secciones, 3 secciones, 4 secciones, 5 secciones, 6 secciones, 7 secciones
Rango de viscosidad de funcionamiento 15 - 75 mm²/s (15 cSt a 75 cSt)
Flujo Nominal 40 l/min (10,5 gal EE. UU./min)
Presión Máxima 250 bar (3600 psi)
Puerto de Entrada G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT
Puerto de Salida G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT
Tamaño de Puerto G3/8, G1/2, M18×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT

This P40 series monoblock directional valve offers a compact and efficient solution for controlling hydraulic systems. Its manual control method provides simple and direct operation, while its 2-section design allows for versatile control configurations. With a rated flow of 40 L/min and a maximum pressure of 250 bar, this valve can handle a variety of hydraulic applications. Its wide operating viscosity range (15-75 mm²/s) and ambient temperature range (-40°C to +80°C) ensure reliable performance in diverse environments. This valve is specifically suited for equipment like telehandlers, forklifts, all-terrain cranes, stackers, aerial platforms, motor graders, midi-excavators, mini-excavators, skid steer loaders, and compact wheel loaders.
