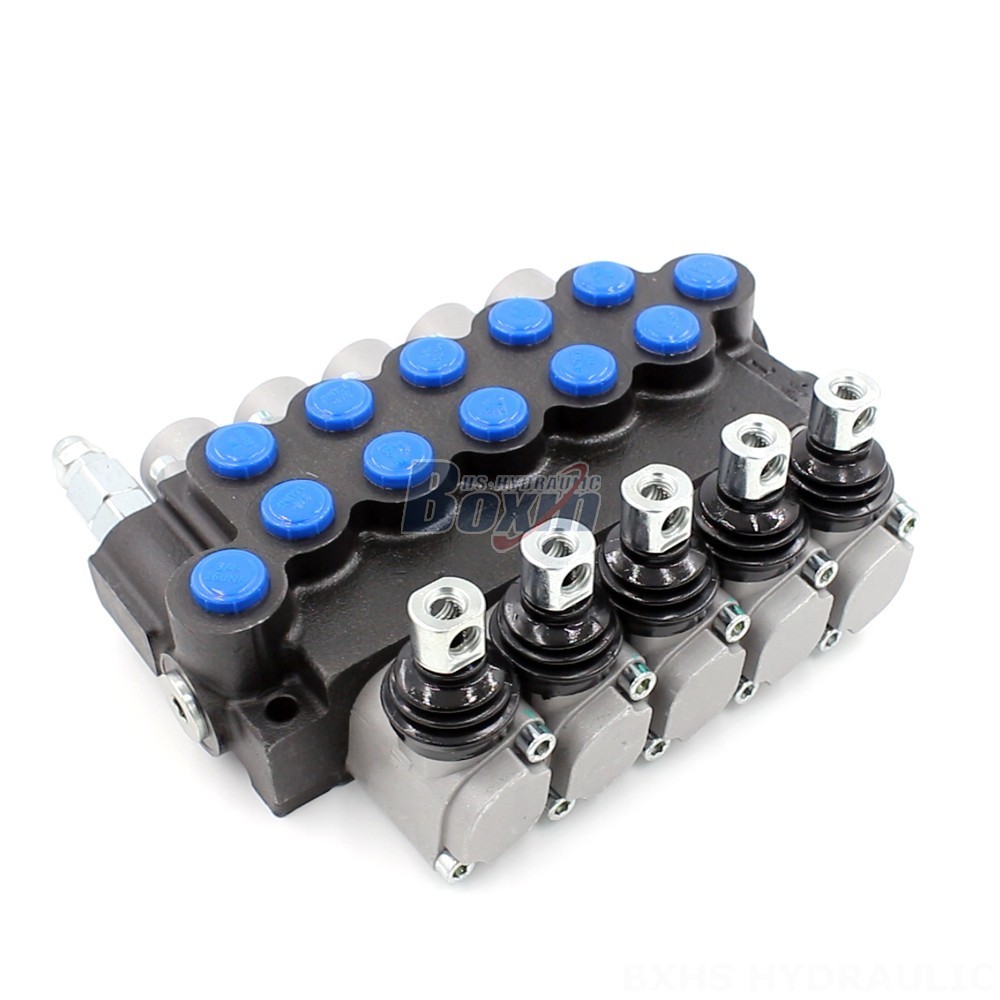

Monoblock Directional Control Valve: P40-U78 Series | Wholesale & OEM

Método de control:Manual

Carrete:5 carretes

Flujo Nominal:40 l/min (10,5 gal EE. UU./min)

Presión Máxima:250 bar (3600 psi)

Puerto de Entrada:SAE 10

Puerto de Salida:SAE 10

Tamaño de Puerto:SAE 10

Marca:BXHS

Tipo de producto:Válvula Direccional Monobloque

Serie de productos:Serie P40 Válvula Direccional Monobloque

Tamaño del embalaje:28*23*13

Peso bruto:9.80 kg

Disponibilidad: En stock

1074 personas están viendo este producto

Monoblock Directional Control Valve: P40-U78 Series | Wholesale & OEM

Monoblock Directional Control Valve: P40-U78 Series | Wholesale & OEM

Monoblock Directional Control Valve: P40-U78 Series | Wholesale & OEM drawing image

The P40-U78 Series Hydraulic Log Splitter Monoblock Directional Control Valve is a high-performance valve designed for use in a wide range of applications, including material handling, construction, and agriculture. This 5-section, manually controlled valve features a rated flow of 40 L/min and a maximum pressure of 250 bar, making it ideal for powering log splitters and other heavy-duty equipment.

Serie P40 Válvula Direccional Monobloque Parámetros
Método de control Manual, Neumático, Electoneumático, Electrohidráulico, Solenoide, Hidráulico, Hidráulico y Manual, Cable, Joystick, Solenoide y joystick, Manual y joystick, Solenoide y cable
Carrete 1 carrete, 2 carretes, 3 carretes, 4 carretes, 5 carretes, 6 carretes, 7 carretes
Rango de temperatura ambiente -40 °C a +80 °C (-40 °F a +176 °F)
Tipo de estructura Válvulas monobloc
Sección 1 sección, 2 secciones, 3 secciones, 4 secciones, 5 secciones, 6 secciones, 7 secciones
Rango de viscosidad de funcionamiento 15 - 75 mm²/s (15 cSt a 75 cSt)
Flujo Nominal 40 l/min (10,5 gal EE. UU./min)
Presión Máxima 250 bar (3600 psi)
Puerto de Entrada G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT
Puerto de Salida G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT
Tamaño de Puerto G3/8, G1/2, M18×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT

The P40-U78 Series Hydraulic Log Splitter Monoblock Directional Control Valve is a robust and reliable solution for controlling hydraulic systems in a variety of applications. This 5-section, monoblock valve features a manual control method, making it easy to operate. With a rated flow of 40 L/min and a maximum pressure of 250 bar, this valve is capable of handling demanding hydraulic tasks. Its wide operating viscosity range (15-75 mm²/s) and ambient temperature range (-40°C to +80°C) ensure optimal performance in a variety of environments. The P40-U78 Series is available in OEM and wholesale quantities, making it a perfect choice for manufacturers and distributors looking for high-quality hydraulic components. This valve is suitable for use in various types of equipment, including telehandlers, forklifts, all-terrain cranes, stackers, aerial platforms, motor graders, midi-excavators, mini-excavators, skid steer loaders, and compact wheel loaders.
