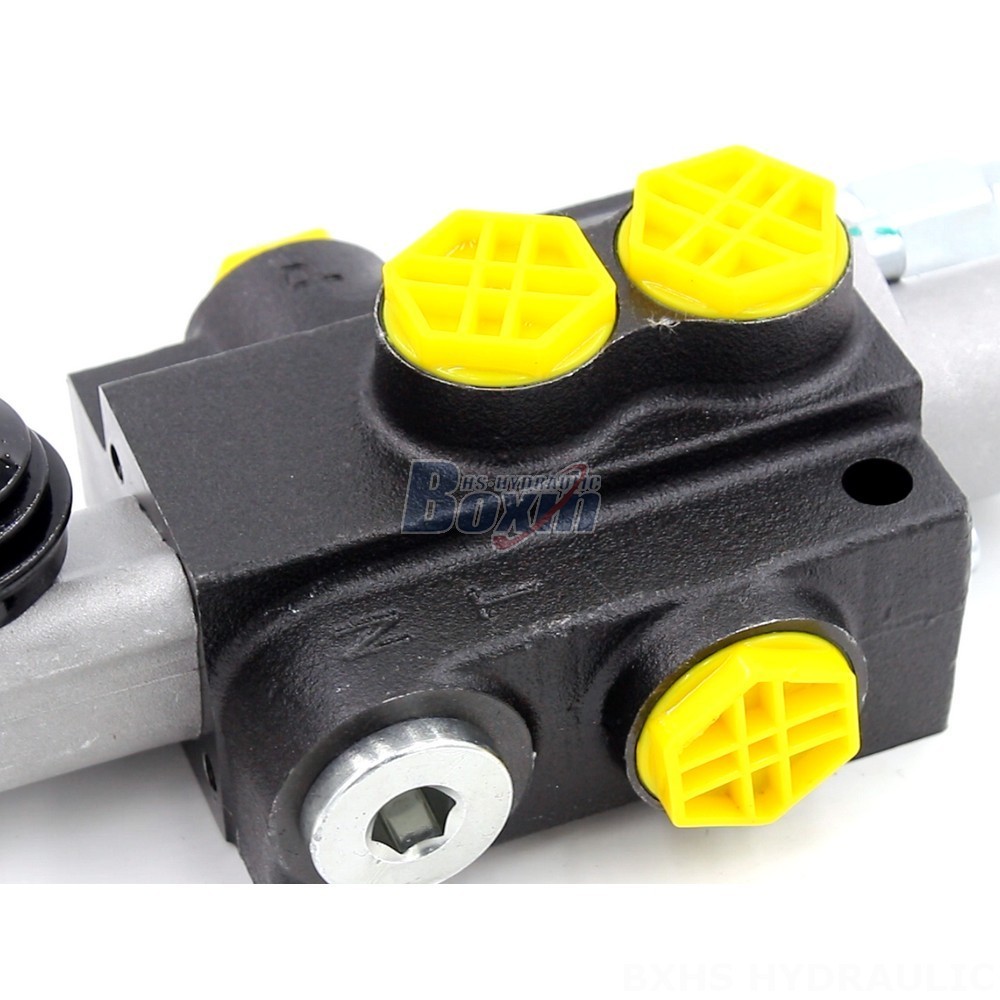

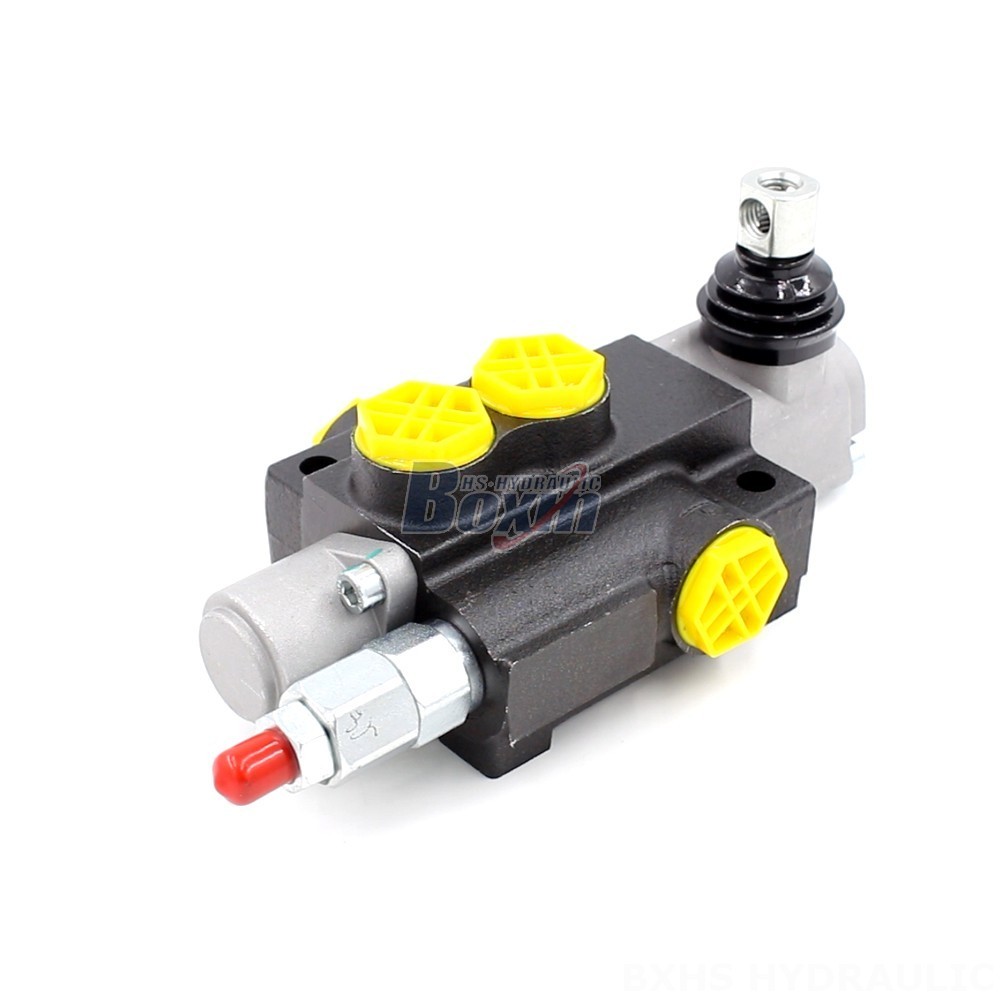

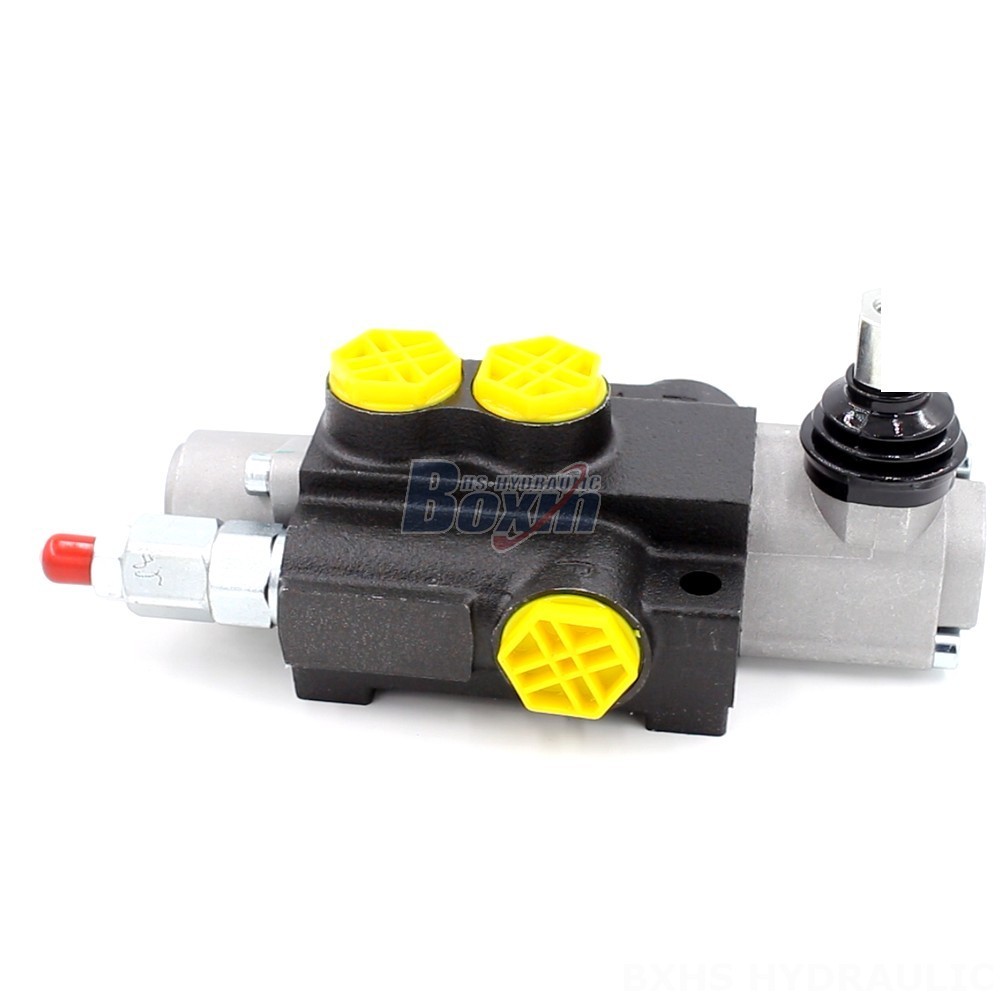

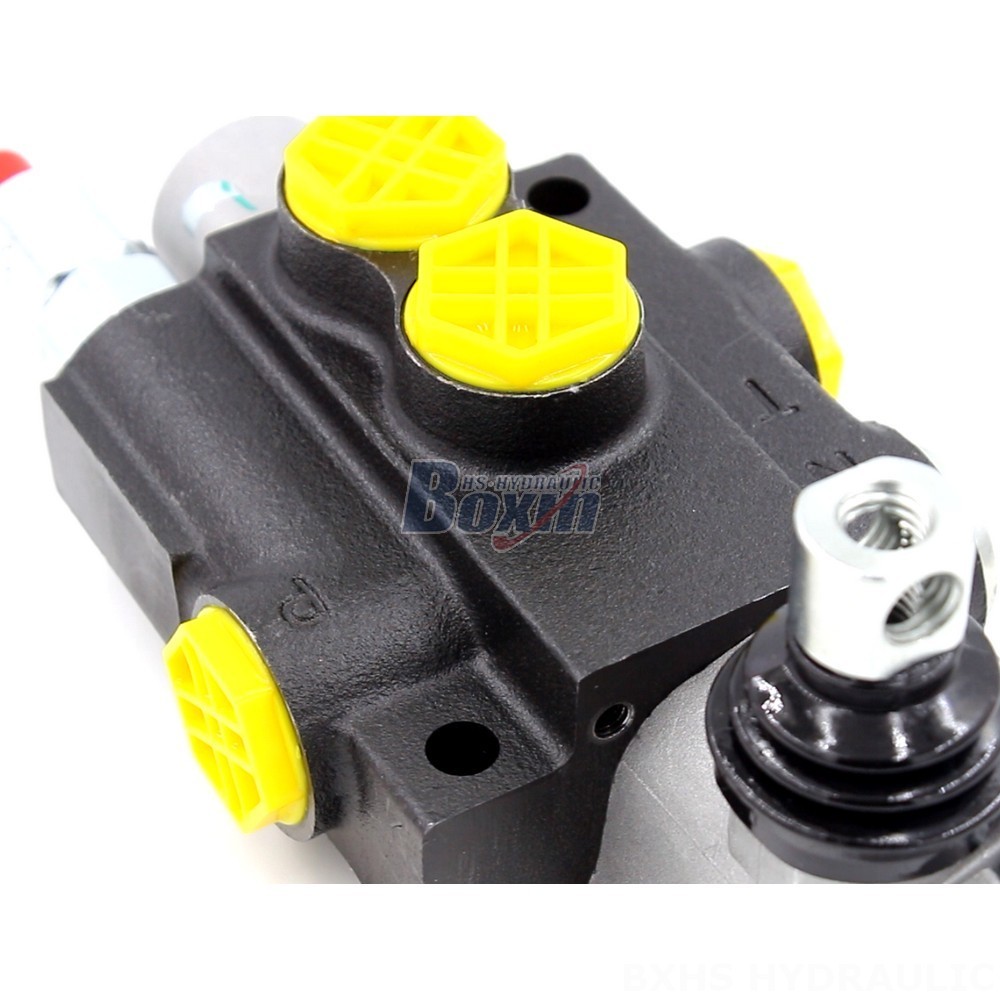

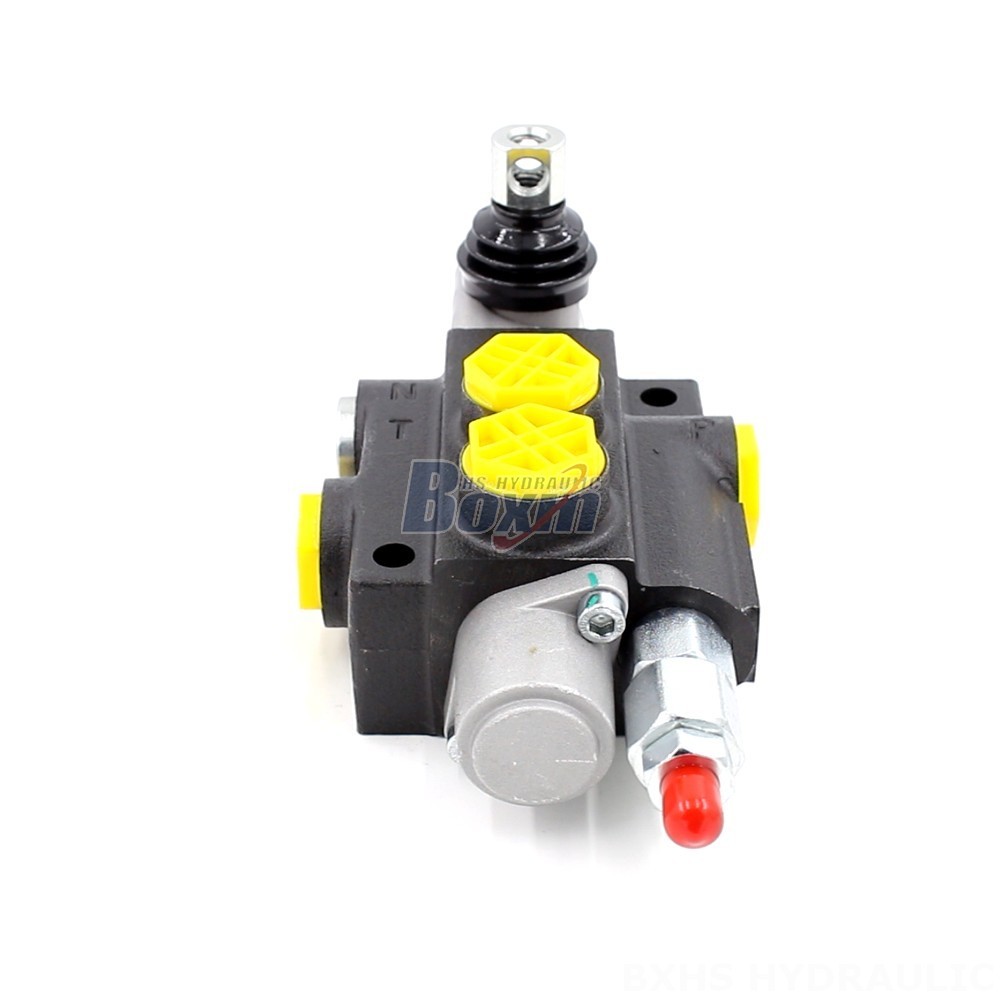

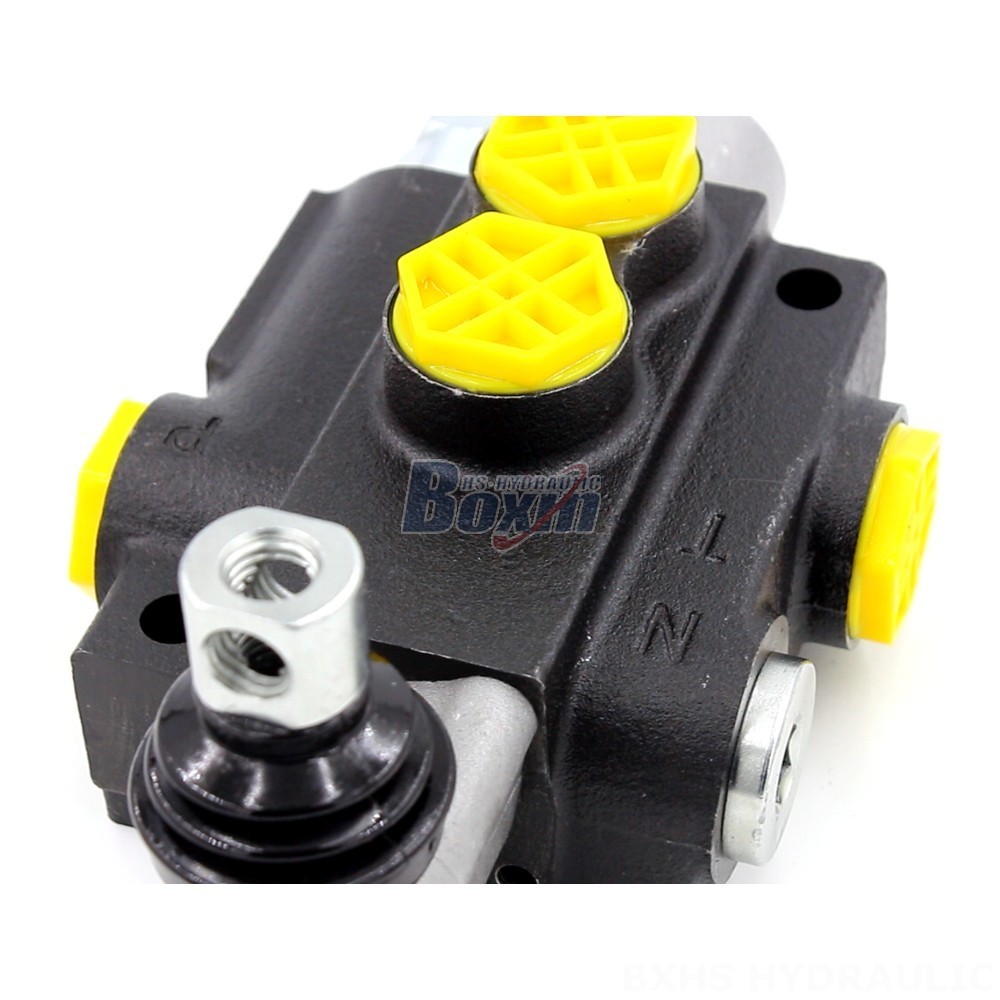

Monoblock Directional Control Valve | P40-G12-1OT Hydraulics

Método de control:Manual

Carrete:1 carrete

Flujo Nominal:40 l/min (10,5 gal EE. UU./min)

Presión Máxima:250 bar (3600 psi)

Puerto de Entrada:G1/2

Puerto de Salida:G1/2

Tamaño de Puerto:G1/2

Marca:BXHS

Tipo de producto:Válvula Direccional Monobloque

Serie de productos:Serie P40 Válvula Direccional Monobloque

Tamaño del embalaje:23*16*11

Peso bruto:3.00 kg

Disponibilidad: En stock

1247 personas están viendo este producto

Monoblock Directional Control Valve | P40-G12-1OT Hydraulics

Monoblock Directional Control Valve | P40-G12-1OT Hydraulics

Monoblock Directional Control Valve | P40-G12-1OT Hydraulics drawing image

This P40 Series Pressure Compensated Control Valve is a monoblock directional control valve with a rated flow of 40 L/min and a maximum pressure of 250 bar. It is suitable for use in material handling, construction, earthmoving, agriculture, and industrial vehicle applications.

Serie P40 Válvula Direccional Monobloque Parámetros
Método de control Manual, Neumático, Electoneumático, Electrohidráulico, Solenoide, Hidráulico, Hidráulico y Manual, Cable, Joystick, Solenoide y joystick, Manual y joystick, Solenoide y cable
Carrete 1 carrete, 2 carretes, 3 carretes, 4 carretes, 5 carretes, 6 carretes, 7 carretes
Rango de temperatura ambiente -40 °C a +80 °C (-40 °F a +176 °F)
Tipo de estructura Válvulas monobloc
Sección 1 sección, 2 secciones, 3 secciones, 4 secciones, 5 secciones, 6 secciones, 7 secciones
Rango de viscosidad de funcionamiento 15 - 75 mm²/s (15 cSt a 75 cSt)
Flujo Nominal 40 l/min (10,5 gal EE. UU./min)
Presión Máxima 250 bar (3600 psi)
Puerto de Entrada G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT
Puerto de Salida G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT
Tamaño de Puerto G3/8, G1/2, M18×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT

The P40-G12-1OT Hydraulics is a high-performance, manual control, monoblock directional control valve designed for demanding applications. This valve offers pressure compensation, ensuring consistent performance across varying loads and pressures. With a rated flow of 40 L/min and a maximum pressure of 250 bar, it is suitable for a wide range of hydraulic systems. Its compact design and robust construction make it ideal for use in material handling, construction, earthmoving, agriculture, and industrial vehicle applications. The valve is compatible with a variety of equipment including telehandlers, forklifts, all terrain cranes, stackers, aerial platforms, motor graders, midi-excavators, mini-excavators, skid steer loaders, and compact wheel loaders.
