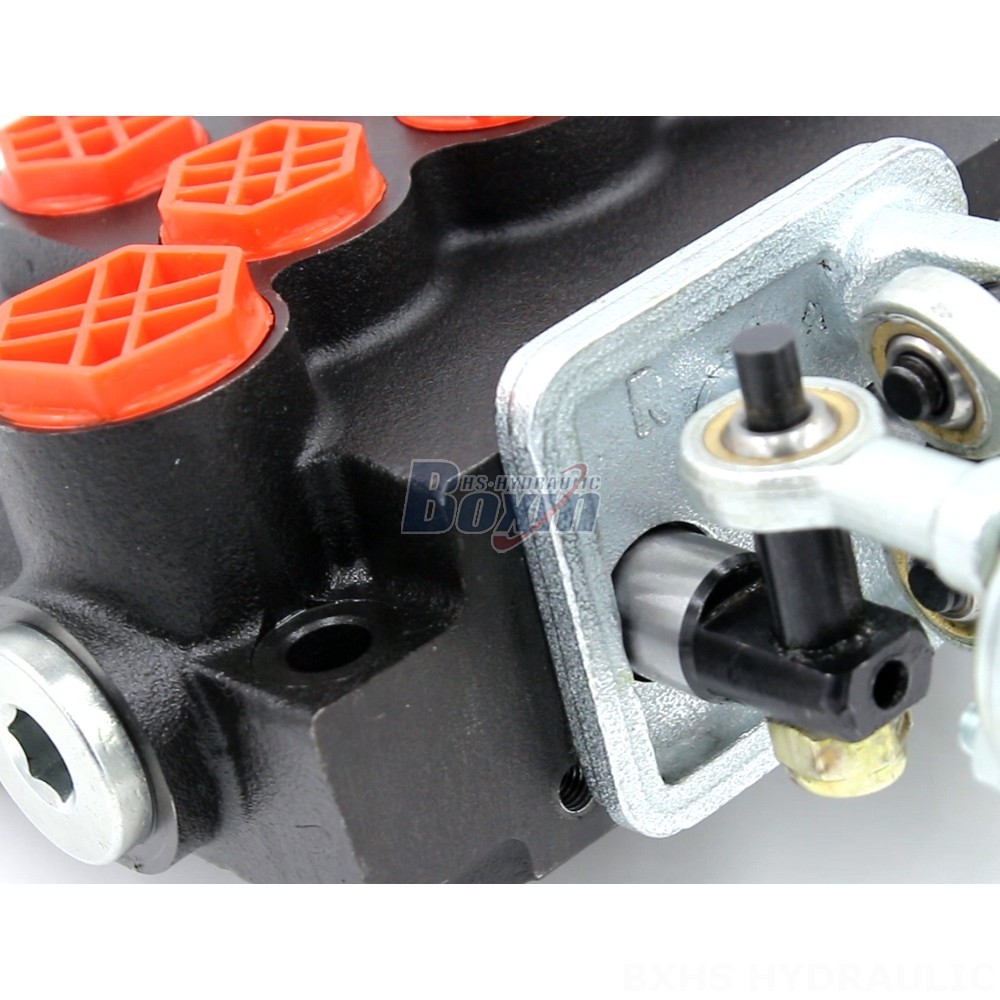

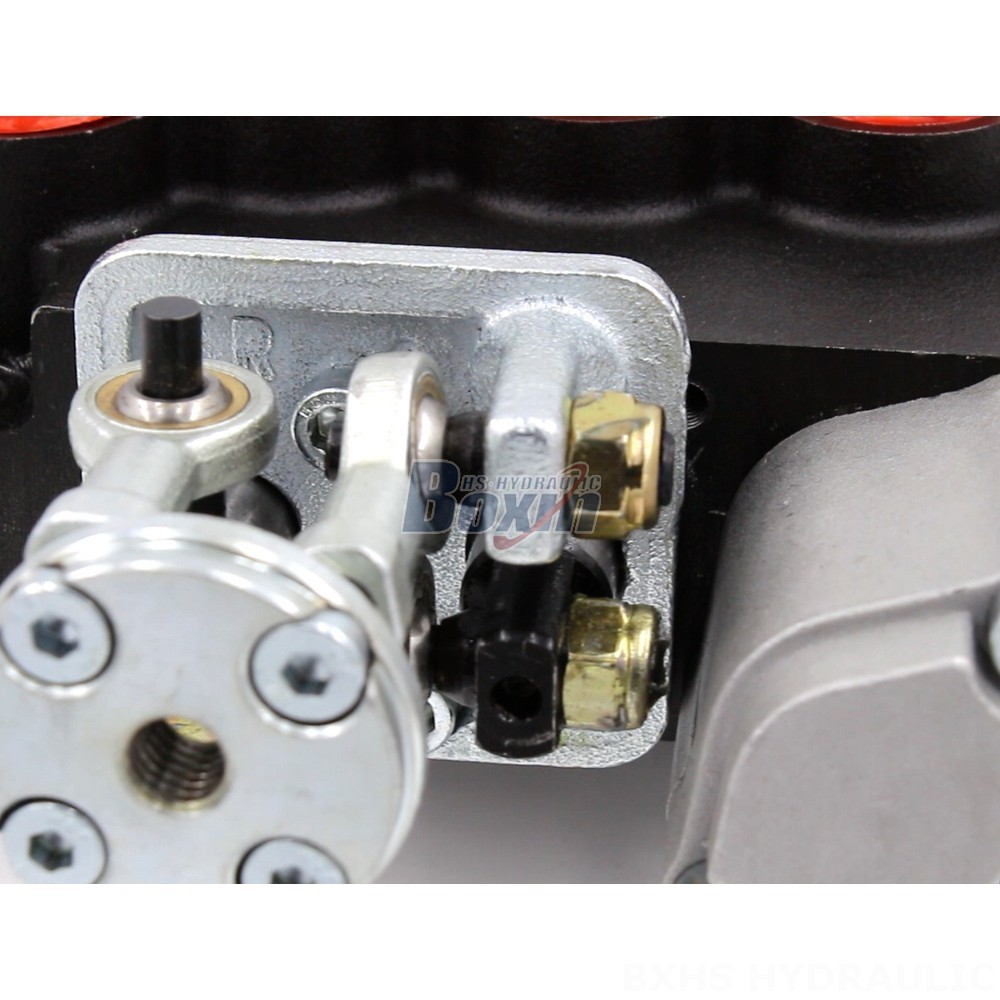

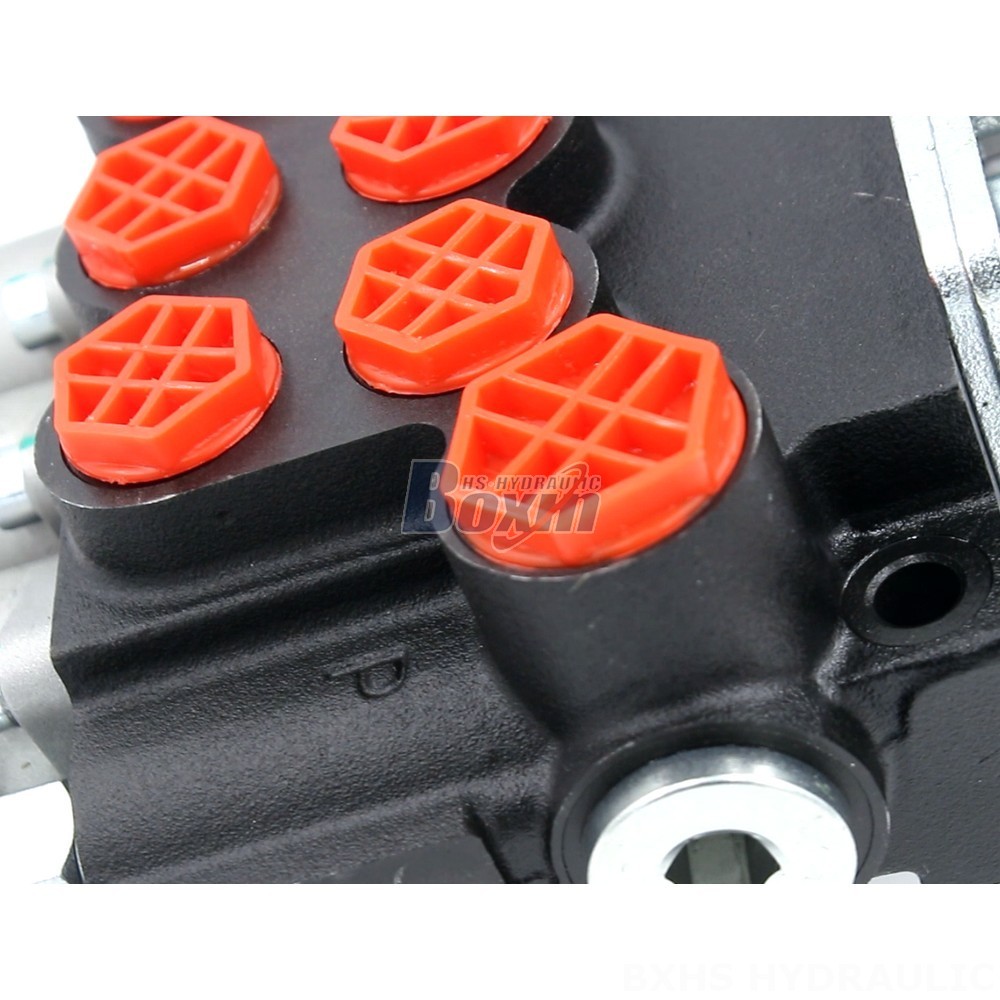

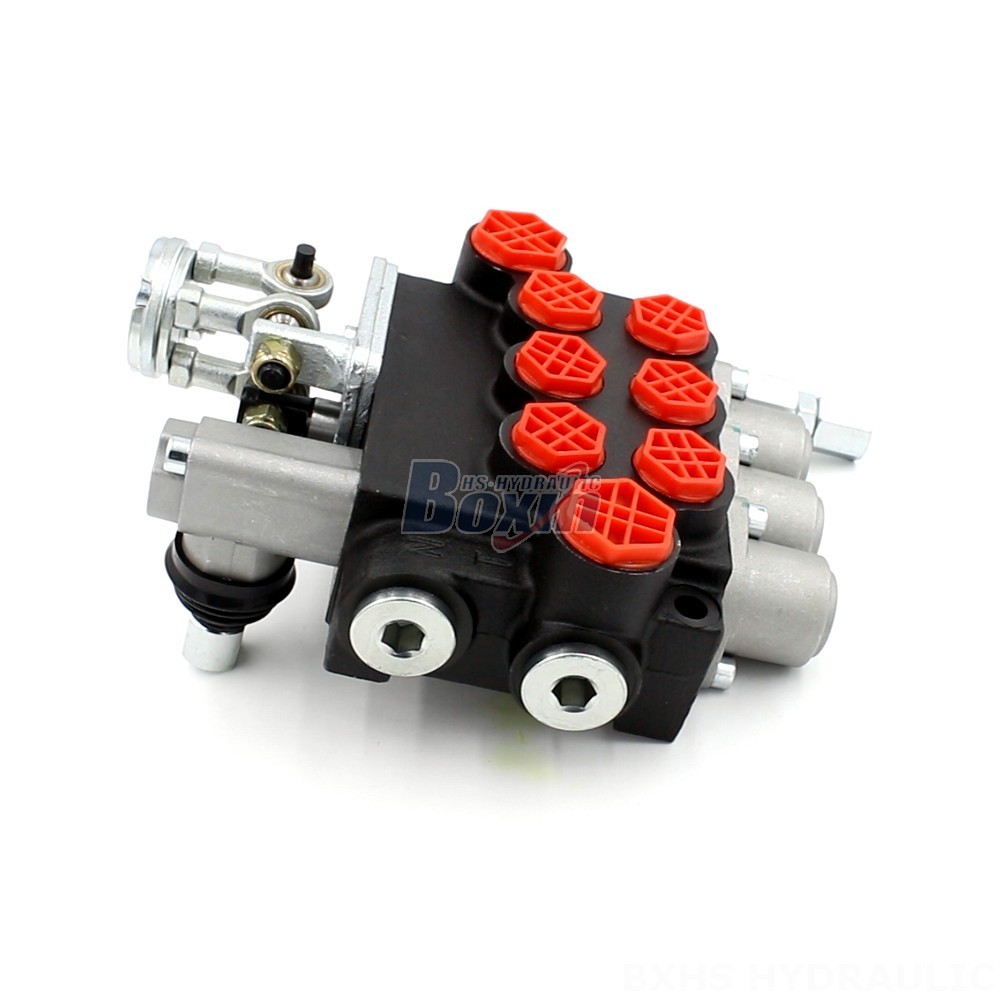

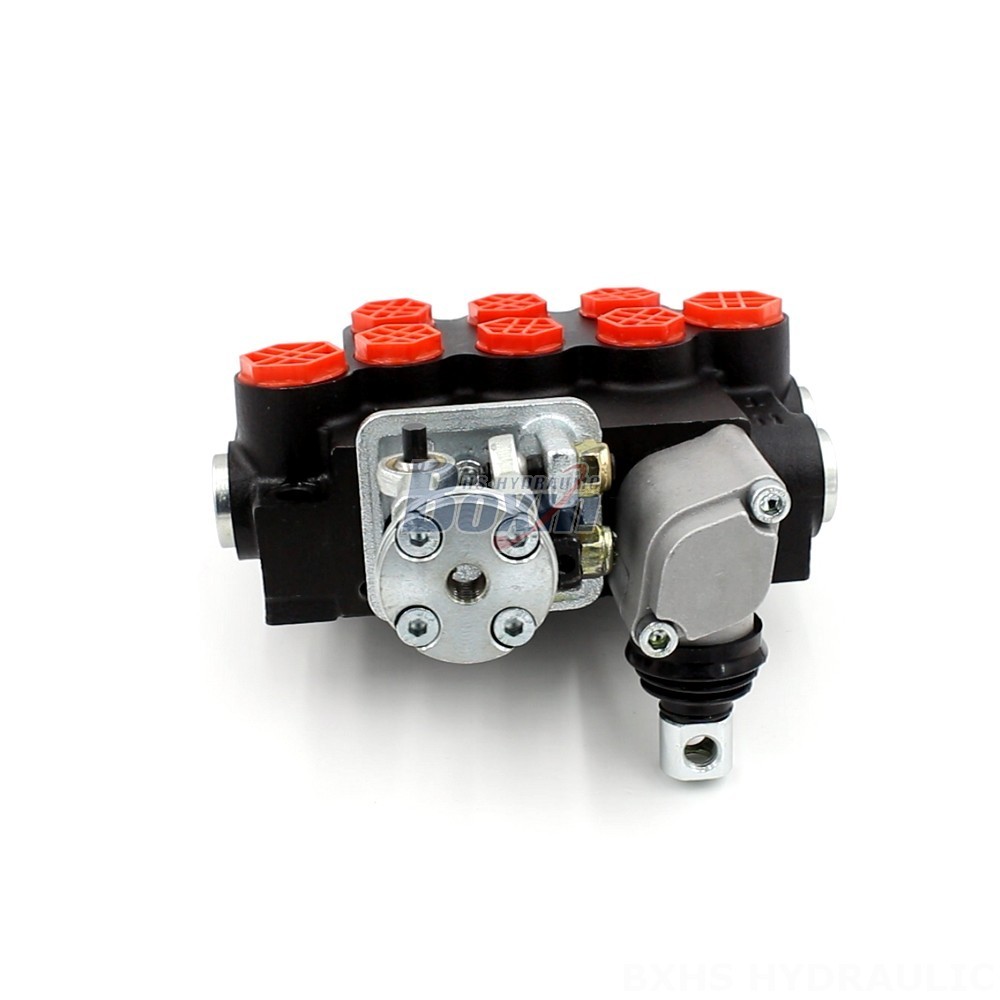

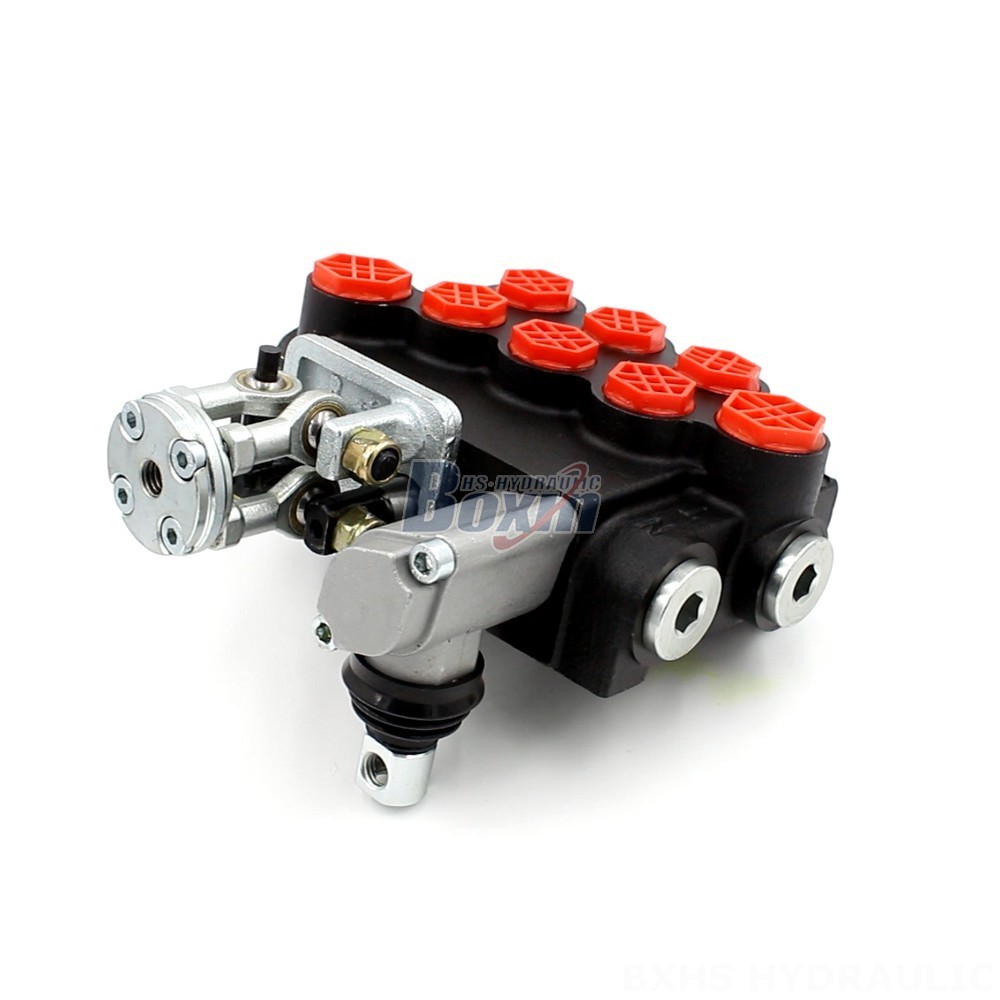

The P40 Valve is a monoblock construction valve that offers superior reliability and performance. It is manually and joystick controlled, has 3 sections, and a rated flow of 40 L/min (10.5 US gpm). The valve has a maximum pressure of 250 bar (3600 psi) and an operating viscosity range of 15 - 75 mm²/s (15 cSt to 75 cSt). It operates in an ambient temperature range of -40°C to +80°C (-40°F to +176°F). The P40 Valve is available in 3 spool and is part of the P40 Series. It is commonly used in material handling, construction and earth moving, agriculture, and industrial vehicles applications. It is specifically suitable for use in telehandlers, forklifts, all terrain cranes, stackers, aerial platforms, motor graders, midi-excavators, mini-excavators, skid steer loaders, and compact wheel loaders.
| Serie P40 Válvula Direccional Monobloque Parámetros | |
|---|---|
| Método de control | Manual, Neumático, Electoneumático, Electrohidráulico, Solenoide, Hidráulico, Hidráulico y Manual, Cable, Joystick, Solenoide y joystick, Manual y joystick, Solenoide y cable |
| Carrete | 1 carrete, 2 carretes, 3 carretes, 4 carretes, 5 carretes, 6 carretes, 7 carretes |
| Rango de temperatura ambiente | -40 °C a +80 °C (-40 °F a +176 °F) |
| Tipo de estructura | Válvulas monobloc |
| Sección | 1 sección, 2 secciones, 3 secciones, 4 secciones, 5 secciones, 6 secciones, 7 secciones |
| Rango de viscosidad de funcionamiento | 15 - 75 mm²/s (15 cSt a 75 cSt) |
| Flujo Nominal | 40 l/min (10,5 gal EE. UU./min) |
| Presión Máxima | 250 bar (3600 psi) |
| Puerto de Entrada | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Puerto de Salida | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Tamaño de Puerto | G3/8, G1/2, M18×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
The P40 Valve is a monoblock construction valve that offers superior reliability and performance. It is manually and joystick controlled, has 3 sections, and a rated flow of 40 L/min (10.5 US gpm). The valve has a maximum pressure of 250 bar (3600 psi) and an operating viscosity range of 15 - 75 mm²/s (15 cSt to 75 cSt). It operates in an ambient temperature range of -40°C to +80°C (-40°F to +176°F). The P40 Valve is available in 3 spool and is part of the P40 Series.
The P40 Valve is commonly used in material handling, construction and earth moving, agriculture, and industrial vehicles applications. It is specifically suitable for use in telehandlers, forklifts, all terrain cranes, stackers, aerial platforms, motor graders, midi-excavators, mini-excavators, skid steer loaders, and compact wheel loaders.
**Key Features:**
* Monoblock construction for superior reliability and performance
* Manual and joystick control
* 3 section
* Rated flow of 40 L/min (10.5 US gpm)
* Maximum pressure of 250 bar (3600 psi)
* Operating viscosity range of 15 - 75 mm²/s (15 cSt to 75 cSt)
* Ambient temperature range of -40°C to +80°C (-40°F to +176°F)
* Available in 3 spool
* Part of the P40 Series
**Applications:**
* Material handling
* Construction and earth moving
* Agriculture
* Industrial vehicles
* Telehandlers
* Forklifts
* All terrain cranes
* Stackers
* Aerial platforms
* Motor graders
* Midi-excavators
* Mini-excavators
* Skid steer loaders
* Compact wheel loaders
