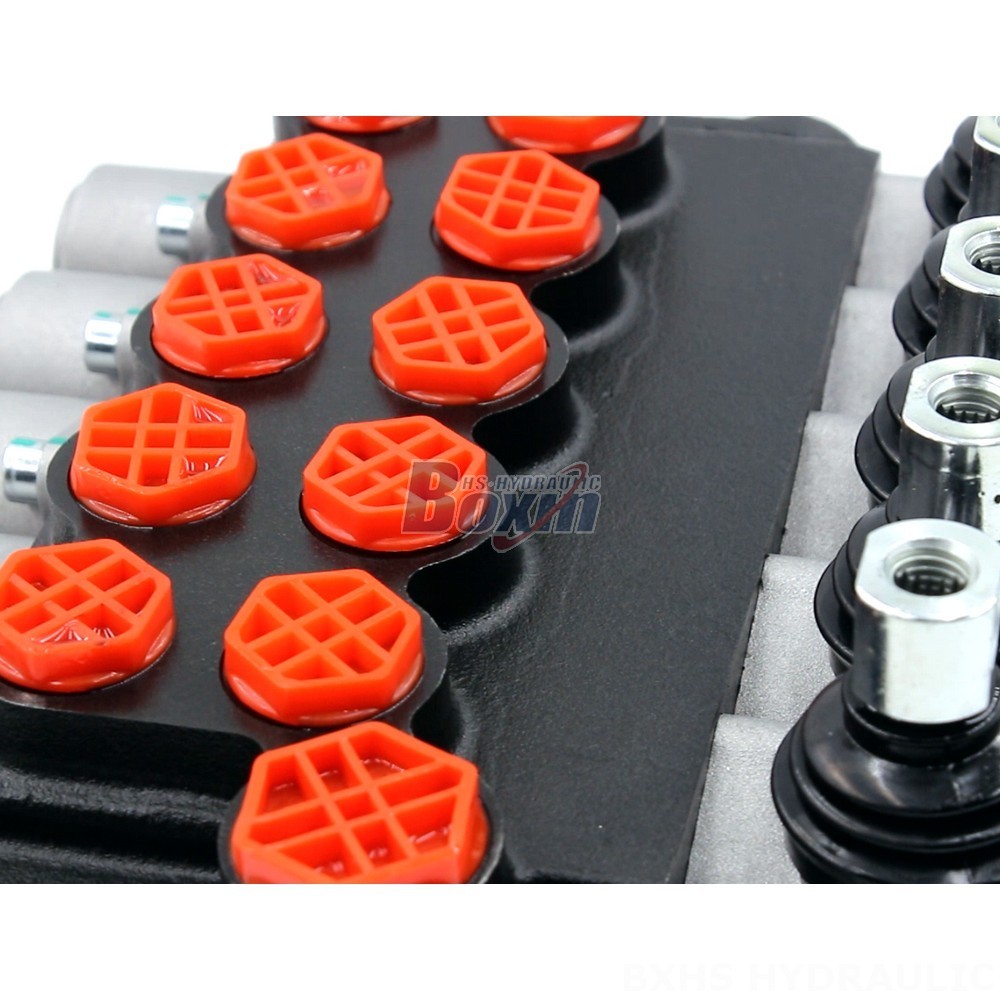

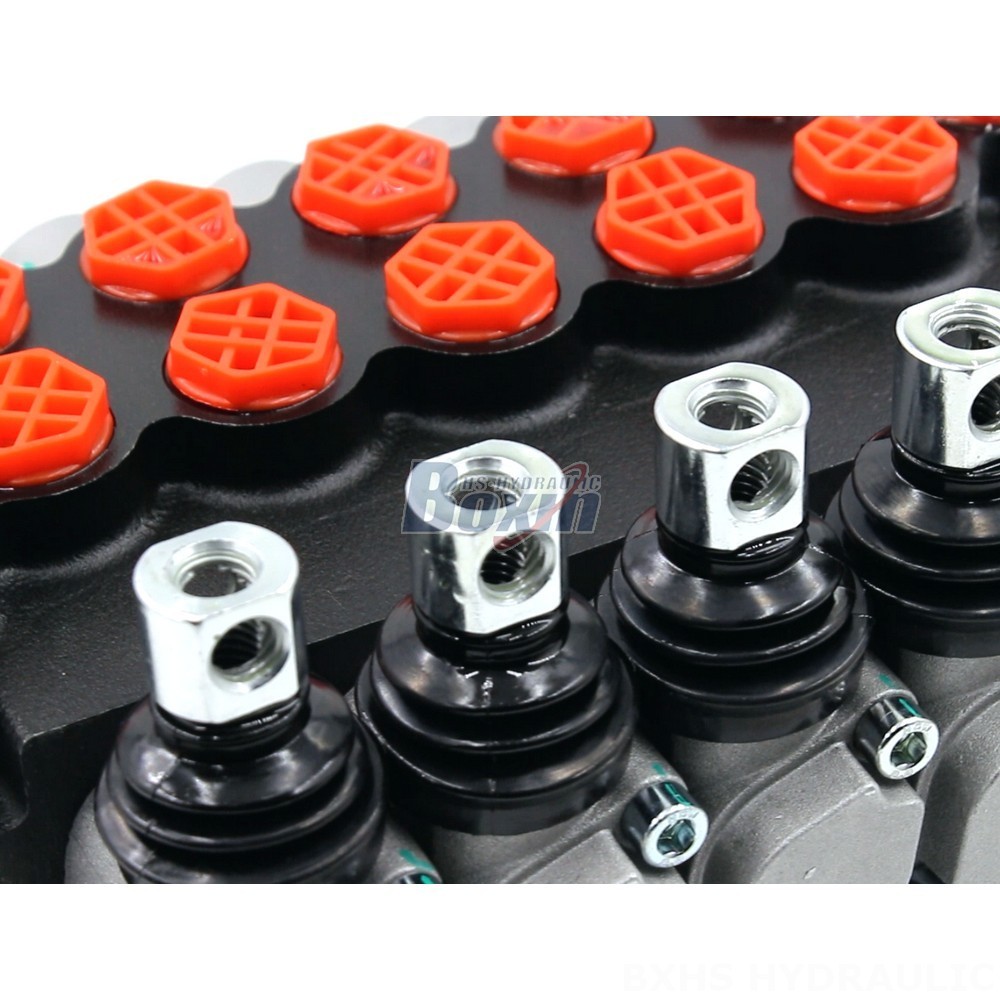

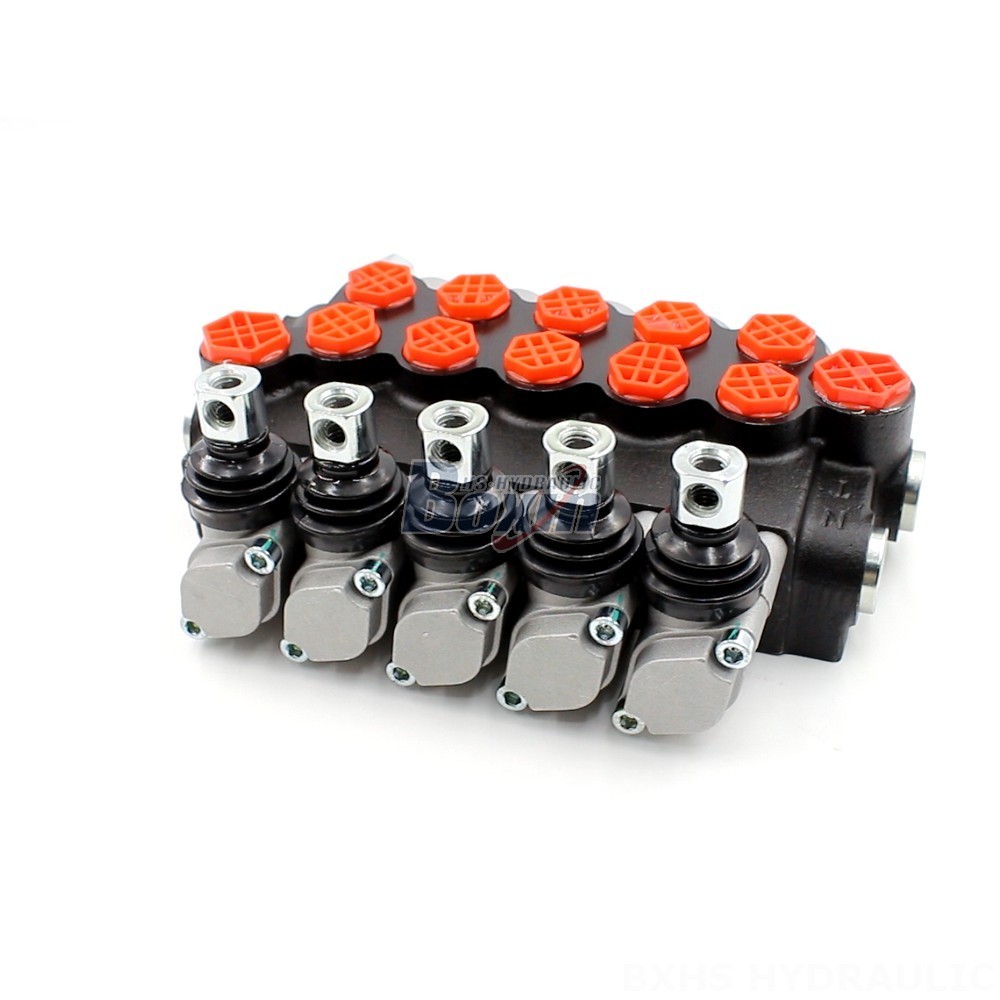

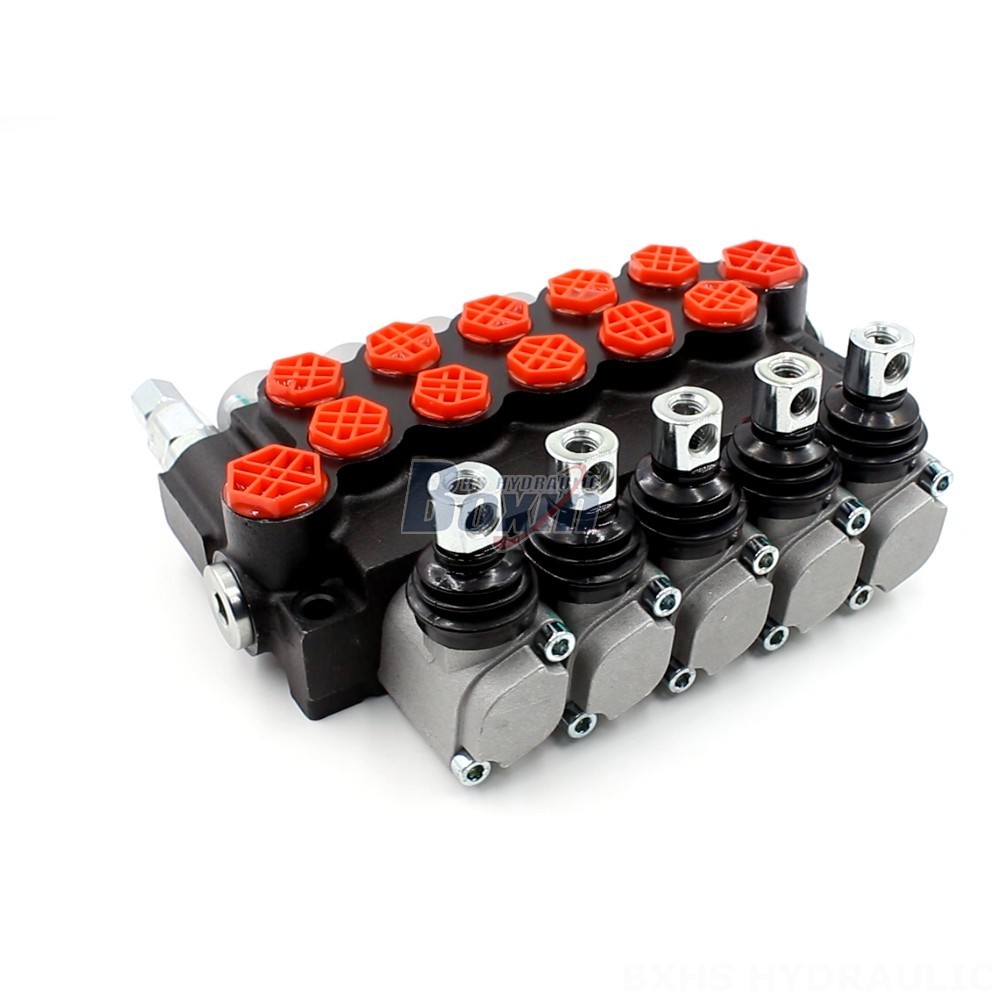

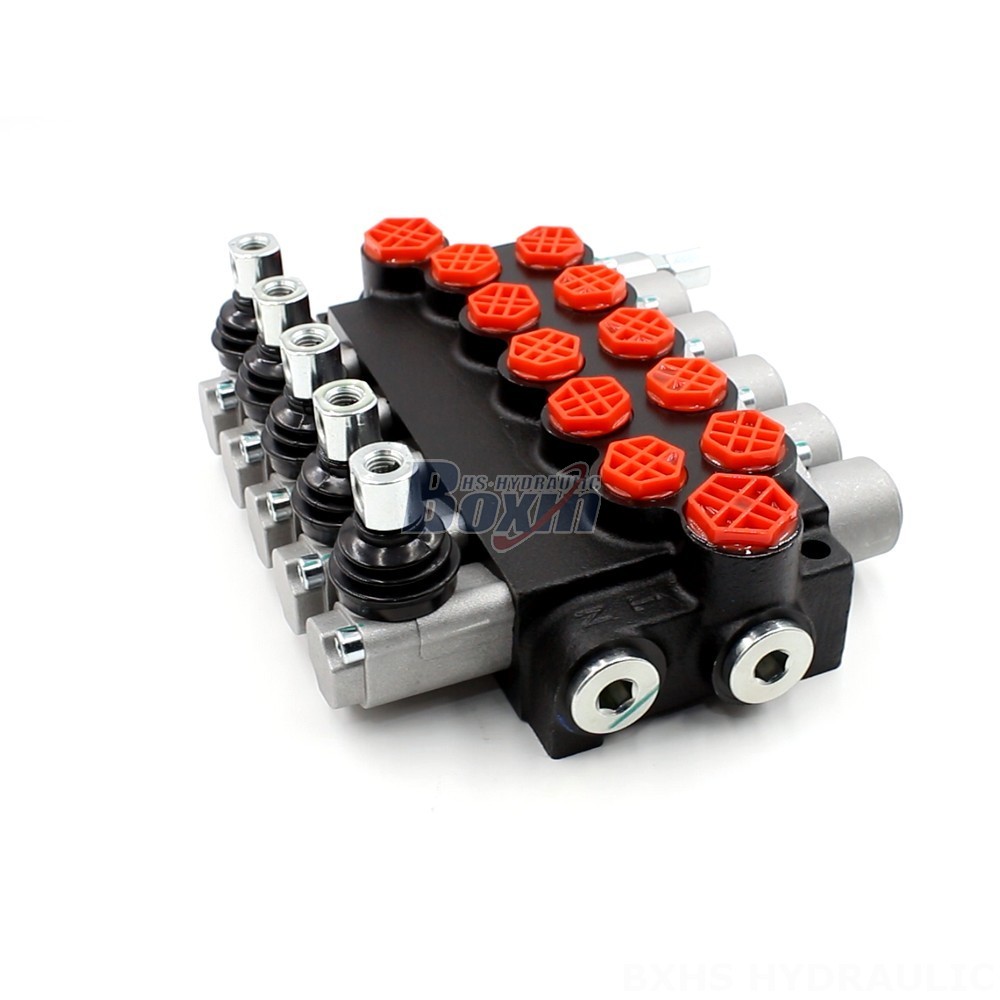

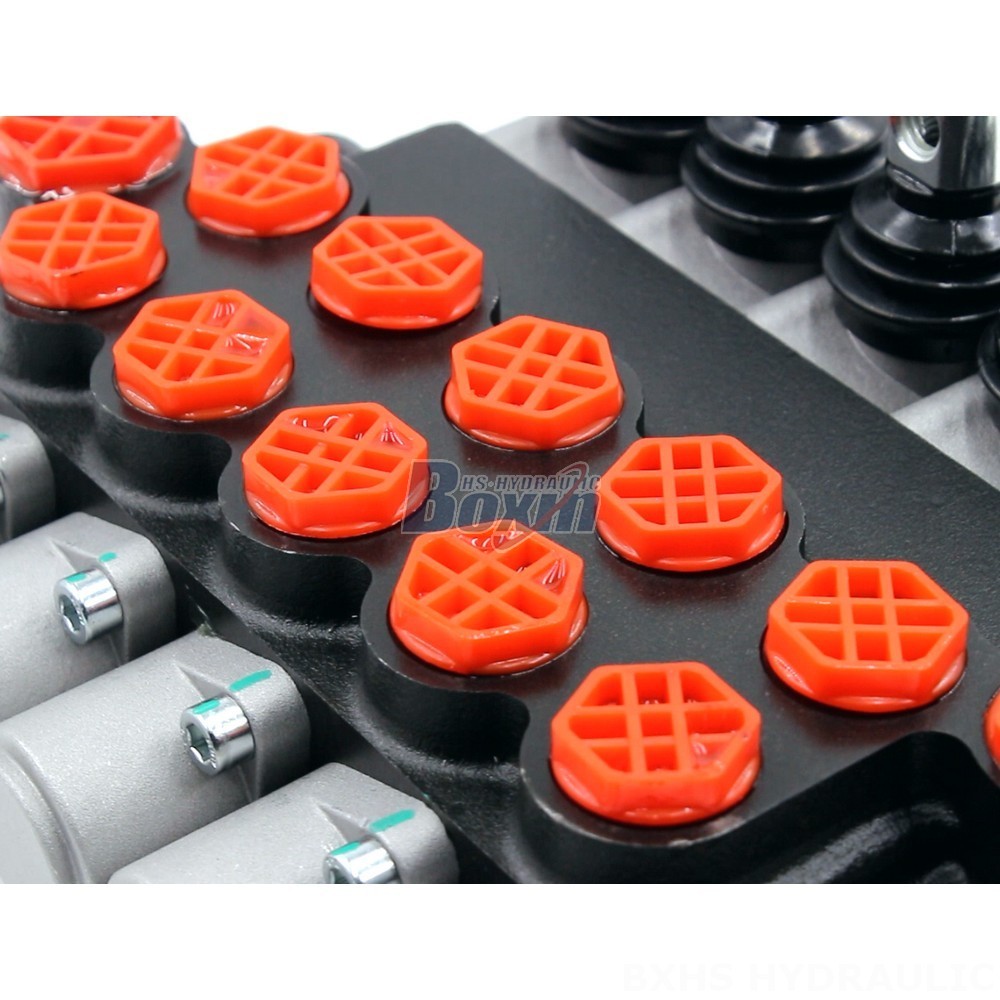

Meet Your Unique Needs: Customizable P40-G12-G38 Valves and Hydraulic Solutions
| Serie P40 Válvula Direccional Monobloque Parámetros | |
|---|---|
| Método de control | Manual, Neumático, Electoneumático, Electrohidráulico, Solenoide, Hidráulico, Hidráulico y Manual, Cable, Joystick, Solenoide y joystick, Manual y joystick, Solenoide y cable |
| Carrete | 1 carrete, 2 carretes, 3 carretes, 4 carretes, 5 carretes, 6 carretes, 7 carretes |
| Rango de temperatura ambiente | -40 °C a +80 °C (-40 °F a +176 °F) |
| Tipo de estructura | Válvulas monobloc |
| Sección | 1 sección, 2 secciones, 3 secciones, 4 secciones, 5 secciones, 6 secciones, 7 secciones |
| Rango de viscosidad de funcionamiento | 15 - 75 mm²/s (15 cSt a 75 cSt) |
| Flujo Nominal | 40 l/min (10,5 gal EE. UU./min) |
| Presión Máxima | 250 bar (3600 psi) |
| Puerto de Entrada | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Puerto de Salida | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Tamaño de Puerto | G3/8, G1/2, M18×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
P40-G12-G38 valves are customizable to meet your specific requirements. We offer OEM, ODM, and private label services to help you create the perfect solution for your application. Our valves are designed for use in a wide range of applications, including material handling, construction, earth moving, agriculture, and industrial vehicles.
With a rated flow of 40 L/min (10.5 US gpm) and a max pressure of 250 bar (3600 psi), our valves are built to perform in the most demanding applications. They feature a monoblock design for increased durability and reliability. The operating viscosity range is 15 - 75 mm²/s (15 cSt to 75 cSt), and the ambient temperature range is -40°C to +80°C (-40°F to +176°F).
Our valves are available with a variety of spool options to meet your specific needs. The P40 series valves are also available in a variety of configurations to meet the space and performance requirements of any application.
