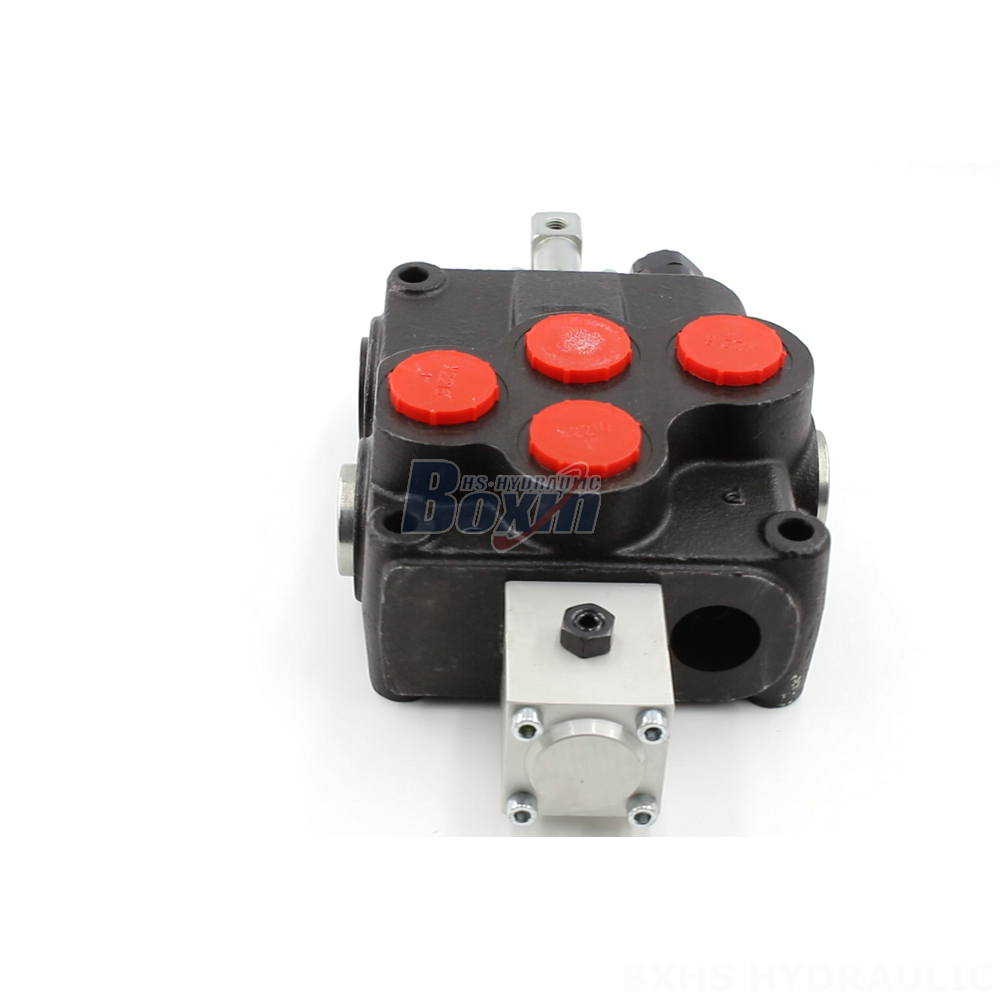

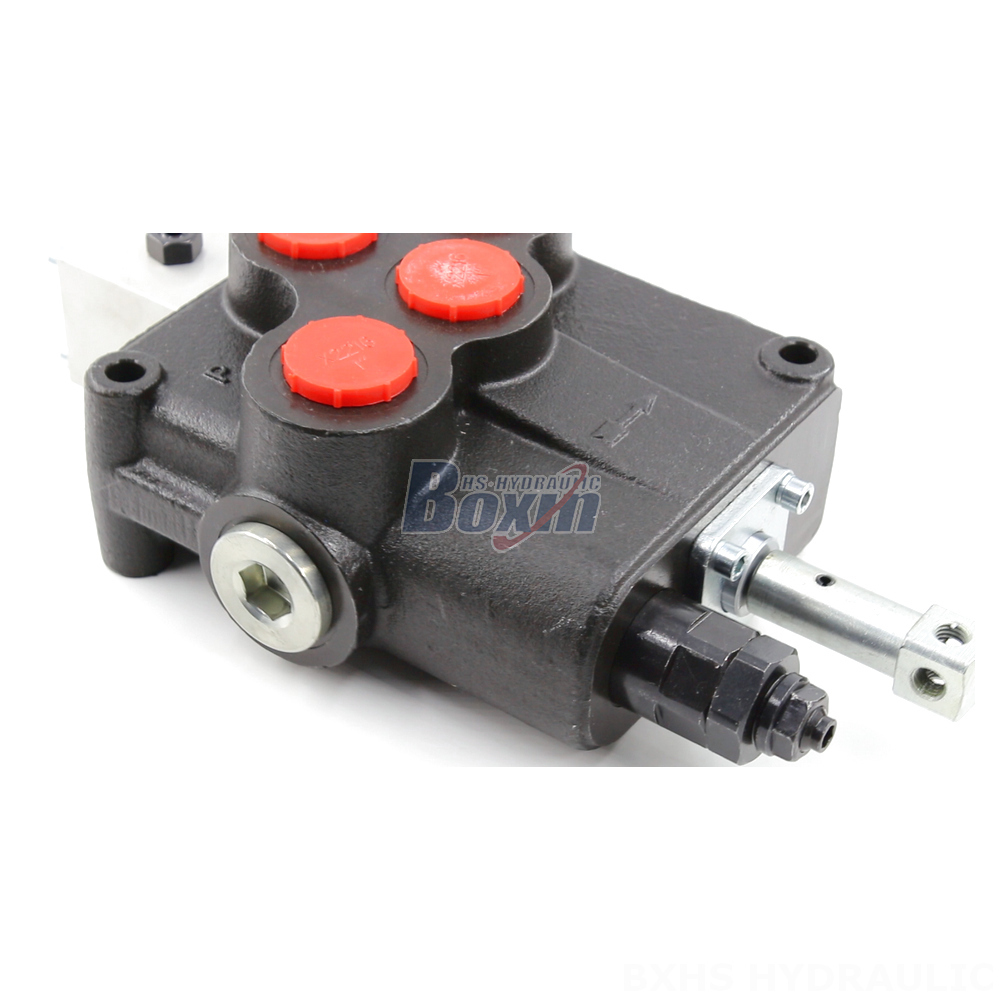

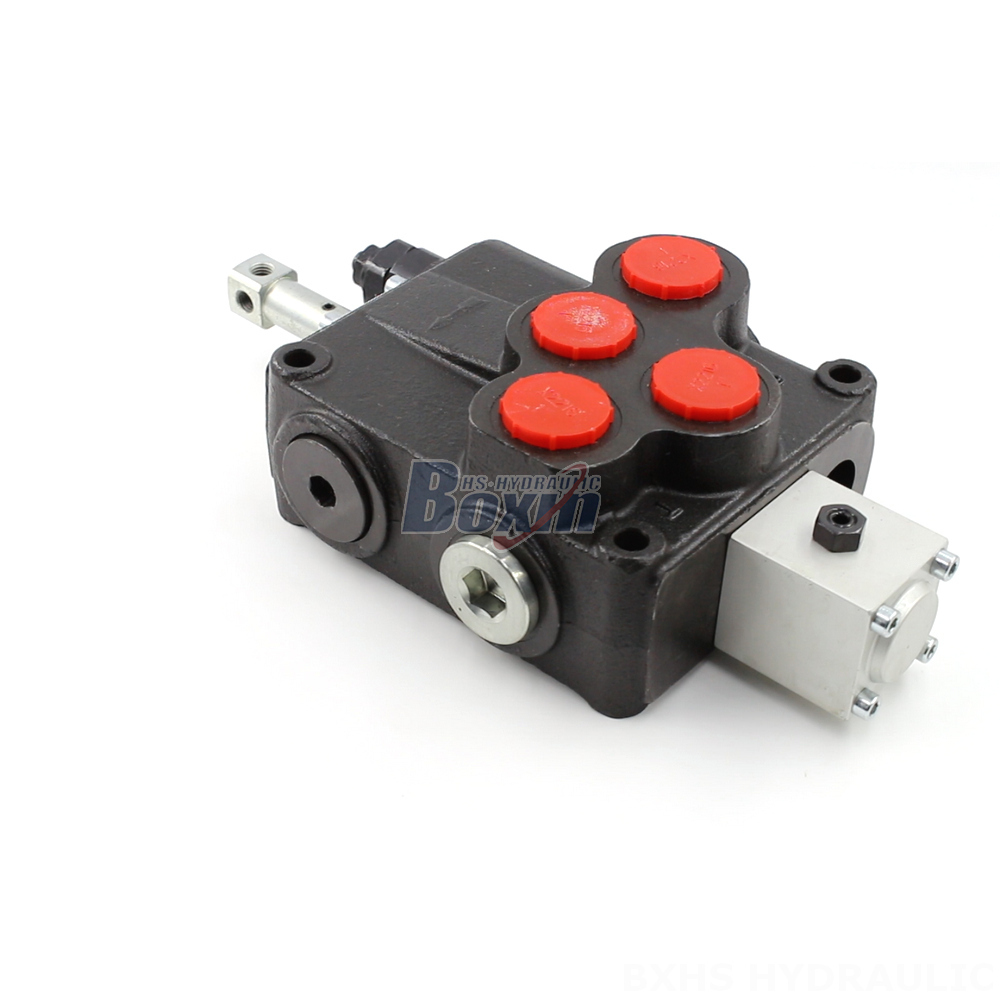

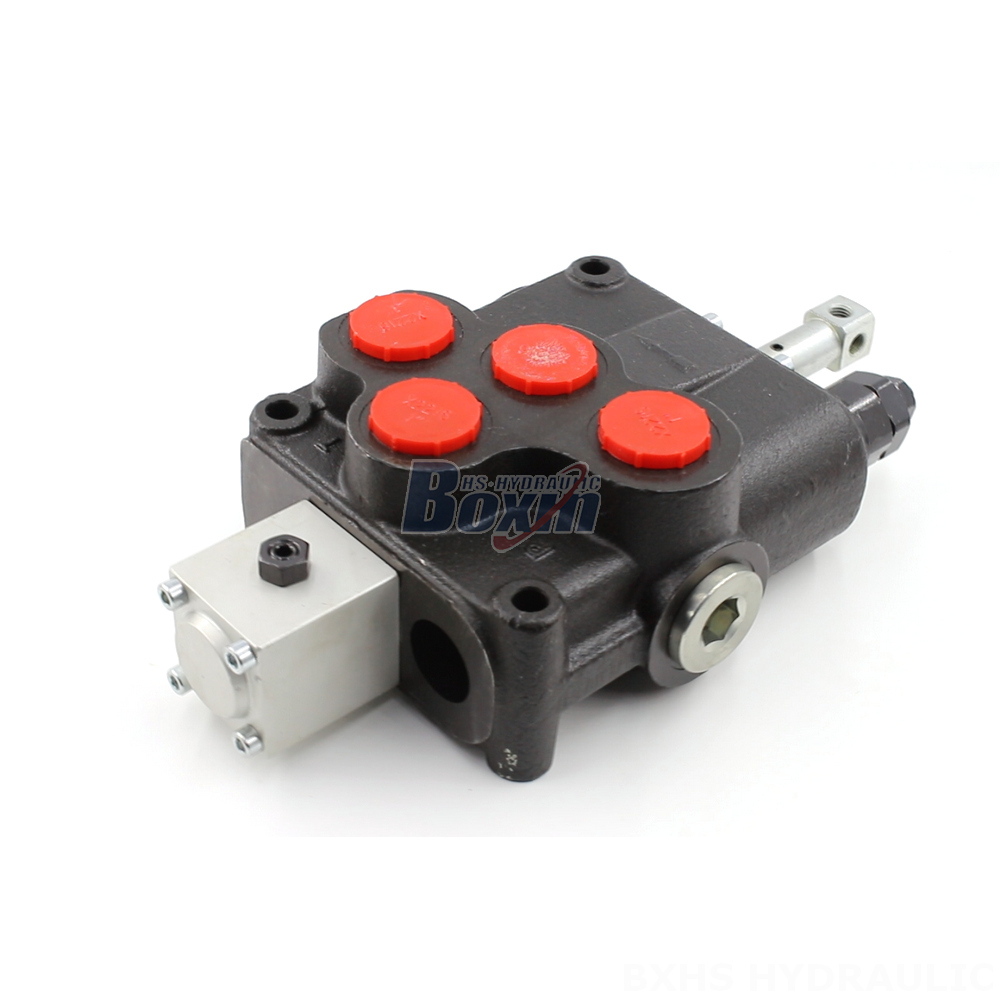

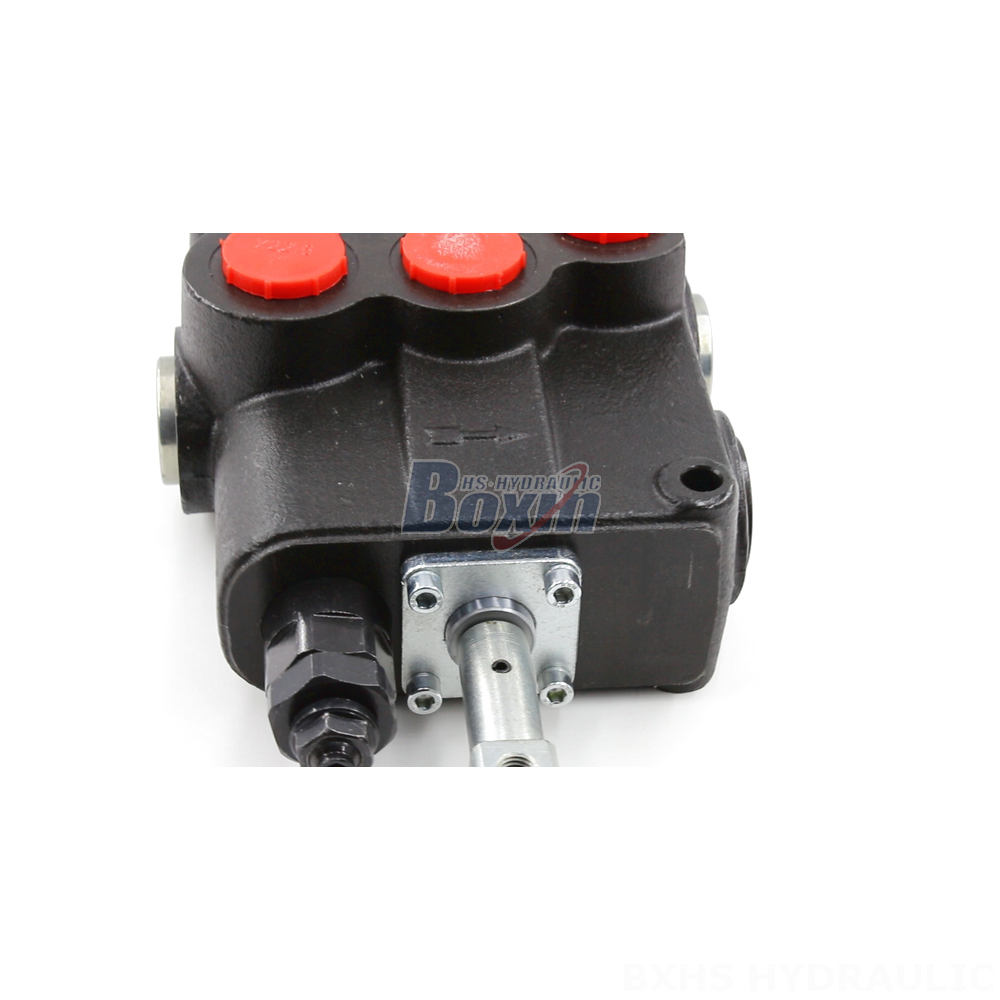

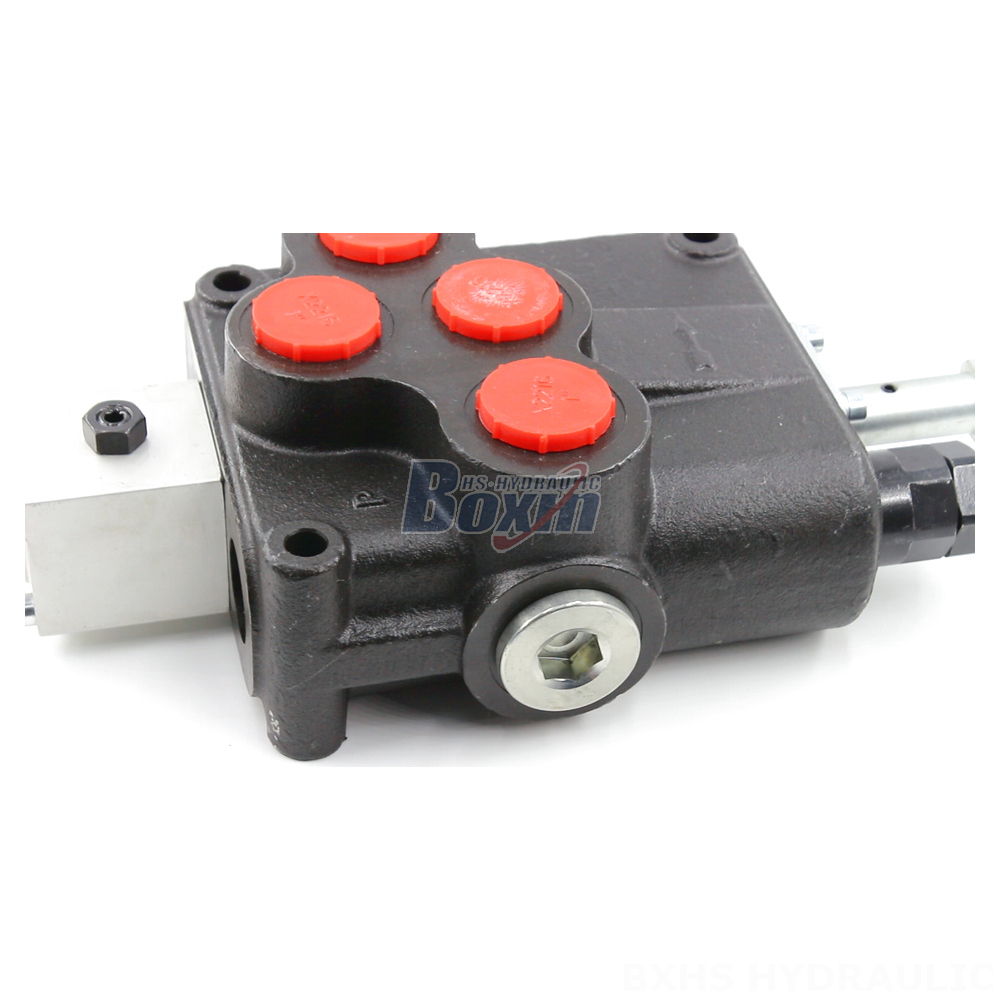

The SD18 Series Log Splitter Hydraulic Lever Manual Monoblock Directional Valve is a high-performance hydraulic valve designed for demanding applications in material handling, construction, agriculture, and industrial vehicles. It features a robust monoblock construction, manual control, and a rated flow of 120 L/min (31.7 US gpm) at a maximum pressure of 315 bar (4600 psi). Ideal for use in telehandlers, forklifts, cranes, stackers, backhoes, seeding machines, harvesters, balers, skip loaders, and wood splitters.
| Serie SD18 Válvula Direccional Monobloque Parámetros | |
|---|---|
| Método de control | Manual, Neumático, Electoneumático, Electrohidráulico, Hidráulico, Hidráulico y Manual, Cable, Joystick |
| Carrete | 1 carrete, 2 carretes, 3 carretes, 4 carretes |
| Flujo Nominal | 160 l/min (42,2 gal EE. UU./min) |
| Presión Máxima | 305 bar (4400 psi) |
| Puerto de Entrada | G1/2, G1, SAE 16 |
| Puerto de Salida | G1, SAE 16 |
| Tamaño de Puerto | G1, SAE 16 |
| Sección | 1 sección, 2 secciones, 3 secciones, 4 secciones |
| Tipo de estructura | Válvulas monobloc |
| Rango de temperatura ambiente | -40 °C a +80 °C (-40 °F a +176 °F) |
| Rango de viscosidad de funcionamiento | 12 - 400 mm²/s (12 cSt a 400 cSt) |
This SD18 Series hydraulic valve is a manual, monoblock directional valve specifically designed for log splitting applications. It offers a single section with one spool, providing efficient and reliable control of hydraulic flow. The valve features a rated flow of 120 L/min (31.7 US gpm) and a maximum operating pressure of 315 bar (4600 psi), ensuring it can handle demanding tasks. Its robust construction and wide operating viscosity range (-40°C to +80°C/-40°F to +176°F) make it suitable for various environments. The SD18 Series is an excellent choice for manufacturers and distributors seeking a high-quality, reliable, and efficient hydraulic valve for their log splitting equipment.
