The P80-U78-4OT series is a 4-section, manual monoblock directional valve designed for exceptional performance in demanding applications. Suitable for a wide range of industries, including material handling, construction, and agriculture, this valve offers exceptional control and reliability with a rated flow of up to 80 L/min, a max pressure of 250 bar, and a broad operating viscosity range.
| Serie P80 Válvula Direccional Monobloque Parámetros | |
|---|---|
| Método de control | Manual, Neumático, Electoneumático, Electrohidráulico, Solenoide, Hidráulico, Hidráulico y Manual, Cable, Joystick, Manual y joystick |
| Carrete | 1 carrete, 2 carretes, 3 carretes, 4 carretes, 5 carretes, 6 carretes, 7 carretes |
| Rango de temperatura ambiente | -40 °C a +80 °C (-40 °F a +176 °F) |
| Tipo de estructura | Válvulas monobloc |
| Sección | 1 sección, 2 secciones, 3 secciones, 4 secciones, 5 secciones, 6 secciones, 7 secciones |
| Rango de viscosidad de funcionamiento | 15 - 75 mm²/s (15 cSt a 75 cSt) |
| Flujo Nominal | 80 l/min (21,2 gal EE. UU./min) |
| Presión Máxima | 315 bar (4600 psi) |
| Puerto de Entrada | G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT |
| Puerto de Salida | G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT |
| Tamaño de Puerto | G1/2, G3/4, M22×1.5, M27×2.0, SAE 10, 1/2 NPT, 3/4 NPT |

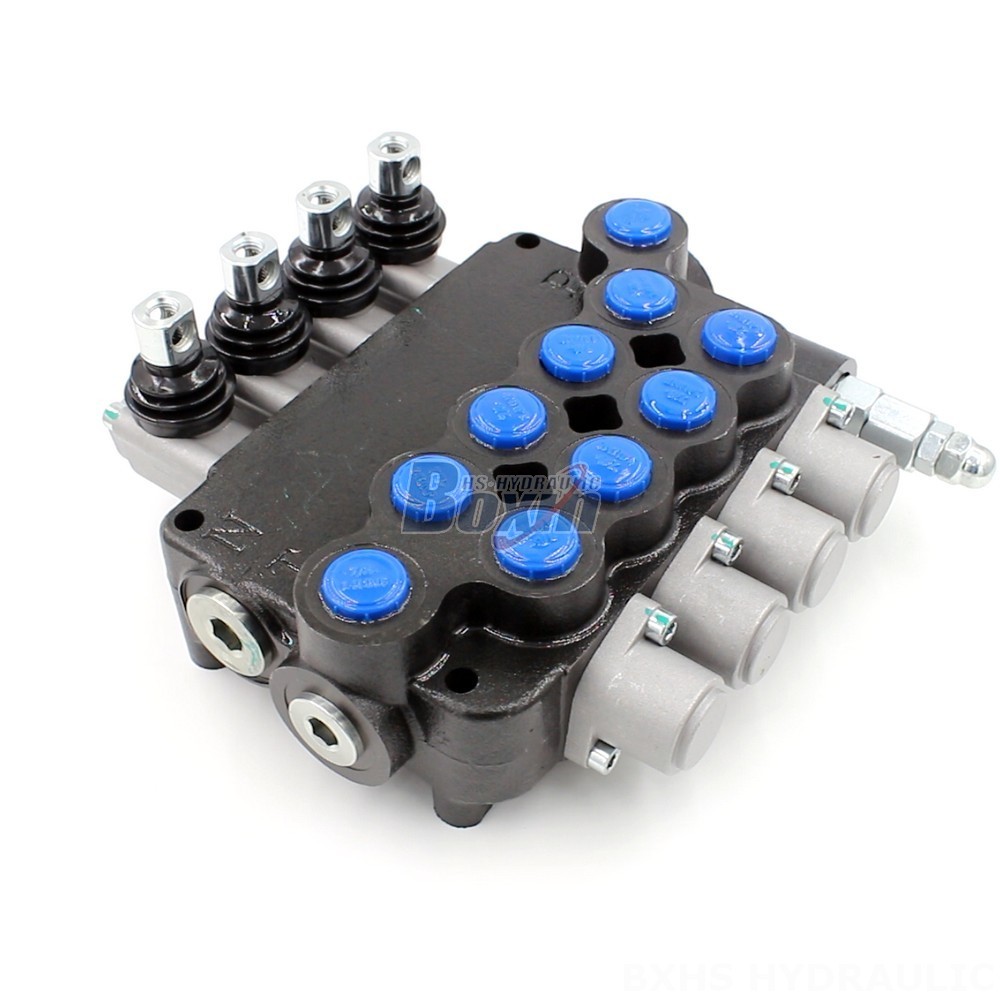

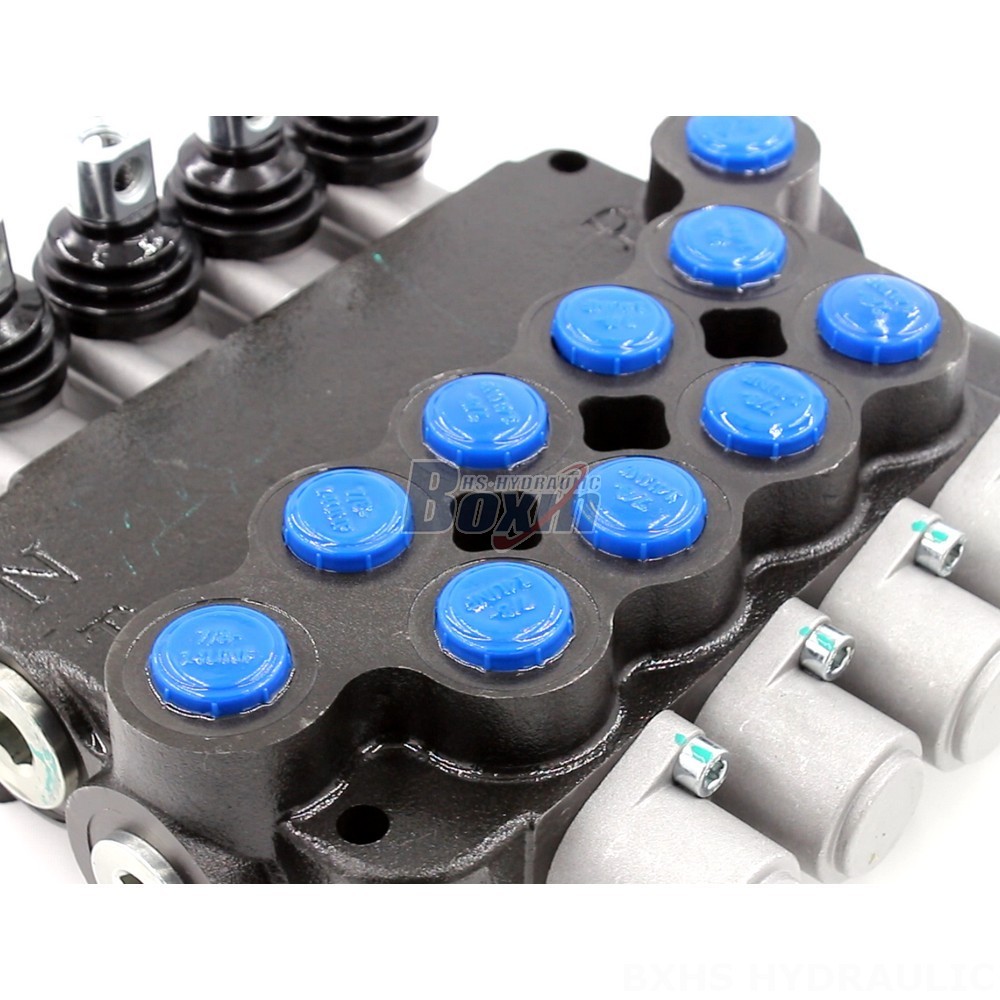

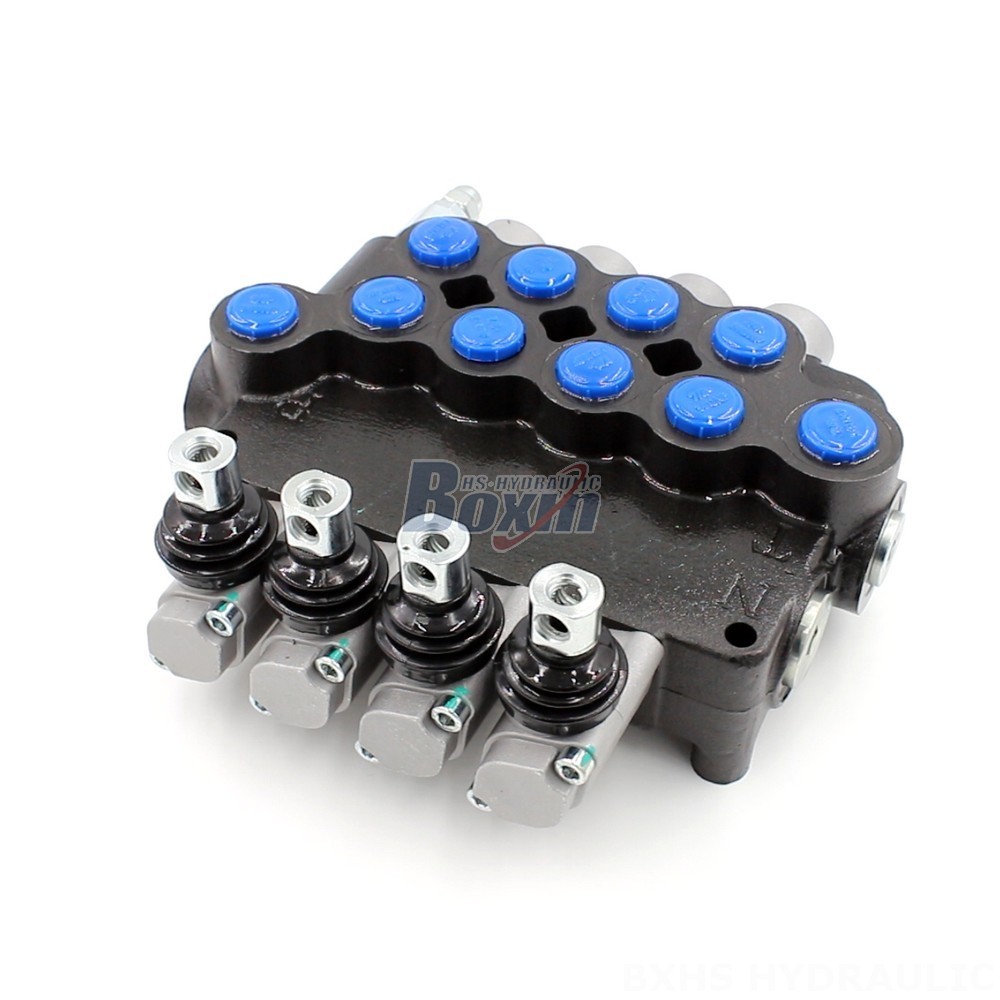

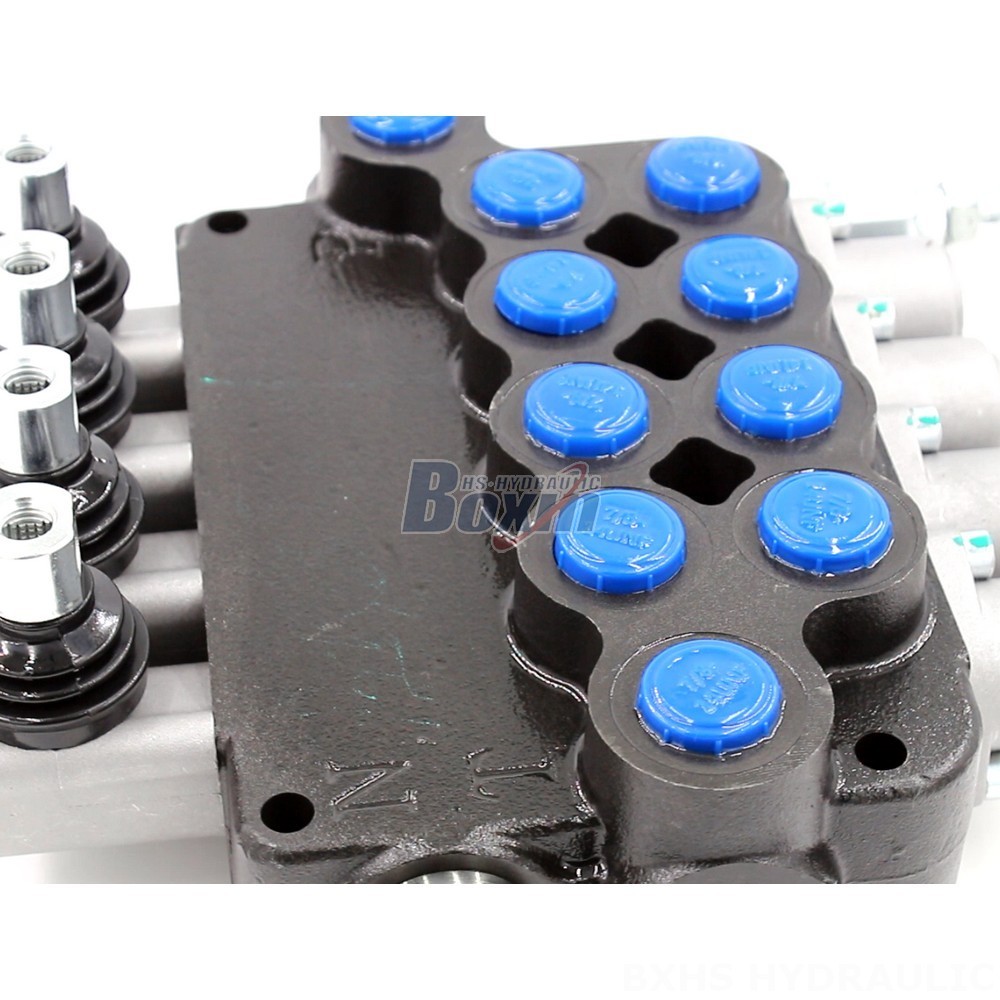

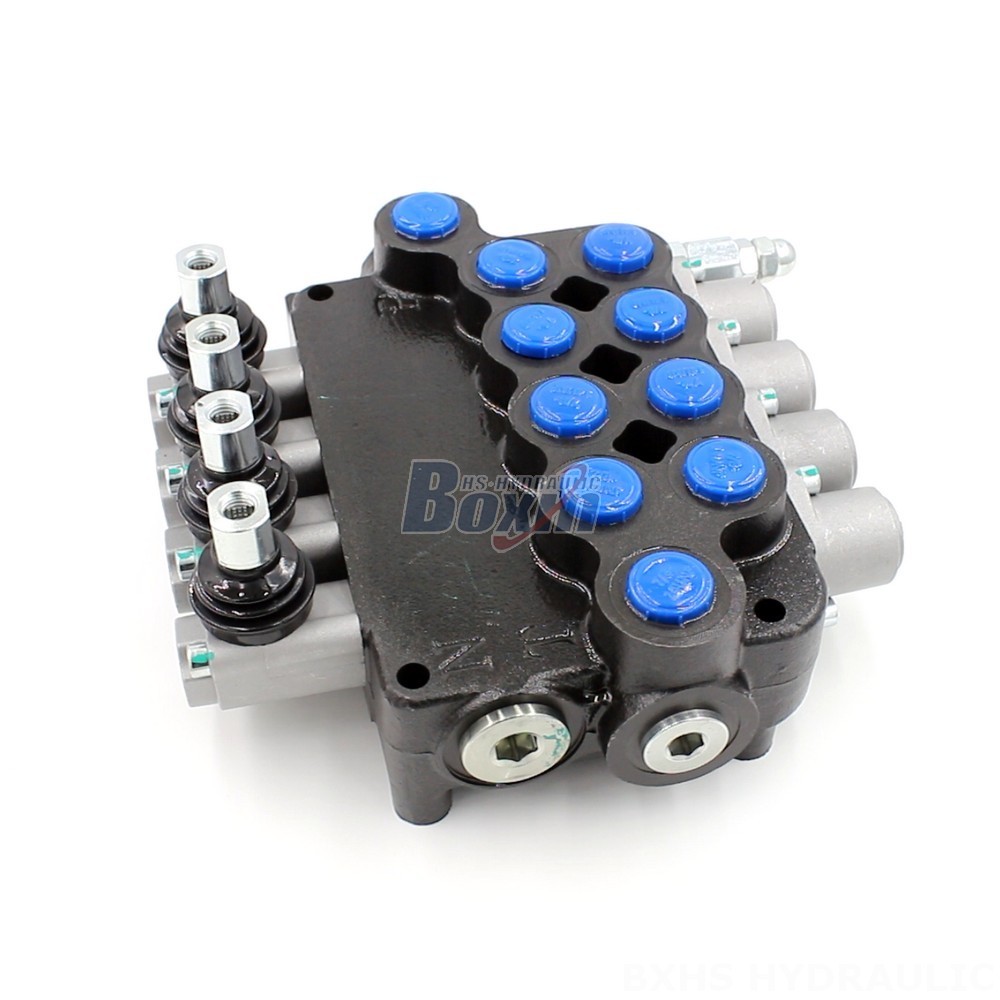

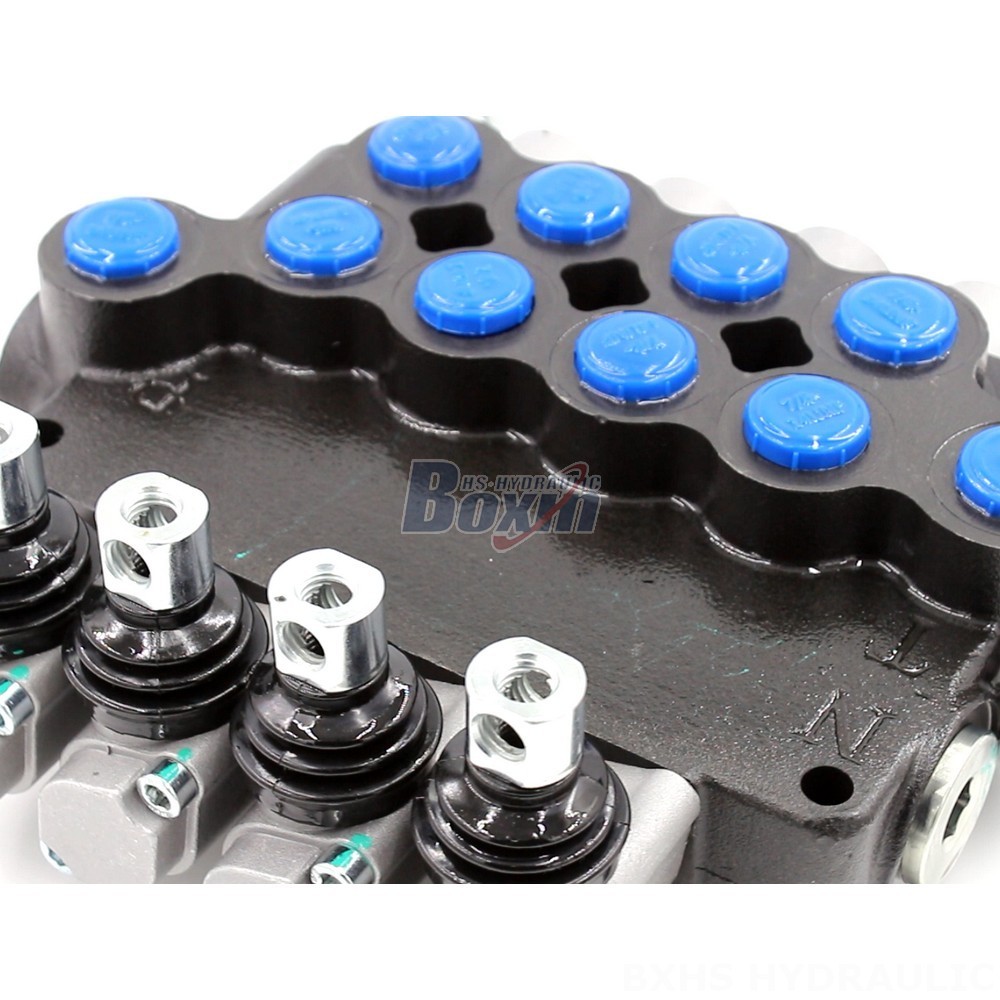

**P80-U78-4OT Series Manual Monoblock Directional Valve: Engineered for Performance**
**Control Method:** Manual
**Section:** 4 Section
**Structure Type:** Monoblock valve
**Rated Flow:** 80 L/min (21.2 US gpm)
**Max Pressure:** 250 bar (3600 psi)
**Operating Viscosity Range:** 15 - 75 mm²/s (15 cSt to 75 cSt)
**Ambient Temperature Range:** -40°C to +80°C (-40°F to +176°F)
**Spool:** 4 Spool
**Series:** P80 Series
**Key Features:**
- Robust and durable monoblock construction
- High flow capacity and pressure rating
- Precise and reliable manual control
- Versatile design suitable for a variety of applications
**Applications:**
- Material Handling Equipment (Forklifts, Telehandlers)
- Construction and Earth Moving Machinery (Excavators, Loaders)
- Agricultural Vehicles (Tractors, Harvesters)
- Industrial Vehicles (Aerial Platforms, Compact Loaders)
