The P40-U78-U34-OT-YW Series Manual Monoblock Directional Valve is a high-performance valve designed for use in a wide range of hydraulic systems. With a rated flow of 40 L/min and a maximum pressure of 250 bar, this valve is suitable for use in demanding applications. The valve is constructed from high-quality materials and is designed to provide long service life.
| Serie P40 Válvula Direccional Monobloque Parámetros | |
|---|---|
| Método de control | Manual, Neumático, Electoneumático, Electrohidráulico, Solenoide, Hidráulico, Hidráulico y Manual, Cable, Joystick, Solenoide y joystick, Manual y joystick, Solenoide y cable |
| Carrete | 1 carrete, 2 carretes, 3 carretes, 4 carretes, 5 carretes, 6 carretes, 7 carretes |
| Rango de temperatura ambiente | -40 °C a +80 °C (-40 °F a +176 °F) |
| Tipo de estructura | Válvulas monobloc |
| Sección | 1 sección, 2 secciones, 3 secciones, 4 secciones, 5 secciones, 6 secciones, 7 secciones |
| Rango de viscosidad de funcionamiento | 15 - 75 mm²/s (15 cSt a 75 cSt) |
| Flujo Nominal | 40 l/min (10,5 gal EE. UU./min) |
| Presión Máxima | 250 bar (3600 psi) |
| Puerto de Entrada | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Puerto de Salida | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Tamaño de Puerto | G3/8, G1/2, M18×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |

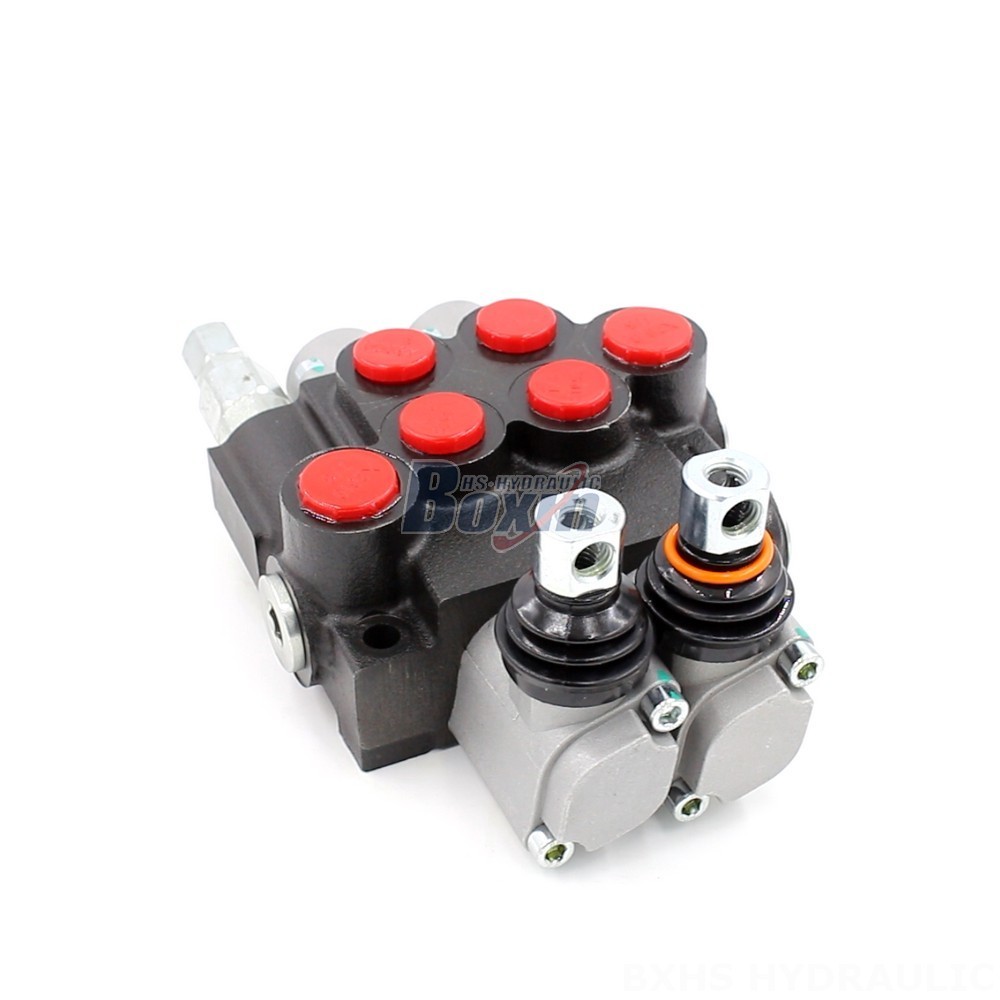

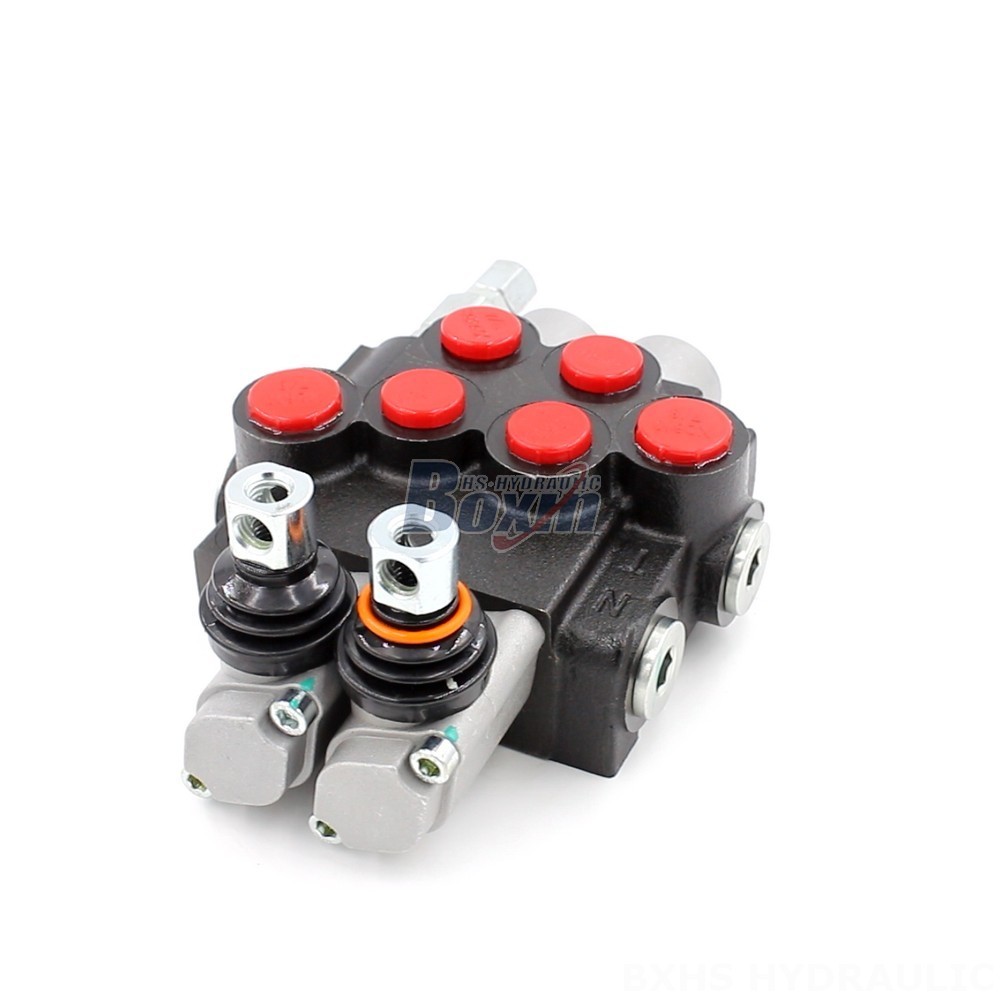

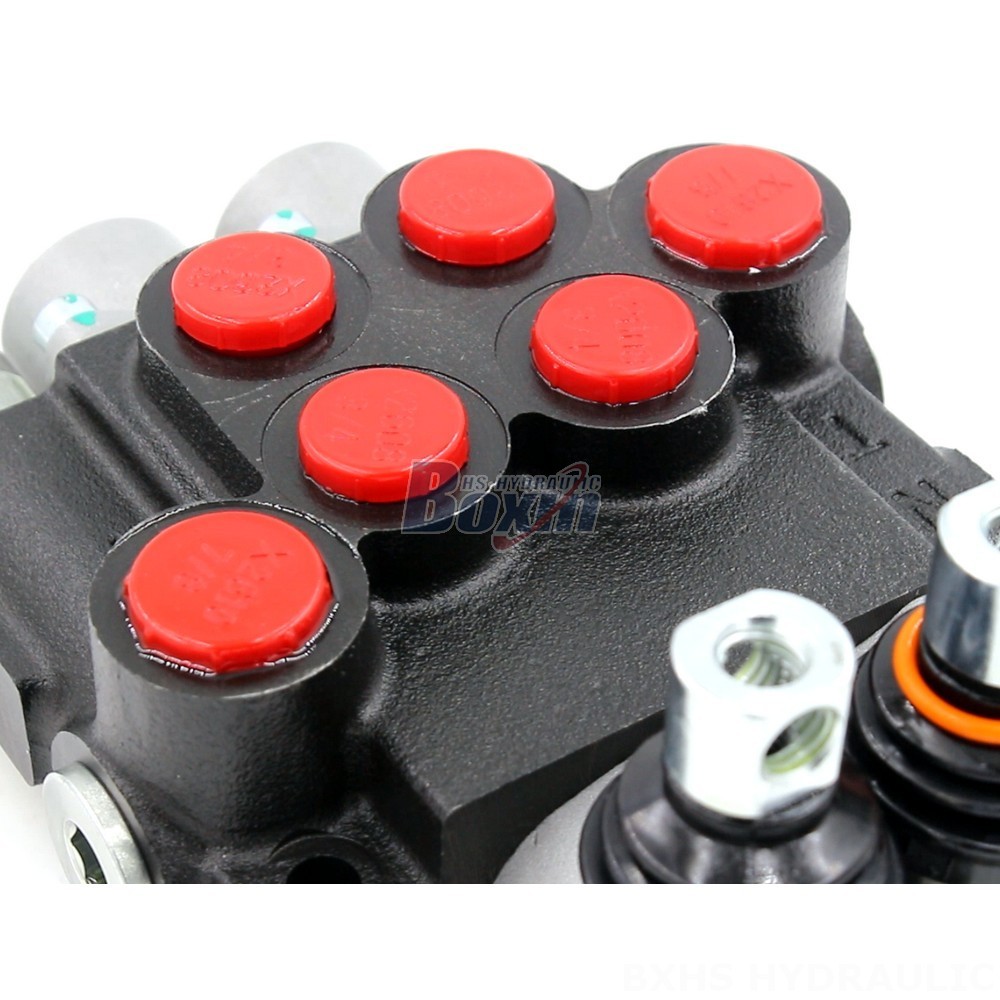

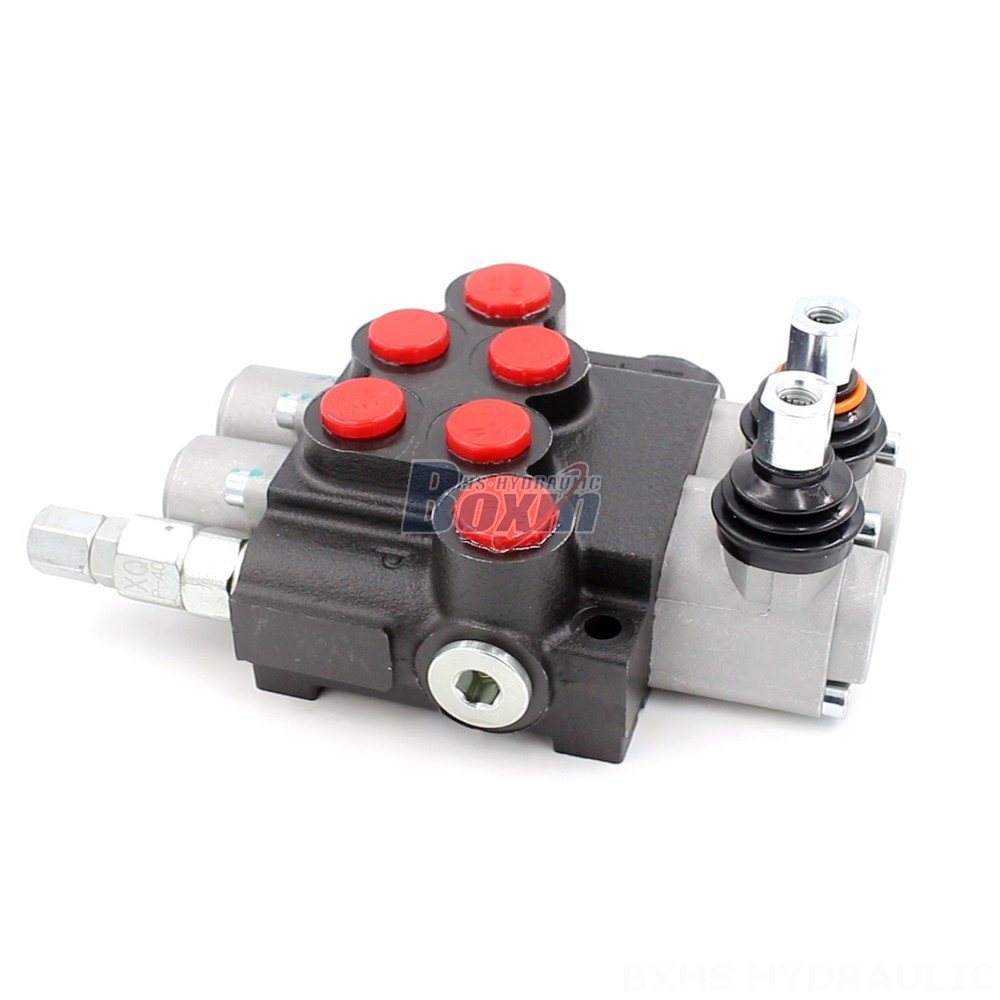

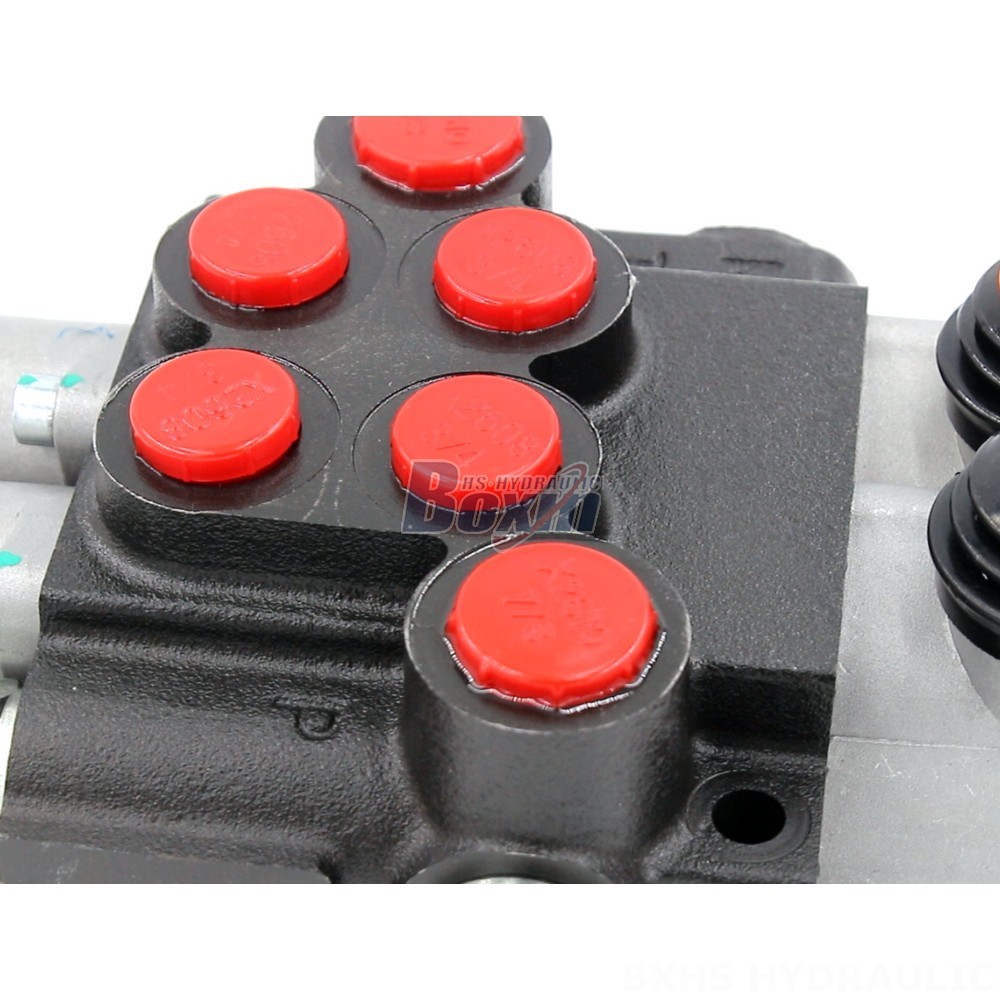

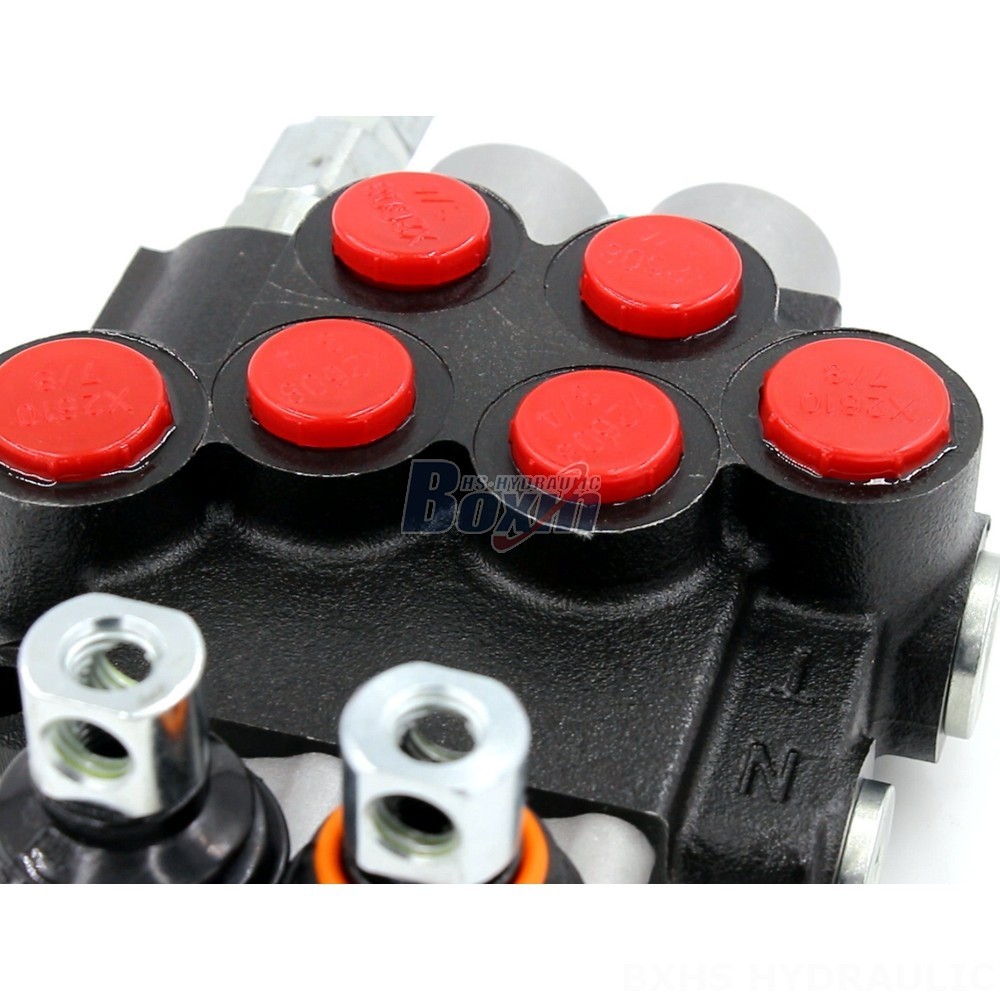

**Manual Monoblock Directional Valve - P40-U78-U34-OT-YW Series**
The P40-U78-U34-OT-YW Series Manual Monoblock Directional Valve is a compact and lightweight valve that is ideal for use in mobile hydraulic systems. The valve is constructed from high-strength aluminum alloy and is designed to withstand the harsh conditions of mobile applications. The valve is also equipped with a manual override lever that allows the operator to manually control the valve in the event of a power failure.
**Key Features:**
* Rated flow: 40 L/min (10.5 US gpm)
* Maximum pressure: 250 bar (3600 psi)
* Operating viscosity range: 15 - 75 mm²/s (15 cSt to 75 cSt)
* Ambient temperature range: -40°C to +80°C (-40°F to +176°F)
* Spool: 2 Spool
* Series: P40 Series
**Applications:**
The P40-U78-U34-OT-YW Series Manual Monoblock Directional Valve is suitable for use in a wide range of mobile hydraulic applications, including:
* Material handling
* Construction and earth moving
* Agriculture
* Industrial vehicles
**Benefits:**
* Compact and lightweight design
* High strength aluminum alloy construction
* Manual override lever
* Long service life
