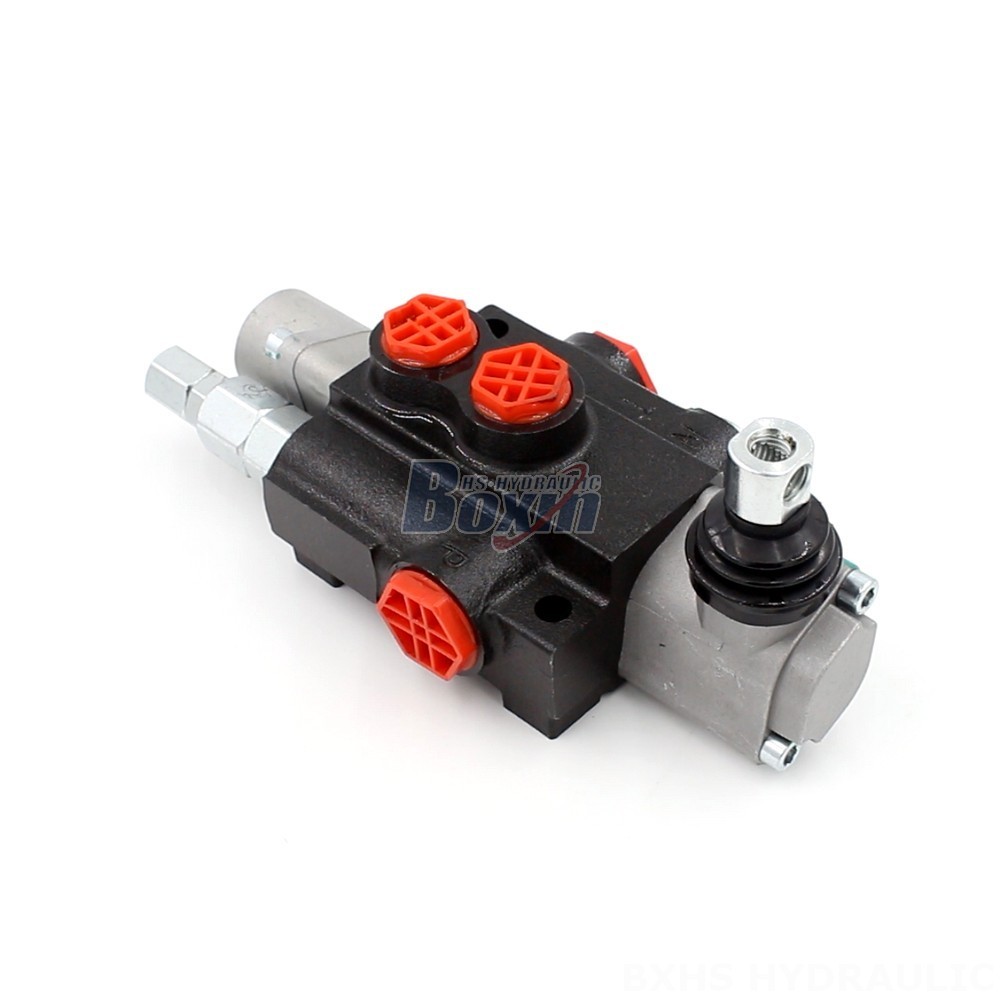

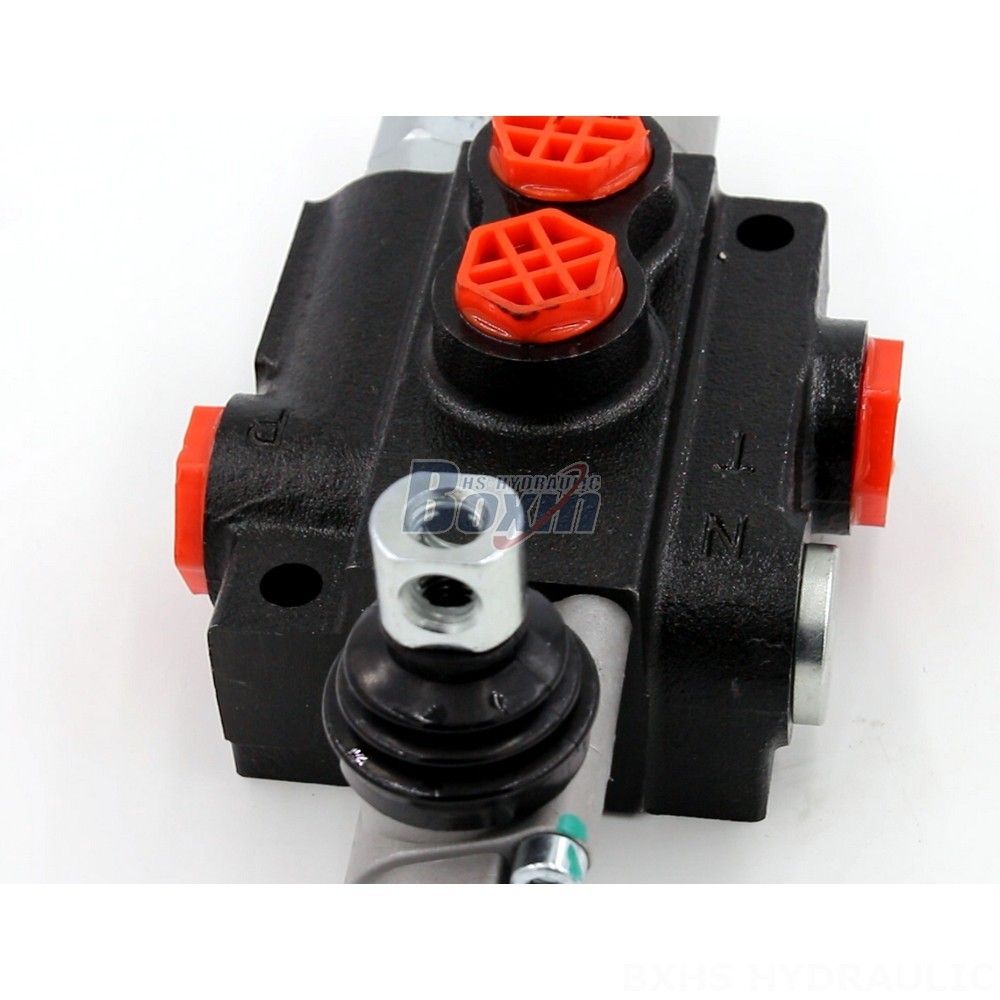

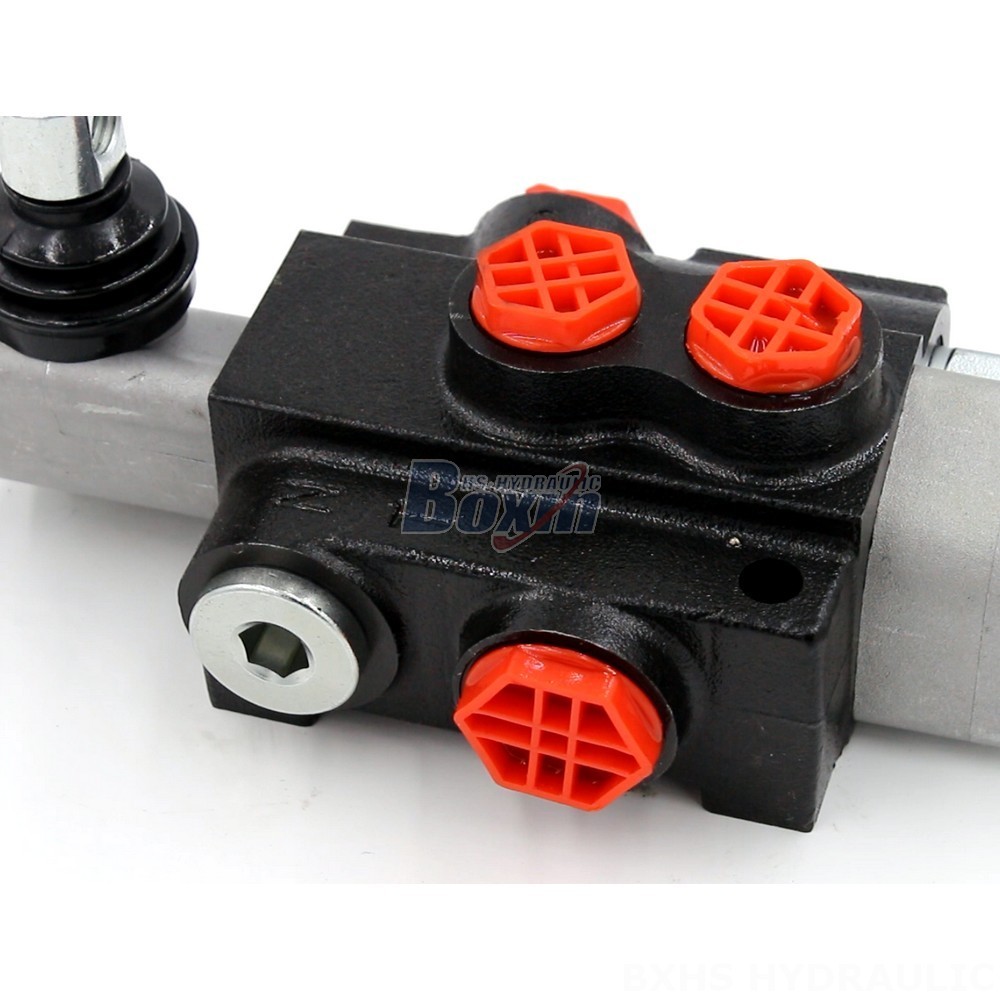

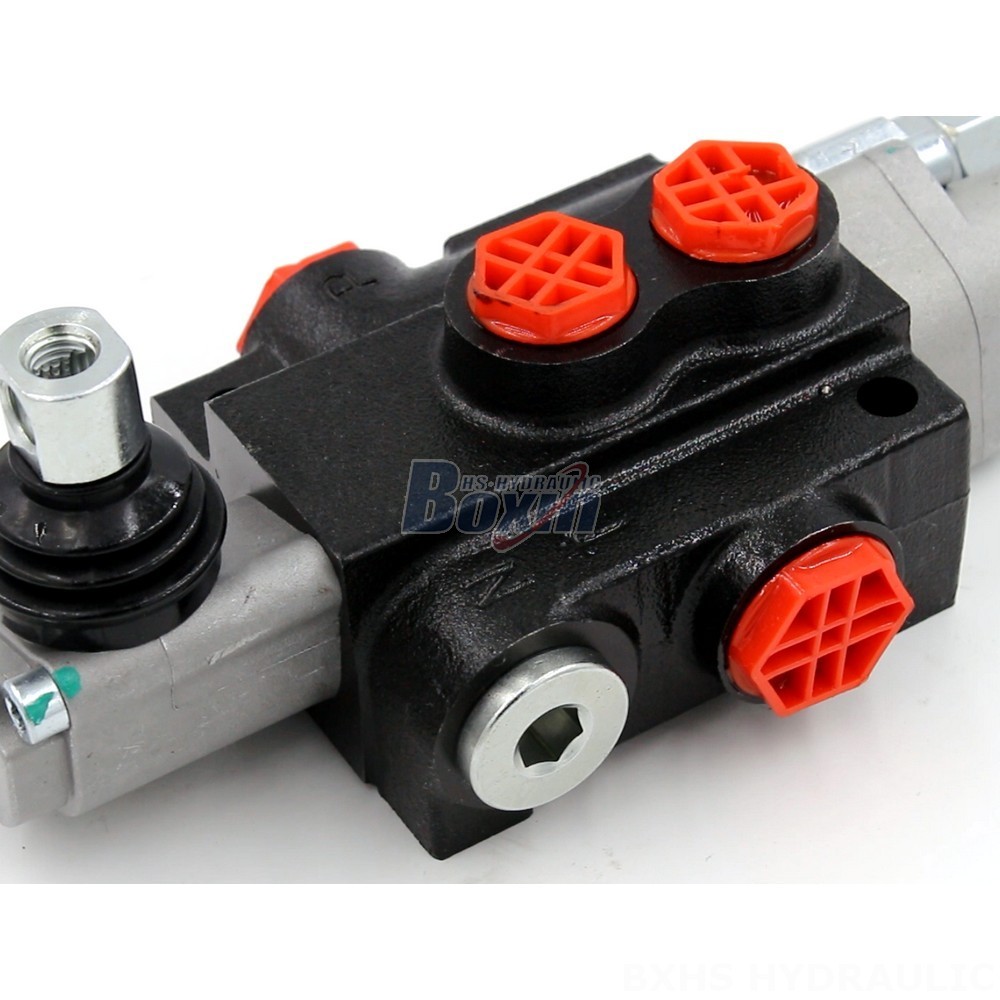

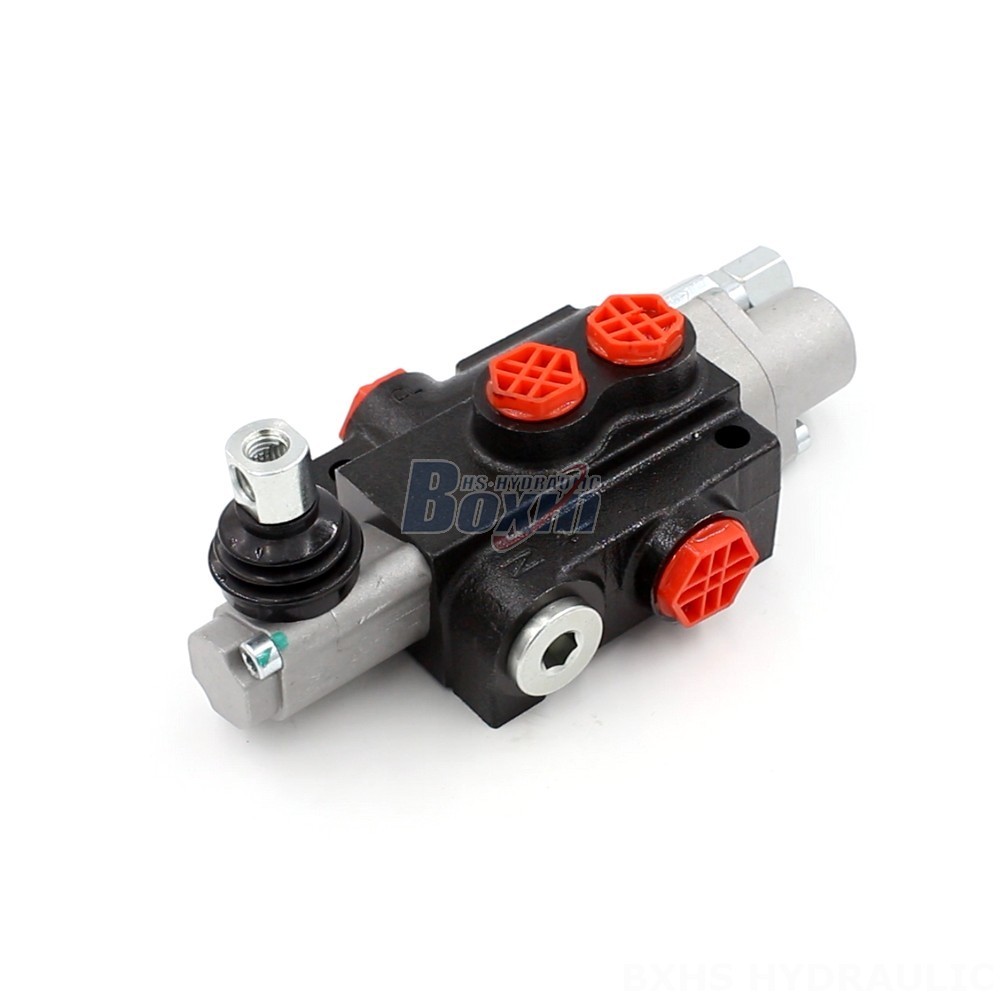

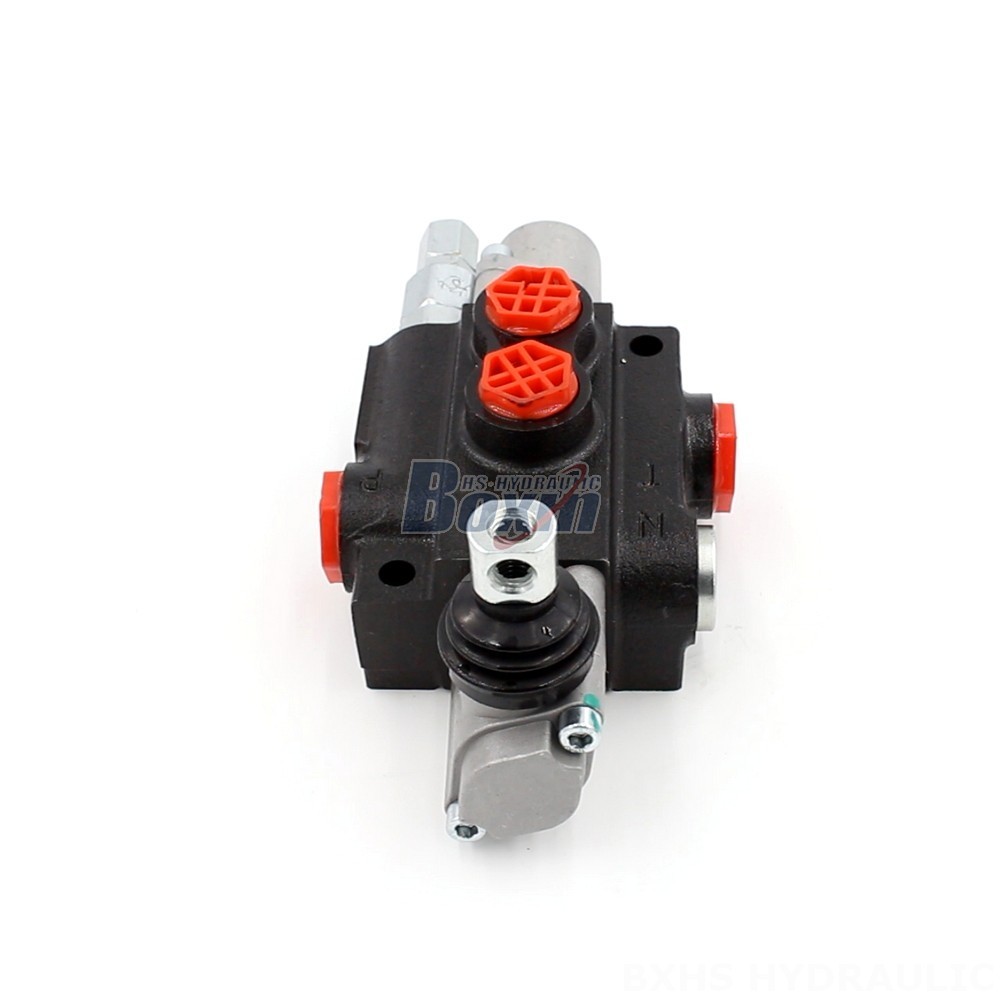

Manual Monoblock Directional Valve - P40-G38-OT Series | Wholesale & OEM

Método de control:Manual

Carrete:1 carrete

Flujo Nominal:40 l/min (10,5 gal EE. UU./min)

Presión Máxima:250 bar (3600 psi)

Puerto de Entrada:G3/8

Puerto de Salida:G3/8

Tamaño de Puerto:G3/8

Marca:BXHS

Tipo de producto:Válvula Direccional Monobloque

Serie de productos:Serie P40 Válvula Direccional Monobloque

Tamaño del embalaje:23*16*11

Peso bruto:3.00 kg

Disponibilidad: En stock

1006 personas están viendo este producto

Manual Monoblock Directional Valve - P40-G38-OT Series | Wholesale & OEM

Manual Monoblock Directional Valve - P40-G38-OT Series | Wholesale & OEM

Manual Monoblock Directional Valve - P40-G38-OT Series | Wholesale & OEM drawing image

The P40-G38-OT Series Manual Monoblock Directional Valve is a high-performance hydraulic valve designed for various applications including wood splitting, material handling, construction, and agriculture. It features a compact monoblock construction, manual control, and a rated flow of 40 L/min, making it ideal for a wide range of hydraulic systems.

Serie P40 Válvula Direccional Monobloque Parámetros
Método de control Manual, Neumático, Electoneumático, Electrohidráulico, Solenoide, Hidráulico, Hidráulico y Manual, Cable, Joystick, Solenoide y joystick, Manual y joystick, Solenoide y cable
Carrete 1 carrete, 2 carretes, 3 carretes, 4 carretes, 5 carretes, 6 carretes, 7 carretes
Rango de temperatura ambiente -40 °C a +80 °C (-40 °F a +176 °F)
Tipo de estructura Válvulas monobloc
Sección 1 sección, 2 secciones, 3 secciones, 4 secciones, 5 secciones, 6 secciones, 7 secciones
Rango de viscosidad de funcionamiento 15 - 75 mm²/s (15 cSt a 75 cSt)
Flujo Nominal 40 l/min (10,5 gal EE. UU./min)
Presión Máxima 250 bar (3600 psi)
Puerto de Entrada G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT
Puerto de Salida G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT
Tamaño de Puerto G3/8, G1/2, M18×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT

The P40-G38-OT Series Manual Monoblock Directional Valve is a robust and reliable hydraulic component designed for demanding applications. This 1-section valve features a compact monoblock construction, ensuring durability and ease of installation. The manual control method allows for precise and convenient operation. With a rated flow of 40 L/min (10.5 US gpm) and a maximum pressure of 250 bar (3600 psi), this valve is suitable for a wide range of hydraulic systems. Its operating viscosity range of 15 - 75 mm²/s (15 cSt to 75 cSt) and ambient temperature range of -40°C to +80°C (-40°F to +176°F) ensure optimal performance in various environmental conditions. The P40-G38-OT Series valve is specifically designed for applications such as material handling, construction, and agriculture, making it suitable for use in telehandlers, forklifts, cranes, stackers, aerial platforms, motor graders, excavators, skid steer loaders, and backhoe loaders.
