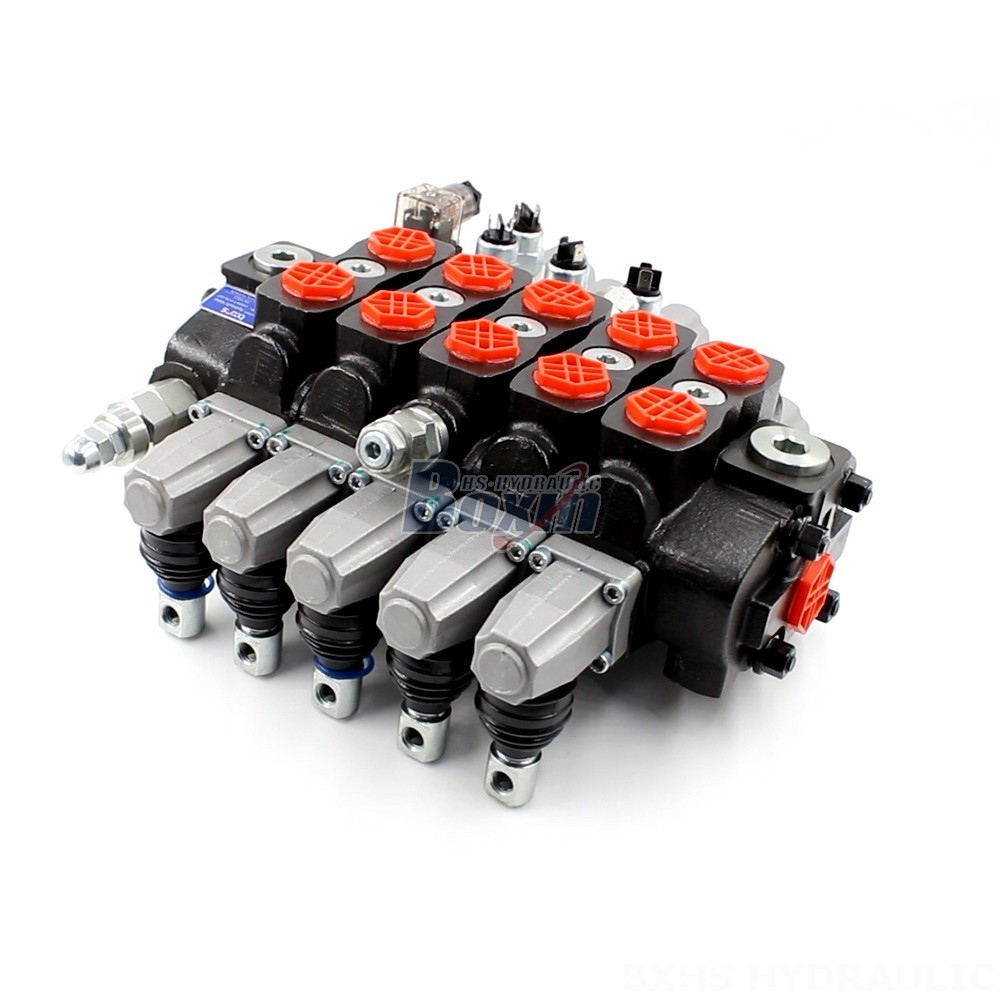

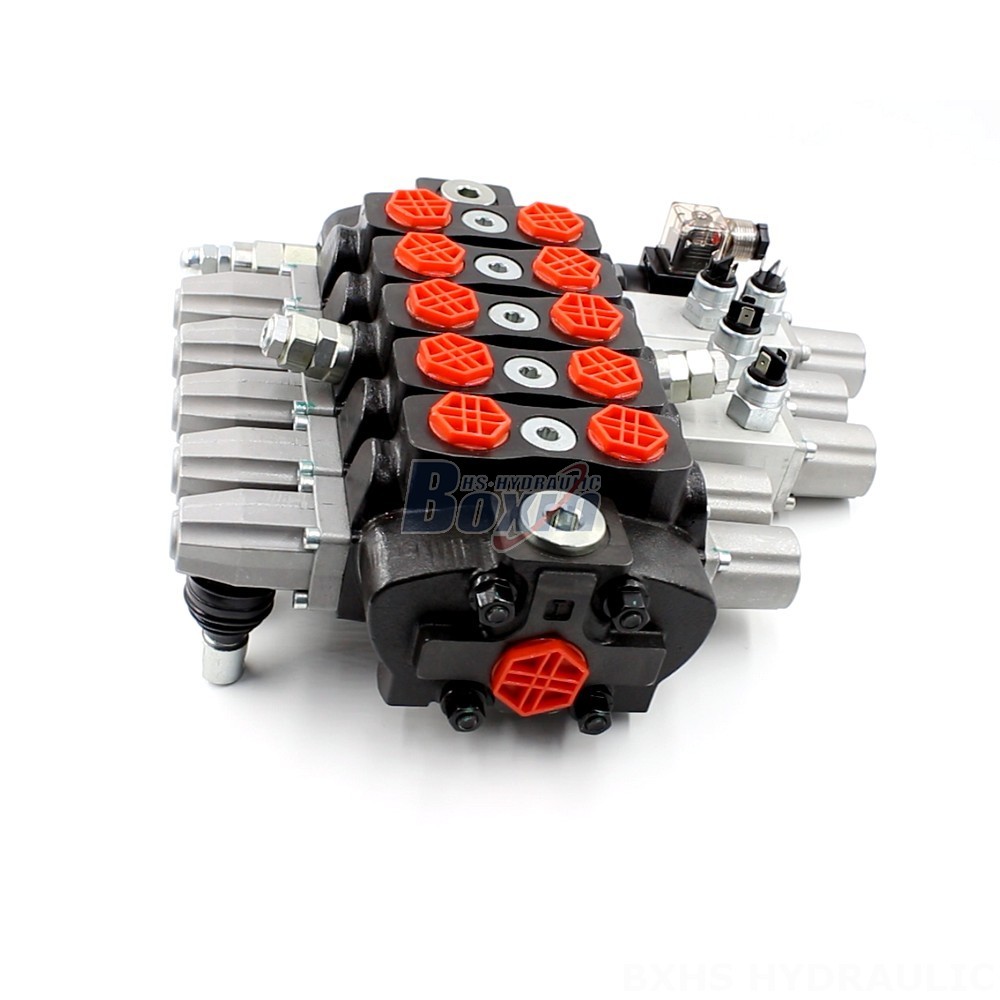

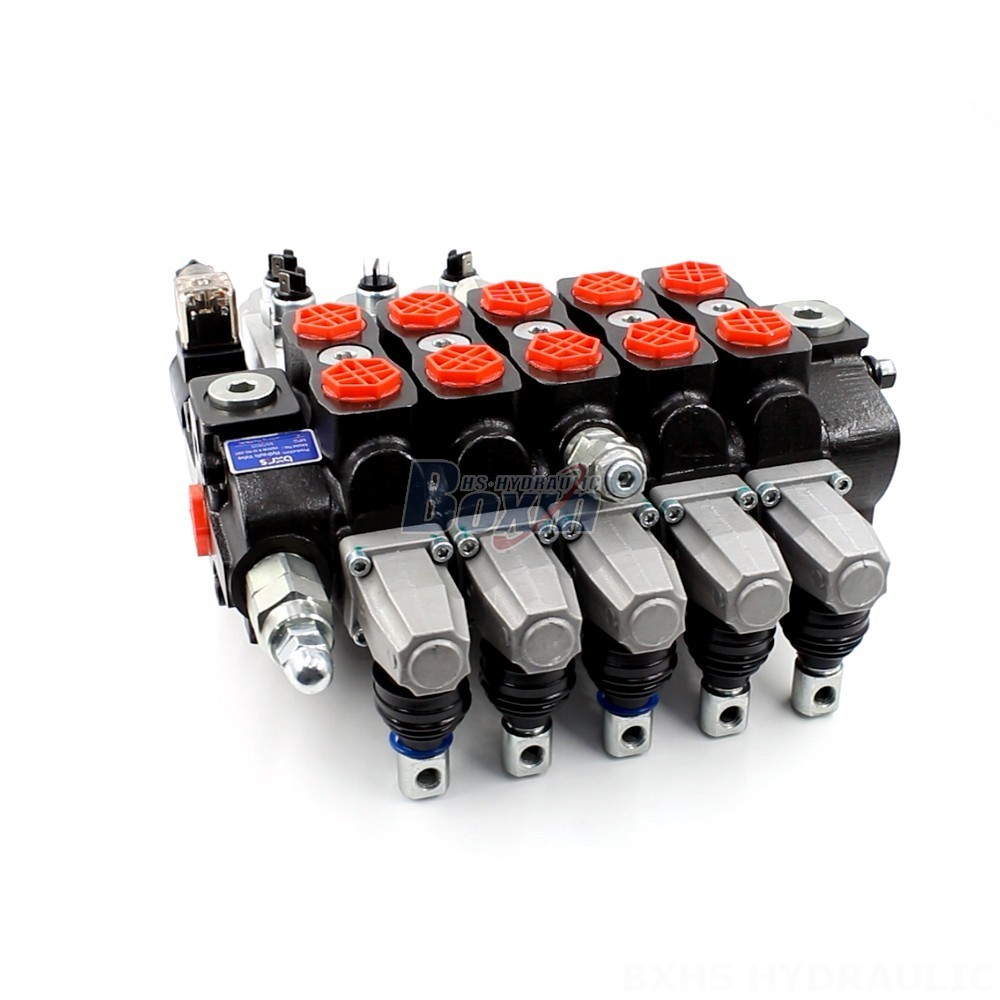

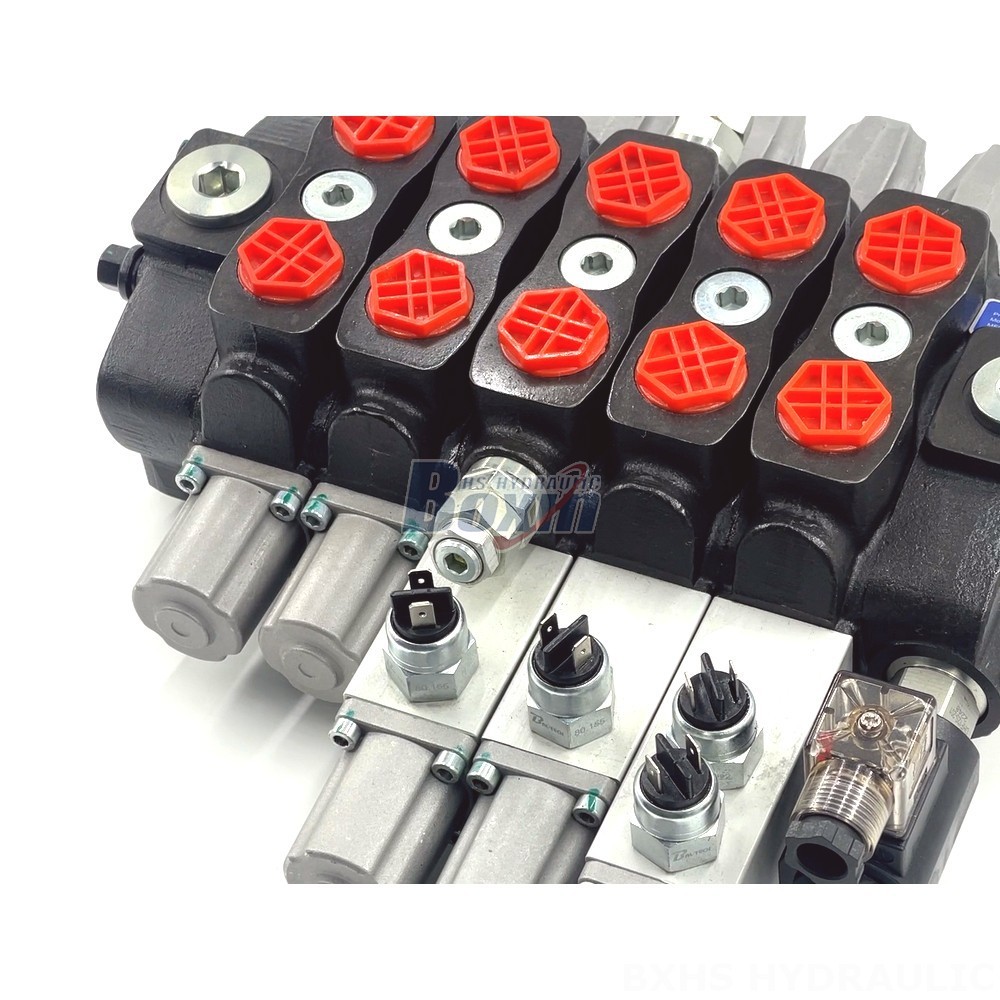

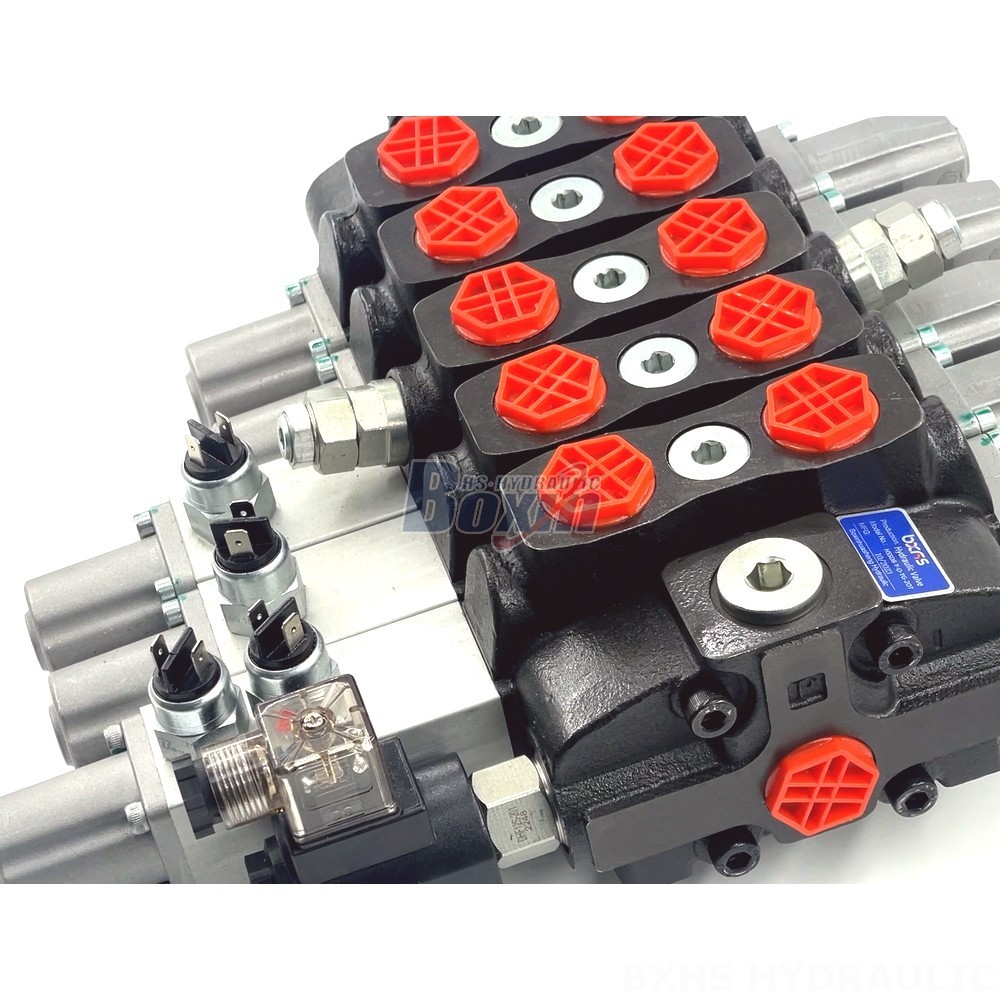

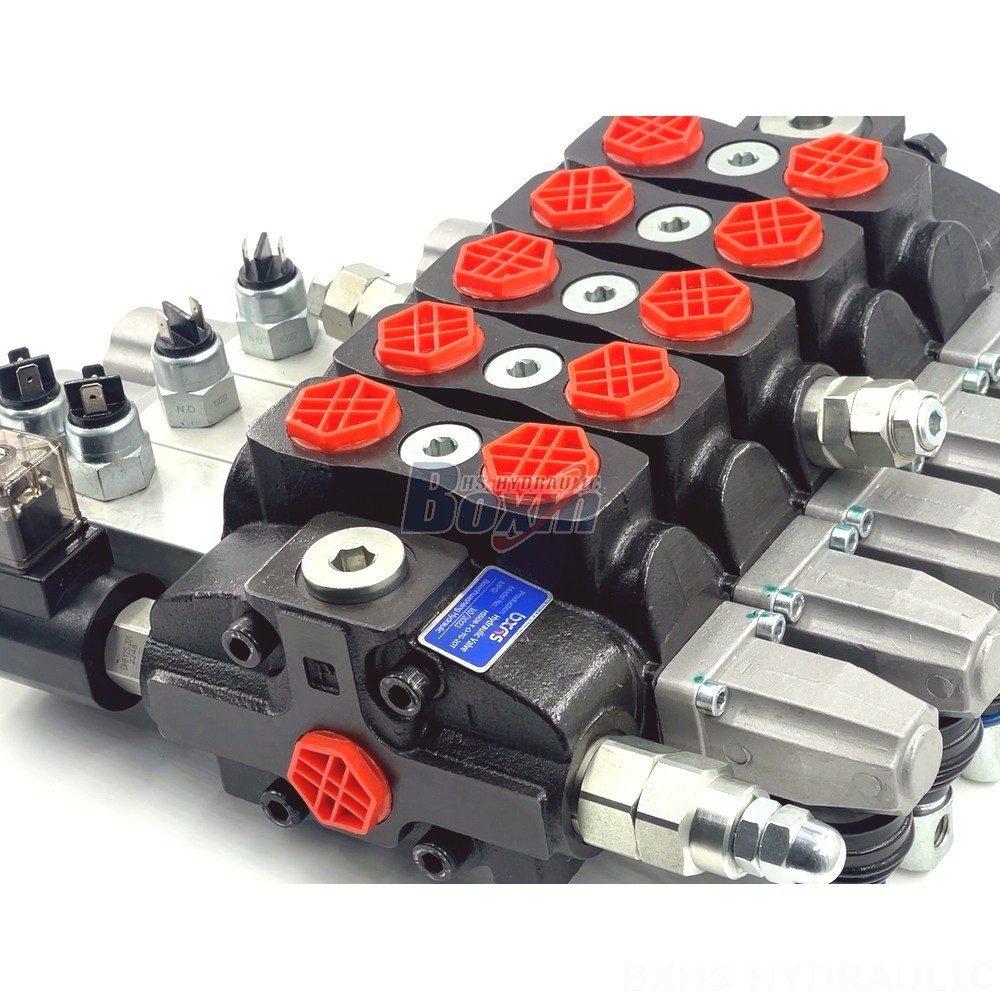

This 5-spool, sectional hydraulic directional valve is designed for manual control of hydraulic tipper systems. It features a rated flow of 90 L/min and a maximum pressure of 350 bar, making it suitable for a wide range of construction, agricultural, and industrial vehicles.
| Serie SD8 Válvula direccional seccional Parámetros | |
|---|---|
| Método de control | Manual, Neumático, Electoneumático, Electrohidráulico, Solenoide, Hidráulico, Hidráulico y Manual, Cable, Joystick, Solenoide y joystick, Manual y joystick |
| Carrete | 1 carrete, 2 carretes, 3 carretes, 4 carretes, 5 carretes, 6 carretes, 7 carretes, 8 carretes, 9 carretes, 10 carretes |
| Rango de temperatura ambiente | -40 °C a +80 °C (-40 °F a +176 °F) |
| Tipo de estructura | Válvulas seccionales |
| Sección | 1 sección, 2 secciones, 3 secciones, 4 secciones, 5 secciones, 6 secciones, 7 secciones, 8 secciones, 9 secciones, 10 secciones |
| Rango de viscosidad de funcionamiento | 12 - 400 mm²/s (12 cSt a 400 cSt) |
| Flujo Nominal | 90 l/min (23,8 gal EE. UU./min) |
| Presión Máxima | 315 bar (4600 psi) |
| Puerto de Entrada | G1/2, G3/4, SAE 10 |
| Puerto de Salida | G1/2, G3/4, SAE 10, 3/4 NPT |
| Tamaño de Puerto | G1/2, SAE 10 |
This manual hydraulic directional valve is specifically designed for tipper control applications. With its 5-spool, sectional design, it offers precise and reliable control of hydraulic functions. The valve has a rated flow of 90 L/min and a maximum pressure of 350 bar, making it suitable for a wide range of applications. It is designed to operate within a viscosity range of 12 to 400 mm²/s and withstand ambient temperatures from -40°C to +80°C. The valve is suitable for a variety of vehicles, including forklifts, telehandlers, mini-excavators, midi-excavators, skid steer loaders, compact wheel loaders, wheel loaders, backhoe loaders, tractors, front-end loaders, and harvesters.
