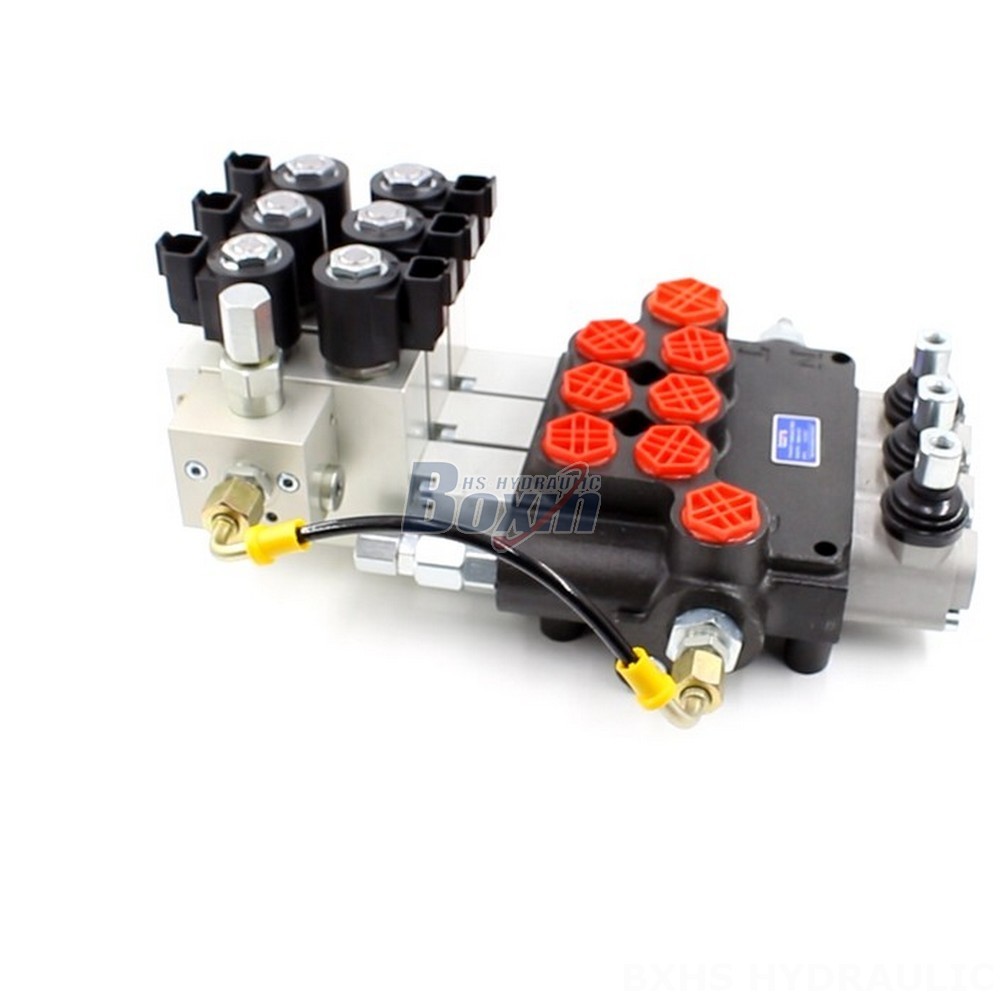

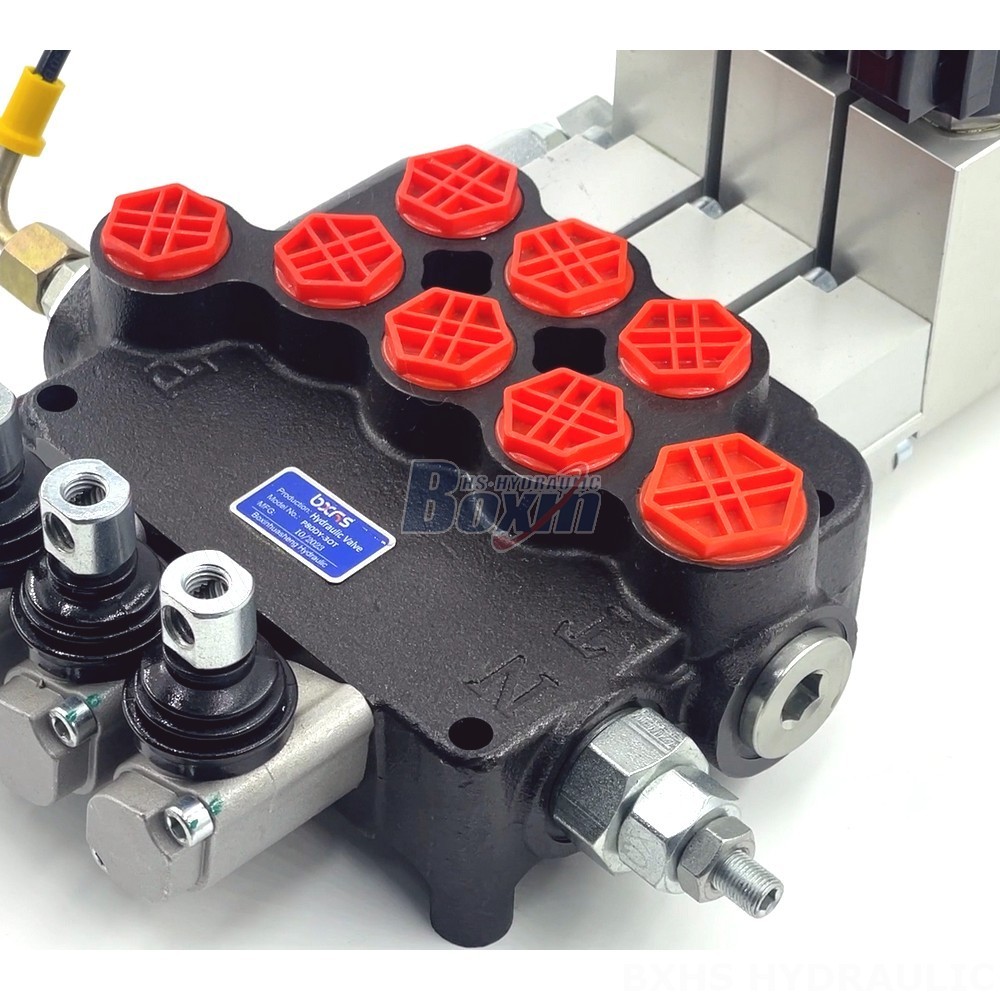

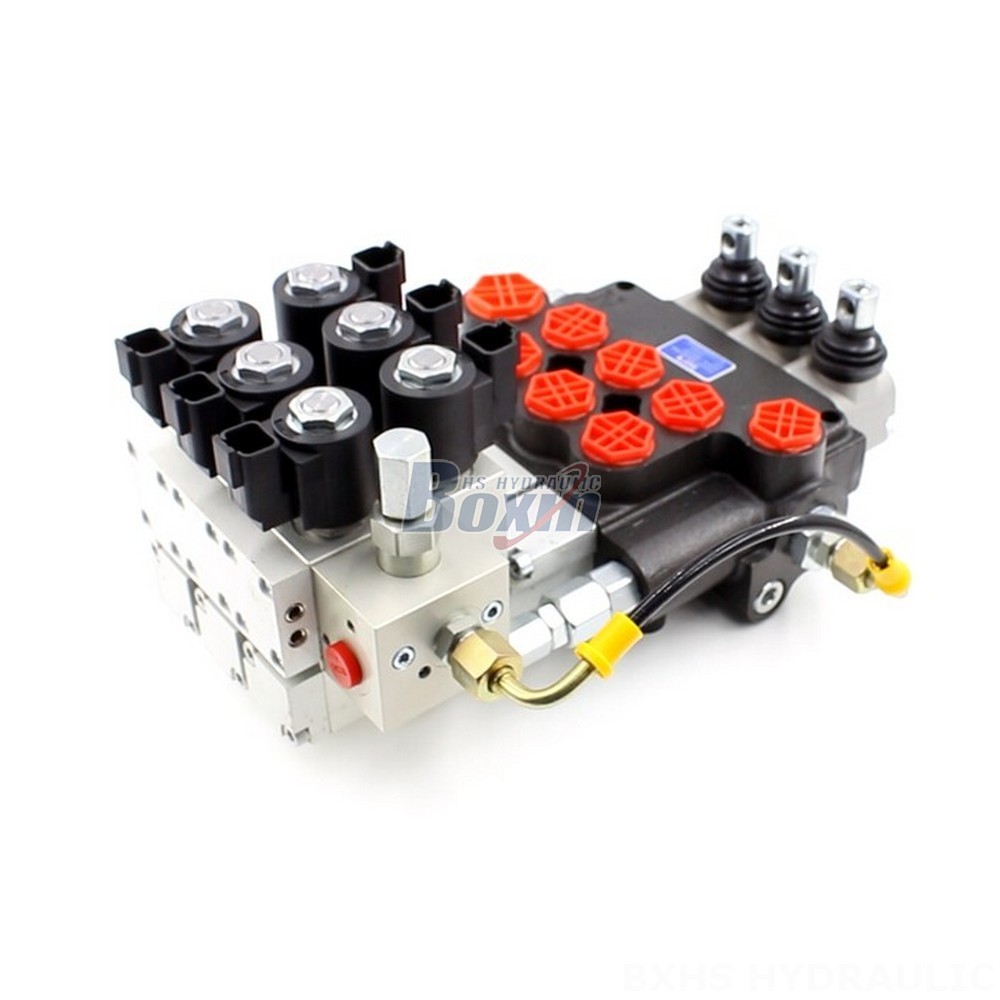

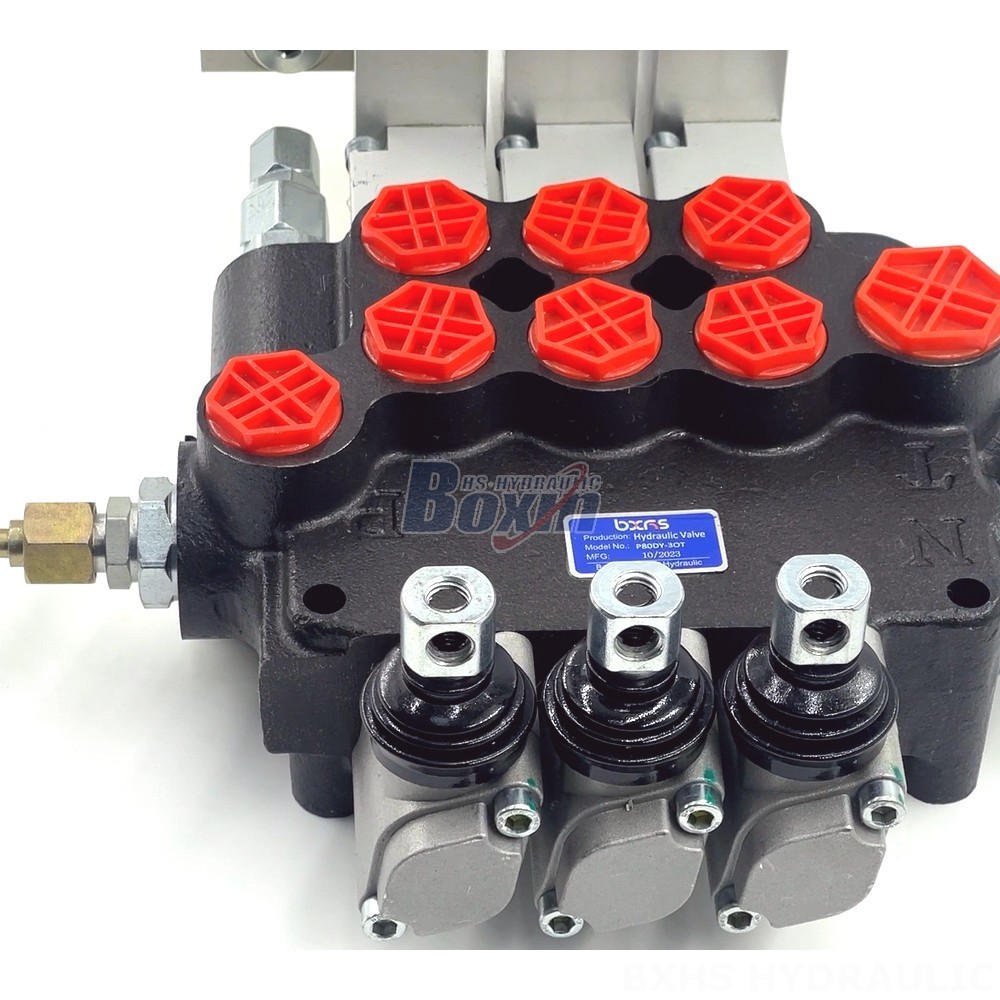

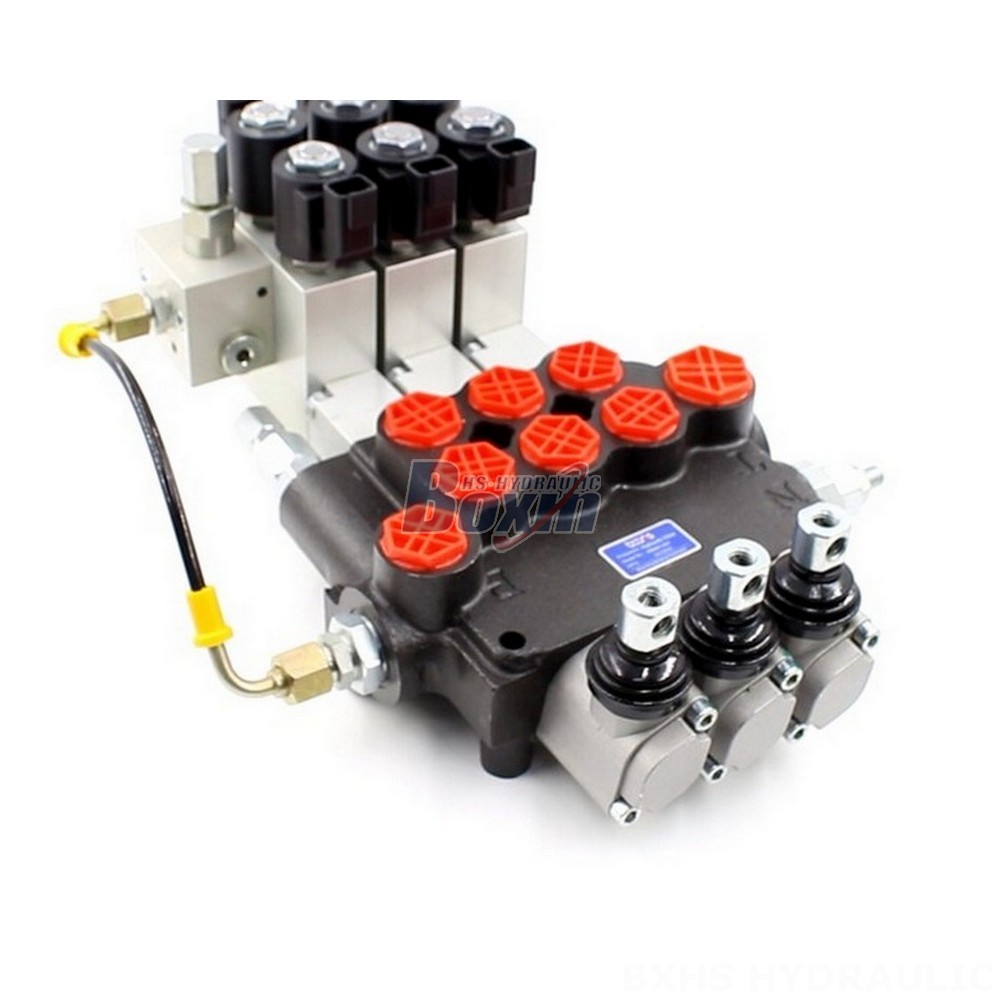

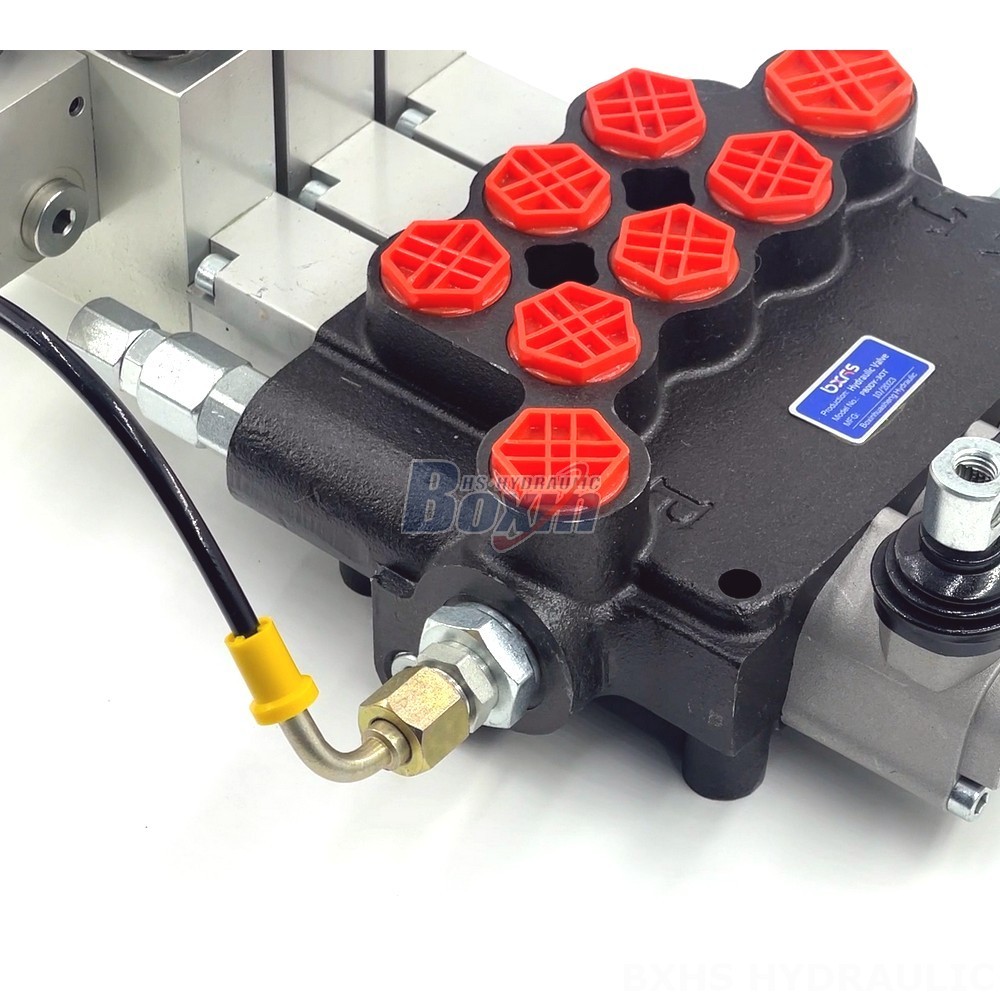

Our P80 Series Manual Electro-hydraulic Monoblock Directional Valve is a high-performance valve designed for various applications in material handling, construction, earth moving, agriculture, and industrial vehicles. It features a 3-section monoblock design, providing precise control of hydraulic systems with a rated flow of 80 L/min and a maximum pressure of 250 bar.
| Serie P80 Válvula Direccional Monobloque Parámetros | |
|---|---|
| Método de control | Manual, Neumático, Electoneumático, Electrohidráulico, Solenoide, Hidráulico, Hidráulico y Manual, Cable, Joystick, Manual y joystick |
| Carrete | 1 carrete, 2 carretes, 3 carretes, 4 carretes, 5 carretes, 6 carretes, 7 carretes |
| Rango de temperatura ambiente | -40 °C a +80 °C (-40 °F a +176 °F) |
| Tipo de estructura | Válvulas monobloc |
| Sección | 1 sección, 2 secciones, 3 secciones, 4 secciones, 5 secciones, 6 secciones, 7 secciones |
| Rango de viscosidad de funcionamiento | 15 - 75 mm²/s (15 cSt a 75 cSt) |
| Flujo Nominal | 80 l/min (21,2 gal EE. UU./min) |
| Presión Máxima | 315 bar (4600 psi) |
| Puerto de Entrada | G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT |
| Puerto de Salida | G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT |
| Tamaño de Puerto | G1/2, G3/4, M22×1.5, M27×2.0, SAE 10, 1/2 NPT, 3/4 NPT |
**Key Features:**
- Electro-hydraulic control for precise and responsive operation
- Monoblock construction for compactness and durability
- Rated flow of 80 L/min (21.2 US gpm) for efficient system performance
- Maximum pressure of 250 bar (3600 psi) for demanding applications
- Operating viscosity range of 15 - 75 mm²/s (15 cSt to 75 cSt) for compatibility with various hydraulic fluids
- Ambient temperature range of -40°C to +80°C (-40°F to +176°F) for use in extreme environments
- 3-spool design for versatile control of multiple hydraulic circuits
**Applications:**
- Telehandlers
- Forklifts
- All terrain cranes
- Stackers
- Aerial platforms
- Motor graders
- Midi-excavators
- Mini-excavators
- Skid steer loaders
- Compact wheel loaders
