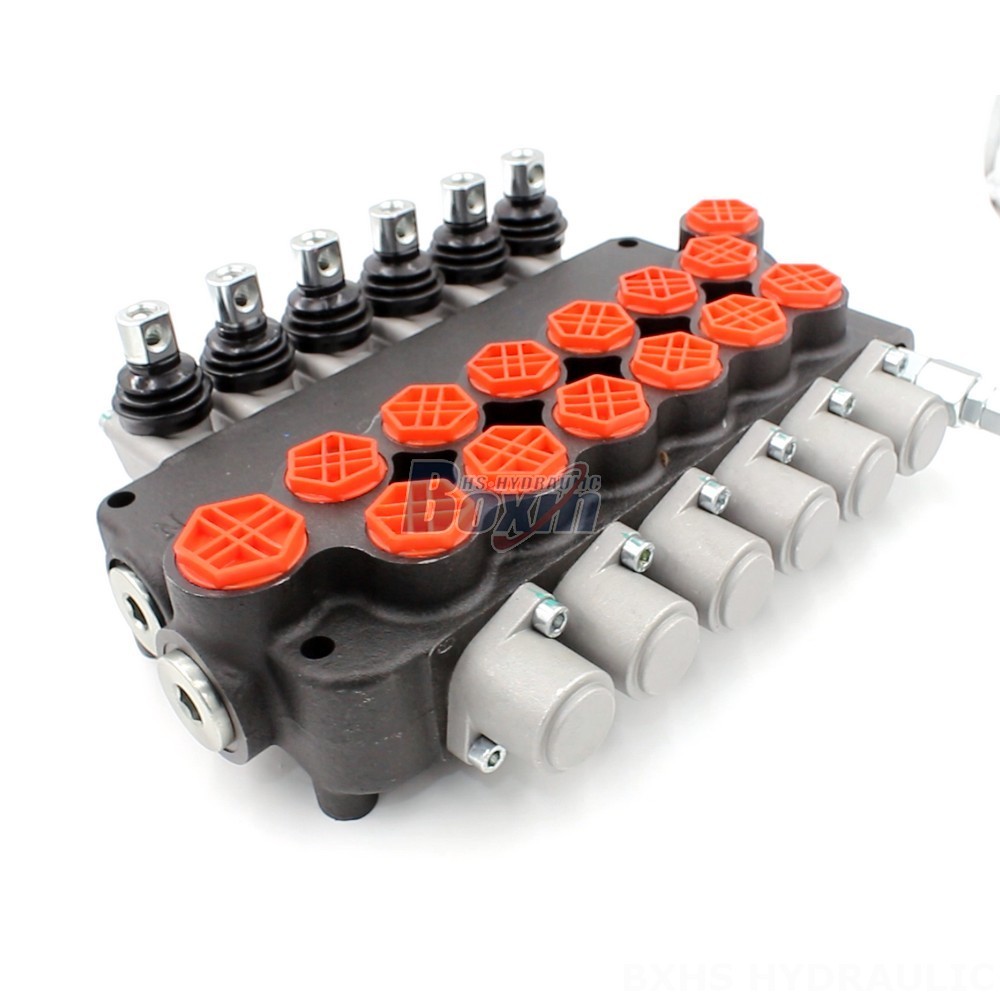

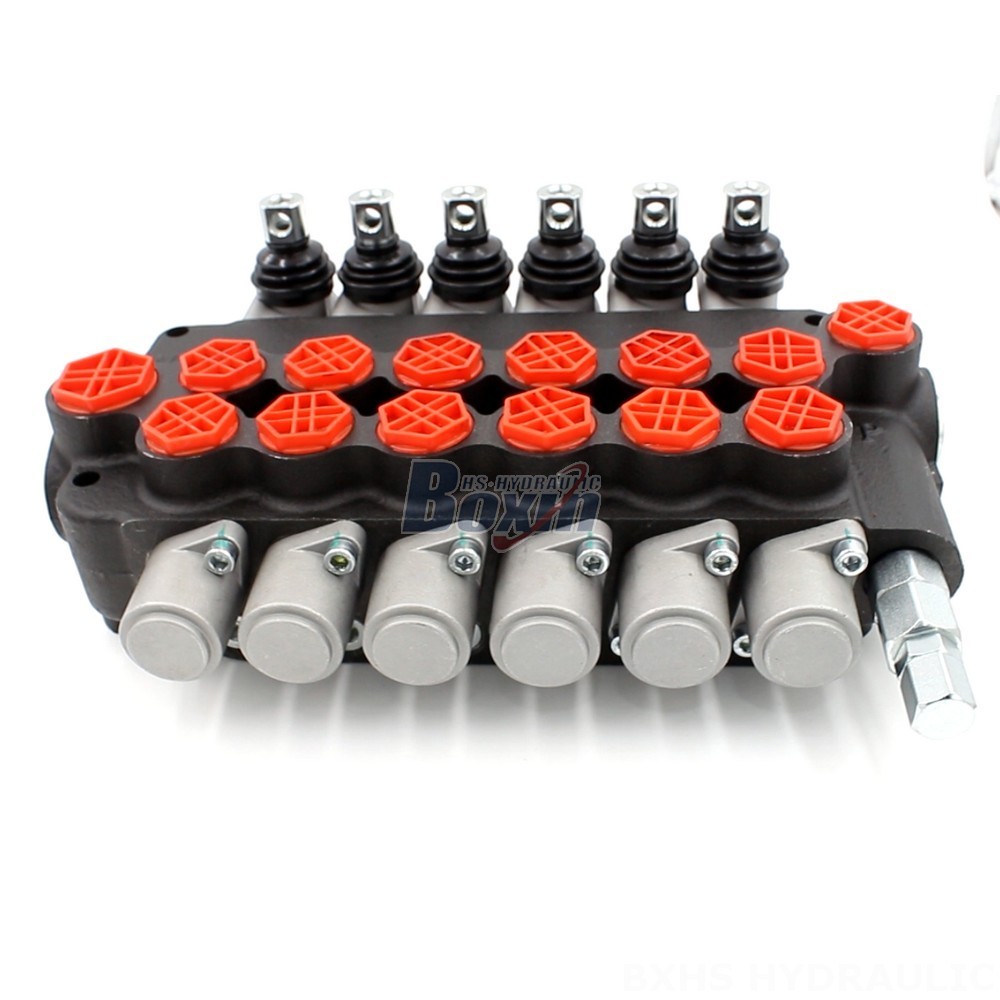

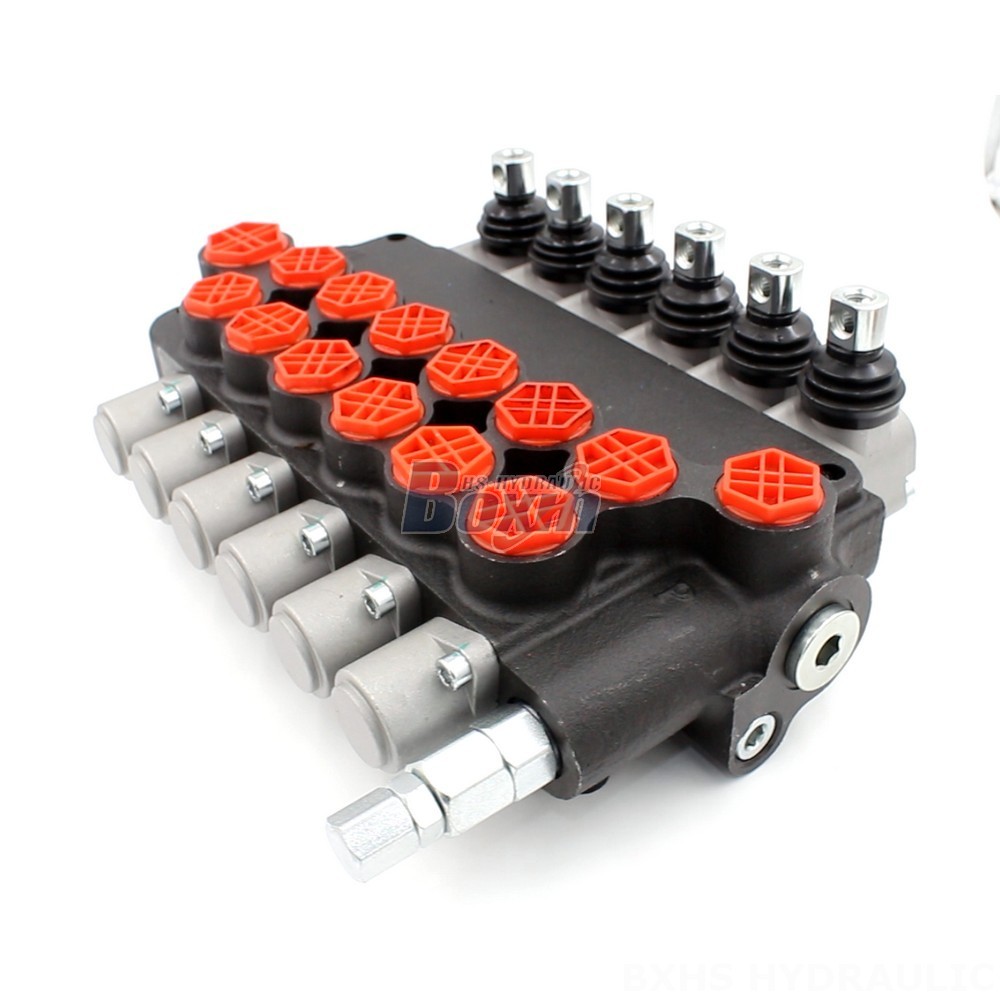

This is a high-quality, 6-section manual directional hydraulic valve designed for heavy-duty applications in various industries such as material handling, construction, and agriculture. It features a monoblock valve design and a rated flow of 80 L/min, capable of handling pressures up to 250 bar. The valve is compatible with a wide range of machinery, including telehandlers, forklifts, excavators, and loaders.
| Serie P80 Válvula Direccional Monobloque Parámetros | |
|---|---|
| Método de control | Manual, Neumático, Electoneumático, Electrohidráulico, Solenoide, Hidráulico, Hidráulico y Manual, Cable, Joystick, Manual y joystick |
| Carrete | 1 carrete, 2 carretes, 3 carretes, 4 carretes, 5 carretes, 6 carretes, 7 carretes |
| Rango de temperatura ambiente | -40 °C a +80 °C (-40 °F a +176 °F) |
| Tipo de estructura | Válvulas monobloc |
| Sección | 1 sección, 2 secciones, 3 secciones, 4 secciones, 5 secciones, 6 secciones, 7 secciones |
| Rango de viscosidad de funcionamiento | 15 - 75 mm²/s (15 cSt a 75 cSt) |
| Flujo Nominal | 80 l/min (21,2 gal EE. UU./min) |
| Presión Máxima | 315 bar (4600 psi) |
| Puerto de Entrada | G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT |
| Puerto de Salida | G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT |
| Tamaño de Puerto | G1/2, G3/4, M22×1.5, M27×2.0, SAE 10, 1/2 NPT, 3/4 NPT |
The P80-G12-G34-OT is a robust manual directional hydraulic valve designed for demanding applications. It offers a 6-section monoblock valve structure, ensuring reliable and efficient operation. With a rated flow of 80 L/min and a maximum pressure rating of 250 bar (3600 psi), this valve is ideal for heavy-duty equipment. Its operating viscosity range of 15 - 75 mm²/s (15 cSt to 75 cSt) allows for use in a variety of environments and applications. The valve is designed for a wide range of machinery, including telehandlers, forklifts, motor graders, midi-excavators, mini-excavators, skid steer loaders, wheel loaders, backhoe loaders, tractors, front-end loaders, and harvesters.
