Log Splitter Hydraulic Valve | P81 Model | Factory Direct & Customizable

Método de control:Manual

Carrete:1 carrete

Flujo Nominal:80 l/min (21,2 gal EE. UU./min)

Presión Máxima:Presión máxima

Puerto de Entrada:G1/2

Puerto de Salida:G3/4

Tamaño de Puerto:G3/4

Marca:BXHS

Tipo de producto:Válvula para divisor de troncos

Serie de productos:Serie P81 Válvula para divisor de troncos

Tamaño del embalaje:27*16*12

Peso bruto:4.80 kg

Disponibilidad: En stock

2166 personas están viendo este producto

Log Splitter Hydraulic Valve | P81 Model | Factory Direct & Customizable

Log Splitter Hydraulic Valve | P81 Model | Factory Direct & Customizable

Log Splitter Hydraulic Valve | P81 Model | Factory Direct & Customizable drawing image

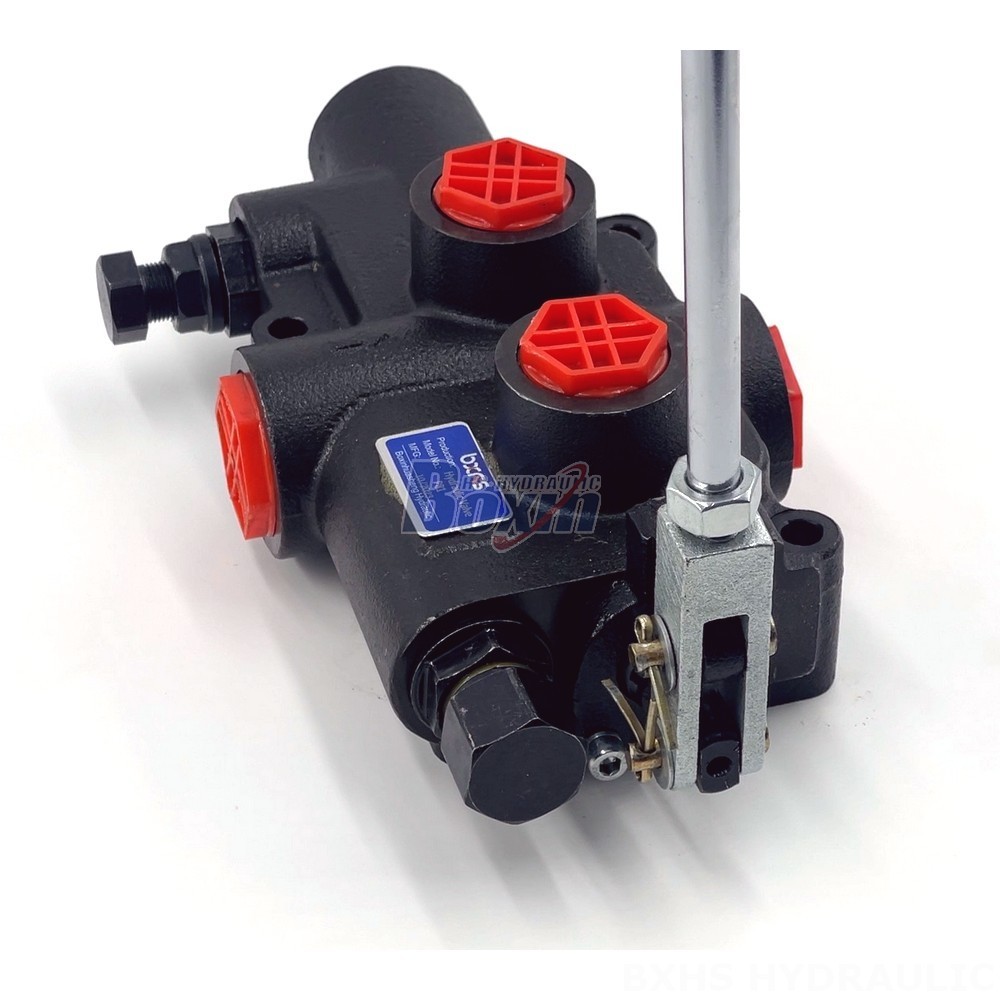

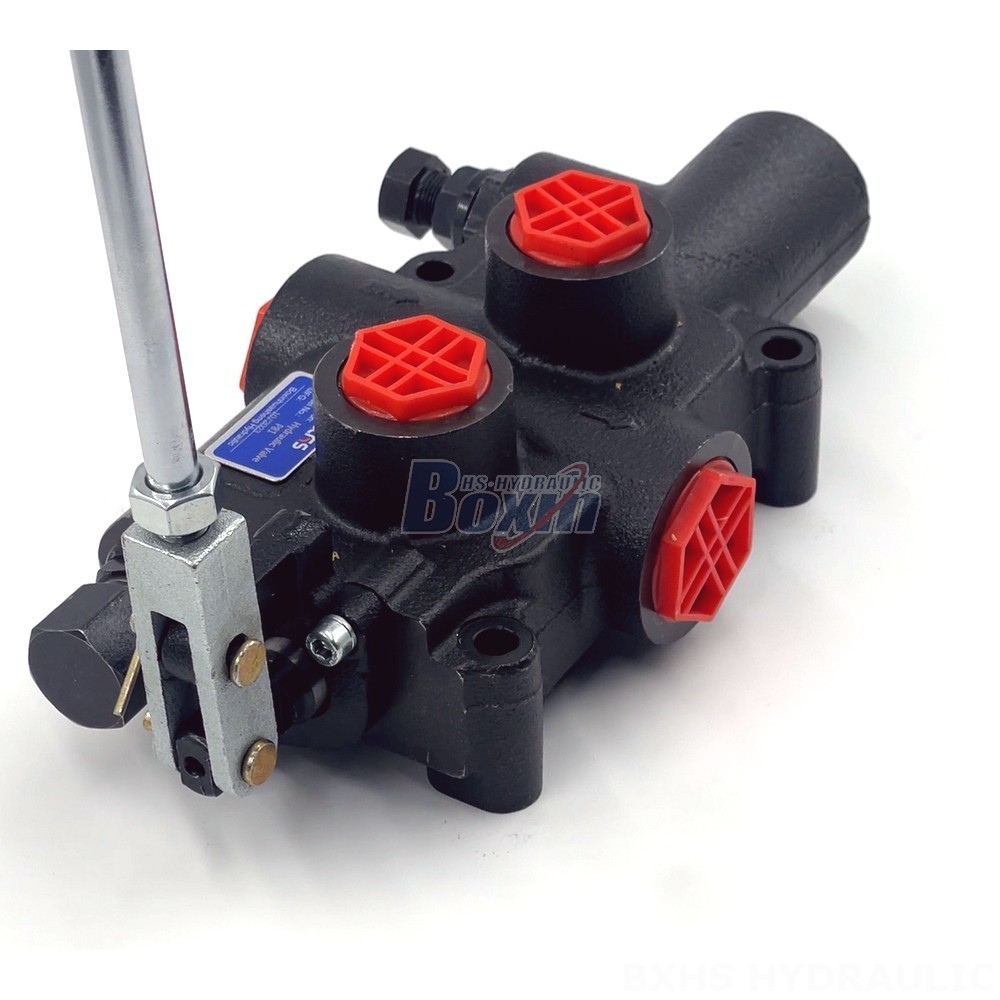

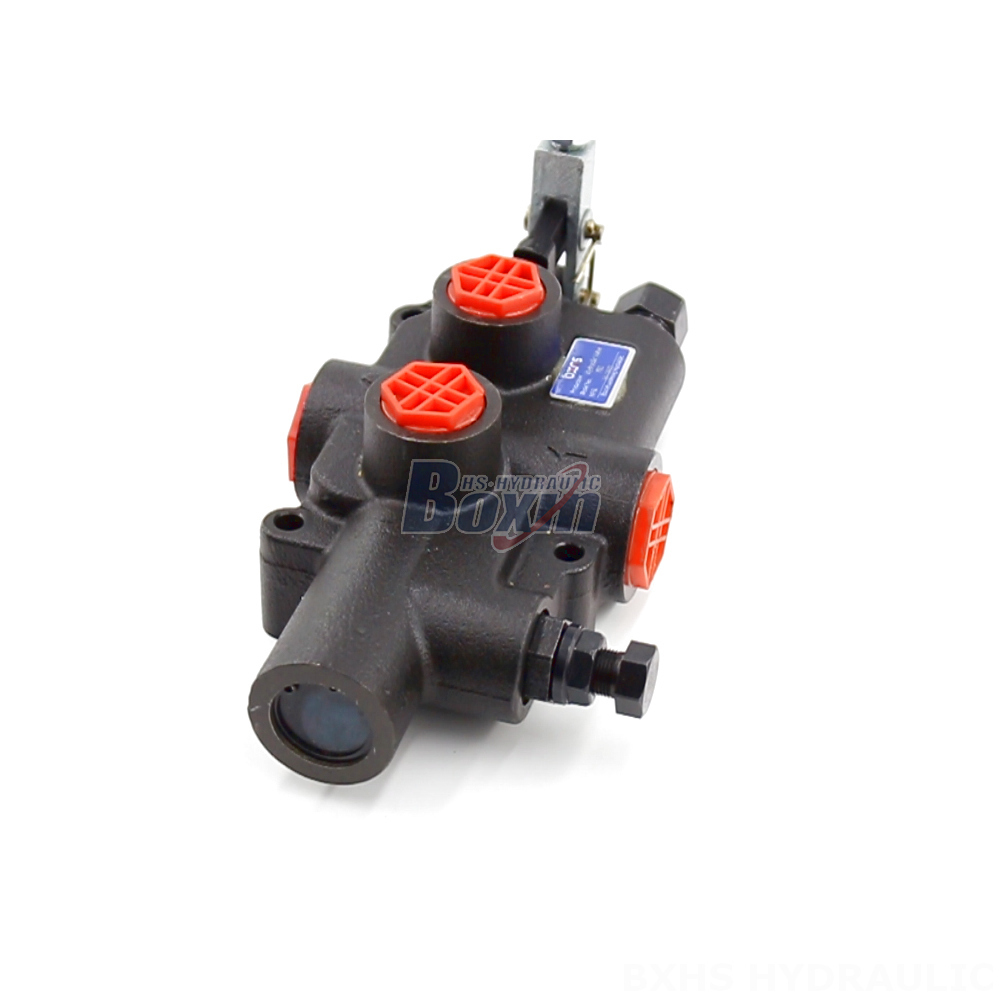

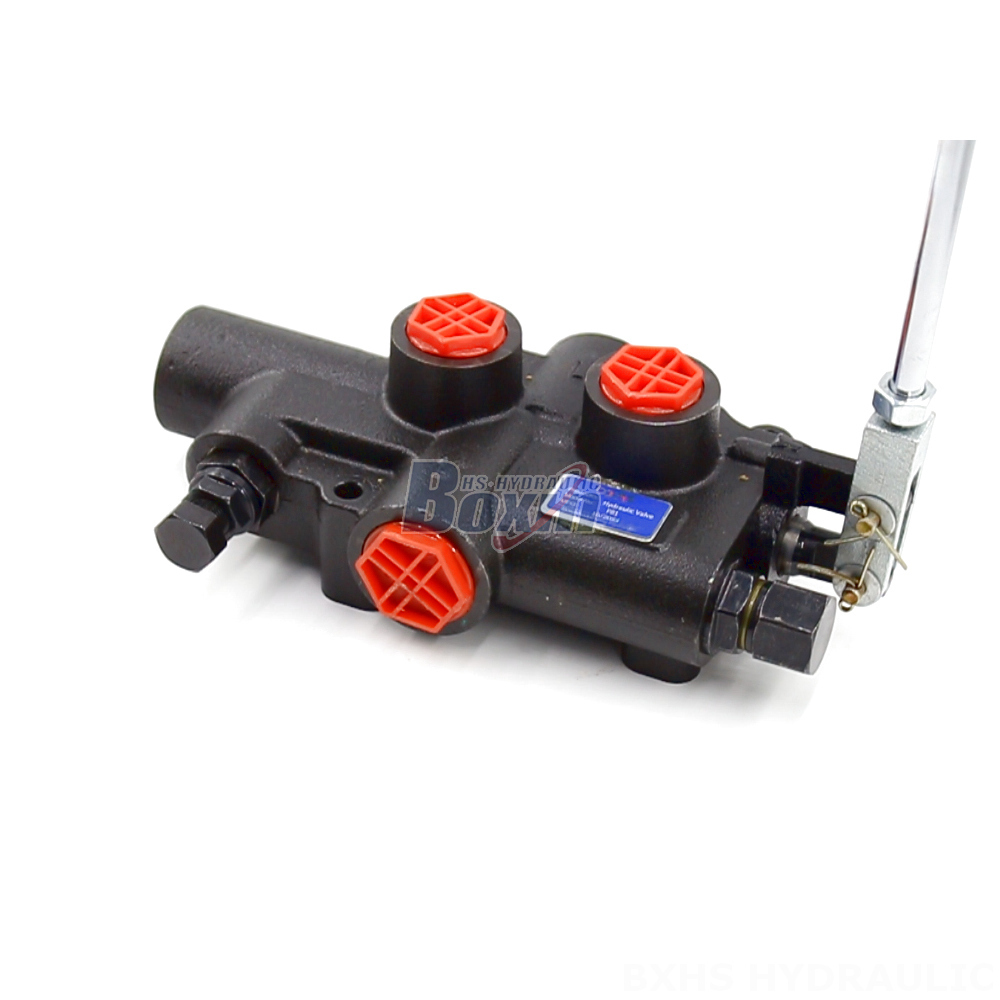

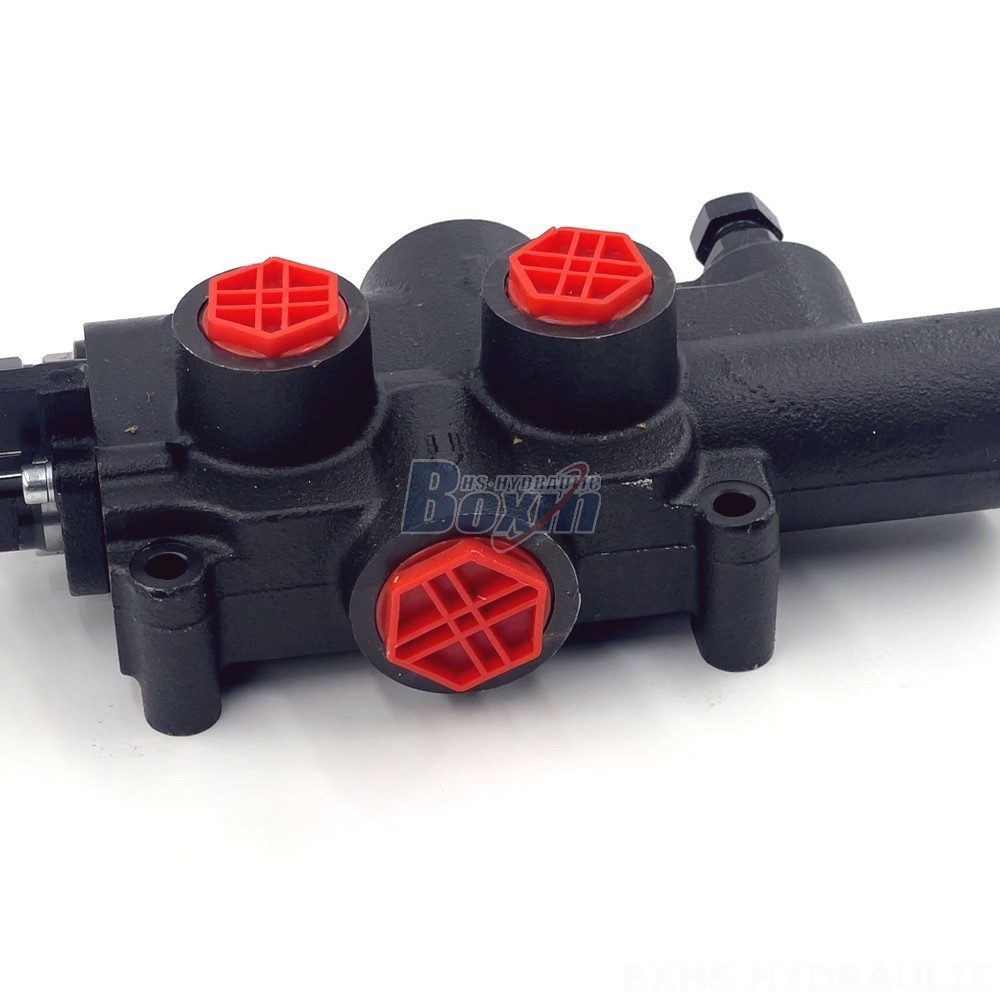

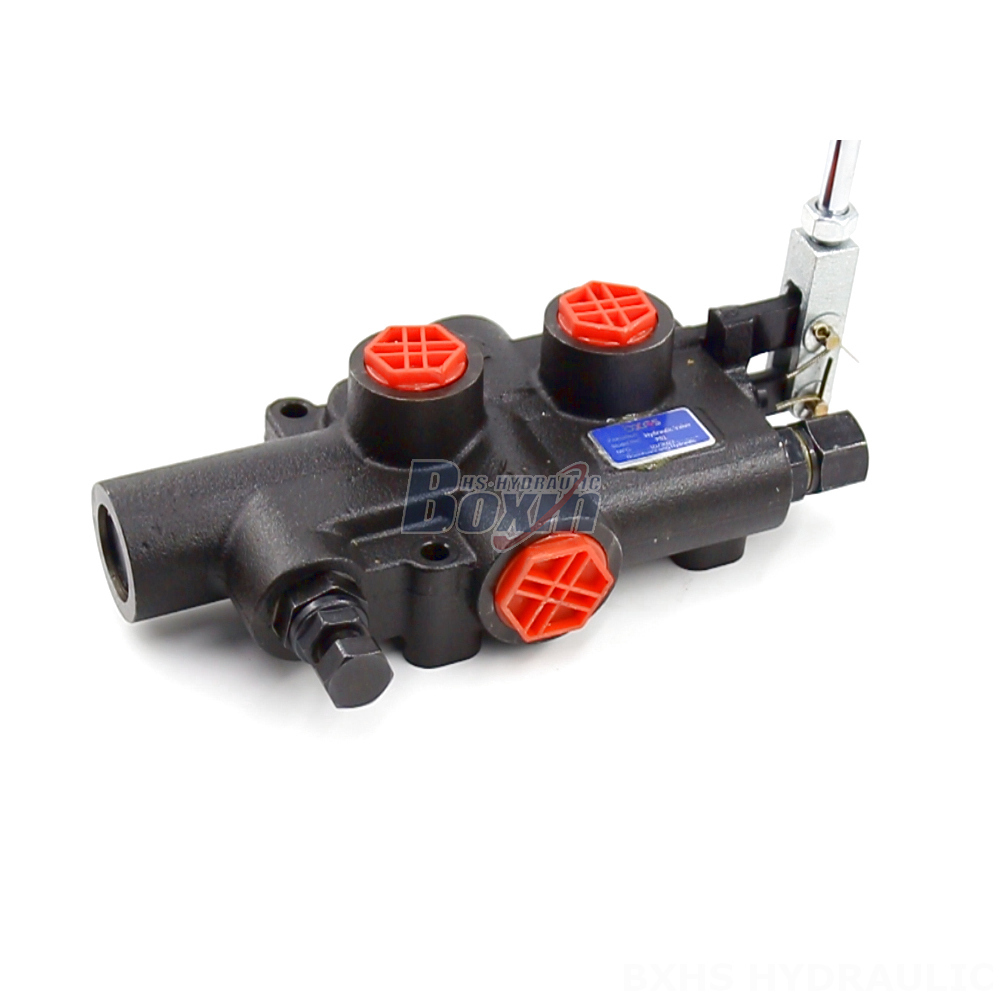

The P81 hydraulic valve is a high-performance, heavy-duty valve designed for use in tractor-powered log splitters. It features a manual control method, 1 section monoblock construction, 80 L/min flow rate, and 250 bar maximum pressure. This durable valve is perfect for industrial applications and offers customizable options to meet your specific needs.

Serie P81 Válvula para divisor de troncos Parámetros
Método de control Manual
Carrete 1 carrete
Rango de temperatura ambiente -40 °C a +80 °C (-40 °F a +176 °F)
Tipo de estructura Válvulas monobloc
Sección 1 sección
Rango de viscosidad de funcionamiento 15 - 75 mm²/s (15 cSt a 75 cSt)
Flujo Nominal 80 l/min (21,2 gal EE. UU./min), 95 l/min (25,1 gal EE. UU./min)
Presión Máxima Presión máxima
Puerto de Entrada G1/2
Puerto de Salida G1/2
Tamaño de Puerto G3/4

The P81 model is a robust tractor joy stick log splitter hydraulic valve, ideal for industrial vehicles. This monoblock valve boasts a 1 section design and offers a rated flow of 80 L/min (21.2 US gpm) with a maximum pressure of 250 bar (3600 psi). It operates within a wide viscosity range of 15 - 75 mm²/s (15 cSt to 75 cSt) and can withstand ambient temperatures from -40°C to +80°C (-40°F to +176°F). The valve features a single spool with a kick-out setting pressure of 70~140bar (1015-2030psi). We offer this valve for manufacturing, OEM, private label, and custom orders, allowing you to tailor it to your specific requirements. We are also actively seeking distributors, wholesalers, agents, and traders worldwide. Contact us today to discuss your needs and explore the possibilities of this high-quality, customizable hydraulic valve.
