The P80 Series Double Acting Hydraulic Spool Valve is a high-performance, reliable and versatile solution for a wide range of applications in material handling, construction, agriculture, and industrial vehicles. With its robust monoblock design, rated flow of 80 L/min, and maximum pressure of 250 bar, this solenoid controlled valve is ideal for demanding environments.
| Serie P80 Válvula Direccional Monobloque Parámetros | |
|---|---|
| Método de control | Manual, Neumático, Electoneumático, Electrohidráulico, Solenoide, Hidráulico, Hidráulico y Manual, Cable, Joystick, Manual y joystick |
| Carrete | 1 carrete, 2 carretes, 3 carretes, 4 carretes, 5 carretes, 6 carretes, 7 carretes |
| Rango de temperatura ambiente | -40 °C a +80 °C (-40 °F a +176 °F) |
| Tipo de estructura | Válvulas monobloc |
| Sección | 1 sección, 2 secciones, 3 secciones, 4 secciones, 5 secciones, 6 secciones, 7 secciones |
| Rango de viscosidad de funcionamiento | 15 - 75 mm²/s (15 cSt a 75 cSt) |
| Flujo Nominal | 80 l/min (21,2 gal EE. UU./min) |
| Presión Máxima | 315 bar (4600 psi) |
| Puerto de Entrada | G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT |
| Puerto de Salida | G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT |
| Tamaño de Puerto | G1/2, G3/4, M22×1.5, M27×2.0, SAE 10, 1/2 NPT, 3/4 NPT |

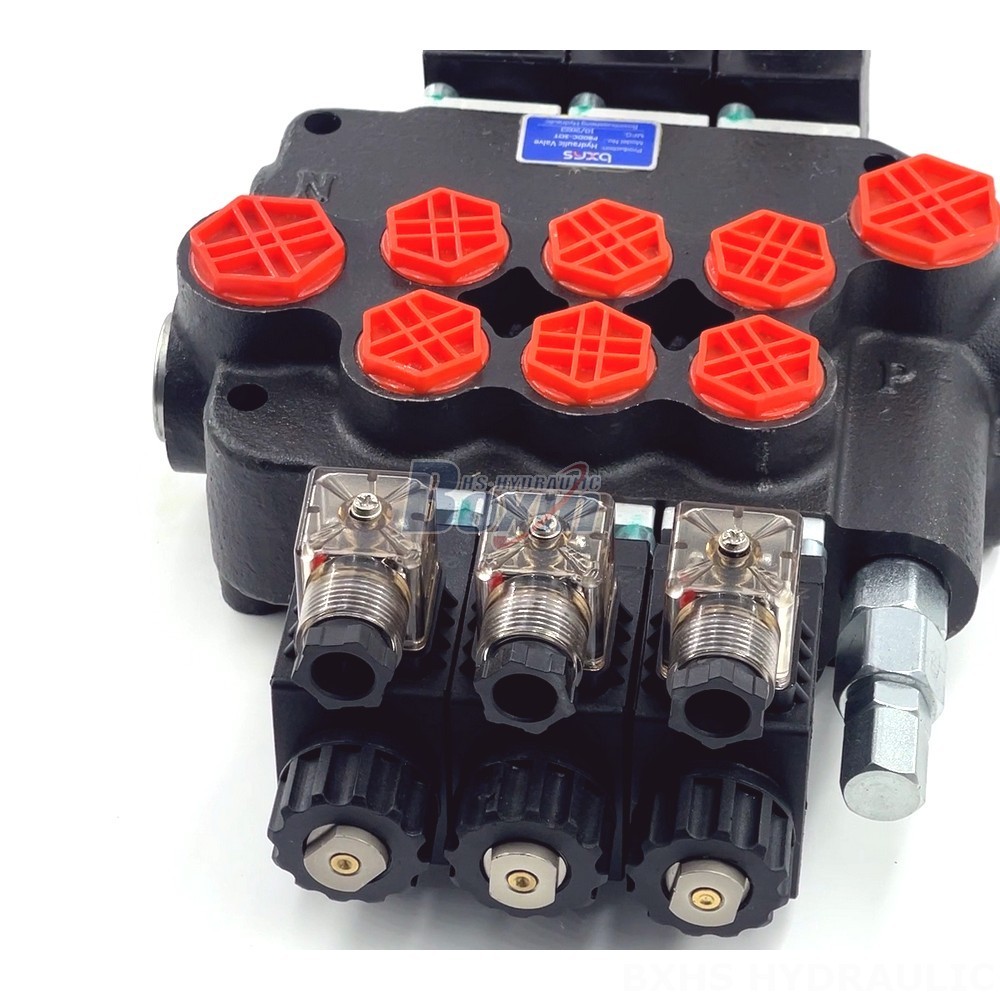

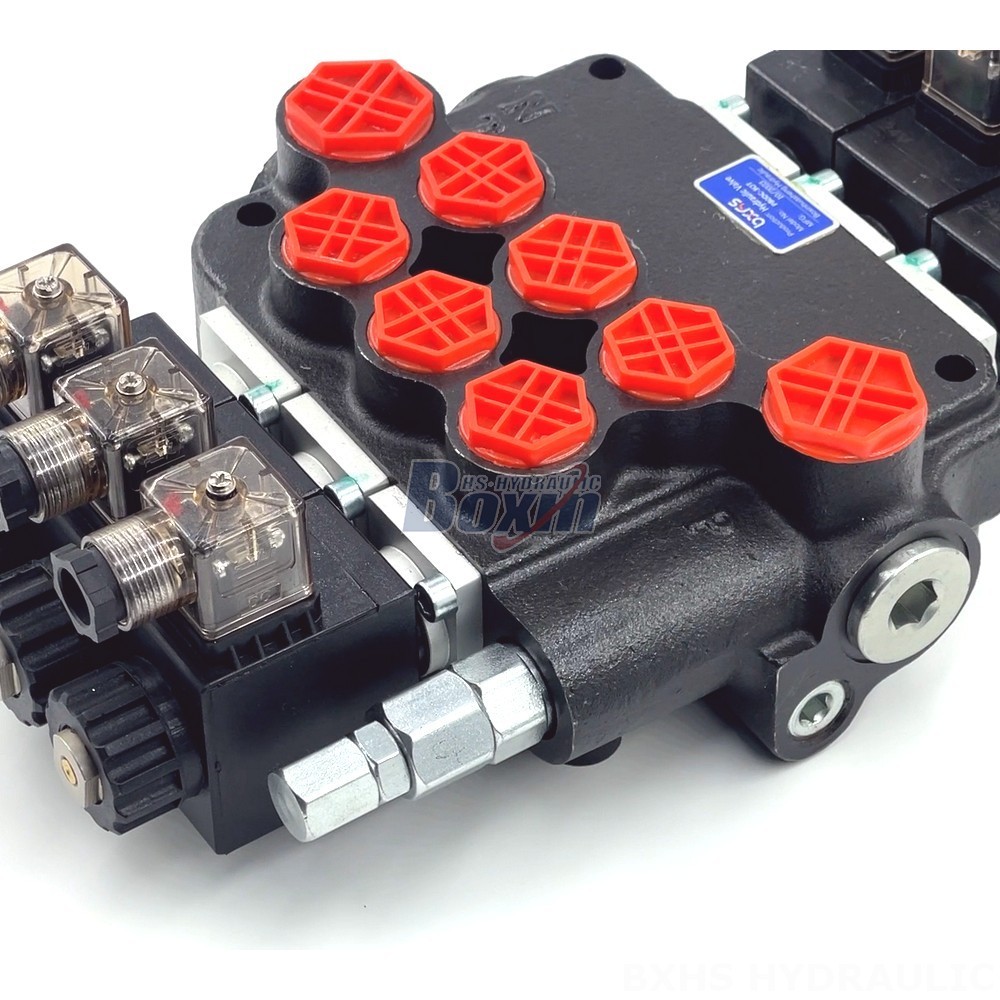

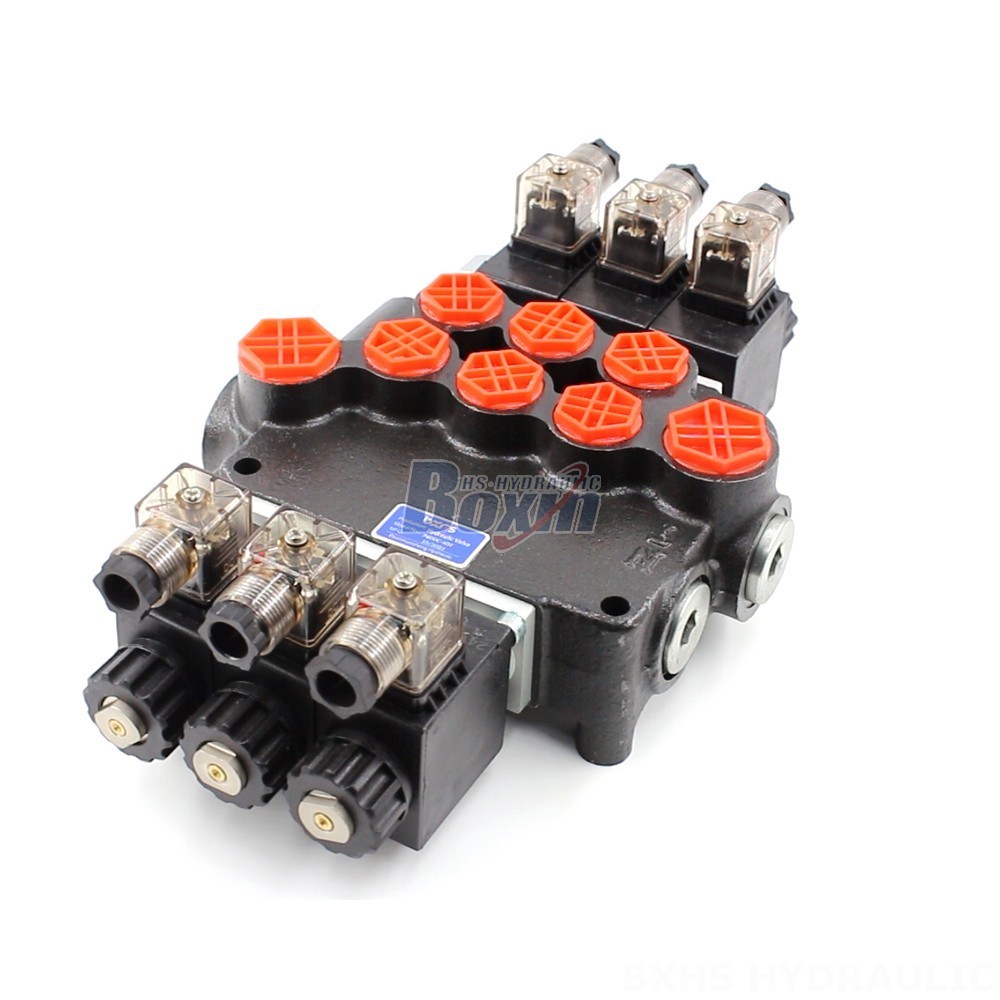

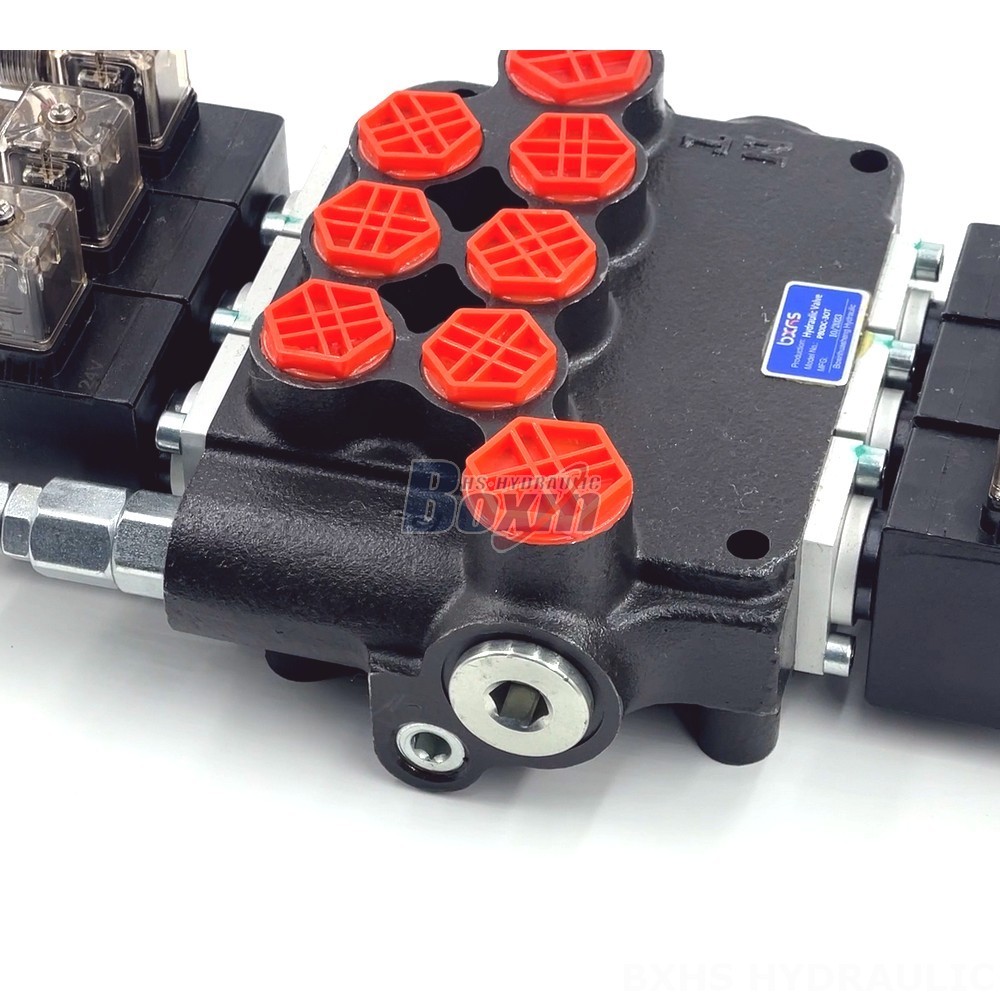

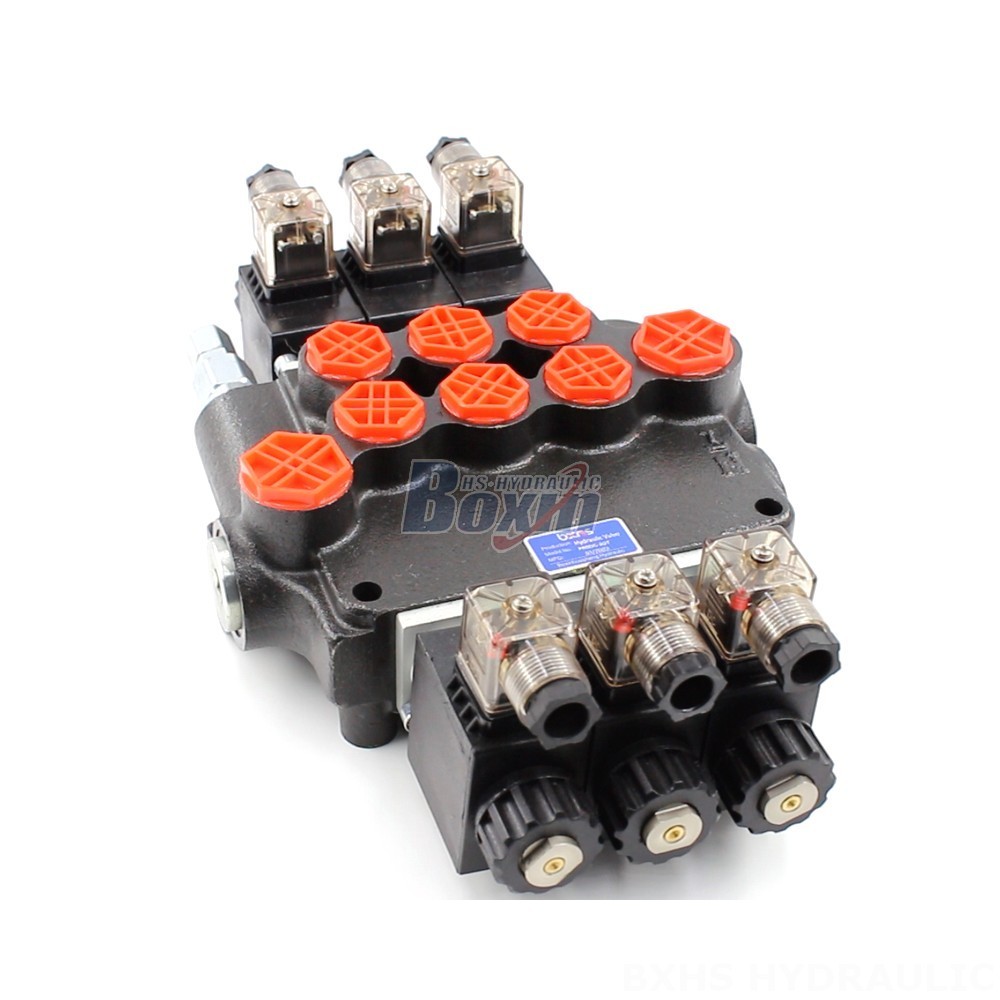

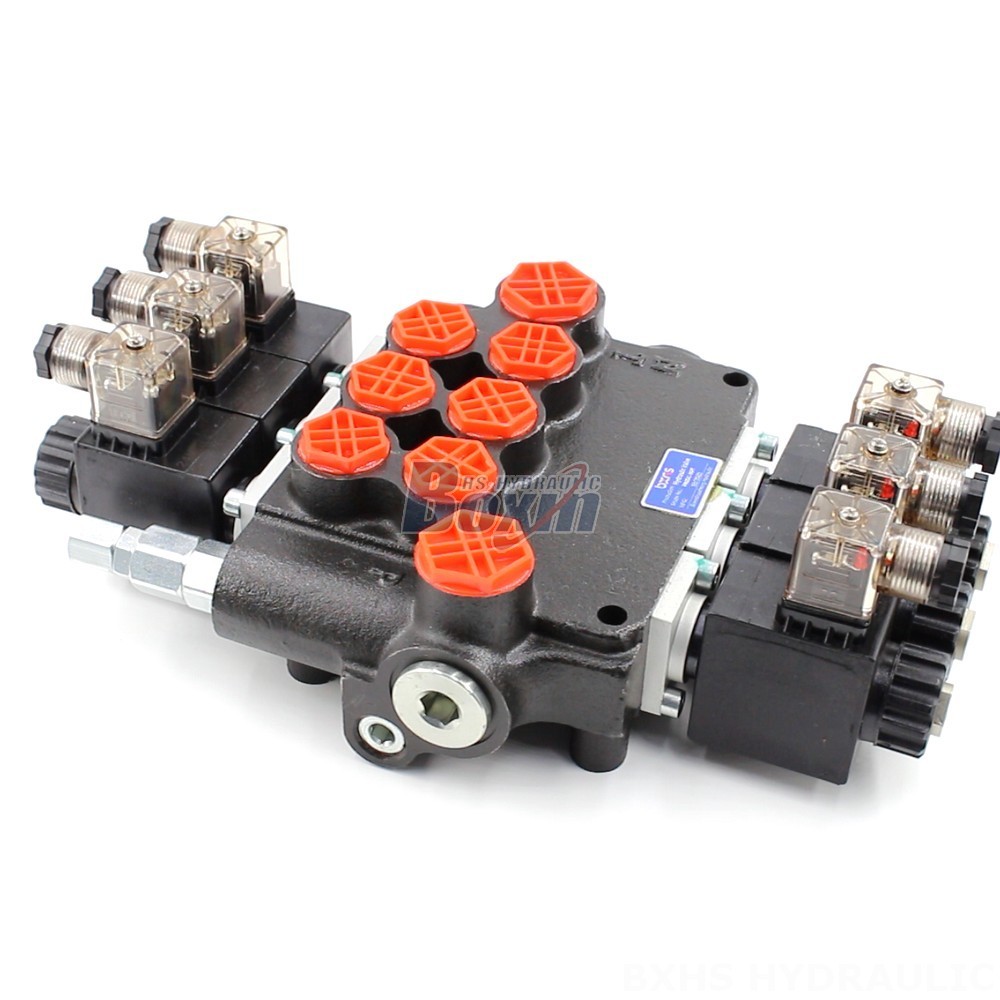

The P80 Series Double Acting Hydraulic Spool Valve is a 3-section, monoblock valve designed for demanding applications in material handling, construction, and industrial vehicles. It features a solenoid control method for precise and reliable operation. The valve has a rated flow of 80 L/min (21.2 US gpm) and a maximum pressure rating of 250 bar (3600 psi), making it suitable for heavy-duty applications. It operates with a viscosity range of 15 - 75 mm²/s (15 cSt to 75 cSt) and is designed for ambient temperatures ranging from -40°C to +80°C (-40°F to +176°F). The P80 Series is a highly durable and reliable valve, perfect for use in telehandlers, forklifts, all-terrain cranes, stackers, aerial platforms, motor graders, midi- excavators, mini-excavators, skid steer loaders, and compact wheel loaders.
