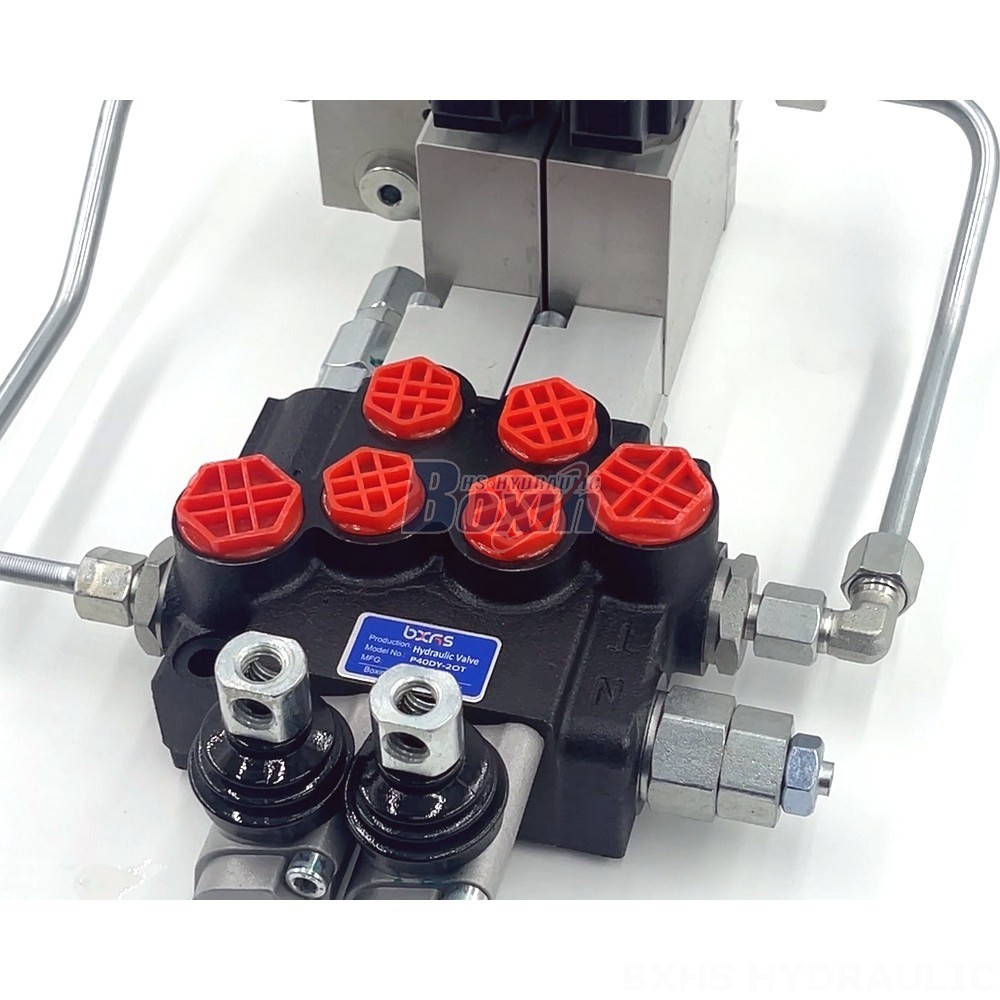

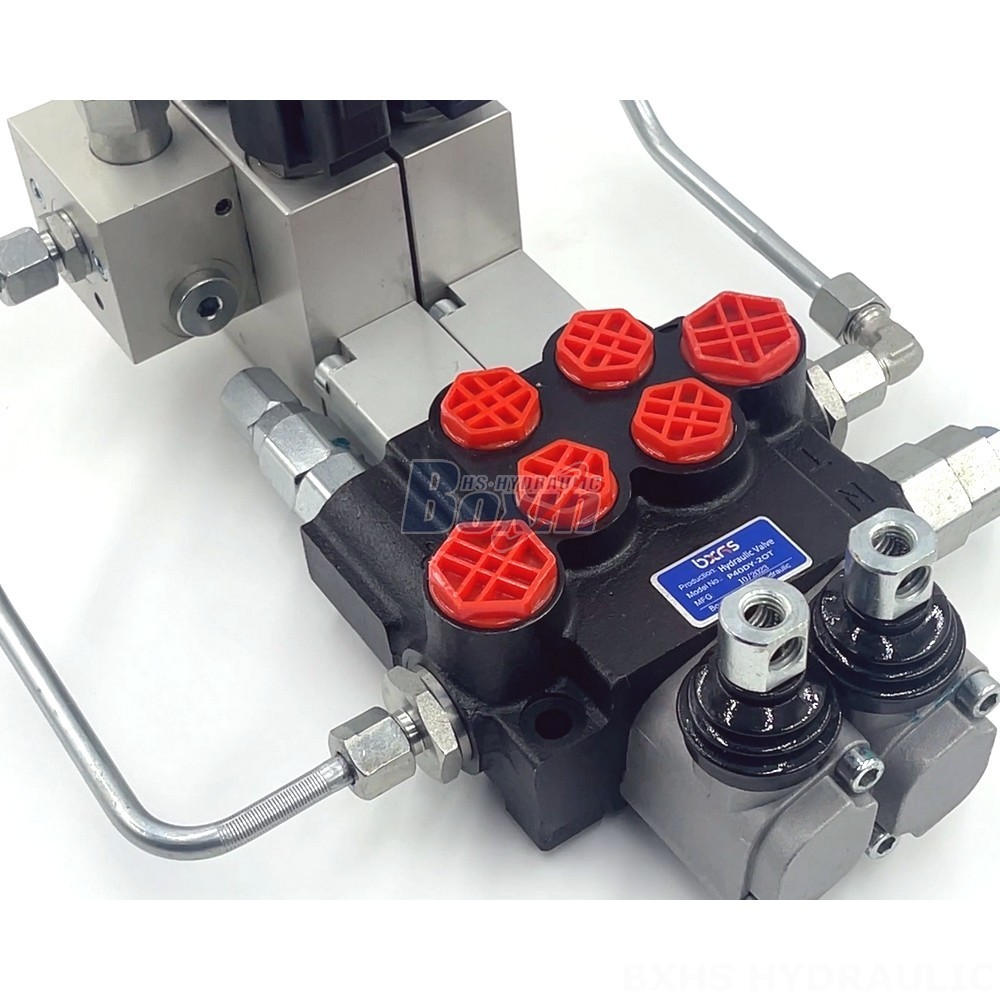

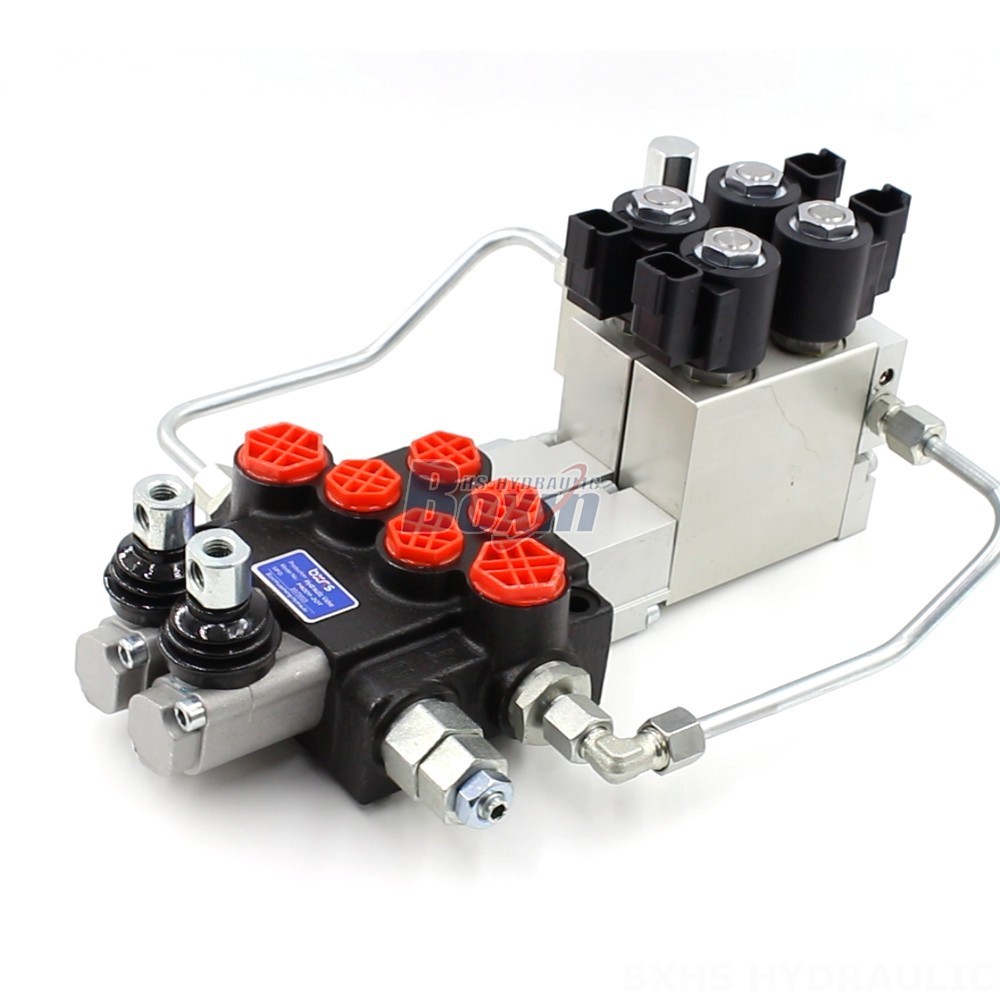

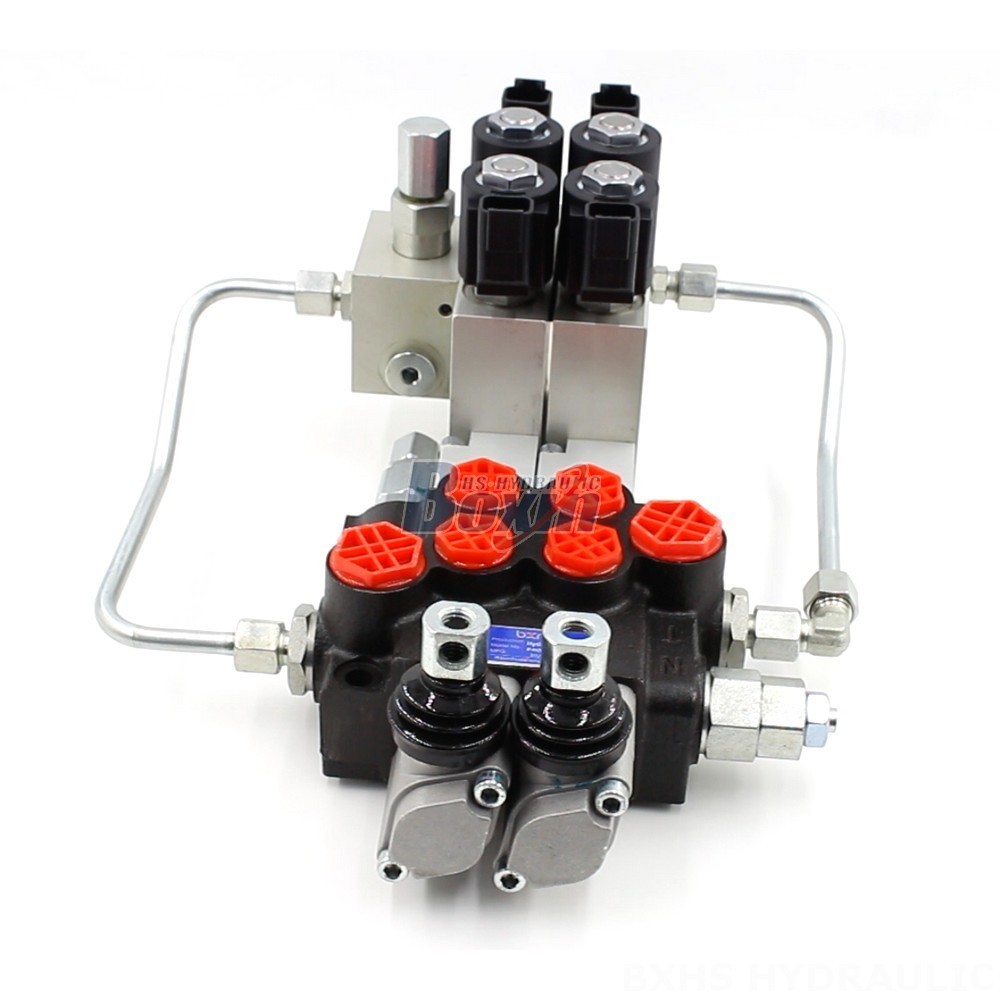

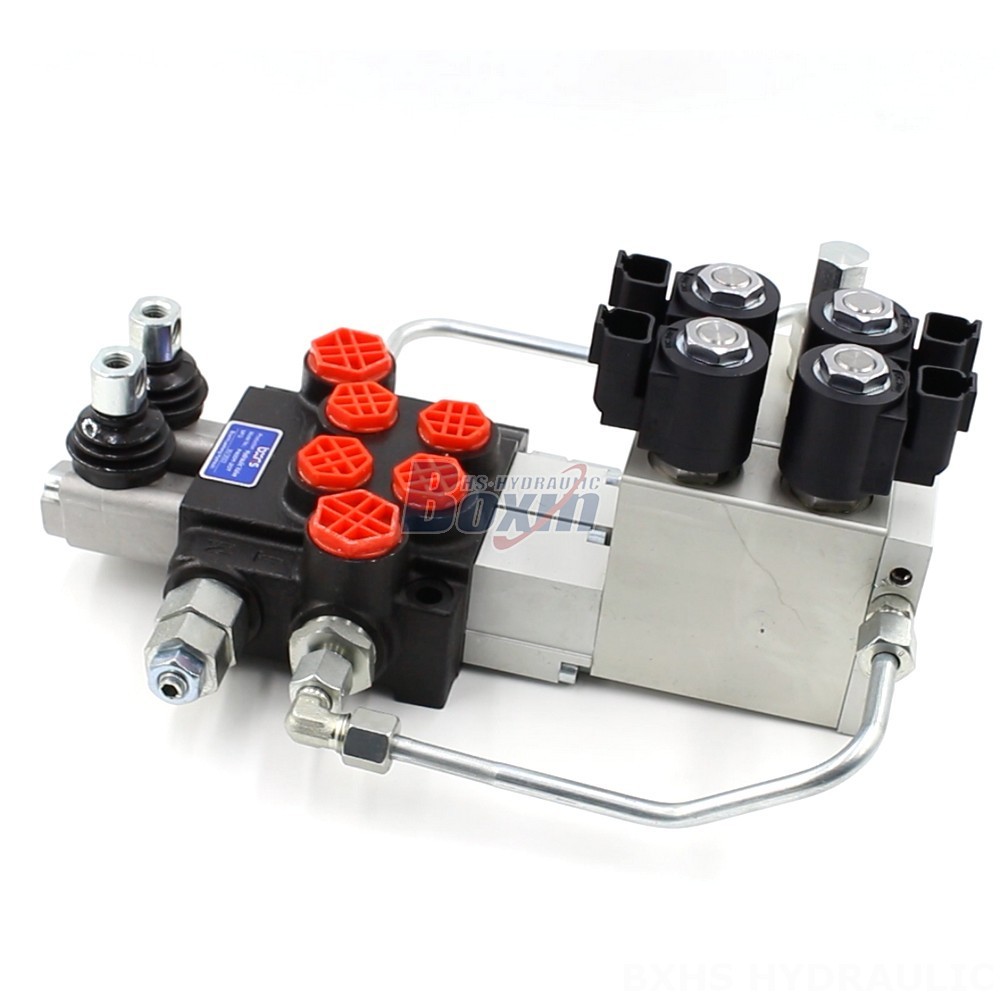

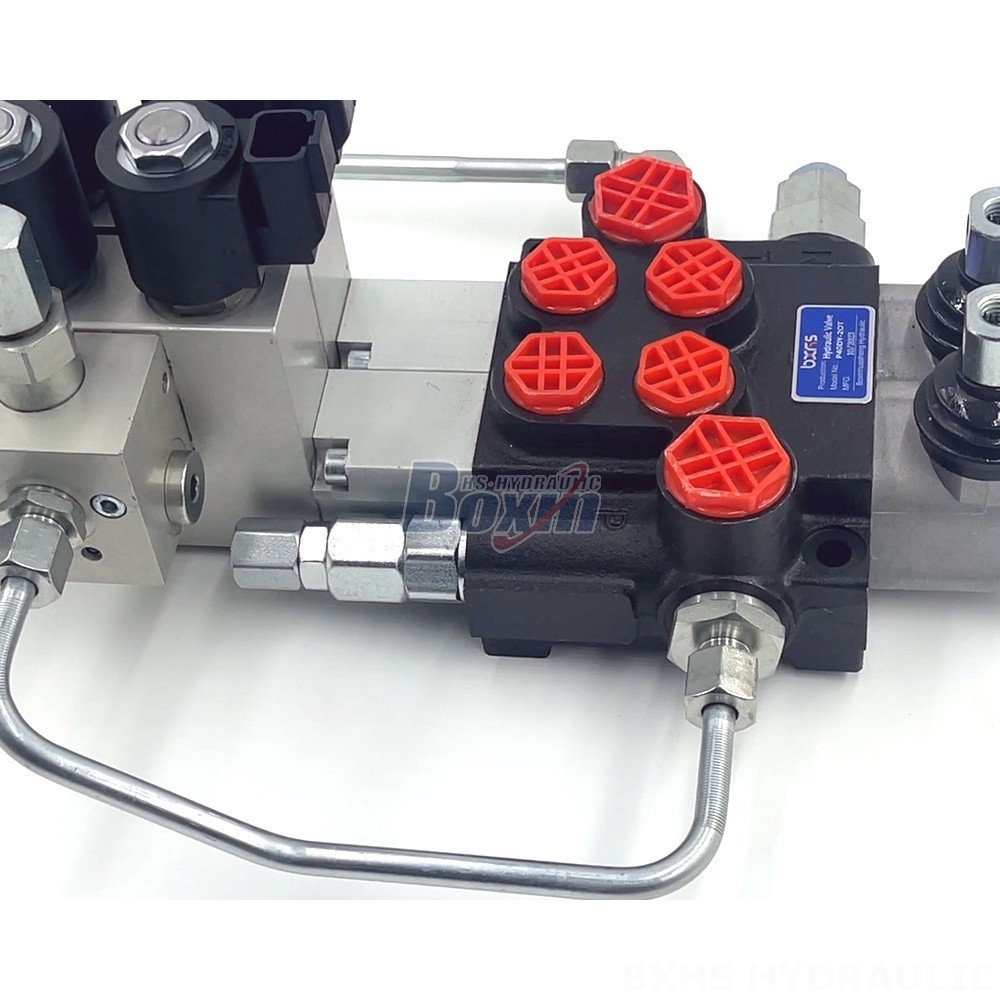

This P40 Series electro-hydraulic pressure relief valve is designed for use in a variety of industrial applications, including material handling, construction, agriculture, and industrial vehicles. It features a monoblock structure, a rated flow of 40 L/min, and a maximum pressure of 250 bar.
| Serie P40 Válvula Direccional Monobloque Parámetros | |
|---|---|
| Método de control | Manual, Neumático, Electoneumático, Electrohidráulico, Solenoide, Hidráulico, Hidráulico y Manual, Cable, Joystick, Solenoide y joystick, Manual y joystick, Solenoide y cable |
| Carrete | 1 carrete, 2 carretes, 3 carretes, 4 carretes, 5 carretes, 6 carretes, 7 carretes |
| Rango de temperatura ambiente | -40 °C a +80 °C (-40 °F a +176 °F) |
| Tipo de estructura | Válvulas monobloc |
| Sección | 1 sección, 2 secciones, 3 secciones, 4 secciones, 5 secciones, 6 secciones, 7 secciones |
| Rango de viscosidad de funcionamiento | 15 - 75 mm²/s (15 cSt a 75 cSt) |
| Flujo Nominal | 40 l/min (10,5 gal EE. UU./min) |
| Presión Máxima | 250 bar (3600 psi) |
| Puerto de Entrada | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Puerto de Salida | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Tamaño de Puerto | G3/8, G1/2, M18×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
The P40 Series electro-hydraulic pressure relief valve is a high-performance, reliable component for industrial hydraulic systems. This monoblock valve features a 2-spool design and a rated flow of 40 L/min (10.5 US gpm). It can handle a maximum pressure of 250 bar (3600 psi) and operates within a viscosity range of 15 - 75 mm²/s (15 cSt to 75 cSt). The valve is designed to withstand temperatures ranging from -40°C to +80°C (-40°F to +176°F). Its versatility makes it suitable for various applications, including material handling equipment (telehandlers, forklifts, stackers), construction and earth moving machinery (cranes, motor graders, excavators), agricultural machinery, and industrial vehicles.
