Producción y entrega
Plazo de ejecución de producción de 15 a 30 días
La innovación impulsa el desarrollo; tecnología forja futuro
1019 personas están viendo este producto

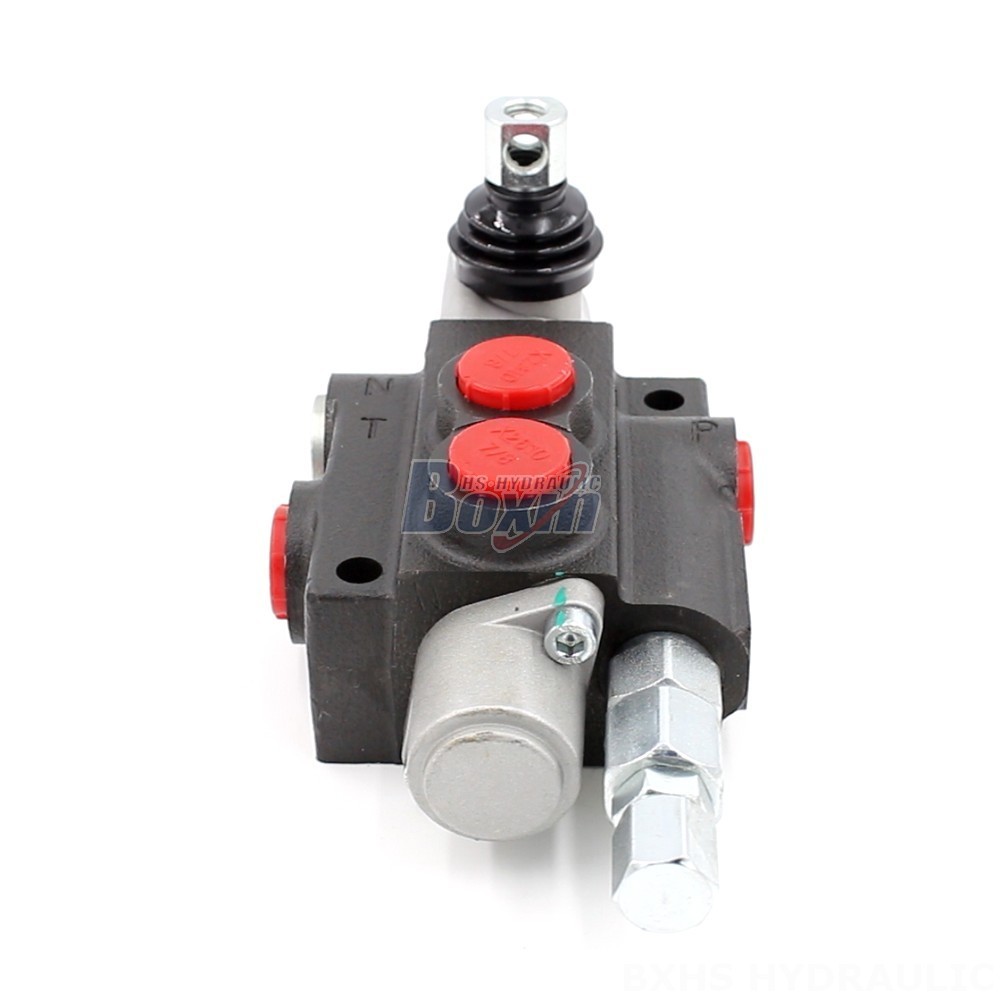

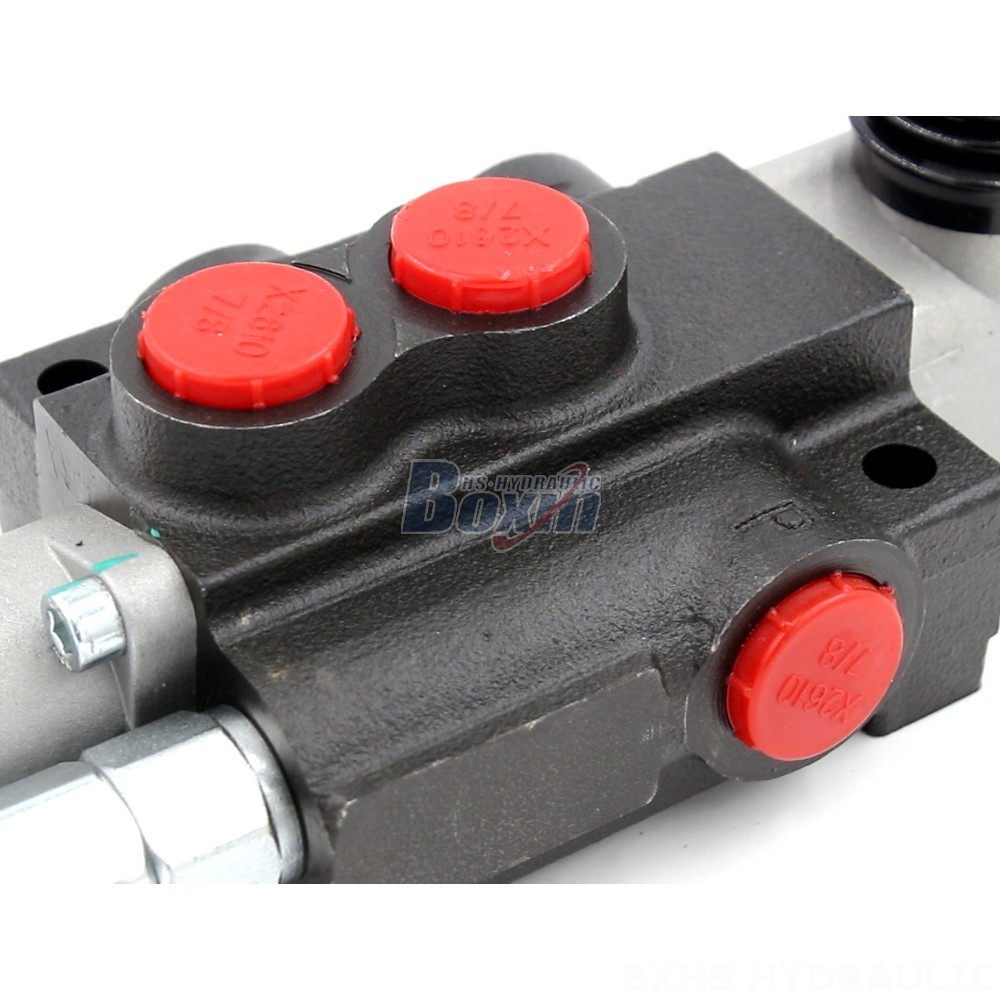

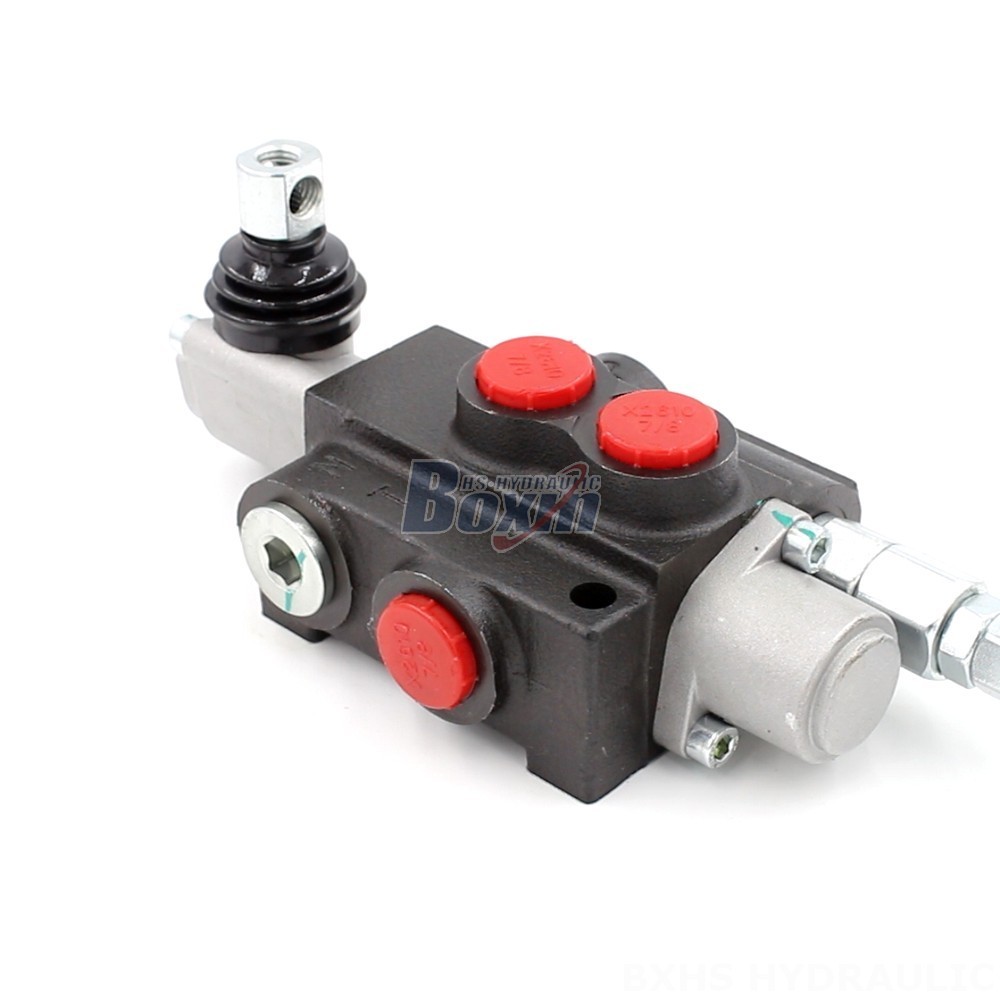

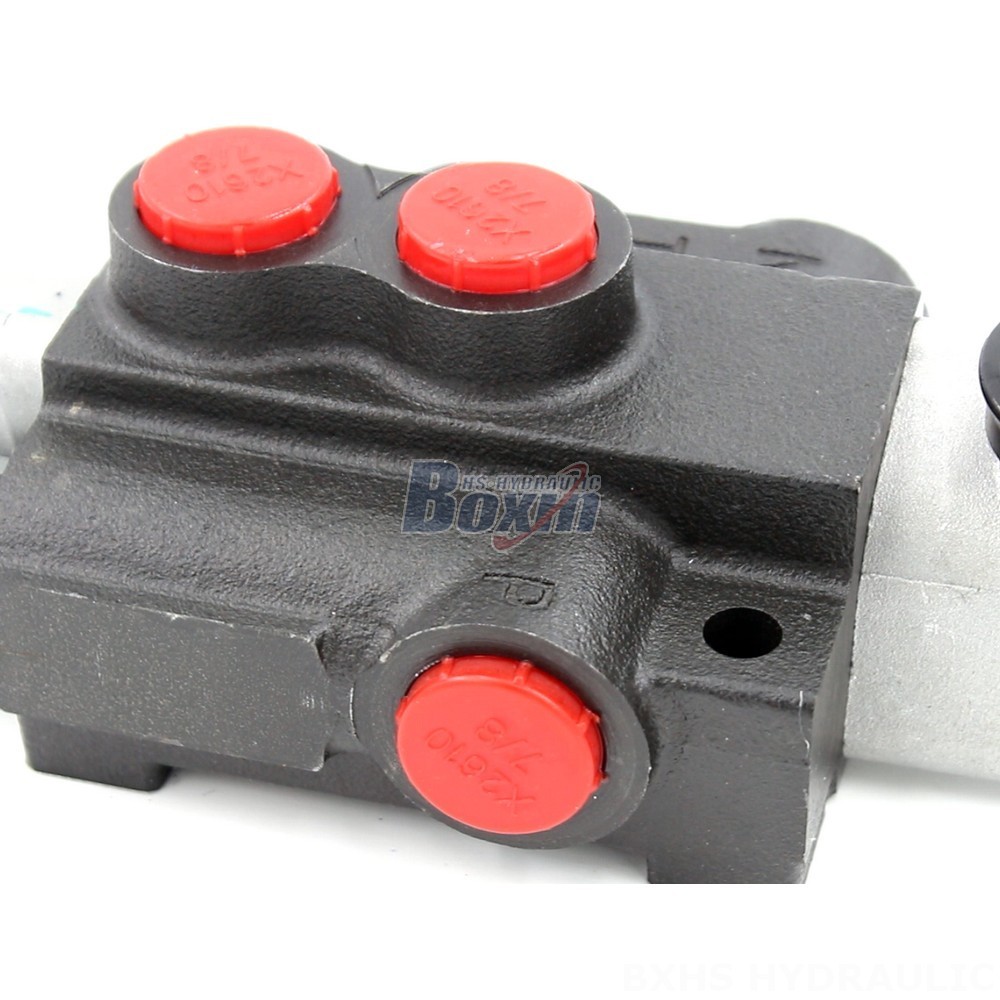

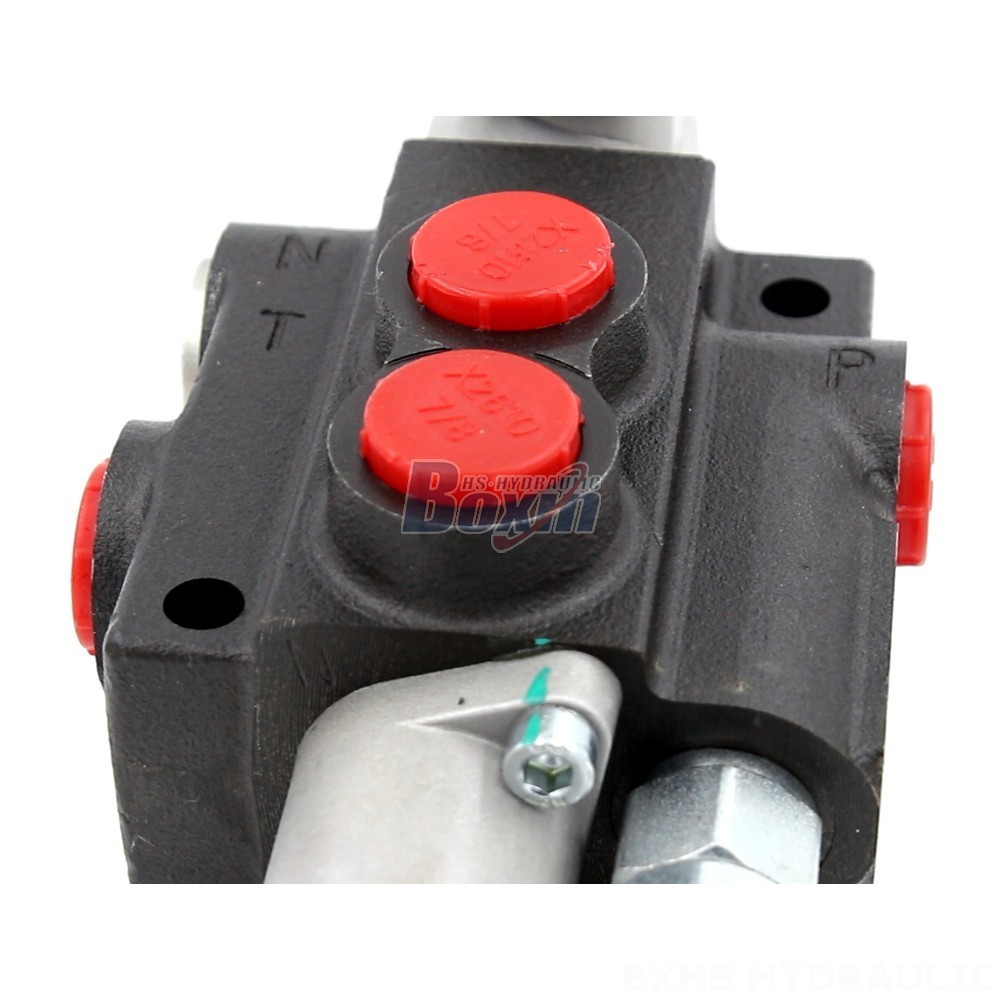

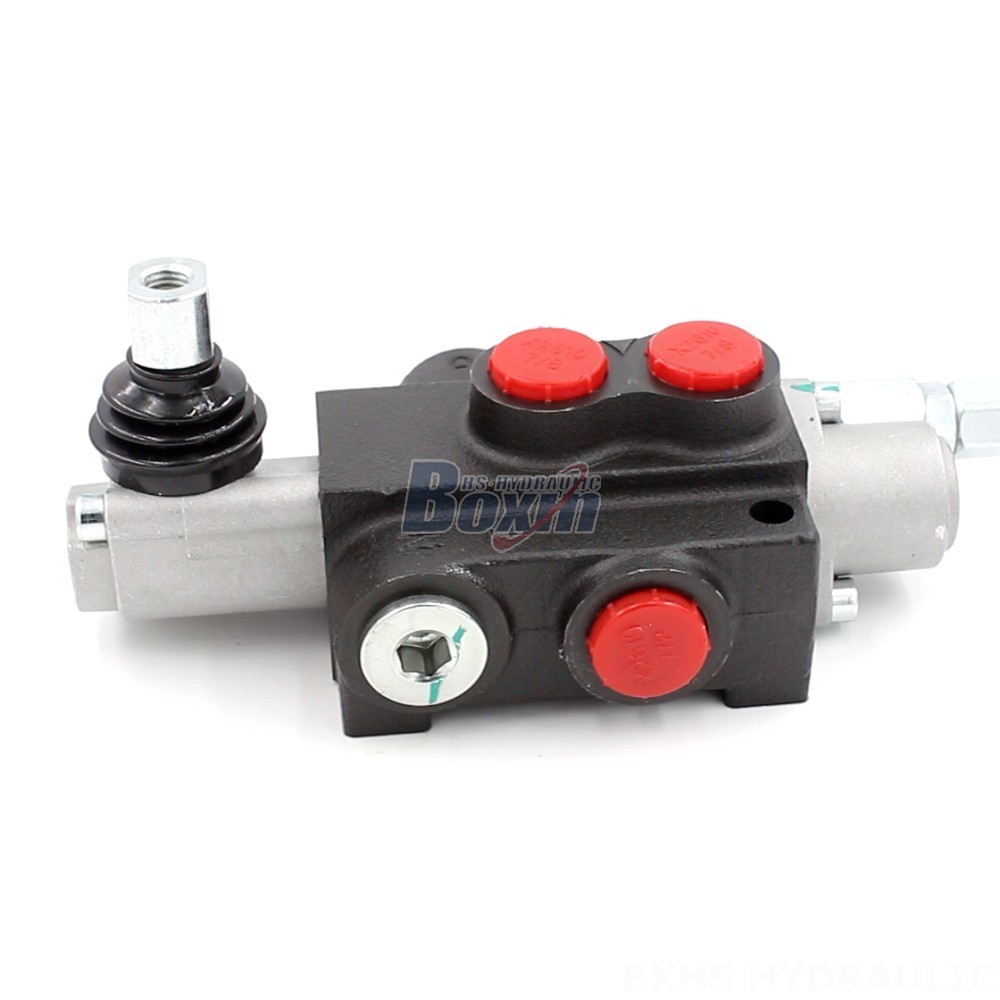

Our P40-U34 Series hydraulic valves offer exceptional performance and versatility for various applications. With OEM and ODM services, we can tailor these valves to your specific requirements, including customized designs, private labeling, and tailored solutions.
| Serie P40 Válvula Direccional Monobloque Parámetros | |
|---|---|
| Método de control | Manual, Neumático, Electoneumático, Electrohidráulico, Solenoide, Hidráulico, Hidráulico y Manual, Cable, Joystick, Solenoide y joystick, Manual y joystick, Solenoide y cable |
| Carrete | 1 carrete, 2 carretes, 3 carretes, 4 carretes, 5 carretes, 6 carretes, 7 carretes |
| Rango de temperatura ambiente | -40 °C a +80 °C (-40 °F a +176 °F) |
| Tipo de estructura | Válvulas monobloc |
| Sección | 1 sección, 2 secciones, 3 secciones, 4 secciones, 5 secciones, 6 secciones, 7 secciones |
| Rango de viscosidad de funcionamiento | 15 - 75 mm²/s (15 cSt a 75 cSt) |
| Flujo Nominal | 40 l/min (10,5 gal EE. UU./min) |
| Presión Máxima | 250 bar (3600 psi) |
| Puerto de Entrada | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Puerto de Salida | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Tamaño de Puerto | G3/8, G1/2, M18×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
**P40-U34 Series Hydraulic Valve: Customizable Solutions for Demanding Applications**
**OEM/ODM Services for Tailored Solutions:**
- Custom designs to match your exact specifications
- Private labeling for enhanced brand recognition
- Specialized solutions to meet unique application challenges
**Exceptional Performance and Durability:**
- Manual control for precise operation
- Monoblock construction for ruggedness and reliability
- Rated flow of 40 L/min and maximum pressure of 250 bar
- Operating viscosity range of 15 - 75 mm²/s
- Ambient temperature range of -40°C to +80°C
**Wide Range of Applications:**
- Material handling equipment (e.g., forklifts, telehandlers)
- Construction and earthmoving machinery (e.g., excavators, skid steer loaders)
- Agricultural vehicles (e.g., tractors, harvesters)
- Industrial vehicles (e.g., aerial platforms, motor graders)
