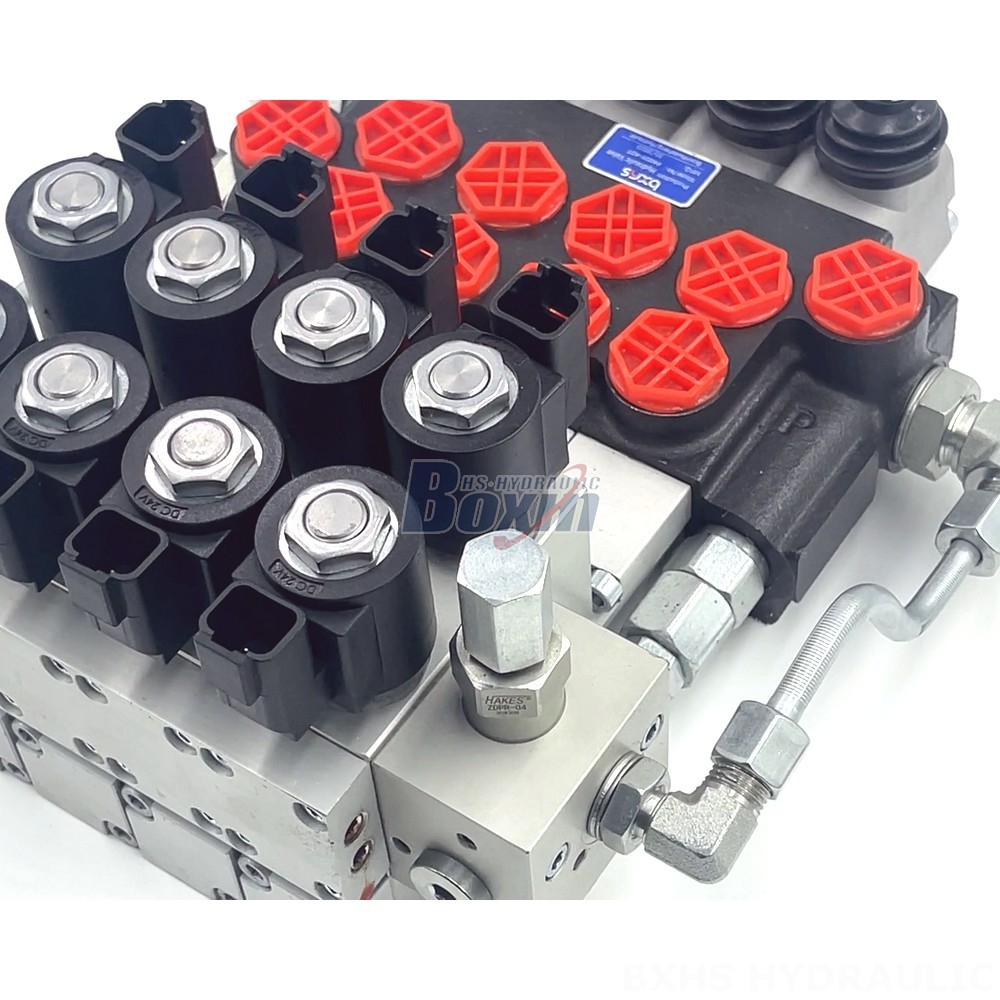

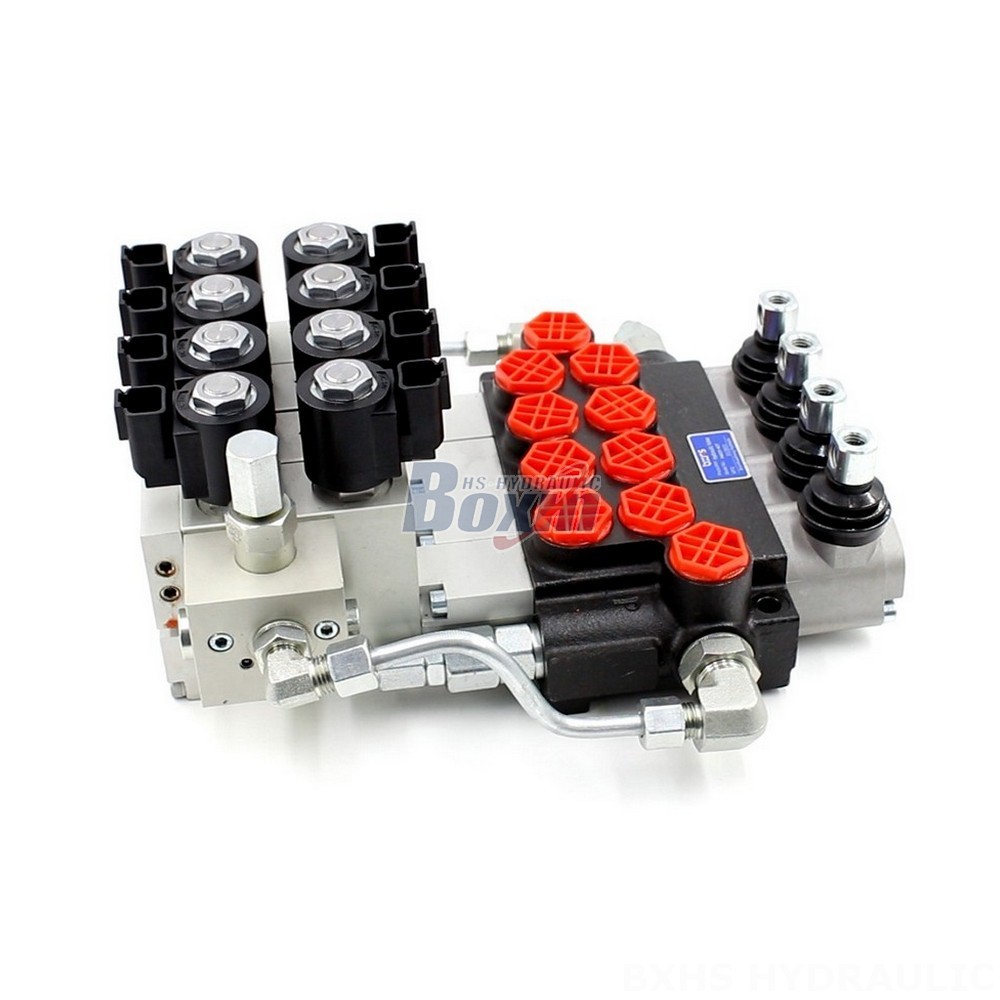

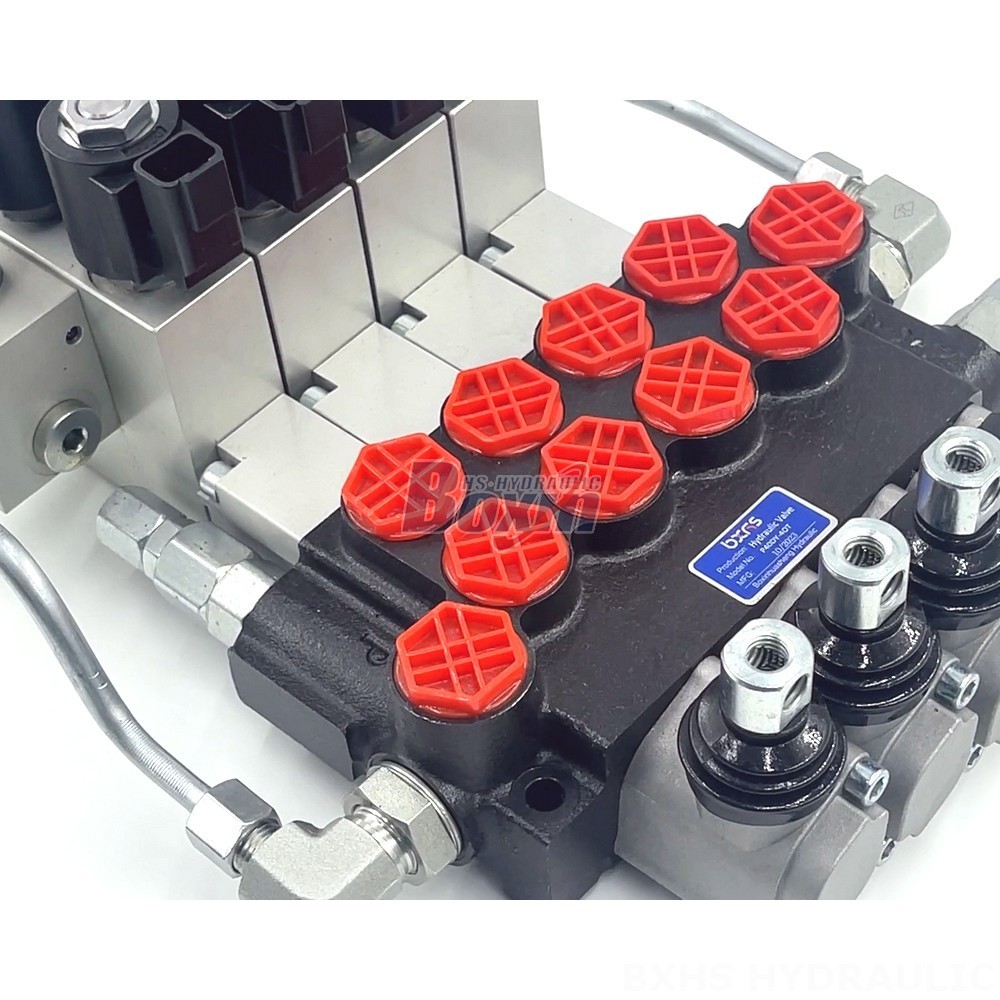

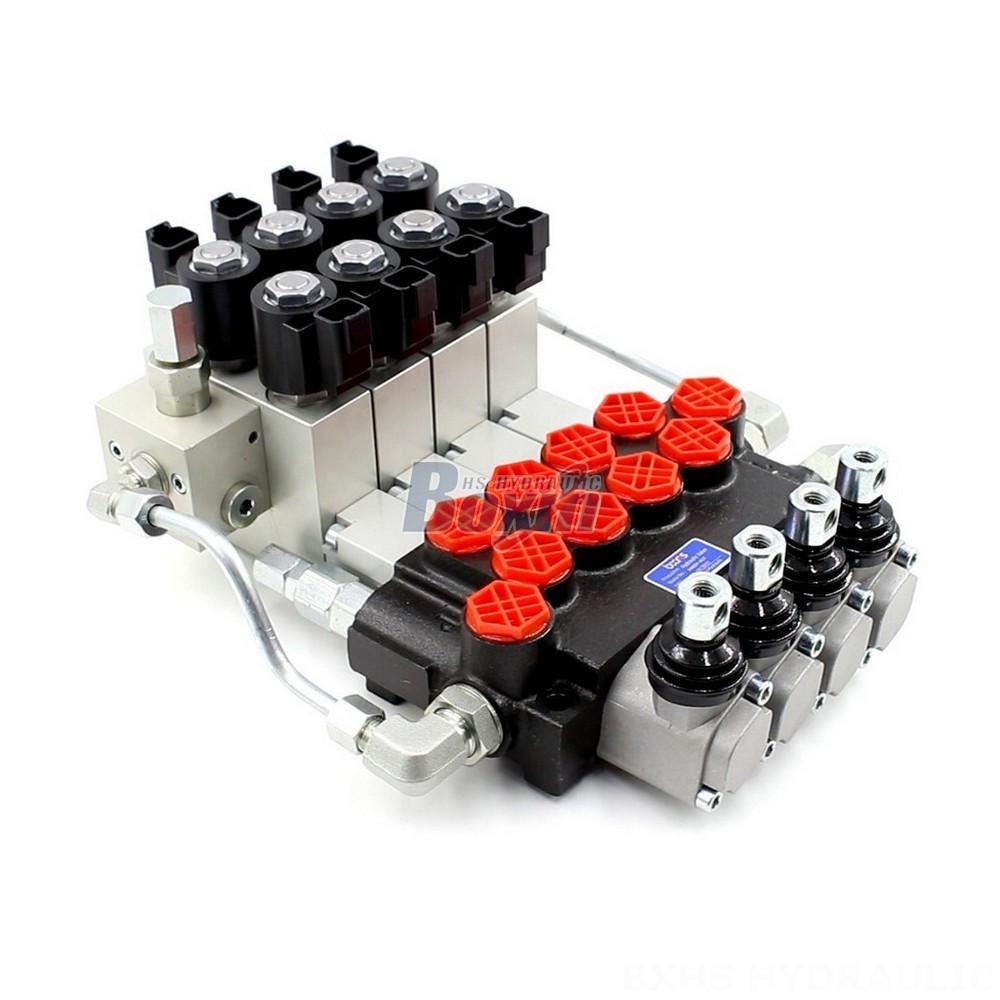

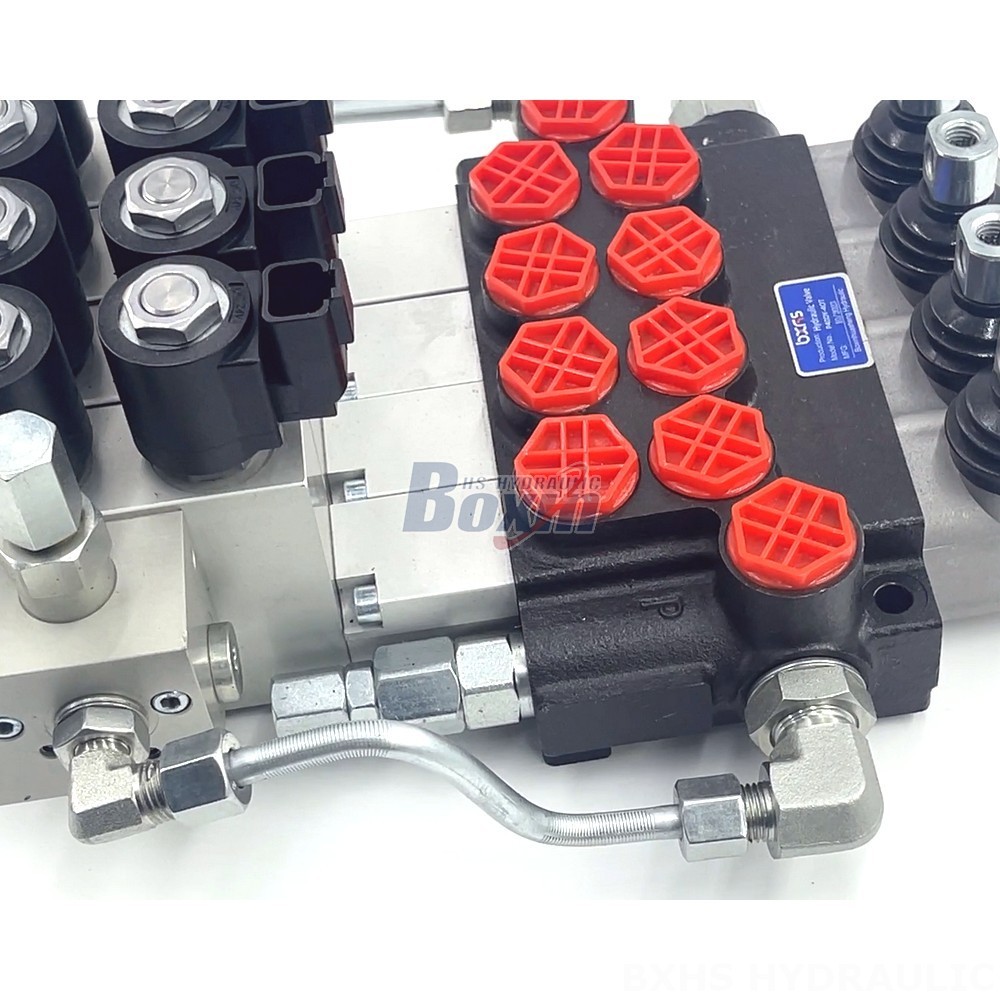

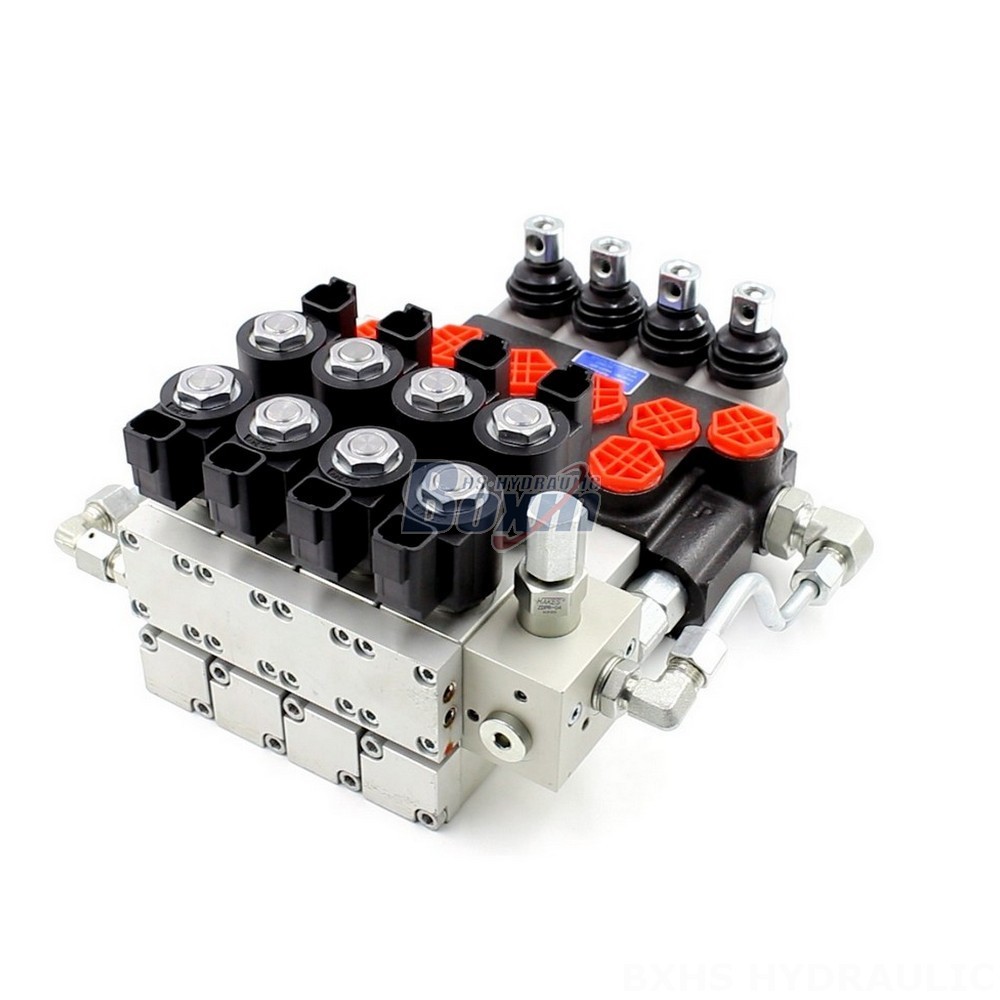

The P40 Directional Valve is a high-performance, 4-section monoblock valve designed for use in a wide range of construction and industrial applications. With a rated flow of 40 L/min and a maximum pressure of 250 bar, this valve is ideal for demanding applications requiring precise control and reliable performance.
| Serie P40 Válvula Direccional Monobloque Parámetros | |
|---|---|
| Método de control | Manual, Neumático, Electoneumático, Electrohidráulico, Solenoide, Hidráulico, Hidráulico y Manual, Cable, Joystick, Solenoide y joystick, Manual y joystick, Solenoide y cable |
| Carrete | 1 carrete, 2 carretes, 3 carretes, 4 carretes, 5 carretes, 6 carretes, 7 carretes |
| Rango de temperatura ambiente | -40 °C a +80 °C (-40 °F a +176 °F) |
| Tipo de estructura | Válvulas monobloc |
| Sección | 1 sección, 2 secciones, 3 secciones, 4 secciones, 5 secciones, 6 secciones, 7 secciones |
| Rango de viscosidad de funcionamiento | 15 - 75 mm²/s (15 cSt a 75 cSt) |
| Flujo Nominal | 40 l/min (10,5 gal EE. UU./min) |
| Presión Máxima | 250 bar (3600 psi) |
| Puerto de Entrada | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Puerto de Salida | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Tamaño de Puerto | G3/8, G1/2, M18×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
The P40 Directional Valve is a electro-hydraulic controlled valve with a 4-spool configuration. It features a monoblock construction for enhanced durability and reliability. This valve is designed for use in a wide range of applications, including material handling, construction, earth moving, agriculture, and industrial vehicles. The P40 valve is compatible with various machines such as telehandlers, forklifts, cranes, stackers, aerial platforms, motor graders, mini-excavators, skid steer loaders, wheel loaders, and backhoe loaders. With its high flow rate and pressure rating, the P40 valve provides the necessary power and control for these demanding applications.
