Producción y entrega
Plazo de ejecución de producción de 15 a 30 días
La innovación impulsa el desarrollo; tecnología forja futuro
976 personas están viendo este producto
Enhance the performance of your hydraulic systems with our Hydraulic System Optimization: SD8 Sectional Directional Valves. Designed for demanding applications, these valves offer precise control, high flow capacity, and durability.
| Serie SD8 Válvula direccional seccional Parámetros | |
|---|---|
| Método de control | Manual, Neumático, Electoneumático, Electrohidráulico, Solenoide, Hidráulico, Hidráulico y Manual, Cable, Joystick, Solenoide y joystick, Manual y joystick |
| Carrete | 1 carrete, 2 carretes, 3 carretes, 4 carretes, 5 carretes, 6 carretes, 7 carretes, 8 carretes, 9 carretes, 10 carretes |
| Rango de temperatura ambiente | -40 °C a +80 °C (-40 °F a +176 °F) |
| Tipo de estructura | Válvulas seccionales |
| Sección | 1 sección, 2 secciones, 3 secciones, 4 secciones, 5 secciones, 6 secciones, 7 secciones, 8 secciones, 9 secciones, 10 secciones |
| Rango de viscosidad de funcionamiento | 12 - 400 mm²/s (12 cSt a 400 cSt) |
| Flujo Nominal | 90 l/min (23,8 gal EE. UU./min) |
| Presión Máxima | 315 bar (4600 psi) |
| Puerto de Entrada | G1/2, G3/4, SAE 10 |
| Puerto de Salida | G1/2, G3/4, SAE 10, 3/4 NPT |
| Tamaño de Puerto | G1/2, SAE 10 |

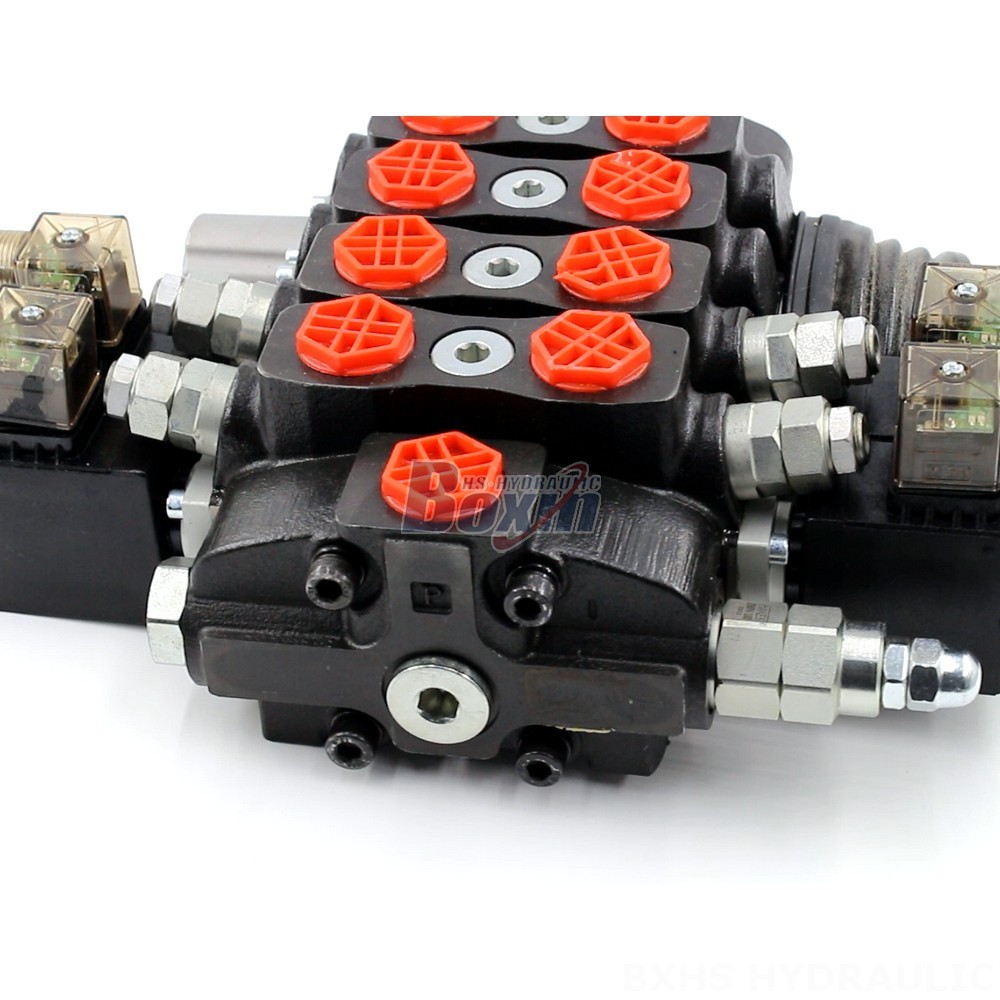

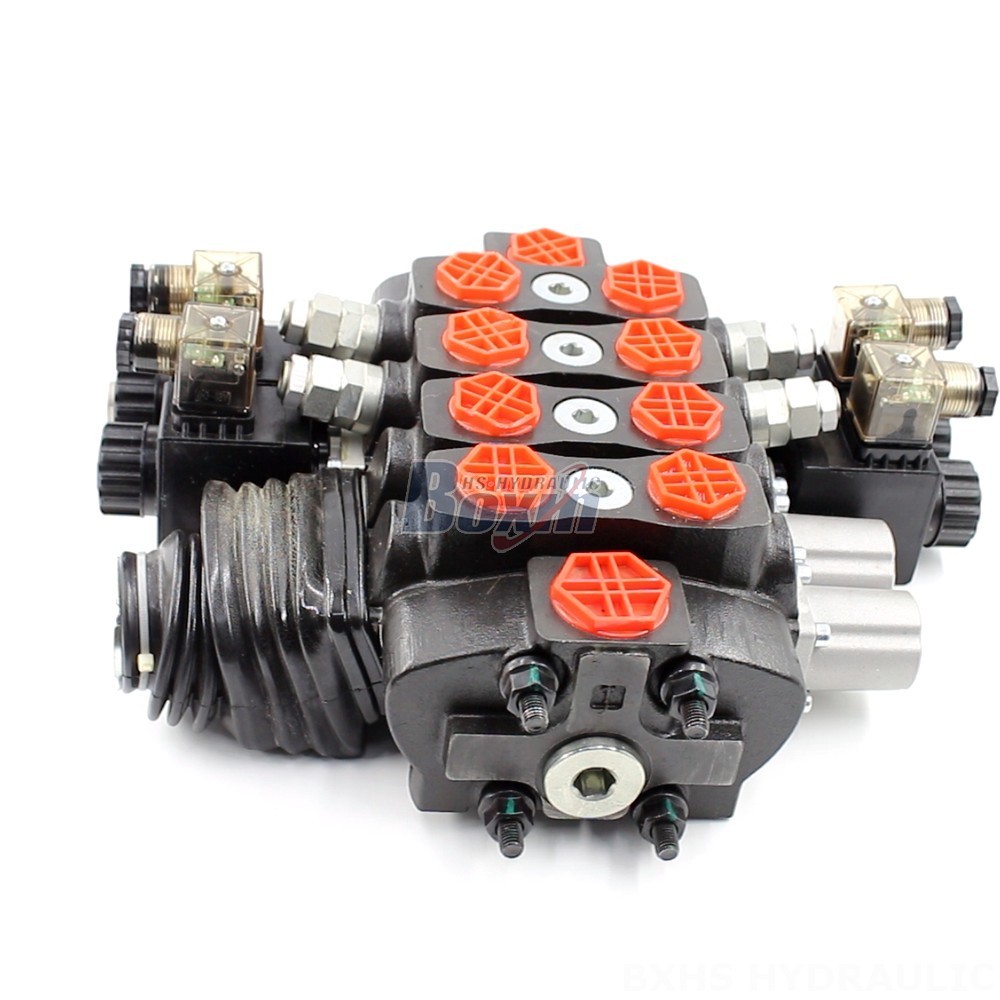

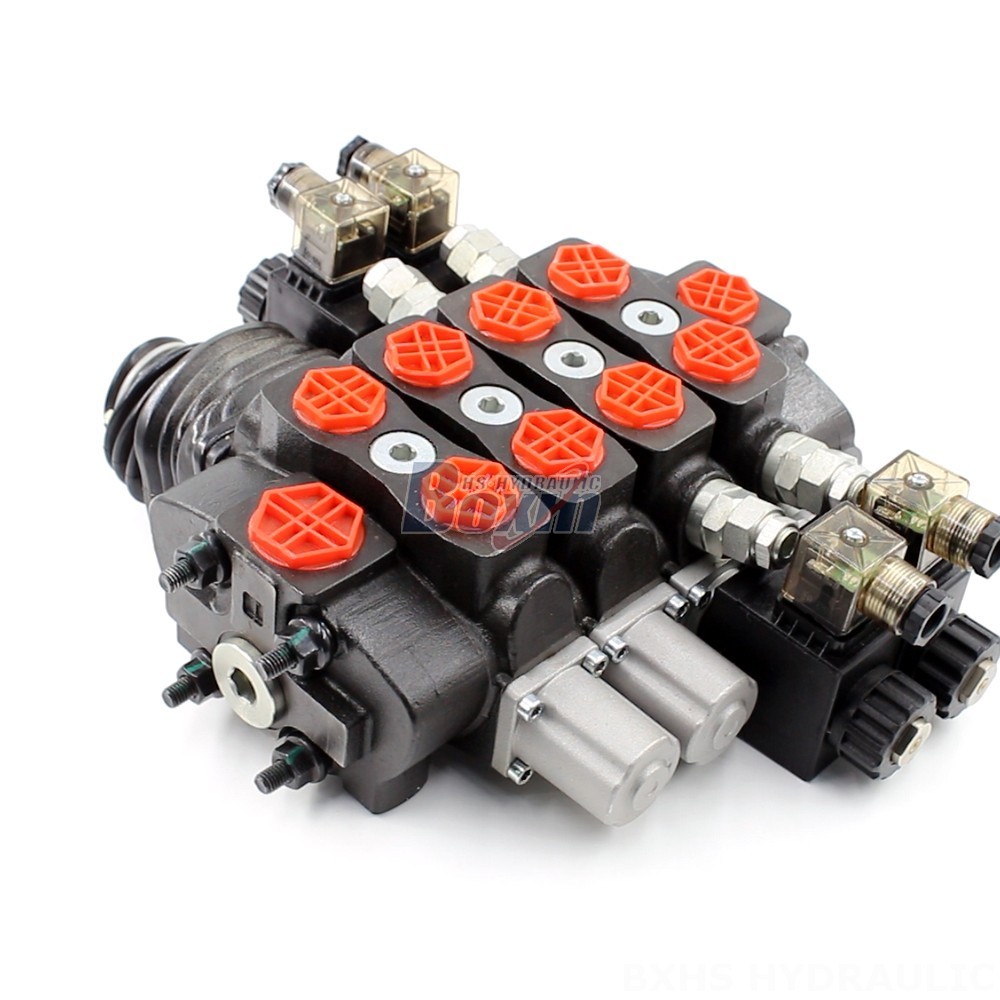

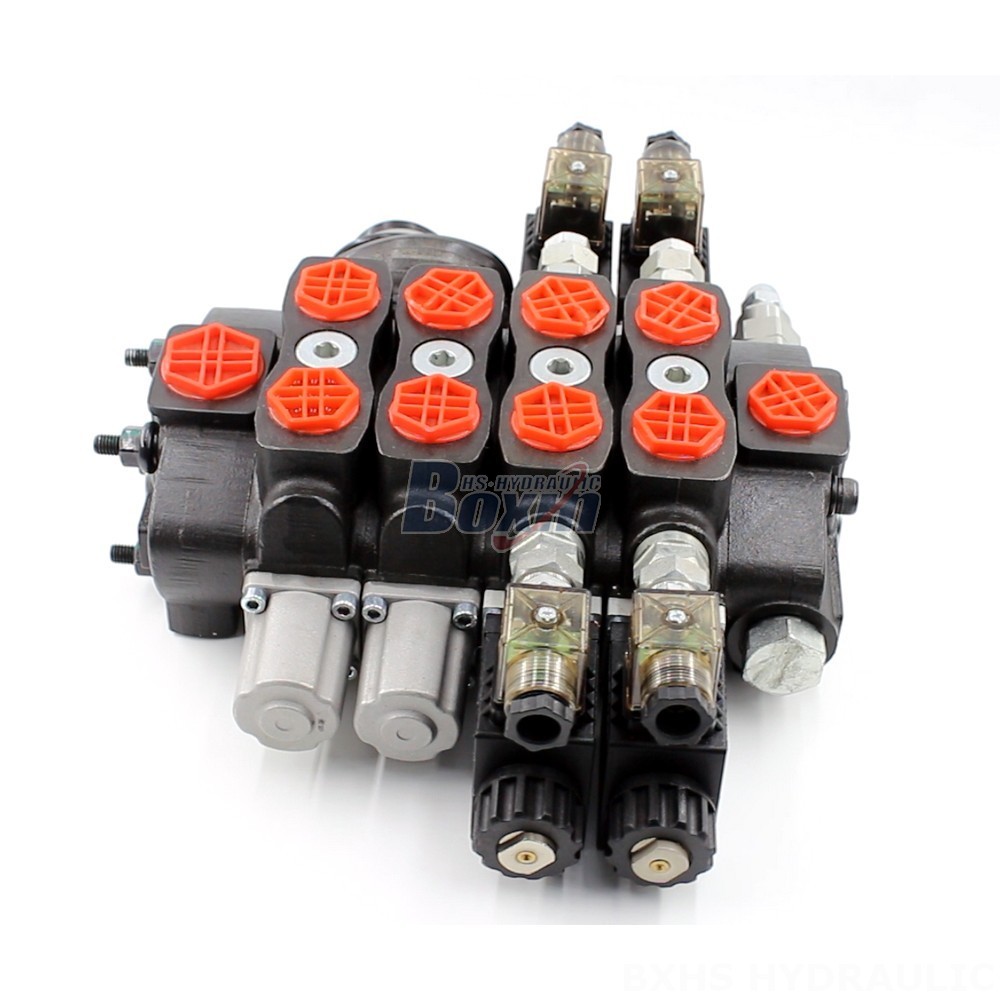

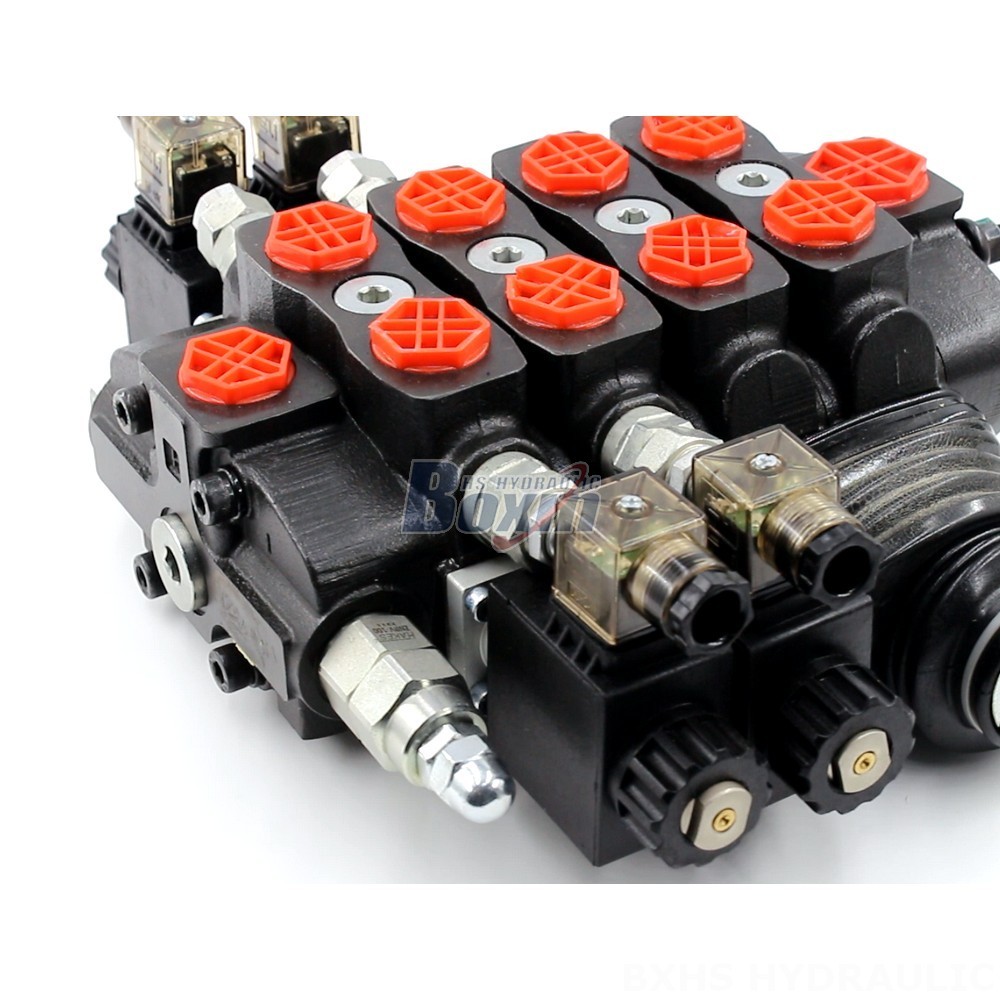

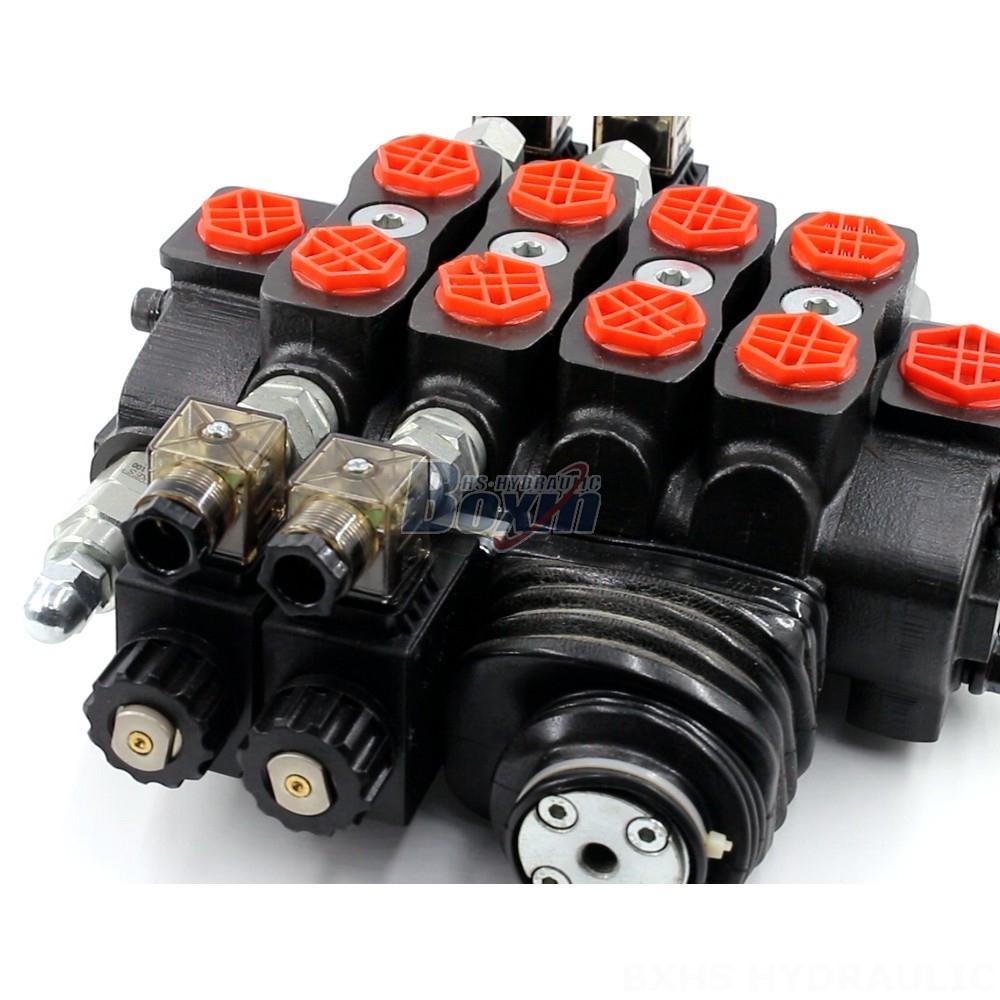

**Hydraulic System Optimization: SD8 Sectional Directional Valves**
Optimize your hydraulic system's performance and efficiency with our SD8 Sectional Directional Valves. These valves provide precise control, high flow capacity, and exceptional durability for demanding applications in various industries.
**Key Features:**
* Solenoid and joystick control for responsive and accurate operation
* Sectional design allows for customization and flexibility
* 3 section configuration for versatile control
* 90 L/min rated flow for high-volume applications
* Maximum pressure of 350 bar for robust performance
* Wide operating viscosity range (12 - 400 mm²/s) for diverse fluid compatibility
* 3 spool design for precise flow management
**Applications:**
Our SD8 Sectional Directional Valves are ideal for applications requiring precise fluid control and high flow capacity. They are commonly used in:
* Material handling equipment
* Construction and earth moving machinery
* Agricultural vehicles
* Industrial vehicles
**Applicable Models:**
These valves are suitable for various hydraulic systems, including those found in:
* Telehandlers
* Forklifts
* All-terrain cranes
* Stackers
* Aerial platforms
* Motor graders
