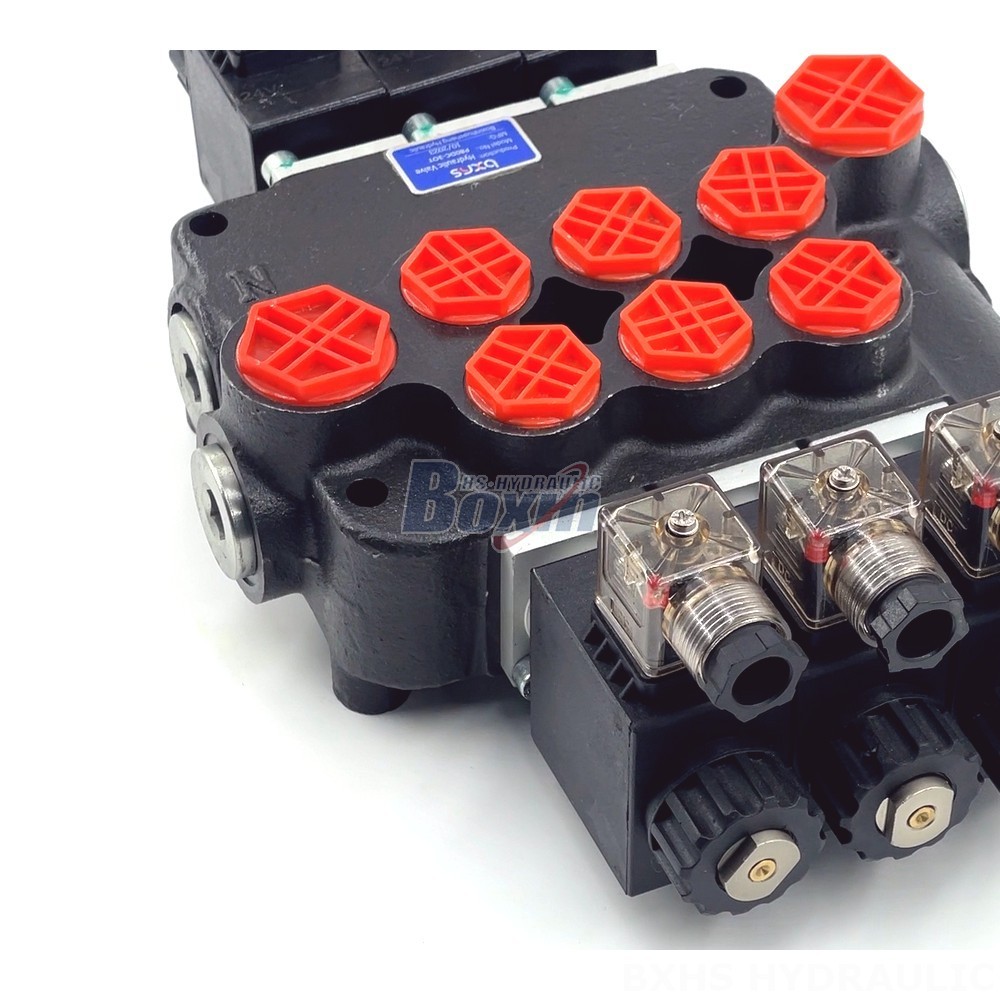

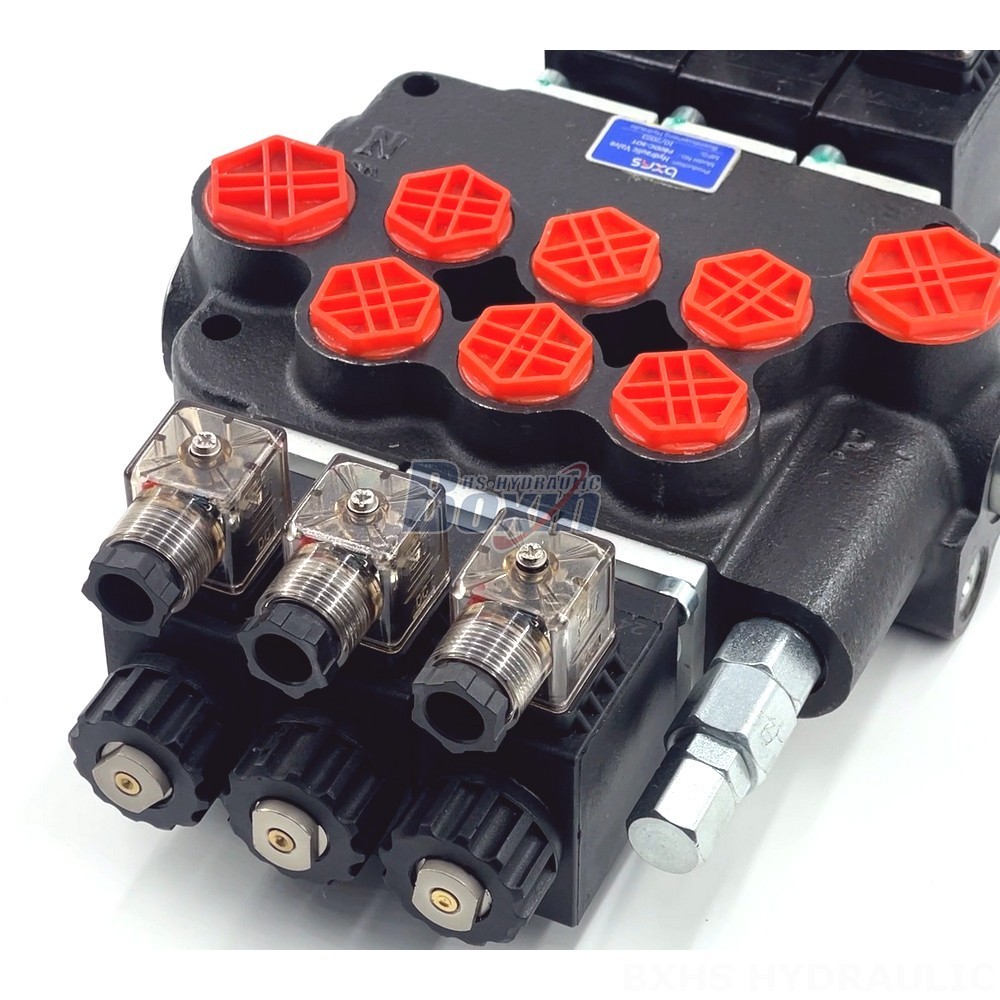

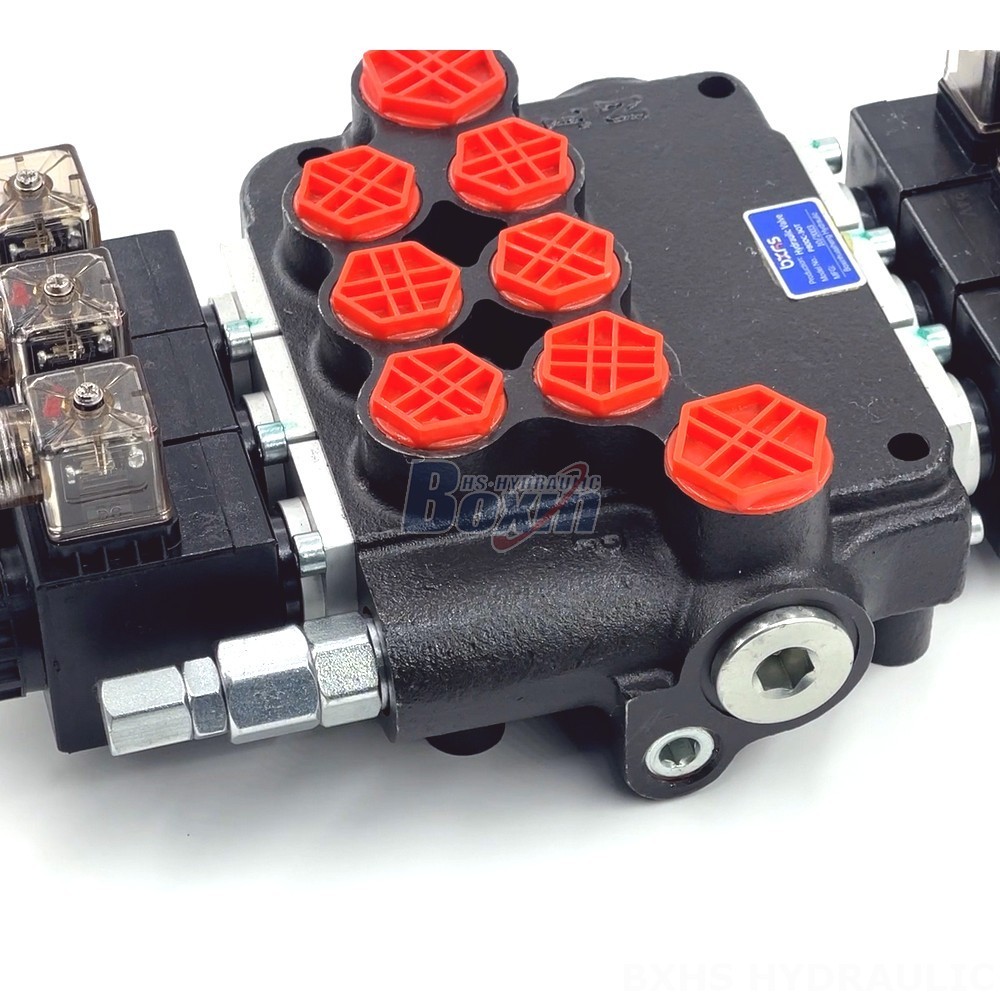

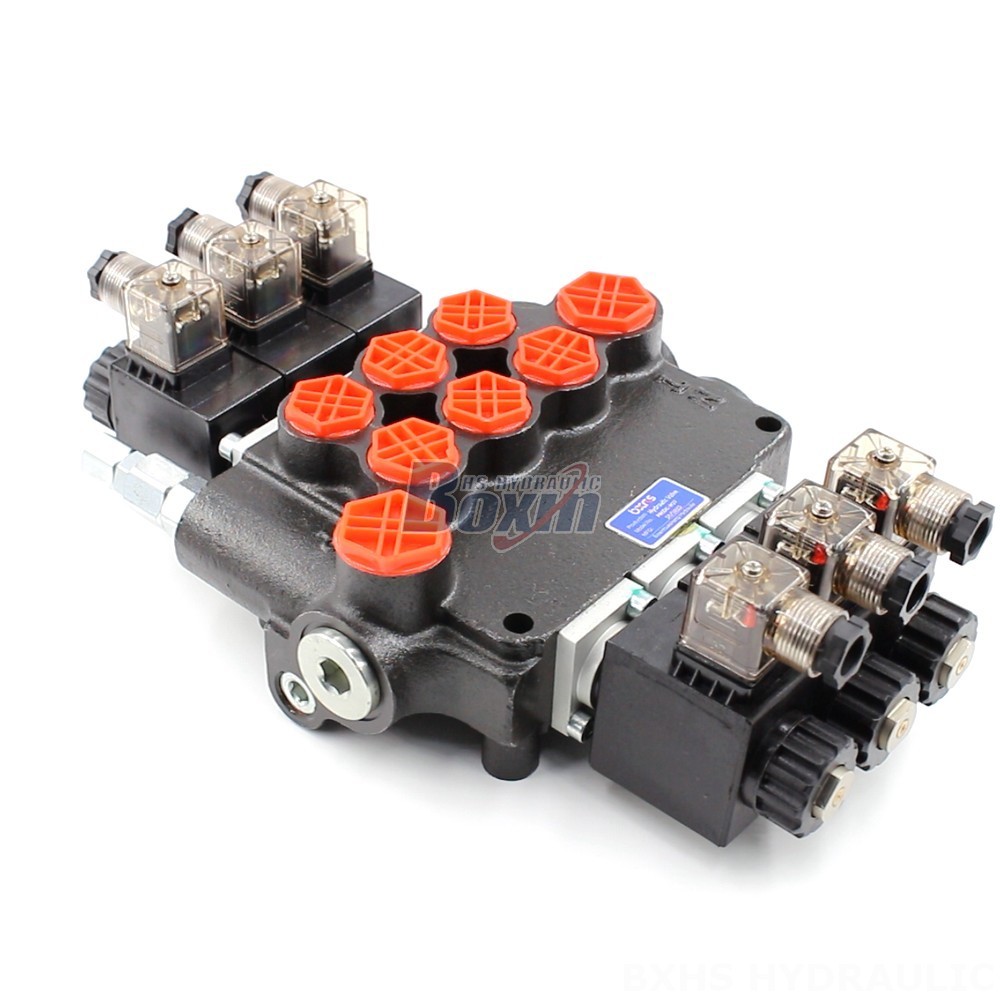

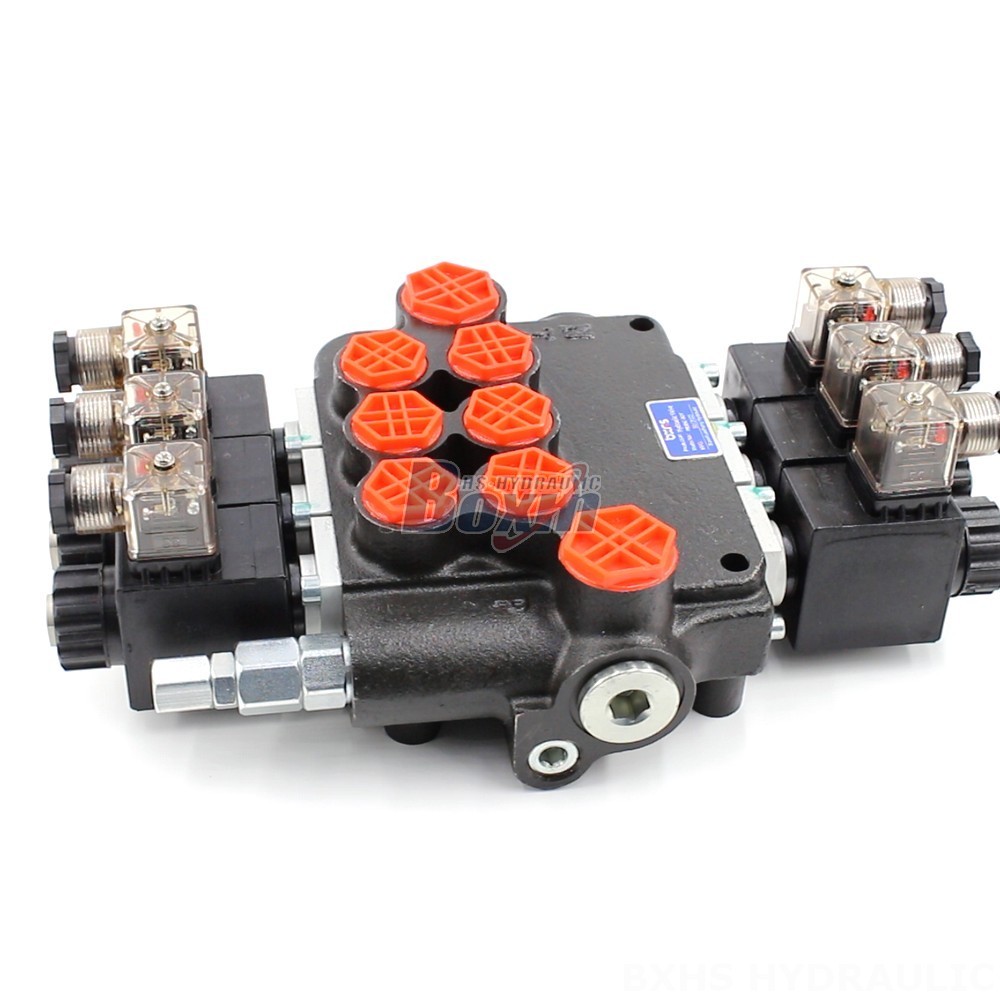

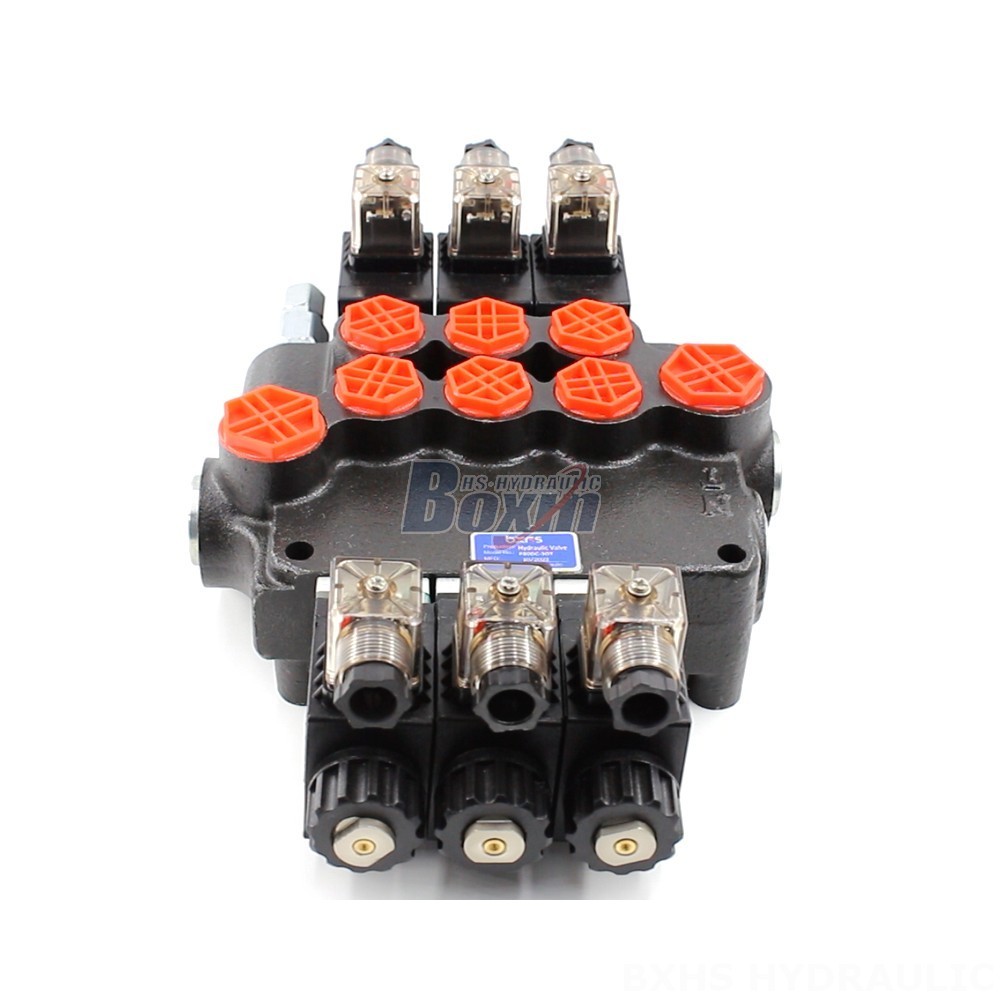

Hydraulic Solenoid Valve | P80 Model | High-Precision & Reliable

Método de control:Solenoide

Carrete:3 carretes

Flujo Nominal:80 l/min (21,2 gal EE. UU./min)

Presión Máxima:200 bar (2900 psi)

Puerto de Entrada:G3/4

Puerto de Salida:G3/4

Tamaño de Puerto:G1/2

Marca:BXHS

Tipo de producto:Válvula Direccional Monobloque

Serie de productos:Serie P80 Válvula Direccional Monobloque

Tamaño del embalaje:33*28*13

Peso bruto:13.00 kg

Disponibilidad: En stock

1045 personas están viendo este producto

Hydraulic Solenoid Valve | P80 Model | High-Precision & Reliable

Hydraulic Solenoid Valve | P80 Model | High-Precision & Reliable

Hydraulic Solenoid Valve | P80 Model | High-Precision & Reliable drawing image

The P80 series two-way hydraulic control valve is a high-precision and reliable solenoid valve, designed for use in material handling, construction, agriculture, and industrial vehicle applications. It features a monoblock structure, 3 sections, and a rated flow of 80 L/min. The valve is built to withstand pressures up to 250 bar and operates in a wide viscosity range.

Serie P80 Válvula Direccional Monobloque Parámetros
Método de control Manual, Neumático, Electoneumático, Electrohidráulico, Solenoide, Hidráulico, Hidráulico y Manual, Cable, Joystick, Manual y joystick
Carrete 1 carrete, 2 carretes, 3 carretes, 4 carretes, 5 carretes, 6 carretes, 7 carretes
Rango de temperatura ambiente -40 °C a +80 °C (-40 °F a +176 °F)
Tipo de estructura Válvulas monobloc
Sección 1 sección, 2 secciones, 3 secciones, 4 secciones, 5 secciones, 6 secciones, 7 secciones
Rango de viscosidad de funcionamiento 15 - 75 mm²/s (15 cSt a 75 cSt)
Flujo Nominal 80 l/min (21,2 gal EE. UU./min)
Presión Máxima 315 bar (4600 psi)
Puerto de Entrada G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT
Puerto de Salida G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT
Tamaño de Puerto G1/2, G3/4, M22×1.5, M27×2.0, SAE 10, 1/2 NPT, 3/4 NPT

The P80 series two-way hydraulic control valve is a high-performance solenoid valve designed for demanding applications in material handling, construction, agriculture, and industrial vehicles. This valve offers a reliable and precise control of hydraulic fluid flow, making it ideal for a wide range of machines, including telehandlers, forklifts, cranes, stackers, aerial platforms, motor graders, excavators, skid steer loaders, and compact wheel loaders. The valve's monoblock structure ensures durability and a long service life. With a rated flow of 80 L/min and a maximum pressure rating of 250 bar, it provides efficient hydraulic operation. The valve's 3 sections and 3 spools allow for versatile control functions. Operating in a wide viscosity range, the P80 series valve delivers consistent performance across various working conditions.
